Old 08-18-2012, 11:50 PM   #41
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I like the look, any problems thats why I have a sandblaster and access to powdercoating!
FowlerMotorsports is offline   Reply With Quote
Old 08-19-2012, 07:55 PM   #42
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

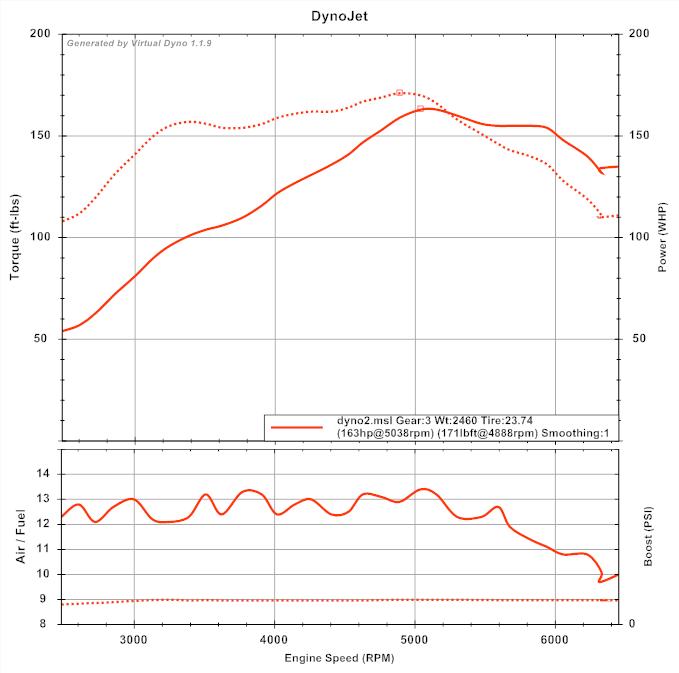

Did a virtual dyno today in 3rd gear just for the hell of it. Running at 7psi does this look right? Specs in my sig

Attached Thumbnails
Fowler's turbo build-dyno.jpg
FowlerMotorsports is offline   Reply With Quote
Old 08-19-2012, 09:28 PM   #43
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Are you dropping boost, or maybe spiking before you level out? WHP dives towards redline, no reason it shouldn't be climbing all the way to redline with your setup.
Fireindc is offline   Reply With Quote
Old 08-19-2012, 09:31 PM   #44
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I think I may be spiking out, boost gauge reads 7psi until I shift gears. The car seems to rev fine til 7000rpms then bogs a little bit, I am still under the learning phase of tuning.
FowlerMotorsports is offline   Reply With Quote
Old 08-19-2012, 10:56 PM   #45
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Your fuel tune definitely needs work. I think your drop-off in HP is coming from going super-rich at the end (below 10:1). I'm home now. Let's try to get together and get that fuel sorted out. It's darn easy.

That said, torque is looking good for 7psi (170 ft-lbs). Your HP will pick right up when we level out your AFR.
hornetball is online now   Reply With Quote
Old 08-19-2012, 11:11 PM   #46
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

That was my main thought. The AFR does look a bit wobbly and where my HP drops is right when I get rich as you stated.

Car pulls very well, I will give you a shot in the drivers seat if you're interested. You don't notice any power loss after 5k when driving, but maybe I will notice a change once a few tables are fixed. Your house is right down the road from my work, I will swing by when you're available one night or even this weekend.
FowlerMotorsports is offline   Reply With Quote
Old 08-20-2012, 12:07 AM   #47
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I'm jelly of the nickel 6uls, or any 6ul at that...

Fowler, could you please upload your tune? I'd like to check something out
buffon01 is online now   Reply With Quote
Old 08-20-2012, 03:48 AM   #48
Junior Member

Join Date: Aug 2012
Posts: 417
Total Cats: 53
Default

where is your boost measured? before or after the intercooler?
G3ML1NGZ is offline   Reply With Quote
Old 08-20-2012, 09:45 AM   #49
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Quote:
Originally Posted by G3ML1NGZ View Post
where is your boost measured? before or after the intercooler?
It Ts off to my megasquirt, should it be routed elsewhere?

Buffon, tune is attached
Attached Files
File Type: msq CurrentTune.msq (90.4 KB, 85 views)
FowlerMotorsports is offline   Reply With Quote
Old 08-20-2012, 09:51 AM   #50
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Is that with the basemap I included or did you do any autotuning? Nice to see it run!
Reverant is offline   Reply With Quote
Old 08-20-2012, 10:55 AM   #51
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

It is your basemap Autotuned. I was running a little to rich so figured I would just autotune to get a decent tune going
FowlerMotorsports is offline   Reply With Quote
Old 08-20-2012, 11:01 AM   #52
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,673
Total Cats: 1,561
Default

Needs a little richness in the middle and a little less up top. What are your target AFRs?
sixshooter is online now   Reply With Quote
Old 08-20-2012, 11:22 AM   #53
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

You got me, i'm not sure what I should be aiming for on a FI car
FowlerMotorsports is offline   Reply With Quote
Old 08-20-2012, 02:54 PM   #54
Junior Member

Join Date: Aug 2012
Posts: 417
Total Cats: 53
Default

Quote:
Originally Posted by FowlerMotorsports View Post
It Ts off to my megasquirt, should it be routed elsewhere?

Buffon, tune is attached
I was just wondering if this might have been your problem with the drop in power up top.
https://www.miataturbo.net/diy-turbo...eed-ebc-47532/

if not then just ignore my comments
G3ML1NGZ is offline   Reply With Quote
Old 08-20-2012, 03:26 PM   #55
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Quote:
Originally Posted by FowlerMotorsports View Post
I like the look, any problems thats why I have a sandblaster and access to powdercoating!
can't powdercoat 6uls
soviet is offline   Reply With Quote
Old 08-20-2012, 03:31 PM   #56
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

then i'll paint them, i'm not worried about it
FowlerMotorsports is offline   Reply With Quote
Old 08-20-2012, 05:55 PM   #57
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Show us your MSQ and INI file.
hustler is offline   Reply With Quote
Old 08-20-2012, 06:45 PM   #58
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Quote:
Originally Posted by hustler View Post
Show us your MSQ and INI file.
Attached
Attached Files
File Type: msq CurrentTune.msq (90.4 KB, 84 views)
File Type: rar 3.3.0bR3.rar (40.1 KB, 41 views)
FowlerMotorsports is offline   Reply With Quote
Old 08-21-2012, 01:38 AM   #59
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

I'm probably the worst MS tuner on here so for gods sake don't copy my stuff cause who knows if its right, Ive just copied other peoples stuff and tweaked it to my car. Anyways with that said I noticed a couple things with your tables. Your afr table only goes to 100kpa (roughly 0 boost) and ramps like crazy ([email protected] across the board), at this rate you'll be running 12.5 cruising on the highway and low 13s at idle. Anyways, heres what my tables look like, (me on top) and heres a good thread to check out for afr tables.


For the second picture I'm comparing the fueling tables in 3d view, you can kinda see how yours looks like a canyon, the areas you've autotuned are ok but if you ever step out of a tuned area your gonna have crazy amounts of fuel


Hopefully this helps some. I dont know, hopefully somebody else can fill in with more technical knowledge on what I'm getting at.

EDIT:
Just out of curiosity do you have the .msl you used to make your virtual dyno?
Golferluke is offline   Reply With Quote
Old 08-21-2012, 04:45 AM   #60
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Check your email Justin.
Reverant is offline   Reply With Quote
