Default Good AFR target table?

What is recommend for good AFR target table... ?

G
gslender is offline   Reply With Quote
Old 11-10-2011, 08:57 AM   #2
Junior Member

Join Date: Sep 2010
Posts: 89
Total Cats: 3
Default

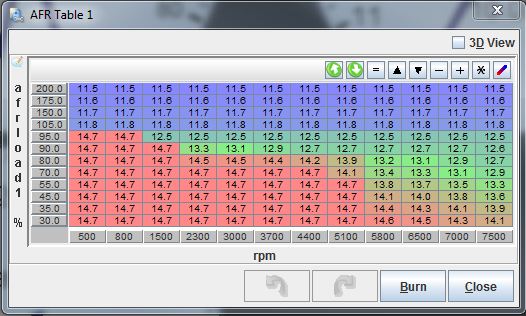

Attached Thumbnails
Good AFR target table?-afrtarget.jpg
EunosBen is offline   Reply With Quote
Old 11-10-2011, 09:22 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I'd get horrible gas mileage with those targets.
Braineack is offline   Reply With Quote
Old 11-10-2011, 09:35 AM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Holy richness!
thirdgen is offline   Reply With Quote
Old 11-10-2011, 09:41 AM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

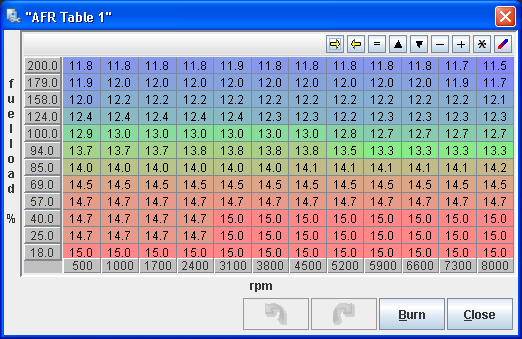

I think this is what I'm running right now. Notice how the numbers don't change too drastic like EunosBen's. This will cause smoother fueling, because when you autotune, it's not making a calculation from 14.7-11.8. It's stepping up in fuel in smaller increments. Try mine and see what happens.
Name:  afrtable.bmp
Views: 14540
Size:  519.1 KB
thirdgen is offline   Reply With Quote
Old 11-10-2011, 09:54 AM   #6
Junior Member

Join Date: Sep 2010
Posts: 89
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
I'd get horrible gas mileage with those targets.
Help me out then and post up yours!
EunosBen is offline   Reply With Quote
Old 11-10-2011, 10:02 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

It's simliar, but I go leaner in hwy cruise areas...like 15.5-16.0 and not as rich so soon, as it's too easy for me to get into positive pressure with just a little too much throttle going up hills or passing cars or what have you.
Braineack is offline   Reply With Quote
Old 11-10-2011, 10:05 AM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by thirdgen View Post
I think this is what I'm running right now. Notice how the numbers don't change too drastic like EunosBen's. This will cause smoother fueling, because when you autotune, it's not making a calculation from 14.7-11.8. It's stepping up in fuel in smaller increments. Try mine and see what happens.
Attachment 27852
Still needs much more lean in cruise....
richyvrlimited is offline   Reply With Quote
Old 11-10-2011, 10:07 AM   #9
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I get about 28 mpg after tuning on my attached target. That's just driving back and forth to work and going in boost a few times. When I drove to the Lansdale dyno day in I think it was April? I cruise controlled the turnpike at like 80mph, and I was getting around 31mpg. I bet if I cruised at 65 I'd get better.
thirdgen is offline   Reply With Quote
Old 11-10-2011, 10:08 AM   #10
Junior Member

Join Date: Sep 2010
Posts: 89
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
It's simliar, but I go leaner in hwy cruise areas...like 15.5-16.0 and not as rich so soon, as it's too easy for me to get into positive pressure with just a little too much throttle going up hills or passing cars or what have you.
Get it out for the girls lads.
EunosBen is offline   Reply With Quote
Old 11-10-2011, 10:14 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

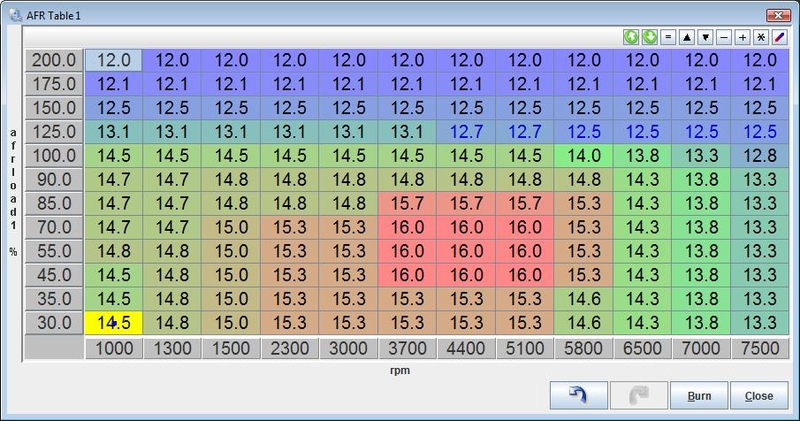

i dont have access to it right now, this is close, but it's not exactly that I use:

Attached Thumbnails
Good AFR target table?-afr-targets.jpg
Braineack is offline   Reply With Quote
Old 11-10-2011, 10:33 AM   #12
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
i dont have access to it right now, this is close, but it's not exactly that I use:

Needs more rich in boost

:-P
richyvrlimited is offline   Reply With Quote
Old 11-10-2011, 11:17 AM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

14.8 at 90kPa?

EGT gauge time.
y8s is offline   Reply With Quote
Old 11-10-2011, 11:40 AM   #14
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Currently running this with 0 problems. N/A with bolt-ons and exhintake swap though FWIW.
Attached Thumbnails
Good AFR target table?-afr-targets-ms2.jpg
Oscar is offline   Reply With Quote
Old 11-10-2011, 11:41 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
14.8 at 90kPa?

EGT gauge time.
how is that different than oe?
Braineack is offline   Reply With Quote
Old 11-10-2011, 11:44 AM   #16
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
how is that different than oe?
It's leaner AFAIK.

OEM ECU goes open loop earlier than that.
richyvrlimited is offline   Reply With Quote
Old 11-10-2011, 11:51 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

i havent had issues so whateves. but as far as I'm aware the oem ecu stays in closed loop until 4.5K
Braineack is offline   Reply With Quote
Old 11-10-2011, 12:01 PM   #18
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by Braineack View Post
i havent had issues so whateves. but as far as I'm aware the oem ecu stays in closed loop until 4.5K
Not under full load dummy. It goes open loop if you go WOT at 2500rpm. And 12-12.5:1. Stock, I've recorded as rich as 11.8:1 going slightly uphill on 4th gear. You want 12.5:1 when at ~100kPa. The load is still there.
Reverant is offline   Reply With Quote
Old 11-10-2011, 12:03 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

im hardly at wot and 100kPa, I'm probably at 15-20% TPS.
Braineack is offline   Reply With Quote
Old 11-10-2011, 12:27 PM   #20
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Load is load though...
richyvrlimited is offline   Reply With Quote
