Old 11-10-2015, 01:24 AM   #41
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Yep, standard wastegate maxed at 12 psi. It's a tale of massive struggle trying to keep shut during spool.

Of course there's a plethora of things we can do to improve that, but a safe tune with whatever boost it wanted to develop was first on the list so we can get it out on track and begin dialing in so many of the other systems. Motec's EBC is $1500, so we will probably not go that route.
ThePass is online now   Reply With Quote
Old 11-10-2015, 01:44 AM   #42
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by ThePass View Post
Motec's EBC is $1500,
aidandj is offline   Reply With Quote
Old 11-10-2015, 02:02 AM   #43
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Yeahhh pretty much. The USB adapter we needed prior to the dyno day was $450.
ThePass is online now   Reply With Quote
Old 11-10-2015, 02:57 AM   #44
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by aidandj View Post
We're you running EBC? They said it was just wastegate, which would hinder spool.
I was on a 1bar WG spring and a home depot MBC. Even my wastegate-only pulls were much better. Furthermore, why is it struggling to build 12psi? Torque curve suggests you aren't seeing 12psi until nearly 5000rpm, from a 2871R? On a 2.3L motor? Huh?
Savington is online now   Reply With Quote
Old 11-10-2015, 02:59 AM   #45
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

And a simple ball/spring MBC is very likely what we'll add soon. Not sure if we will do it before first track outing, depends on how much dyno time we have available next week.
ThePass is online now   Reply With Quote
Old 11-10-2015, 12:27 PM   #46
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

MBC won't alter spool substantially. Even EBC is only worth a few hundred RPM at best. My money is on that motor having a monster set of cams. Ryan, do you know the cam specs on that motor?
Savington is online now   Reply With Quote
Old 11-10-2015, 12:41 PM   #47
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

I don't and that could very well be the case. The cams date back from when the motor was naturally aspirated, the only change made back when it was rebuilt for boost AFAIK was the drop in compression ratio.
ThePass is online now   Reply With Quote
Old 11-10-2015, 12:49 PM   #48
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

If its a really light wastegate spring then EBC will alter it by quite a bit. Imagine a 6psi spring that creeps up to 12psi. You turn that creep into spool and suddenly you have a couple k's of spool.

Now I don't think thats the case here because I bet it has an EWG and i doubt its creeping.

Cams sound plausible. Does it sound cammed?
aidandj is offline   Reply With Quote
Old 11-10-2015, 12:50 PM   #49
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Internal wastegate on the GT2871

The motor is a gem. The turbo kit is an old Bell kit. 'nuff said.
ThePass is online now   Reply With Quote
Old 11-10-2015, 12:52 PM   #50
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by ThePass View Post
I don't and that could very well be the case. The cams date back from when the motor was naturally aspirated, the only change made back when it was rebuilt for boost AFAIK was the drop in compression ratio.
I bet a set of OEM cams and another 4-6psi will pull the torque curve back about 1500rpm without hurting top-end power at all.
Savington is online now   Reply With Quote
Old 11-10-2015, 01:52 PM   #51
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by ThePass View Post
Yep, standard wastegate maxed at 12 psi. It's a tale of massive struggle trying to keep shut during spool.

Of course there's a plethora of things we can do to improve that, but a safe tune with whatever boost it wanted to develop was first on the list so we can get it out on track and begin dialing in so many of the other systems. Motec's EBC is $1500, so we will probably not go that route.
wait till you see how much the ABS costs
OGRacing is offline   Reply With Quote
Old 11-10-2015, 02:24 PM   #52
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Is there too much valve overlap since it was na to start with?
2manyhobyz is offline   Reply With Quote
Old 11-25-2015, 03:07 PM   #53
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

With track time coming up fast, still on the list was to give the car some fresh new colors.

We went with a dark gray metallic. I like how the yellow in the interior pops where you can see it against the gray, and it's a little less in-your-face than having the whole car yellow.



We had a sunny day in the mid 80's out at Chuckwalla Valley Raceway for testing. Sean brought out his NA as well:



Lots of great initial impressions from the test day and we're starting to get many elements dialed in now. We ended up blowing the weak NC1 transmission, but not before we made good progress and all of the data and sector times are pointing towards us having a very capable machine in the works here. We'll be putting a stronger NC2 6 speed in shortly.



Eating Porsches, Corvettes, etc. for breakfast on the straights:

ThePass is online now   Reply With Quote
Old 11-25-2015, 03:19 PM   #54
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 744
Total Cats: 46
Default

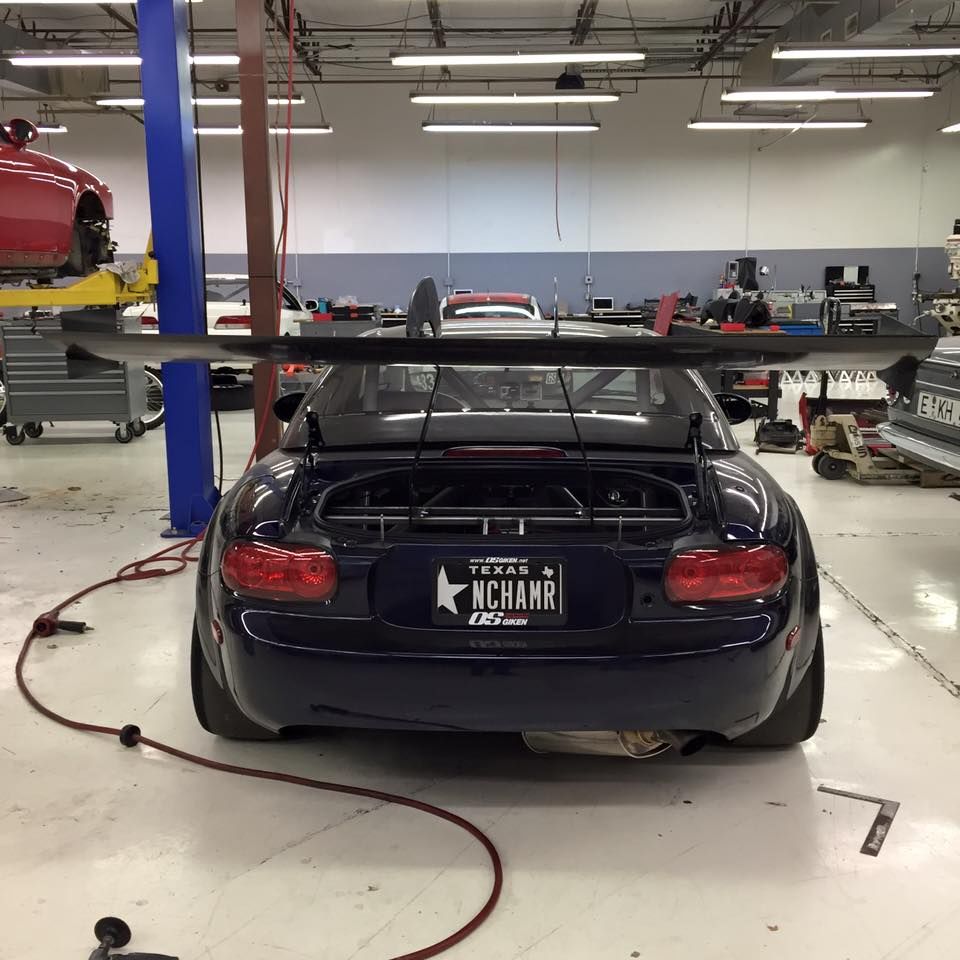

I'm sure you guys have seen this similarly awesome NC build: https://www.facebook.com/TXTrackNC/?fref=ts


Attached Thumbnails
Goodwin Racing Turbo NC Gets Resurrected-80-12079047_1217851708229341_6839973033525849570_n_0cf17c12bbb0b6355a8b69fd5a2b7a8399fad4e6.jpg
dcamp2 is offline   Reply With Quote
Old 11-25-2015, 03:23 PM   #55
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

Quote:
Originally Posted by dcamp2 View Post
I'm sure you guys have seen this similarly awesome NC build: https://www.facebook.com/TXTrackNC/?fref=ts


That car and this car are making me want to build an NC so badly!

The purple NC was built by one of the guys at CJ Wilson racing I think?
OneTwo is online now   Reply With Quote
Old 11-25-2015, 03:58 PM   #56
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 744
Total Cats: 46
Default

Quote:
Originally Posted by OneTwo View Post
That car and this car are making me want to build an NC so badly!

The purple NC was built by one of the guys at CJ Wilson racing I think?

Yeah I think so. It's SOOOO Dialed. I too want a NC after seeing these builds.


@thepass what kinda laptimes at chuckwalla? Just curious, this thing must haul ***!
dcamp2 is offline   Reply With Quote
Old 11-25-2015, 04:21 PM   #57
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Yep, he has a build thread on our GWR forums too

No full laps yet, just sector times, data collection and tuning/tweaking.
ThePass is online now   Reply With Quote
Old 11-28-2015, 10:33 PM   #58
Junior Member

Join Date: Oct 2015
Location: Indianapolis, IN
Posts: 89
Total Cats: 0
Default

So much awesome.
dohc5spd2dr is offline   Reply With Quote
