Old 03-22-2014, 05:53 PM   #121
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Once you wear out the Rivals, move on to stickier rubber. Hoosiers are massive overkill and unnecessary wallet poundage for yours & mine joe schmo purposes but I really like the Toyo RR's I'm running now.
Mobius is offline   Reply With Quote
Old 03-22-2014, 08:06 PM   #122
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Yeah, if I've learned nothing else, I've learned traction is king and the speeds on the straights (and, ultimately, laptimes) are determined by the speeds in the turns.

I also really like Rivals for double-duty DD/Track tires. Silver will keep them and revert to more of a DD car. Red, on the other hand. What's the next step up in the BFG lineup? R1? Have to stick with BFG, you know. Support Dad's retirement.
hornetball is offline   Reply With Quote
Old 03-23-2014, 12:09 AM   #123
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Two potential track cars and one driver? Tisk tisk!

Congrats on your new personal best lap time, you're looking smoother and smoother each video you upload.

The #2 cylinder sounds pretty interesting, being your problem again, which head gasket are you using Rick?

On my first NB I had a similar problem, car overheated which turned out to be the head gasket. Replaced that and a few weeks/month later it happened again. I shelled out the coin for a better gasket and had no problems til I sold it. My next problem was being addicted to the miata.
FowlerMotorsports is offline   Reply With Quote
Old 03-23-2014, 12:40 AM   #124
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Hey Justin. I've been trying to get ahold of you for some track time! Did you go to that course in Houston?

I'm just using an OEM composite head gasket with OEM head bolts (crate engine). I think it's time for ARP studs and a good MLS gasket. I'm focused on the Red car right now though.

I'm not sure it's the head gasket this time though. Pressurized crankcase and loss of compression with no other typical head gasket signs. Likely a broken ring or something like that. Fortunately, Donnie's right down the road. I'm thinking of just building up spare engines for both cars . . . like a race team, LOL.
hornetball is offline   Reply With Quote
Old 03-23-2014, 12:41 AM   #125
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

R1 is available only in 205/50 and 225/50, unfortunately. So really your only option for R1 is the 205/50 on an 8" wheel. 225/50 is going to be a tall tire. For 225/45 on 9's, your best bets are Toyo RR, Maxxis RC-1, and Nitto NT-01.

Psst - run the 205/50 Rivals on 8's as your wets, that way you still support Pop's pension while you run properly sized other rubber on your 9's as your dry tires.
Mobius is offline   Reply With Quote
Old 03-23-2014, 12:48 AM   #126
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Yeah, I just noticed that sizing. 50 is pretty darn tall, especially on an NA.

Of course, this is all daydreaming. I have two Miatas, but neither is trackworthy at the moment. I NEED to fix this issue.
hornetball is offline   Reply With Quote
Old 03-23-2014, 02:50 PM   #127
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Quote:
Originally Posted by hornetball View Post
Hey Justin. I've been trying to get ahold of you for some track time! Did you go to that course in Houston?

I'm just using an OEM composite head gasket with OEM head bolts (crate engine). I think it's time for ARP studs and a good MLS gasket. I'm focused on the Red car right now though.

I'm not sure it's the head gasket this time though. Pressurized crankcase and loss of compression with no other typical head gasket signs. Likely a broken ring or something like that. Fortunately, Donnie's right down the road. I'm thinking of just building up spare engines for both cars . . . like a race team, LOL.
Unfortunately no. My long years of baseball have finally caught up with me. I have been dealing with shoulder pain for 8 months now and finally went under the knife a few weeks ago. All that saved up money went towards my surgery and recovery time. I have talked to a few people and picked up a few sponsors, so I will be traveling to go race once I am recovered. I'll see where this takes me as this is the ultimate goal of my life. My work has offered me $25 an hour to stay and the flexibility of taking time off to go race, so I think I will stick around for a while

Guess I had missed your compression test. Sure seems like a broken ring or either a floated valve. If you plan a rebuild I would invest in a better valve train, specially with the intentions of tracking it. MER might have a couple 99 long blocks sitting around, that's where I found mine. That would definitely be a better start than rebuilding the 1.6L
FowlerMotorsports is offline   Reply With Quote
Old 11-13-2014, 10:08 PM   #128
Newb

Join Date: Apr 2011
Location: Venezuela
Posts: 18
Total Cats: 0
Default

WooW insane proyect!! very impresive!


Caught my attention the purge Valve Modification for AC Idle, I thought this was done with the MSPNP unmodified.

Because the official website announced this feature is already. (for MSPNP gen1). >http://i830.photobucket.com/albums/z...nout/acpnp.jpg

Or actually say in "small letters" ??? : The AC will continue to function properly (WITHOUT PROPERLY IDLE MMUUAAAAJAJAAHAHAH )

Does not control the IAC valve or EGR?

Anyway, I'm Interested in this modification before installing my own MSPNP

But I'm scared because I see 7 wires and two diodes in the pictures and which is not the Pin J1, Pin 2x, Pin 1b, Pin 37 and 38 also the red filter connected to EGR valve is it necessary?

I'm actually a little lost and I am asking for help, maybe you can have more pictures "step by step" or any recomendation about this.

Your post it is solid and complete but it is important for me to get all the possible extra information for not to mess up 700$


Quote:
Originally Posted by hornetball View Post
I implemented the Purge Valve mod on my MSPNP last week. The basic idea (another Joe Perez concoction) is to apply power to the Purge Valve when the AC compressor is engaged. This causes a vacuum leak to increase engine speed. Because this happens right away, it helps prevent RPM drop while the normal closed loop idle controls catch up. This is pretty important to me at the moment. June 2011 was, apparently, the hottest June on record since 1980. Average high temperature in my area was ~100F with many days much hotter.

This modification can be done entirely inside the MS. The wires that are needed already exist in the stock harness. The ECU output to the AC relay is on the "L/B" line (Pin 1J on 90-93s), and the output to the Purge Valve is on the "Y/R" line (Pin 2X on 90-93s). I added a couple of diodes to my installation for safety, an isolation diode between "L/B" and "Y/R," and a flyback voltage diode from "Y/R" to ECU power on "W/R" (Pin 1B on 90-93s). Schematic is simple:

"L/B" Pin 1J---|<---"Y/R" Pin 2X--->|---"W/R" Pin1B
(where --->|--- is a 1N400X diode)

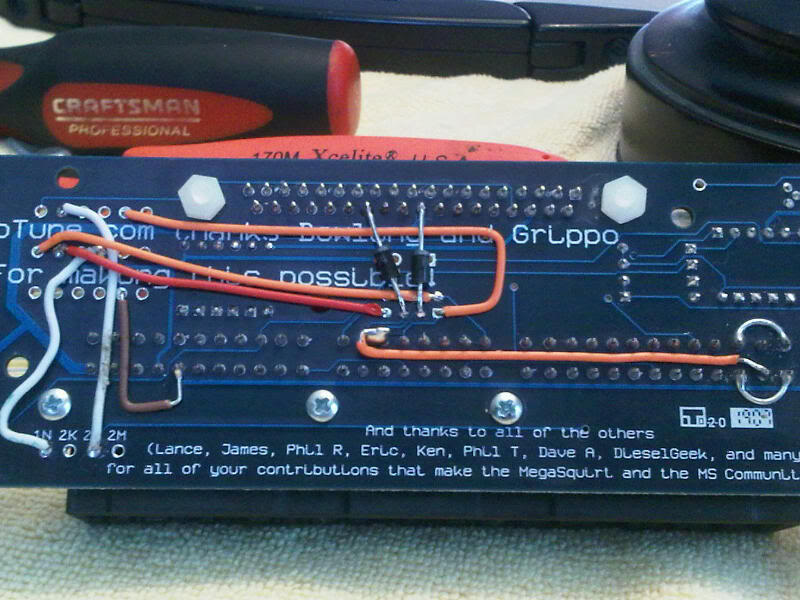

Here's a picture of my MSPNP daughter board mods:


The two diodes go from unused header pins to the 37-pin connector at pins 28 (internally connected to ECU power on Pin 1B) and 31 (connected to Pin 1J as part of an earlier spark table switching mod). In addition, a jumper line was soldered between the unused header pins and Pin 2X.

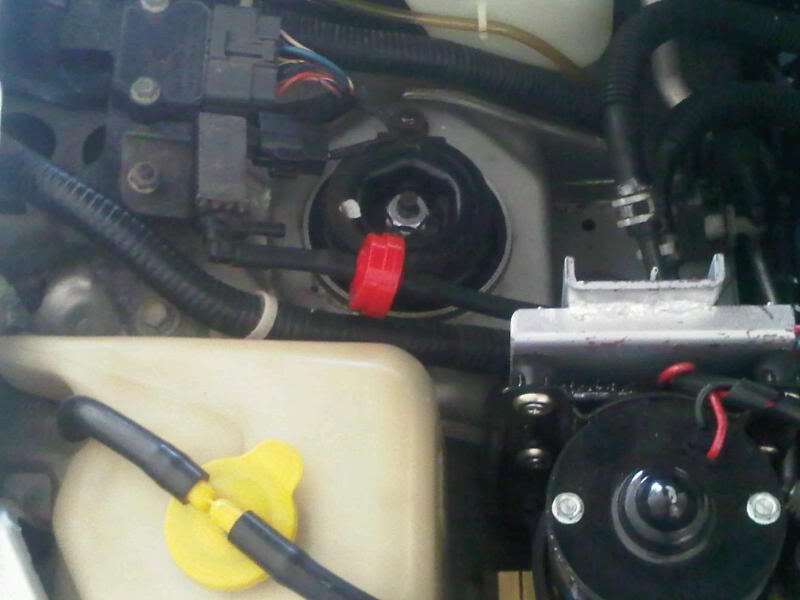

In the engine compartment, the purge valve is disconnected from the charcoal cannister. In my case, the cannister had already been removed to make way for my WI pump. The only other change was to add a small-engine inline fuel filter to filter the air from the purge valve. Here's a picture:


Bottom line on this modification is that it adds ~100-150RPM when activated. Most of the restriction comes from the length of rubber tube between the purge valve and the intake manifold. With different components, you could increase that RPM bump quite a bit, although at some point you would need to start worrying about boost leaks. Unlike the stock ECU, the MS doesn't disengage the AC at high throttle settings. If you're willing to hack the harness a bit, you could wire a TPS switch inline to perform that function.

Anyway, I'm pretty happy with the setup. Between the spark table switching (adds 8 of ignition advance when the AC relay activates) and this purge valve mod, my idle operation with AC on in the extreme TX heat has been pretty decent.

YMMV.
Attached Thumbnails
Hornetball's Build-img00258-20110703-1222.jpg   Hornetball's Build-img00261-20110704-1615.jpg   Hornetball's Build-acpnp.jpg
mx5venezuela is offline   Reply With Quote
Old 11-14-2014, 01:54 PM   #129
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by mx5venezuela View Post
Caught my attention the purge Valve Modification for AC Idle, I thought this was done with the MSPNP unmodified.

But I'm scared because I see 7 wires and two diodes in the pictures and which is not the Pin J1, Pin 2x, Pin 1b, Pin 37 and 38 also the red filter connected to EGR valve is it necessary?
First, make sure of which MSPNP you have. There are 2 generations of MSPNPs. I'm working on a first generation in this thread. The first generation has a white cover. The second generation has a black cover.

The purge valve mod was originally described here:
https://www.miataturbo.net/megasquir...t-c-faq-20954/

Don't worry about all the extra wires/diodes. I've made numerous other modifications to my MSPNP. The posted description of the purge valve mod is complete. It really is that simple.

The red filter isn't necessary, but it sure doesn't hurt to filter the air going into your engine.

In the end, the purge valve mod didn't quite get me there. I would still sometimes stall when using the AC in hot weather. I then made a code hack which resolved the issue. The code hack is described here:
https://www.miataturbo.net/megasquir...de-hack-73751/
hornetball is offline   Reply With Quote
Old 11-14-2014, 03:32 PM   #130
Newb

Join Date: Apr 2011
Location: Venezuela
Posts: 18
Total Cats: 0
Default

Thanks for the quick reply!

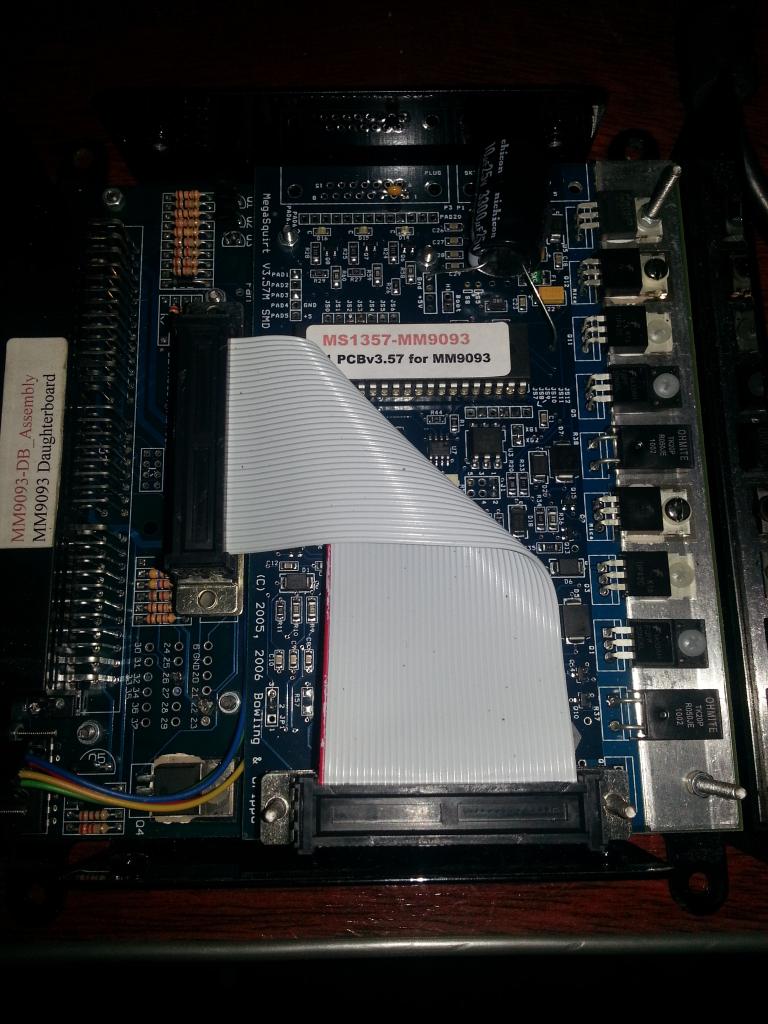

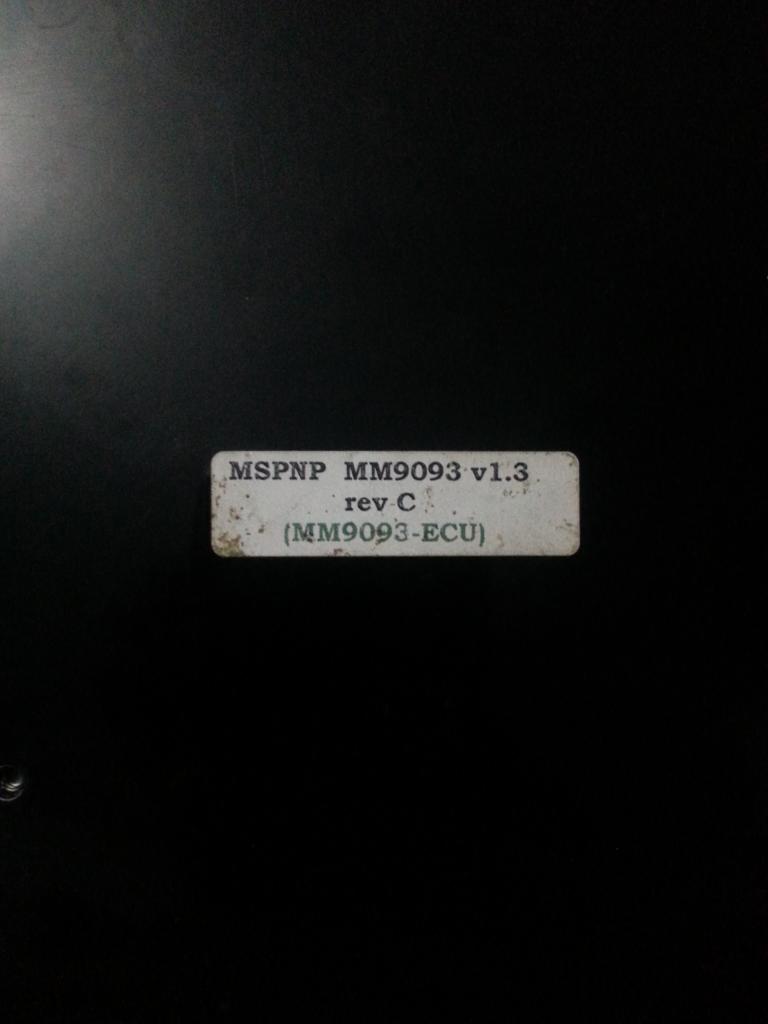

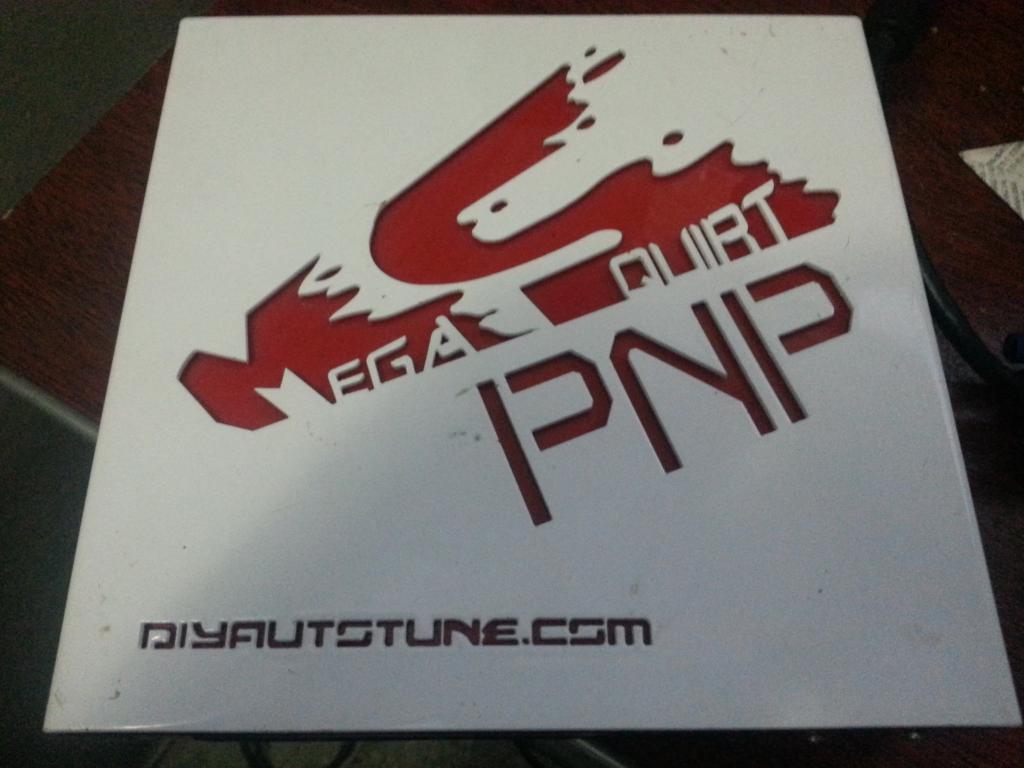

Yes I have a first Gen white cover, in fact I have already done a modification which was the variable tps.


My problem is idle dip when the compressor kicks on.

But seeing threads
Quote:
The code hack is described here:
https://www.miataturbo.net/megasquirt...de-hack-73751/
and
Quote:
The purge valve mod was originally described here:
https://www.miataturbo.net/megasquirt...t-c-faq-20954/
I think it has more relevance the code hack to solve the problem with the Idle right?
mx5venezuela is offline   Reply With Quote
Old 11-14-2014, 06:18 PM   #131
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

The code hack definitely fixes it. Are you a software engineer or do you know one? If you mess up the code loading, you'll be hating life.
hornetball is offline   Reply With Quote
Old 11-15-2014, 01:52 AM   #132
Newb

Join Date: Apr 2011
Location: Venezuela
Posts: 18
Total Cats: 0
Default

I'm actually merchant, I will take your advice to stay away from writing software...

I thought it was something more simple as loading the attachment LOL

Is the same 029V firmwere.

Is very difficult to learn to write codes ?? ahhah

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]
Attached Thumbnails
Hornetball's Build-20141115_004037.jpg   Hornetball's Build-20141115_003604.jpg   Hornetball's Build-20141115_003546.jpg
mx5venezuela is offline   Reply With Quote
Old 03-19-2015, 04:48 PM   #133
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Bump for a pretty sweet build thread! How's the water injection working? Very solid build sir!
patsmx5 is offline   Reply With Quote
Old 03-19-2015, 05:06 PM   #134
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Only problem I've had with water injection is lack of discipline on my part. It's fine for 20 minute sessions, but during a 30 minute session I run out of fluid. The warning light comes on but I ignore it because I'm having too darn much fun. After several months of doing this, I finally paid the price!

Soooo . . . dropping the fresh engine in this weekend. Adding an intercooler like I should have done in the first place (the WI does work to suppress det . . . until you run out of fluid). Now I'll have a decent intercooler (FAB9 unit) and WI. Good to go!!

Let's see which Miata is faster. Red car has set the bar at 1:25.191 and has a NASA TTD Track Record to its credit. Silver car would probably class TTC or TTB.

Last edited by hornetball; 03-19-2015 at 05:17 PM.
hornetball is offline   Reply With Quote
Old 03-19-2015, 05:11 PM   #135
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Oh now, it went boom?

You must really like working on miatas.
Fireindc is offline   Reply With Quote
Old 03-19-2015, 05:14 PM   #136
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Yes. See post #120 (https://www.miataturbo.net/build-thr...6/#post1113926). I've been having so much fun with the Red car that it's been sitting. But it's time to bring it back to life!
hornetball is offline   Reply With Quote
Old 03-19-2015, 06:16 PM   #137
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by hornetball View Post
Only problem I've had with water injection is lack of discipline on my part. It's fine for 20 minute sessions, but during a 30 minute session I run out of fluid. The warning light comes on but I ignore it because I'm having too darn much fun. After several months of doing this, I finally paid the price!

Soooo . . . dropping the fresh engine in this weekend. Adding an intercooler like I should have done in the first place (the WI does work to suppress det . . . until you run out of fluid). Now I'll have a decent intercooler (FAB9 unit) and WI. Good to go!!

Let's see which Miata is faster. Red car has set the bar at 1:25.191 and has a NASA TTD Track Record to its credit. Silver car would probably class TTC or TTB.
Well good to hear the system does what it's supposed to do (supress det). You're install looks solid. I'm actually putting WI on my miata so it's good to hear your system was working. Are you planning to install a bigger tank? I kinda bought a 5 Gal tank...
patsmx5 is offline   Reply With Quote
Old 03-20-2015, 08:49 PM   #138
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by patsmx5 View Post
Are you planning to install a bigger tank? I kinda bought a 5 Gal tank...
This is mostly a street car, and on the street the washer tank provides plenty of capacity. I'm planning to install and tune for my intercooler and just use the WI as additional protection. I'm tight under the hood and want to keep what trunk space I have.

Your 5 gallon tank will let you run a long time on track. That's a ton of capacity!
hornetball is offline   Reply With Quote
Old 03-20-2015, 09:22 PM   #139
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by hornetball View Post
This is mostly a street car, and on the street the washer tank provides plenty of capacity. I'm planning to install and tune for my intercooler and just use the WI as additional protection. I'm tight under the hood and want to keep what trunk space I have.

Your 5 gallon tank will let you run a long time on track. That's a ton of capacity!
Ah I gotcha, makes sense. Like you posted the worst part about WI is running out of water! I wanted to make sure that didn't happen easily, and I want to track the car without worrying if I'm gonna run out. Pretty sure with a 5gal tank it would be impossible to empty the water tank before i run out of fuel.
patsmx5 is offline   Reply With Quote
Old 03-21-2015, 12:12 PM   #140
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,277
Total Cats: 53
Default

Trunk space? Build a custom tank to put behind the passenger seat. Win win situation. Custom capacity and weight in a good spot. (unless your passenger has legs).
Midtenn is offline   Reply With Quote
