Old 08-31-2015, 06:32 PM   #221
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I like the pipes. Matte black is definitely in my future.
EO2K is offline   Reply With Quote
Old 09-01-2015, 05:40 AM   #222
Newb

Join Date: Sep 2014
Location: Christchurch, NZ
Posts: 27
Total Cats: 1
Default

So happy I followed those mysterious links from the EO2K thread. No idea why I hadn't read this build before.

Was having a small heart attack about how I was going to do the IC piping, but this seems very manageable.

Many thanks. Your power of suggestion seems to have worked on me, even if the target of it continues to resist.
jtsoldier is offline   Reply With Quote
Old 09-01-2015, 10:59 AM   #223
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Resistance is futile, I actually ended up ordering all the aluminum to do the job

Hornet is the man, much better at this stuff than I am.
EO2K is offline   Reply With Quote
Old 09-01-2015, 11:09 AM   #224
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by EO2K View Post
Resistance is futile
BWAAAHHHAAAHHHAAAHHHAAAHHHAAAHHHAAA!!!

Quote:
Originally Posted by EO2K View Post
Hornet is the man
Hmmmm . . . new sig quote?
hornetball is offline   Reply With Quote
Old 09-01-2015, 05:38 PM   #225
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

Your pipes are professional- look OE. Porosity or not, the expander and JB weld is a bitchin' solution to setting up and building an intercooler pipe set up. The brazing is just more work for the same result in the end. But I'm going to just the expander to connect and position the pipes. Did the same for my downpipe.
m2cupcar is offline   Reply With Quote
Old 09-01-2015, 11:57 PM   #226
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Some pictures of the final placement of the piping:

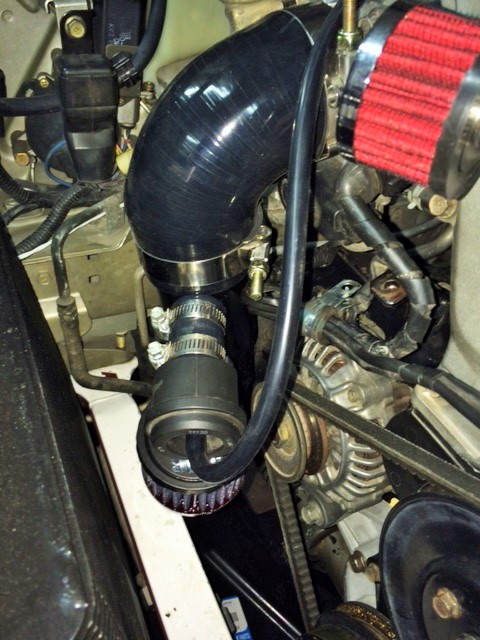

90 degree turn down at throttle body and Bosch BOV with K&N filter:

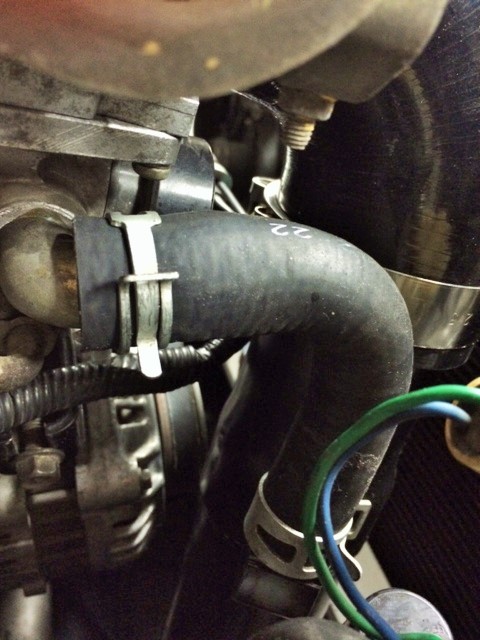

Vatozone had the perfect piece of heater hose to take care of my idle air control valve needs:

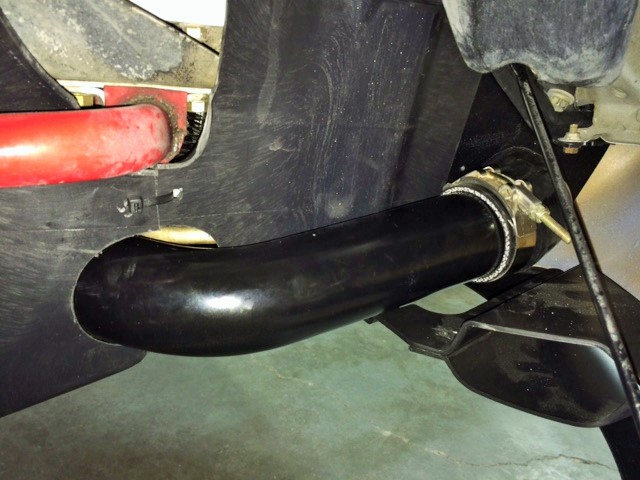

Nice tight fit of the IC pipe against the undertray giving plenty of tire clearance. I cut a slit between the sway bar opening and IC pipe opening (ala MSM) to get the undertray on and off. The slit is stitched together with a tie wrap.

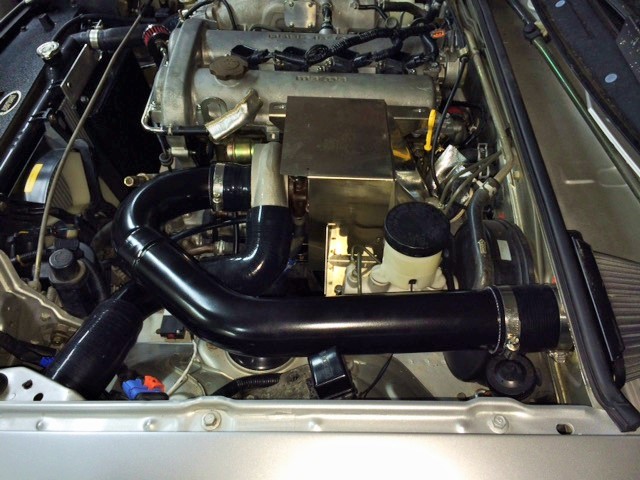

Hot side, all nice a tucked away like the car was made for it:

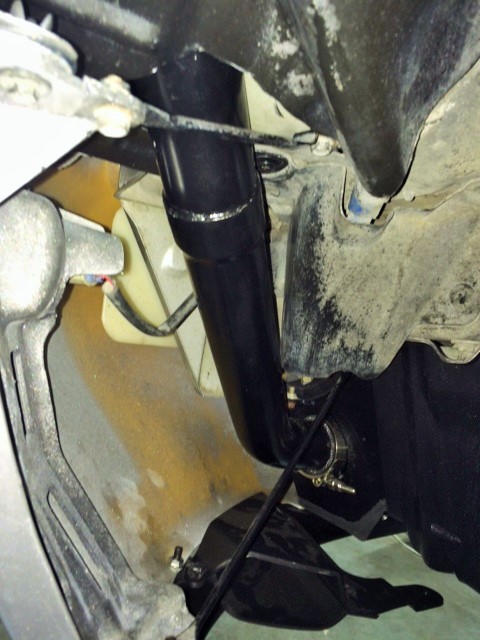

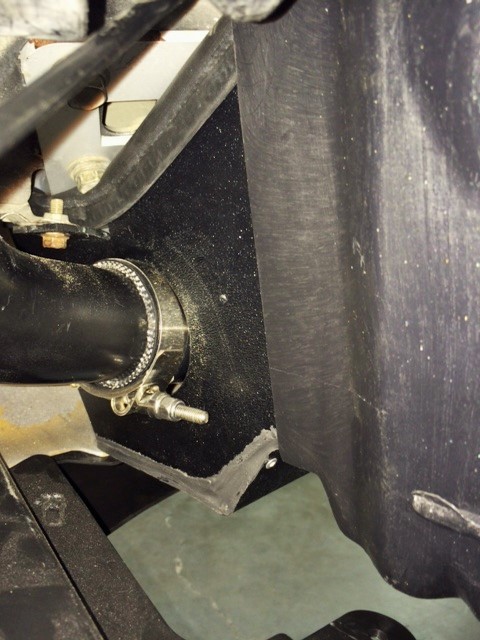

Close up of hotside at IC showing how the custom air guide fits into the OEM undertray.


I'm hopeful this setup will cool well while remaining easy to service.
Attached Thumbnails
Hornetball's Build-img_0713.jpg   Hornetball's Build-img_0715.jpg   Hornetball's Build-img_0718.jpg   Hornetball's Build-img_0722.jpg   Hornetball's Build-img_0723.jpg

hornetball is offline   Reply With Quote
Old 09-02-2015, 12:19 AM   #227
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Nice work sir, they turned out very nice.
patsmx5 is offline   Reply With Quote
Old 09-02-2015, 09:48 AM   #228
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

yep, that's well done, very professional
m2cupcar is offline   Reply With Quote
Old 09-02-2015, 12:22 PM   #229
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Thanks all. This actually turned out better than I expected.
hornetball is offline   Reply With Quote
Old 09-04-2015, 01:46 PM   #230
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

Right, just read through this and I am going to be using a lot of this info for working on my friend's 91Turbo he just bought. It is about 80% of the way there, but needs some things figured out, cleaned up and eventually a stand alone ECU (Came with a VooDoo and an MSD, which we will run for the time being with some tan tops). After seeing everything you have done with the Megasquirt 1, I think I will be reccomendeding that for when he upgrades and we can always upgrade it to the 2 or 3 later.

Also, as an engineer in training (currently working on an AAS MET) all these data and graphs make me really happy. Thank you sir for a great read and a wealth of information!

Last edited by x_25; 09-04-2015 at 02:08 PM.
x_25 is offline   Reply With Quote
Old 09-04-2015, 02:28 PM   #231
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,803
Total Cats: 494
Default

Just go with the 3x right off the bat.
Monk is offline   Reply With Quote
Old 09-04-2015, 06:59 PM   #232
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I think there's something to be said for buying an ECU in a known, recently-manufactured state that has a warranty. If you get an MS1 or early MSPNP on the used market these days, you really don't know what you're getting. Also, most users have moved on from the early MS's, so if you're looking to the community for support . . . .

The one thing I love about the MS1 is the open source code . . . even though it is pretty rough-looking assembly. But that wouldn't make any difference to 99% of users.
hornetball is offline   Reply With Quote
Old 09-04-2015, 07:00 PM   #233
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Ms3 is open source too.
aidandj is offline   Reply With Quote
Old 09-04-2015, 07:03 PM   #234
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by aidandj View Post
Ms3 is open source too.
Oh?!?

Brain posted that open source went away with MS2 and subsequent.

Hmmm . . . need to check into this.
hornetball is offline   Reply With Quote
Old 09-04-2015, 07:05 PM   #235
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Hardware is not open source, software is.
aidandj is offline   Reply With Quote
Old 09-04-2015, 07:08 PM   #236
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Assembly, or some variant of C?
hornetball is offline   Reply With Quote
Old 09-04-2015, 07:17 PM   #237
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Mostly c. A bit of assembly for some stuff
aidandj is offline   Reply With Quote
Old 09-07-2015, 11:47 PM   #238
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

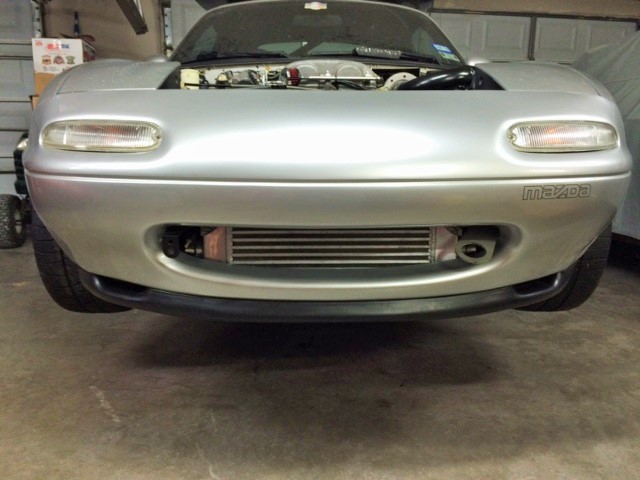

All dressed up . . .









and no place to go . . .



Thanks Greddy.

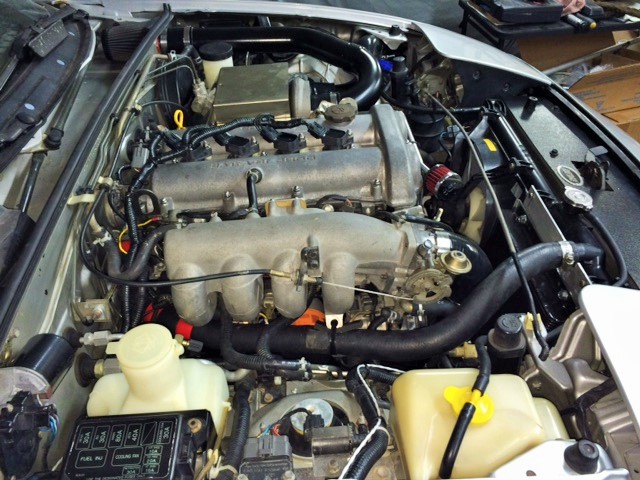

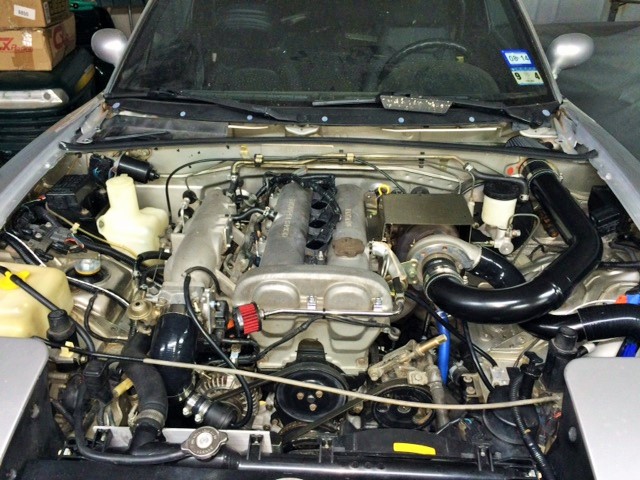

Attached Thumbnails
Hornetball's Build-img_0724.jpg   Hornetball's Build-img_0725.jpg   Hornetball's Build-img_0726.jpg   Hornetball's Build-img_0727.jpg   Hornetball's Build-img_0729.jpg

hornetball is offline   Reply With Quote
Old 09-07-2015, 11:48 PM   #239
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Well doesnt that just suck
hi_im_sean is offline   Reply With Quote
Old 09-07-2015, 11:51 PM   #240
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

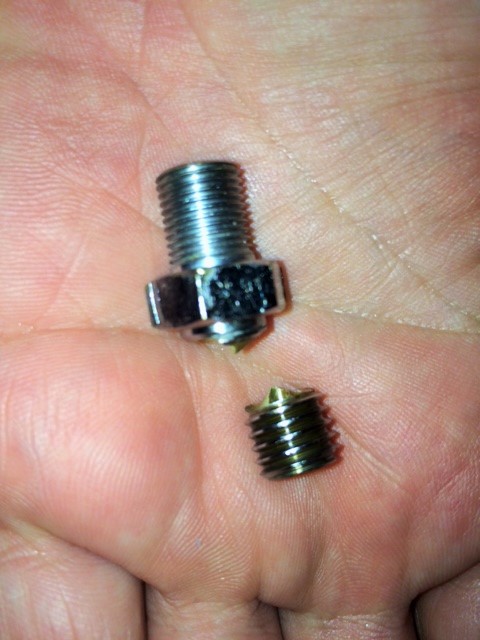

It's OK. Ordered all the stuff for a -4AN oil feed line. It was something I needed to do anyway. I'm glad it broke during assembly instead of on the road.

I think I'll be driving this thing next weekend (knock on wood).
hornetball is offline   Reply With Quote
