Old 04-02-2013, 01:04 PM   #961
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I will post-up a sub-142whp dyno on Friday after the Dynojet adjustment.
hustler is offline   Reply With Quote
Old 04-02-2013, 03:12 PM   #962
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

post up your vvt map
did you plagarize or generate?
y8s is offline   Reply With Quote
Old 04-02-2013, 03:55 PM   #963
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
post up your vvt map
did you plagarize or generate?
Generated. I wish I could get a gigantor table for better resolution. If we need the resolution anywhere, it's with VVT more than anything.
hustler is offline   Reply With Quote
Old 04-02-2013, 04:10 PM   #964
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by y8s View Post
post up your vvt map
did you plagarize or generate?
I was gonna plagiarize yours til I saw that it doesn't trigger anything til 2500. I know I saw your explanation for that in Bryces thread but it still didn't make sense to me. I want as much torque and response as soon as possible, and see no reason why you can't advance at least 500rpm sooner. (*edit: in that thread you said you "couldn't really feel any significant difference on the butt dyno with that vs advancing earlier)

Apparently hustler agree's with my logic.

I know you're smarter than us so lay down the knowledge bro. I wanna hear it.

I know on many other cars (subaru avcs, mitsu mivec, etc) everyone triggers from basically 1500-2000 and up
18psi is offline   Reply With Quote
Old 04-02-2013, 04:32 PM   #965
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by hustler View Post
I will post-up a sub-142whp dyno on Friday after the Dynojet adjustment.
Before or after the 4.2 dyno correction?
triple88a is offline   Reply With Quote
Old 04-02-2013, 06:47 PM   #966
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by 18psi View Post
I was gonna plagiarize yours til I saw that it doesn't trigger anything til 2500. I know I saw your explanation for that in Bryces thread but it still didn't make sense to me. I want as much torque and response as soon as possible, and see no reason why you can't advance at least 500rpm sooner. (*edit: in that thread you said you "couldn't really feel any significant difference on the butt dyno with that vs advancing earlier)

Apparently hustler agree's with my logic.

I know you're smarter than us so lay down the knowledge bro. I wanna hear it.

I know on many other cars (subaru avcs, mitsu mivec, etc) everyone triggers from basically 1500-2000 and up

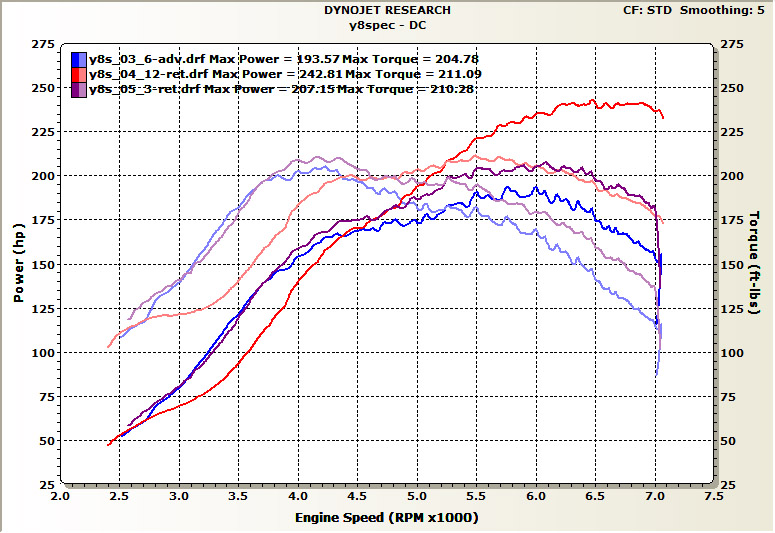

My dyno started at 2500 and all the lines were all overlapping there suggesting no gain or loss at any value. I had no further data to go on so I left it retarded. derp.

one last time:

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-vvt_range.jpg
y8s is offline   Reply With Quote
Old 04-02-2013, 06:49 PM   #967
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by hustler View Post
Generated. I wish I could get a gigantor table for better resolution. If we need the resolution anywhere, it's with VVT more than anything.
I think I disagree.

If you need something related to VVT it's a way to change the enrichment based on what the cam is doing.

we have MAP based which is OK and TPS based which is worthless with respect to VVT, but what if the rate of VE change is very fast?
y8s is offline   Reply With Quote
Old 04-02-2013, 09:16 PM   #968
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by y8s View Post
My dyno started at 2500 and all the lines were all overlapping there suggesting no gain or loss at any value. I had no further data to go on so I left it retarded. derp.

one last time:
so basically you didn't even test anything before 2500 to even know if it would work or not

k
18psi is offline   Reply With Quote
Old 04-02-2013, 09:59 PM   #969
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by hustler View Post
Generated. I wish I could get a gigantor table for better resolution. If we need the resolution anywhere, it's with VVT more than anything.
My adaptronic allows a cell map of every 250rpm up to i think 7.25k or every 300rpm up to 9k...30 cells resolution total. And 16 cells for map pressure which puts you at every 6kpa if u're only going up to 100kpa. Enough resolution to make your ***** sore. Thats 480 cells.. have fun tunning that.
triple88a is offline   Reply With Quote
Old 04-02-2013, 10:05 PM   #970
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

with next to no real need for it actually.
18psi is offline   Reply With Quote
Old 04-02-2013, 10:38 PM   #971
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I ran my car at 250 cell map resolution for a while, the main noticeable difference was at idle. It idled amazingly but was a pain in the *** to tune which is why i went to 500 again. (Wasnt me that gave u the -1 btw)
triple88a is offline   Reply With Quote
Old 04-03-2013, 09:55 AM   #972
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Can adaptronic do non linear scales? IE can you just give it 250rpm resolution in the area round idle by 500 everywhere else?
Leafy is offline   Reply With Quote
Old 04-03-2013, 10:19 AM   #973
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-idle_ve.png
Braineack is offline   Reply With Quote
Old 04-03-2013, 10:56 AM   #974
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
My dyno started at 2500 and all the lines were all overlapping there suggesting no gain or loss at any value. I had no further data to go on so I left it retarded. derp.

one last time:

My goal was to eliminate bucking at that RPM range. I succeeded.

Quote:
Originally Posted by y8s View Post
I think I disagree.

If you need something related to VVT it's a way to change the enrichment based on what the cam is doing.

we have MAP based which is OK and TPS based which is worthless with respect to VVT, but what if the rate of VE change is very fast?
I'm talking about absolute power above 5000rpm. I did not have enough resolution to determine I was on the limit, all the time, I needed more break points. I think of "enrichment" as fuel flow, not air flow since I don't have a pump injecting air. Well, I had one at one time but in this era of "shared sacrifice" I cannot haz turbo.
Quote:
Originally Posted by 18psi View Post
so basically you didn't even test anything before 2500 to even know if it would work or not

k
lol
Quote:
Originally Posted by triple88a View Post
Enough resolution to make your ***** sore.

Quote:
Originally Posted by Braineack View Post
Mind status:
Fully blown.
hustler is offline   Reply With Quote
Old 04-03-2013, 11:04 AM   #975
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by triple88a View Post
Before or after the 4.2 dyno correction?
The dynojet number.
hustler is offline   Reply With Quote
Old 04-03-2013, 11:18 AM   #976
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Leafy View Post
Can adaptronic do non linear scales? IE can you just give it 250rpm resolution in the area round idle by 500 everywhere else?
Sadly no, i wish you could set high resolution at idle and 500 rpm everywhere else but nope, either 250 everywhere or 300 everywhere or 500 everywhere. And it also has 200rpm for low revving motors.

Quote:
Originally Posted by hustler View Post
The dynojet number.
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-1282645029_garfield-dont-deal-.gif
triple88a is offline   Reply With Quote
Old 04-03-2013, 01:04 PM   #977
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by hustler View Post
My goal was to eliminate bucking at that RPM range. I succeeded.


I'm talking about absolute power above 5000rpm. I did not have enough resolution to determine I was on the limit, all the time, I needed more break points. I think of "enrichment" as fuel flow, not air flow since I don't have a pump injecting air. Well, I had one at one time but in this era of "shared sacrifice" I cannot haz turbo.
your motor is the air pump.... you're changing how the air gets in when you change the cam timing. changing airflow directly affects AFR, doesn't it?

Anyway, I was having big constant issues with advancing the cam too fast and getting a lean spike because of it.

EAE might help but I doubt it because MAP is read before the valves.
y8s is offline   Reply With Quote
Old 04-03-2013, 01:14 PM   #978
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
your motor is the air pump.... you're changing how the air gets in when you change the cam timing. changing airflow directly affects AFR, doesn't it?

Anyway, I was having big constant issues with advancing the cam too fast and getting a lean spike because of it.

EAE might help but I doubt it because MAP is read before the valves.
We're talking about opposite ends of the RPM spectrum at this point.
hustler is offline   Reply With Quote
Old 04-05-2013, 12:11 AM   #979
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Car is now balanced but I failed to do the alignment properly. I got three wheels done just fine but the left rear could not get any tow-in with the camber numbers.
hustler is offline   Reply With Quote
Old 04-06-2013, 01:10 AM   #980
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have a 138whp dyno for you guys in the next couple days. I I have to go back because we didn't have ASE correction on, some other formula so I spent an hour adjusting to a number that was reading higher than the SAE number. God damnit.

BTW, max power for my car is 148whp. Not bad for an OEM VVT car with a conservative, 91-octane tune.
