Old 03-06-2014, 03:53 PM   #21
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Brand new MSM clutch from Rosenthal is $314.66.

Bet you could find it a bit cheaper if you shop around, or if you have access to Mazda Motorsports program.

Part #s:

BP1216410 - pressure plate
BP1216460 - disc


Alternatively, vteckiller2000 will be pulling the clutch out of our old MSM soon. It's got about 30k on it, max. I bet he'd give it to you for cheap.
concealer404 is online now   Reply With Quote
Old 03-06-2014, 04:19 PM   #22
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by Tekel View Post
I'm either going with a used MSM or 949 SuperMiata organic sport clutch. Don't really have $300 for a clutch, but do I dare pull the motor and everything to install a used part?
Quote:
Originally Posted by concealer404 View Post
Brand new MSM clutch from Rosenthal is $314.66.


Quote:
Originally Posted by concealer404 View Post
Alternatively, vteckiller2000 will be pulling the clutch out of our old MSM soon. It's got about 30k on it, max. I bet he'd give it to you for cheap.
This is the used clutch previously referenced above that I am contemplating purchasing.
Attached Thumbnails
I have no idea what I'm doing!-tumblr_ls2pp62bxi1qggi0a.jpg
Tekel is offline   Reply With Quote
Old 03-06-2014, 04:21 PM   #23
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Don't hate me just because i'm dumb.
concealer404 is online now   Reply With Quote
Old 03-10-2014, 08:27 AM   #24
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Small progress. Last pieces needed before install are all the hoses/fittings for oil etc. and my clutch still. My DD broke down so I believe that has zapped my funds for both of those. I guess i'm back in waiting mode.

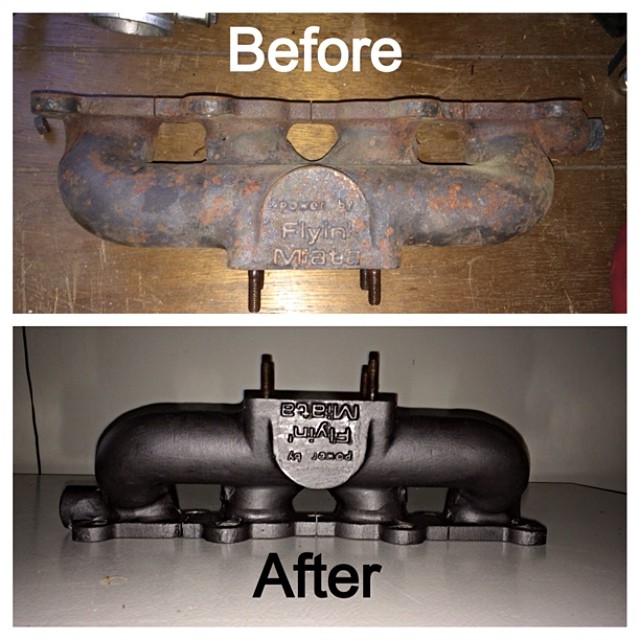

Spent part of Sunday refinishing my manifold and took a closer look at all my parts.

Used por15 Manifold paint. Says it is good up to 1500F. We will see. I stripped it down taking off any loose rust, used por15 marine clean then metal prep. The metal prep stuff is great, it changes rust, from being rust.

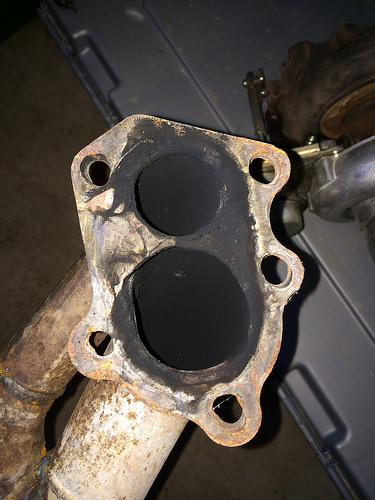

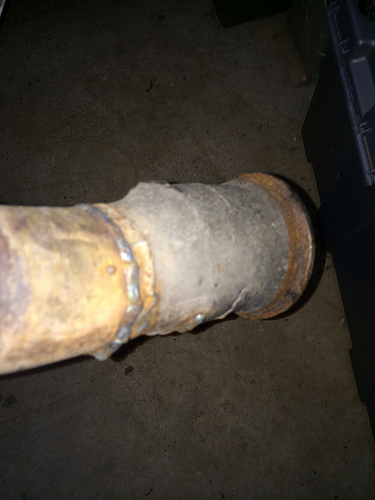

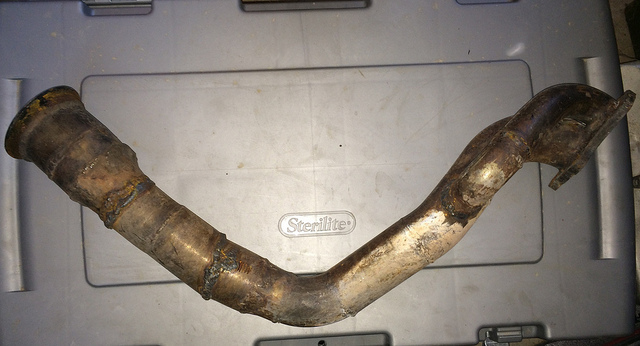

My beautiful downpipe. I also have some exhaust paint coming I plan on using on this thing. I didn't make it. It came as part of a packaged deal. I will use it for a season or so, until I can afford nicer.




'

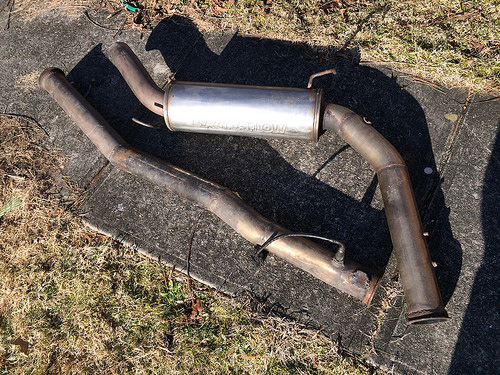

My exhaust

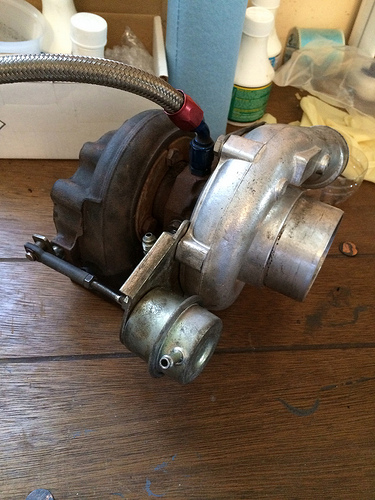

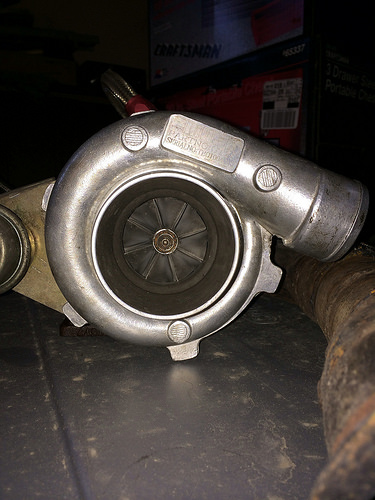

Turbo. It is a Chinese version of a gt28. It is also not the pretties, but I don't plan on refinishing it. I hope to replace it and the dp as soon as possible.

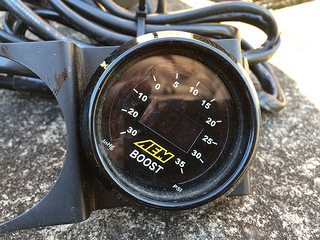

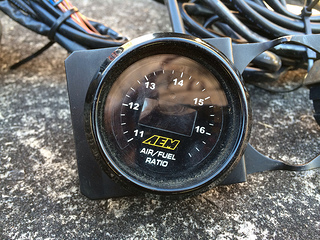

And my gauges


Attached Thumbnails
I have no idea what I'm doing!-505b4552a7da11e393180e650af46df4_8.jpg   I have no idea what I'm doing!-13046904295_eb66ee7d57_z.jpg   I have no idea what I'm doing!-13047011963_4f33070b22.jpg   I have no idea what I'm doing!-13046878285_c3cf05912c.jpg   I have no idea what I'm doing!-13046851125_6639c0ae73.jpg

I have no idea what I'm doing!-13047021743_160521c2bd.jpg   I have no idea what I'm doing!-13047191474_22db15fba2.jpg   I have no idea what I'm doing!-13047202874_a991de9487_n.jpg   I have no idea what I'm doing!-13047197064_4cb7559482_n.jpg
Tekel is offline   Reply With Quote
Old 03-10-2014, 10:47 AM   #25
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Oh wow... you weren't kidding about that downpipe.
concealer404 is online now   Reply With Quote
Old 03-10-2014, 11:36 AM   #26
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Function > form

If it moves exhaust gas and doesn't leak it's good enough to get the car on the road.

The downpipe I made for my first set-up was pretty awful, but it worked.
Efini~FC3S is online now   Reply With Quote
Old 03-11-2014, 04:03 PM   #27
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by Efini~FC3S View Post
Function > form

If it moves exhaust gas and doesn't leak it's good enough to get the car on the road.

The downpipe I made for my first set-up was pretty awful, but it worked.
Thats the idea. Use it for now, then eventually upgrade the turbo (more efficient and name brand), dp, and exhaust all in 1 fell swoop. All I care about at this point is getting the car boooooooosted. Which will now be 2015 .
Tekel is offline   Reply With Quote
Old 03-11-2014, 11:37 PM   #28
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Quote:
Originally Posted by Tekel View Post


It looks like a dinosaur bone fossil!
Yezzir is offline   Reply With Quote
Old 03-21-2014, 02:14 PM   #29
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

QUESTION: Is there anyway to tell if my '95 has the pre-tapped oil feed without taking off parts to see down there? I tried randomly looking yesterday but since I was in work clothes I couldn't dig too much and between the heatshilds and other stuff, I couldn't tell. Do we happen to know a vin range? Mine is an obd1.
Tekel is offline   Reply With Quote
Old 03-21-2014, 03:00 PM   #30
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I think all '95s had it (mine does), but that assumes you have the original block. Safest is to look and confirm. If you can get under the car, should be able to see it pretty well.
hornetball is offline   Reply With Quote
Old 03-21-2014, 03:19 PM   #31
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

95 should have it. If you go to look for it you'll likely mistake it with the coolant feed. The Oil is the smaller bolt closer to the transmission. Make sure you use an M10 x 1.5 adapter to thread into the block. It's not NPT.
FAB is online now   Reply With Quote
Old 03-21-2014, 03:28 PM   #32
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Thanks.

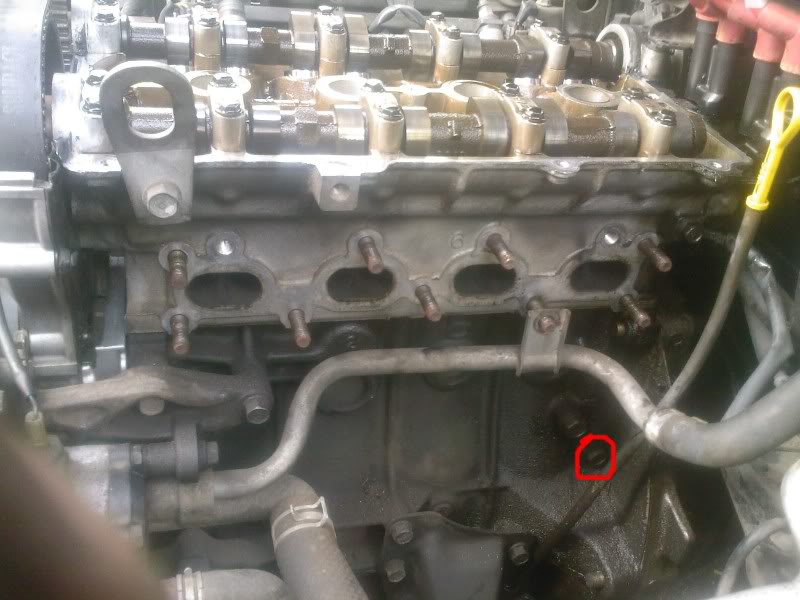

This will be my point of entry. (not my picture)
Attached Thumbnails
I have no idea what I'm doing!-t4-1.jpg
Tekel is offline   Reply With Quote
Old 03-21-2014, 08:24 PM   #33
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Yup.

When i put my 95 block in i had it. But while doing research i found a lot of misinformation. Some say all 95's had it and some say only half or so of them had it..
Erat is online now   Reply With Quote
Old 03-28-2014, 12:34 PM   #34
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Just for my future reference, here is what turbo i will be running
Emusa GT28 (GT2870). Here are the more detailed specs. Compressor Wheel 0.60 A/R Cold Side IND: 54mm EX D: 70mm Trim: 60 Turbiner Wheel 0.64 A/R. Waste gate is ~10psi (if it is still the stock one).
Tekel is offline   Reply With Quote
Old 04-01-2014, 11:46 AM   #35
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Well, to continue my progress of having no idea what i'm doing, I can't figure out what size hoses I have for my oil feed and drain.

For my oil feed, I need to add a 90 end fitting to -4 AN. BUT, I can't figure out my the size of the feed line. I have never messed with hoses, fittings etc so I have no clue about sizing and eyeballing what is what. I know after the first time of holding each one in my hand I would never have another issue, but I don't have access to any other than my unknown lines.

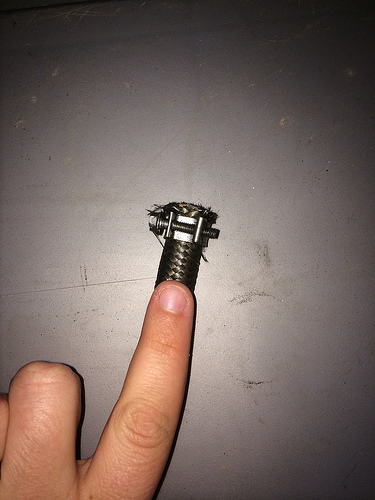

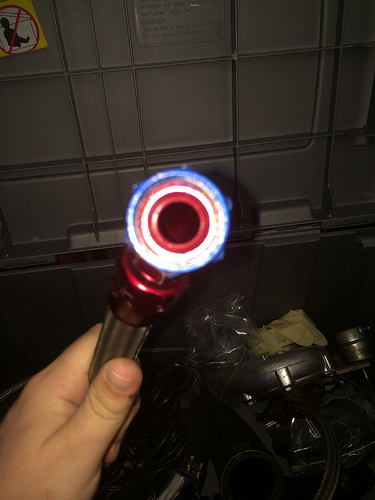

Here is the feed line.

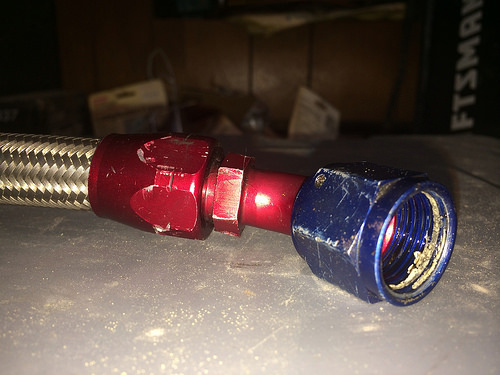

Then for my drain line, I'm not certain if it is -8 or -10. I need to purchase a drain fitting and don't know if I need an adapter or can just plug right on.





edit: will get pictures this evening with measuring tape.
Attached Thumbnails
I have no idea what I'm doing!-13047191474_22db15fba2.jpg   I have no idea what I'm doing!-13560844513_9b8302d306.jpg   I have no idea what I'm doing!-13561119014_c03f4e0d41.jpg   I have no idea what I'm doing!-13560777655_5bcbfc799a.jpg

Last edited by Tekel; 04-01-2014 at 12:03 PM.
Tekel is offline   Reply With Quote
Old 04-01-2014, 11:54 AM   #36
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

That feed line looks enormous, any plans for restriction? I guess you could always see if it smokes, then restrict it if so.
Fireindc is offline   Reply With Quote
Old 04-01-2014, 11:56 AM   #37
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

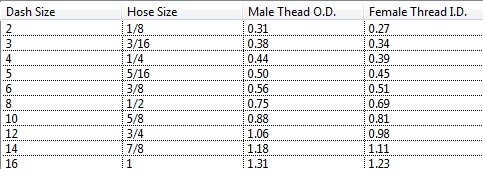

Well... if you're using -4AN fittings, then you're probably using -4AN line.





As for the drain, if you want to use that hose and it's got AN hose ends on both ends, you'll need a -AN bung of an appropriate size installed in your pan.
Attached Thumbnails
I have no idea what I'm doing!-dashsizechart.jpg
concealer404 is online now   Reply With Quote
Old 04-01-2014, 11:57 AM   #38
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Fireindc View Post
That feed line looks enormous, any plans for restriction? I guess you could always see if it smokes, then restrict it if so.
Is this actually a ball bearing turbo?
concealer404 is online now   Reply With Quote
Old 04-01-2014, 12:06 PM   #39
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by Fireindc View Post
That feed line looks enormous...
That's what she said.

I was told its a floating bearing and this is the drain that was used on it previously.
Tekel is offline   Reply With Quote
Old 04-01-2014, 11:59 PM   #40
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

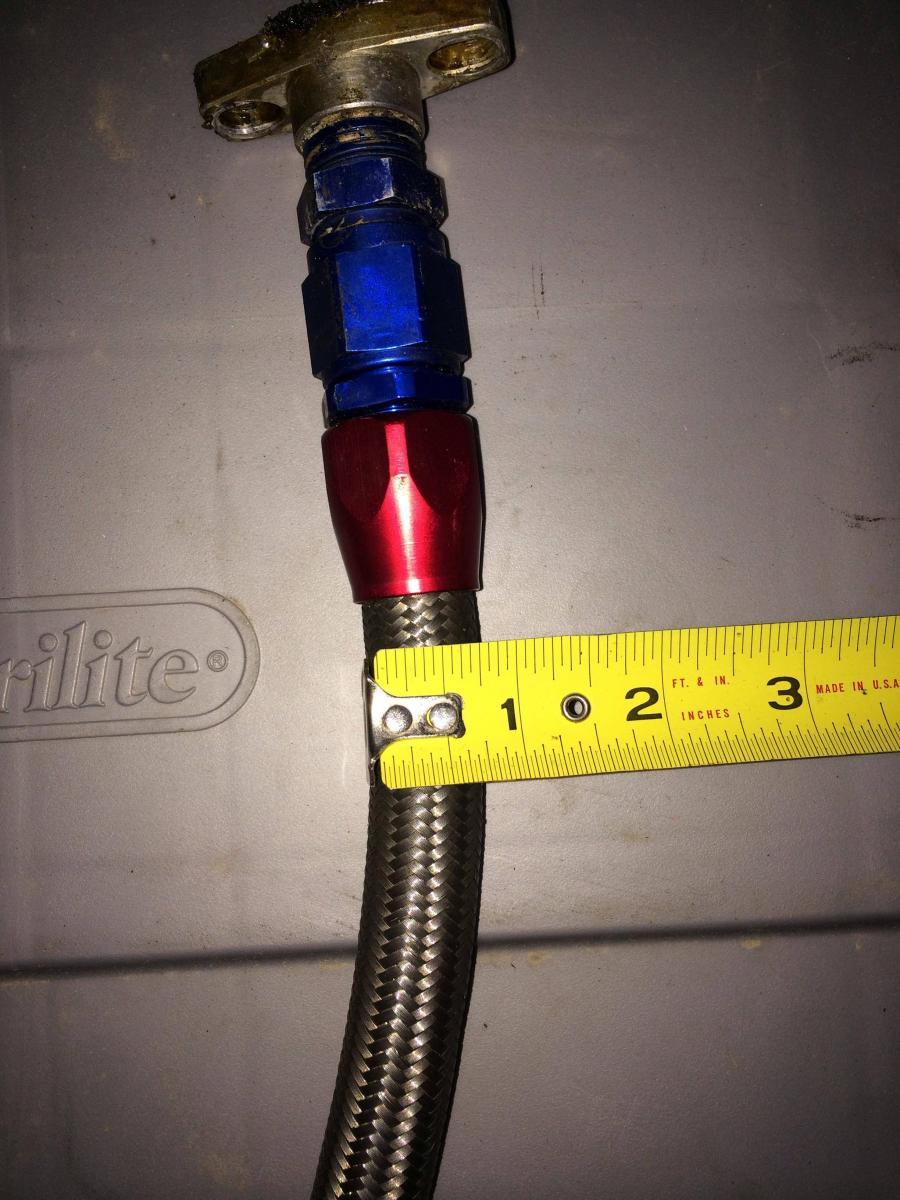

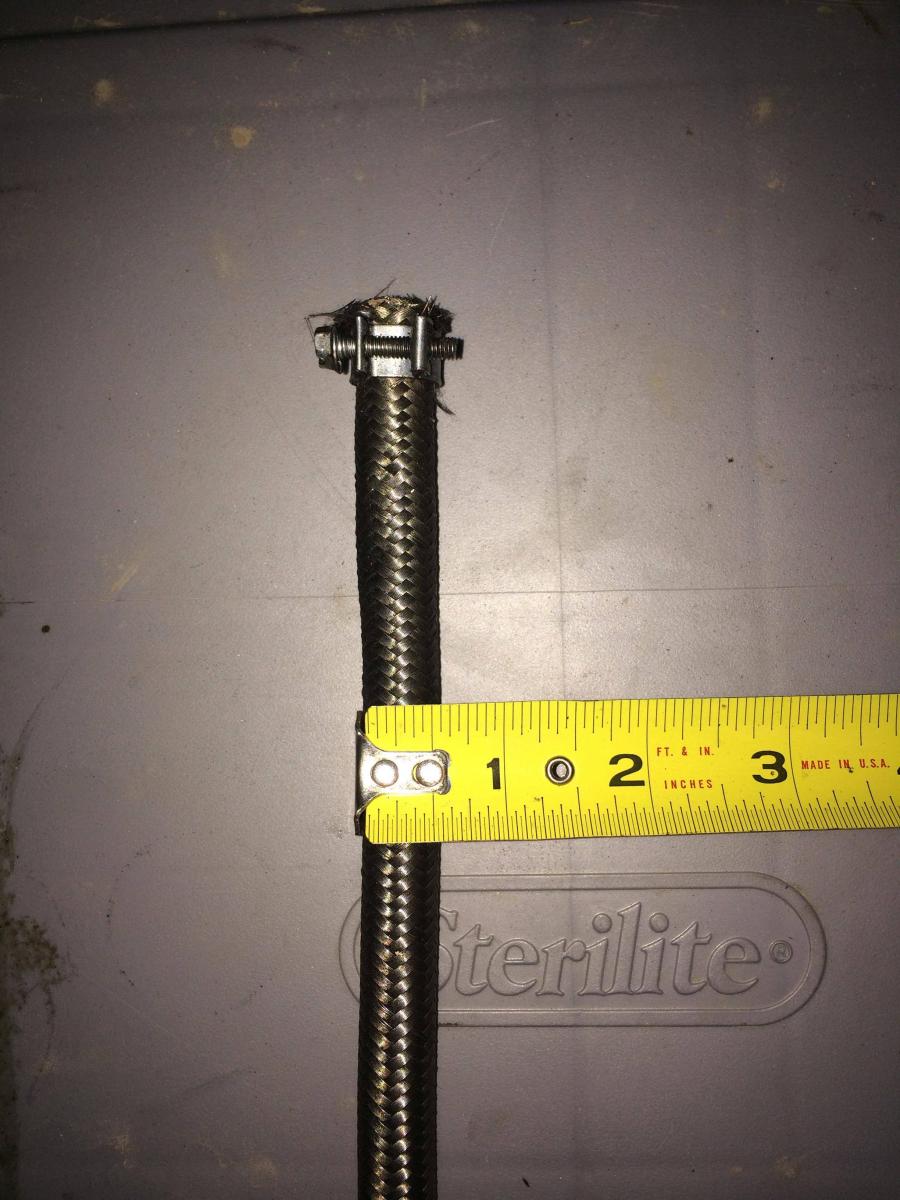

Look, something to gaguge size off of besides my hands that are of unknown size to you.

Can anyone tell me what size hoses these are?



Attached Thumbnails
I have no idea what I'm doing!-3rvgaad.jpg   I have no idea what I'm doing!-qrylkih.jpg
Tekel is offline   Reply With Quote
