1/4"NPT is easy. I've been using a Wells PS421 in Rover for oil pressure for years, ~$40 at any Autozone. It's OEM for some GM vehicle, and Vette guys use them as a replacement for the shoddy Vette sensor. What I really need is a ~$40 1/8" NPT version for fuel pressure regulators. All I can find are Autometer senders at $120 or eBay senders at $13.
#723
Honeywell PX3 series run ~$40.
This part:
- Ratiometric
- 100psi (absolute P, not gage; no problem with 2-point cal)
- 1/8NPT
- Metri-pack 150 connector
PX3AN2BS100PAAAX Honeywell Sensing and Productivity Solutions | Sensors, Transducers | DigiKey
This part:
- Ratiometric
- 100psi (absolute P, not gage; no problem with 2-point cal)
- 1/8NPT
- Metri-pack 150 connector
PX3AN2BS100PAAAX Honeywell Sensing and Productivity Solutions | Sensors, Transducers | DigiKey
#729
Elite Member
Thread Starter
Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,167
Total Cats: 856

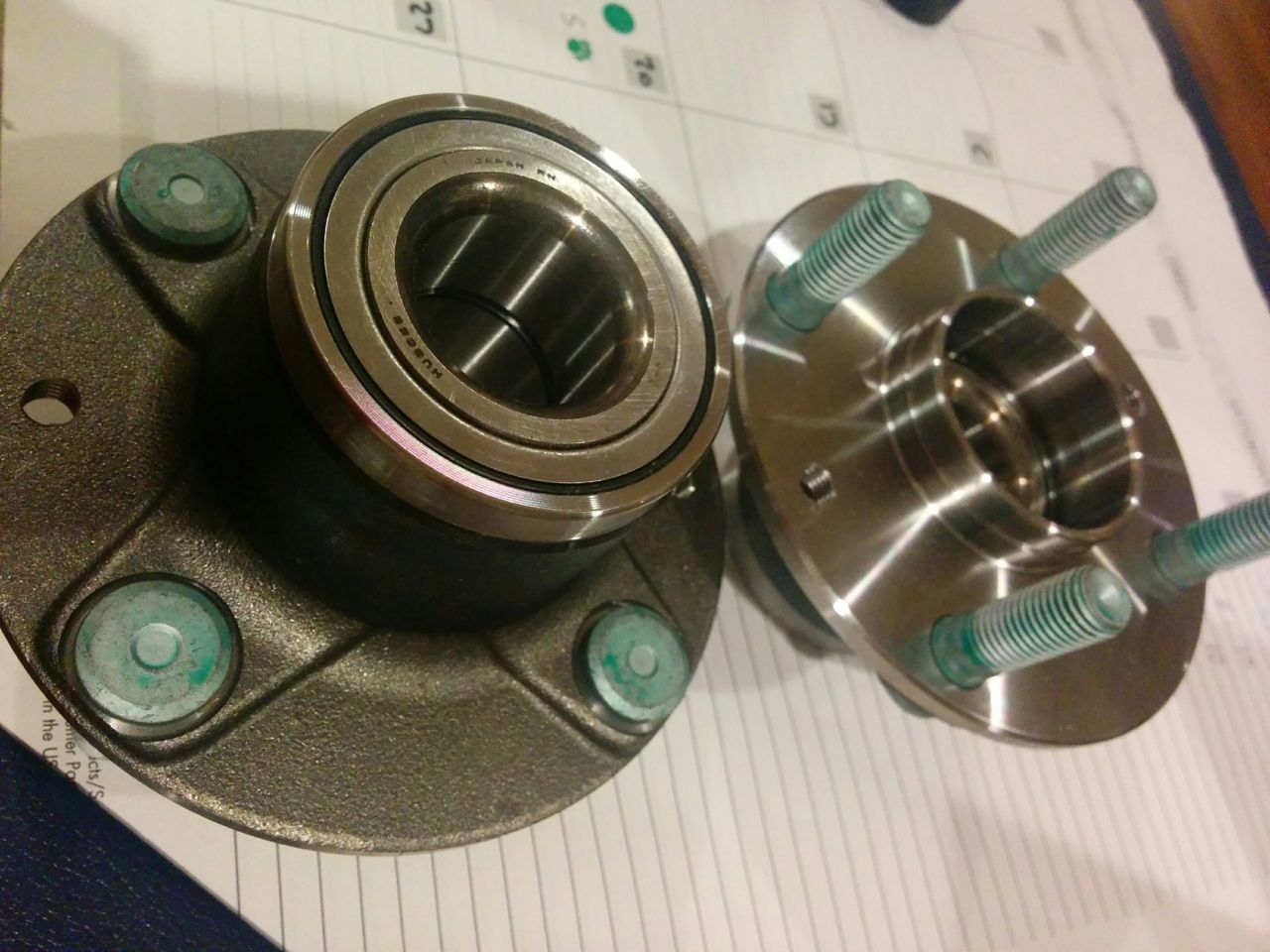

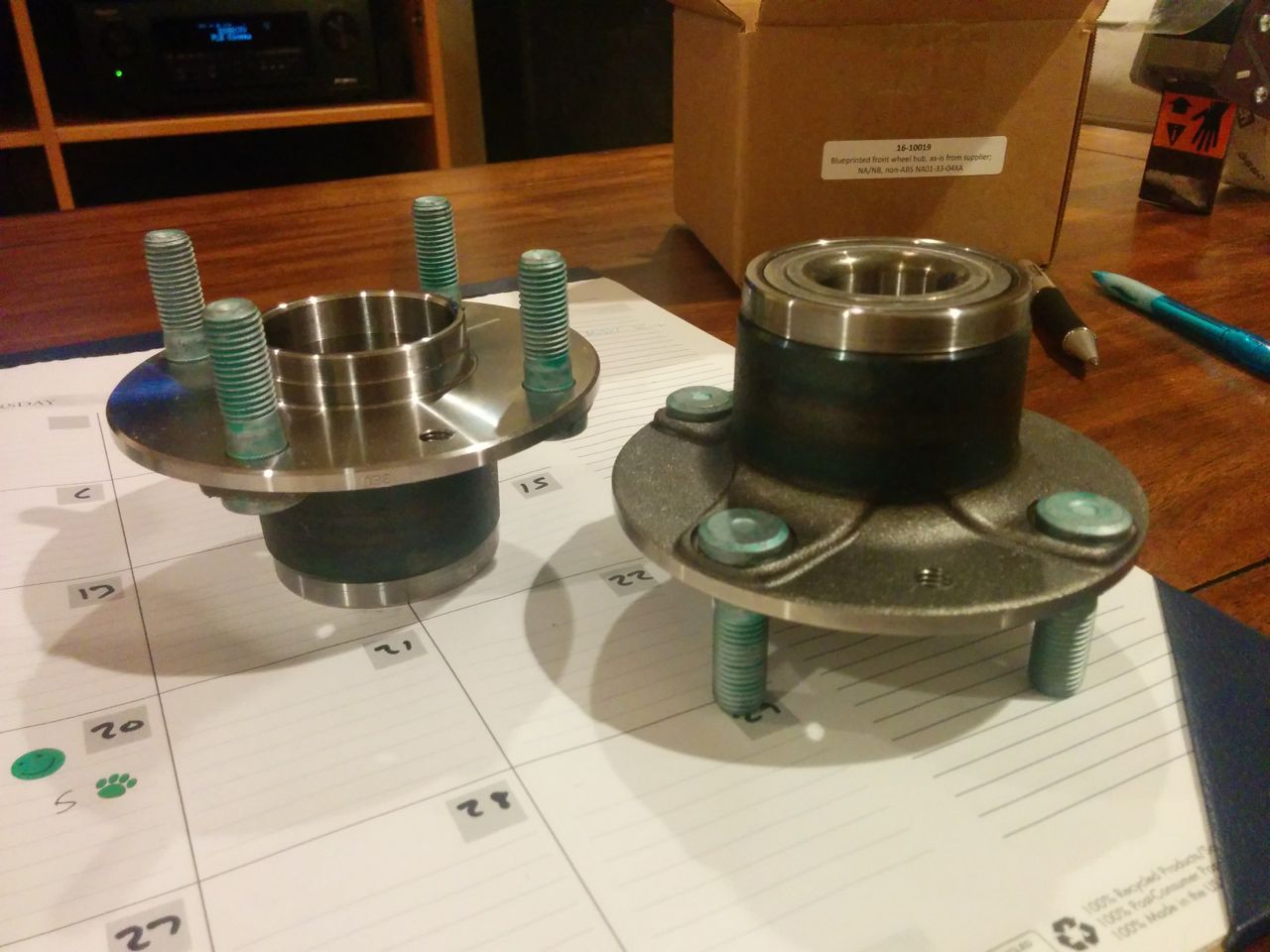

Convenience and customer service cost money, and in this case I needed them.
--Ian
#730
Elite Member
Thread Starter
Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,167
Total Cats: 856

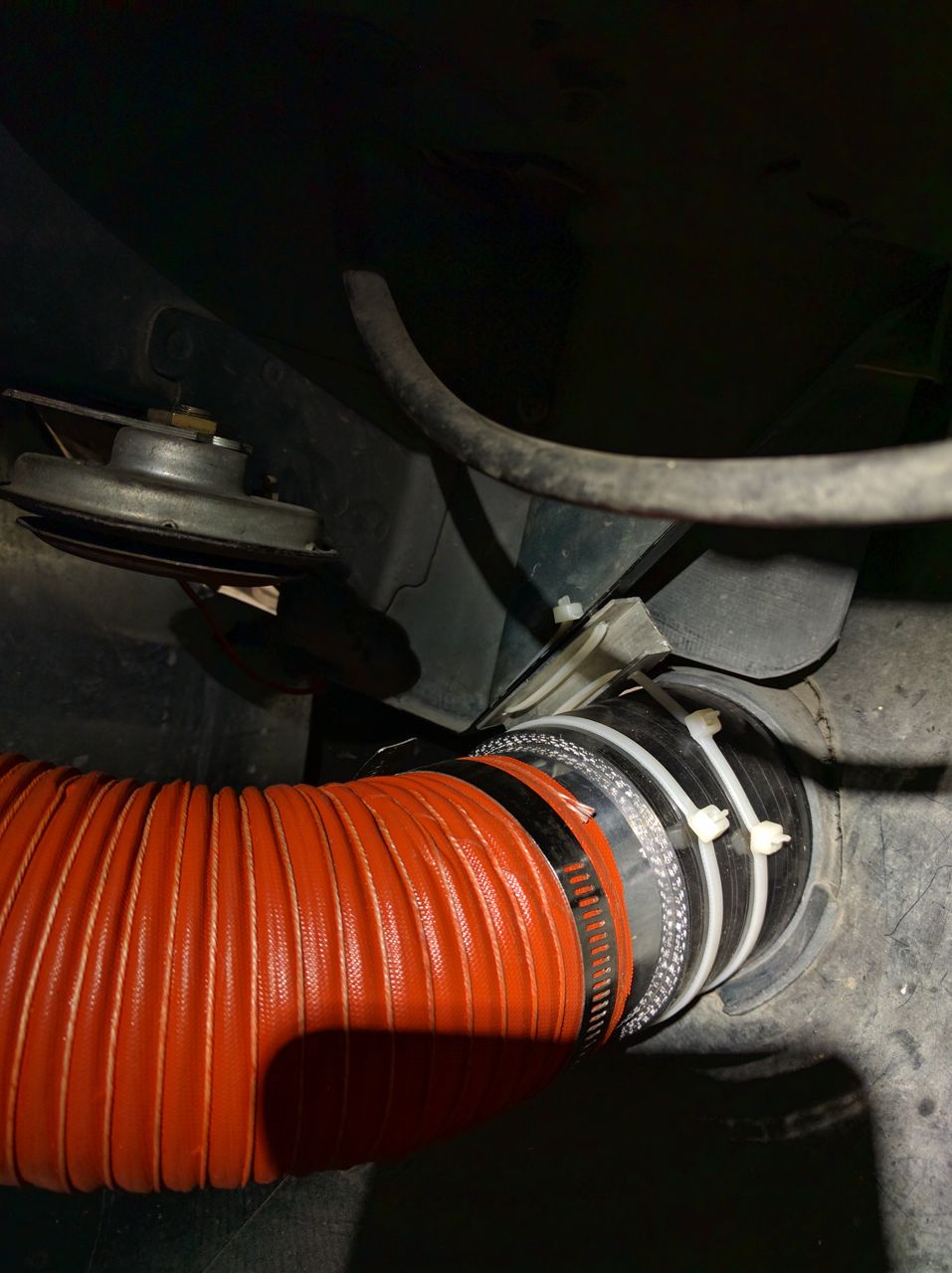

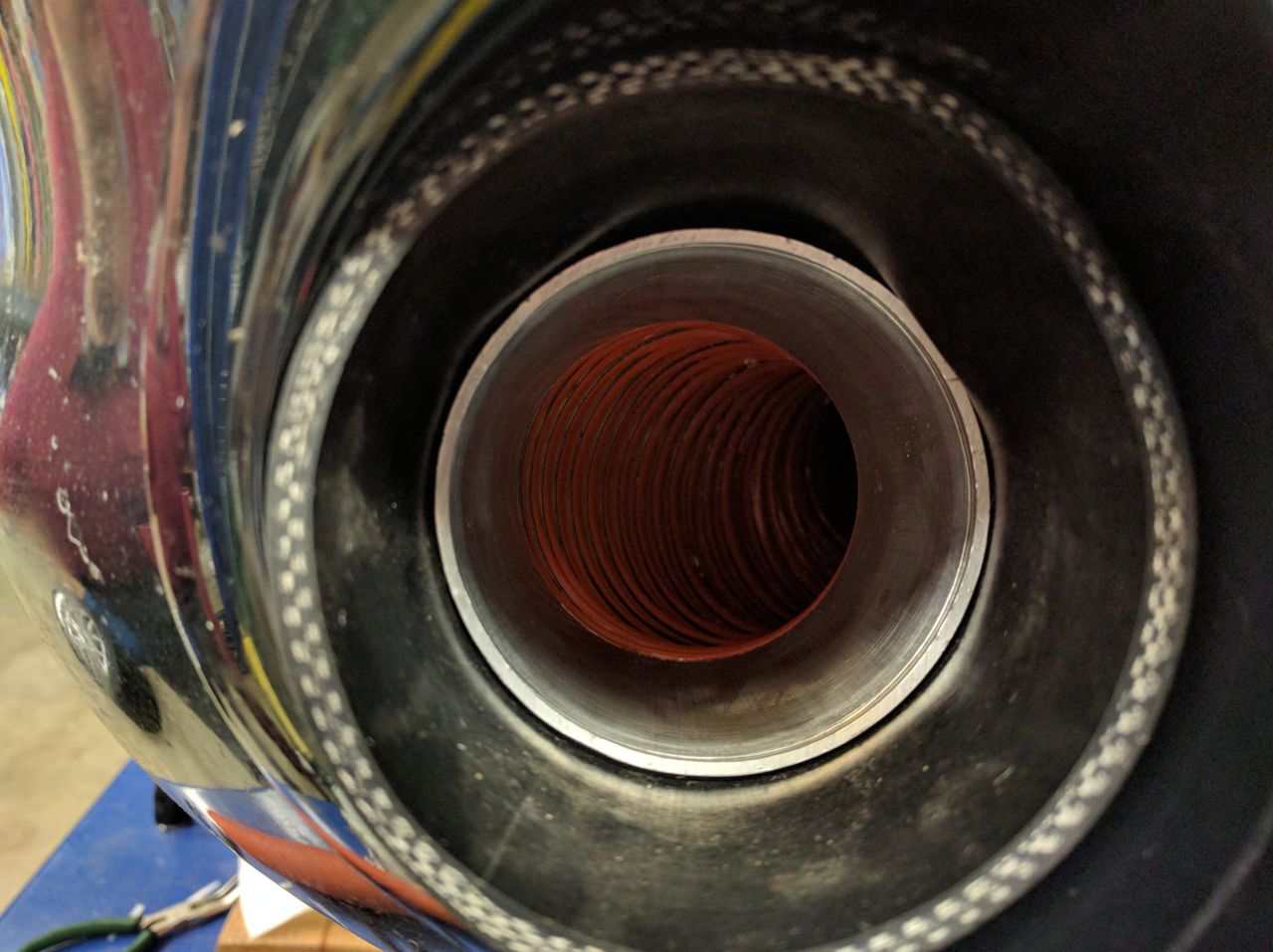

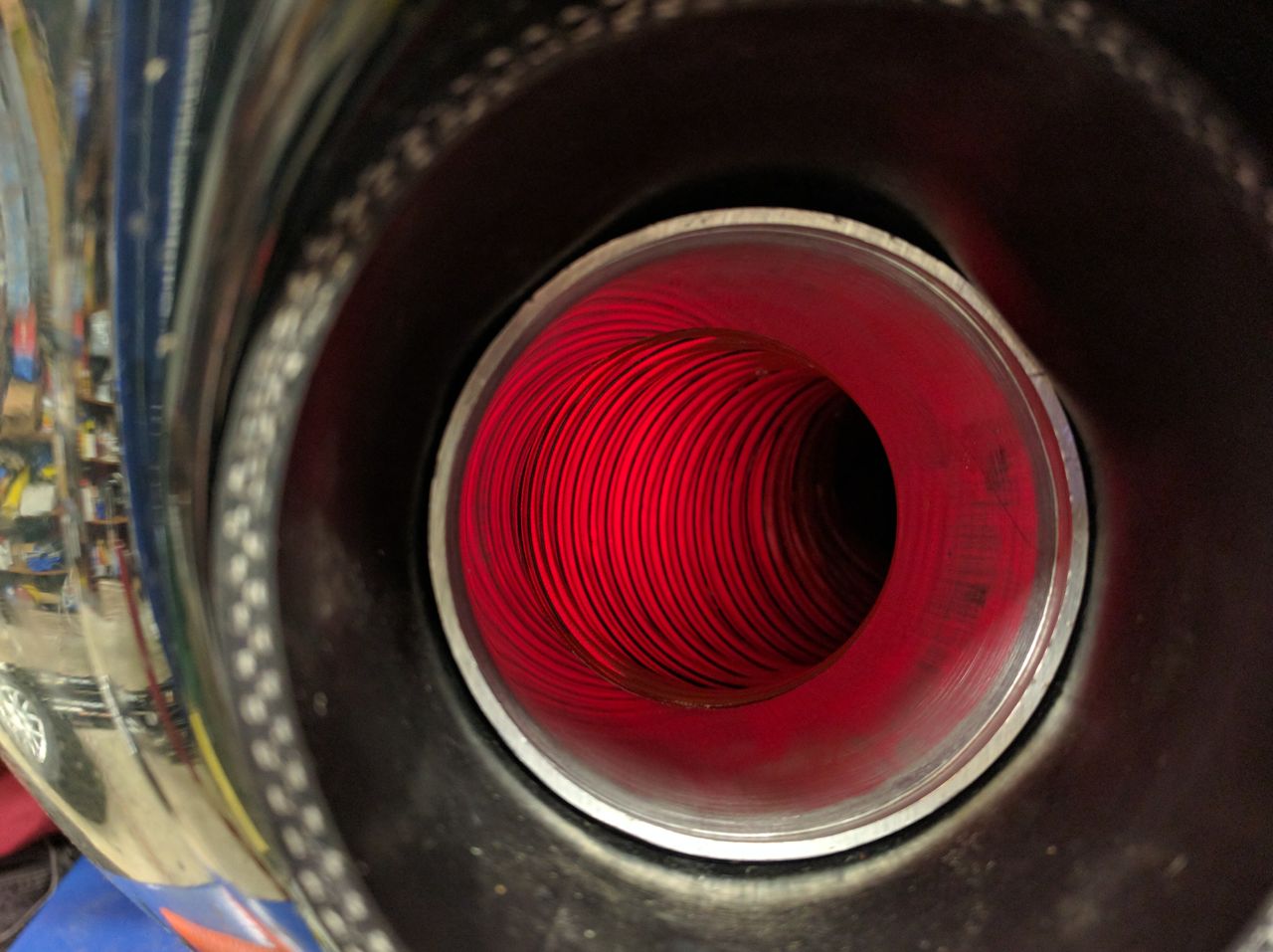

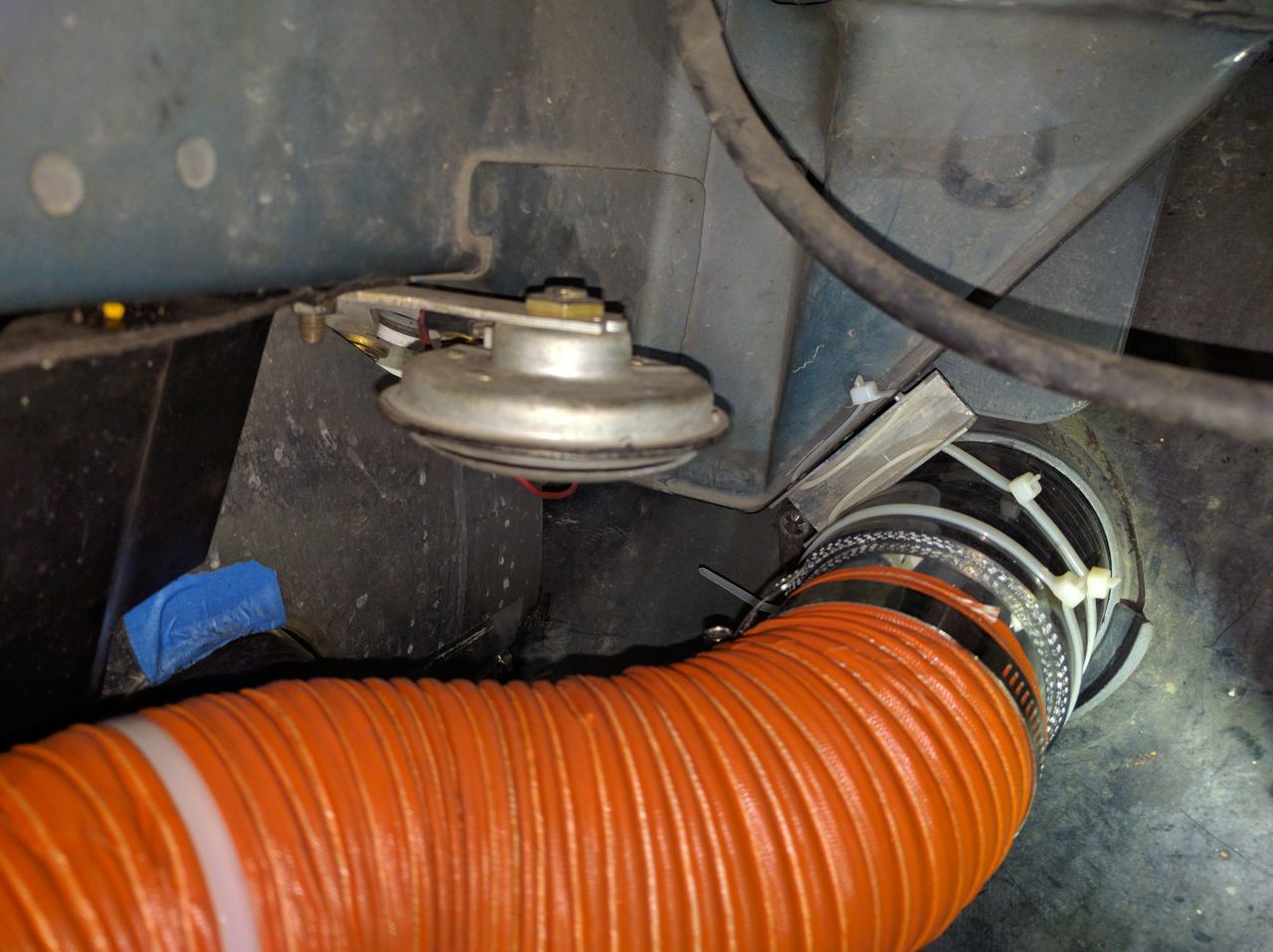

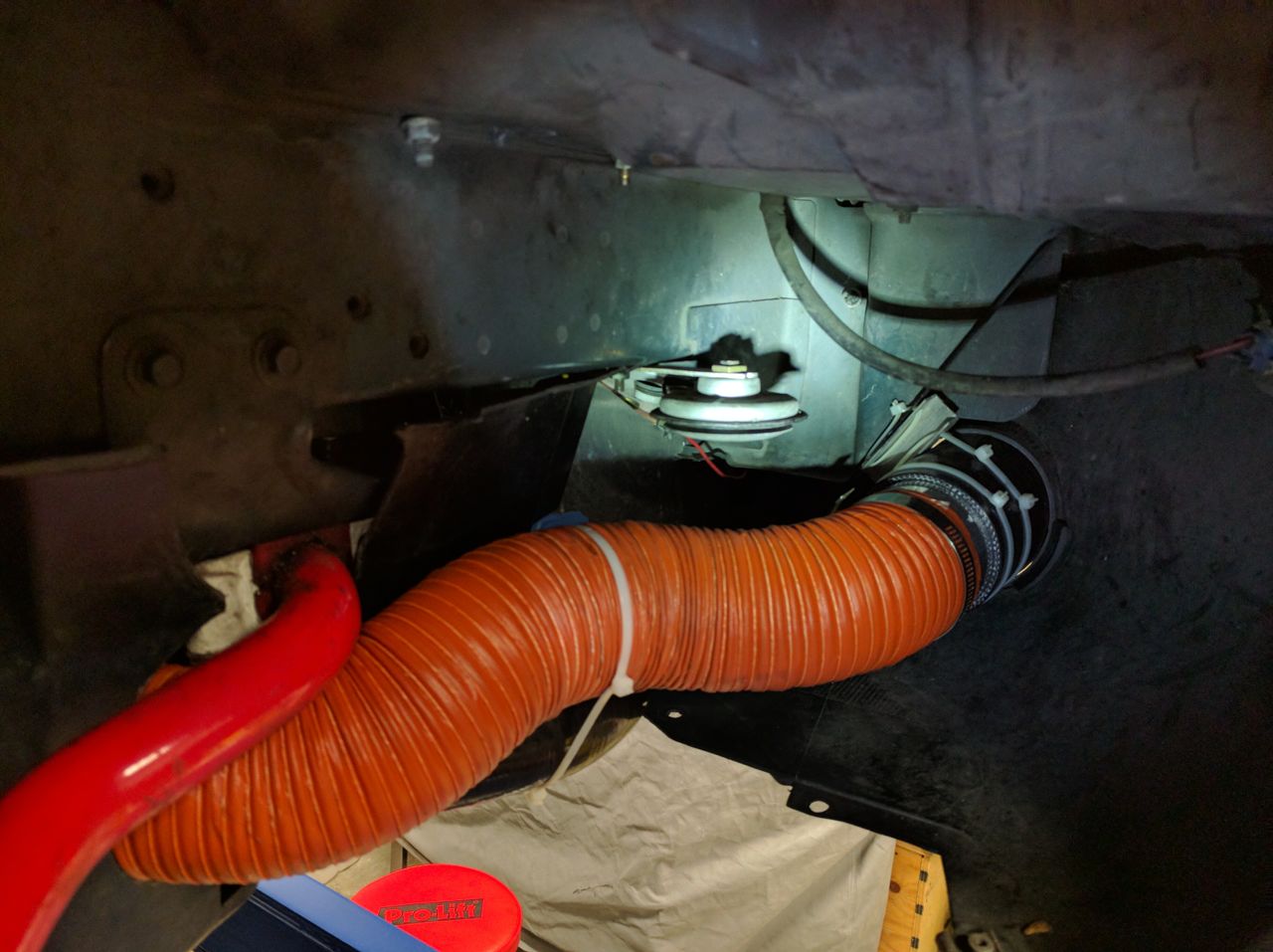

So the ducts are now plumbed to the fog light holes. I should have taken pictures of it before I put all the parts together, but oh well. Basically it's a 3.25" to 3" silicone size adapter from siliconeintakes.com, with one of their 3" aluminum straight pipes cut into 3 inch sections to make 2 couplers. The flared end goes into the silicone adapter, and the cut-off end goes into the 3" brake ducting. Getting the ducting over the pipe was tricky -- required grinding a bevel onto the aluminum pipe, some lube, and a bunch of effort. A couple hose clamps & zip ties, then OD of the 3.25" end of the adapter fits almost perfectly inside the NB1 fog light holes. I reused my Home Depot Racing spacers (but not the PVC bits) and it looks good:
I ran out of hose clamps that fit, had to use zip ties. There's no real pressure in it, though.
Will it work? Going to Thunderhill on Friday, so we'll see. It's not as heavy on brakes as Laguna is, but...
--Ian
I ran out of hose clamps that fit, had to use zip ties. There's no real pressure in it, though.
Will it work? Going to Thunderhill on Friday, so we'll see. It's not as heavy on brakes as Laguna is, but...
--Ian
#731
Elite Member
iTrader: (37)
Join Date: Apr 2010
Location: Very NorCal
Posts: 10,441
Total Cats: 1,899
Not to speak ill of previous efforts, but those look MUCH better than the old ones
AIDAN. PUT ME ON YOUR MAILING LIST.

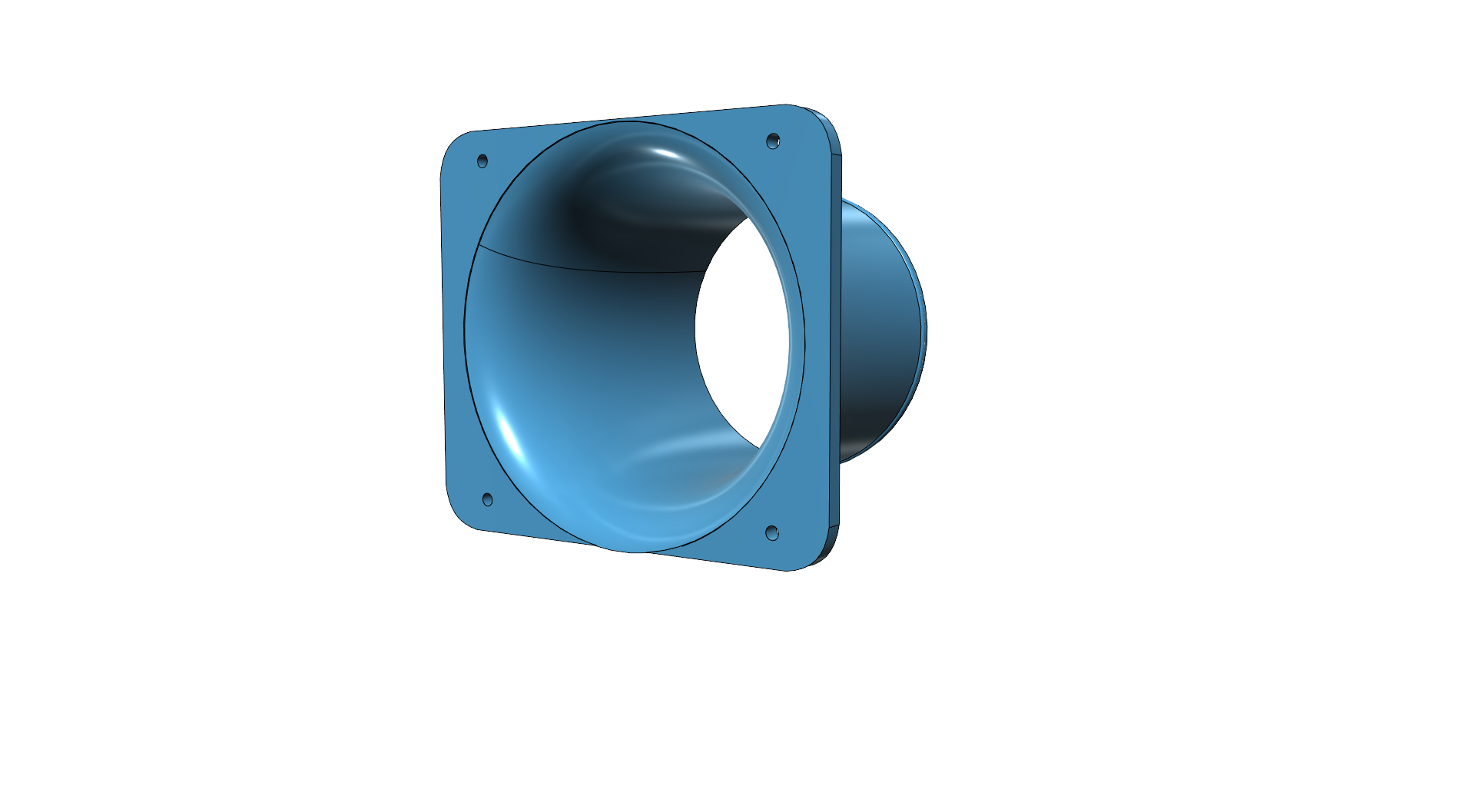

Aidan is hopefully printing out some brake ducts I designed for me to test fit onto my car. They're 3"->2.5", because NB2 mounting, but I can put something together for your situation, create a 3.5 -> 3" velocity stack. Drill through the bumper and bolt and you're done. Let me know what size you want the square mounting flange to be. And let me test mine first, if they crumple because too thin, that obviously has to be fixed.
#734
Elite Member
iTrader: (2)
Join Date: May 2008
Location: Portland, Oregon
Posts: 3,468
Total Cats: 365
Dude the duct doesn't need to be exactly centered. It will be fine. Thanks for printing it.
Edit: iirc the mounting holes are not exactly centered compared to the fog light opening, which is why I did it the way I did it. Had I centered it, the actual duct would then end up not lining up properly with the actual opening in the bumper.
Edit 2. Obviously I based the flange on the fog light dimensions, I just went out and looked at the fog light again. The flange on the fog light is actually a fraction smaller than the glass diameter of the lens on the top and bottom. I put more material on the "bottom" of the flange to give it more strength but left the top as the fog light is. I'll mount these and check things and put the hoses on them and hork on them a bit and see if they seem strong enough to survive.
Edit: iirc the mounting holes are not exactly centered compared to the fog light opening, which is why I did it the way I did it. Had I centered it, the actual duct would then end up not lining up properly with the actual opening in the bumper.
Edit 2. Obviously I based the flange on the fog light dimensions, I just went out and looked at the fog light again. The flange on the fog light is actually a fraction smaller than the glass diameter of the lens on the top and bottom. I put more material on the "bottom" of the flange to give it more strength but left the top as the fog light is. I'll mount these and check things and put the hoses on them and hork on them a bit and see if they seem strong enough to survive.
#735
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
It just sits out funny. I'll show you when I bring it over.
Small adjustments to wall thickness at the bottom will help it print cleaner and then it will be good to go.
Small adjustments to wall thickness at the bottom will help it print cleaner and then it will be good to go.
#736
Elite Member
Thread Starter
Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,167
Total Cats: 856
Argh, took the car out to bed the track pads before Thunderhill on Friday and it's acting up. While cruising down the freeway on the way to my favorite brake pad bedding road, it cut out at 65 mph, a straight hard cut. Rev the throttle, nothing, take it out of gear and RPM drops to zero, put it back, still nothing. It coasted down to 35 or so while I fiddled with it, then I cycled the key and it started right back up like nothing was wrong. So I kept on going to the brake pad bedding road and it seemed fine.
Did 3 or 4 bedding stops (whee, sparks EVERYWHERE, DTC-60s are really dramatic), then it started cutting out under boost. Acting like a sync loss error here, brief drop in power, then it's back. Did a few more stops that way and finally it died completely again. Coasted to the side of the road accompanied by several LOUD bangs out the tailpipe (I guess it was still injecting some fuel?), keyed off, engaged starter and it came back like nothing was wrong. Decided not to push my luck any further and drove it home on surface streets without further incident.
So I'd call it another sync error, but there's no CEL turning on. OTOH, I may have turned that off when I was trying to use the CEL for AFR safety, and now I can't find the menu entry to check to see if it's on or not. Anyone know where it is?

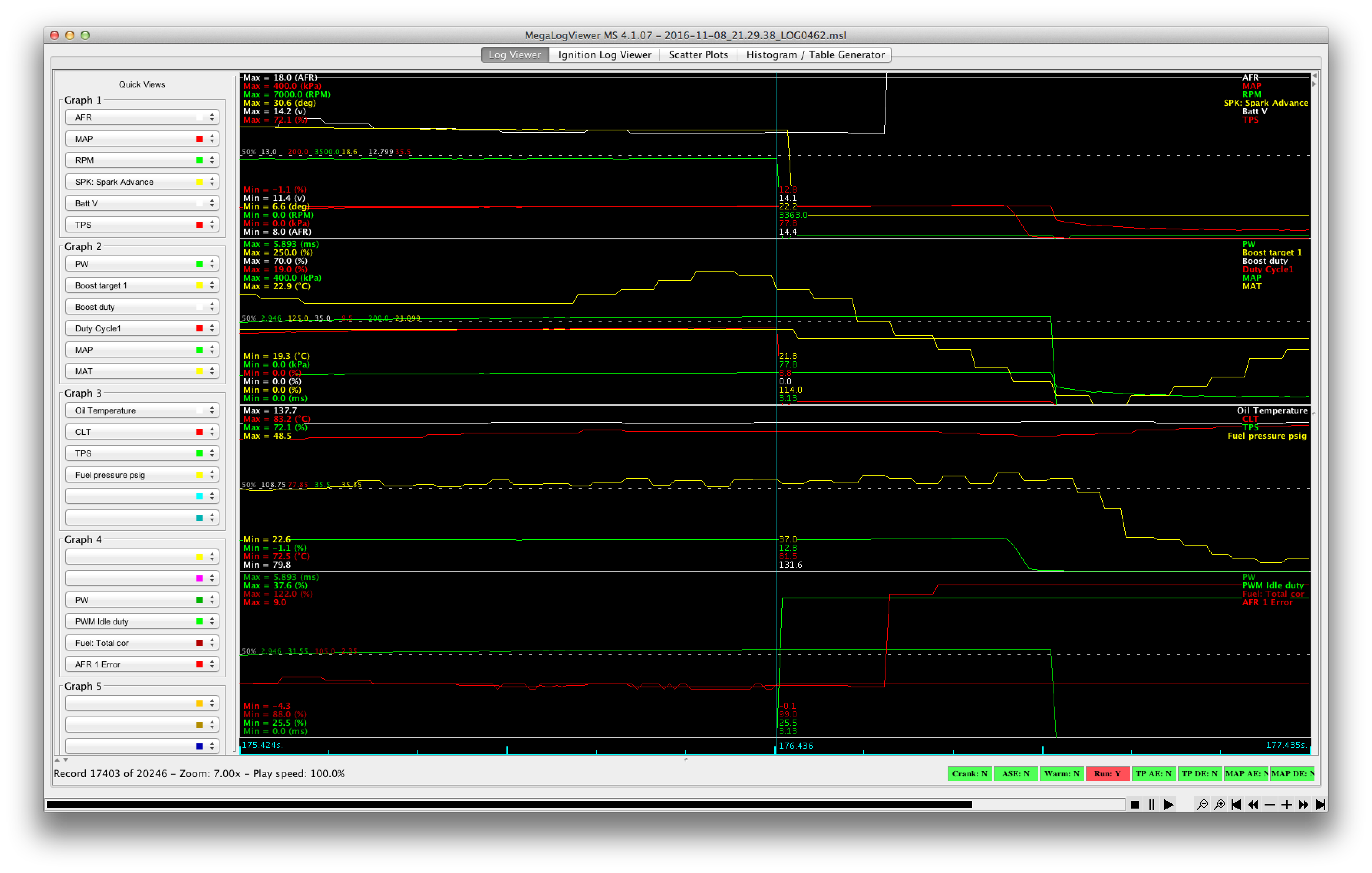

I wasn't data logging on the laptop, but I do have the SD card logging enabled. Pulled up the log file, I'm not saving sync error data to it, unfortunately, but there's a few clues in there. The PW goes from normal cruising to zero all of a sudden, followed shortly by timing going from 22.something to 10.0. MAT starts to drop even though MAP is constant at 78 kpa and TPS hasn't changed, suggesting that the turbo isn't doing any compression any more. So yeah, this looks a whole lot like the MS3 lost sync.
Need to go see if I can find my spare cam sensor and throw that in. Maybe it's simple? Applying my usual rule of thumb that it's whatever I changed last doesn't make any sense here -- all I did was put in brake ducts, change the pads, rotors, and tires, and rewire the enable switch for the data logger. I guess I could have jostled the cam/crank sensor wires in the megasquirt harness, but...
--Ian
Did 3 or 4 bedding stops (whee, sparks EVERYWHERE, DTC-60s are really dramatic), then it started cutting out under boost. Acting like a sync loss error here, brief drop in power, then it's back. Did a few more stops that way and finally it died completely again. Coasted to the side of the road accompanied by several LOUD bangs out the tailpipe (I guess it was still injecting some fuel?), keyed off, engaged starter and it came back like nothing was wrong. Decided not to push my luck any further and drove it home on surface streets without further incident.
So I'd call it another sync error, but there's no CEL turning on. OTOH, I may have turned that off when I was trying to use the CEL for AFR safety, and now I can't find the menu entry to check to see if it's on or not. Anyone know where it is?
I wasn't data logging on the laptop, but I do have the SD card logging enabled. Pulled up the log file, I'm not saving sync error data to it, unfortunately, but there's a few clues in there. The PW goes from normal cruising to zero all of a sudden, followed shortly by timing going from 22.something to 10.0. MAT starts to drop even though MAP is constant at 78 kpa and TPS hasn't changed, suggesting that the turbo isn't doing any compression any more. So yeah, this looks a whole lot like the MS3 lost sync.
Need to go see if I can find my spare cam sensor and throw that in. Maybe it's simple? Applying my usual rule of thumb that it's whatever I changed last doesn't make any sense here -- all I did was put in brake ducts, change the pads, rotors, and tires, and rewire the enable switch for the data logger. I guess I could have jostled the cam/crank sensor wires in the megasquirt harness, but...
--Ian
#737
Elite Member
Thread Starter
Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,167
Total Cats: 856
Oh, the other bizarre thing is that RPM drops to zero, then jumps back up to 150 and stays at 150 for a while. WTF? How does RPM stay at 150? Maybe some kind of bizarro sync error behaviour? Or maybe the engine has died and I've got it in neutral but the friction in the oil is enough to spin the engine anyway? I know it'll spin the wheels slowly if you idle it in neutral with the back tires off the ground...
--Ian
--Ian
#739
Elite Member
Thread Starter
Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,167
Total Cats: 856
I dug through the logs a bunch more last night, and am convinced it is a sync error. I found the config window and yes, I had turned off the CEL for that when I was playing with AFR safety and never turned it back on. It appears, though, that it re-establishes sync (at least, the RPM reading comes back and it says "run: Y" in MLV), but still wasn't actually running the engine. I need to go stare at the code and see if it gives up in confusion at some point after a certain number of failures.
So I cancelled my Thunderhill track day, I just don't have time to diagnose this before then. :( Ah well, at least I managed to get my money back (event had a wait list, so they were happy to refund and give my spot to someone else) and it was early enough to cancel the hotel reservation without penalty. Would have sucked to tow the car up there, take it out on track, and THEN find out that it was running like crap.
In other news, the UOA report from Blackstone arrived on the post-Laguna sample. This oil had the 2 days at MRLS, 1 previous half-day at Laguna, and some street miles on it. Bearing metals are pretty high -- think that's my 270F oil temps? Or something else going on? It was RedLine 10w40, which I know is not the standard mt.net-recommended oil. The three previous samples are all from before the current rebuild, the one sample I got on this motor from a year ago got lost in shipping somehow and was never analyzed.
--Ian
So I cancelled my Thunderhill track day, I just don't have time to diagnose this before then. :( Ah well, at least I managed to get my money back (event had a wait list, so they were happy to refund and give my spot to someone else) and it was early enough to cancel the hotel reservation without penalty. Would have sucked to tow the car up there, take it out on track, and THEN find out that it was running like crap.
In other news, the UOA report from Blackstone arrived on the post-Laguna sample. This oil had the 2 days at MRLS, 1 previous half-day at Laguna, and some street miles on it. Bearing metals are pretty high -- think that's my 270F oil temps? Or something else going on? It was RedLine 10w40, which I know is not the standard mt.net-recommended oil. The three previous samples are all from before the current rebuild, the one sample I got on this motor from a year ago got lost in shipping somehow and was never analyzed.
--Ian
