Love It Or Hate It - Another Exocet Build in Tampa

Build Threads Building a motor? Post the progress here.

Love It Or Hate It - Another Exocet Build in Tampa


Old 10-03-2018, 09:04 AM
  #121
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,569
Total Cats: 2,291
Default

Oops. I spelled your screen name with an i.
sixshooter is offline
Old 10-03-2018, 09:25 AM
  #122
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

No biggie. I wished I picked a cooler screen name anyway. Mine is boring, it's just my first three and three, GARy MANdile.
Garman is online now
Old 10-03-2018, 09:46 AM
  #123
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,569
Total Cats: 2,291
Default

Originally Posted by Garman View Post
No biggie. I wished I picked a cooler screen name anyway. Mine is boring, it's just my first three and three, GARy MANdile.
It's much more important that it's distinct and recognizable, and yours is. Too many here are a year and the word Miata and they all blend together. Or letter/number combos that mean nothing to the rest of us.
sixshooter is offline
Old 10-03-2018, 01:55 PM
  #124
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

Don't forget about that set of oil squirter plugs. The last set has your name on them.
Garman is online now
Old 10-03-2018, 02:15 PM
  #125
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,569
Total Cats: 2,291
Default

Originally Posted by Garman View Post
Don't forget about that set of oil squirter plugs. The last set has your name on them.
I'm not going anywhere and I don't think you are either. We'll catch up soon.
sixshooter is offline
Old 10-03-2018, 10:47 PM
  #126
Junior Member

The Driver's Avatar

Join Date: Aug 2009
Location: Lakewood (Green Mountain) CO.
Posts: 243
Total Cats: -58
Default

Darn it. Can't believe that I was in Tampa until May, and I missed the thread and your assembly!

I just drove an Exocet here in Boulder, oh was that a blast, and it wasn't even turbo yet!

COngrats on the great work, I'll PM you when I'm back in Tampa to see it in person.
The Driver is offline
Old 10-04-2018, 08:13 AM
  #127
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

Originally Posted by The Driver View Post
Darn it. Can't believe that I was in Tampa until May, and I missed the thread and your assembly!

I just drove an Exocet here in Boulder, oh was that a blast, and it wasn't even turbo yet!

COngrats on the great work, I'll PM you when I'm back in Tampa to see it in person.
There wasn't much to see back in May besides parts crammed in every corner of my garage. Next time you're around I should have something better to look at. Good ol' Colorado. I lived in Aurora for a couple years out of high school. LOVED IT. I miss skiing for sure. Don't miss the cold weather though. I'm right where I need to be in Tampa. Look me up when you're in town.
Garman is online now
Old 10-04-2018, 10:27 AM
  #128
Junior Member

The Driver's Avatar

Join Date: Aug 2009
Location: Lakewood (Green Mountain) CO.
Posts: 243
Total Cats: -58
Default

Originally Posted by Garman View Post
There wasn't much to see back in May besides parts crammed in every corner of my garage. Next time you're around I should have something better to look at. Good ol' Colorado. I lived in Aurora for a couple years out of high school. LOVED IT. I miss skiing for sure. Don't miss the cold weather though. I'm right where I need to be in Tampa. Look me up when you're in town.
It didn't happened overnight... But trail running and mountain biking in the winter sure help to get used to it. Which was your skiing place? Mary Jane is my fave along with Copper Mountain. When Steamboat Springs gets a lot of snow, is boss, but when they get average snowfall, is awful!

For sure, I'll PM you when I'm back in the 813!
The Driver is offline
Old 10-04-2018, 11:06 AM
  #129
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

Arapahoe Basin was my normal hangout. Loved it there. The Pallavacini Run is brutal but a blast.
Garman is online now
Old 01-07-2019, 03:24 PM
  #130
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

I can't believe it's been three months since I've updated on here but work, family, and the holidays all conspired to keep me from doing much work on the Exocet.

I finally gave in and bought the fuel line kit from Exomotive to make my life easier. I now have the fuel lines ran and hooked up. I kind of wish I had waited because now that I'm doing the brake lines I'm realizing I could have saved a lot of money and just ran hard lines for everything. I was nervous about making my own lines from everything I've read. I bought a flare kit off Amazon and I have to say it's a lot easier than I was led to believe.

I'm sure there have been many write ups on how to make a double flare with a cheapo flare kit but here's my experience:

Start by making sure there is a nice chamfered edge on the outside and inside of the tube

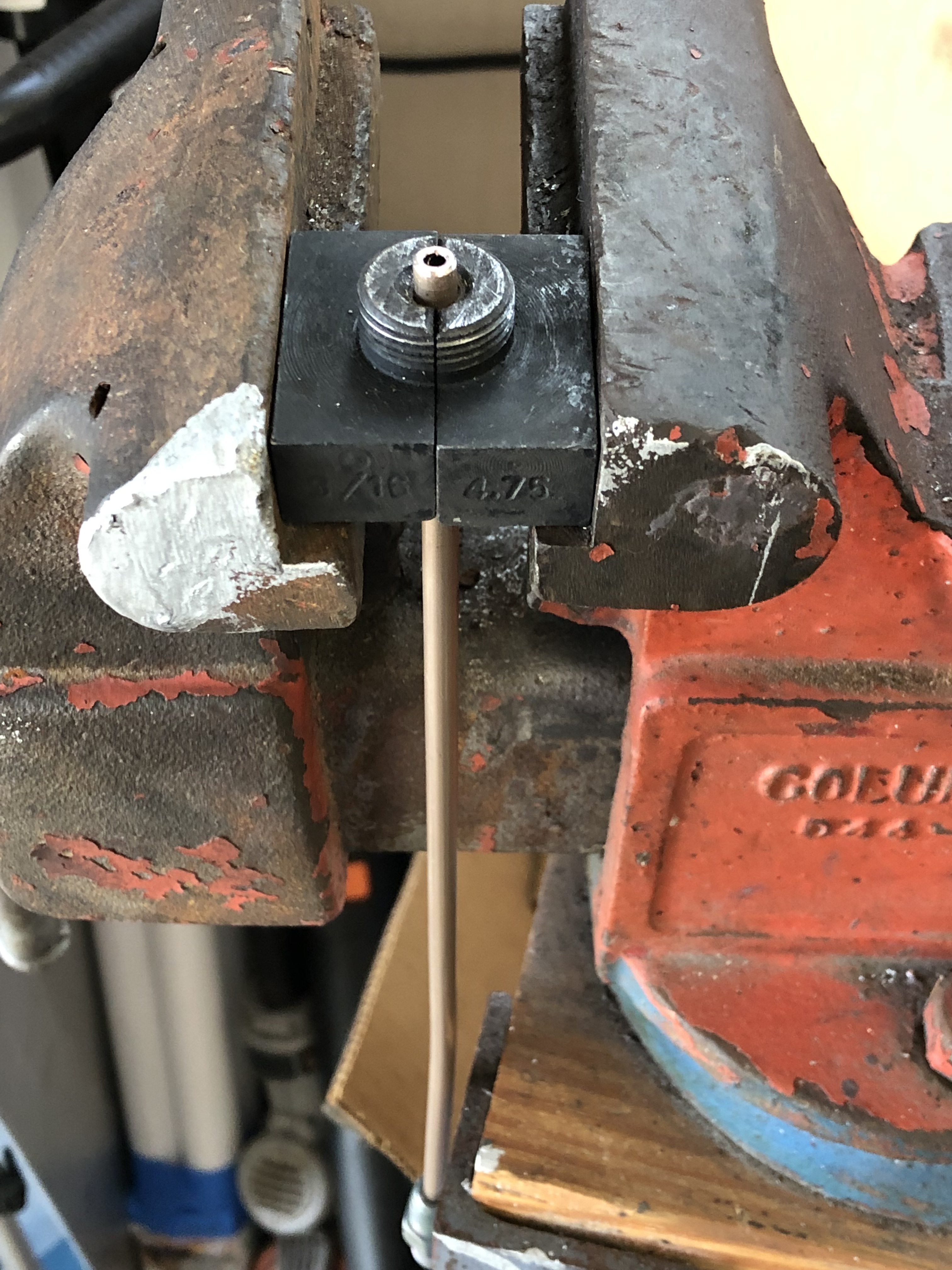

I took the jaws out of my vise for the clamping tool to rest nice and tight in the jaws

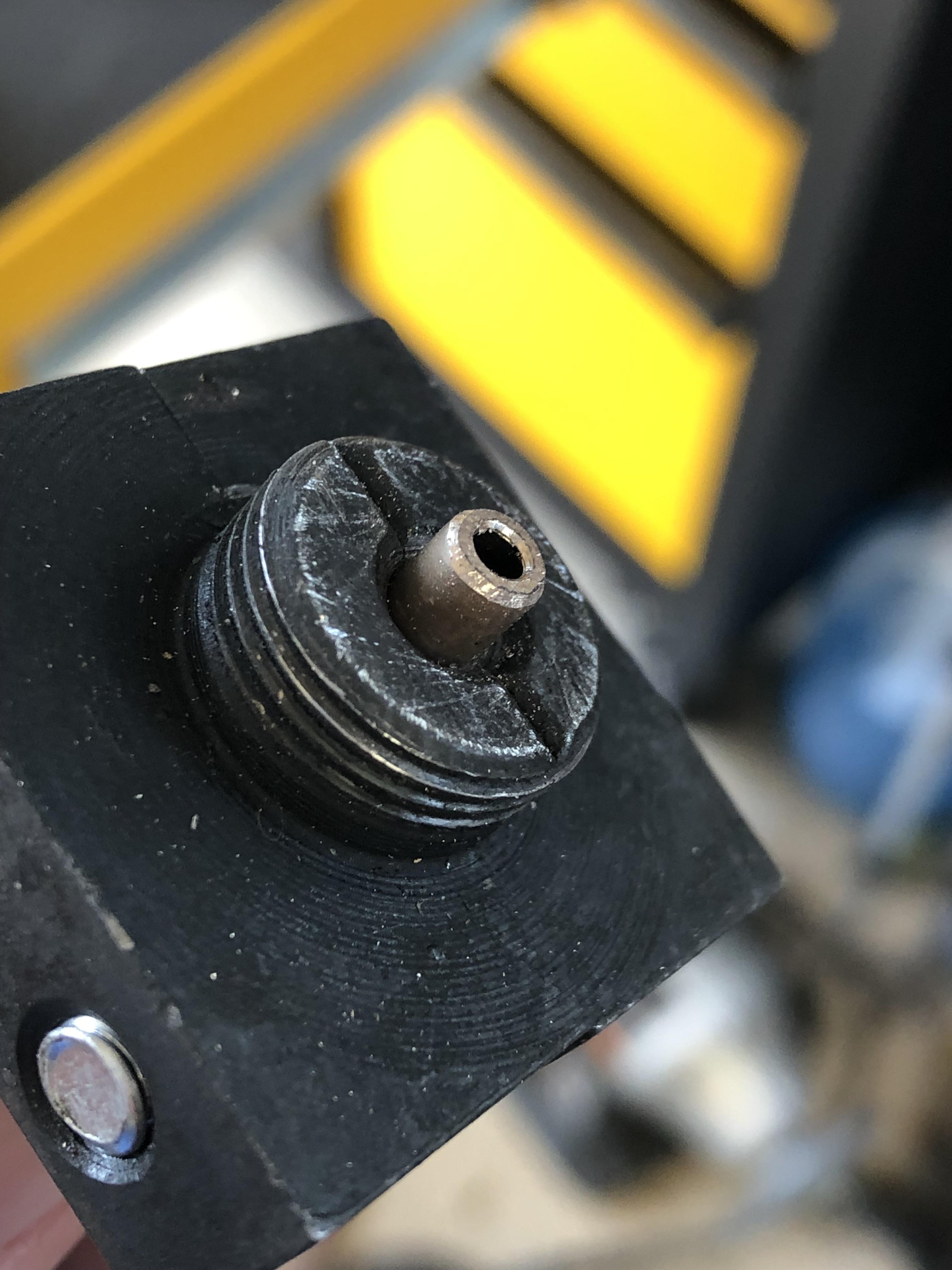

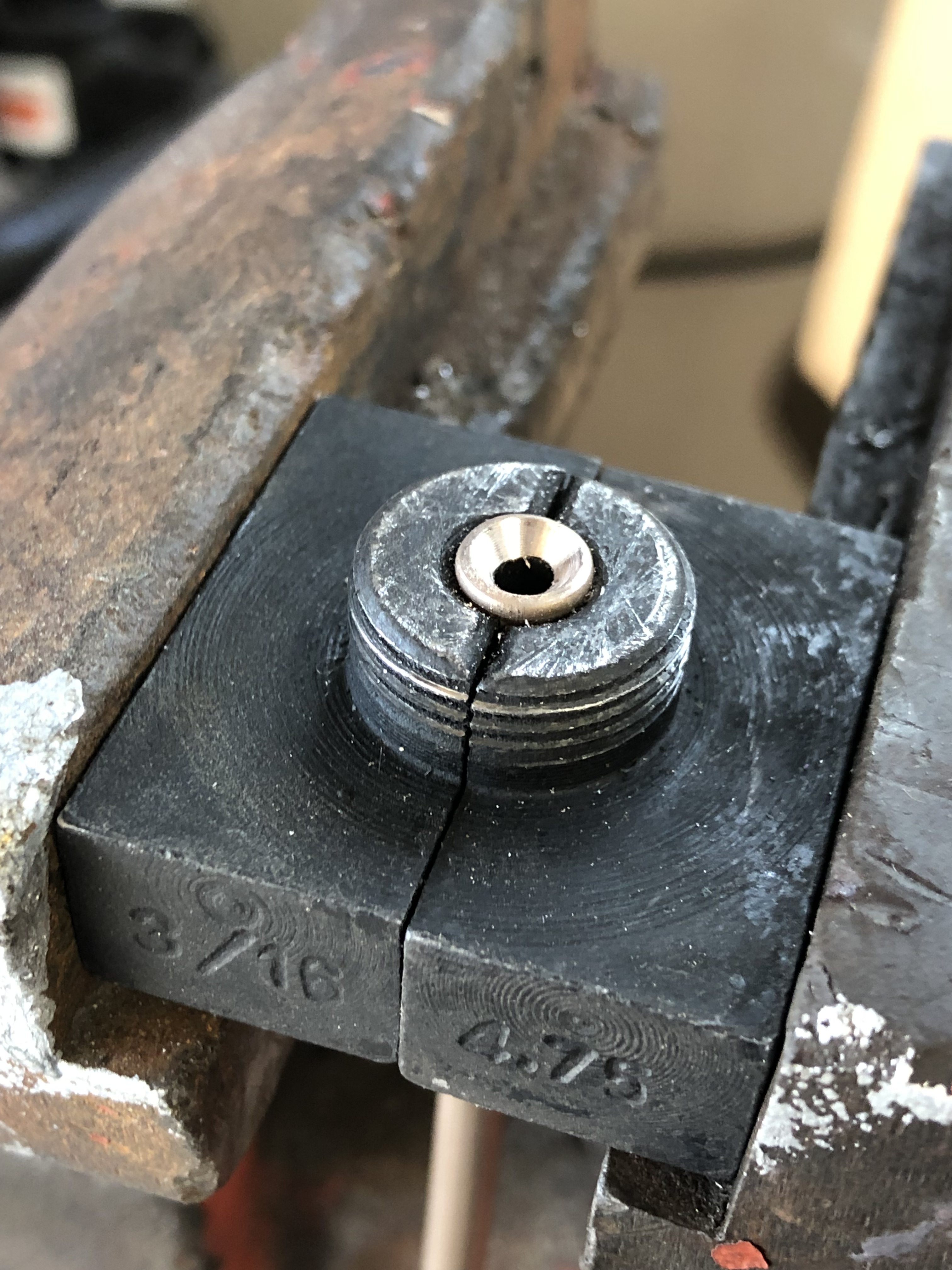

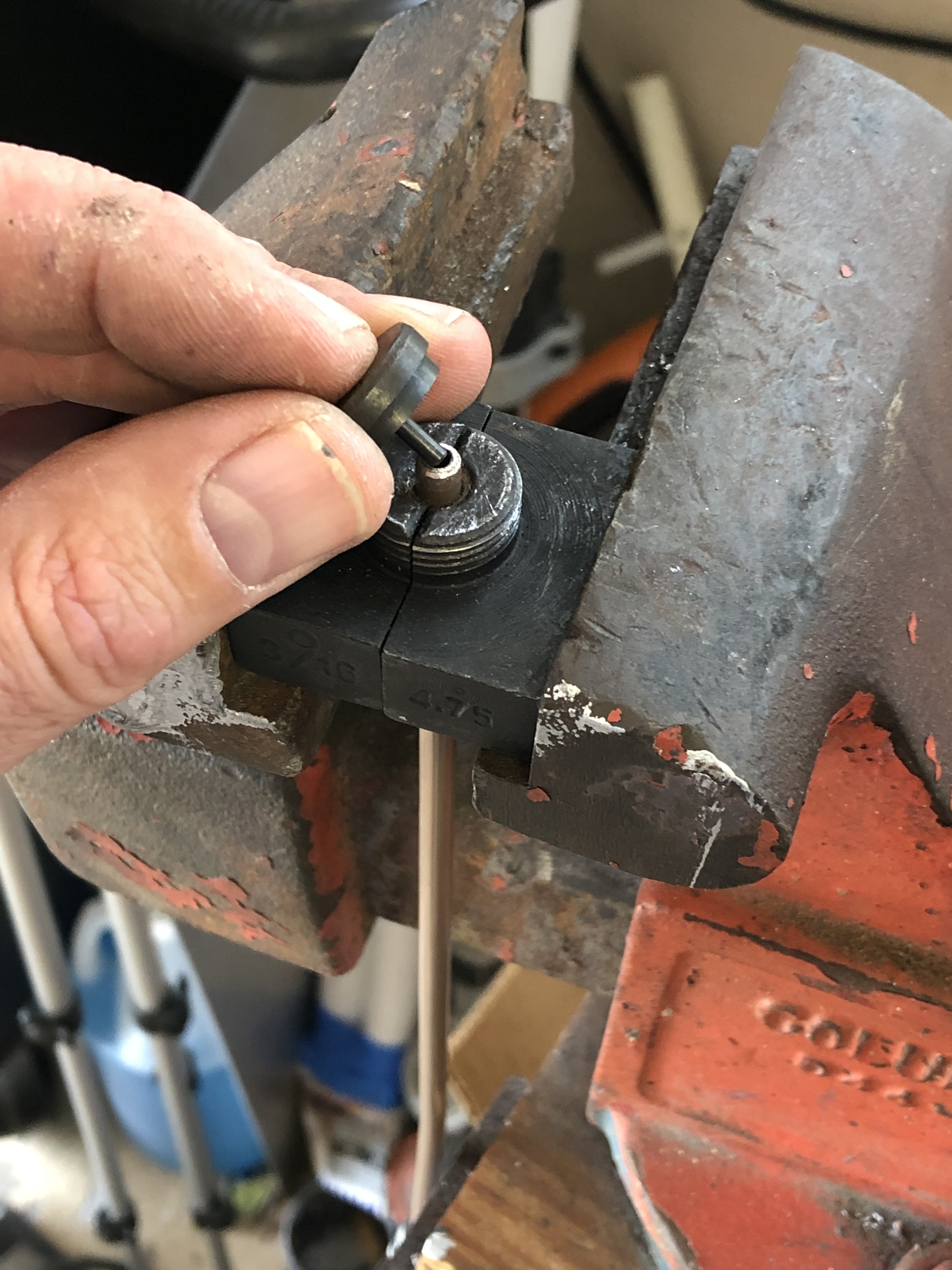

Insert the correct flaring tool into the tube

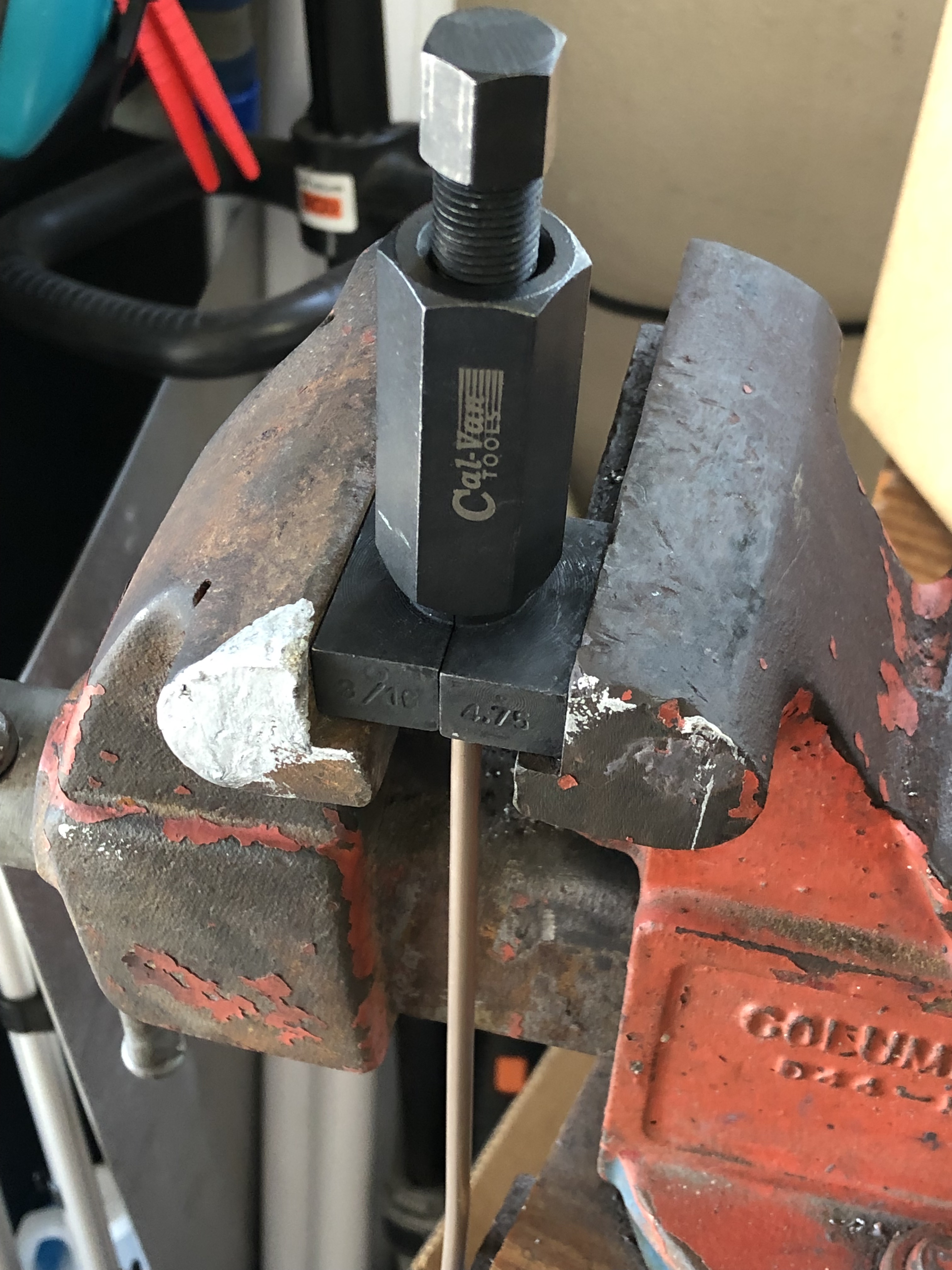

Screw the anvil holder onto the clamp until it is snug. No need to over tighten this at all.

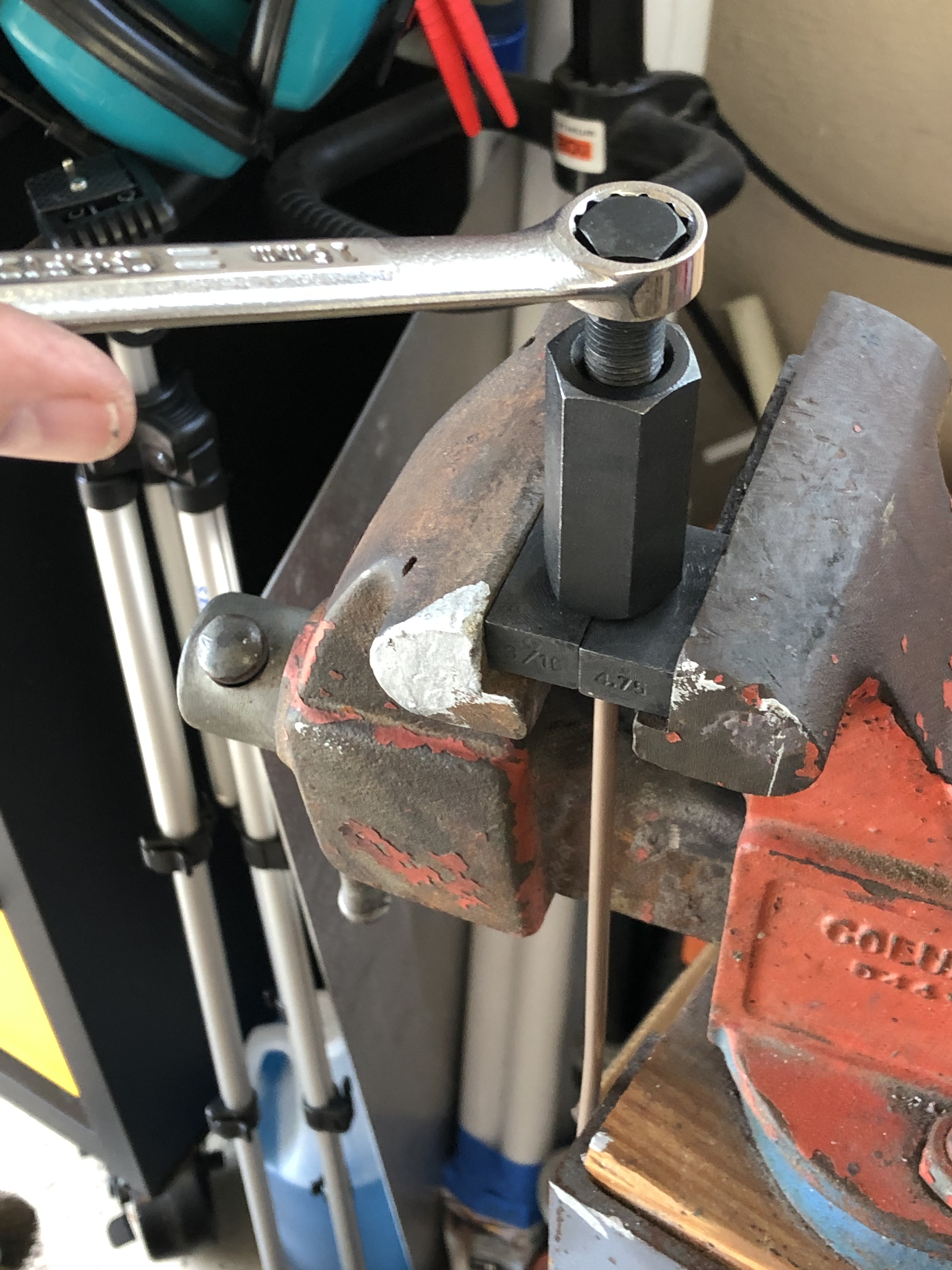

Now screw the anvil down until it bottoms out. You'll feel the resistance once the anvil reaches the bottom. Again, no need to wrench on this extremely hard.

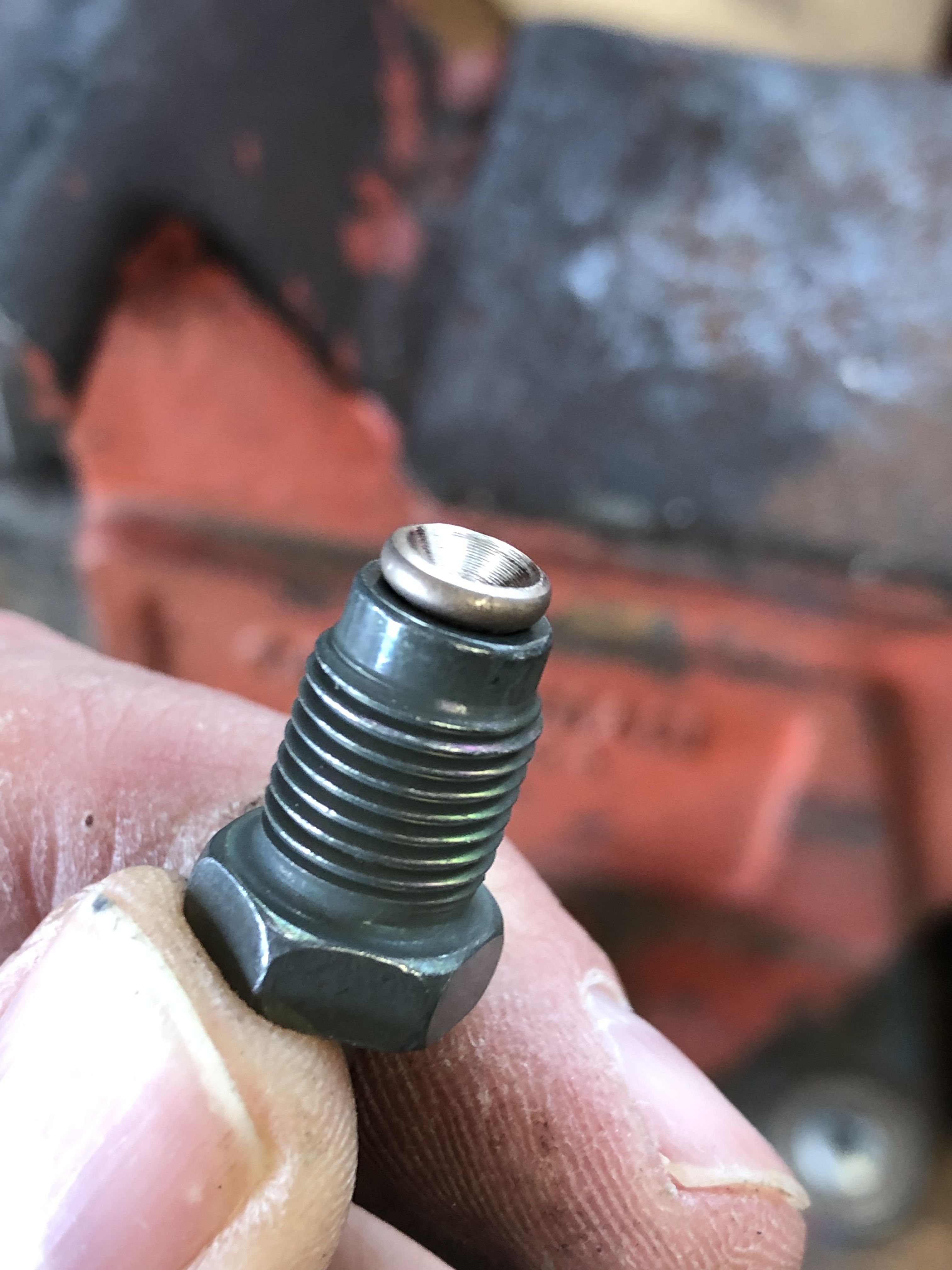

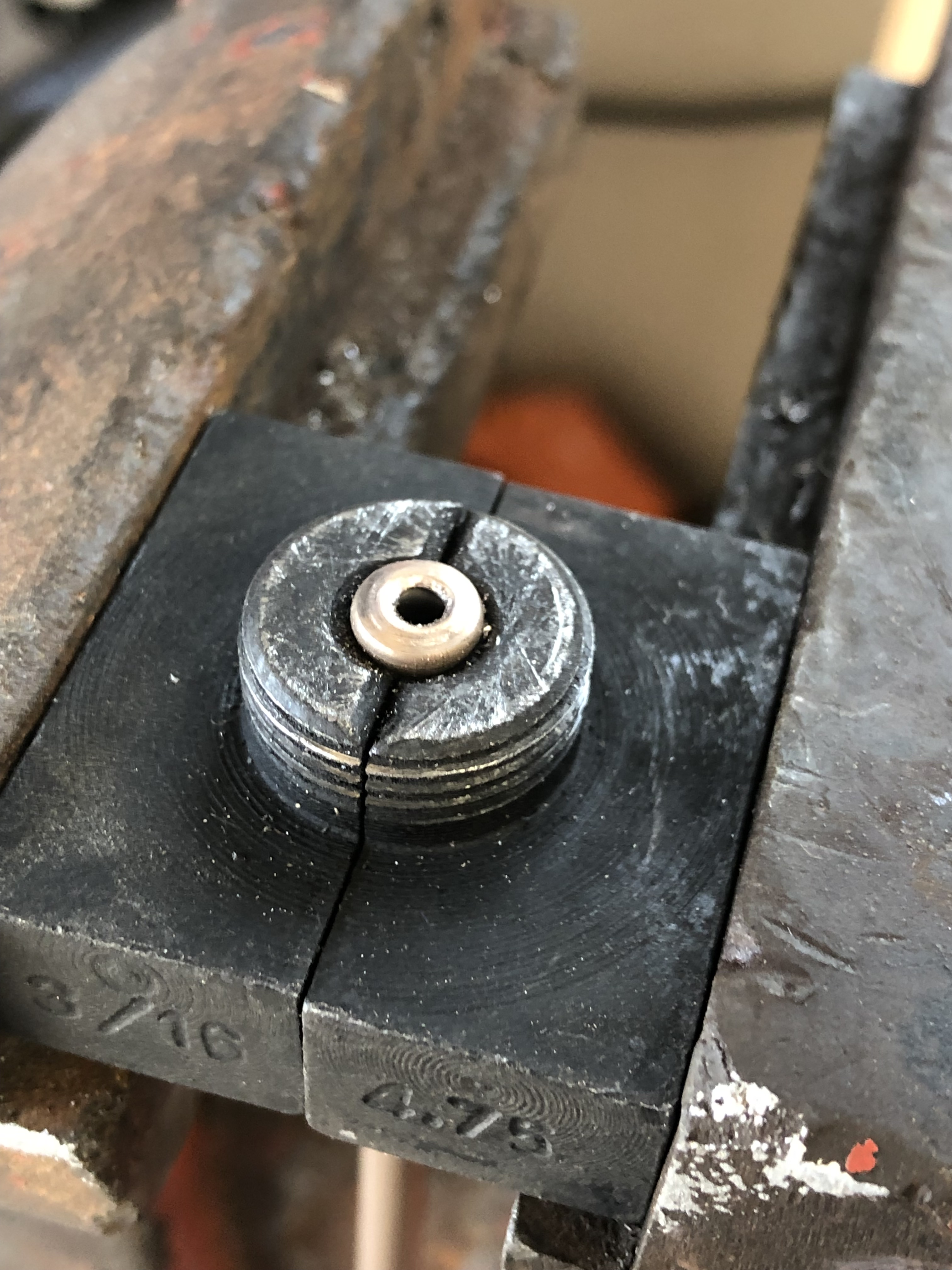

Remove the flaring tool and you'll end up with a nice bubble flare something like this


Remove the flaring tool from the center of the tube and reinstall the anvil. You need to screw down the anvil one more time to create the double flare. Screw the anvil down until there is heavy resistance. If you screw too tight the out side of the flare will be thin. If you screw too loose it will not give you the proper depth of angle for the double flare. It's a matter of feel but it's really not that difficult. Remove the anvil and you should have something like this


There will be some clamp marks around the tube but it's not a problem


Every flare has been consistent and centered for me and it's a relatively easy process.


Hope this helps anybody considering doing this yourself.
Garman is online now
Old 01-07-2019, 03:36 PM
  #131
Senior Member

Join Date: May 2017
Location: Austin, TX
Posts: 539
Total Cats: 55
Default

For 15x10's, exomotive now sells wheels with the proper offsets so no spacers are needed.

Exomotive - US Manufacturer of Exocars & Kit Cars | Japan Racing JR19 Wheels

Any plans on going turbo? I have an exocet 1.8 FMII turbo setup with low miles (~4k) I'll be parting with soon since I'm going LFX. Has a custom enthuzacar exhaust as well. Put down 250+ to the wheels and it is nuts. Hit me up if you are interested. Would like to see the setup go to another exocet since some of the parts are exocet specific.

Edit: nvm, saw you already had the turbo parts.
LukeG is offline
Old 01-07-2019, 03:39 PM
  #132
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 351
Total Cats: 11
Default

months and months of waiting and you return with a post about how to make a pipe?>

gtfo....give us what we want!
Alejo_NIN is offline
Old 01-07-2019, 04:17 PM
  #133
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

HAHAHAHA!

Nothing really new except some new shoes.

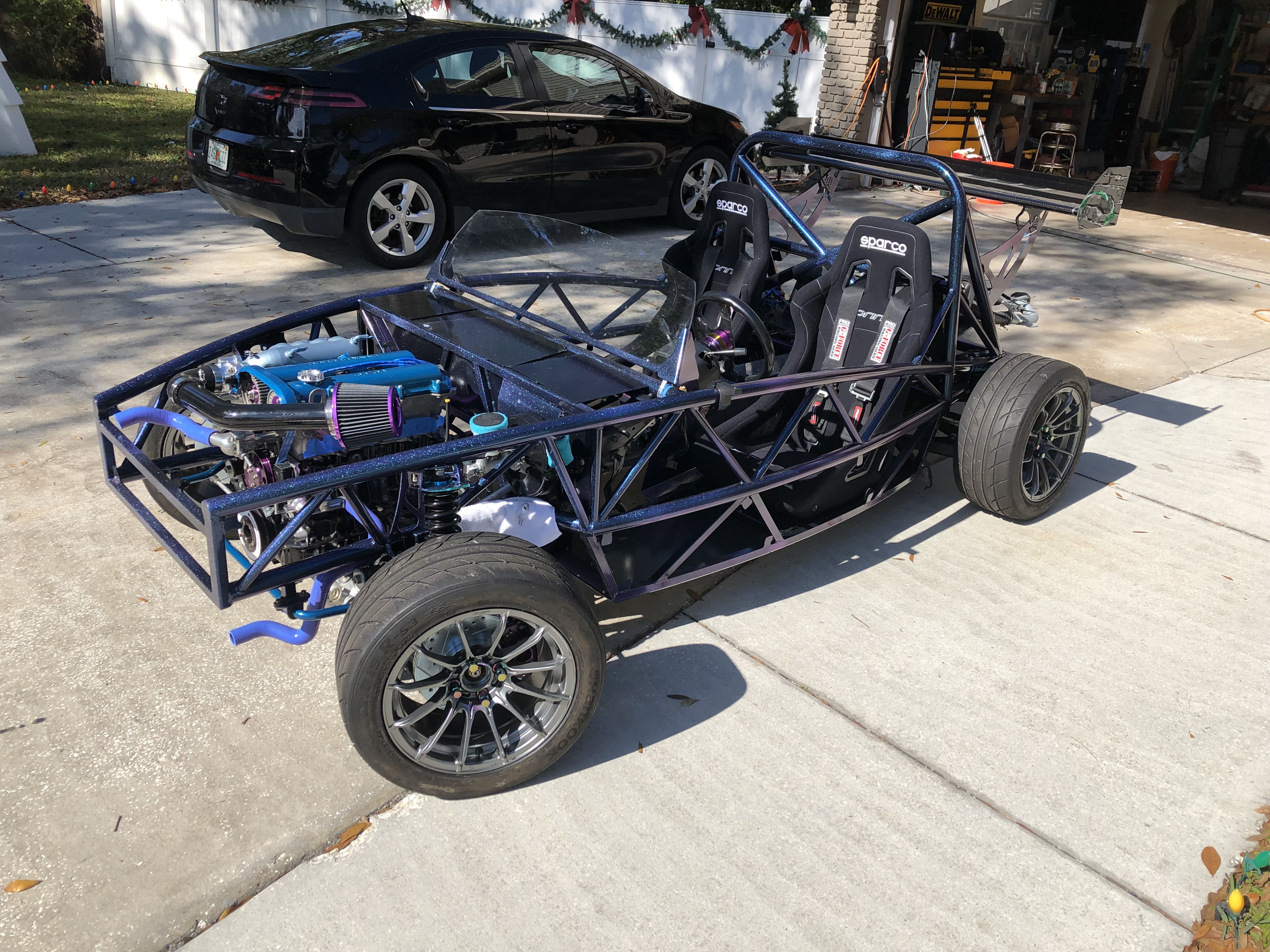

I have a new set of 15x9 0 offset MST MT11's on 225/45 Hankook RS3's

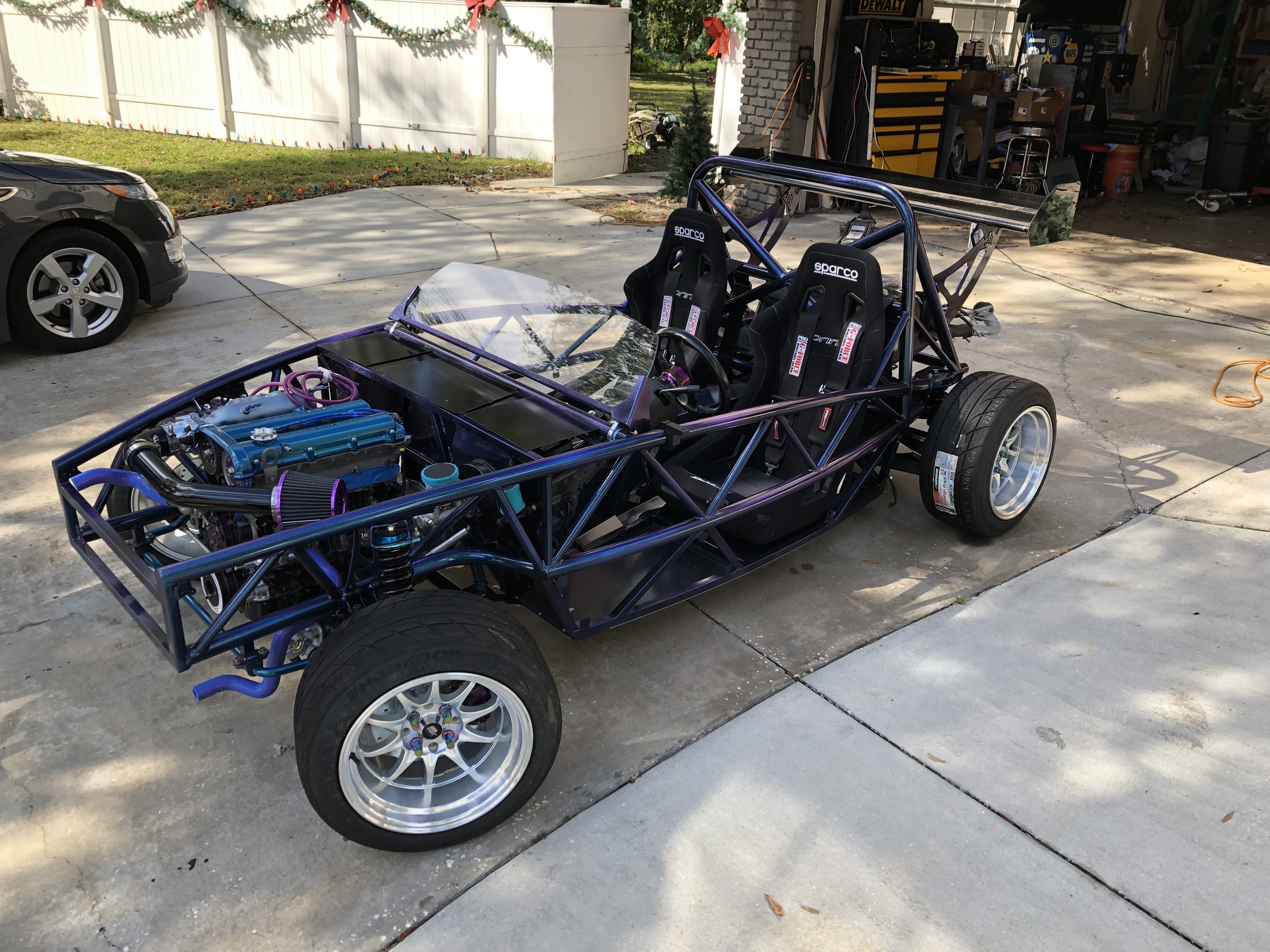

and a almost new set of 15x8 +25 offset Konig Dial In's on another set of 225/45 RS3's


I think I like the Konigs better but I have to run a 25mm spacer in the rear because Exocet.
Garman is online now
Old 01-07-2019, 04:23 PM
  #134
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

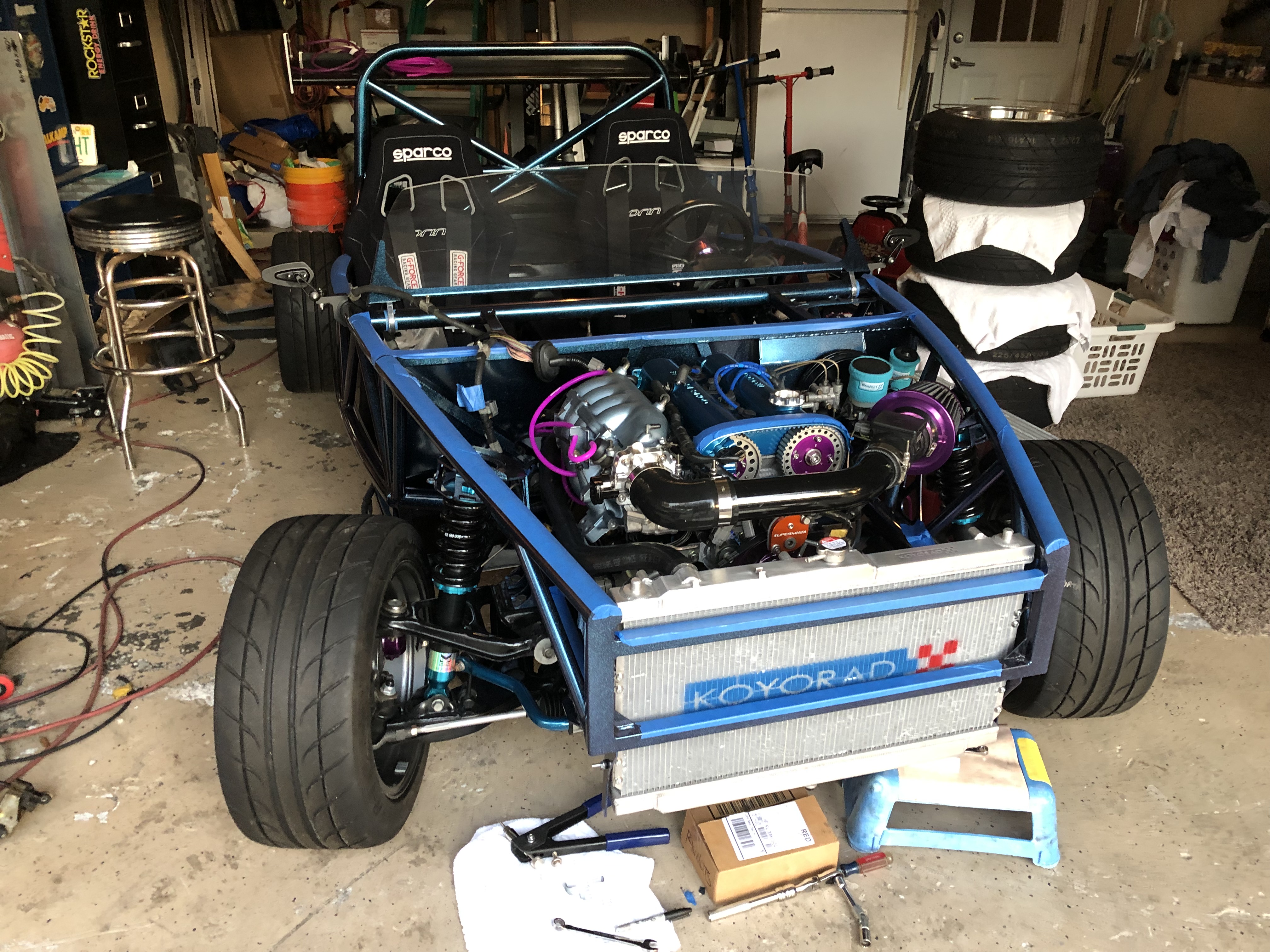

This weekend I got most of the intake back together and bolted on. Fuel lines are ran. I'm waiting on an EGR gasket to come in the mail along with some vacuum lines. Alternator and starter also hooked up. I purchased a coolant reroute from Curly so I'm hoping that gets here soon. Brake lines ordered from HEL were made wrong and needed to be remade. They should be shipping tomorrow. I've got the engine wiring harness almost completely wired in and the main harness ready to go in this weekend. I'm seriously hoping to turn the key by this Sunday but it'll probably be the following weekend. So close......
Garman is online now
Old 01-11-2019, 04:56 PM
  #135
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

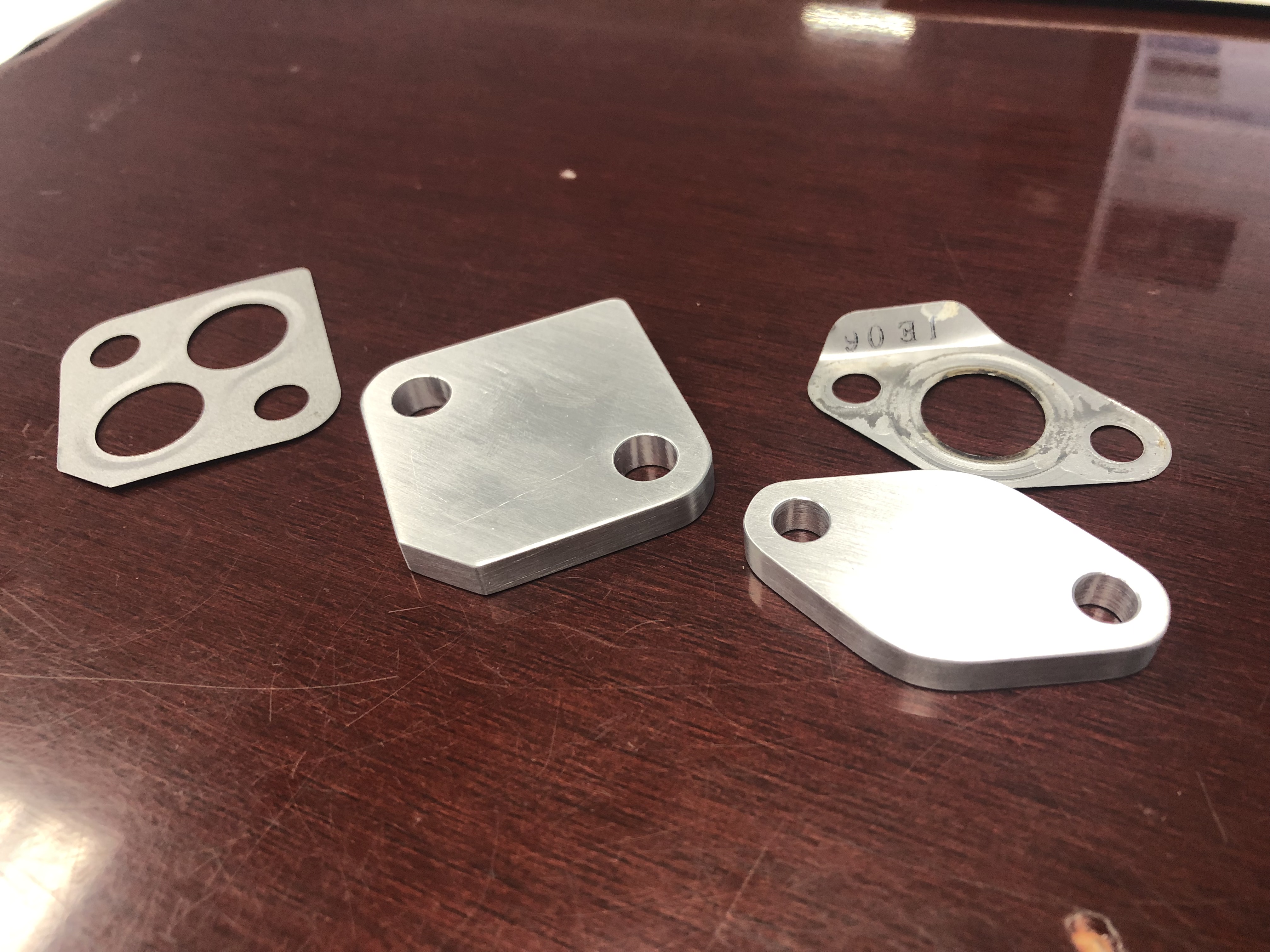

Made these little guys today at work. EGR delete can now commence.

Garman is online now
Old 01-15-2019, 05:03 PM
  #136
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

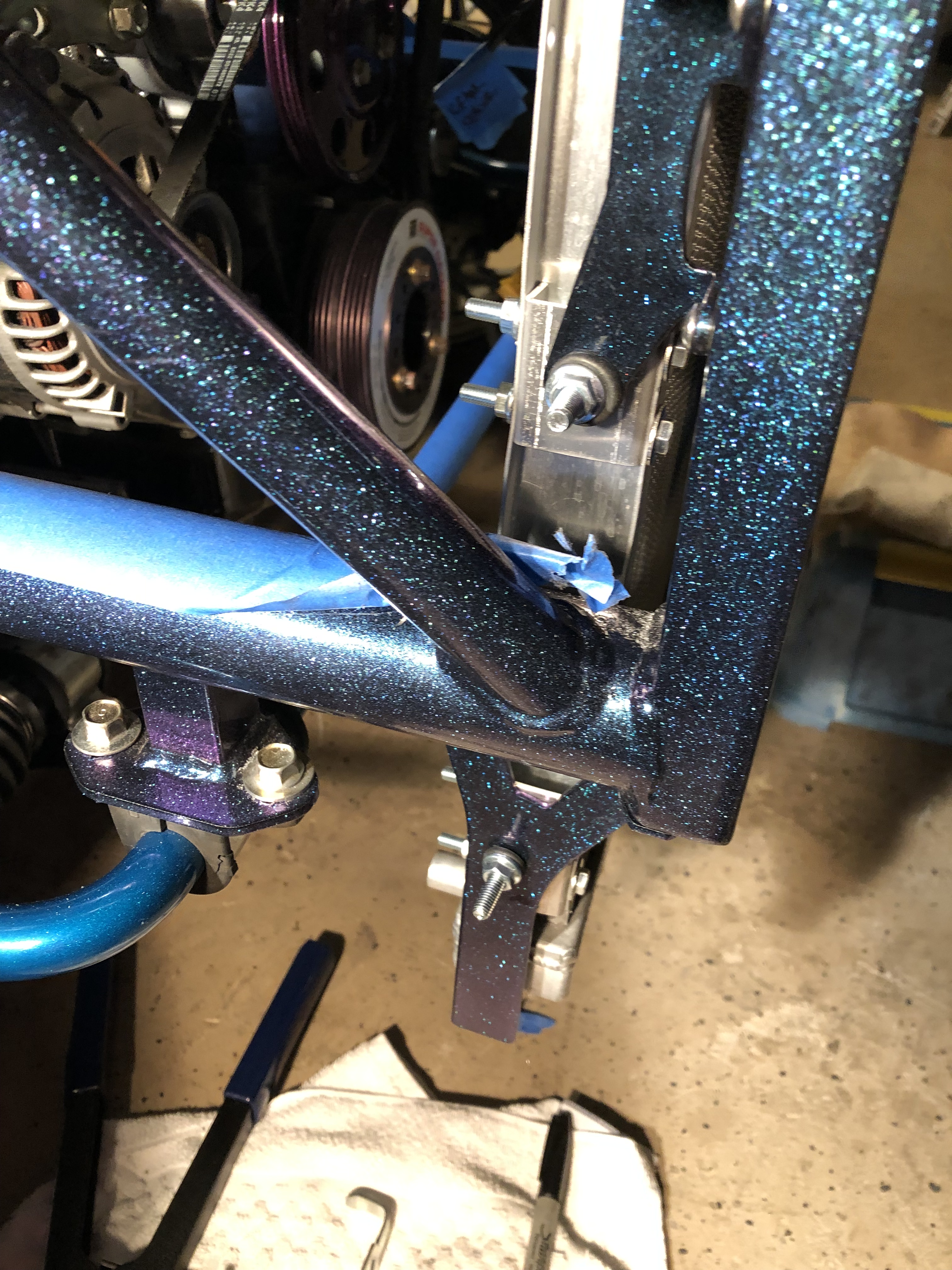

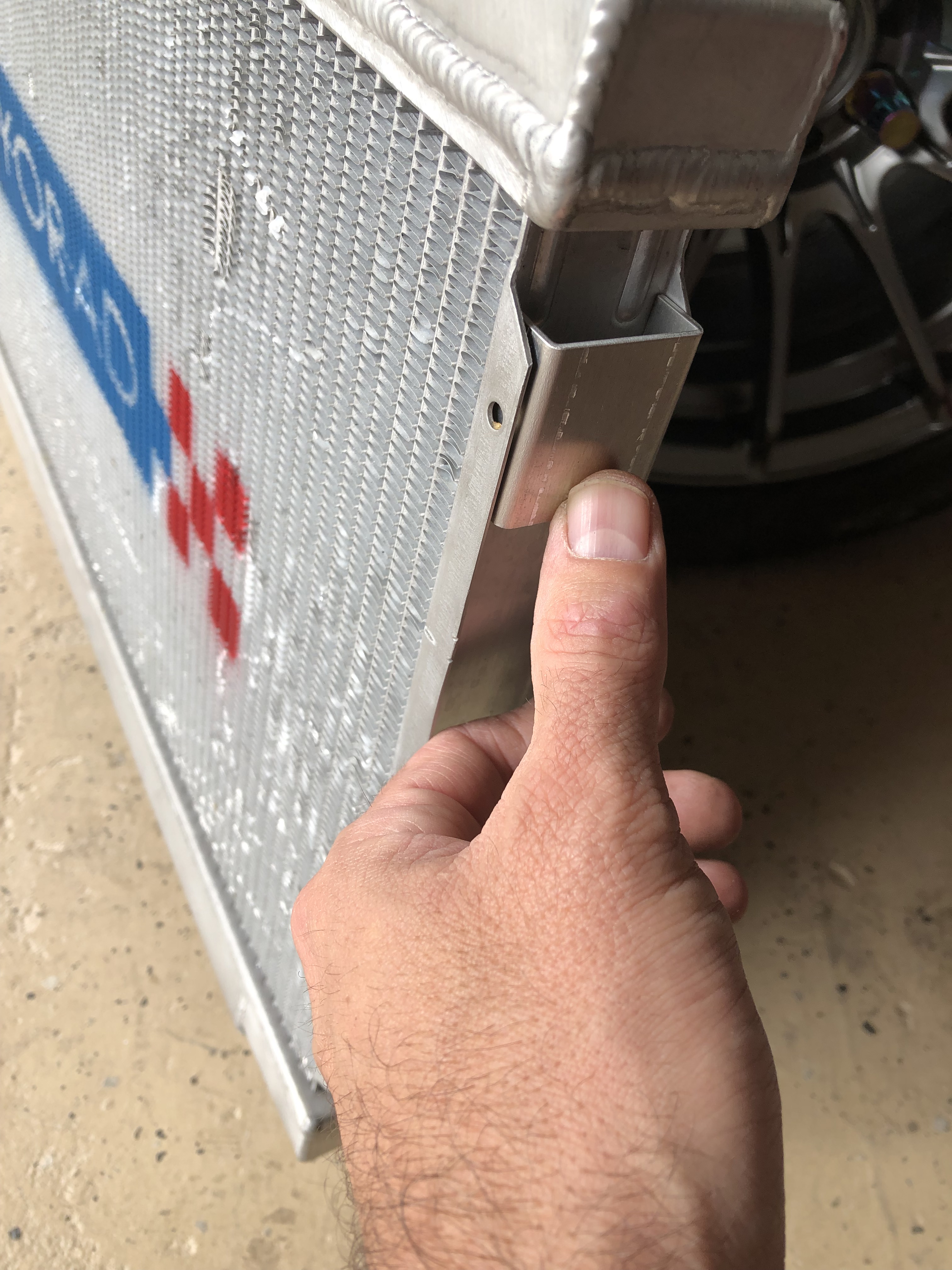

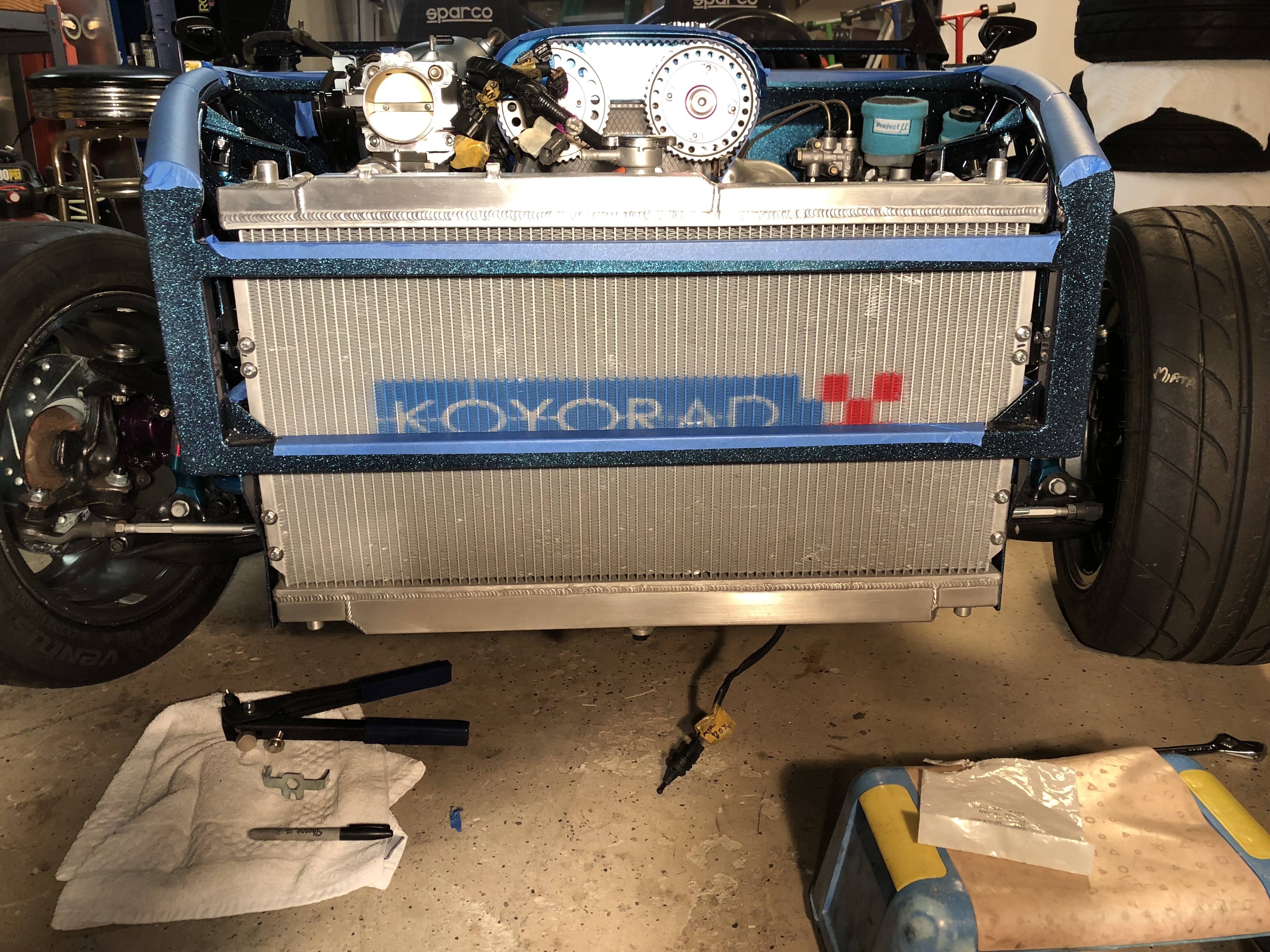

Mounted up my Koyorad radiator this weekend. Had to fab up some additional brackets to use the Exomotive supplied mounts but it wasn't too big of a deal.

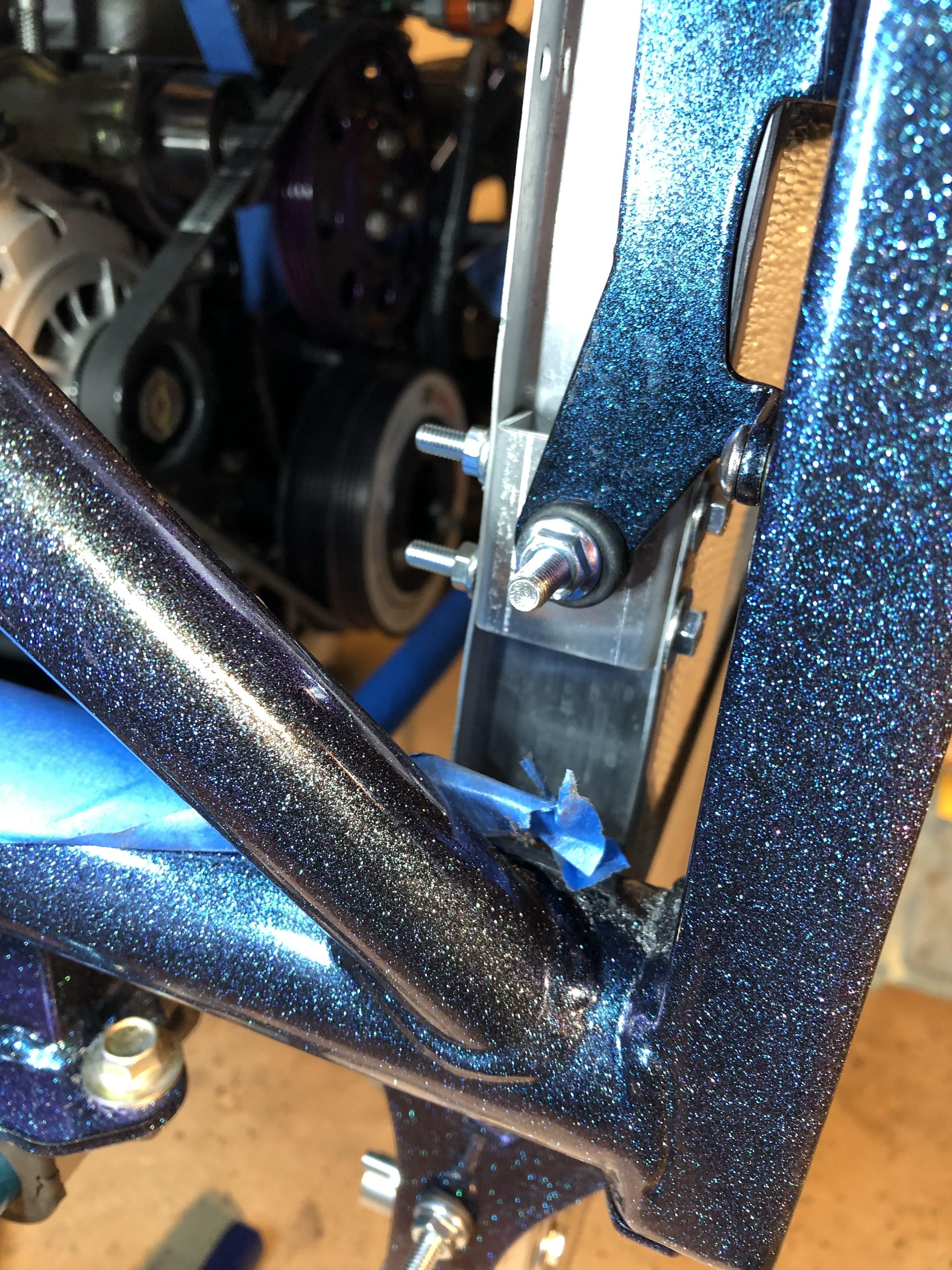

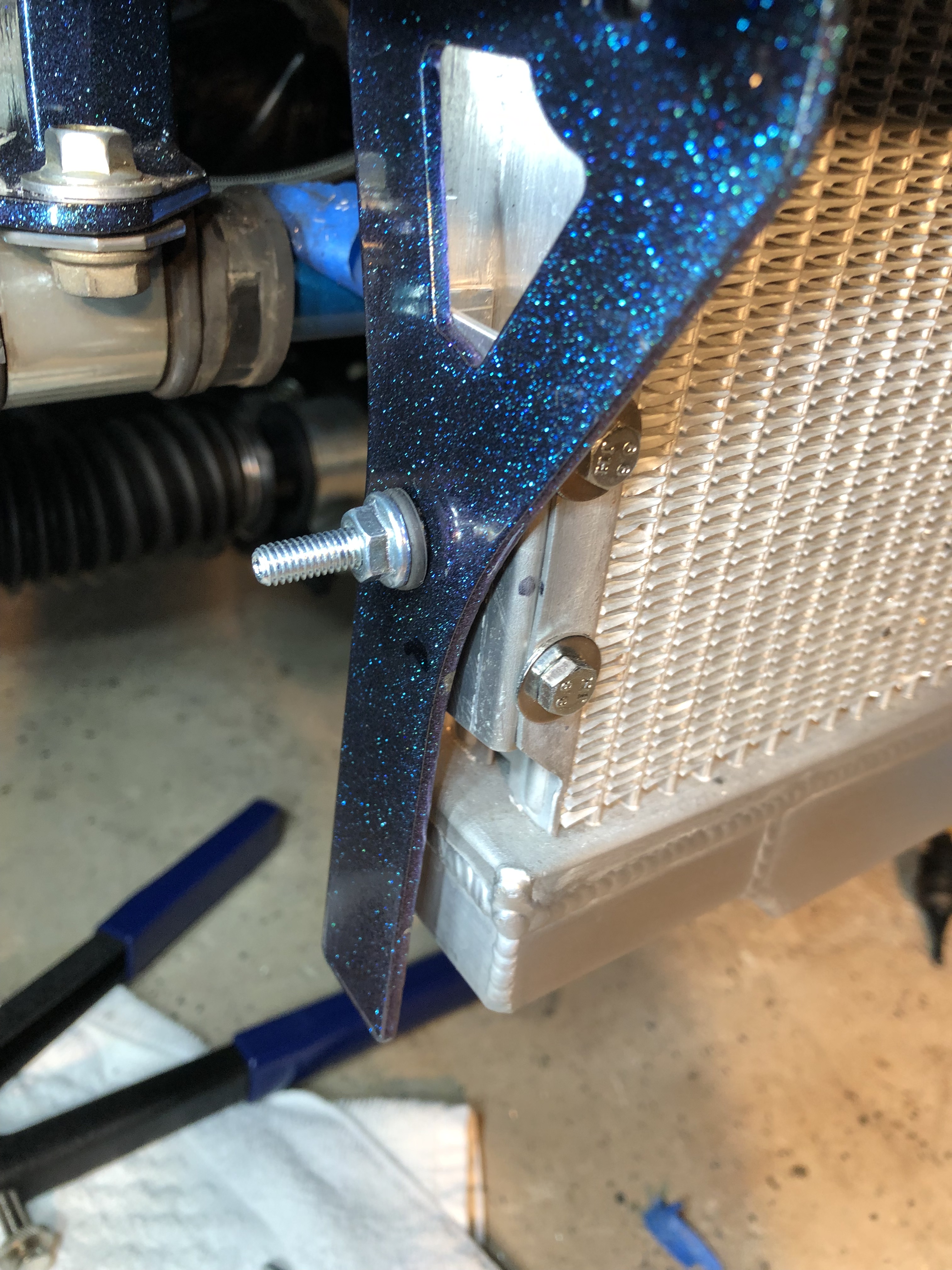

Here's the brackets I made to fit inside the side rails

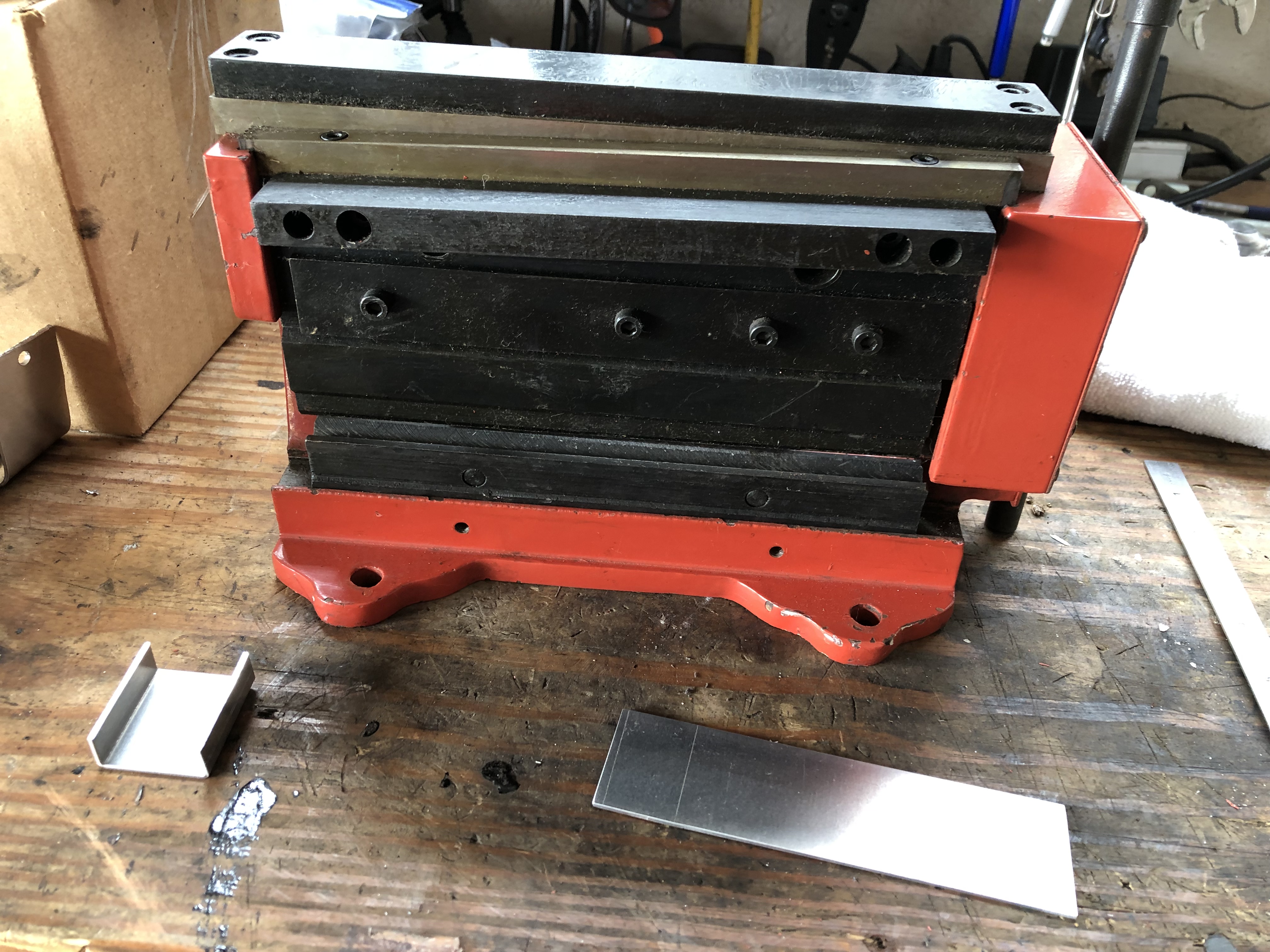

I used this little press brake/shear I picked up years ago to bend my brackets. I subsequently broke the main gear making my very last bracket. Bummer






Garman is online now
Old 01-18-2019, 07:21 PM
  #137
Junior Member

Join Date: Jun 2010
Location: SF Bay Area
Posts: 59
Total Cats: 4
Default

Looking good.

Originally Posted by Garman View Post
I think I like the Konigs better but I have to run a 25mm spacer in the rear because Exocet.
25mm seems excessive. 949 has the Exocet 15x8 at +23mm, what am I missing?
halfpint is offline
Old 01-21-2019, 10:17 AM
  #138
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

I've got about .750" gap between the tire and my frame without the spacer. I'm contemplating running without the spacer as long as tire deflection doesn't rub the frame. I don't need a spacer that big but it's what I have laying around.

Spacer:

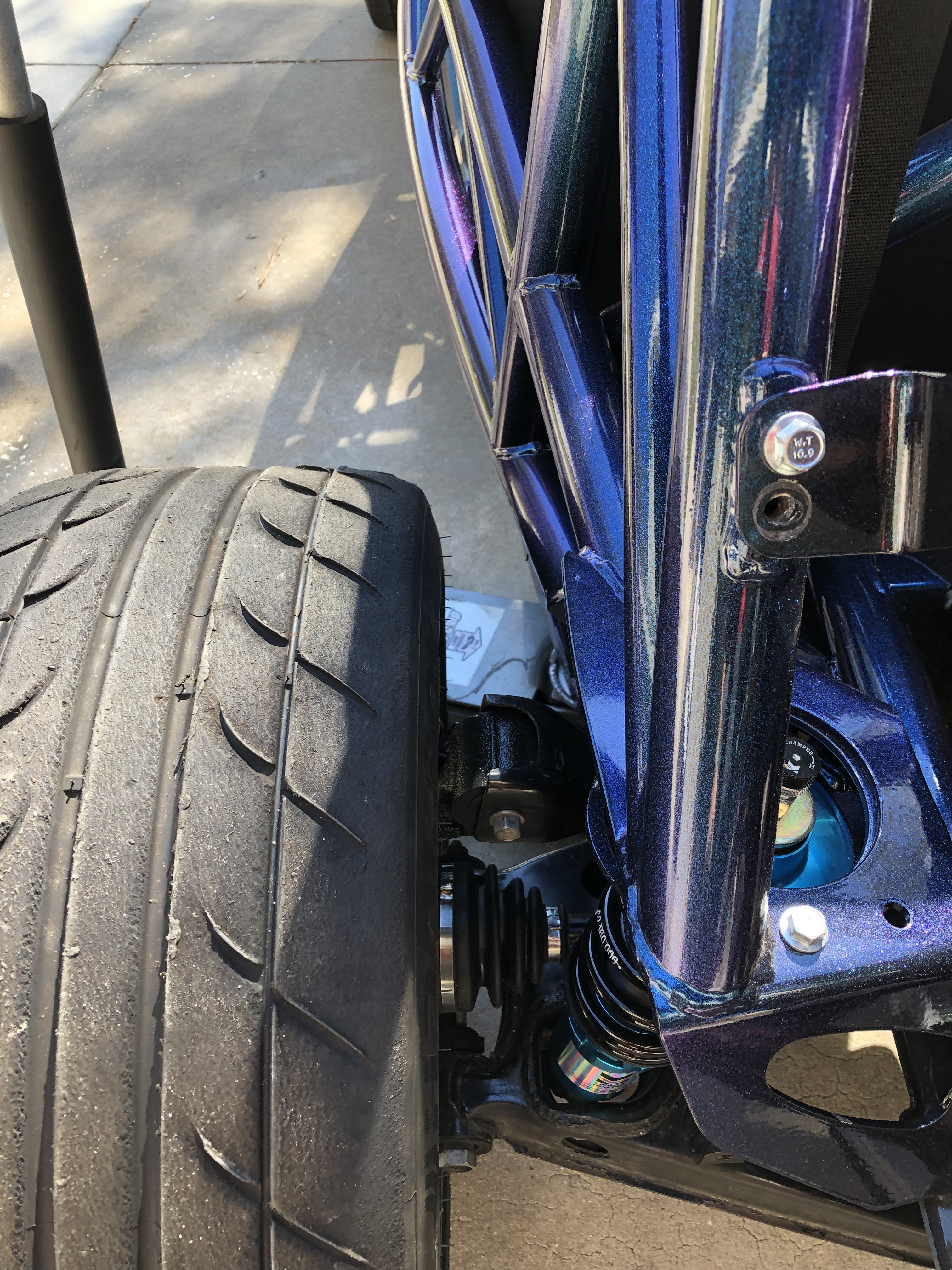

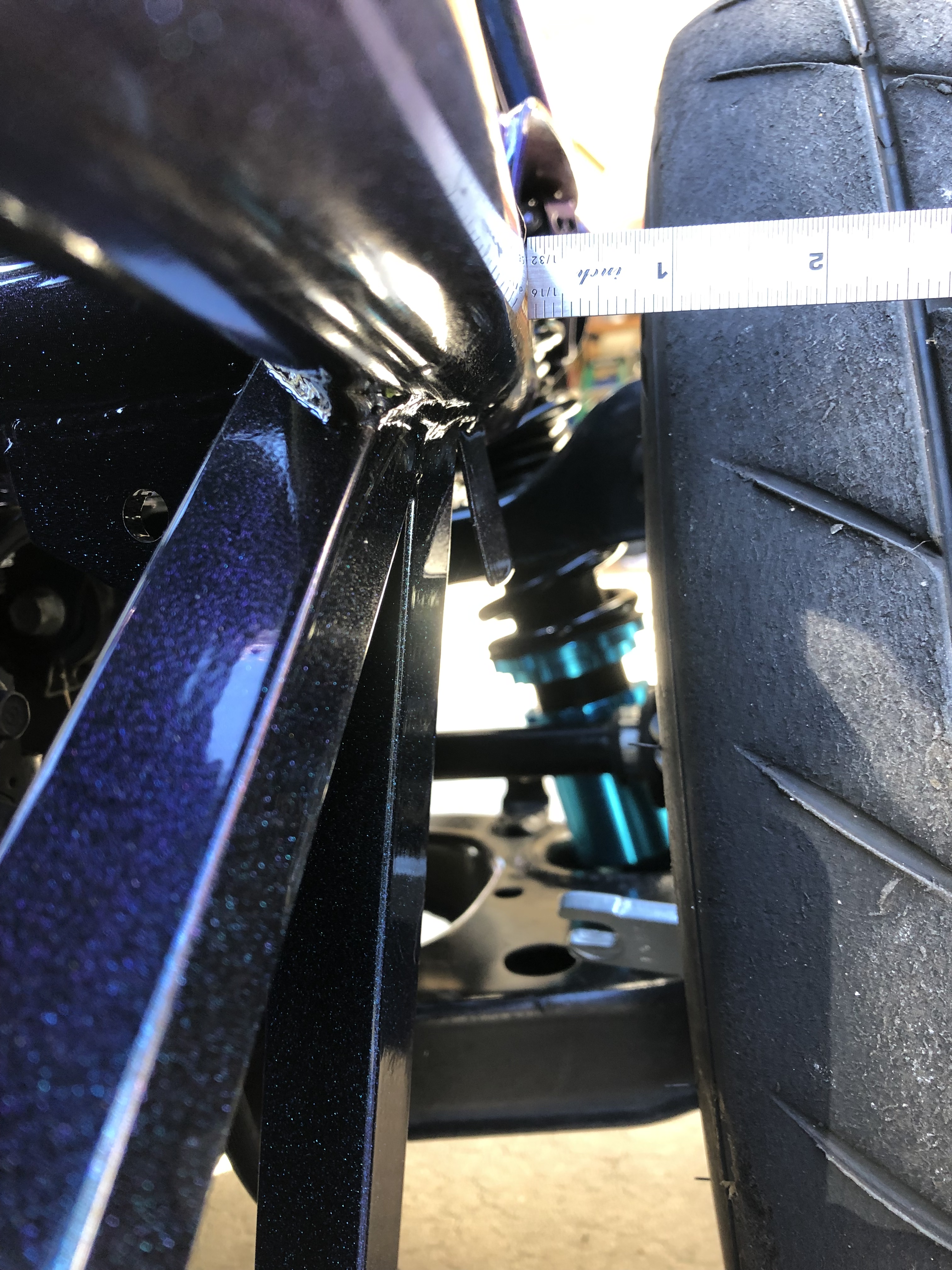

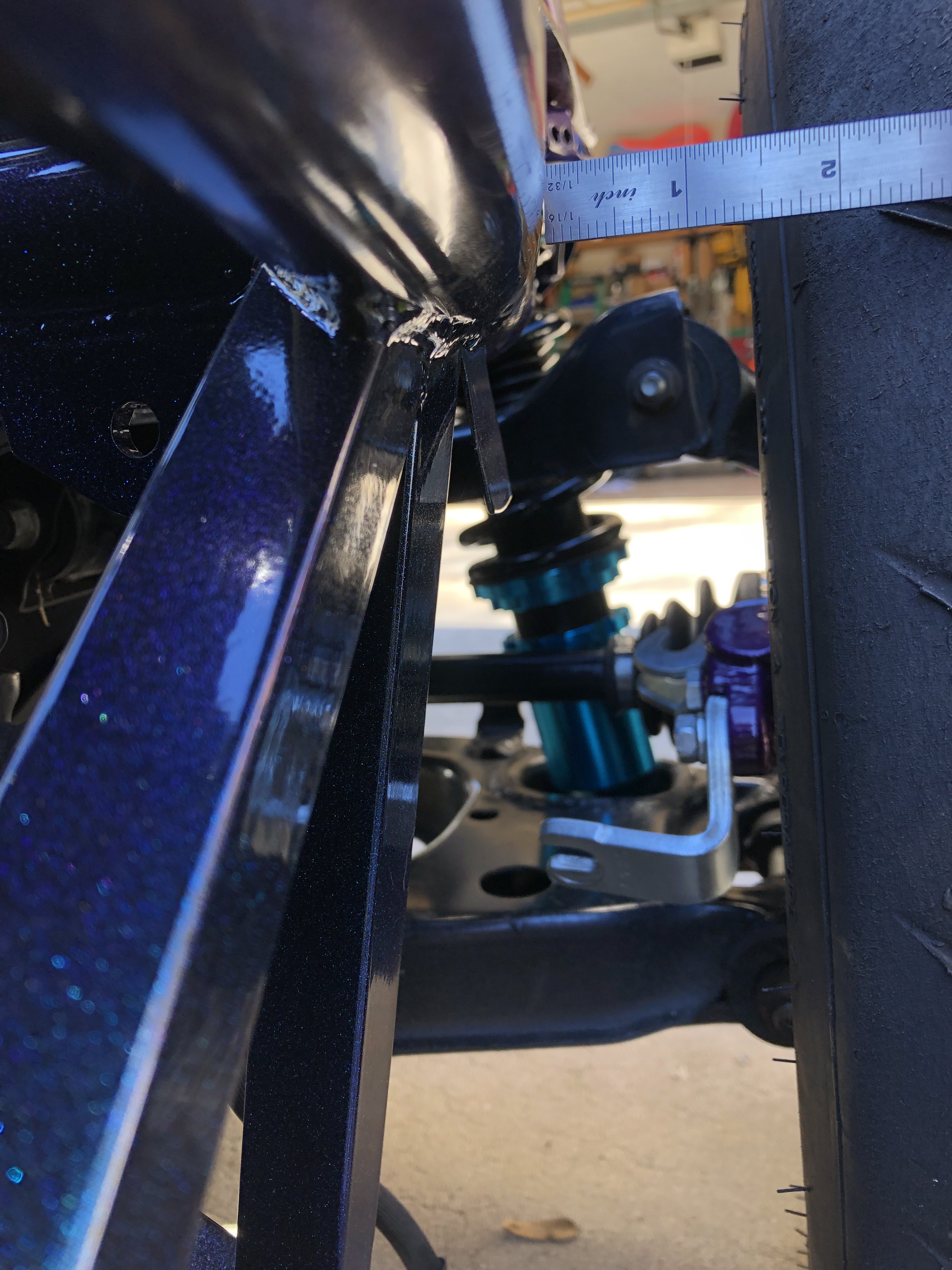

Without spacer:

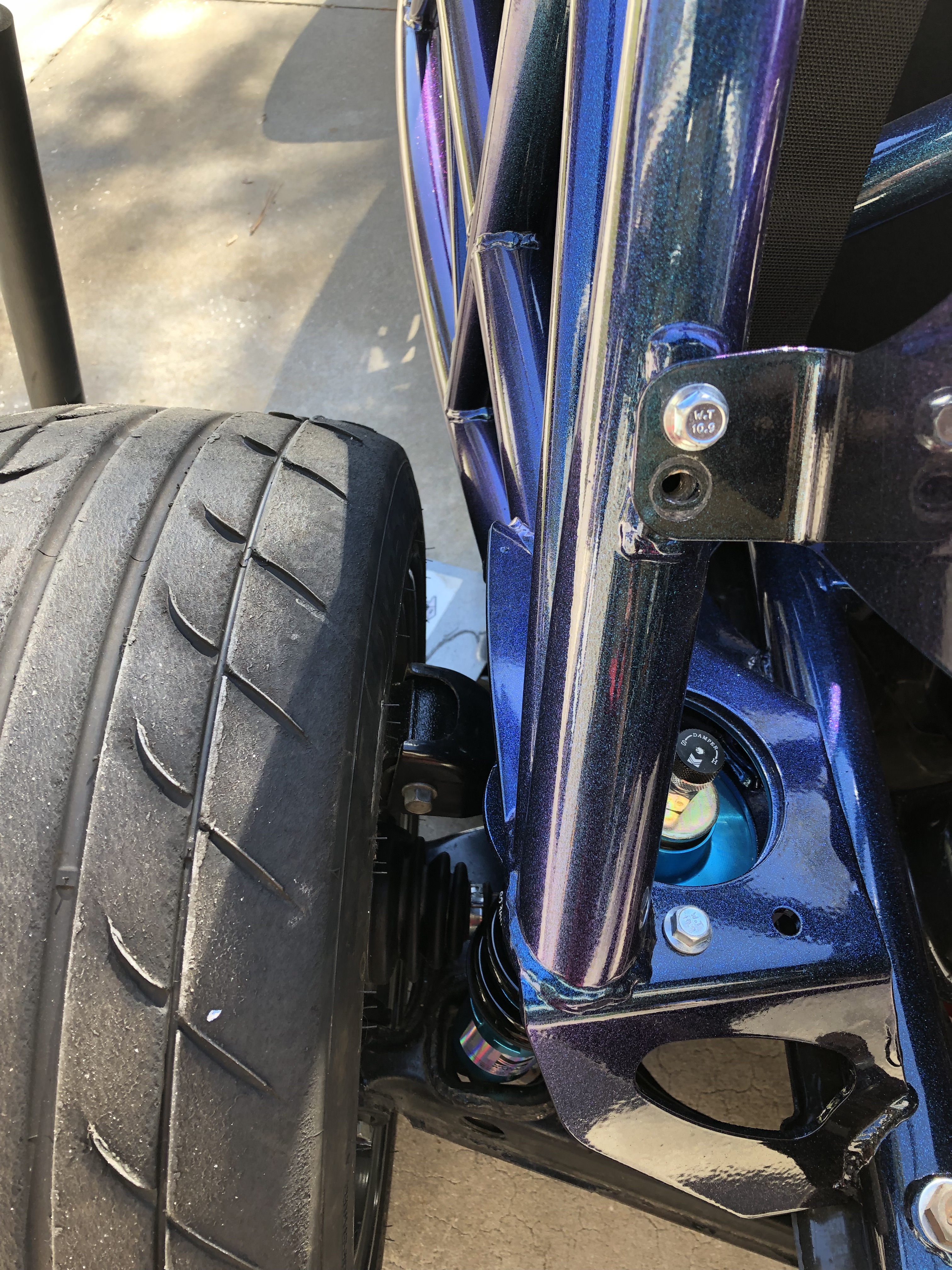

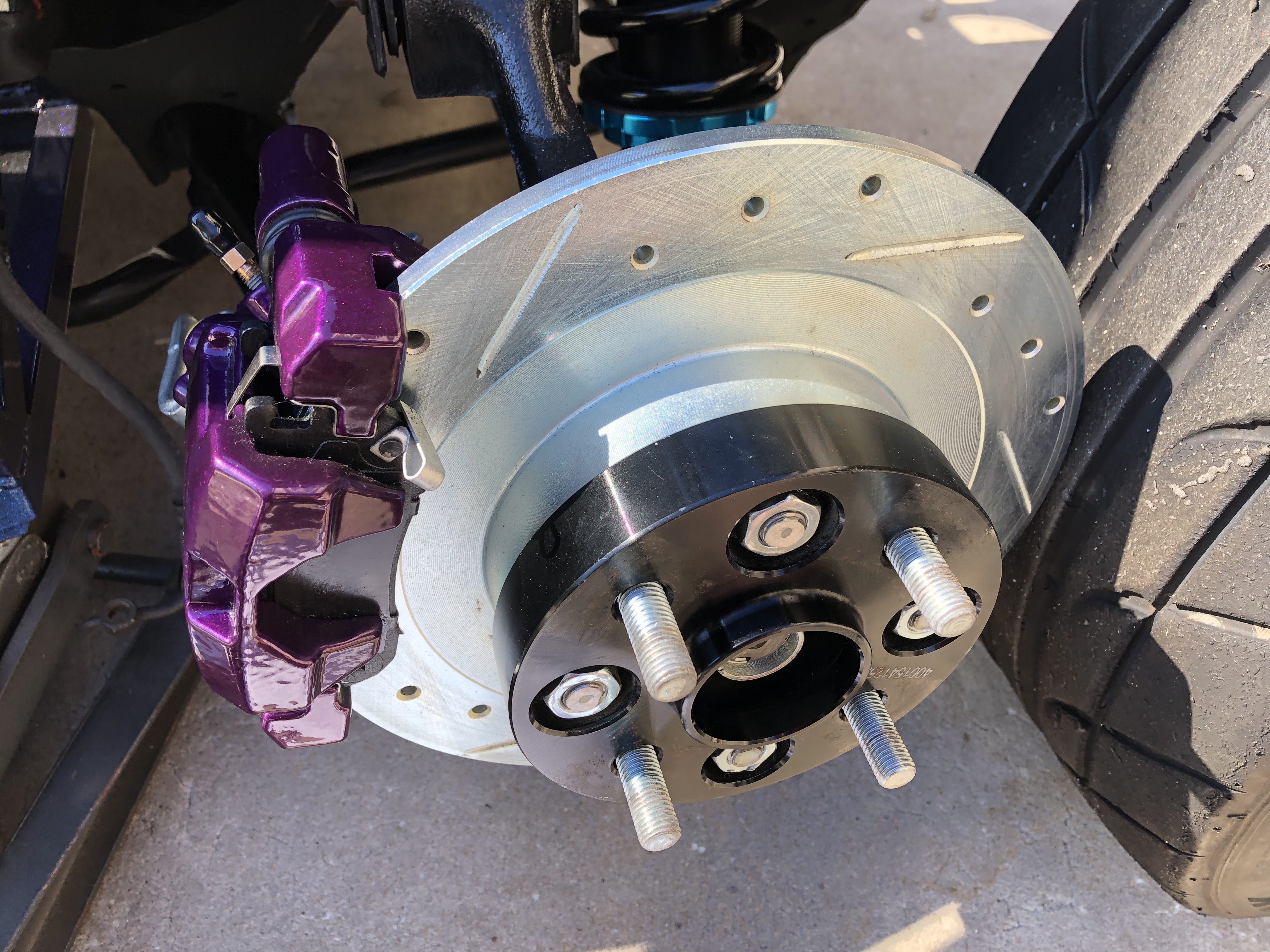

With spacer:


Garman is online now
Old 01-21-2019, 03:55 PM
  #139
Junior Member

Join Date: Jun 2010
Location: SF Bay Area
Posts: 59
Total Cats: 4
Default

Thanks for clarifying and providing pics. Good to know a small spacer, 5mm, is probably more than enough to add some wiggle room.
halfpint is offline
Old 01-25-2019, 04:03 PM
  #140
Junior Member
Thread Starter

Join Date: Jan 2018
Location: Tampa, Fl
Posts: 145
Total Cats: 16
Default

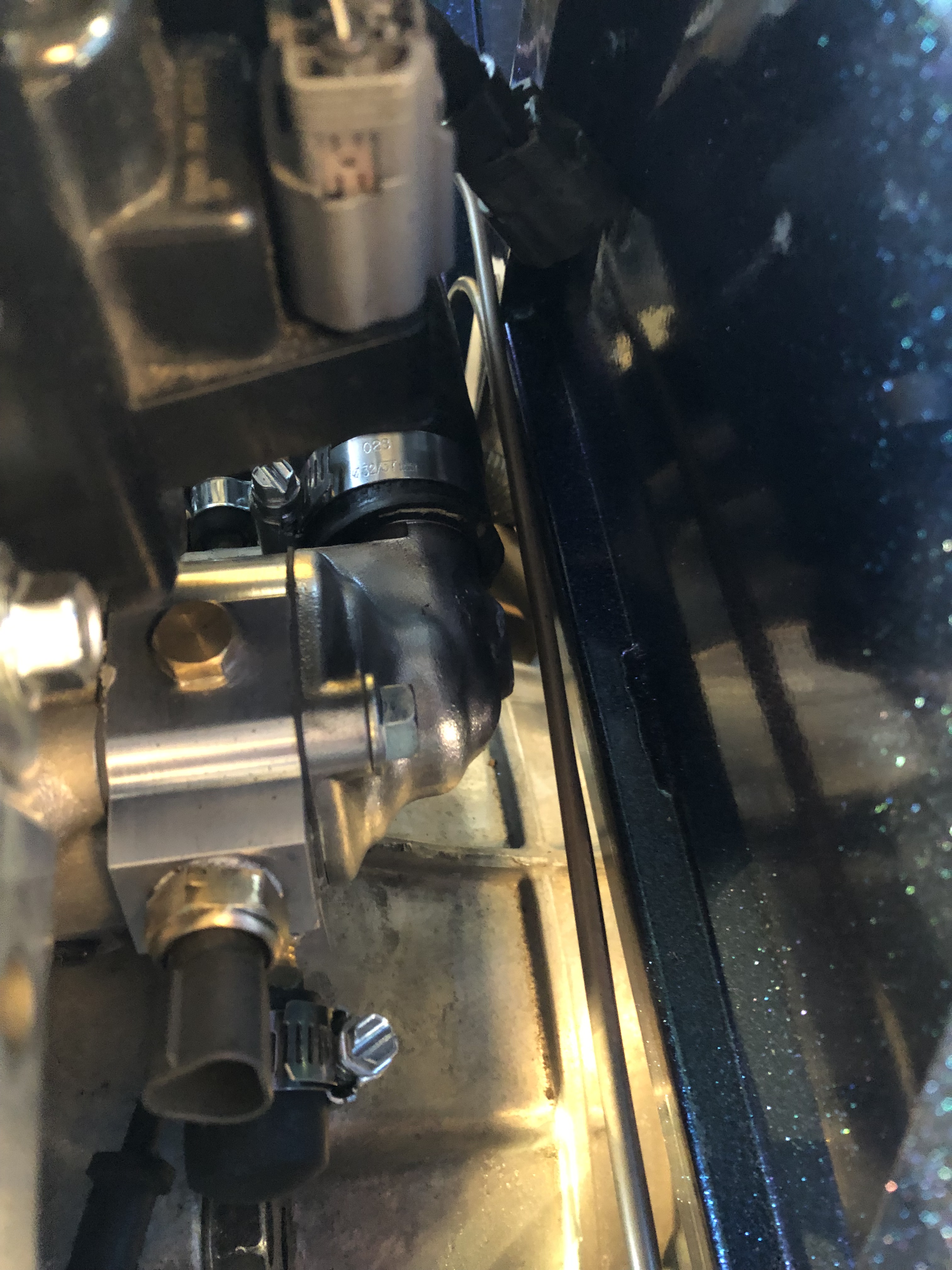

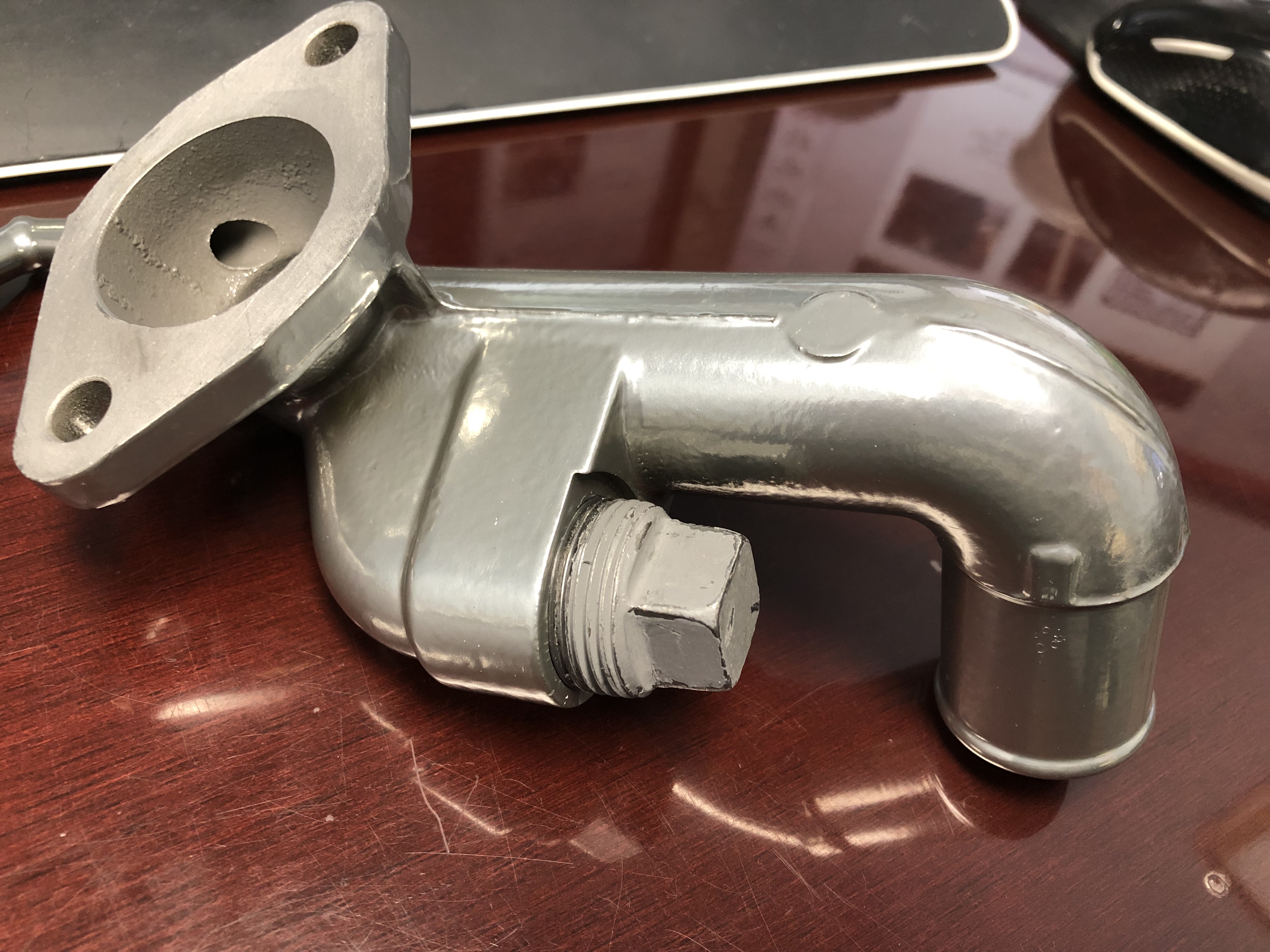

Finished up my coolant reroute using the SKOU reroute block I picked up from Curly.



I drilled two 1/8" holes in the thermostat to keep coolant flowing over the top since I blocked off the feed line on my "mixing bowl".

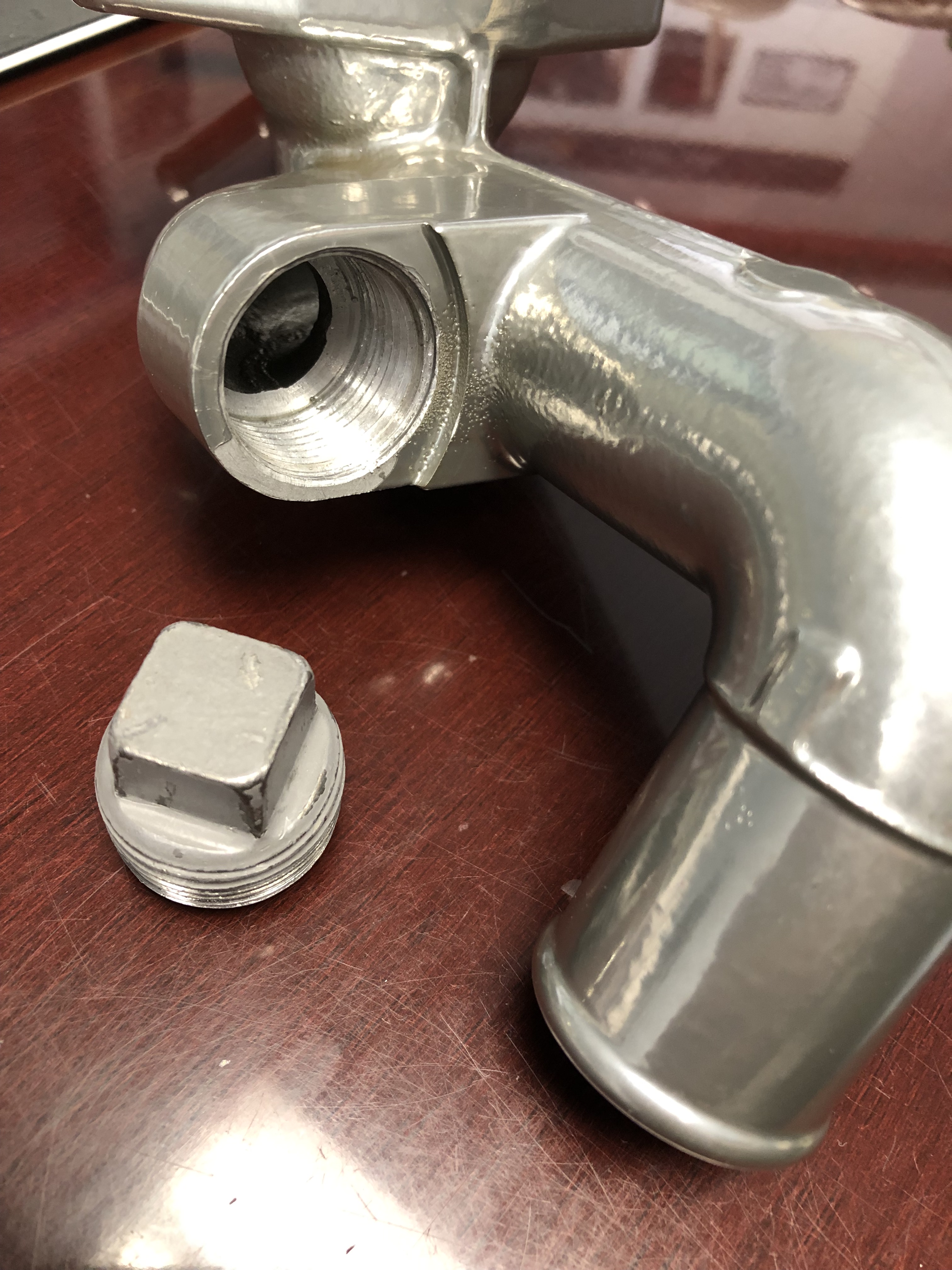

I found a tip from other Exocet owners that you can tap the port with a 3/4" NPT and then block it off. I'll be blocking off for now but I'll use it later for my turbo coolant line.
Garman is online now
