Old 07-18-2015, 05:31 PM   #41
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

ysleem is offline   Reply With Quote
Old 07-22-2015, 05:00 PM   #42
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Thanks to Lars we got this thing idling like normal. Glad to be part of this community. Next up: fine tuning Idle and intercooler install.
ysleem is offline   Reply With Quote
Old 07-22-2015, 07:00 PM   #43
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,714
Total Cats: 1,083
Default

Quote:
Originally Posted by ysleem View Post
Thanks to Lars we got this thing idling like normal. Glad to be part of this community. Next up: fine tuning Idle and intercooler install.
We got it idling ok. I would not say it is like normal. Now it just needs lots of fine tuning, but the car is driveable.
shuiend is offline   Reply With Quote
Old 07-22-2015, 10:40 PM   #44
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Quote:
Originally Posted by shuiend View Post
We got it idling ok. I would not say it is like normal. Now it just needs lots of fine tuning, but the car is driveable.
That part I'll get sorted out. Good stuff nonetheless though. And then it will be mk turbo time. First 1.6 with an mk setup??
ysleem is offline   Reply With Quote
Old 08-16-2015, 08:33 PM   #45
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

So made some progress and mounted the recommended intercooler in preparation for the mk turbo setup this weekend. Please note that I did not have 2" t bolt clamps so I need to get those and I ran out of aluminum piping 90s so I had to improvise. I could use two reducers as well but everything fits. The undertray is sitting back a smidge so it will be held by 4 bolts for now. Will need to make a sheet metal plate for IC yo channel air to it and connect bumper to it as I'm getting rid of that plastic piece that originally connected to the bumper.

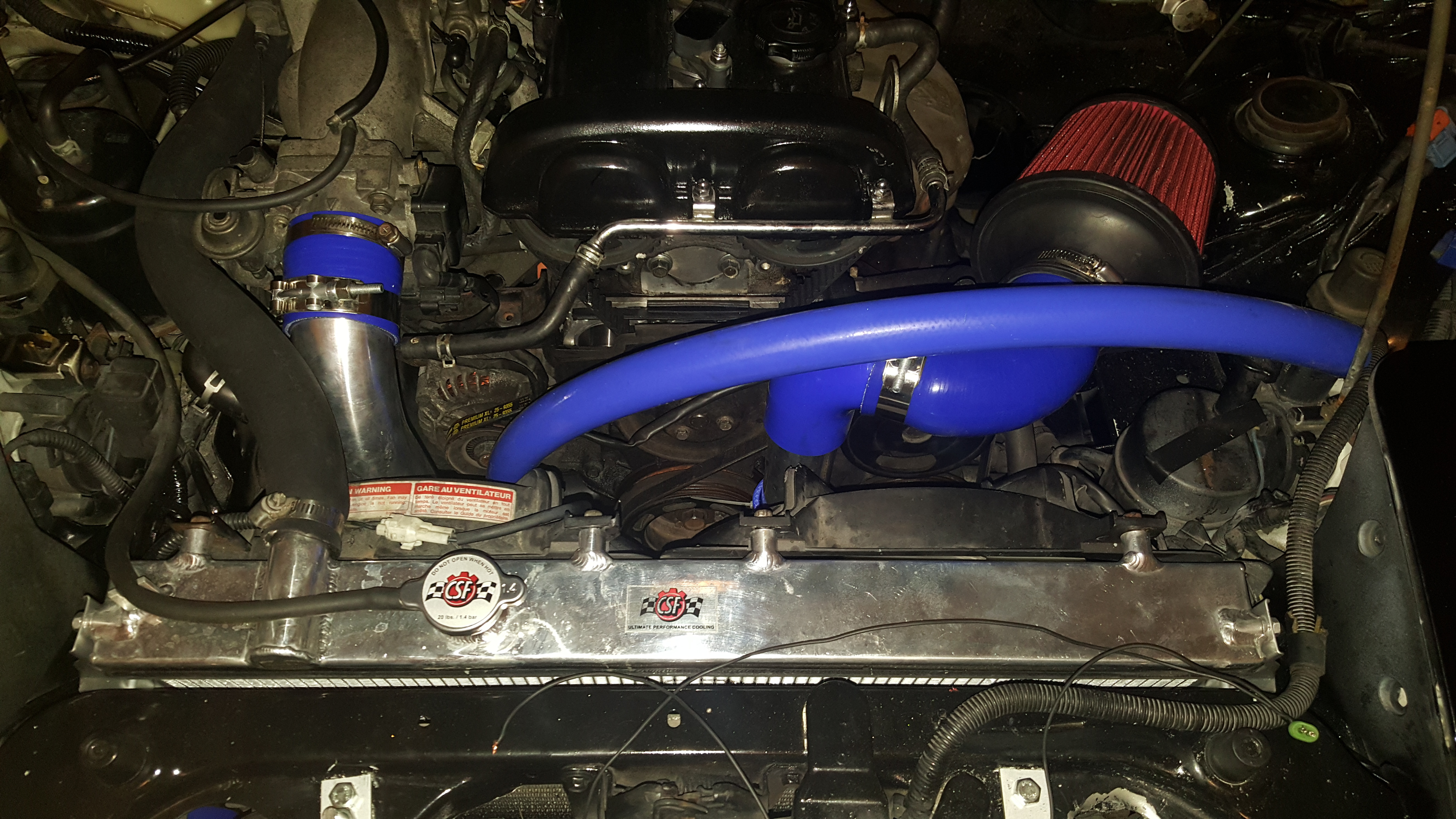

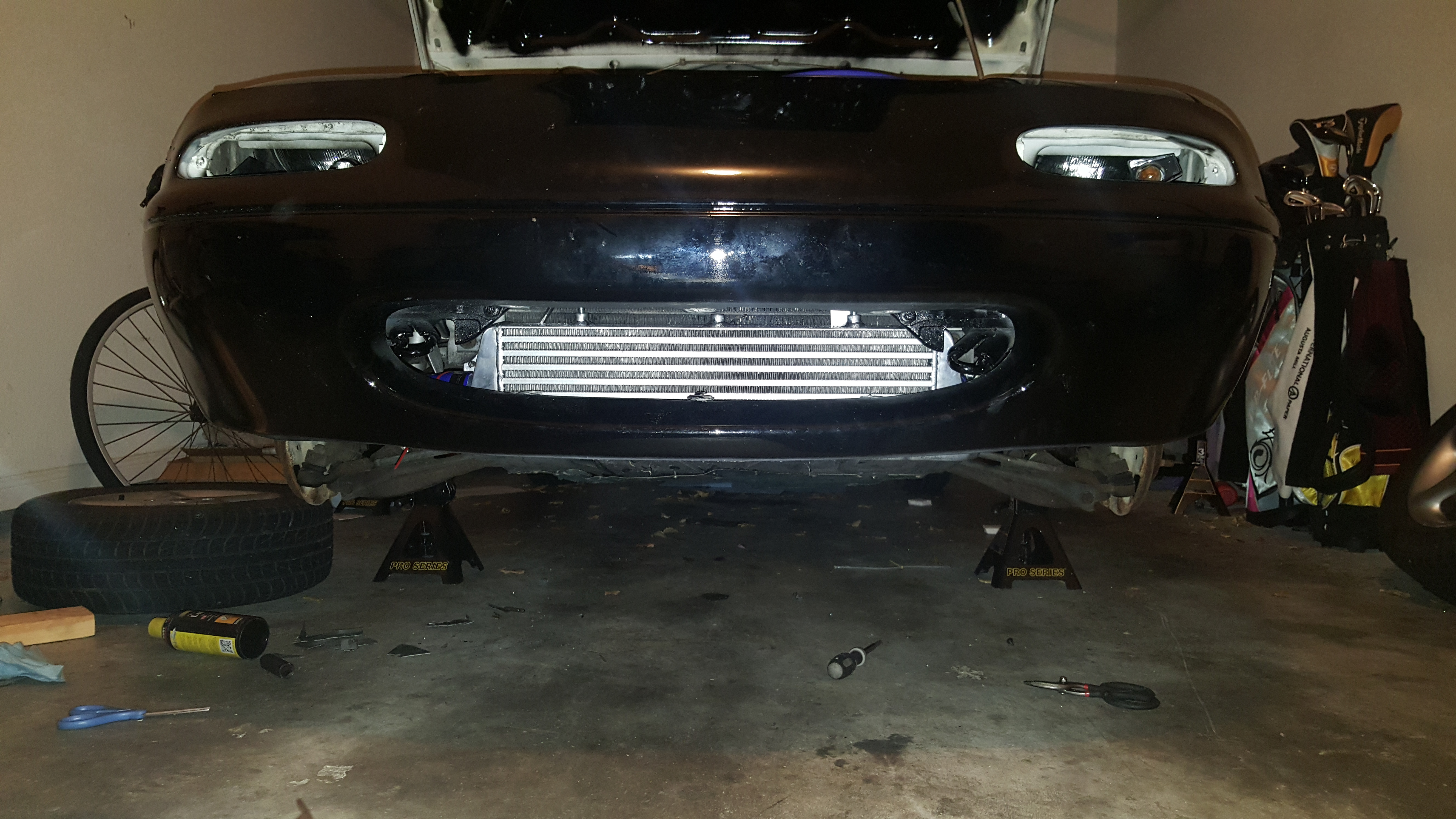

Front view


Top view- have a turbosmart bov and will run recirculation just because I want to use that particular turbosmart. Note: tentative top view until turbo gets installed.

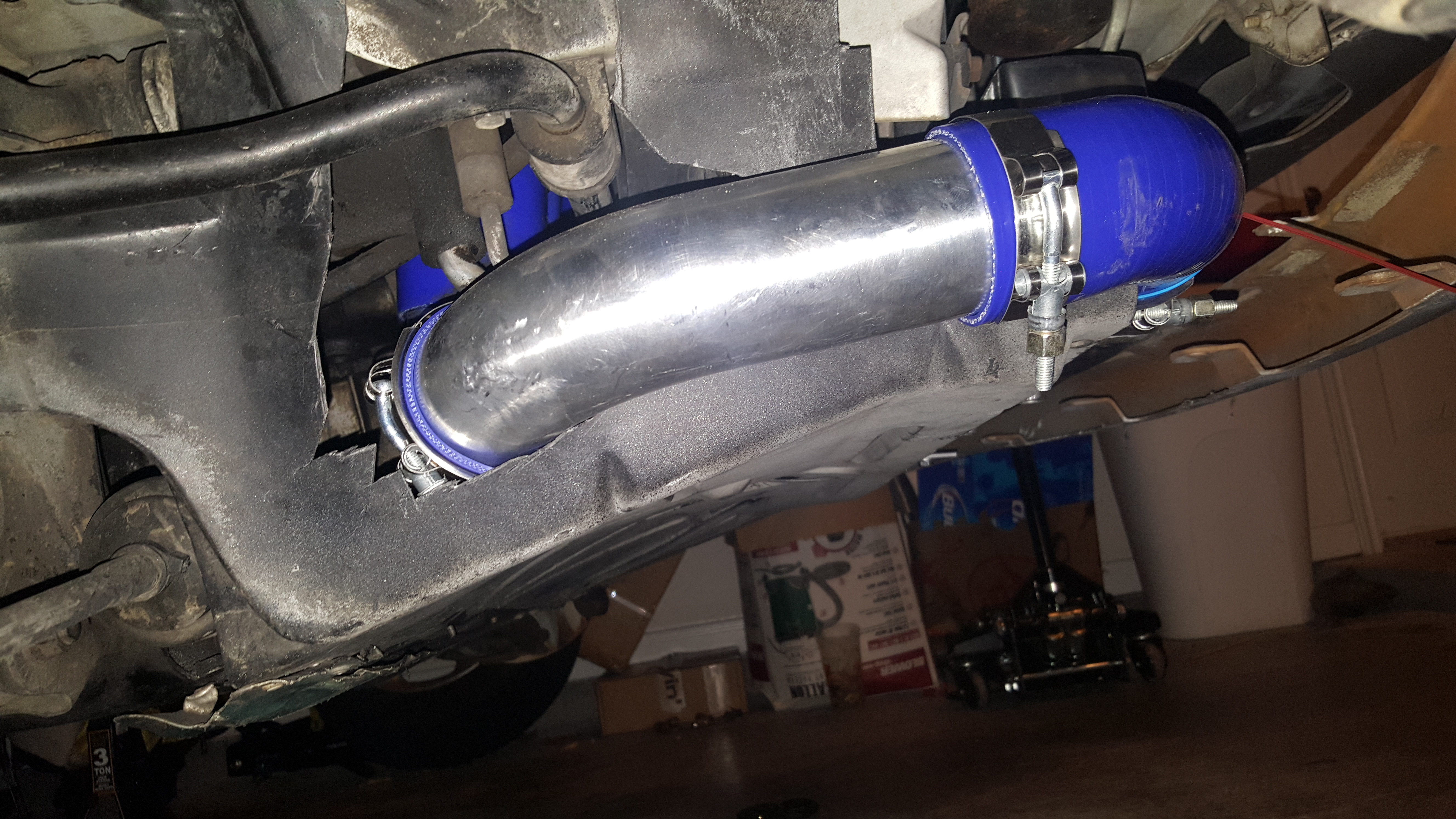

Passenger's side view



Driver's side

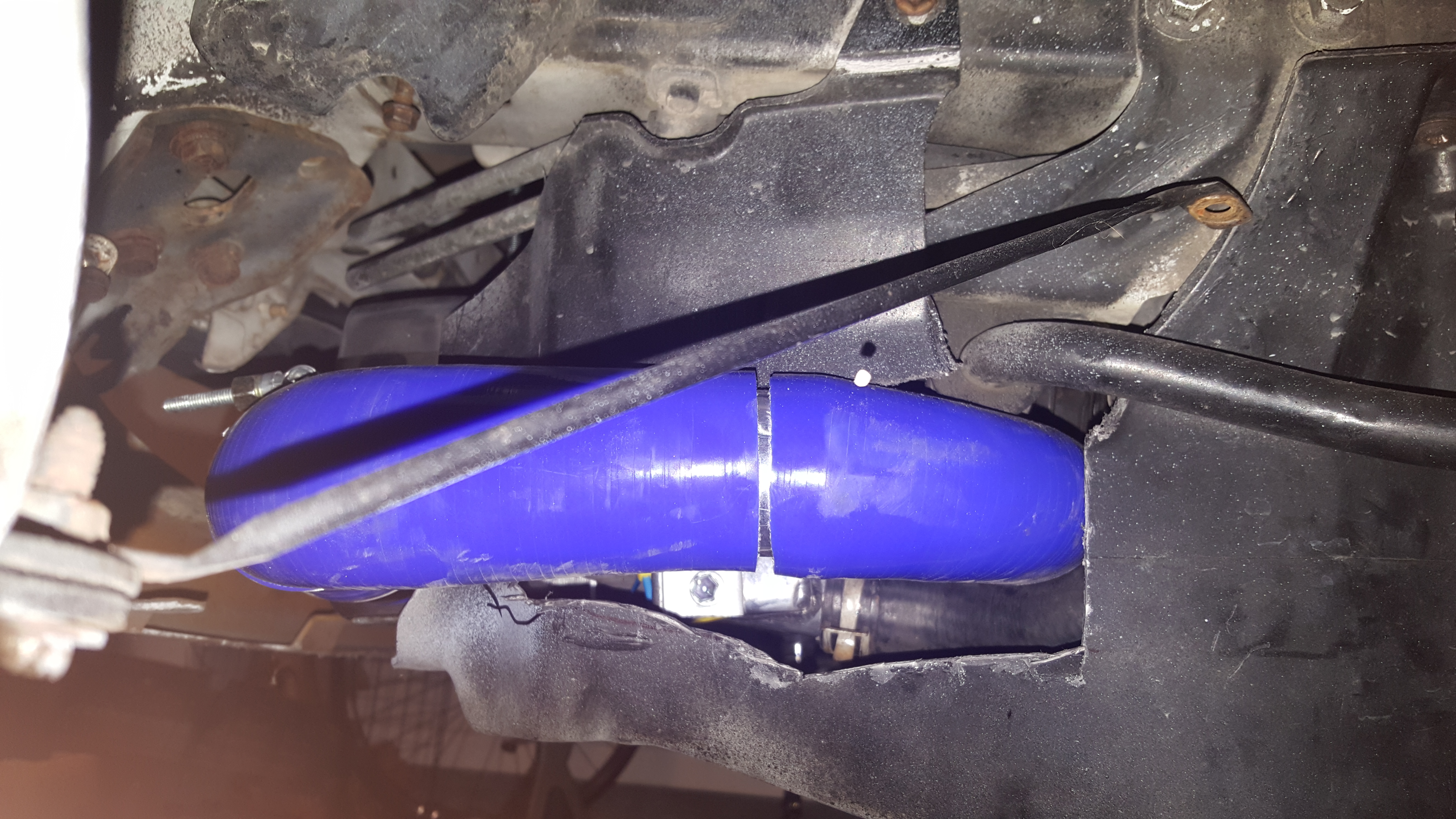

And down thru the center.
ysleem is offline   Reply With Quote
Old 08-21-2015, 08:44 PM   #46
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Well just dropped her off with Lars to get some mk turbo greatness. This will be the first model 1.6. Stay tuned for awesomeness.
ysleem is offline   Reply With Quote
Old 08-23-2015, 12:04 AM   #47
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Test fit done today. You may have seen this in the mk turbo thread but I'm putting it here for build thread completeness.

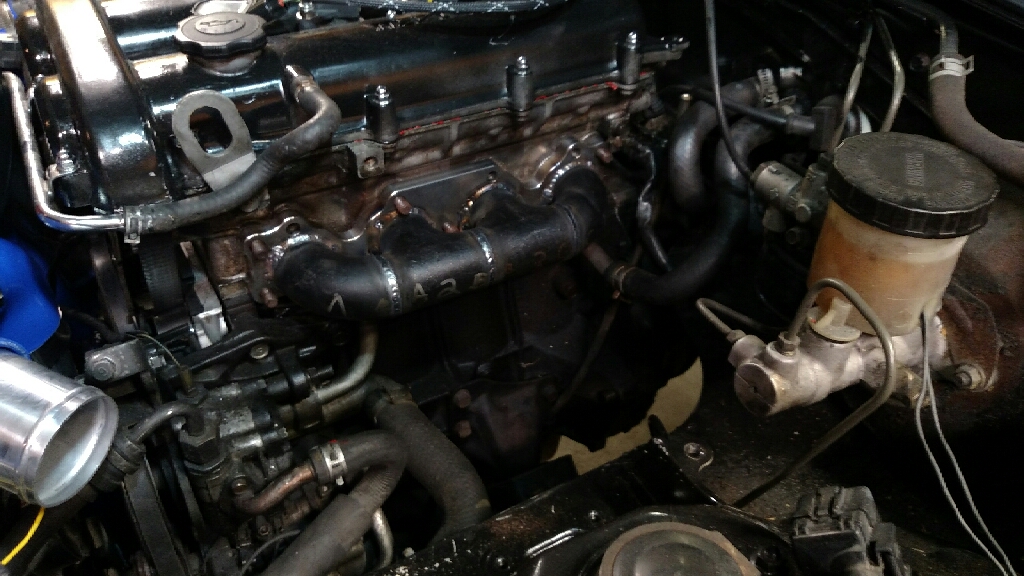

Manifold fitment

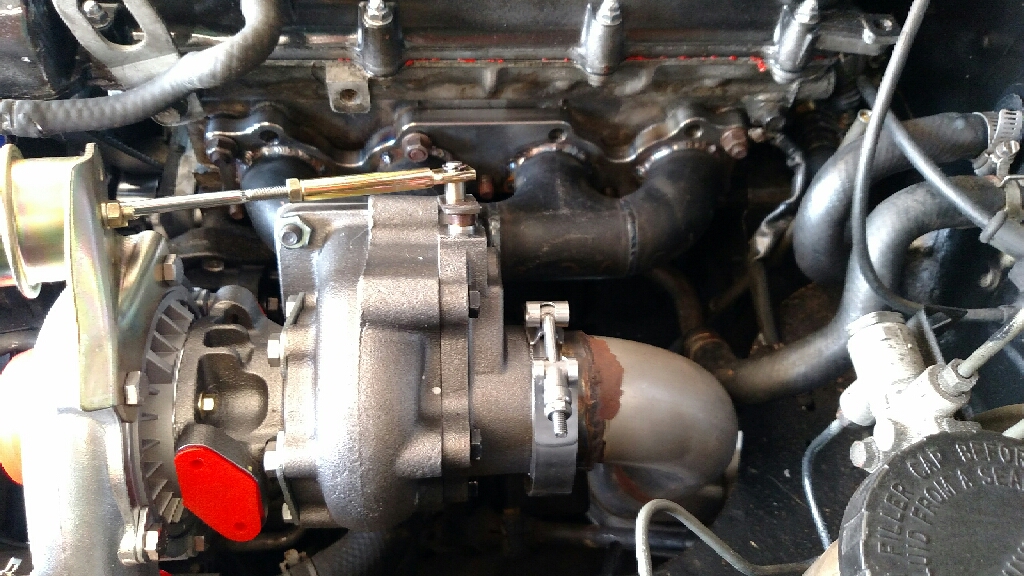

Turbo fitment
ysleem is offline   Reply With Quote
Old 08-25-2015, 11:21 AM   #48
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

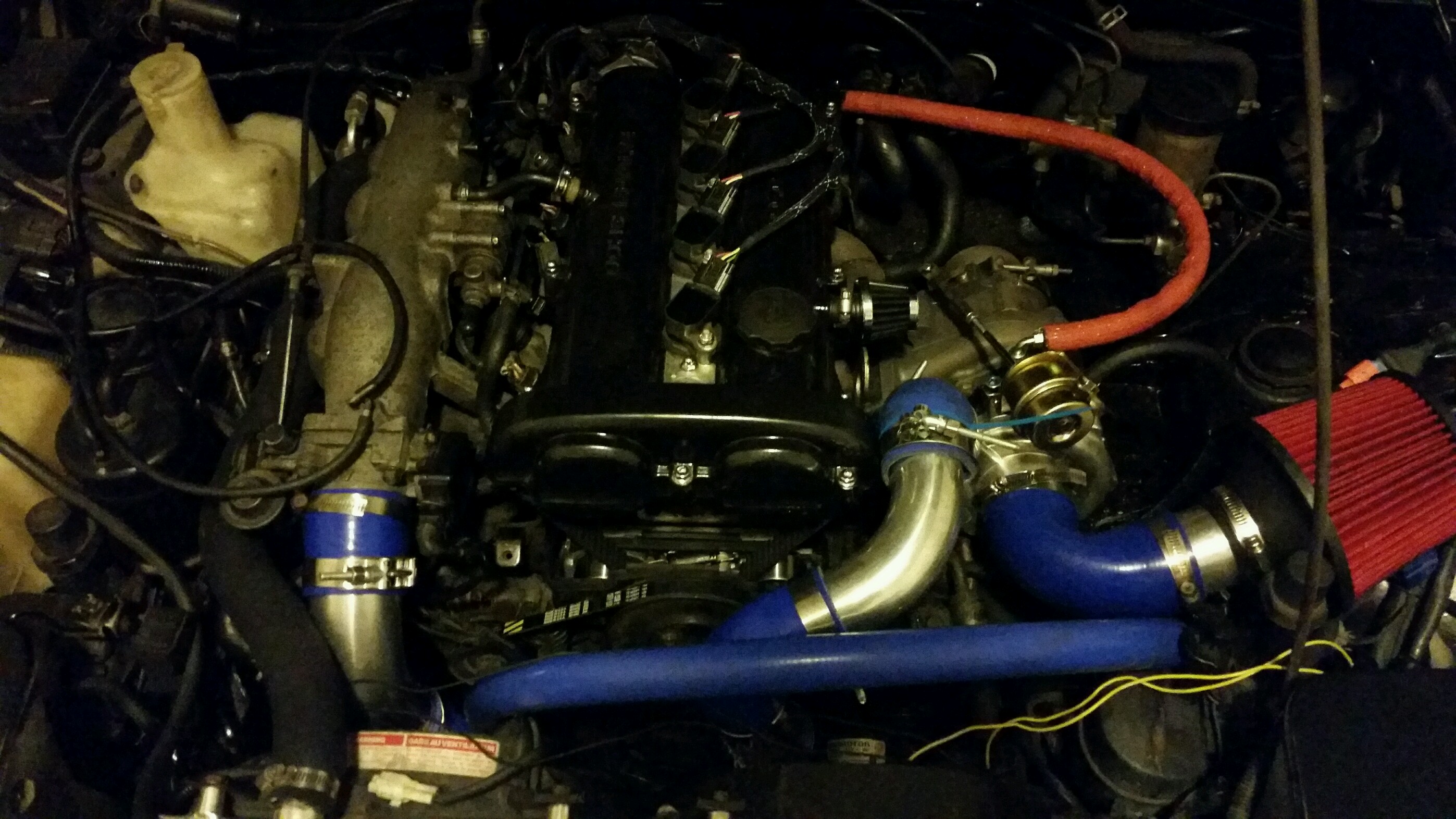

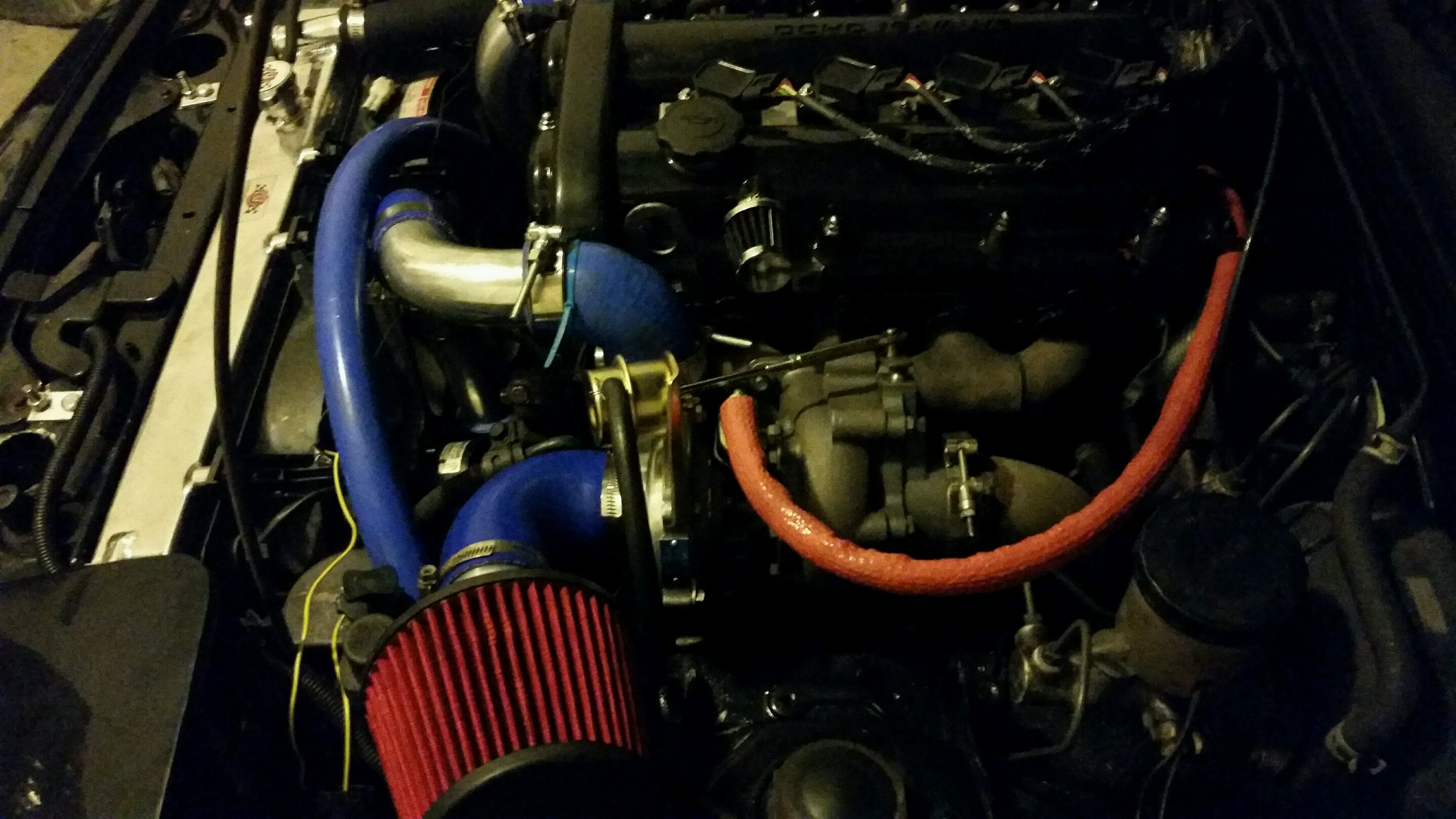

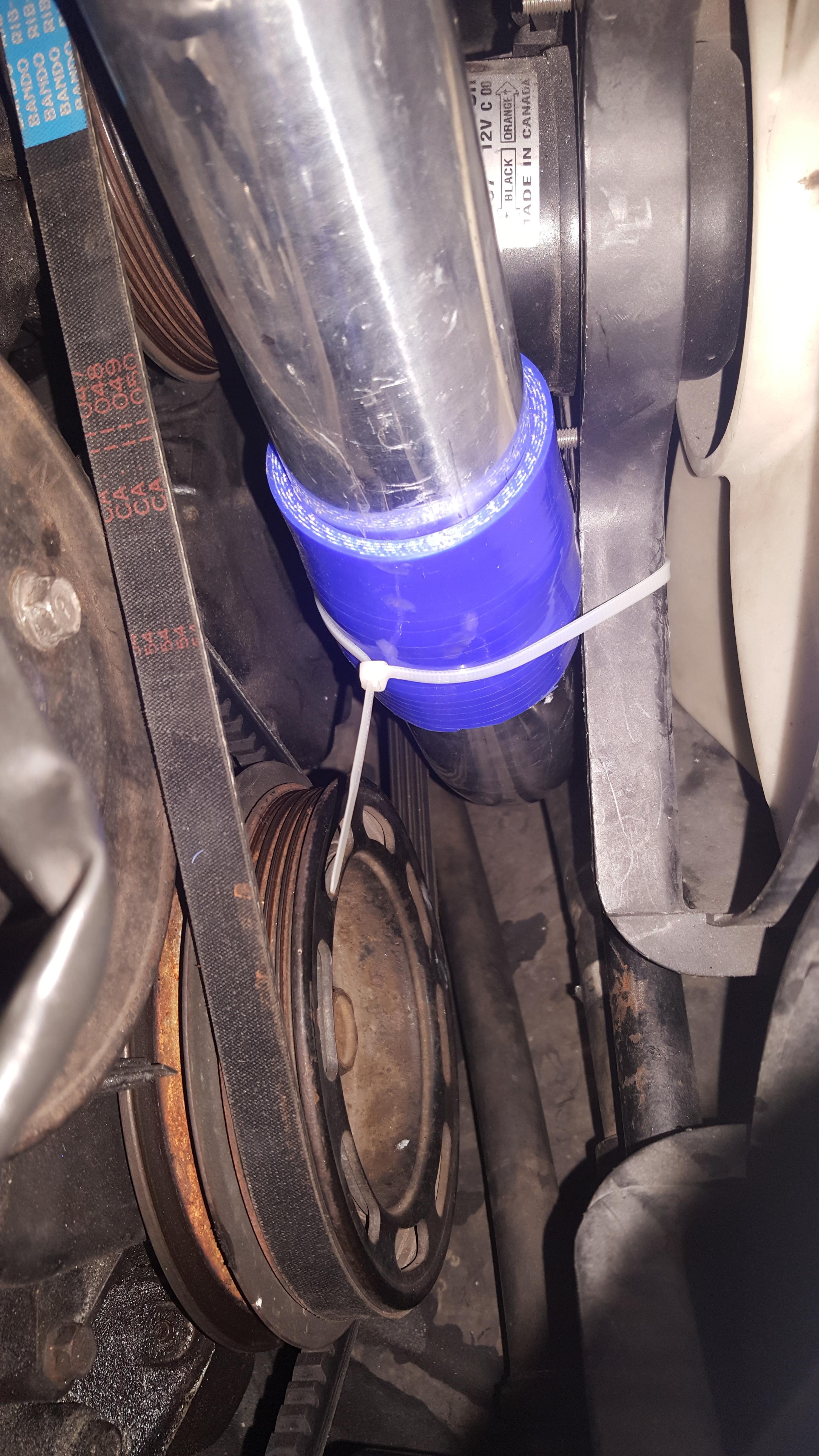

So I has da boost! Very cool! Here is a picture of the setup. I will get more and upload. Please note the zip ties add 5 hp each and this was just setup to get me home from shuiend's garage.

I will post trip home and shenanigans after that tonight.



ysleem is offline   Reply With Quote
Old 08-25-2015, 07:40 PM   #49
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

So I was able to drive it again today, looks like a boost leak as I am not feeling boost haha. Here is a log of me just driving it now.

https://www.dropbox.com/s/03o1m80ied...01.40.msl?dl=0

Last edited by ysleem; 08-25-2015 at 08:01 PM.
ysleem is offline   Reply With Quote
Old 09-10-2015, 08:08 PM   #50
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Drove the miata yesterday and still have a boost leak! Today I bought a leak tester from silicon intakes and took off the undertray to inspect my intercooler piping. I managed to tighten a few t bolts and realized I had some were that were a bit too large so I ordered the right size today as wrll.
I found a fitting that was leaking oil so I tightened that up. Leak averted.

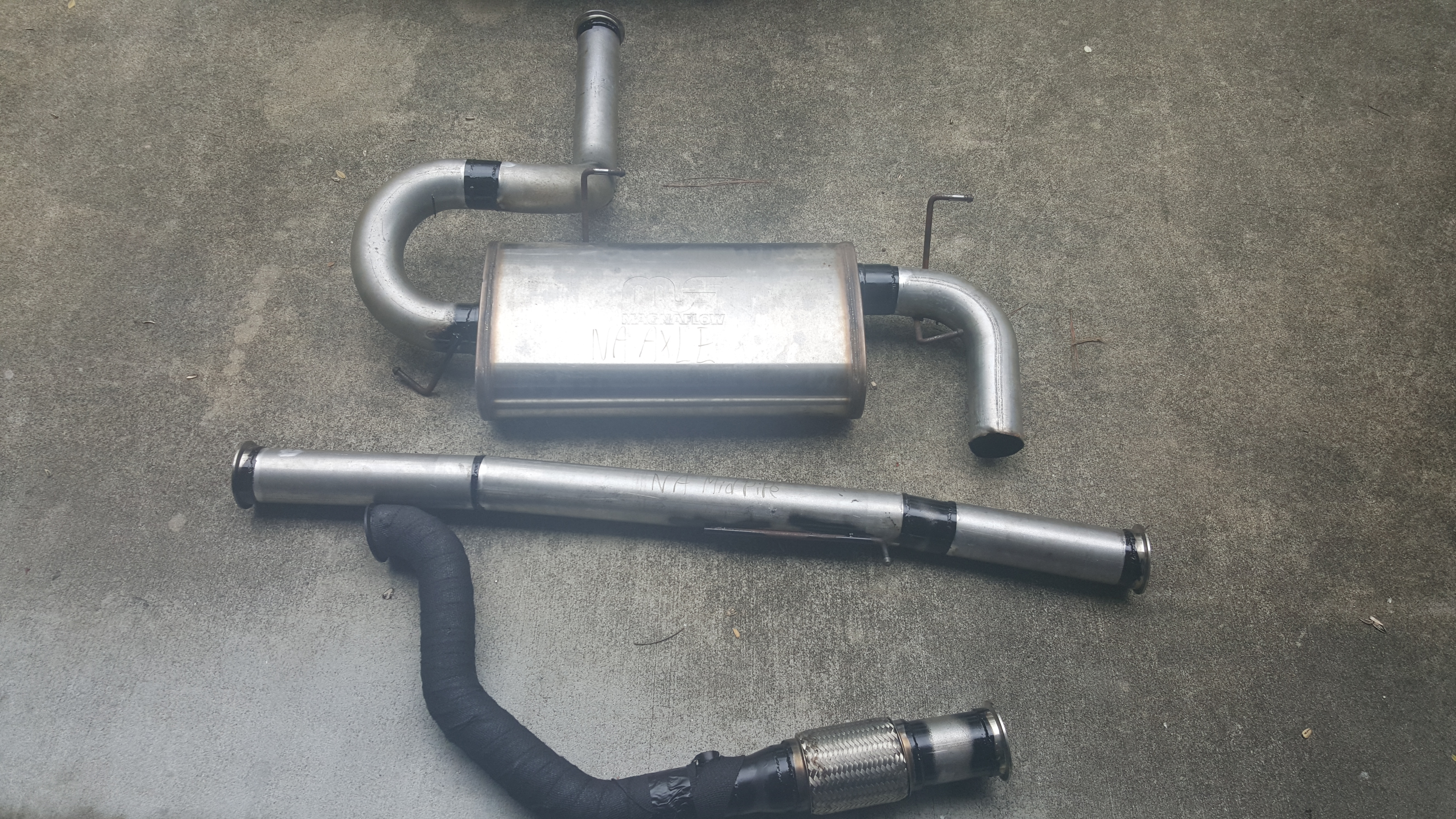

I then decided to take off the exhaust as I need to grind off a Nipple that keeps hitting my brand new exhaust and drives me bonkers while driving. I then decided to clean some of the welds up and I am starting to give them a couple coats of your typical rustoleom(spelling?) High temp paint so that it prevents surface rust at the welds.

Plan is to fix my leaking axle seals on rear diff this weekend so I don't have to worry about that any more.

Pic for fun.
ysleem is offline   Reply With Quote
Old 09-10-2015, 09:24 PM   #51
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

congrats sir
a lot of those couplers look like they're too big so I bet that's where you're leaking
18psi is offline   Reply With Quote
Old 09-11-2015, 05:02 AM   #52
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Quote:
Originally Posted by 18psi View Post
congrats sir
a lot of those couplers look like they're too big so I bet that's where you're leaking
Thanks! I had ordered a 2.5" ebay kit and then got 2" pipe for the hot side because 2.5" didn't fit (shoyld have listened to Lars) soooooo yeah I definitely need to use 2" t bolts as a starting point so I can get everything super snug.

One day I will use a Garrett.
ysleem is offline   Reply With Quote
Old 09-12-2015, 07:21 PM   #53
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

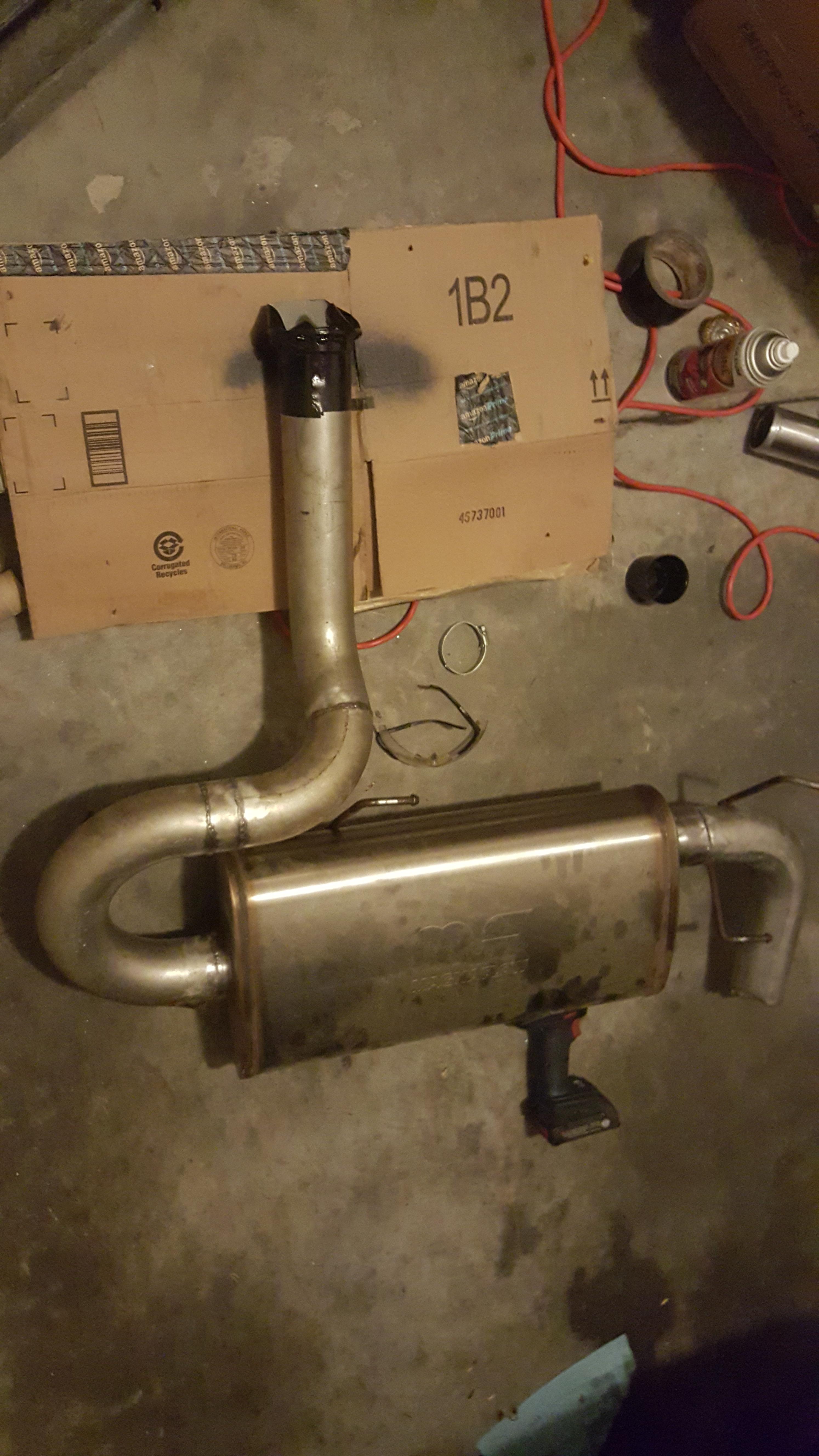

Got a lot work work done today. Cleaned and painted welds for maximum life. Heat wrapped downpipe and sealed it. Made the most hideous heat shield for brake lines and coolant hoses. I won't scar your memories with this chunk of horribly made metal.
ysleem is offline   Reply With Quote
Old 09-13-2015, 05:21 PM   #54
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

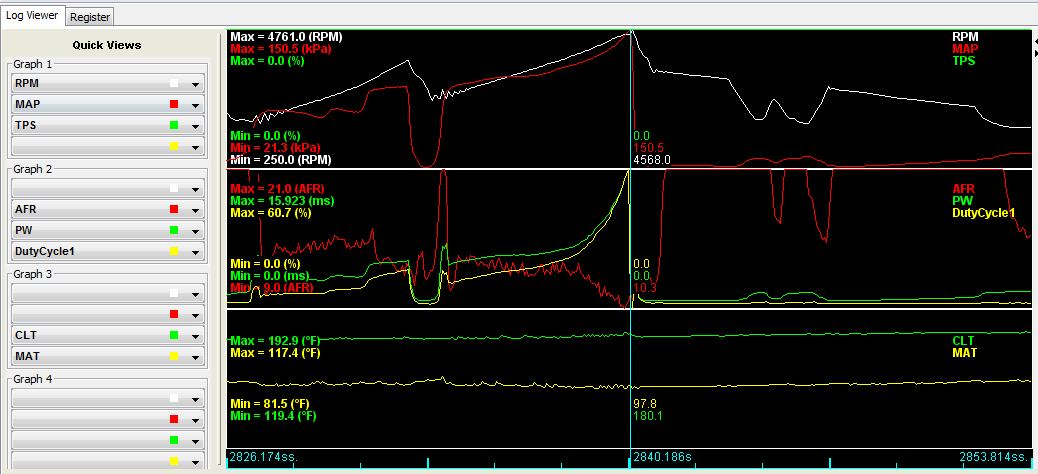

Well I think I still have a little leak but not much. I think I know where it is tho. I am concerned the the chra is hitting either the compressor or turbine housing so I'll try to pull it tomorrow. Here is a screen shot of max boost acheived today.
ysleem is offline   Reply With Quote
Old 09-13-2015, 08:23 PM   #55
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

Mk turbo on my car at idle.
ysleem is offline   Reply With Quote
Old 09-14-2015, 12:36 AM   #56
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

that looks like a huge leak, not a little one
it is really bad for the turbo to boost it with a leak, I suggest you properly fix it once and for all asap
18psi is offline   Reply With Quote
Old 09-14-2015, 04:57 AM   #57
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default The Mazzder MX FIVE Build

Quote:
Originally Posted by 18psi View Post
that looks like a huge leak, not a little one
it is really bad for the turbo to boost it with a leak, I suggest you properly fix it once and for all asap
Good looking out. Will do.

Additionally the parts for leak testing should be here today or tomorrow.
ysleem is offline   Reply With Quote
Old 09-22-2015, 06:52 PM   #58
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

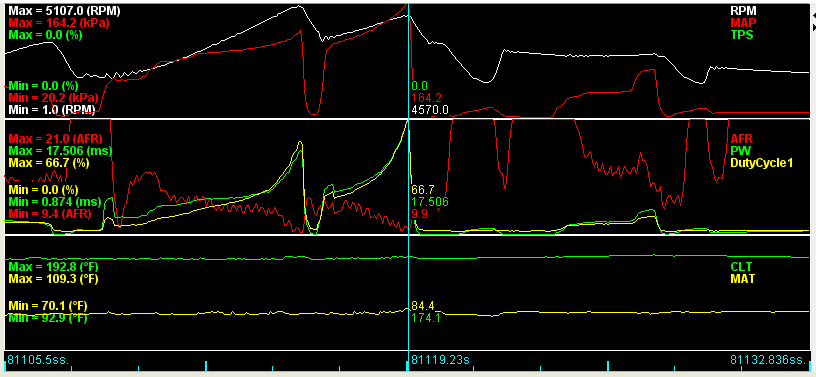

So here is a screen shot of the miata boosting on the MK turbo. Note this one was one of the better pulls, but I had to slow down because I was speeding pretty good as it is.

Attached Thumbnails
The Mazzder MX FIVE Build-80-boost__bc5adf2f3f25f9cdbd0fc3066f322e49a023a544.png
ysleem is offline   Reply With Quote
Old 09-27-2015, 02:03 PM   #59
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

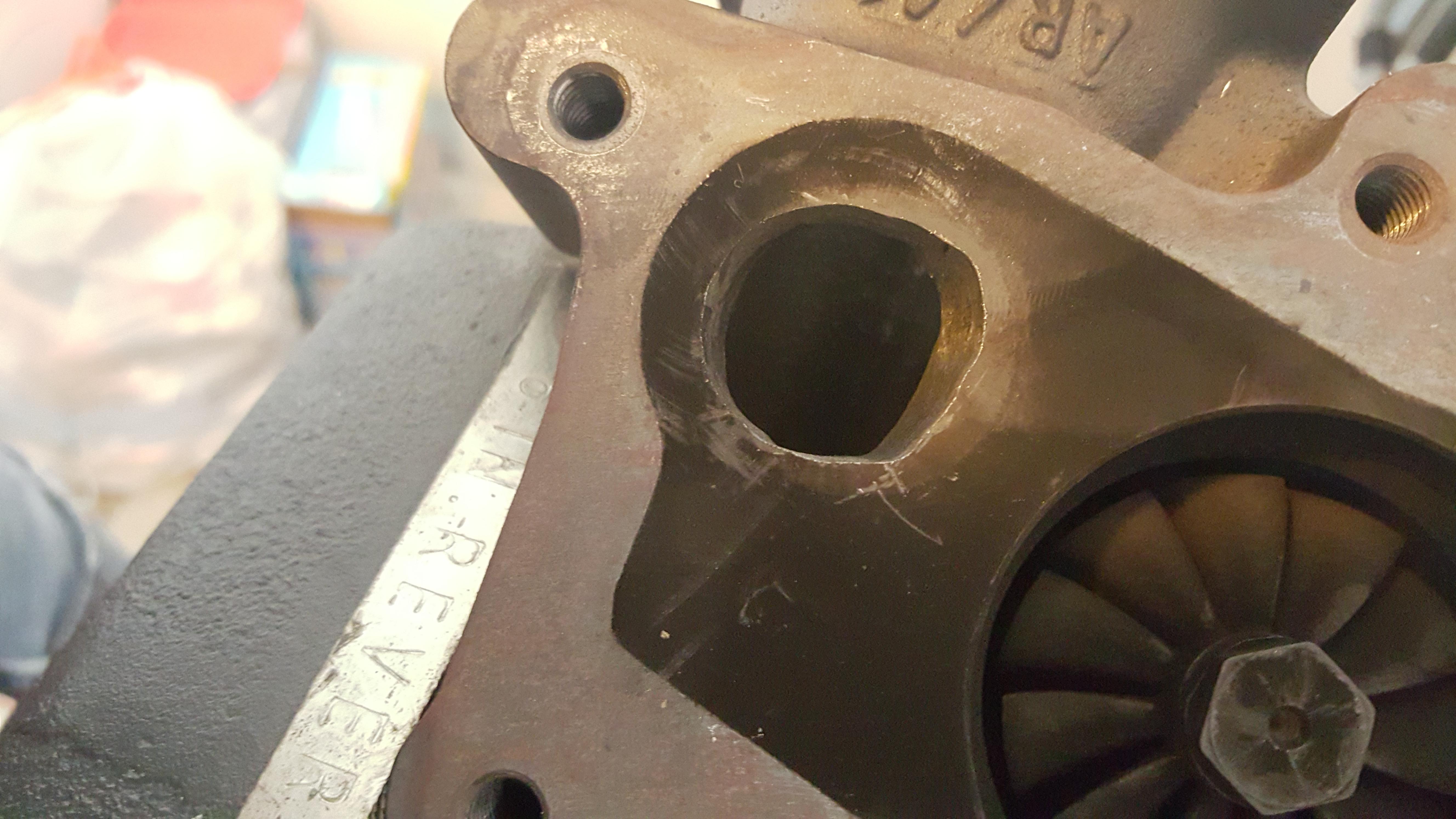

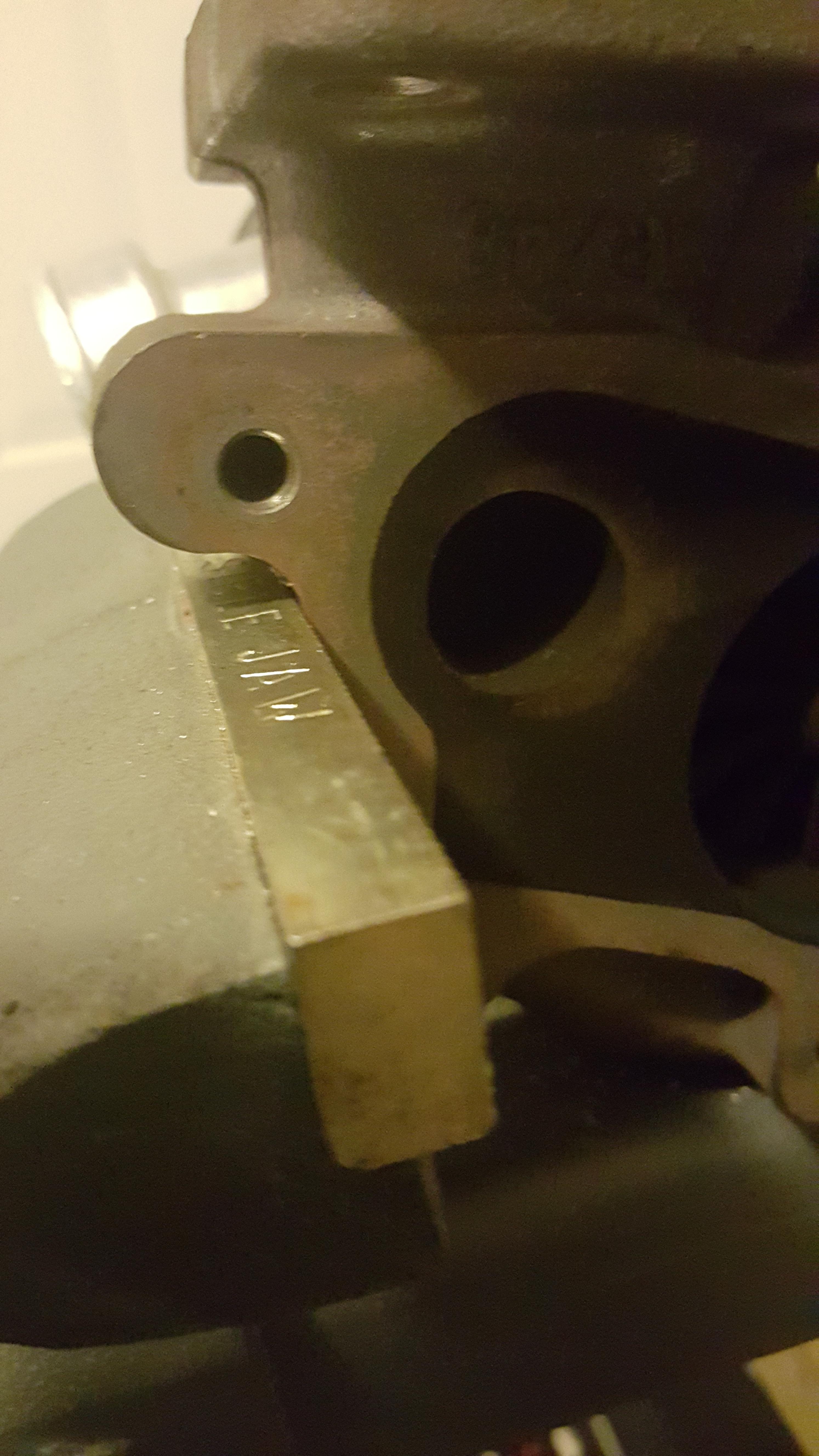

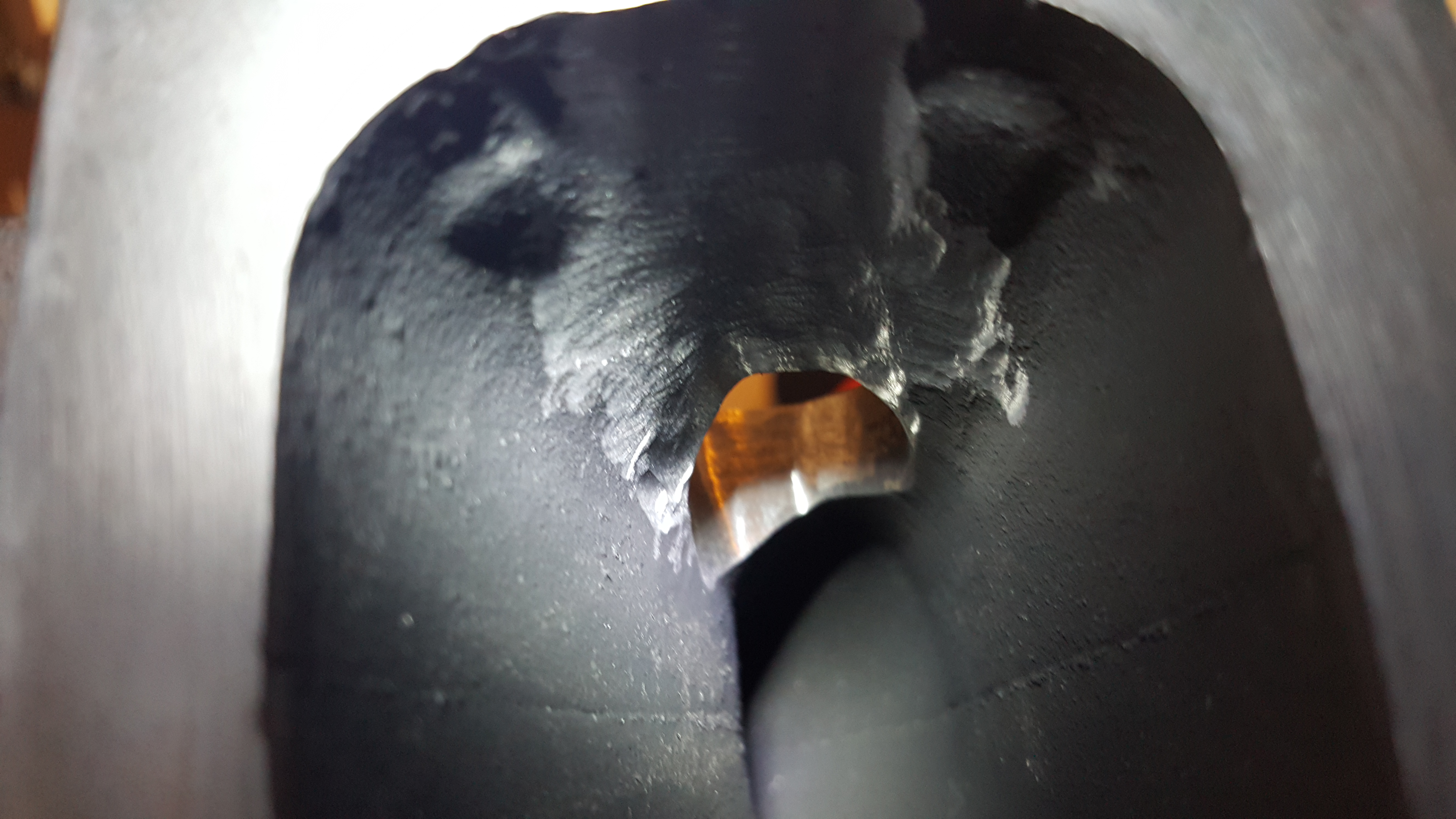

Did some porting. Before and after shown below.







Going to memphis for a week for work so I'll put it all back together Friday or Saturday as time allows.
ysleem is offline   Reply With Quote
Old 10-04-2015, 11:26 AM   #60
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 347
Total Cats: 1
Default

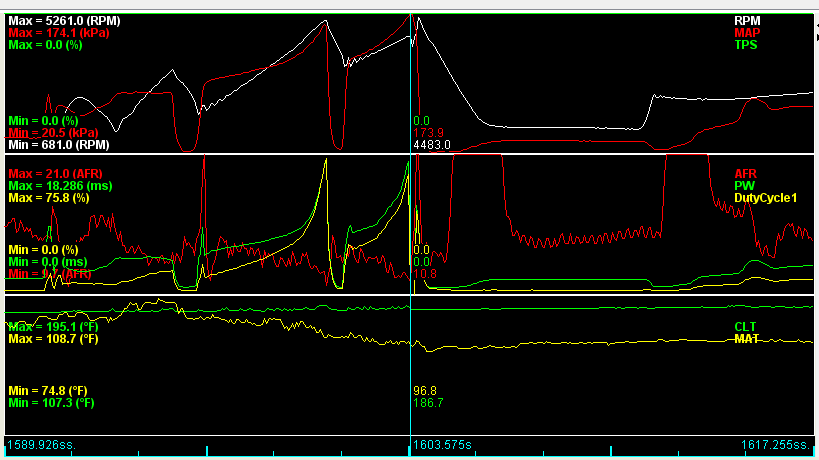

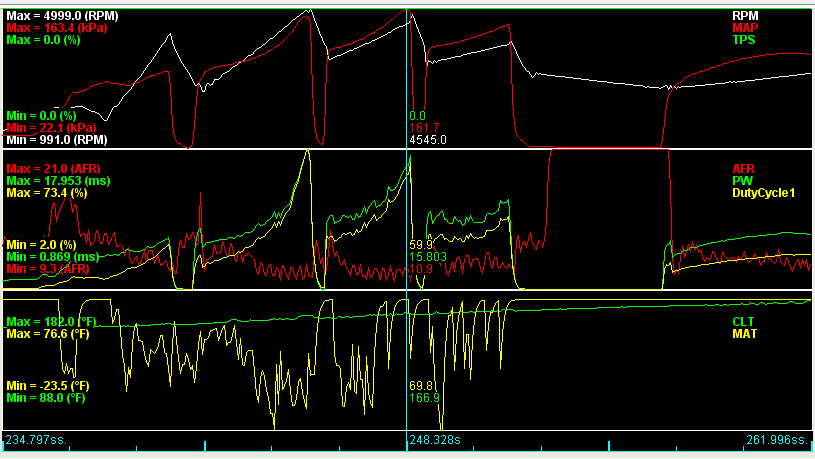

I finished up the porting show in the previous post by taking out some space behind the flapper and actually on it a bit so it would allow a smaller volume (I think of it as a pie shape more) of air to pass through. Below is a side by side comparison of before porting and then after. You can see that I did not hit my max boost numbers on the second graph as I shifted before that to enjoy the car more. It did produce a more linear trend as well as slowly get to the overboost protection of 170 kPa.



9/23/2015
3rd: 3802 rpm @119kPa to 4483 rpm @173.9 kPa with a delta t(time) of 2.145 s
2nd: 2250 rpm @95.9 kPa to 5021 rpm @161.7 kPa with a delta t(time) of 4 s

10/3/2015
3rd: 3529 rpm @119kPa to 4554 rpm @162.2 kPa with a delta t(time) of 2.674 s
2nd: 2632 rpm @98 kPa to 4867 rpm @154.7 kPa with a delta t(time) of 3.472 s
Attached Thumbnails
The Mazzder MX FIVE Build-80-before_porting_9_23_2015_f51e8c1362e0a7bdadb065ae9845872bbc2f5907.png   The Mazzder MX FIVE Build-80-after_porting_10_3_2015_bb3ed5f22cac33f71315b5ae541ad69de36e7d93.png

Last edited by ysleem; 10-04-2015 at 11:42 AM. Reason: Engineering numbers
ysleem is offline   Reply With Quote
