Old 08-11-2014, 06:11 PM   #21
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
It depends: is begi selling ev14 flawlessly matched "injector dynamics" or hogged out ev6 "deatschwerks pnp" injectors?

too lazy to look.

PS: we've been down that road before if I recall correctly. I'm still of the same opinion I gave you then. Fuel injectors are one of those items that can make or ruin your setup.
BEGi site says they are "custom milled EV14 1000cc/min injectors". They come with flow charts and a complete latency table.

Sounds pretty sweet, but the price difference confuses me.

Keith
Twodoor is offline   Reply With Quote
Old 08-11-2014, 06:13 PM   #22
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

I think those are the "deatschwerks universal" ev14's. So basically like ID1000's, but not actually ID1000's. If you go on the deatschwerks site you'll likely find the same ones, for the same price. Five-o motorsports does something similar as well, and I think theirs are $299

I dunno, I haven't seen them (begi/dw ones) run yet............so you should guinea pig them
18psi is offline   Reply With Quote
Old 08-11-2014, 06:15 PM   #23
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
I think those are the "deatschwerks universal" ev14's. So basically like ID1000's, but not actually ID1000's. If you go on the deatschwerks site you'll likely find the same ones, for the same price. Five-o motorsports does something similar as well, and I think theirs are $299

I dunno, I haven't seen them (begi/dw ones) run yet............so you should guinea pig them
Well since I wasted $150 on a new clutch disk when I buggered up the splines on the first one saving $150 on the injectors will get me back to even right? I will give them a shot and let everyone know how I like them.

Keith
Twodoor is offline   Reply With Quote
Old 08-11-2014, 06:19 PM   #24
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

Make sure you check out FAB9 too, I know for sure he has an account with DW
18psi is offline   Reply With Quote
Old 08-11-2014, 06:20 PM   #25
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Final video, just idle after fully warmed up. It sure is quieter at 900 RPM than it was at 1500 RPM on the cold startup!



I am going to go take a picture of the engine bay as it currently sits with my GM air temp sensor zip tied to the outside of the cone filter attached directly to the throttle body

Keith
Twodoor is offline   Reply With Quote
Old 08-11-2014, 06:59 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

just watched the vids.

its even more raspy than my enthuza was lol.

Its ok though, once you go turbo the sound will be lightyears better, and it will actually sound amazing.
18psi is offline   Reply With Quote
Old 08-11-2014, 08:38 PM   #27
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Here are those engine bay pics:

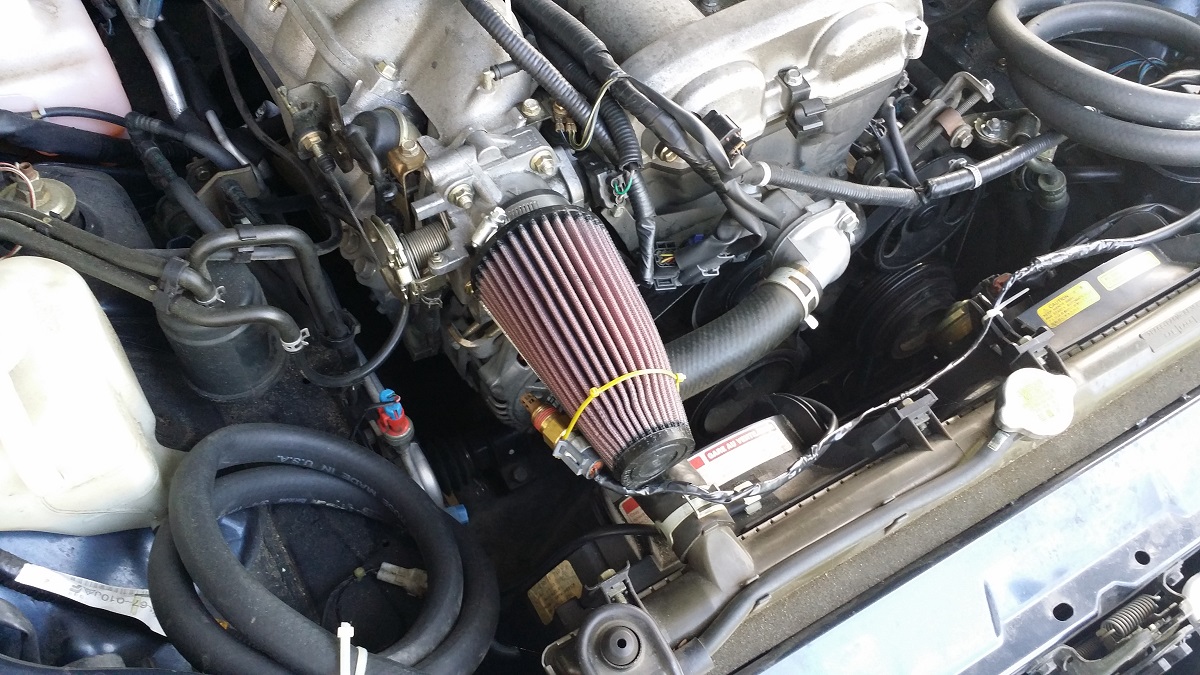

First one is the air filter with the GM air temp sensor zip tied to it.

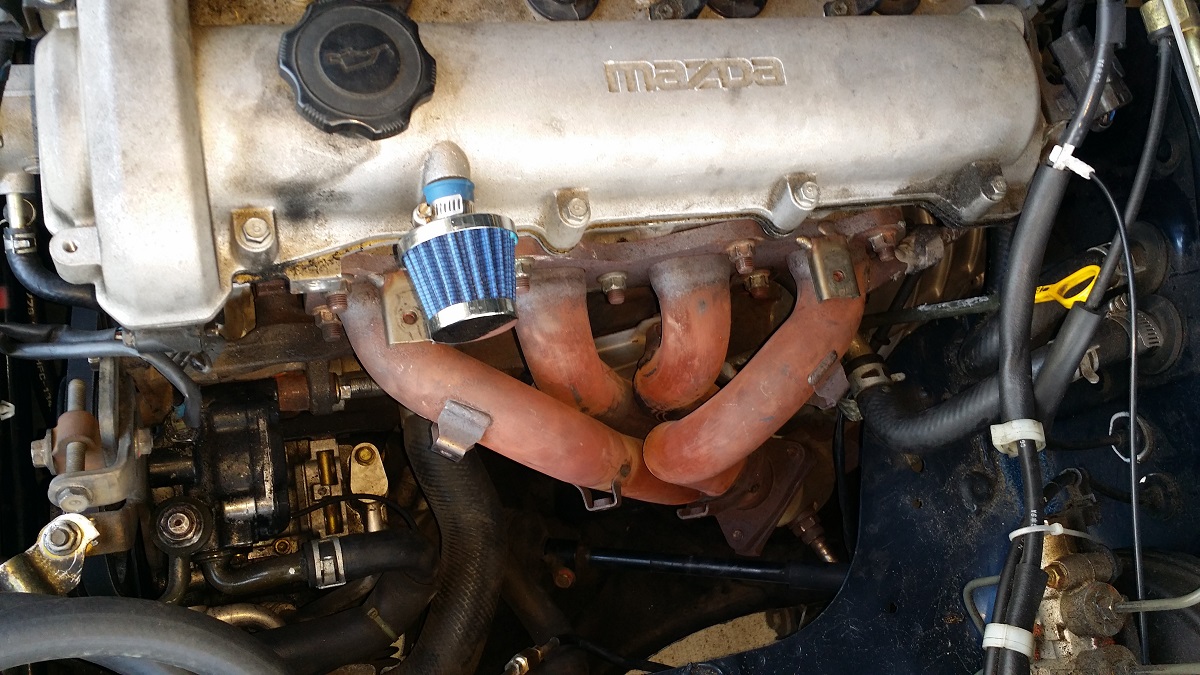

The next is the 01+ header.



Next week I will lay out all the cool new parts from BEGi and take pics of them before starting the installation.

Keith
Twodoor is offline   Reply With Quote
Old 08-11-2014, 08:51 PM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

[email protected] "intake".

I kinda like it
18psi is offline   Reply With Quote
Old 08-11-2014, 10:32 PM   #29
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,799
Total Cats: 492
Default

If you're going to be a guinea pig, try the 5-0 injectors. I wanna see how pnp they really are. They flow match and include the flow sheet and latency table. Looks like closer to $400 for what you're looking for.
2002 MAZDA MIATA L4, 1.8L, GAS Fuel Injectors
Monk is offline   Reply With Quote
Old 08-12-2014, 11:43 AM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

btw how are the rx8 injectors on e85? how's idle, part throttle, etc? I often wondered whether ev6's idle/behave better on corn due to needing higher pw's
18psi is offline   Reply With Quote
Old 08-19-2014, 07:52 PM   #31
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
btw how are the rx8 injectors on e85? how's idle, part throttle, etc? I often wondered whether ev6's idle/behave better on corn due to needing higher pw's
Sorry for slow reply, didn't see this question.

The RX8's work great, idle is rock steady and no problems at part throttle. I do have the "lean on hot restart" issue, and I need to ask on the MS3 lean hot start thread if the others experiencing it are using RX8 injectors or if it is with a variety if different injectors.

Keith
Twodoor is offline   Reply With Quote
Old 08-19-2014, 07:59 PM   #32
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

I said in my first post I would dyno it "as is" to get a feel for what I am making with the exhaust, E85, MS3, and my awesome ultra-short intake... so here it is!



I asked what a stock 99 makes on this dynojet and was told "around 110 WHP"... so a solid 20 WHP gain over stock combined with the short gearing of the 6 speed makes it feel faster than it was with the M45 at 5.5 psi and the stock 5 speed.

You can see the rest of my dyno sheets over in the dyno and time slip sub forum here:

https://www.miataturbo.net/dynos-tim...6-speed-80497/

Later,

Keith

PS: pics of parts to come in AM before I start the installation.
Twodoor is offline   Reply With Quote
Old 08-19-2014, 11:32 PM   #33
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

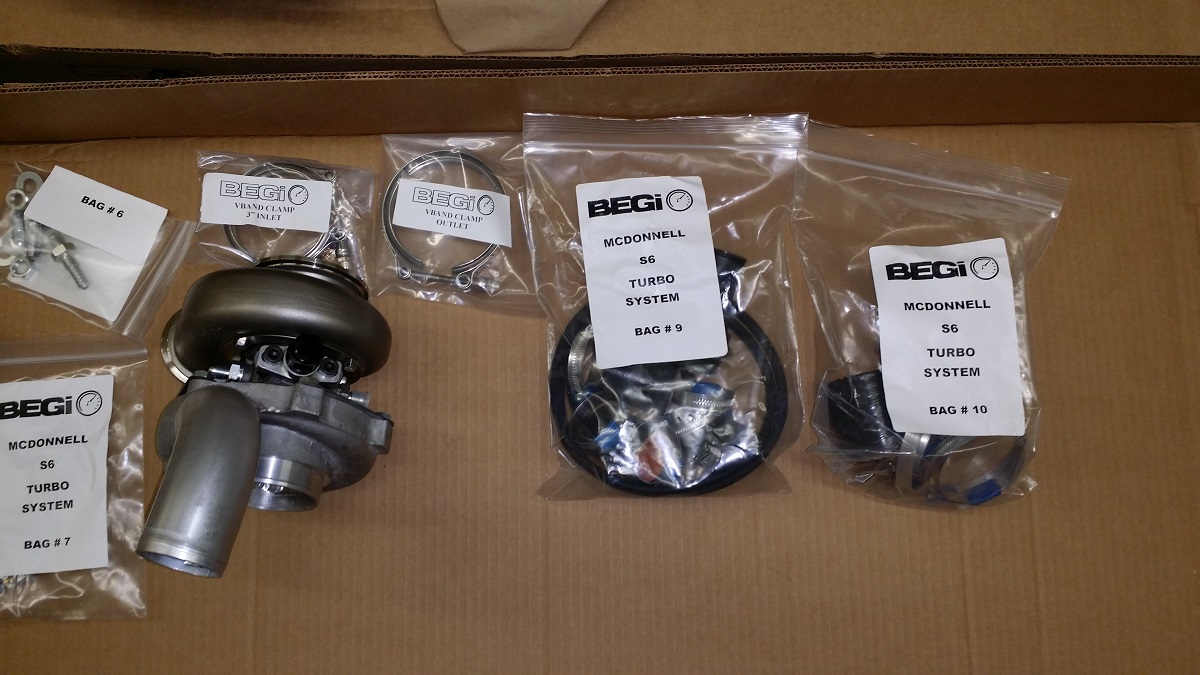

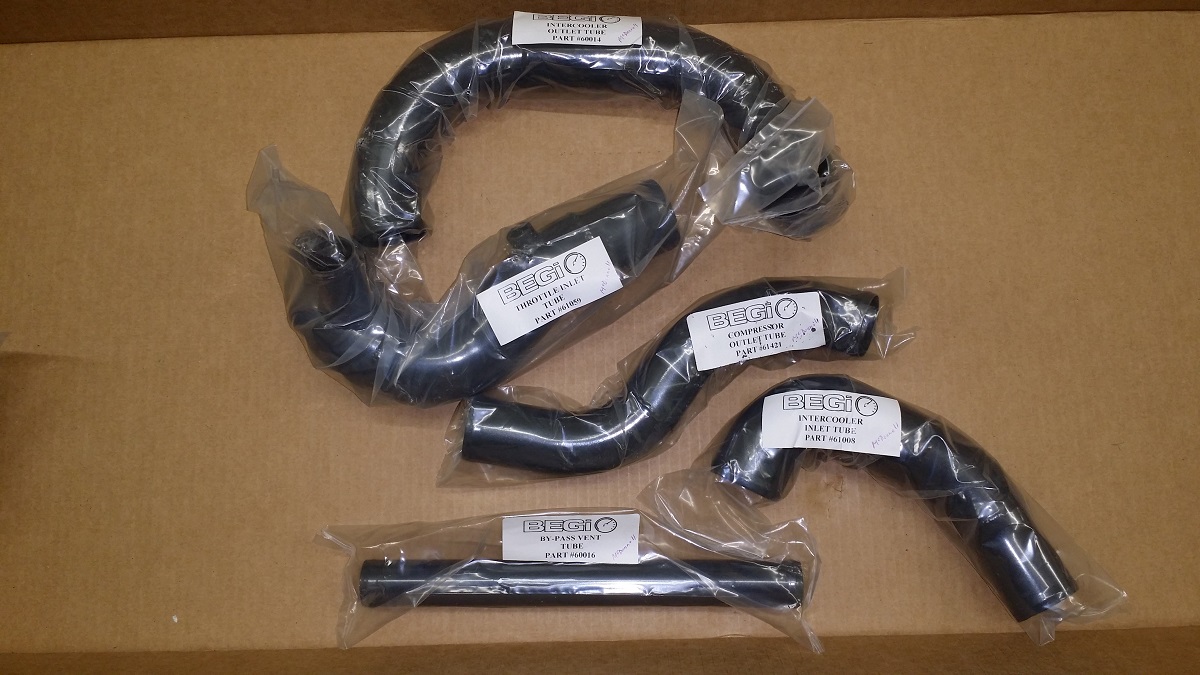

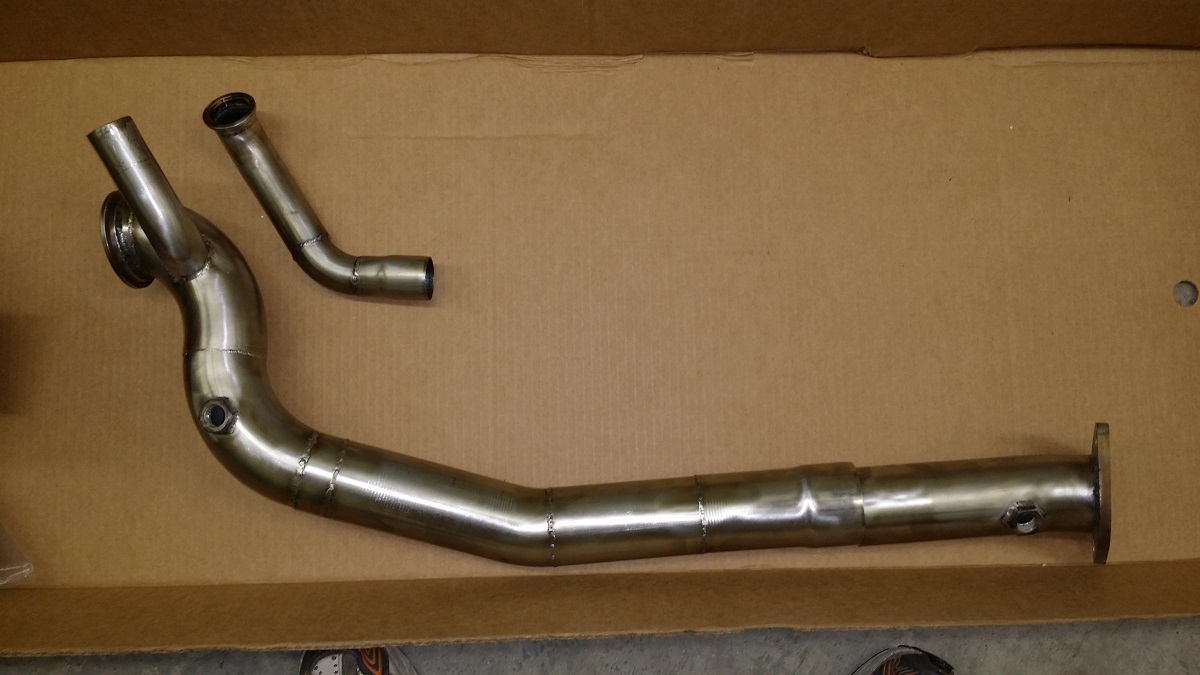

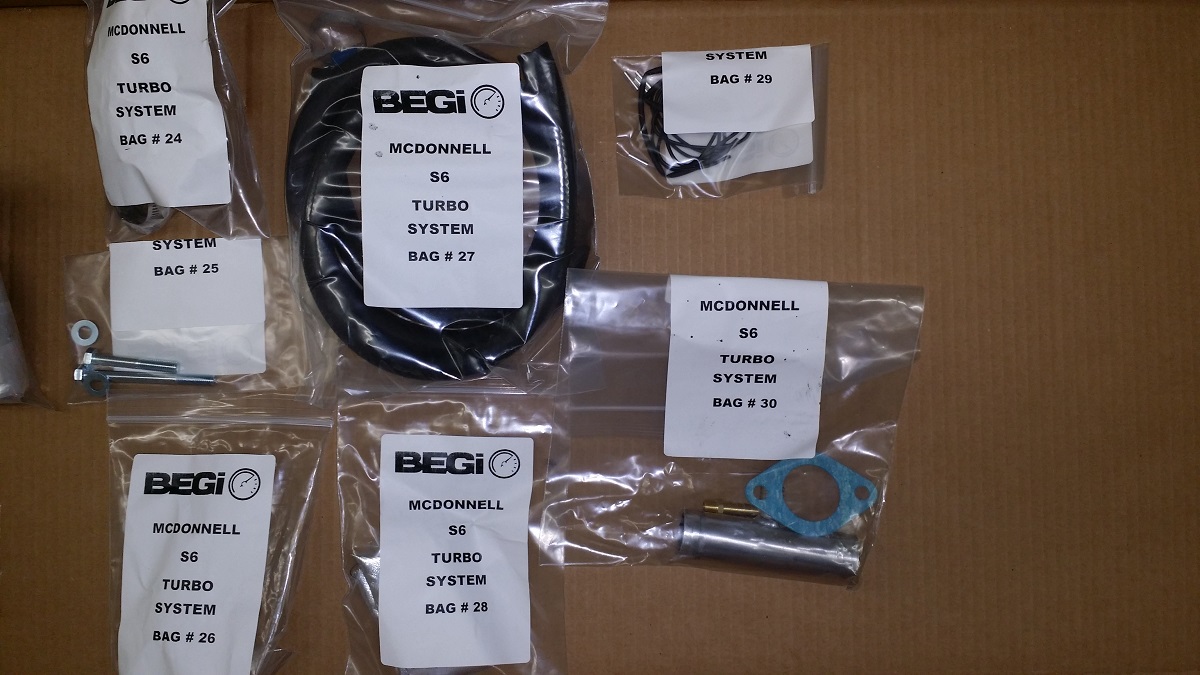

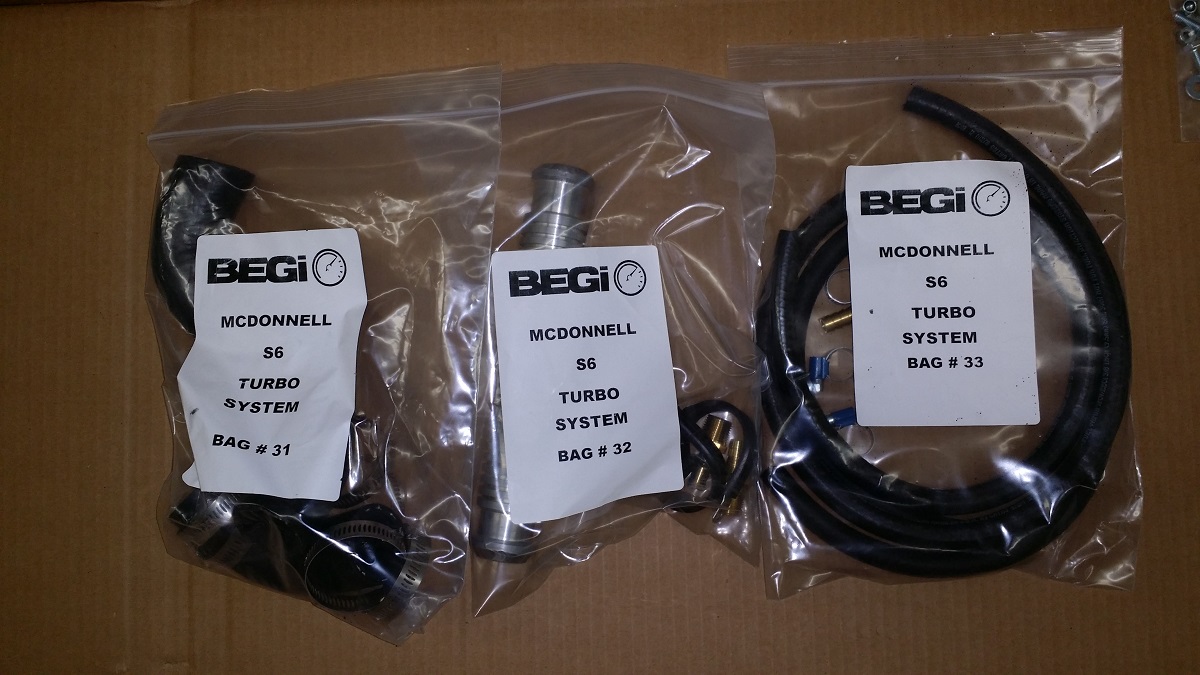

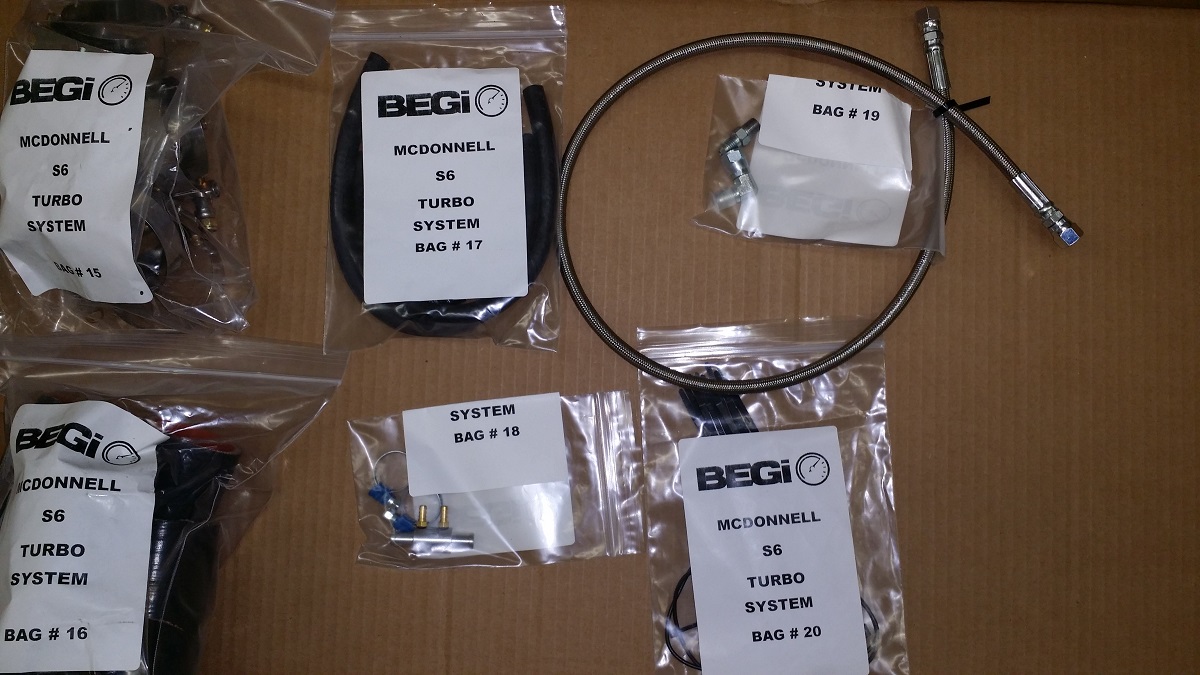

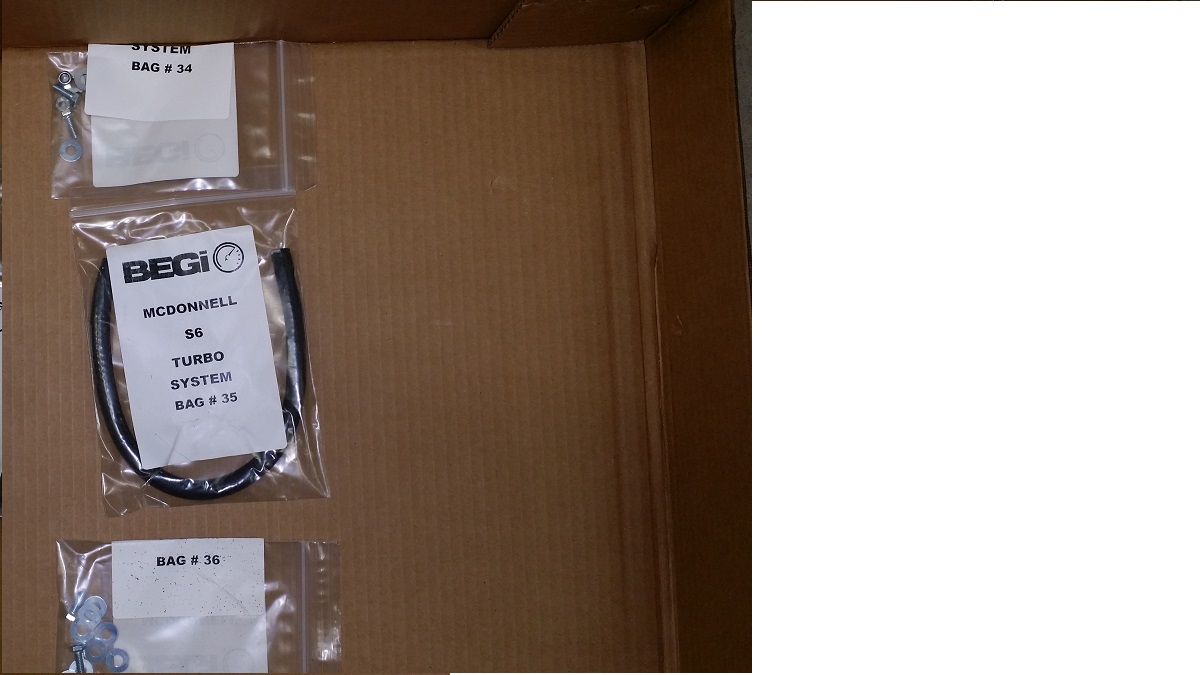

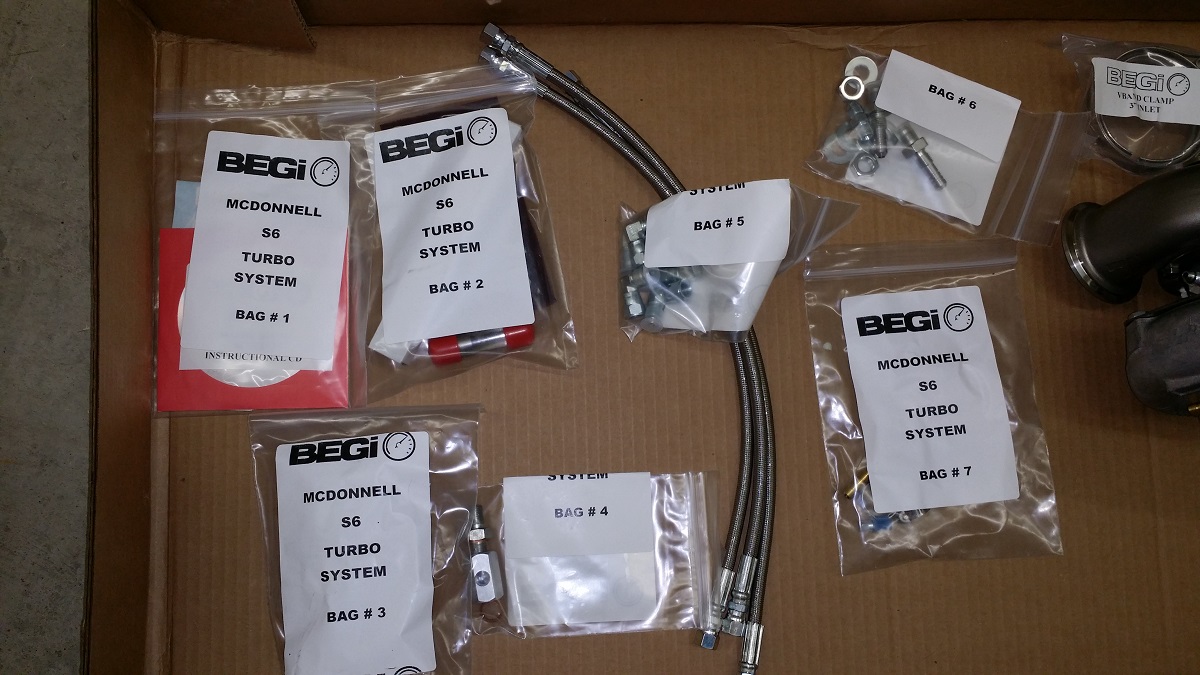

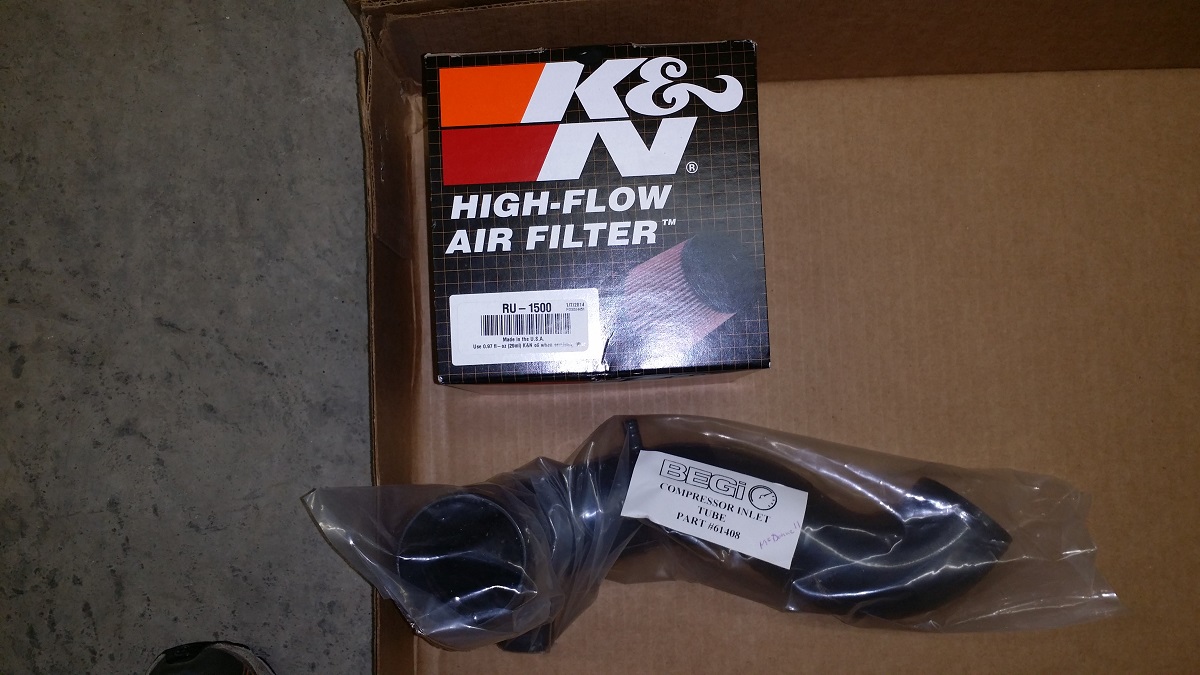

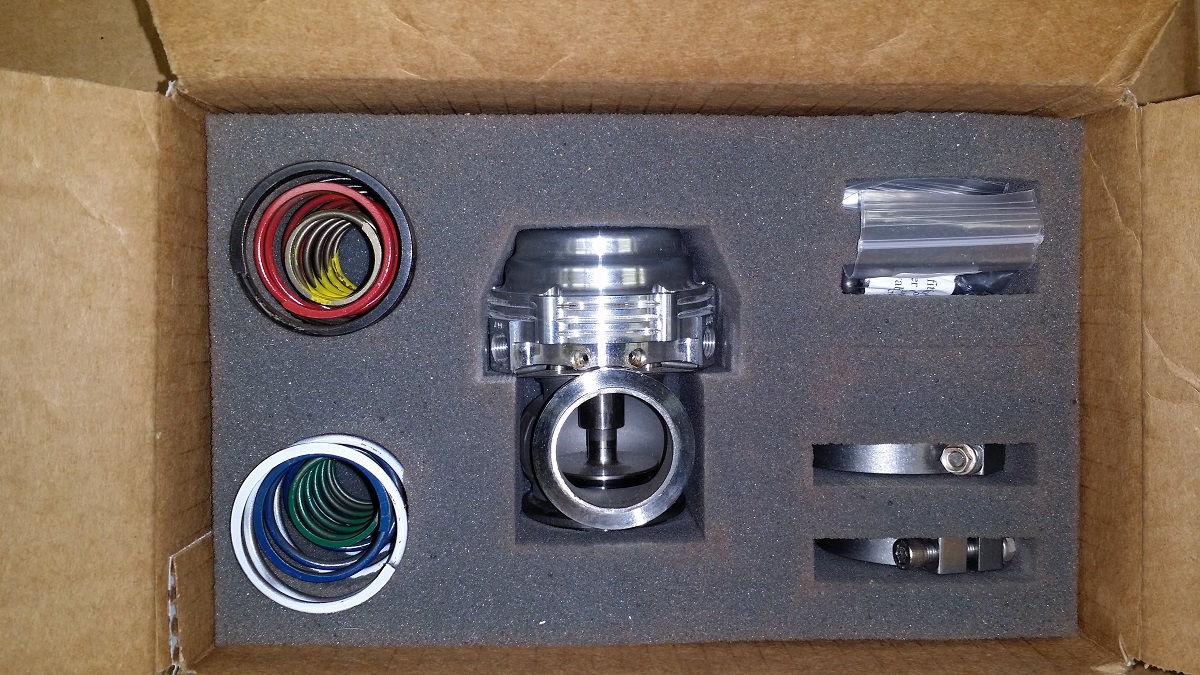

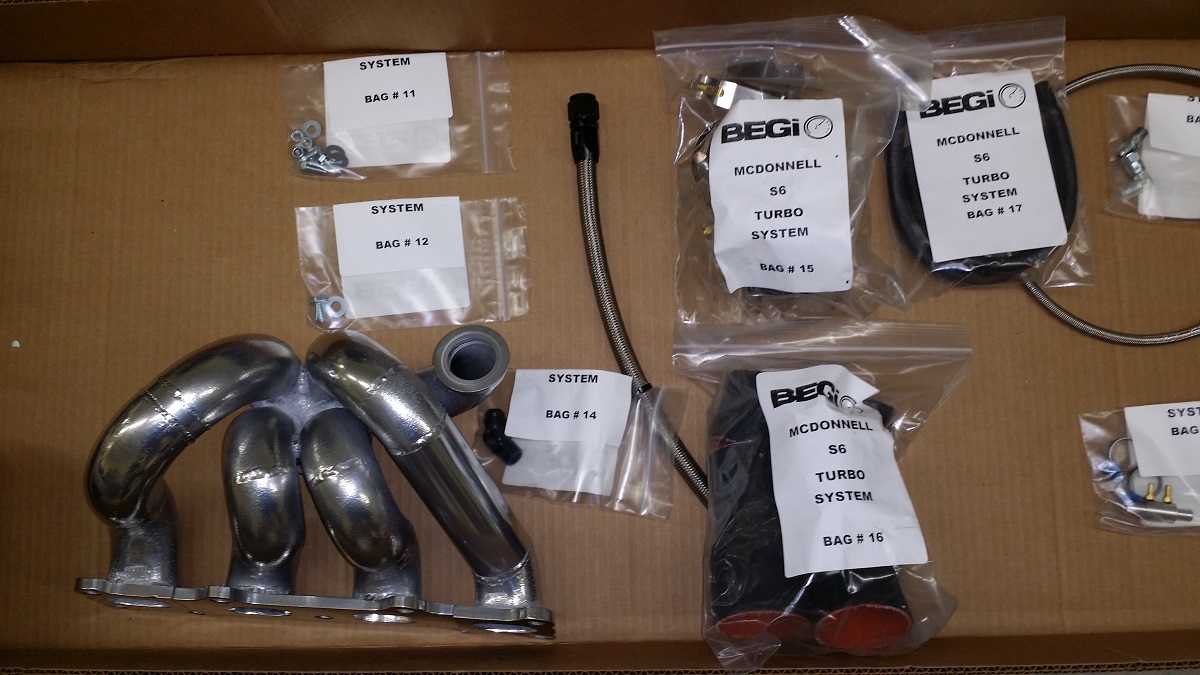

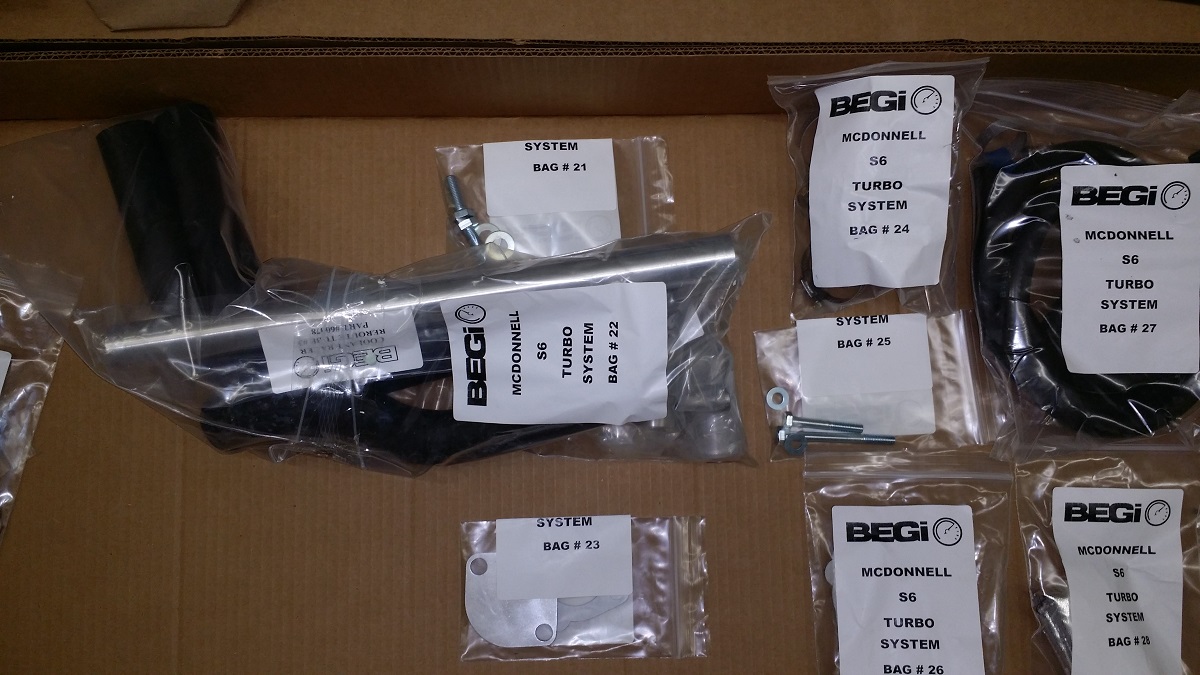

Not the most exciting pictures... but it gives an idea of how the parts arrive from BEGi.

Pics of a bunch of bags of parts and still wrapped up parts... if interested click on the thumbnails... I am not going to bother putting them all in full size in this post.

Keith
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-bags-1-thru-7.jpg   My 99's Journey from the dark side to enlightenment.-bags-8-9-10.jpg   My 99's Journey from the dark side to enlightenment.-bags-11-thru-17.jpg   My 99's Journey from the dark side to enlightenment.-bags-18-19-20.jpg   My 99's Journey from the dark side to enlightenment.-bags-21-thru-28.jpg

My 99's Journey from the dark side to enlightenment.-bags-31-32-33.jpg   My 99's Journey from the dark side to enlightenment.-bags-34-35-36.jpg   My 99's Journey from the dark side to enlightenment.-downpipe-wg-tube.jpg   My 99's Journey from the dark side to enlightenment.-intake-pipe-filter.jpg   My 99's Journey from the dark side to enlightenment.-intercooler-pipes.jpg

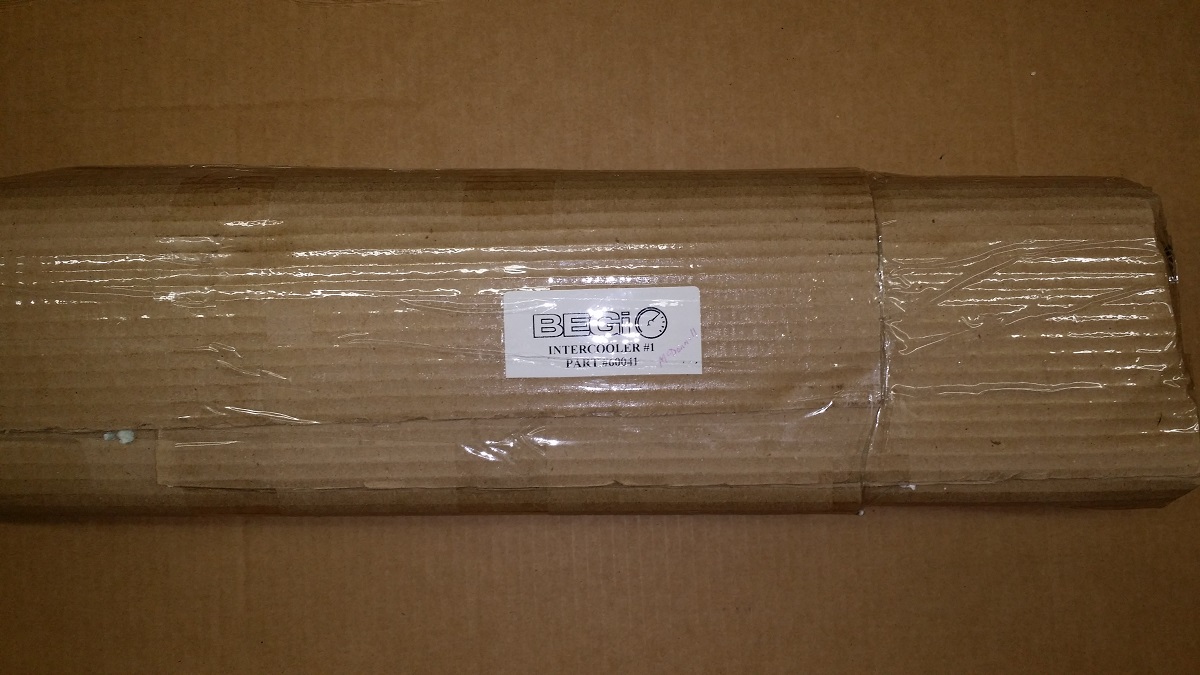

My 99's Journey from the dark side to enlightenment.-intercooler.jpg   My 99's Journey from the dark side to enlightenment.-tial-external-wg.jpg   My 99's Journey from the dark side to enlightenment.-radiator.jpg   My 99's Journey from the dark side to enlightenment.-bags-29-30.jpg
Twodoor is offline   Reply With Quote
Old 08-20-2014, 12:05 AM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

aww yeah
18psi is offline   Reply With Quote
Old 08-20-2014, 12:53 AM   #35
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Fun fact... bag #1 contains the instructions on CD. I hooked up my external CD ROM (since modern computers don't have optical drives) popped in the CD... and it is a blank CD-R!!!

Panic mode e-mail sent to Stephanie, and I will be calling when I wake up in the morning.

Keith
Twodoor is offline   Reply With Quote
Old 08-21-2014, 12:00 AM   #36
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Just got the shipping e-mail from 949 racing... my Xida's are in the mail! Build thread just got a boost in complexity

Keith
Twodoor is offline   Reply With Quote
Old 08-21-2014, 12:26 AM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

wow, s6 kit and xidas.

not a bad way to spend close to 10 grand
18psi is offline   Reply With Quote
Old 08-21-2014, 12:19 PM   #38
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
wow, s6 kit and xidas.

not a bad way to spend close to 10 grand
In the past I have done things half assed, and then upgraded to what I really wanted later... you end up spending 15K on it to get what would have been a 10K build if you had done it right the first time. Throw in wheels and tires to take advantage of the power and suspension and we are talking another 1.5K to 2K...

Then the daily driver will be "done for now" and I can start working on my drag car that I have been ignoring. 1984 Dodge Conquest (re-badged Mitsubishi Starion).

Keith
Twodoor is offline   Reply With Quote
Old 08-22-2014, 01:49 PM   #39
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Couple new pictures, and a question.

I am very tempted to pull the AC system out while I am ripping things apart. Can you retain the power steering by just going to a shorter belt or do you need a dummy pulley where the AC compressor used to be?

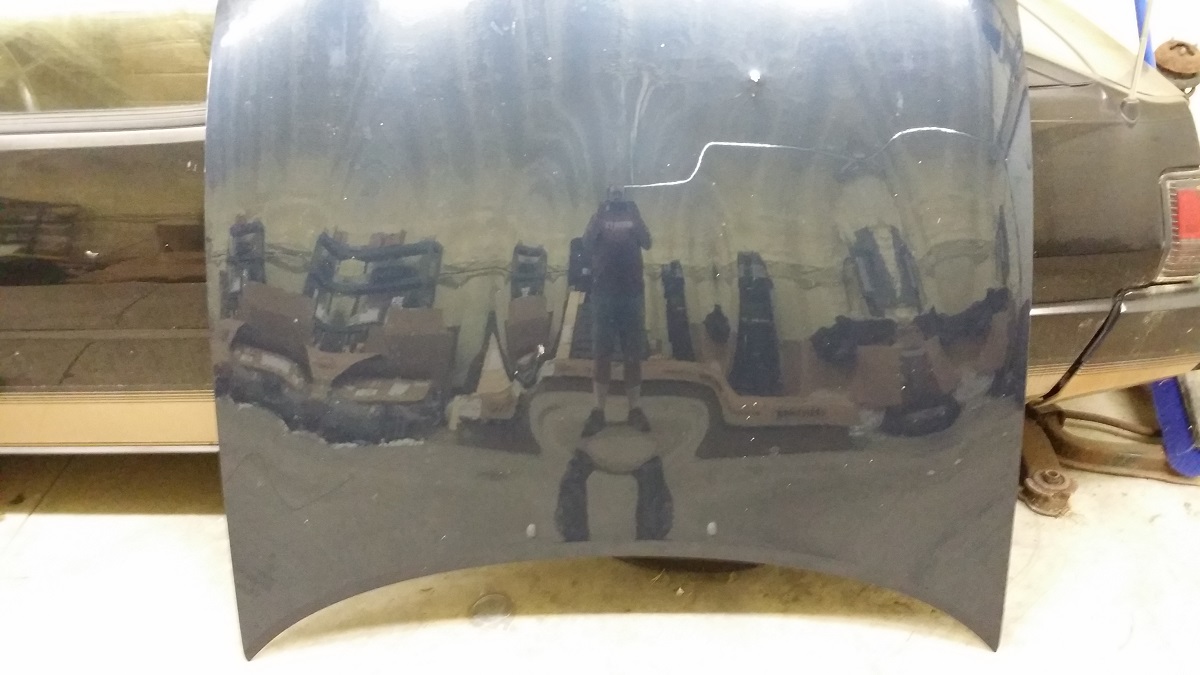

I always remove the hood when doing engine work.

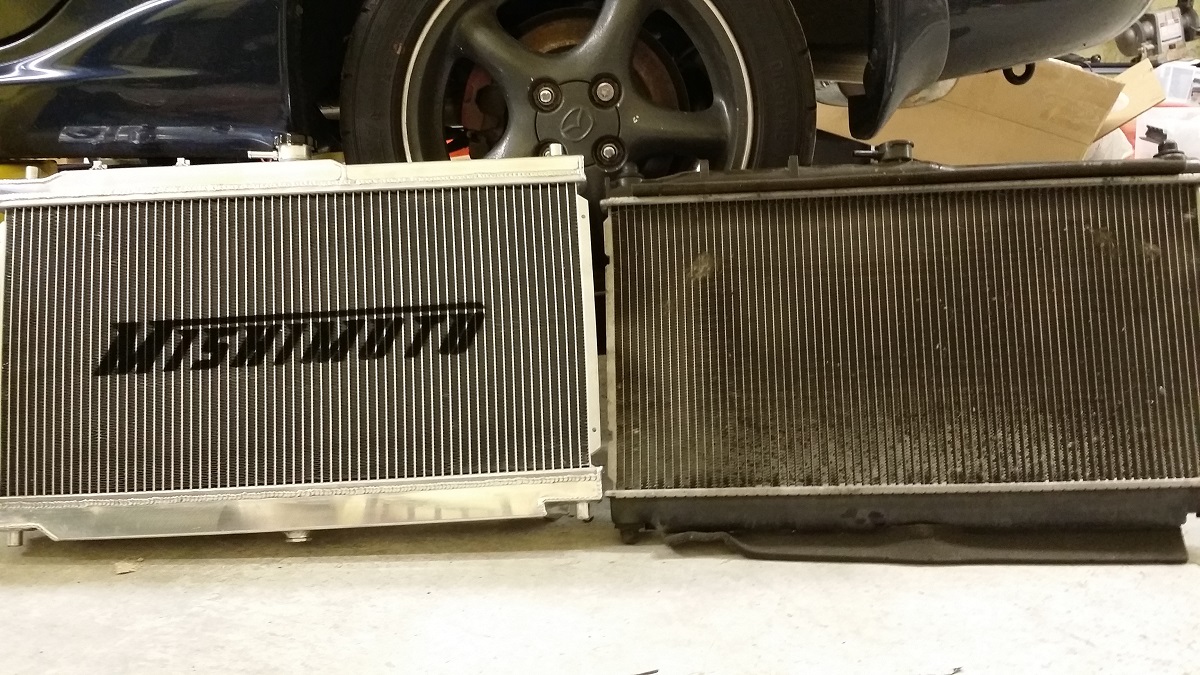

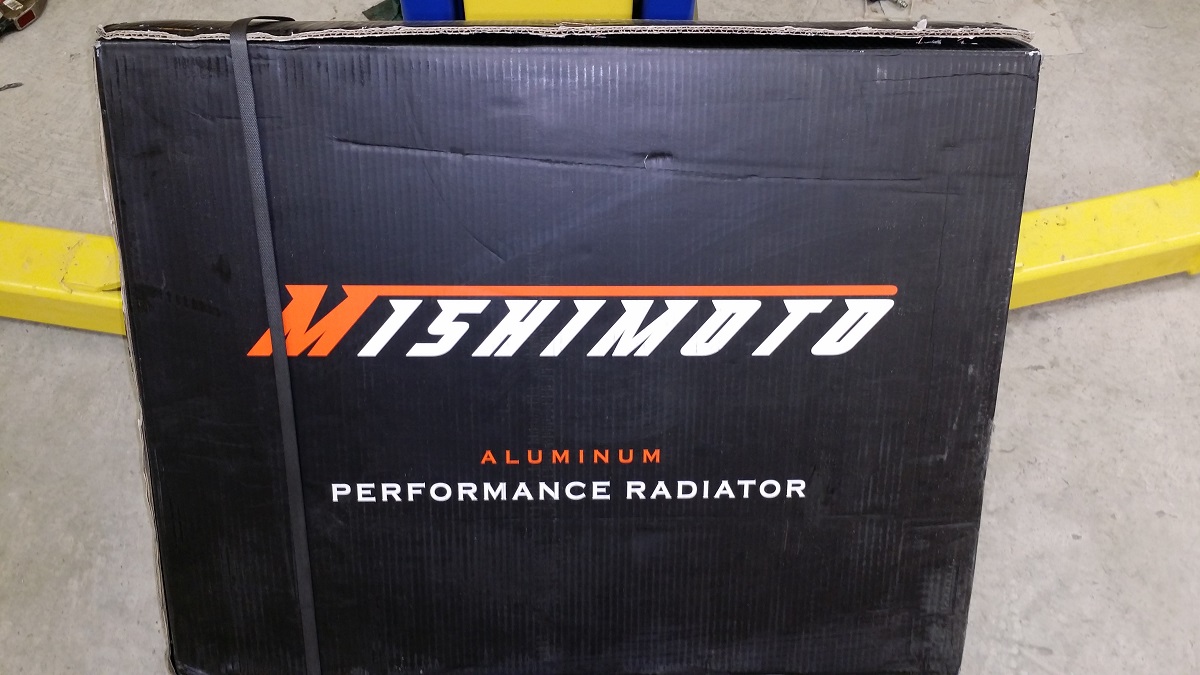

Old and new Radiators side by side.

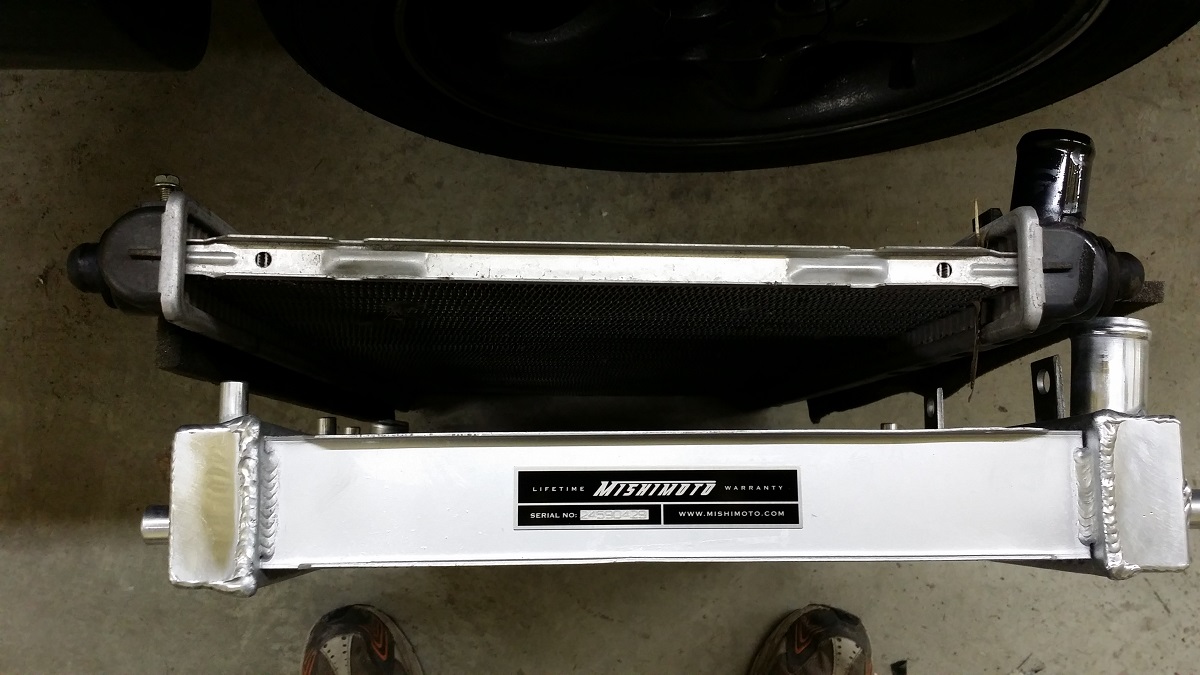

I had no idea how thin the stock radiator is!



Keith
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-hood-removed.jpg   My 99's Journey from the dark side to enlightenment.-radiator.jpg   My 99's Journey from the dark side to enlightenment.-radiator-thickness-comparison.jpg
Twodoor is offline   Reply With Quote
Old 08-22-2014, 01:53 PM   #40
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

You need a dummy pulley. No longer available through Mazda, but Kia sells it.

There was a thread about it on here... the assembly was about $80.

That said... just remove PS, too. A properly depowered rack isn't hard to drive at all.
concealer404 is offline   Reply With Quote
