Old 09-05-2014, 04:06 PM   #121
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Twodoor View Post
****!

You ever order something, and pay extra shipping cost so it will show up before the weekend... then you notice there has been no status update on the order... Called these ******* up, and they are waiting for it to come in from the factory!

If you offer rapid shipping on parts that you do not keep in stock you drop ship the part directly from the manufacturer to the customer. You don't wait for slow crate once a week delivery to your shop, put it on the shelf, wait a couple days, take it off the shelf and box it up, then ship it out the next day as a 2nd day UPS delivery!!!

So, I don't have a MBC this weekend. Anyone know of a speed shop within 2 hours driving distance of Terre Haute, IN that carries high quality MBC's?

Keith
TRU in Indy might have some, depending on your definition of high quality. They probably have an XSPower or two in stock. I'm sure i have a controller or two laying around if you need a backup plan. They'll be homebrew grainger/ball-spring deals, but they work.

I also have a neat little basic EBC. Runs a mac valve, on/off toggle switch, and a ****. Makes for a two-stage. Off = wastegate, On = whatever you have the **** turned to.
concealer404 is offline   Reply With Quote
Old 09-05-2014, 05:17 PM   #122
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by concealer404 View Post
TRU in Indy might have some, depending on your definition of high quality. They probably have an XSPower or two in stock. I'm sure i have a controller or two laying around if you need a backup plan. They'll be homebrew grainger/ball-spring deals, but they work.

I also have a neat little basic EBC. Runs a mac valve, on/off toggle switch, and a ****. Makes for a two-stage. Off = wastegate, On = whatever you have the **** turned to.
Thanks for the heads up.

They have a cheap knock off in stock, and can get me a Hallman later. I will go pick it up Saturday. I will try out the cheap one and if it serves my needs I will just keep it.

Keith
Twodoor is offline   Reply With Quote
Old 09-05-2014, 05:24 PM   #123
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Any idea what time you'll be in town on Saturday? I live maybe 8 minutes from TRU.
concealer404 is offline   Reply With Quote
Old 09-05-2014, 05:34 PM   #124
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by concealer404 View Post
Any idea what time you'll be in town on Saturday? I live maybe 8 minutes from TRU.

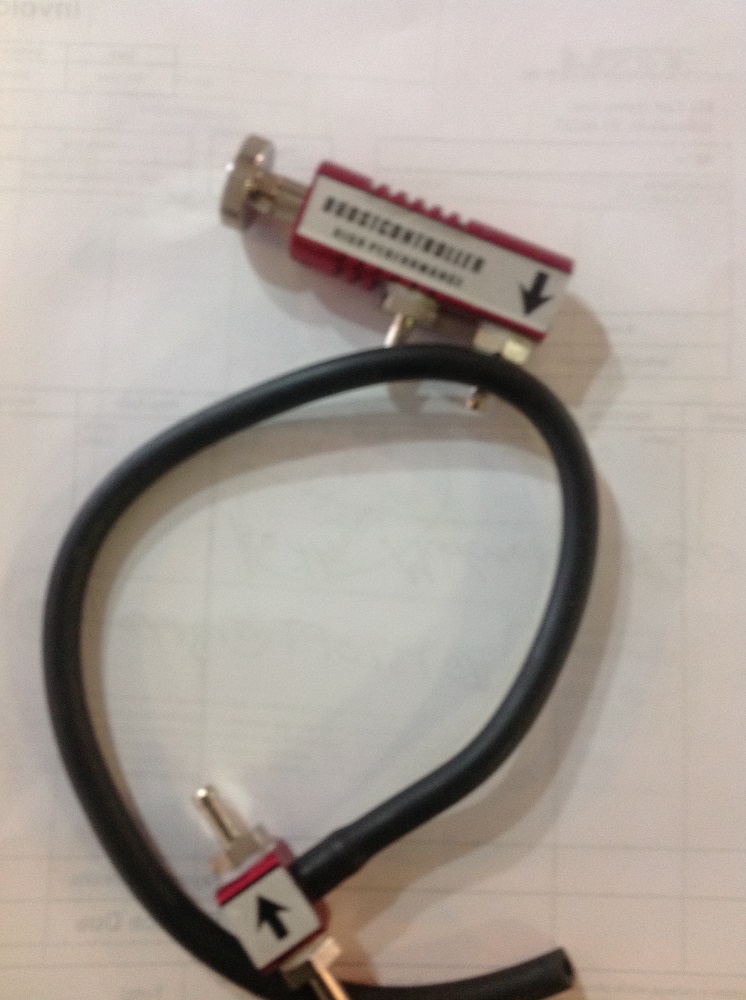

They open at 11... so I was planning to show up around then. Pic they sent doesn't look like any MBC I have seen.



Keith
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-photo1.jpg
Twodoor is offline   Reply With Quote
Old 09-05-2014, 06:11 PM   #125
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Turbosmart in-cabin knockoff. That thing isn't going to work worth a ****.

PM me your phone number, i'll see what i can dig up tonite.
concealer404 is offline   Reply With Quote
Old 09-05-2014, 07:29 PM   #126
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

UP NEXT!

I am going through my whole collection of springs for the external wastegate. I will do data logs for each spring, show spool up and peak boost vs what the spring is supposed to provide, along with a virtual dyno run at that boost pressure. I will be trying out the SAE correction since is if 92 ******* degrees here right now!

Keith
Twodoor is offline   Reply With Quote
Old 09-05-2014, 08:26 PM   #127
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Allllrighty then!

With the 4.4 psi spring installed I get the following spool up data:

2000 1.6 psi
2500 2.6 psi
3000 4.2 psi
3500 5.0 psi
4000 5.2 psi
4500 6.1 psi
5000 6.4 psi
5500 6.4 psi
6000 6.5 psi
6500 6.2 psi
7000 7.2 psi

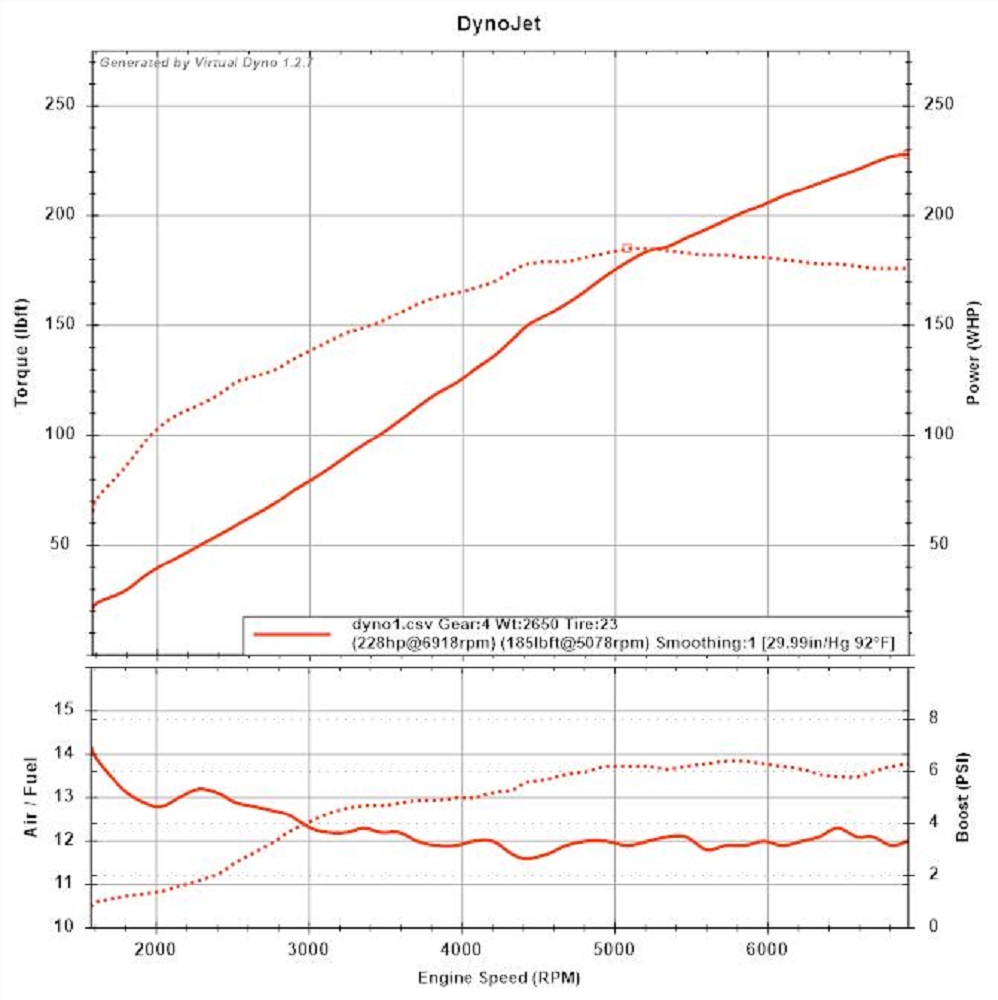

And here is the virtual dyno using 29.99 pressure and 92 deg F.



Keith
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-low-boost-virtual-dyno1.jpg
Twodoor is offline   Reply With Quote
Old 09-05-2014, 10:38 PM   #128
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Now some results for my 5.8 psi spring. Hitting around 9 psi with this one:

2000 1.6 psi
2500 2.8 psi
3000 4.5 psi
3500 7.0 psi
4000 7.7 psi
4500 8.5 psi
5000 8.8 psi
5500 8.7 psi
6000 8.8 psi
6500 8.0 psi
7000 9.0 psi

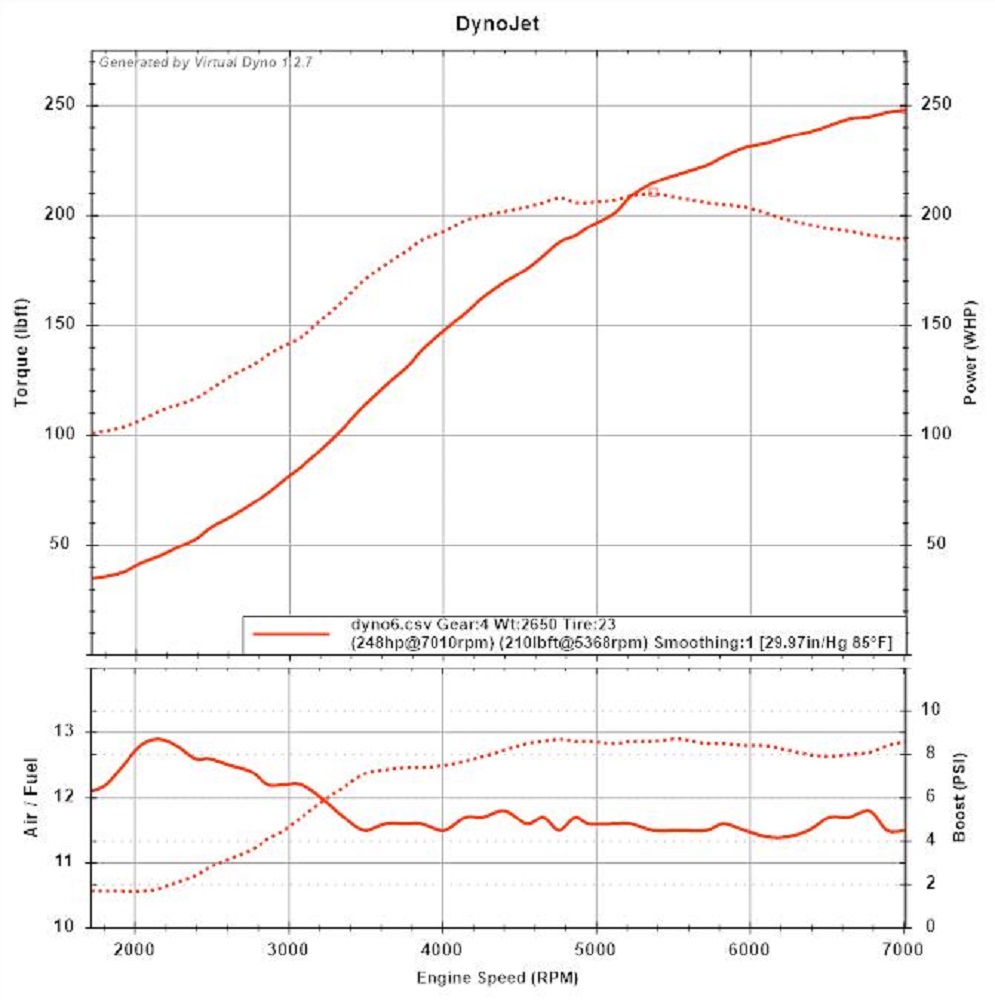

And here is the virtual dyno from this spring. Temperature was down to 85F



Keith
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-5.8-boost-virtual-dyno.jpg
Twodoor is offline   Reply With Quote
Old 09-06-2014, 01:54 AM   #129
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

your setup creeps. period.

not the worst thing in the world, but yeah....
18psi is offline   Reply With Quote
Old 09-06-2014, 01:55 AM   #130
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Ben is going to give me a spare manual boost controller he has in the AM, so this is my final update before gaining some real control of my boost pressure... swapping springs to make a change sucks ***.

Here is the spool up data from running the 7.3 psi spring.

2000 1.5 psi
2500 2.8 psi
3000 5.1 psi
3500 7.8 psi
4000 9.0 psi
4500 9.4 psi
5000 10.3 psi
5500 10.6 psi
6000 10.6 psi
6500 9.8 psi
7000 10.8 psi

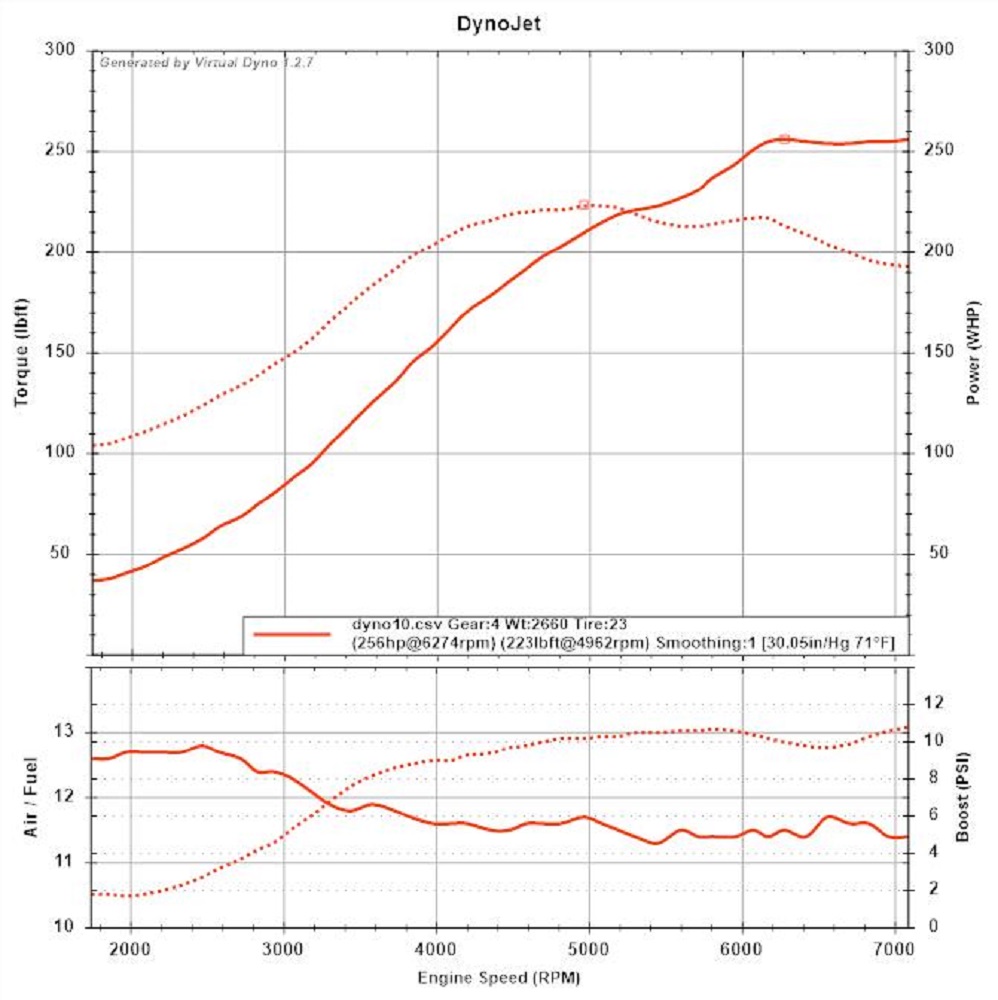

And the virtual dyno run at this boost pressure. Conditions were 71F 98% humidity, and 30.05"hg.



I am pretty sure that my first virtual dyno run was done with the windows down, and I don't have the weather data from that run to make it SAE like the rest of them.

Later,

Keith

PS: I was estimating 2650 for car weight with me in it, but tonight I went to the local truck scales and with a full tank of fuel, me, all normal junk like spare and jack car weighed in at 2660.
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-7.3-boost-virtual-dyno.jpg
Twodoor is offline   Reply With Quote
Old 09-07-2014, 12:27 PM   #131
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

I put a cheap (free to me, thanks Ben!) MBC on the car and aimed for 12 psi. God do I hate boost creep! Without boost creep I would be hitting 11.5 to 12 psi by 4000 RPM... as it is, I have to get the wastegate to start opening early, and I am only hitting 10 psi by 4000 RPM, and then creeping from there up to my peak boost.

Here is the spool data:

2000 1.5 psi
2500 3.1 psi
3000 5.1 psi
3500 8.6 psi
4000 10.3 psi
4500 11.2 psi
5000 11.9 psi
5500 12.2 psi
6000 12.1 psi
6500 11.0 psi
7000 12.5 psi

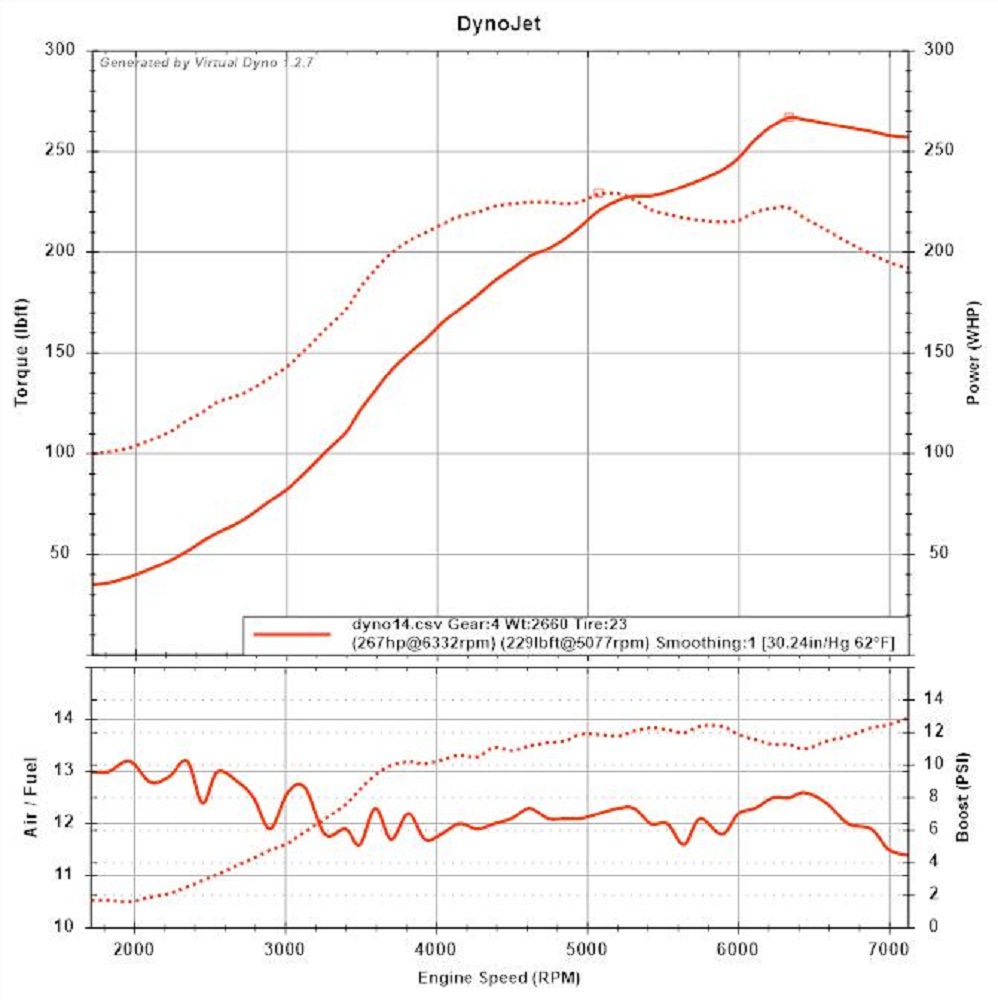

And here is the virtual dyno graph of the data log.



Next step is just a hair more fine tuning now that I am hitting my desired boost pressure, and next week a trip to a REAL dyno as well as a trip to the closest 1/4 mile track.

Later,

Keith
Attached Thumbnails
My 99's Journey from the dark side to enlightenment.-7.3-boost-mbc-virtual-dyno.jpg
Twodoor is offline   Reply With Quote
Old 09-09-2014, 07:16 PM   #132
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

A question for the knowledgeable in the group:

Would my boost creep be mitigated / eliminated by switching to a dump pipe on the external WG rather than the poorly located return to the BEGi downpipe?

Keith
Twodoor is offline   Reply With Quote
Old 09-09-2014, 07:17 PM   #133
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

that usually does help
going to be crazy loud tho
18psi is offline   Reply With Quote
Old 09-09-2014, 07:21 PM   #134
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
that usually does help
going to be crazy loud tho
Yeah, my first turbo car had an external dump, loud as **** at WOT. I have thought of actually putting a small muffler under the car with a turn down at the end with the dump pipe routed to it.

Why couldn't BEGi design the ******* thing correctly in the first place?

Keith
Twodoor is offline   Reply With Quote
Old 09-09-2014, 07:23 PM   #135
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Corky was too busy coming up with new non sequiturs.
concealer404 is offline   Reply With Quote
Old 09-11-2014, 02:47 PM   #136
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Do NOT make friends with Stephanie! Here friends seem to die a lot.

A couple weeks ago when I couldn't get an answer out of her, it was because she had to attend a funeral, this last time I e-mailed her three days in a row with the same questions, a friend of hers had a stoke and died.

These may be real deaths, so I don't want to make too much fun... but hire someone to fill in if you are going to be gone so much! Personal tragedy is no excuse for corporate production or customer service failure.

My intake build sheet is on the work bench... when it is done on Friday it and the dummy MAF pipe will be sent out for powder coating. The same guy doing the intake has a picture of my engine bay so he can make a heat shield...

So, apparently they do not have a standardized heat shield for the S6 setup on an NB1.

WTF?

I actually asked Stephanie once if this was the first 99 with the S6 kit they had ever done when asking why there were no instructions, and I was told no.

I think that was a bald faced lie.

Parts don't fit right, there are no instructions, it has boost creep, overall it is a bad design... I think I am the beta tester for this ******* kit.

Keith
Twodoor is offline   Reply With Quote
Old 09-11-2014, 03:03 PM   #137
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Do you have it in you to take it all off and start over again?


Because this is ridiculous and i'd LOVE to see either Stephanie or Corky set foot in this thread. I'd love even more for you to send the whole kit back.
concealer404 is offline   Reply With Quote
Old 09-13-2014, 09:28 AM   #138
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

Did you tell them that the reason the heat shield doesn't fit is because your non-standard brake lines are in the way, or did you blame it all on BEGI?
sixshooter is online now   Reply With Quote
Old 09-13-2014, 10:40 AM   #139
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by sixshooter View Post
Did you tell them that the reason the heat shield doesn't fit is because your non-standard brake lines are in the way, or did you blame it all on BEGI?
Saw it in person. Brake line is not the issue.
concealer404 is offline   Reply With Quote
Old 09-13-2014, 11:04 AM   #140
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by sixshooter View Post
Did you tell them that the reason the heat shield doesn't fit is because your non-standard brake lines are in the way, or did you blame it all on BEGI?
I blamed every ******* bit of it on BEGi.

The wastegate dump back to the downpipe is in the way, not my brake line. If I take my wastegate off the damn heat shield fits fine and clears the brake line with about half an inch to spare.

Keith
Twodoor is offline   Reply With Quote
