Old 09-08-2008, 12:49 PM   #21
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

its an endurance race....IC would be a very good idea and there are plenty of stock IC that would work ok and for CHEAP from places like pull a part.
miatamania is offline   Reply With Quote
Old 09-08-2008, 01:25 PM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

We've got an IC from a Ford Probe. It was so cheap it was practically free.

We'll keep boost at the wastegate actuator setting (no EBC), about 5-7 psi. Fuel will be 91 octane CA crap.

I hadn't thought of using an MS. That's intruiging. I'm not sure how much time I want to spend calibrating cold start, hot re-start, part-throttle stuff etc but would you guys be willing to share a rock solid base calibration that I could use as a starting point? That would help.

Pics of this weekend's progress:

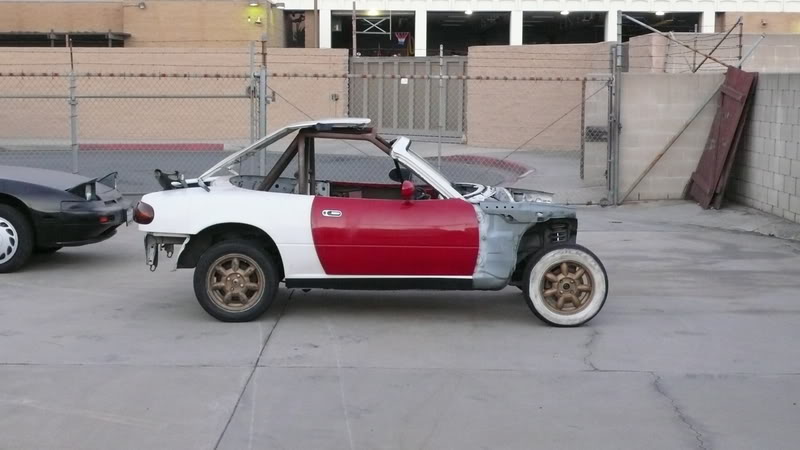

Name:  P1010942.jpg
Views: 45
Size:  59.3 KB

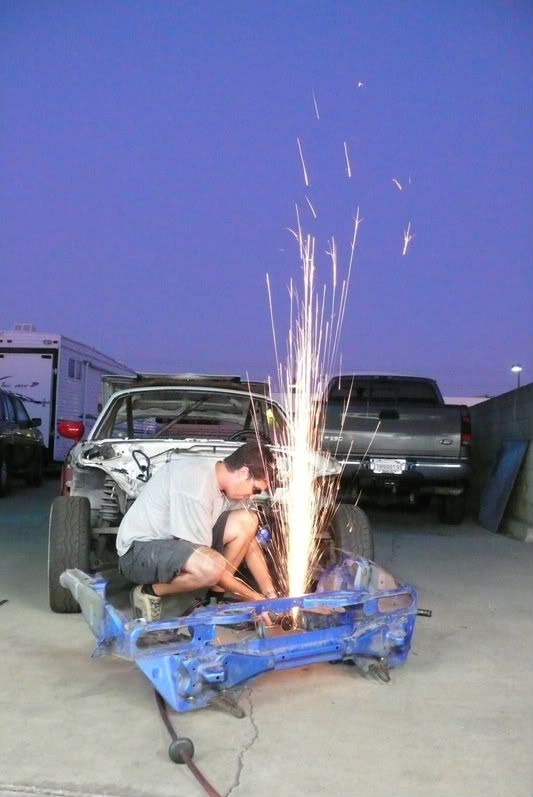

Name:  P1010948.jpg
Views: 45
Size:  61.7 KB

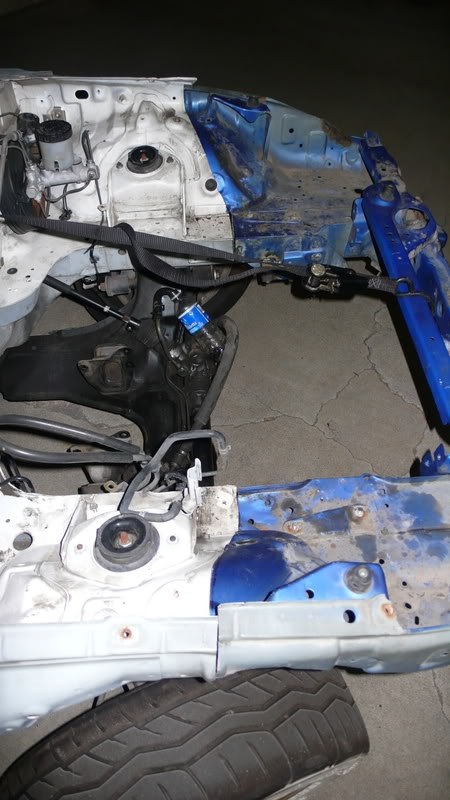

Name:  P1010956.jpg
Views: 45
Size:  77.2 KB

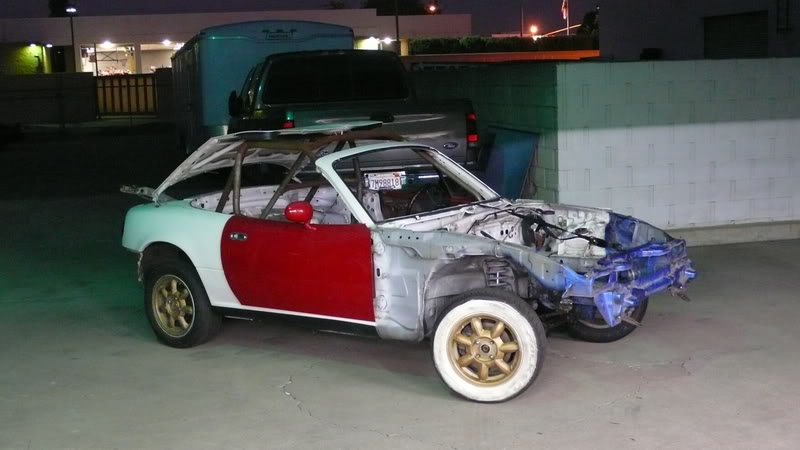

Name:  P1010955.jpg
Views: 45
Size:  59.1 KB
JKav is offline   Reply With Quote
Old 09-08-2008, 03:10 PM   #23
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by JKav View Post
I hadn't thought of using an MS. That's intruiging. I'm not sure how much time I want to spend calibrating cold start, hot re-start, part-throttle stuff etc
Running it in parallel is just the ticket for you. Would solve all (ok, most) of those headaches.
Atlanta93LE is offline   Reply With Quote
Old 09-08-2008, 05:27 PM   #24
Newb
iTrader: (2)

Join Date: Jan 2008
Location: Exeter, NH
Posts: 23
Total Cats: 0
Default

That car looks AWESOME without the nose on it.

Looks like the car is going to be very cool. I can't wait to see how it turns out!
gsx1992 is offline   Reply With Quote
Old 09-08-2008, 10:13 PM   #25
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

what I'd do given that low boost to deal with the cold start is put a switch on the dash that allows you to start on the stock ECU (w/ 305cc injectors maybe), then once it's warmed up you can swap over to the MS just be flipping the switch while it's running.
Arkmage is offline   Reply With Quote
Old 09-08-2008, 10:43 PM   #26
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

Quote:
Originally Posted by Arkmage View Post
what I'd do given that low boost to deal with the cold start is put a switch on the dash that allows you to start on the stock ECU (w/ 305cc injectors maybe), then once it's warmed up you can swap over to the MS just be flipping the switch while it's running.
Noooooooo!

If you're going to go MS, then do it right. 305cc injectors aren't enough to deal with any meaningful level of boost absent an AFPR.

Stick with 440-550cc injectors, 89-92 non turbo RX-7 parts can be had for a reasonable price and are direct plug-n-play both electrically and mechanically. You can run parallel if you want, but frankly I think it'd be easier to go full standalone. You won't be running A/C, and idle is truly not that hard to get right. There are enough of us running MS on various configurations that someone will have a fuel table that'll get you started and idling, and be close enough to drive around on. You'll want to either use a WBO2 and do some autotuning or plan on a full afternoons' dyno time to get the table perfected, but it's not hard.
Joe Perez is offline   Reply With Quote
Old 09-08-2008, 11:59 PM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Big injectors, tuning, WBO2... we can do all that, they're non-issues.

Looking over Braineack's MS thread I'd say the biggest hurdle is time since I'm completely ignorant of MS. Learning it, building it will be a challenge. Am I right that it there are some additional costs bits and bobs besides the MS1 itself?
JKav is offline   Reply With Quote
Old 09-09-2008, 03:00 PM   #28
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

there is also the "other option" that nobody has played with before... run two sets of injectors. run the stockers low mount in stock position and mount a larger set (305cc for example) in the intake runners above them. Let the stock ecu run the out of boost and just run the MS injectors in boost. eliminates drivability and cold start concerns.

There will be other things to buy to go with the MS, however you can put a fuel pump switch on the dash to eliminate the AFM and sell it... the sensors you can get at a salvage yard for a few dollars, and the wiring you can salvage from the stock harness function you don't need (cruise, PW, PL, etc).

*edit* 305cc injectors in this case could support the limits of the stock engine since you will also have the factory injectors in-line as well
Arkmage is offline   Reply With Quote
Old 09-23-2008, 02:43 PM   #29
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Here's how to do a turbo manifold on the cheap--use the stock one.

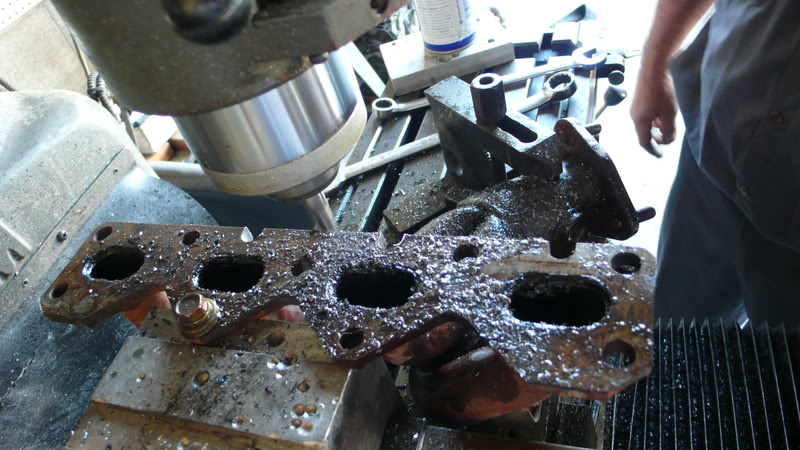

First make a few stud clearances on the flange...

Name:  P1020014.jpg
Views: 45
Size:  95.8 KB

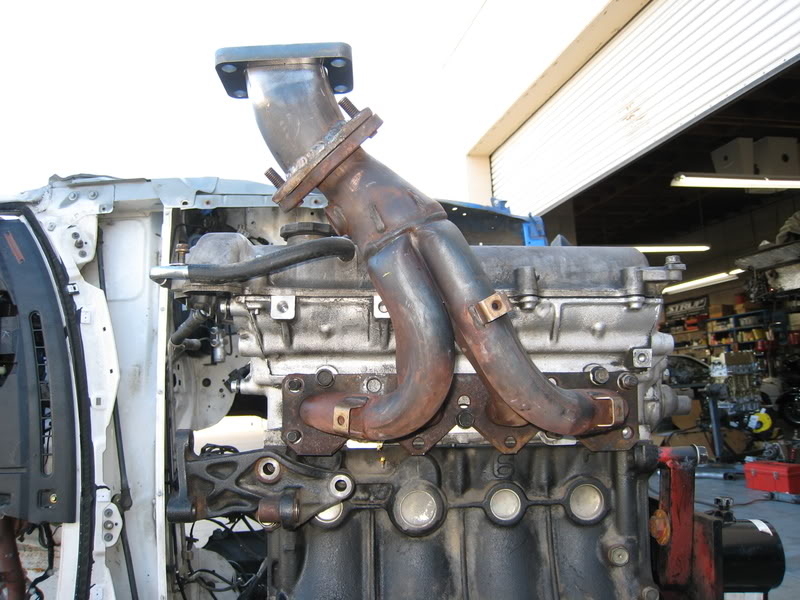

Then make an adapter elbow using the manifold's stock mating flange, a piece of another car's exhaust, and an ugly T3 inlet flange...

Name:  IMG_1598.jpg
Views: 45
Size:  101.5 KB

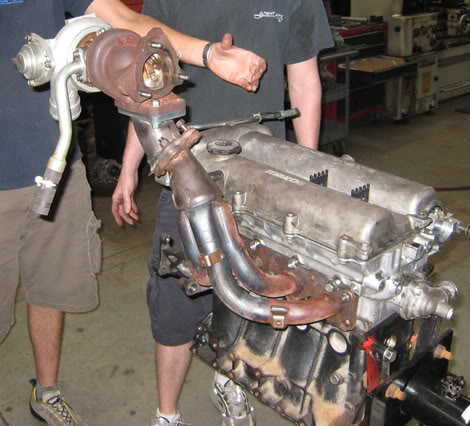

...and presto! Instant ghettocharging. Hood removal is optional but recommended:

Name:  IMG_1630.jpg
Views: 45
Size:  51.0 KB

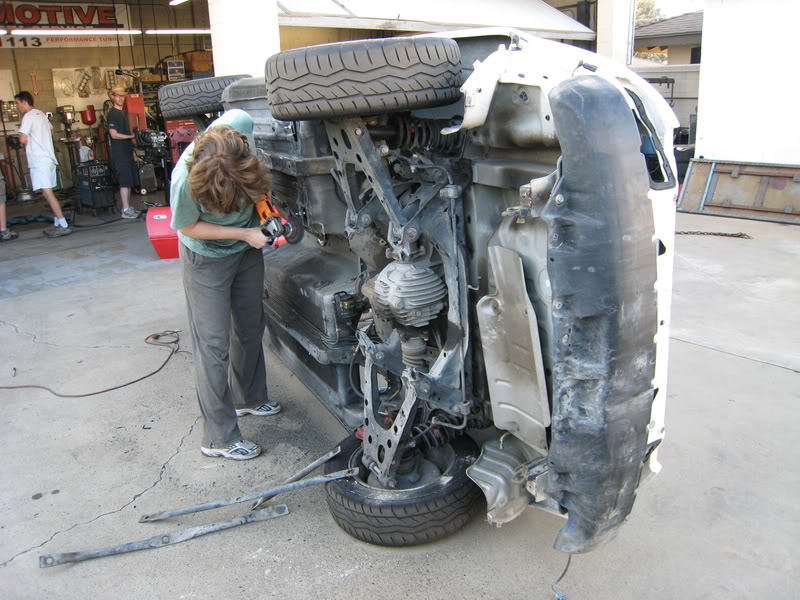

Turns out the best way to work on the underside of a car is just to flip it on its side. Way easier to do than you might think:

Name:  IMG_1604.jpg
Views: 45
Size:  107.7 KB

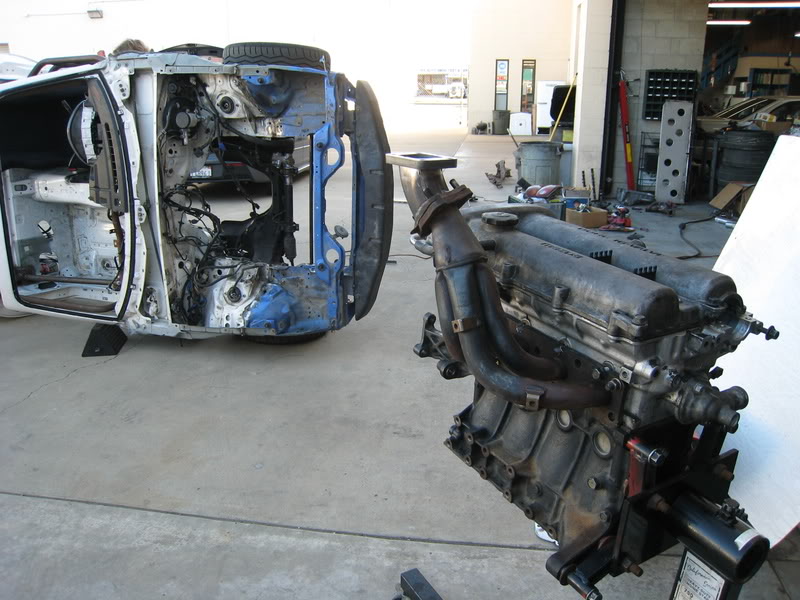

Name:  IMG_1602.jpg
Views: 45
Size:  98.3 KB
JKav is offline   Reply With Quote
Old 09-23-2008, 02:47 PM   #30
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Are yo going to make a kit with that manifold to sell? I'd be in line for one.
KPLAFIN is offline   Reply With Quote
Old 09-23-2008, 07:36 PM   #31
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

i want to see intercooler piping on that bitch!
UrbanSoot is offline   Reply With Quote
Old 09-23-2008, 08:00 PM   #32
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

OMG this thread is full of WIN!
99NBMia is offline   Reply With Quote
Old 09-23-2008, 08:06 PM   #33
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

How much will mounting the turbo like that affect driver visibility?
messiahx is offline   Reply With Quote
Old 09-23-2008, 08:27 PM   #34
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

WIN WIN WIN!!! This is awesome. I say run a lmore boost, say 12 or so.

Probably useless info now, but a 95-97 Kia header is similar to a miata header (car has same engine), but the header doesn't point backwards, or in your case, now forward. It would just point straight down, or straight up if you flipped it over. I used one on my miata and cut it at the collector and welded a 3" pipe to it. Cheap header.

You might wanna check your tire pressure, I think it's leaning a little...
patsmx5 is offline   Reply With Quote
Old 09-24-2008, 12:45 AM
mmmjesse
This message has been deleted by Joe Perez. Reason: post whore
Old 09-24-2008, 09:53 AM   #35
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

This build ftw!
skidude is offline   Reply With Quote
Old 09-24-2008, 01:23 PM   #36
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Nice. Should keep turbo cooler too ..lol

I use a brace on that thing to, thats a lot of weight to have suspended by the header bolts.
IcantDo55 is offline   Reply With Quote
Old 09-24-2008, 01:58 PM   #37
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

haha AWESOME! keep the pics comeing..
cardriverx is offline   Reply With Quote
Old 09-24-2008, 06:49 PM   #38
Newb

Join Date: Feb 2008
Location: Dallas, TX
Posts: 38
Total Cats: 0
Default

With the amount of "bumping" that goes on in the Lemons races are you not worried about that turbo flying off and coming through your windshield? You must really trust your welding skills if you do. Looks like fun though, keep at it!
stevenh is offline   Reply With Quote
Old 09-24-2008, 07:20 PM   #39
Junior Member

Join Date: Sep 2008
Location: Tulsa, Oklahoma
Posts: 350
Total Cats: -1
Default

This beats turbo dodge cheapness...
944obscene is offline   Reply With Quote
Old 09-24-2008, 08:24 PM   #40
Junior Member

Join Date: May 2006
Location: Vancouver Canada
Posts: 104
Total Cats: 0
Default

Sweet, it doesn't even need a downpipe or exhaust system. This is the ultimate in low back pressure.
matttheniceguy is offline   Reply With Quote
