Default Never ending, Mostly winter, turbo NB project.

Hi! i'm new here, i'm from Quebec, Canada.
Bought my NB July 2010, my 3rd winter off.

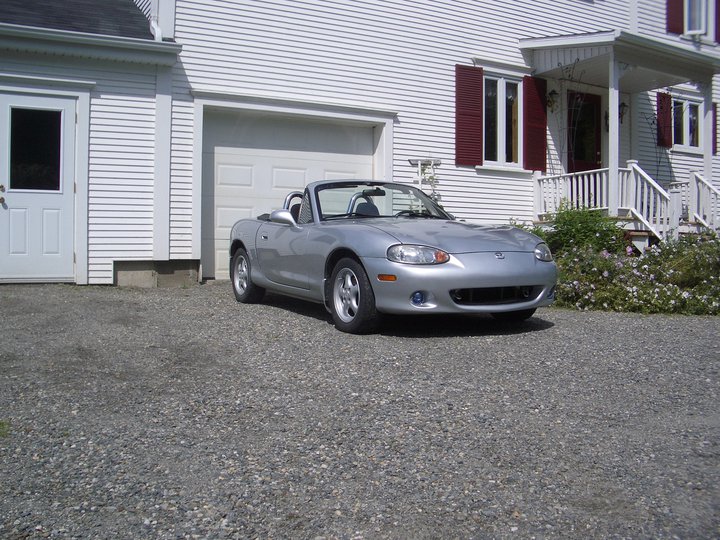

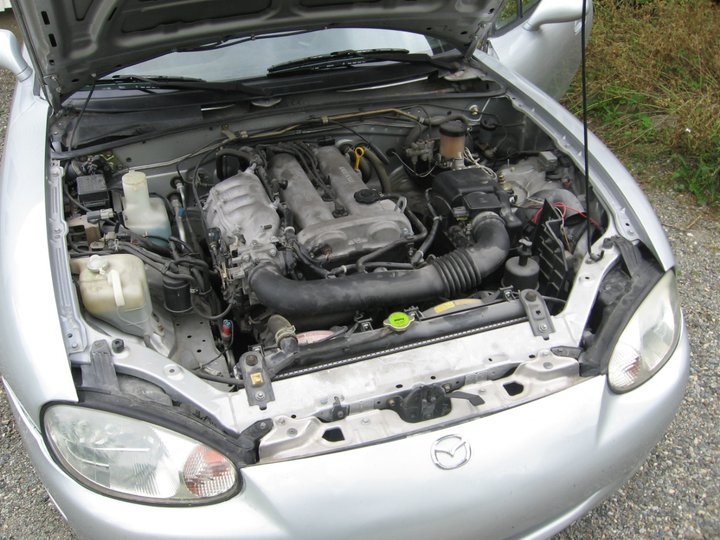

This is what it looked like when i bought it, the previous owner got a NB2 bumper on but "fitted" the NB1 headlight + El cheapo universal fog lights.

So this is 2010, i got it off the road for winter n.1.
The project was :
-Maintenance
-Suspension
-Chassis
-Mild Performance upgrade

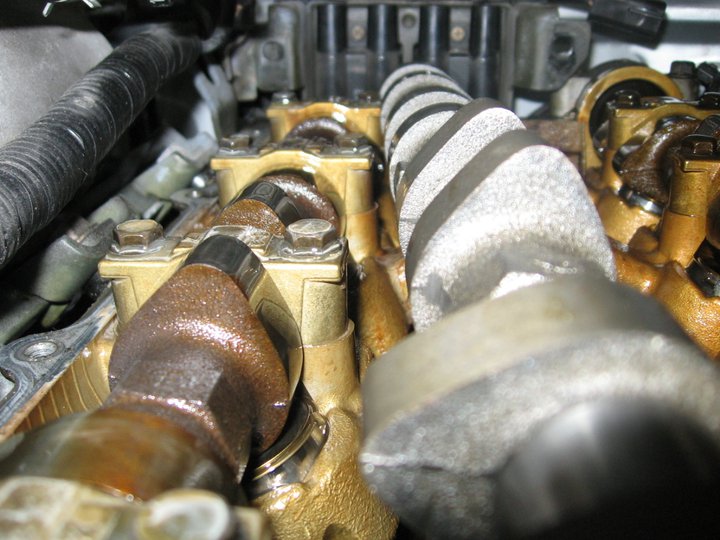

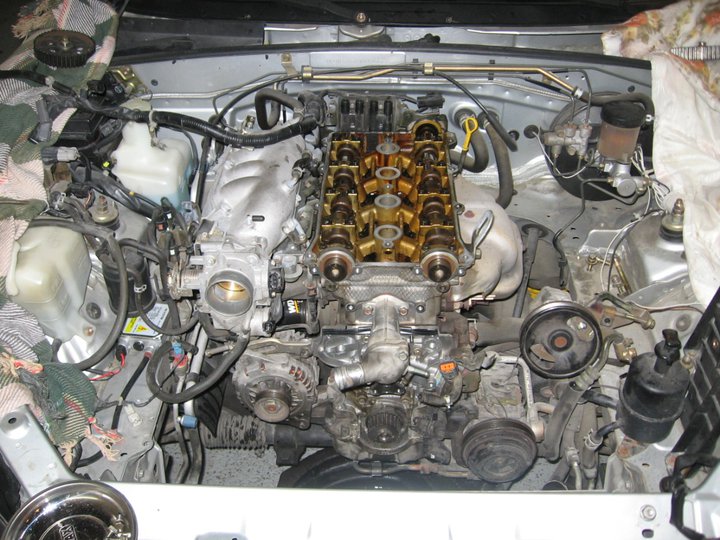

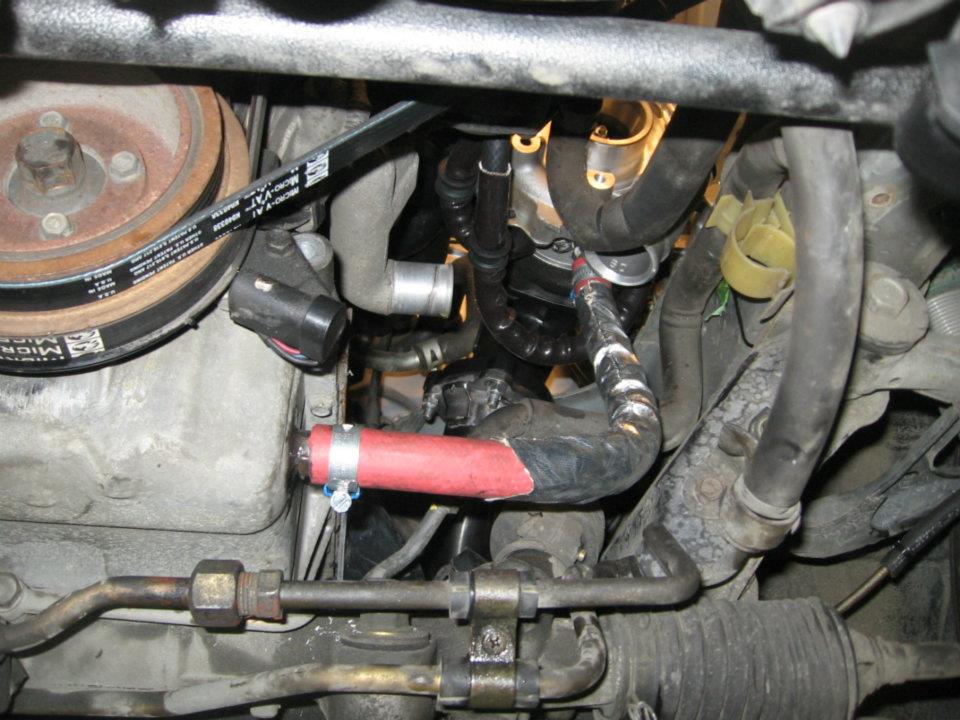

So i got the t-belt done and all front seals/water pump. Being there, i tought good to get a MSM cam, wich had a bit more lift, butg good enought with stock ECM.

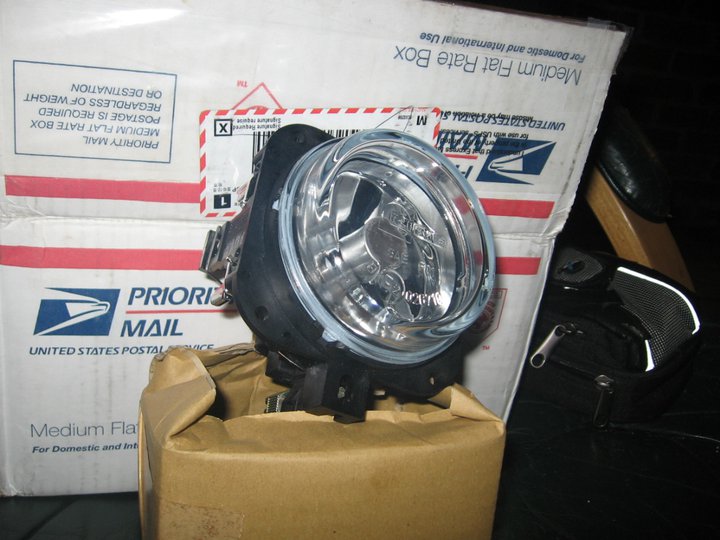

Got some OEM fog lights

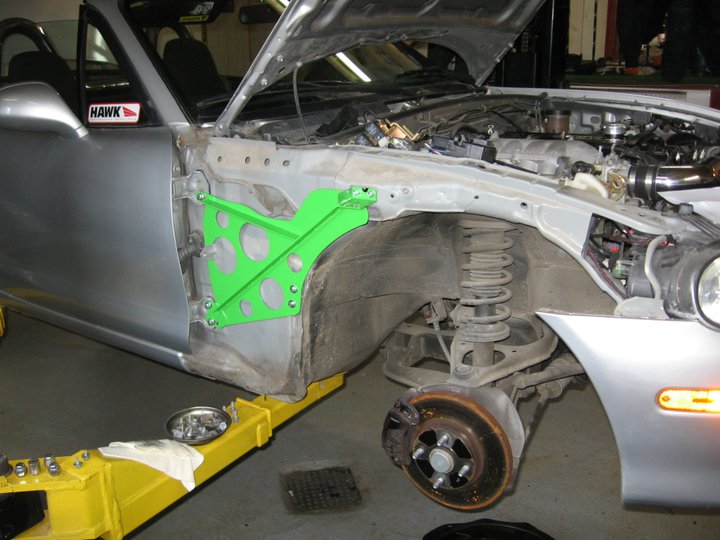

Bossfrog frog arms


Tein SS with New OEM mounts


K&N and acc.

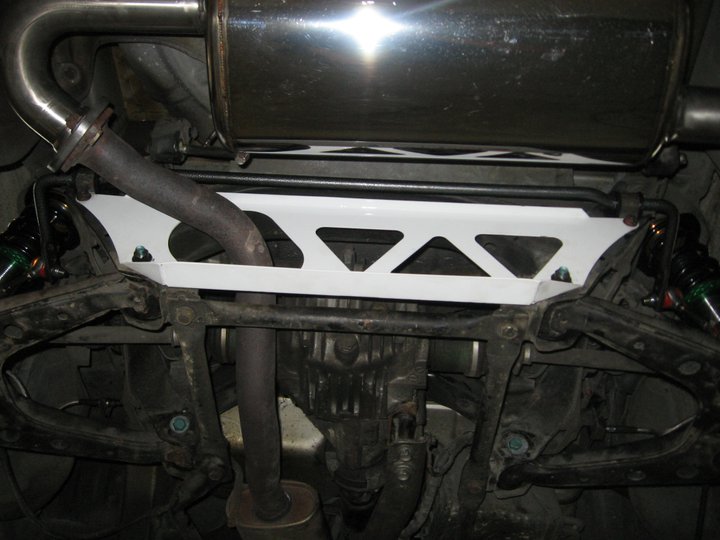

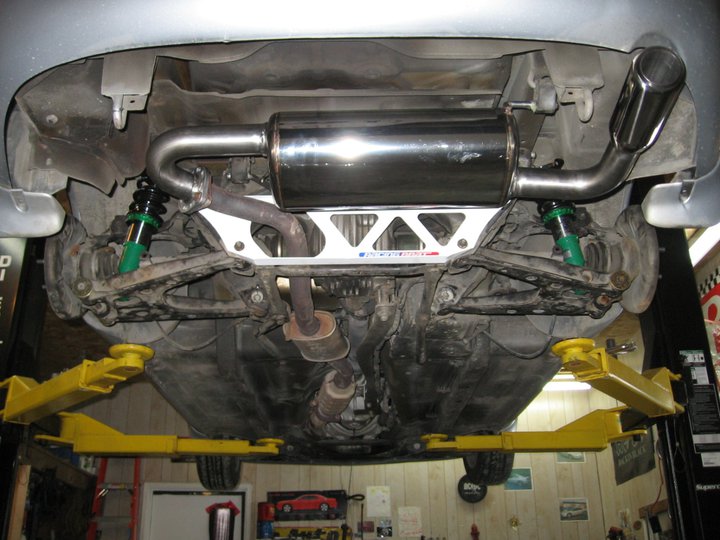

RB RSFB and Axle-Back

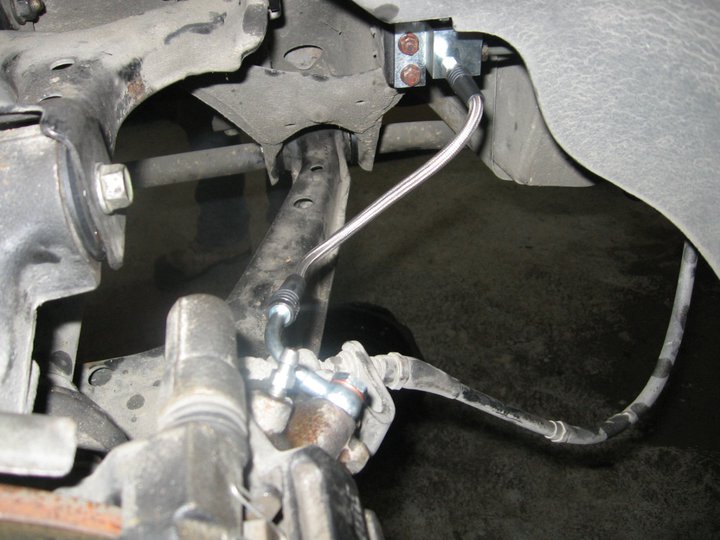

SS Brake hose

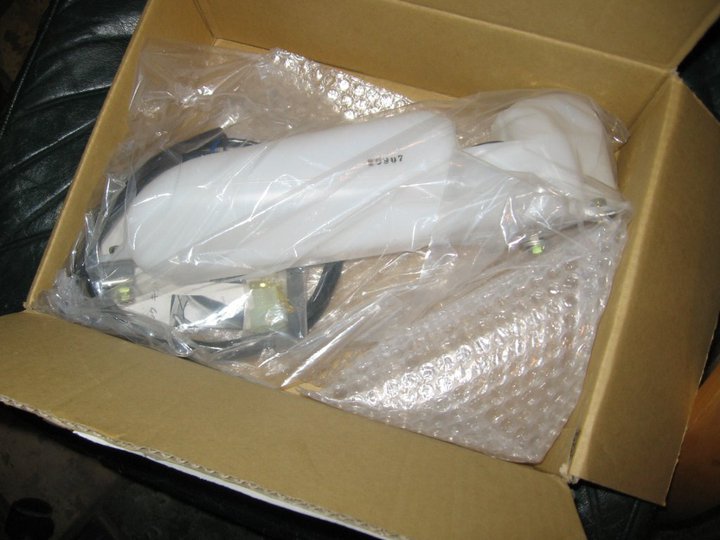

No pro washer bottle and coolant bottle

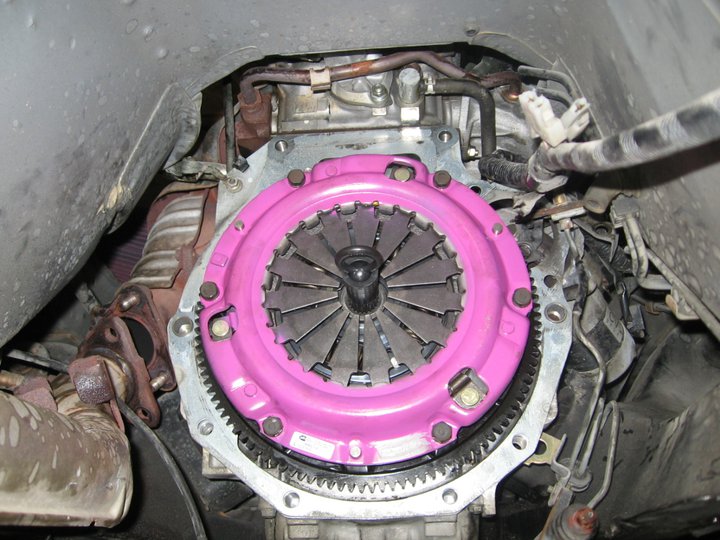

FM stage I clutch w/10.3lbs FW


FM sways/Energy suspension bushings/ RB endlinks

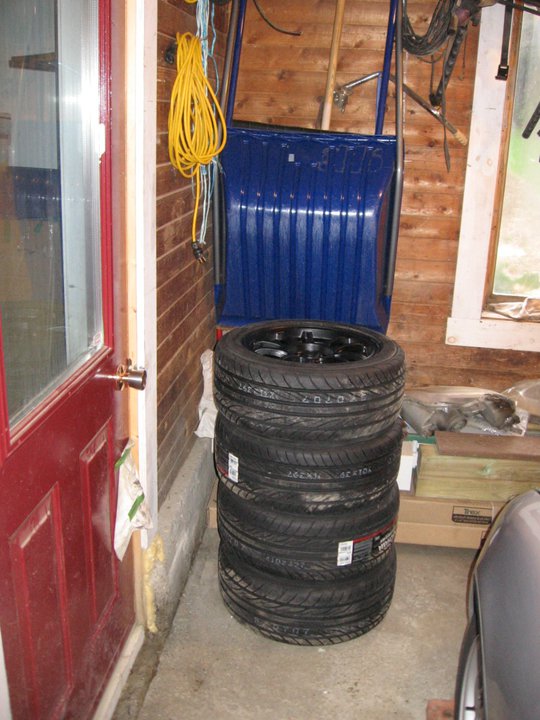

TR motorsport w/ S.drive 205/50R15


So the winter finished like that

So i got to the summer and keeped going

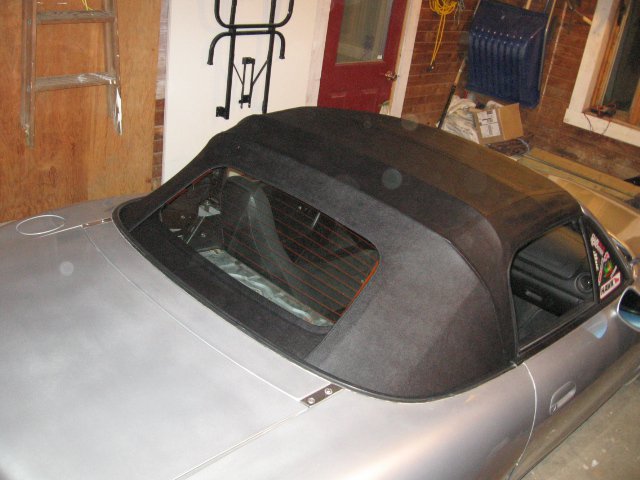

New top and style bar delete

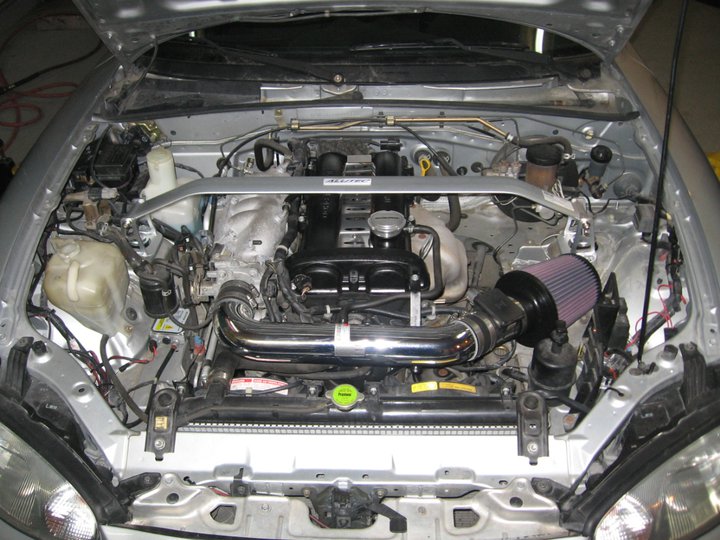

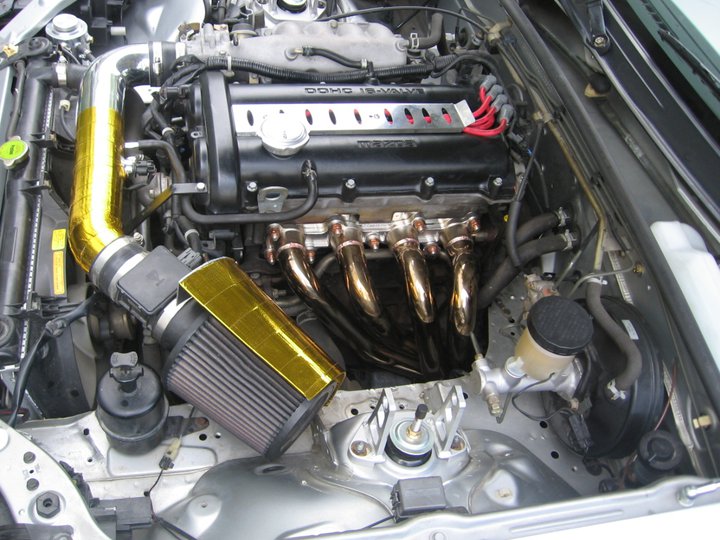

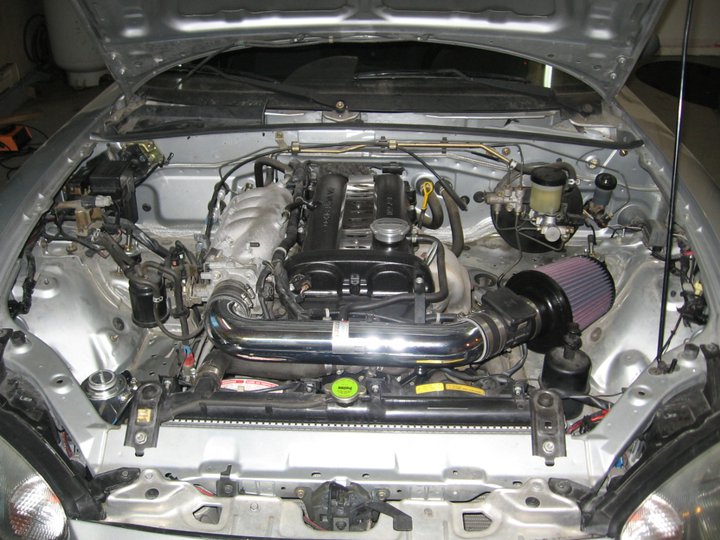

RB headers, custom intake heat shield.

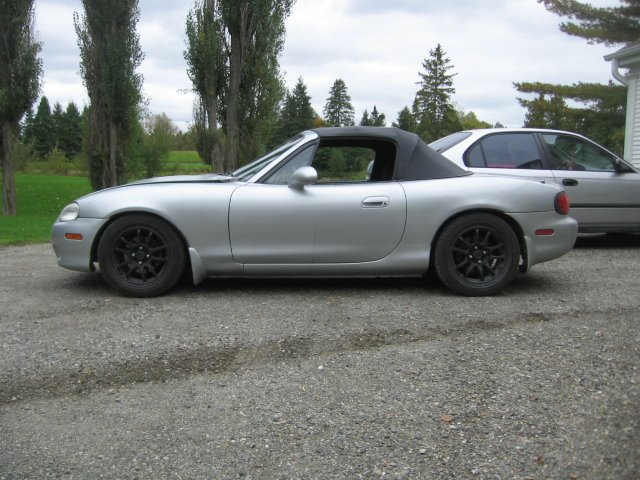

And that is how she sit before winter n.2!
Attached Thumbnails
Never ending, Mostly winter, turbo NB project.-37358_10150225764370046_6845656_n.jpg   Never ending, Mostly winter, turbo NB project.-168787_10150390284660046_4271761_n.jpg   Never ending, Mostly winter, turbo NB project.-154851_10150332799320046_449734_n.jpg   Never ending, Mostly winter, turbo NB project.-189049_10150435678540046_7807018_n.jpg   Never ending, Mostly winter, turbo NB project.-184933_10150410315600046_4005153_n.jpg

Never ending, Mostly winter, turbo NB project.-65832_10150357006010046_451707_n.jpg   Never ending, Mostly winter, turbo NB project.-168933_10150385977060046_6994485_n.jpg   Never ending, Mostly winter, turbo NB project.-73995_10150331382020046_5879749_n.jpg   Never ending, Mostly winter, turbo NB project.-166411_10150385978360046_2088853_n.jpg   Never ending, Mostly winter, turbo NB project.-181730_10150398766855046_578265_n.jpg

Never ending, Mostly winter, turbo NB project.-167774_10150398767405046_2880988_n.jpg   Never ending, Mostly winter, turbo NB project.-180586_10150403344460046_2034802_n.jpg   Never ending, Mostly winter, turbo NB project.-183252_10150419864500046_3848618_n.jpg   Never ending, Mostly winter, turbo NB project.-188199_10150449205350046_4531410_n.jpg   Never ending, Mostly winter, turbo NB project.-190477_10150450183385046_1378422_n.jpg

Never ending, Mostly winter, turbo NB project.-226424_10150580408885046_408982_n.jpg   Never ending, Mostly winter, turbo NB project.-206137_10150717496995046_3935447_n.jpg   Never ending, Mostly winter, turbo NB project.-223902_10150718191435046_1262214_n.jpg   Never ending, Mostly winter, turbo NB project.-292757_10150745340870046_3724162_n.jpg   Never ending, Mostly winter, turbo NB project.-299637_10150819241255046_1076063665_n.jpg

sr20det_28 is offline   Reply With Quote
Old 12-03-2012, 08:40 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

your hood is broken
fix it

otherwise nice
18psi is offline   Reply With Quote
Old 12-03-2012, 09:09 PM   #3
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

So winter n.2 started off quite quickly!
The goal was :
Turbo
Roll bar
Front face lift

Parts came pretty early, end of november.

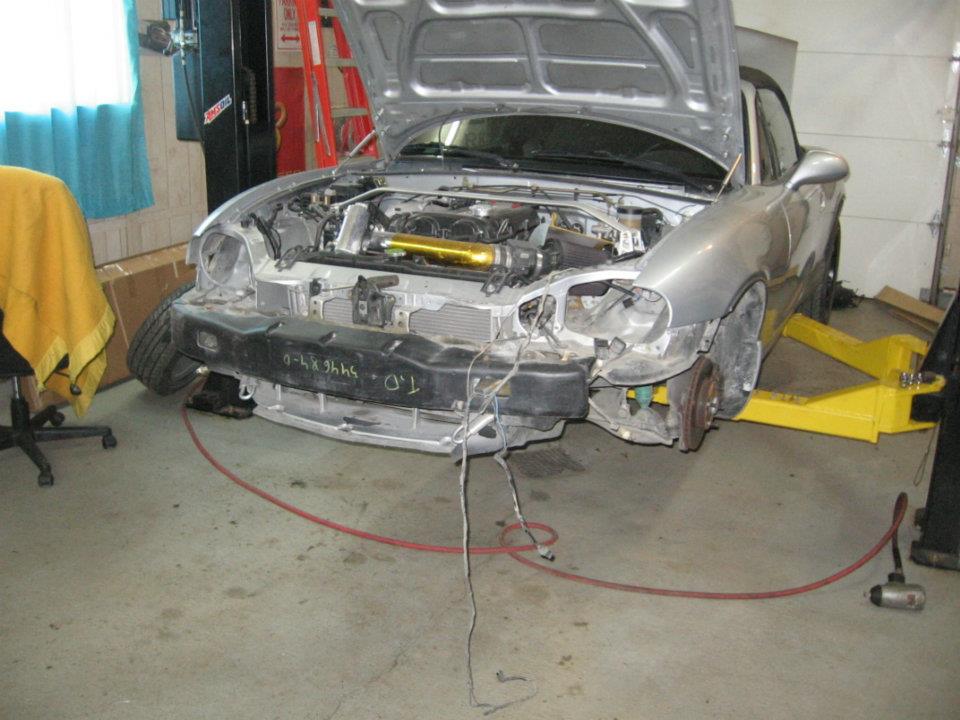

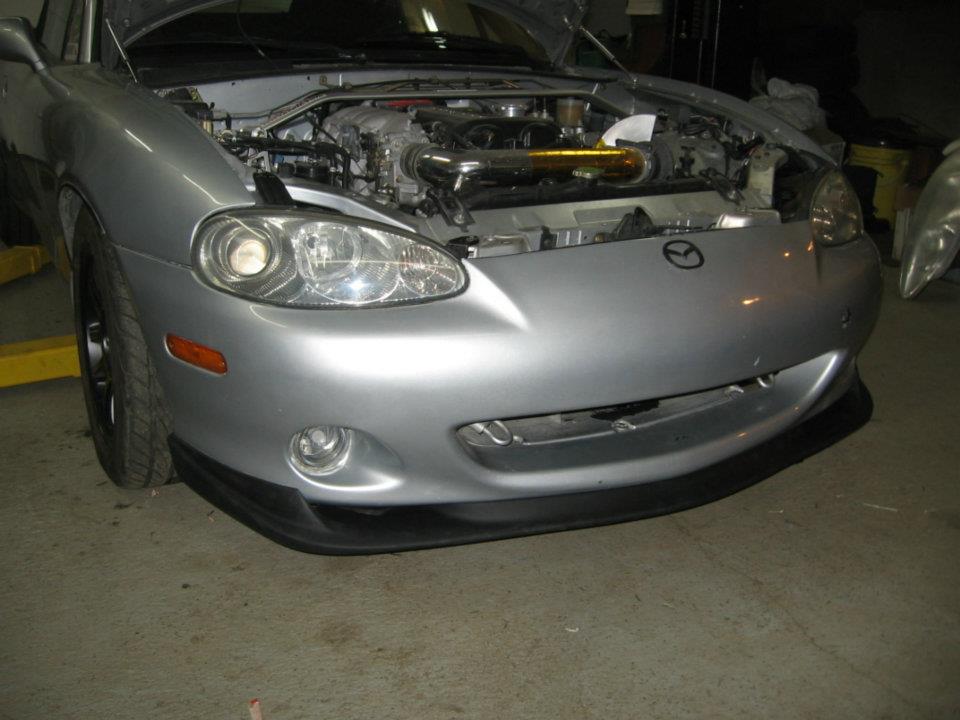

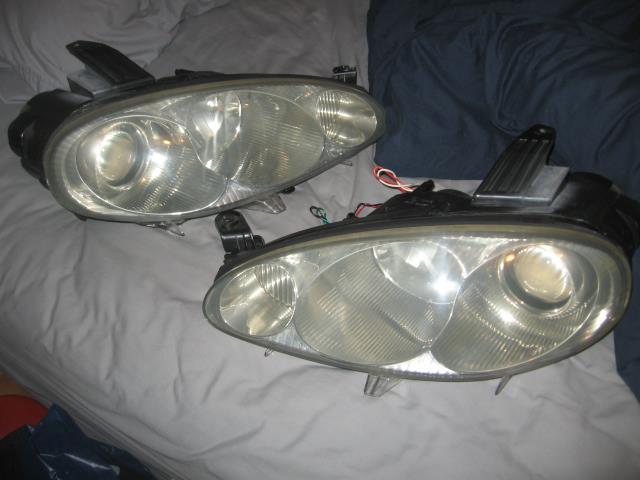

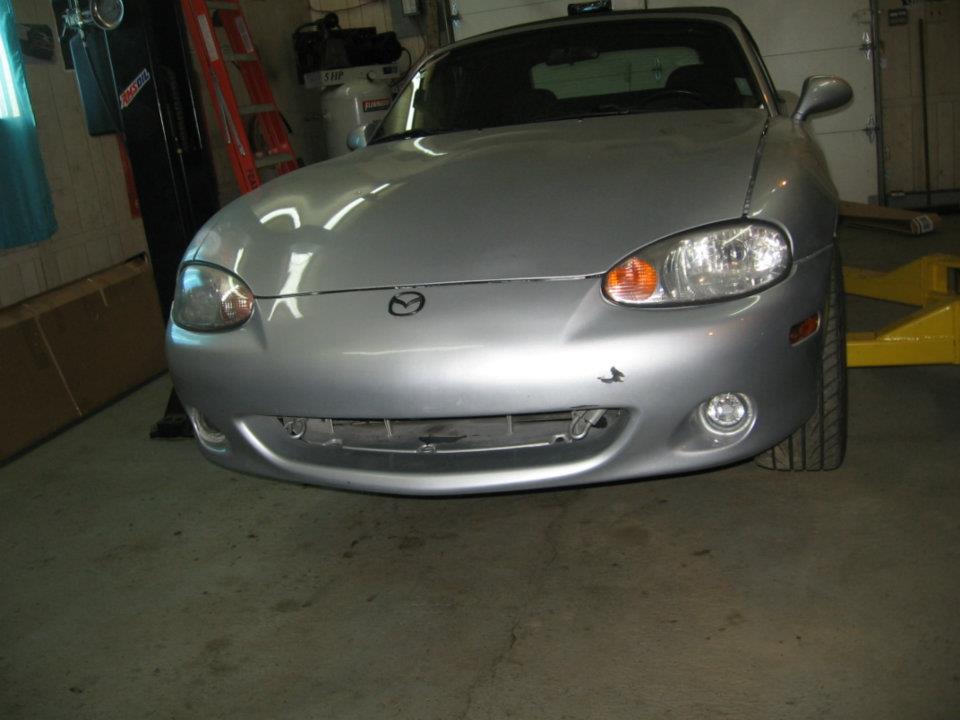

So there we had it, For the front, i got a TR lip, JDM NB2 Headlights and some HID kits for Hi and Lo

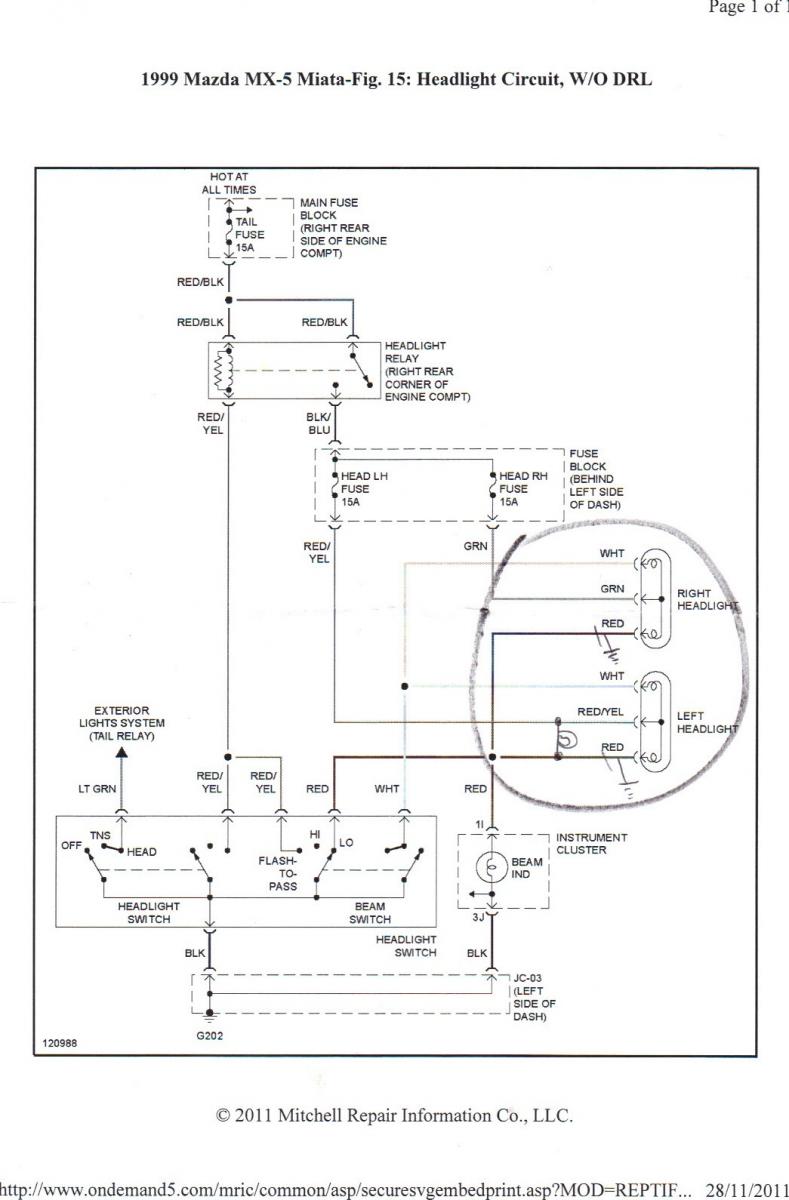

This is how i manage to get hi and lo work at the same time when on Hi

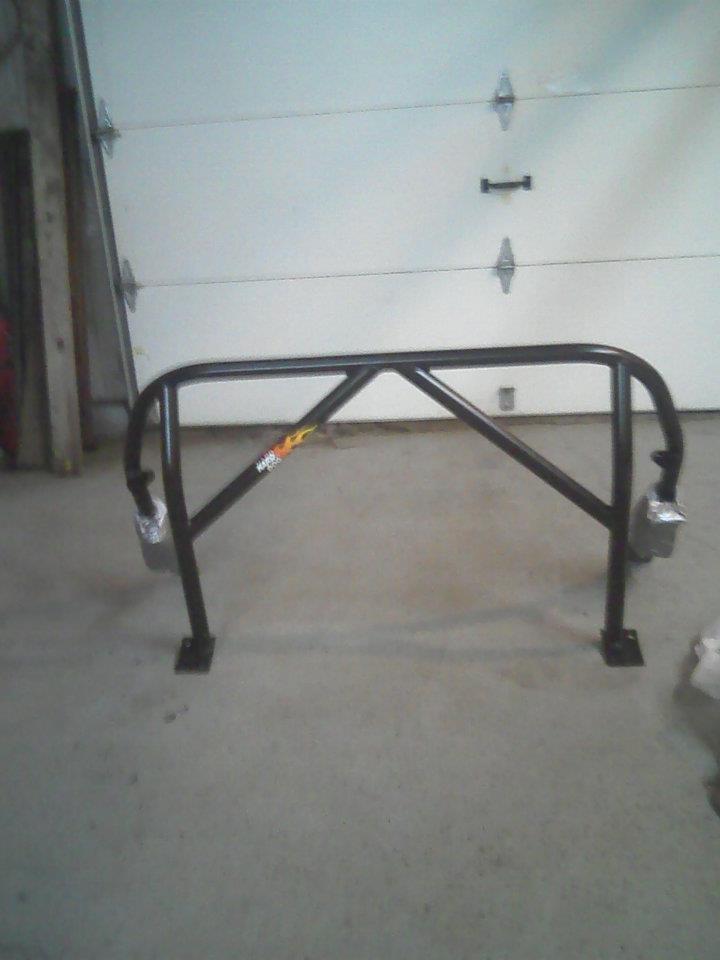

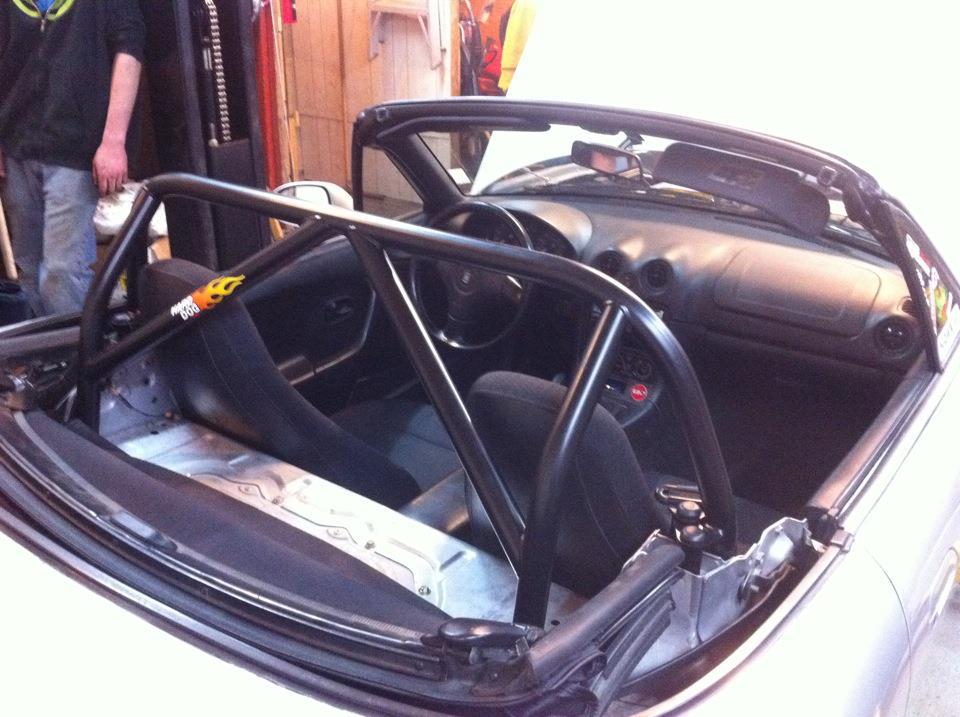

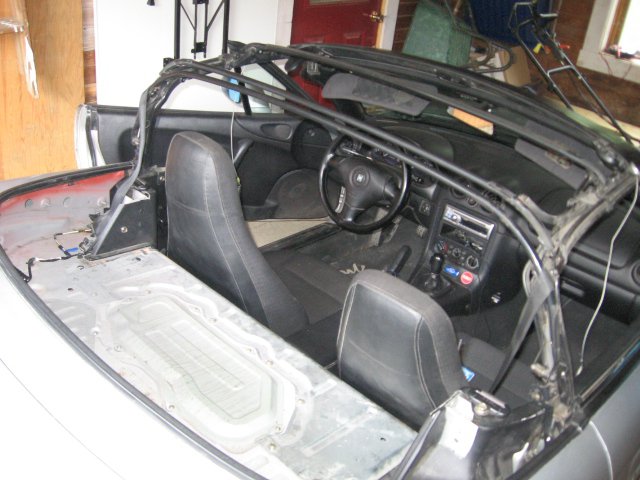

The i got the rollbar in.


PAARRTTSSS

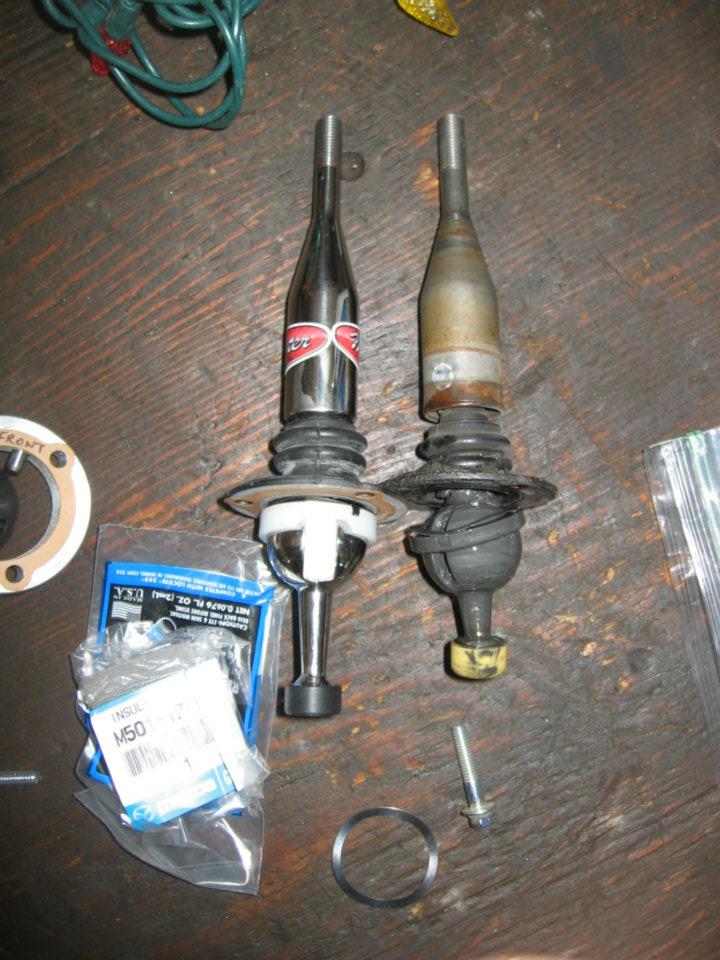

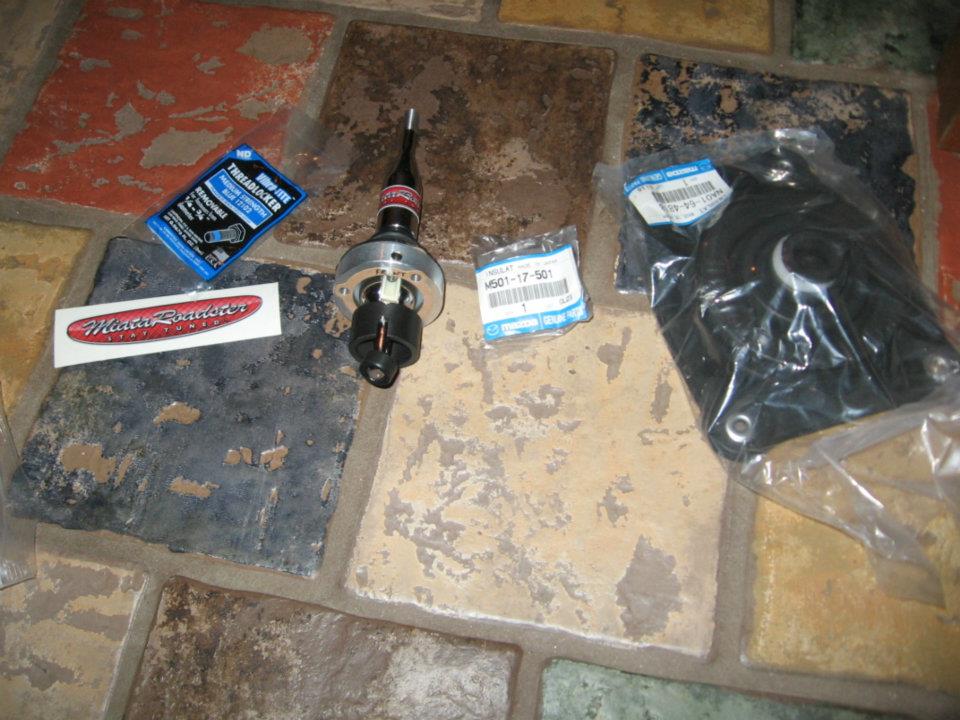

MiataRoaster Short shifter kit, Stock height

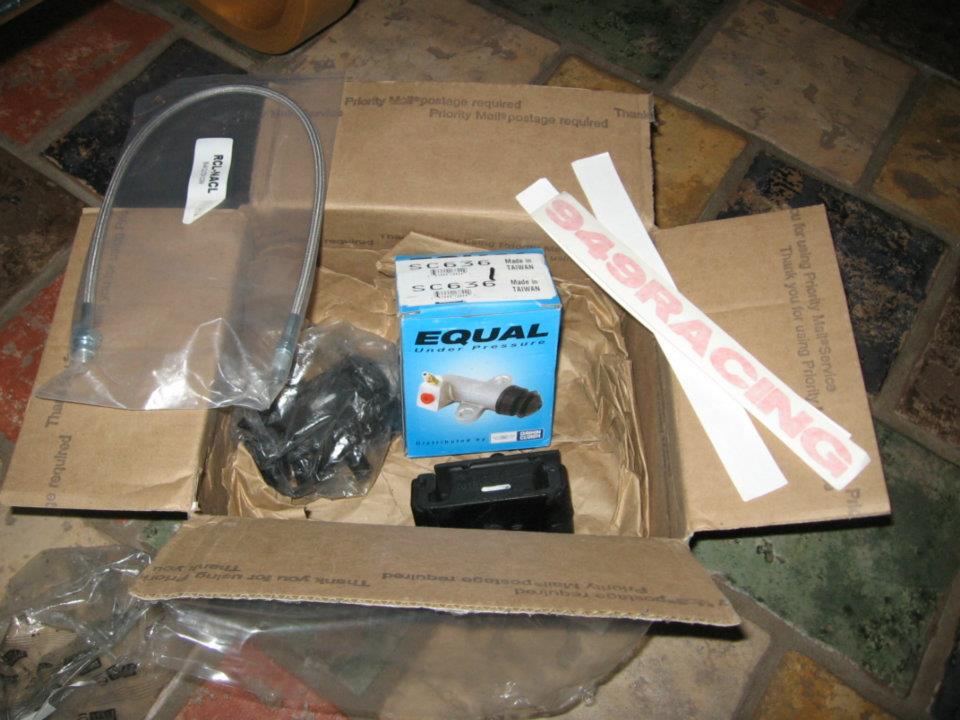

Mazdaspeed Motormounts, Slave cylinder and 949 Stainless hose(long)

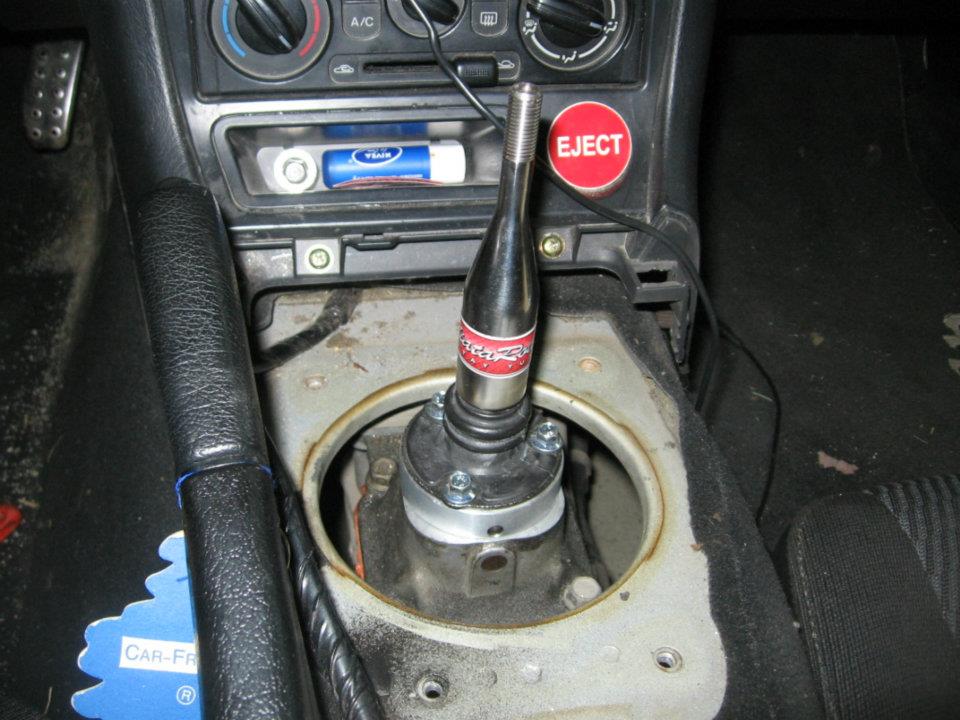

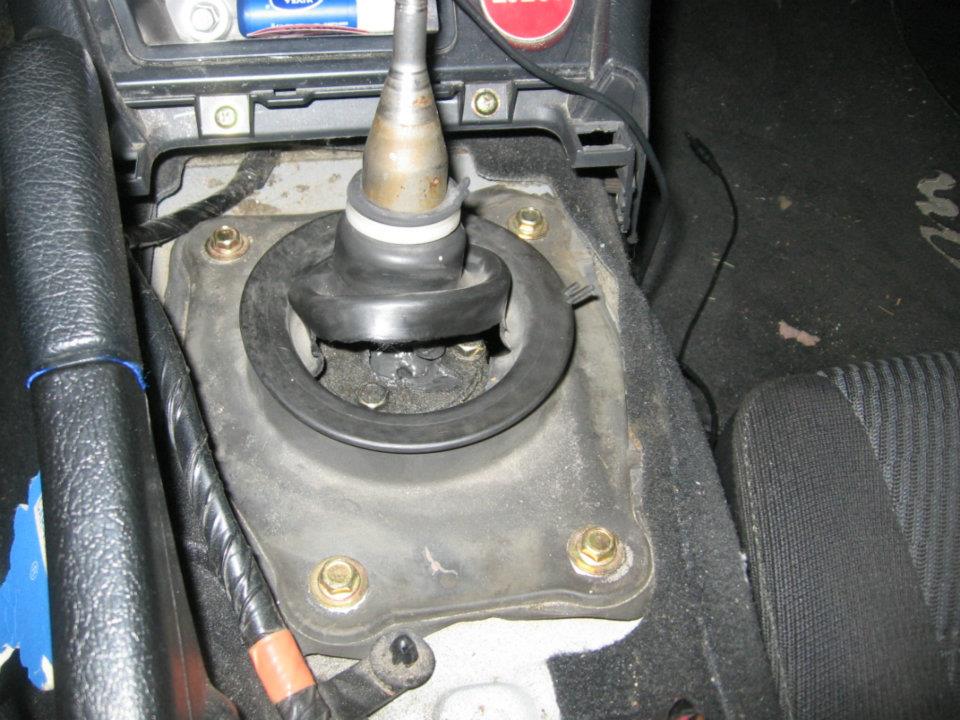

Getting the shifter in

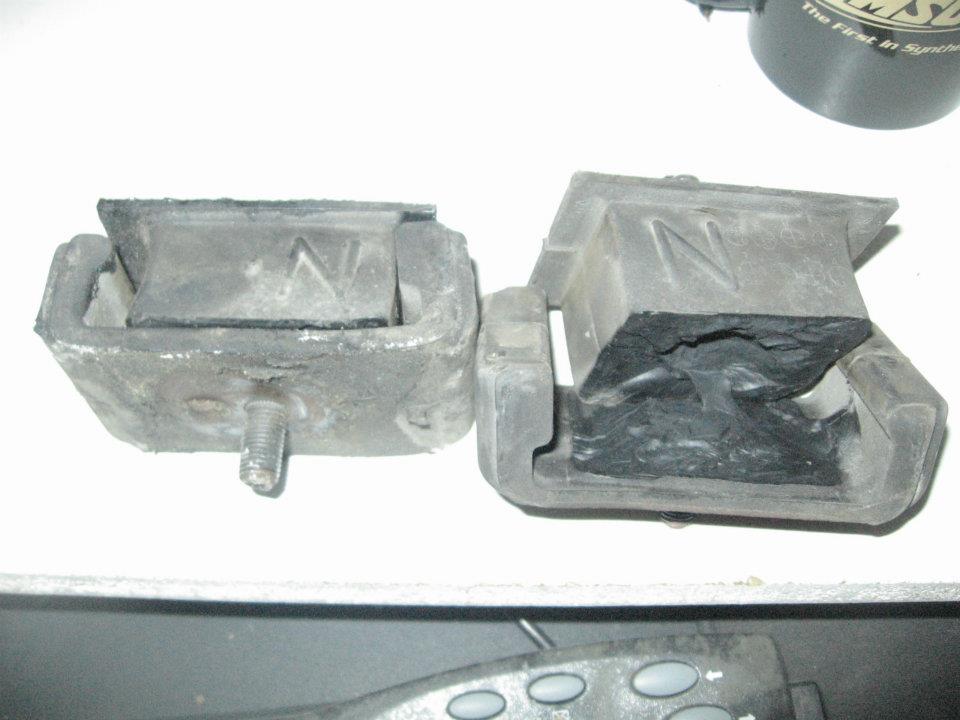

Old motor mounts!

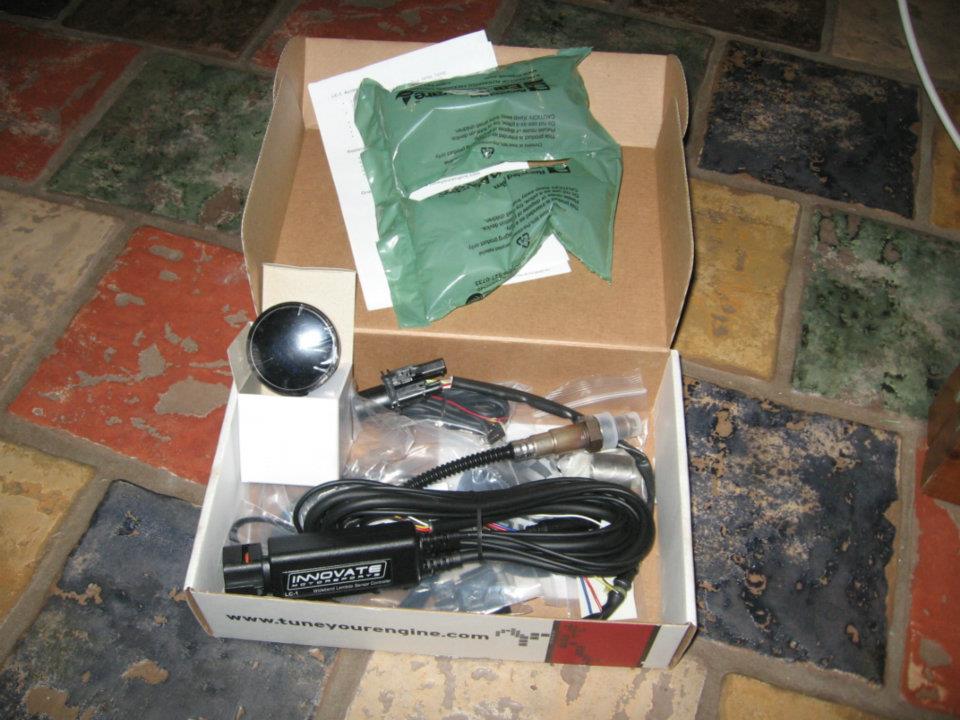

Then, thing got serious about the turbo project, so again ordered some stuff!

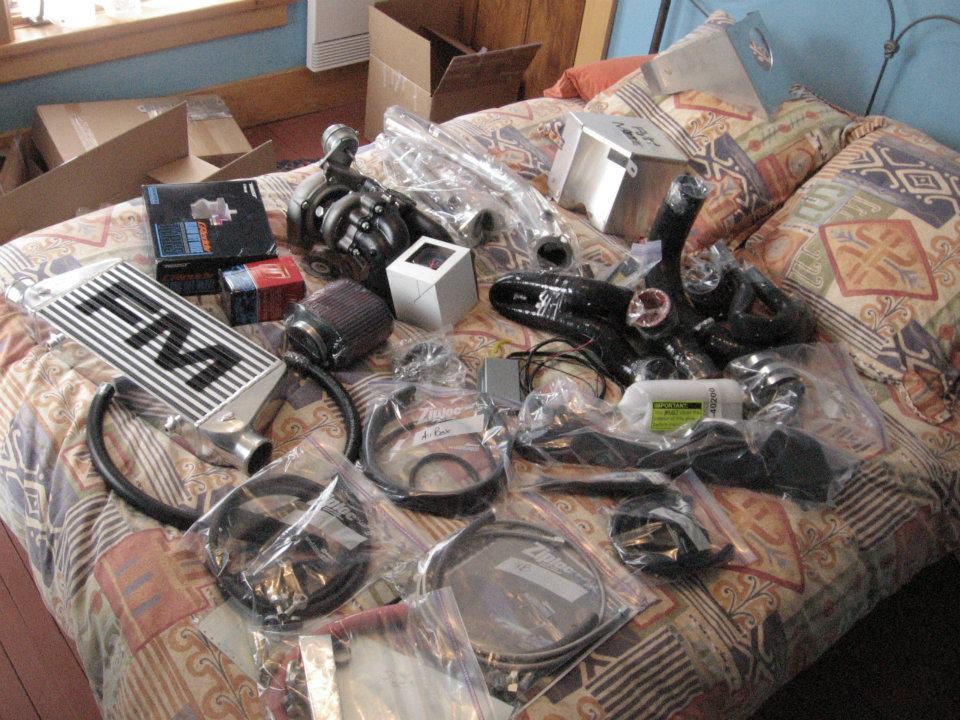

And then this arrived

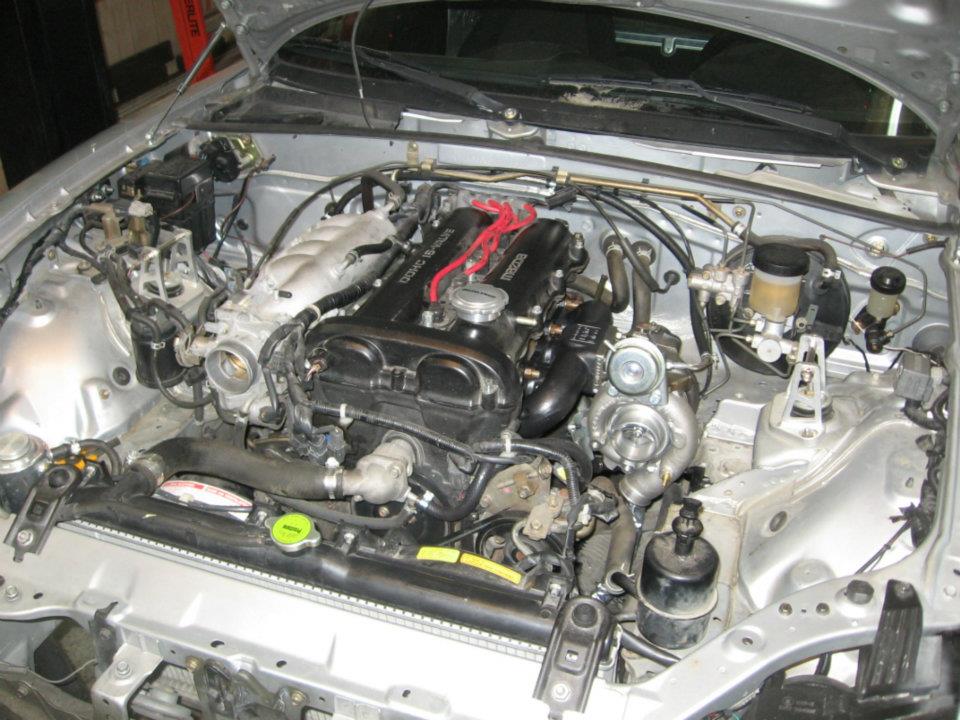

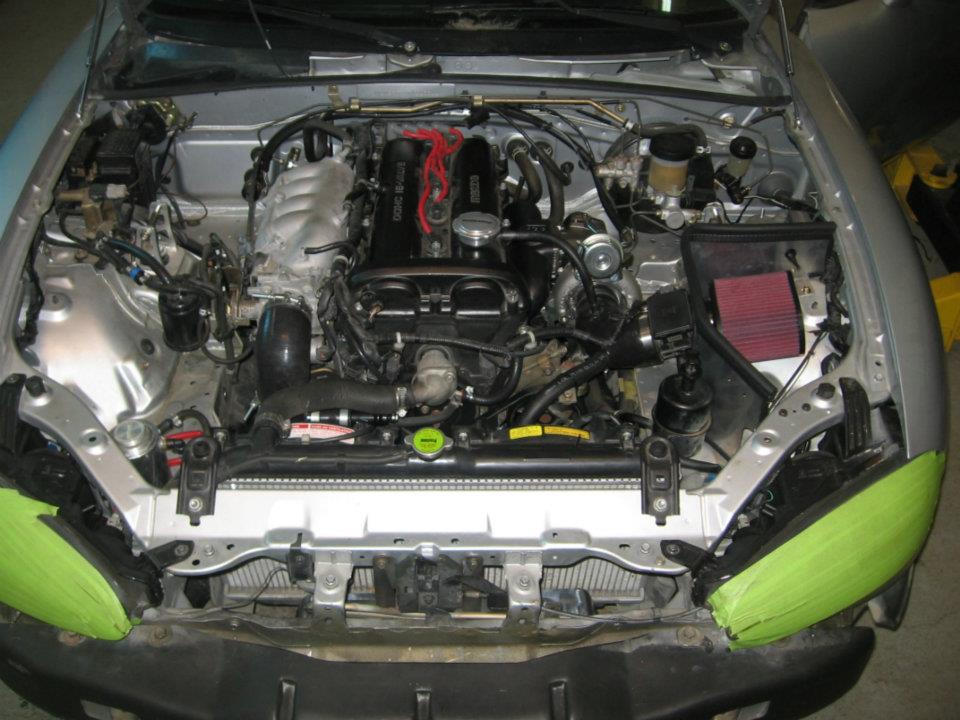

It's a voodoo II kit from Flyin' miata, wich hardware wise, is pretty amazing for the price. but i was'nt pleased with the piggyback systems.






And then, we were spring again!

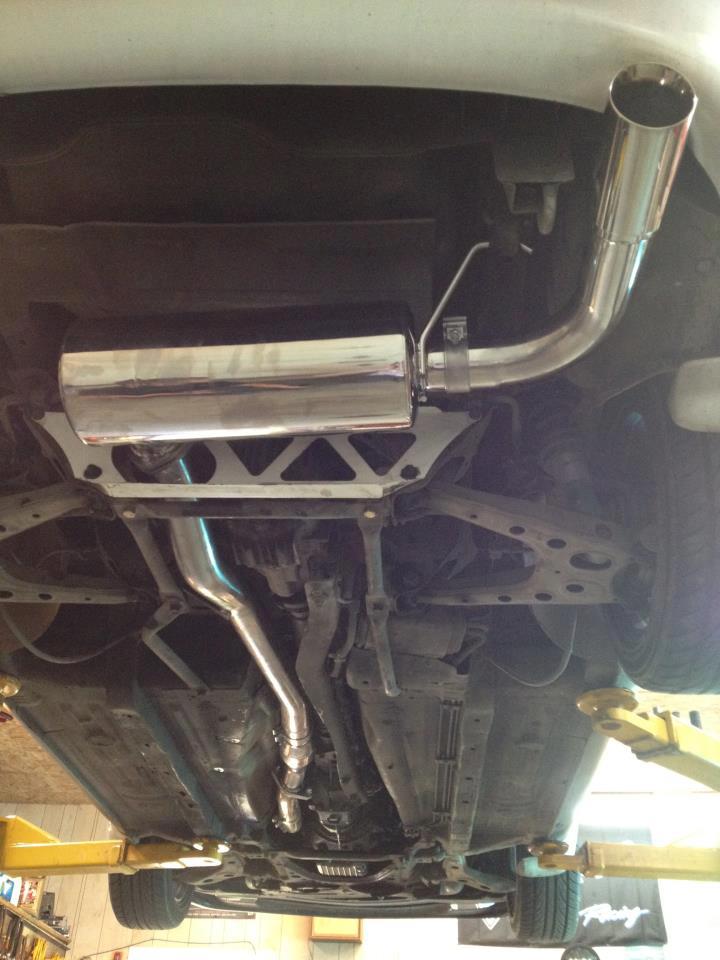

But i could'nt stop, 3inch exhaust

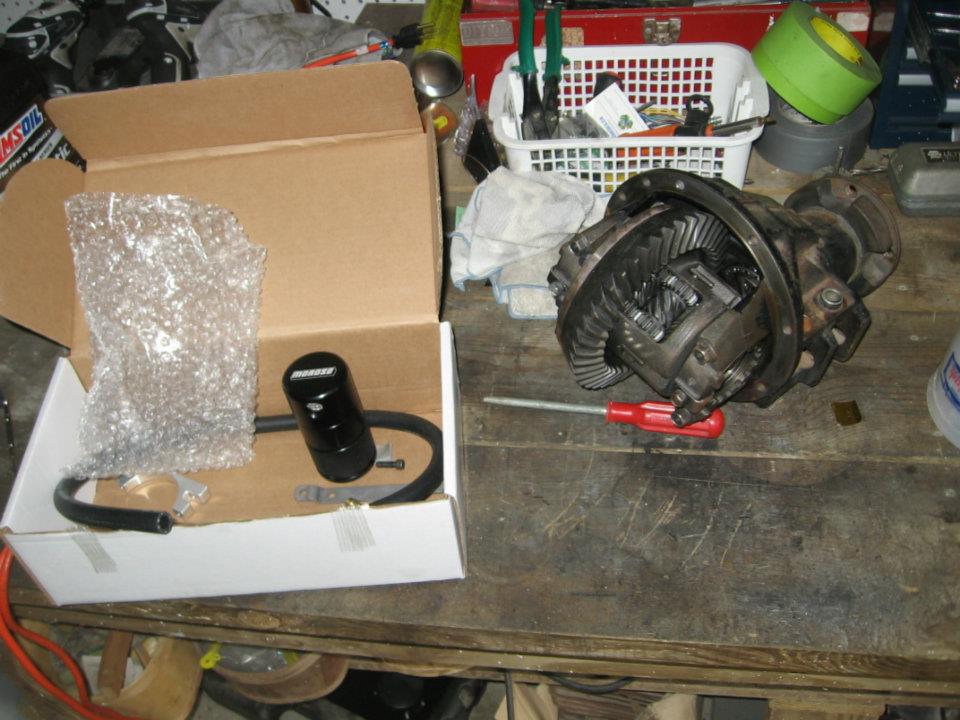

Again! 95 T1 diff, moroso catch can

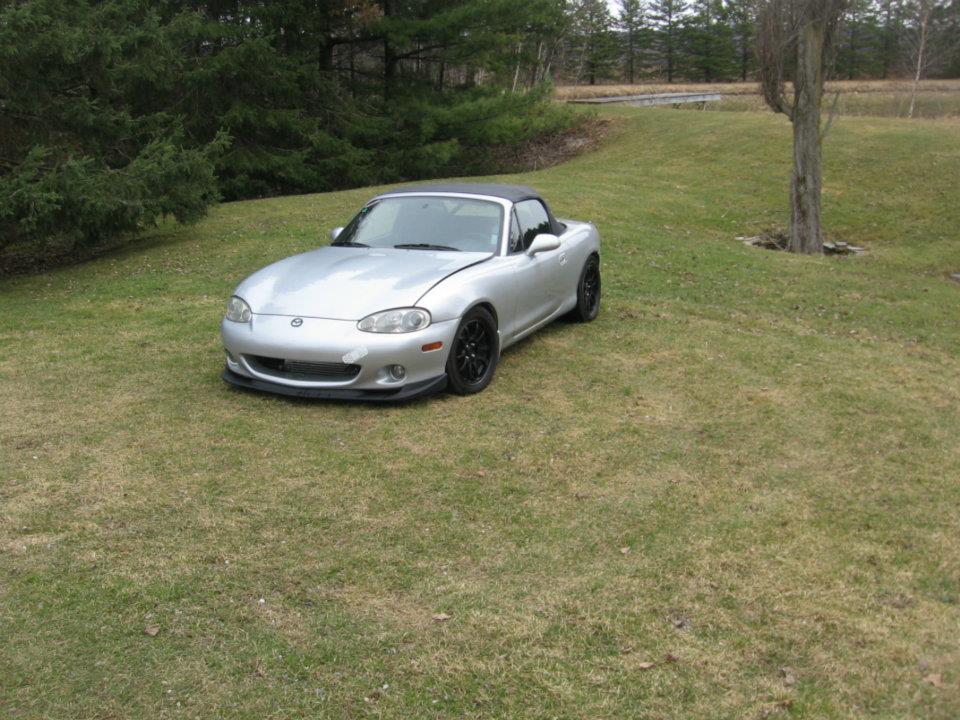

And this is how summer n.2 ended.
Attached Thumbnails
Never ending, Mostly winter, turbo NB project.-382029_10150971998010046_1868135017_n.jpg   Never ending, Mostly winter, turbo NB project.-390147_10150993993615046_1888278570_n.jpg   Never ending, Mostly winter, turbo NB project.-310421_10150904825125046_913746189_n.jpg   Never ending, Mostly winter, turbo NB project.-379868_10151028933720046_1160950509_n.jpg   Never ending, Mostly winter, turbo NB project.-380940_10151028936655046_1533185616_n.jpg

Never ending, Mostly winter, turbo NB project.-388882_10151028938720046_1374178912_n.jpg   Never ending, Mostly winter, turbo NB project.-20111211200701.jpg   Never ending, Mostly winter, turbo NB project.-384430_10151109800690046_831141524_n.jpg   Never ending, Mostly winter, turbo NB project.-387498_10151057794365046_970509716_n.jpg   Never ending, Mostly winter, turbo NB project.-407450_10151061303255046_1516723002_n.jpg

Never ending, Mostly winter, turbo NB project.-398654_10151154173040046_1871401210_n.jpg   Never ending, Mostly winter, turbo NB project.-383997_10151154173545046_1829879867_n.jpg   Never ending, Mostly winter, turbo NB project.-406903_10151154173800046_166080807_n.jpg   Never ending, Mostly winter, turbo NB project.-407614_10151238539640046_434292916_n.jpg   Never ending, Mostly winter, turbo NB project.-405609_10151166058470046_1920215466_n.jpg

Never ending, Mostly winter, turbo NB project.-419282_10151259798870046_981532155_n.jpg   Never ending, Mostly winter, turbo NB project.-430935_10151270211480046_1951853588_n.jpg   Never ending, Mostly winter, turbo NB project.-426309_10151330218320046_1208716851_n.jpg   Never ending, Mostly winter, turbo NB project.-402713_10151330217665046_1494931860_n.jpg   Never ending, Mostly winter, turbo NB project.-422807_10151350010570046_1167144499_n.jpg

Never ending, Mostly winter, turbo NB project.-536239_10151448232655046_1756801841_n.jpg   Never ending, Mostly winter, turbo NB project.-251981_10151815906245046_1280142723_n.jpg   Never ending, Mostly winter, turbo NB project.-522038_10151850418805046_1902977785_n.jpg
sr20det_28 is offline   Reply With Quote
Old 12-03-2012, 09:10 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
your hood is broken
fix it

otherwise nice
Hood risers have been removed!
sr20det_28 is offline   Reply With Quote
Old 12-03-2012, 09:22 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Now for winter n.3
This is what i have in mind!

Engine management(since i hate voodoo and static retard) This is were i am going to need you guys!
Fuel(Fuel pump, Rail, Injectors)
Coolant reroute
Minor body fix


This is were my mind is blinded, ECU's
i never tuned a car before, but i work on cars everyday, and i troubleshoot them as well.
i'm not sure on what ECU to go too w/ my non-experience.
Checked out hydra for long, but they are expensive, and people around here don't seem to like it that much.
Checked out alot the MS, but then i have a few choice(in plug n play) The MS2 PnP or the Braineak version MS3.
Did'nt check much the Adaptronic or the AEM

So do you guys have any suggestion on what to look for. i need a solid base map for sure. Remember i'm with stock interns, have a GT2560, and don't plan on much more than 10-12PSI

And i am open on any suggestion for fuel pump, injectors and rail
(i had Walbro 255, rx-8 inj., and M-tuned rail w/ some sort of ajustable regulator in mind)
sr20det_28 is offline   Reply With Quote
Old 12-03-2012, 10:00 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by sr20det_28 View Post
Hood risers have been removed!
very good

Now I can get back to enjoying your progress.

So far I'm liking it a lot. Good job
18psi is offline   Reply With Quote
Old 12-03-2012, 10:49 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
very good

Now I can get back to enjoying your progress.

So far I'm liking it a lot. Good job
hahaha thanks
sr20det_28 is offline   Reply With Quote
Old 12-04-2012, 05:16 PM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Go megasquirt. Stock fuel pump is fine, get some 500+cc injectors.

Build looks great so far.
Fireindc is offline   Reply With Quote
Old 12-04-2012, 07:38 PM   #9
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by Fireindc View Post
Go megasquirt. Stock fuel pump is fine, get some 500+cc injectors.

Build looks great so far.
I read alot of stock 99+ pump that they then to go lean approching redline, wich is with mine, i just don't know if it's that OR the injector, i'm still running stock injectors, wich i think are pretty small running 9psi.
sr20det_28 is offline   Reply With Quote
Old 12-04-2012, 07:40 PM   #10
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

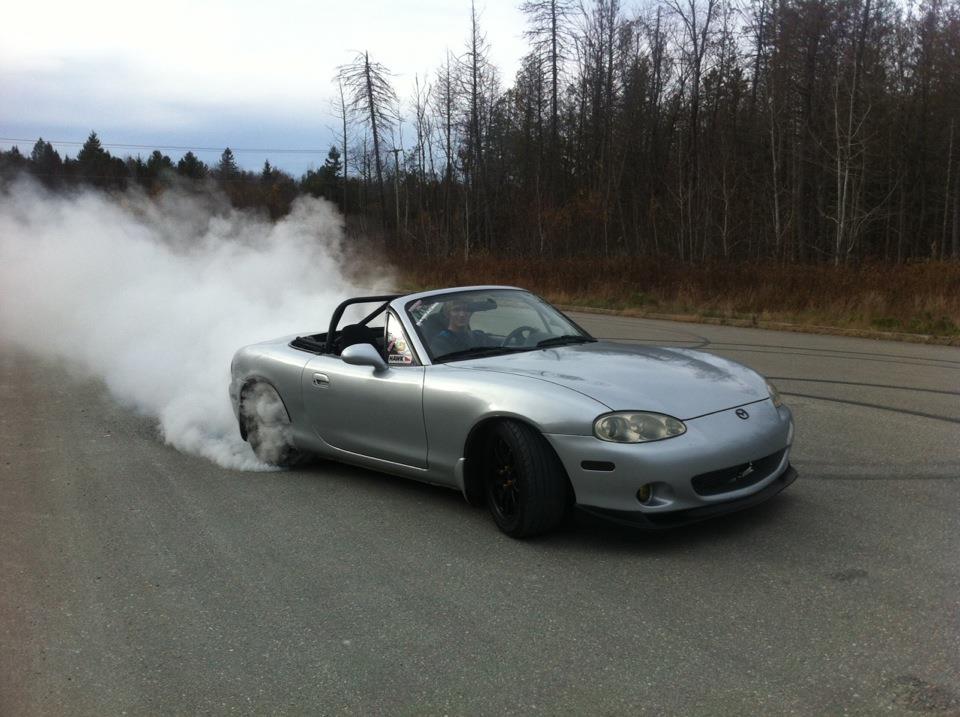

Oh, and, i love that one!
Attached Thumbnails
Never ending, Mostly winter, turbo NB project.-21929_10152209392915046_1752691641_n.jpg
sr20det_28 is offline   Reply With Quote
Old 12-05-2012, 01:29 PM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by sr20det_28 View Post
I read alot of stock 99+ pump that they then to go lean approching redline, wich is with mine, i just don't know if it's that OR the injector, i'm still running stock injectors, wich i think are pretty small running 9psi.
It's your injectors.
richyvrlimited is offline   Reply With Quote
Old 12-05-2012, 02:07 PM   #12
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

That list pic is neat, lol.

And I agree it's your injectors.. Get an EMS and some injectors, then tune it. If you cant get enough fuel to run your target AFR (high 11's) then you may need a pump. Until then i highly doubt the pump is the issue.
Fireindc is offline   Reply With Quote
Old 12-05-2012, 06:11 PM   #13
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Nice car! FM really does make a nice kit.
viperormiata is offline   Reply With Quote
Old 12-05-2012, 08:21 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

basically you need all 3 to do it right.
if you're spending money on injectors and ems, its idiotic not to get a $80 walbro pump too
18psi is offline   Reply With Quote
Old 12-05-2012, 08:40 PM   #15
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
basically you need all 3 to do it right.
if you're spending money on injectors and ems, its idiotic not to get a $80 walbro pump too
thats what i tought, i have all winter, so i'll do it right the first time! the problem is, will the stock regulator handle the 255?
or will i need to make a return system out off my returnless?
sr20det_28 is offline   Reply With Quote
Old 12-05-2012, 08:43 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

yes. mine handled the 255 HP just fine.
others reported the same
or you could just get the 190HP which is even cheaper and will still work just fine for your power level
18psi is offline   Reply With Quote
Old 12-05-2012, 08:44 PM   #17
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by viperormiata View Post
Nice car! FM really does make a nice kit.
Thanks! yes they do!
sr20det_28 is offline   Reply With Quote
Old 12-05-2012, 09:00 PM   #18
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
yes. mine handled the 255 HP just fine.
others reported the same
or you could just get the 190HP which is even cheaper and will still work just fine for your power level
I'm planning maxing the GT25 in a few years(built engine), so maybe the best would be to go for the 255, for the price difference...

I'm just not sure about the fuel rail, i affraid to be a bit overkill for the output i want this summer.
sr20det_28 is offline   Reply With Quote
Old 12-05-2012, 09:03 PM   #19
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by 18psi View Post
basically you need all 3 to do it right.
if you're spending money on injectors and ems, its idiotic not to get a $80 walbro pump too
What isn't "doing it right" about my setup, which uses a new oem pump with the 550cc injectors and MSPNP.

I've yet to have fueling problems so far. Serious question, btw - because I was under the assumption that the stock pump is fine.
Fireindc is offline   Reply With Quote
Old 12-06-2012, 04:47 AM   #20
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Unless you're running high fuel pressures the stock pump is fine. I don't really know why 18psi is recommending one.

Plenty of cars make 250+ with the stock pump, as long as you have appropriately sized injectors for the power you want to make and AFR's are holding steady (and PW doesn't spike dramatically implying the pump is not supplying the fuel you need).

The stock pump can flow enough fuel for 300bhp, just. It's worth re-wiring it with it's own direct relayed fuse though

See SlowMX5 - ECU and Electronics for guidance on re-wiring the pump.
richyvrlimited is offline   Reply With Quote
