Old 12-12-2012, 03:41 PM   #41
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Quote:
Originally Posted by czubaka View Post
Leonid, thanks for the info! Are you running a return-less system with that 99 fuel rail?

Joel, treadstone has a fuel pump wiring kit for $30 that I may try to avoid any power issues.

People just don't realize that some good hose can change the world...
No, I have a return system. If you bolt the 90-97 NA FPR to the 99 fuel rail (bolt-on) it becomes a return fuel rail. I only run the 99 fuel rail because I have a 99 head - there is nothing special about the 99 fuel rail.
soviet is offline   Reply With Quote
Old 12-12-2012, 03:52 PM   #42
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by soviet View Post
No, I have a return system. If you bolt the 90-97 NA FPR to the 99 fuel rail (bolt-on) it becomes a return fuel rail. I only run the 99 fuel rail because I have a 99 head - there is nothing special about the 99 fuel rail.
There are 2 NB fuel rails, I'm assuming this is the one with the pulsation damper on the FRONT of the rail, right by the throttle body?
EO2K is offline   Reply With Quote
Old 12-12-2012, 04:08 PM   #43
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Quote:
Originally Posted by EO2K View Post
There are 2 NB fuel rails, I'm assuming this is the one with the pulsation damper on the FRONT of the rail, right by the throttle body?
yes.
didn't know there are 2 different NB fuel rails.
soviet is offline   Reply With Quote
Old 12-12-2012, 04:17 PM   #44
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by EO2K View Post
I seem to remember where someone tested a factory NB pump and it had trouble keeping the pressure up @ 7k running N/A with stock injectors.

Fuel Pump - Miata Turbo FAQ

Vlad is right, the $80 wally pump is a no brainier. The 190HP should be fine, and IIRC the amprage draw isn't that much of a hit compared to stock.
Interesting.. It looks like the 99 pump is a total POS.

On a side note, in regards to the 90-97 cars.. "Other than that, you don't need one. If you have an aftermarket ECU, the stock pump more than enough to support 300rwhp with the stock regulator"

That being said, I agree with the others that OP needs a new pump. All this talk about pumps has got me looking at a walbro255 upgrade for my new 1.8 build as well.
Fireindc is offline   Reply With Quote
Old 12-12-2012, 04:22 PM   #45
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by soviet View Post
yes.
didn't know there are 2 different NB fuel rails.
Yeah, I believe they are referred to as "early" and "late" though there is no change in the part number or documentation that I've seen from Mazda. Anecdotal evidence says the changed happened sometime in the 2000 model year production cycle. The NB rails "should" be interchangeable from 99-05, but its only the earlier ones that you can replace the damper with a 90-97 FPR. There are pics here on MT, I just can't remember where exactly I saw them.

Quote:
Originally Posted by Fireindc View Post
Interesting.. It looks like the 99 pump is a total POS.

On a side note, in regards to the 90-97 cars.. "Other than that, you don't need one. If you have an aftermarket ECU, the stock pump more than enough to support 300rwhp with the stock regulator"

That being said, I agree with the others that OP needs a new pump. All this talk about pumps has got me looking at a walbro255 upgrade for my new 1.8 build as well.
IIRC that's more a function of the vac/boost reference 90-97 factory 1:1 FPR than the quality of the 90-97 factory pump. Remember 99-05 is non-return and non-vac/boost referenced so in an NB, 5psi in the manifold means you have 5 LESS psi fuel pressure. Push that up to 10 or 15 psi of boost and your 650cc injectors are now magically 563cc. That surprise @ 15psi is no bueno.

Last edited by EO2K; 12-12-2012 at 04:48 PM.
EO2K is offline   Reply With Quote
Old 12-13-2012, 07:58 AM   #46
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

So if i get you guys, i'm better off with a return system?
sr20det_28 is offline   Reply With Quote
Old 12-13-2012, 08:18 AM   #47
Junior Member

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Return is better but its not required at <300whp. If your waiting until next winter before you build your engine then it wouldn't hurt to wait but if you have time to kill just go with it. I'm running a 255 with a returnless system on my 99 and even though i'm only pushing 250whp, I've never had any problems with it. Btw I love the way your build is going and it looks great!
cowboys647 is offline   Reply With Quote
Old 12-14-2012, 12:15 AM   #48
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by cowboys647 View Post
Return is better but its not required at <300whp. If your waiting until next winter before you build your engine then it wouldn't hurt to wait but if you have time to kill just go with it. I'm running a 255 with a returnless system on my 99 and even though i'm only pushing 250whp, I've never had any problems with it. Btw I love the way your build is going and it looks great!
fromwith the NA.

The time i don't have it, i have to make it
sr20det_28 is offline   Reply With Quote
Old 12-19-2012, 08:47 PM   #49
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Deatschwerks 700cc or RX-8 450cc

i'm affraid the 700cc could be too much for my setup?
sr20det_28 is offline   Reply With Quote
Old 12-19-2012, 08:52 PM   #50
Junior Member

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

There is no such thing as too much. Get the 700's!
cowboys647 is offline   Reply With Quote
Old 12-25-2012, 01:09 PM   #51
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Even knowing that i'll keep stock 60psi fuel pressure?
sr20det_28 is offline   Reply With Quote
Old 12-26-2012, 02:53 AM   #52
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Buy once and get the biggest ******* injectors possible.

Also get a bigass fuel pump. I thoroughly recommend nothing less than two Bosch 044 pumps in tank each feeding their own A1000 pump. Each pump should go to each end of the fuel rail.

This should be enough fuel for 300hp.
Faeflora is offline   Reply With Quote
Old 12-26-2012, 01:49 PM   #53
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

i'm affraid that the 700cc will be hard to tune idle/cruise.
because i don't plan more than 10-12psi for this summer even next summer.
The walbro 255 is on the list.
Because keeping the 60psi stock pressure, the 450cc would be about 525cc, wich would be enough for my setup. the [email protected] would be almost at 800cc wich would be way overkill.
i get the buy it once/buy it big, but i don't want to have problem tuning fuel next summer, i already had problem last summer with idle drop, lean and rich spot(voodoo box)
sr20det_28 is offline   Reply With Quote
Old 12-26-2012, 02:46 PM   #54
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

You should have no issues with a 1000cc injector IF:
  • You have an ECU with high enough resolution (IE:MS2x or better)
  • You are using a quality low latency injector (FIC or ID EV14 style injectors or GTFO)
  • You are using proper ECU settings for above injectors (latency/deadtime/voltage correction/etc)
  • You have sequential injection (with an NB you should already have this)

Having said that, I'll be running FIC 650cc EV14 injectors on my car, because:

Quote:
Originally Posted by Reverant View Post
If you are looking for budget injectors, the yellow RX-8 injectors are decent, certainly a lot better than the RX-7s! However, I ALWAYS recommend the FIC 650cc EV14s. Yes they are expensive, but they never cease to amaze me, as they completely transform the way the car idles and behaves in general.
Quote:
Originally Posted by cymx5 View Post
For the money and stability of EV14's, the cost is easily paid back in the ease of tuning them. I'll say it over and over. They idled my supercharged 1.8l with 9lb flywheel better than stock. That's how stable they are.
plus I got a hook-up deal through a vendor here on MT for my FICs. @ 50psi (assuming stock 60psi non-referenced regulator and 10psi of boost) my 650's are closer to 700's and should be good for something silly like 450hp. If I make 1/2 of that I'll be happy, but its good to know I've got the headroom. I also expect to NEVER have idle issues once I get the proper settings into my megasquirt.

Notice: EV14 1150cc, Megasquirt MS2, idling



There are very few people I will blindly take advice from on this forum. Reverant is one of them as is Savington (Trackspeed Engineering) and Emilio700 (949Racing). Rev builds ECUs and Sav & Emilio race the **** out of these cars pretty much for a living. Do a couple of searches and see what they (and everyone else) recommend and then spend your dollars accordingly.

Last edited by EO2K; 01-02-2013 at 05:26 PM.
EO2K is offline   Reply With Quote
Old 12-26-2012, 08:00 PM   #55
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Wow! thanks man!
Cause i'm searching for power, but mostly to have a stable, good running car.
Budget is one thing, but i'm ready to pay more for the good stuff!

By low latency you mean low resistance/low Impedance ?
sr20det_28 is offline   Reply With Quote
Old 12-26-2012, 08:18 PM   #56
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

lower deadtimes = low latency = faster responding injectors = more precise control. This is what makes the EV14 so desirable.

Speculation:
High impedance / low impedance shouldn't matter, provided your ECU can properly drive them. The Miata uses high impedance/resistance (saturated) injectors, so that's what I purchased.
EO2K is offline   Reply With Quote
Old 12-26-2012, 09:03 PM   #57
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by EO2K View Post
lower deadtimes = low latency = faster responding injectors = more precise control. This is what makes the EV14 so desirable.

Speculation:
High impedance / low impedance shouldn't matter, provided your ECU can properly drive them. The Miata uses high impedance/resistance (saturated) injectors, so that's what I purchased.
That is not what i call much more expensive, a few bucks more than the 450cc rx-8 denso injectors, and about the same as the deatchwerks.
sr20det_28 is offline   Reply With Quote
Old 01-02-2013, 05:17 PM   #58
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

I started to gather some parts
All still in Order/shipping.
-Reverant MS3
-FIC 650cc Injectors
-Walbro 255
-Turbosmart Boost controller
-STRI DSD-SLM Fuel pressure gauge

I still hesitate for fuel rails, FM kit or M-Tuned.
Both cost around the same if i go with braided fuel lines for the M-tuned.

I also have to make a pod to fit the FP Gauge, wich i think is going to go under the radio.
sr20det_28 is offline   Reply With Quote
Old 01-03-2013, 07:32 PM   #59
Junior Member
Thread Starter

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Attached Thumbnails

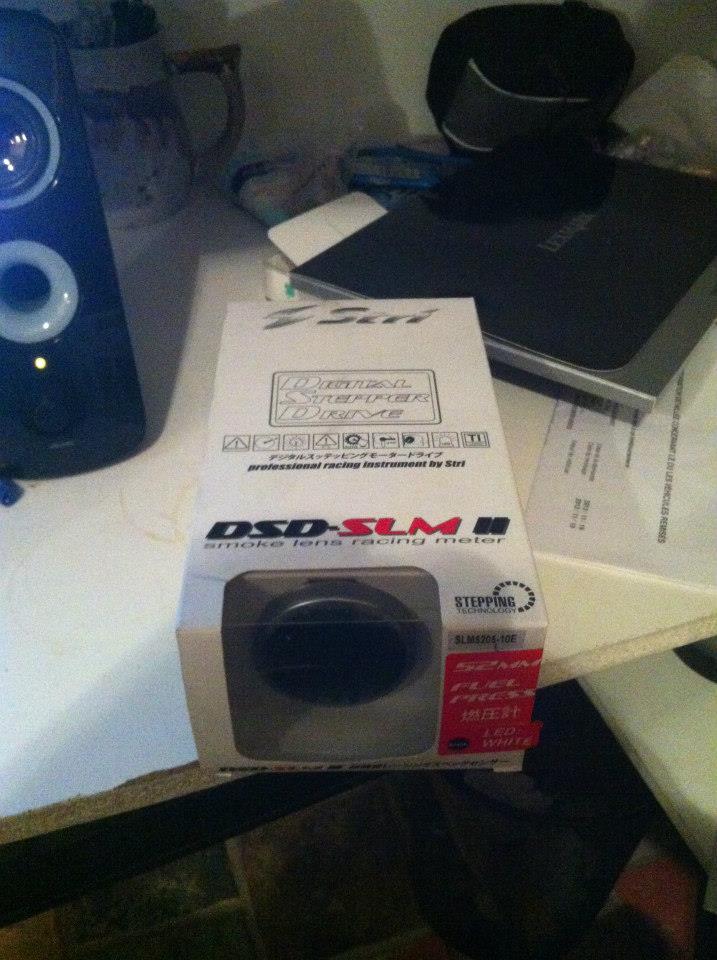

Never ending, Mostly winter, turbo NB project.-1248_10152387487945046_1249306368_n.jpg
sr20det_28 is offline   Reply With Quote
Old 01-03-2013, 07:50 PM   #60
Junior Member

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Why fuel rail?
cowboys647 is offline   Reply With Quote
