Old 01-06-2014, 12:23 PM   #301
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
Good advice, except that its TERRIBLE and he definitely shouldn't follow it.
There is a difference with autotune and EUGO correction.

Don't let it change your MAP, let it do eugo based AFR correction (closed loop o2 vs VEAL).
shlammed is offline   Reply With Quote
Old 01-06-2014, 12:25 PM   #302
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by shlammed View Post
There is a difference with autotune and EUGO correction.

Don't let it change your MAP, let it do eugo based AFR correction (closed loop o2 vs VEAL).


Its EGO correction.

Have you tuned an actual megasquirt?
18psi is offline   Reply With Quote
Old 01-06-2014, 12:38 PM   #303
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I tuned AEM, though the premise of tuning is the same and is what OEM's apply with new systems.

Set a tuned base map, allow wideband closed loop tuning to fine tune based on what its seeing. You don't want your fuel map changing every time you drive it- you can be correcting for things like an o2 sensor going out, changes in humidity, fuel octane, etc.

Autotune should only be used for quickly getting an accurate base tune.

*I'm by no means a tuning expert, but I know a few things and Im willing to learn more. Just putting my 2 cents in*
shlammed is offline   Reply With Quote
Old 01-06-2014, 01:04 PM   #304
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I thought about updating the firmware, but I didn't want to screw something up. I'll read up on it.
pdexta is offline   Reply With Quote
Old 01-06-2014, 01:50 PM   #305
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by shlammed View Post
I tuned AEM, though the premise of tuning is the same and is what OEM's apply with new systems.

Set a tuned base map, allow wideband closed loop tuning to fine tune based on what its seeing. You don't want your fuel map changing every time you drive it- you can be correcting for things like an o2 sensor going out, changes in humidity, fuel octane, etc.

Autotune should only be used for quickly getting an accurate base tune.

*I'm by no means a tuning expert, but I know a few things and Im willing to learn more. Just putting my 2 cents in*
Nobody has said he should be autotuning all the time. The point here is that if autotune is ******* up his map, and TS is reading differently from what the WB02 is reading, he should fix that - because EGO won't work right and will make incorrect fuel trim adjustments.

Quote:
Originally Posted by pdexta View Post
I thought about updating the firmware, but I didn't want to screw something up. I'll read up on it.
It's scary the first time, but if you follow the steps you will be fine. Unplug dem COPS too
Fireindc is offline   Reply With Quote
Old 01-13-2014, 09:54 AM   #306
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I flashed new firmware this weekend and loaded a basemap. After fighting with it all day Sunday, the car made the 24 mile drive to work this morning. I'm getting an occasional loss of sync that wasn't happening before the firmware update. It's nothing I notice driving the car, but it's being logged.

The car was also hitting a rev limiter at 6000rpms. I turned on a CLT based rev limiter that I suspect was causing the issue, so I turned it off to see if it's gone on the drive home this evening.

I attached the tune and log if anyone has suggestions regarding the sync loss or any other suggestions.
Attached Files
File Type: msl 2014-01-13_07.02.28.msl (1.51 MB, 53 views)
File Type: msq 1.13.3.msq (107.2 KB, 49 views)
pdexta is offline   Reply With Quote
Old 01-13-2014, 10:28 AM   #307
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Researched it a little, looks like loss of sync reason:

38 = 4G63

So it's Cam Sensor related, which is pretty much expected I guess. Maybe it's time to work on getting the crank sensor set up.
pdexta is offline   Reply With Quote
Old 01-13-2014, 10:45 AM   #308
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Failing cam sensor? Mine runs great on CAS with no loss of sync and whatnot, however going to a crank/trigger setup is beneficial anyways and if you have the parts and the technology, go for it.
Fireindc is offline   Reply With Quote
Old 01-14-2014, 09:04 AM   #309
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I wouldn't think it's the cam sensor since the issue just started with the new firmware, but who knows. On the drive home yesterday I got "reason 2 - missing tooth at wrong time", but it still drives fine. Hopefully the CAS is ok since I believe I will need it to eventually run sequential injection.

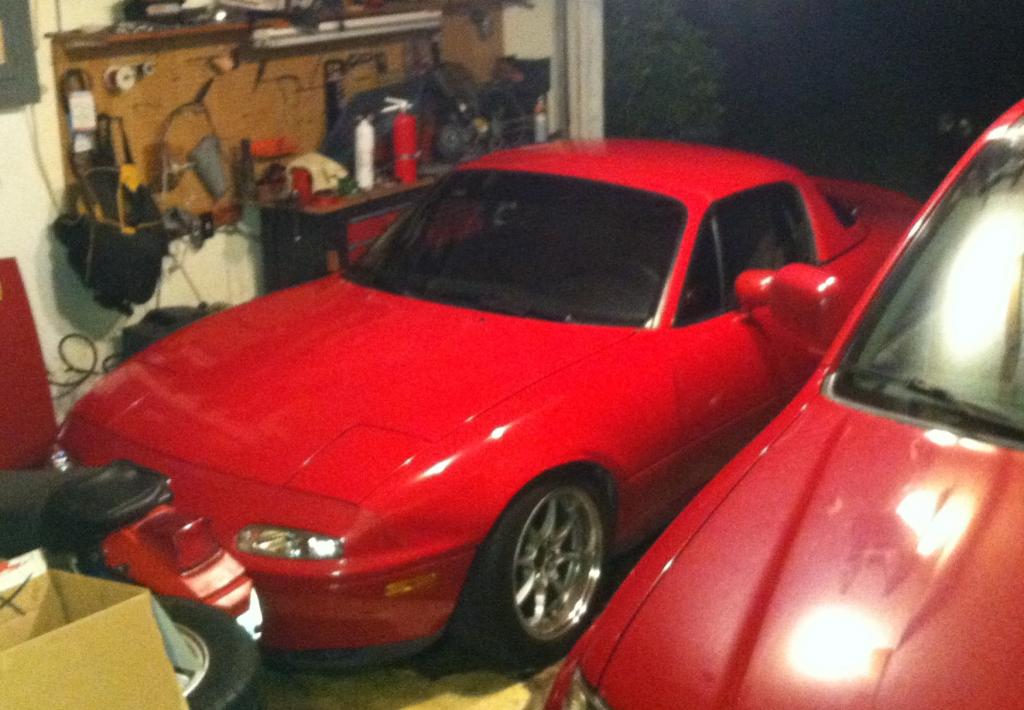

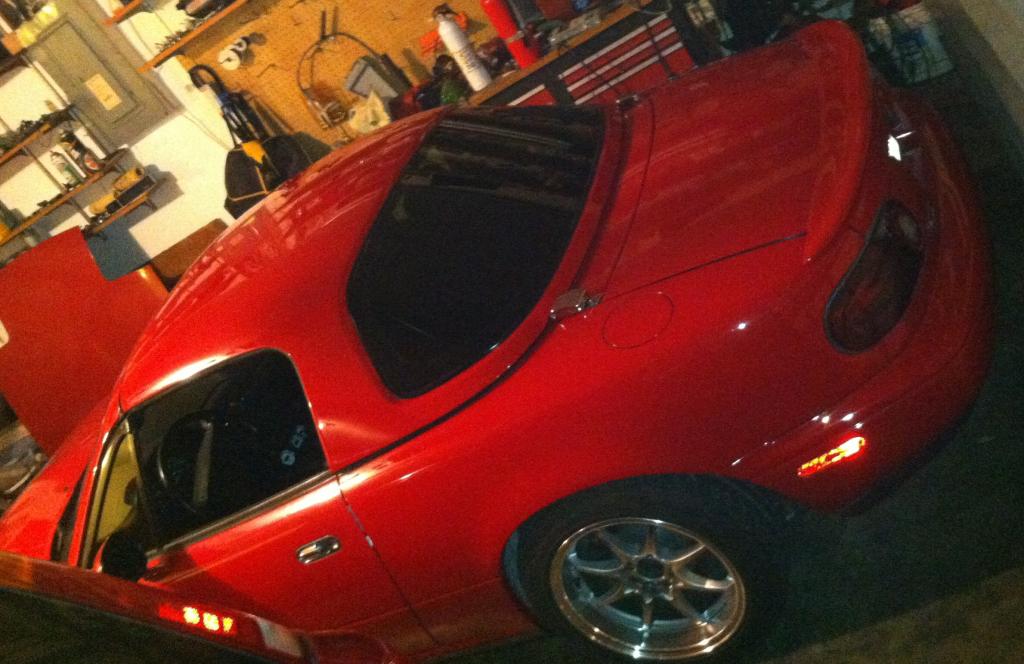

I picked up my hardtop and spoiler yesterday from being painted. They came out great... so nice that now the rest of the car looks like crap, but at least I saw that coming. It was dark by the time I made it home but I took a couple crappy pics in the garage.

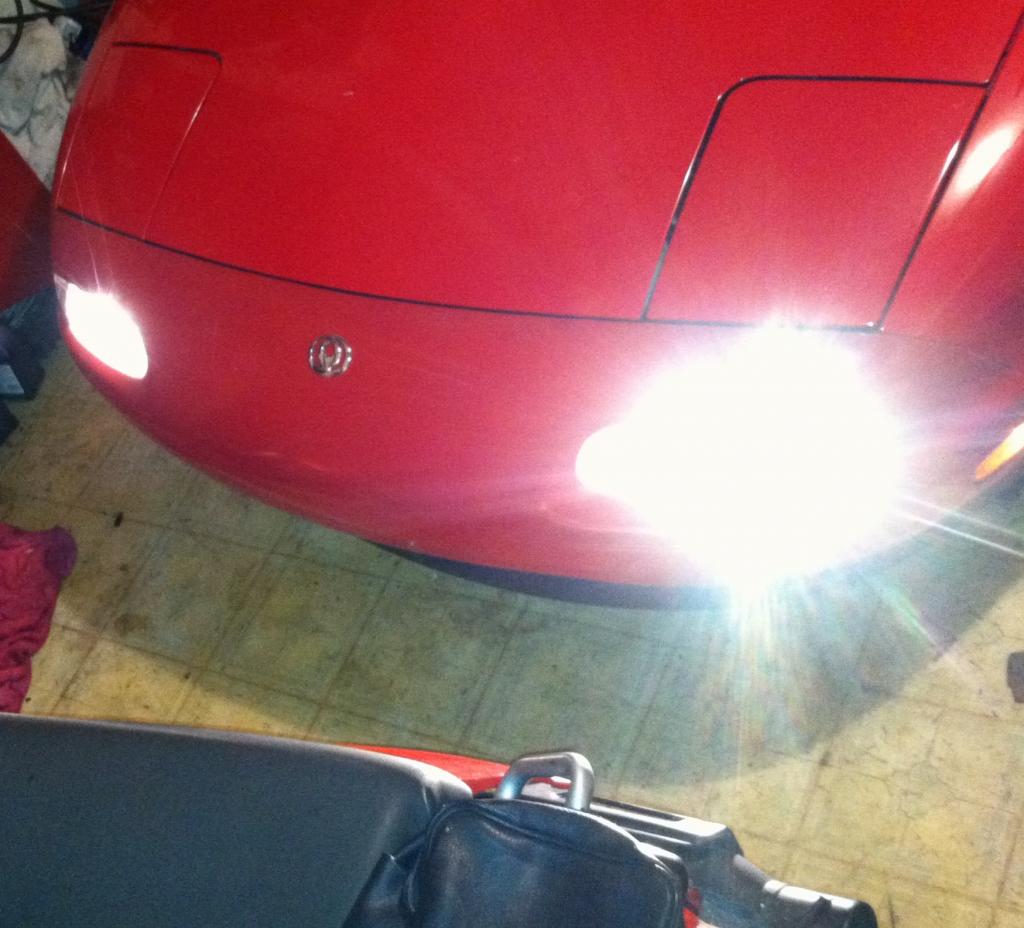

I also relocated the headlights to the turn signals. Still have to mount the blinkers, but the headlights work well enough. I'd like to upgrade them to projectors later, but for now I'm satisfied. I removed the stock headlights, motors, and some of the extra weight. The plan is to eventually remove all of the exiting headlight bracketing and mount the headlight covers directly to the hood. I found a writeup online for the headlights that I roughly followed if anyone is interested: Keith's Page de Home

Attached Thumbnails
pdexta's build: round 3-fbd3dcc5-e6a5-4f2d-83c7-740c8cb37d88.jpg   pdexta's build: round 3-0a6e192d-4fb1-4e3e-b80d-dd13b4ffdbc2.jpg   pdexta's build: round 3-f16878c2-7c61-4bab-99ca-8123bcc91dd7.jpg
pdexta is offline   Reply With Quote
Old 01-14-2014, 11:36 AM   #310
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

More details on the headlight conversion? Can you get a picture at night showing the cutoff, intesity of the light, etc? Pretty awesome, you probably will drop a good 20# from the front of the car without the motors, lights, housings, etc. Noice.
Fireindc is offline   Reply With Quote
Old 01-14-2014, 12:33 PM   #311
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

That's what I intend on doing with my race project.

Details! (including what you used for the lights). cant find **** on that website.
shlammed is offline   Reply With Quote
Old 01-14-2014, 02:12 PM   #312
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by shlammed View Post
That's what I intend on doing with my race project.

Details! (including what you used for the lights). cant find **** on that website.
Haha, i tried too. Terrible website.

I've seen this done using "PIAA" driving lights before that fit in the oval where the oem lights went. Never seen it done by just adding lights to the turn signal housings, seems like it'd melt them.
Fireindc is offline   Reply With Quote
Old 01-14-2014, 03:26 PM   #313
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I'll try to get some better pictures. The lights are pretty terrible though. They appear bright outside the car (on-coming traffic) but you can't see crap from inside the car. The area I live in is pretty well lit and I didn't feel like it was an issue at all, then picking up the hardtop last night I had to drive through some dark areas and realized how bad they are.

I had clear ebay turn signals to start with. I used 9006 headlight bulbs and harnesses from the junkyard. They ALMOST fit in the blinker bulb hole; I had to dremmel a little, then got pissed off and just hot glued them in place. Then I clipped the stock plugs off and ran the low beam and ground wires to the new harness. It's ghetto, but it worked, sortof. I haven't had any issues with them melting so far.

I definitely need to make some changes but I feel like it was a good start.
pdexta is offline   Reply With Quote
Old 01-14-2014, 03:31 PM   #314
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

ah yeah, that would suck.


I was thinking of getting something like a driving light kit and mount it behind a gutted turn signal.
shlammed is offline   Reply With Quote
Old 01-14-2014, 03:37 PM   #315
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

That's the direction I see myself taking in the future.
pdexta is offline   Reply With Quote
Old 01-14-2014, 03:40 PM   #316
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by pdexta View Post
I'll try to get some better pictures. The lights are pretty terrible though. They appear bright outside the car (on-coming traffic) but you can't see crap from inside the car. The area I live in is pretty well lit and I didn't feel like it was an issue at all, then picking up the hardtop last night I had to drive through some dark areas and realized how bad they are.

I had clear ebay turn signals to start with. I used 9006 headlight bulbs and harnesses from the junkyard. They ALMOST fit in the blinker bulb hole; I had to dremmel a little, then got pissed off and just hot glued them in place. Then I clipped the stock plugs off and ran the low beam and ground wires to the new harness. It's ghetto, but it worked, sortof. I haven't had any issues with them melting so far.

I definitely need to make some changes but I feel like it was a good start.


Maybe something like this might give the bulb a better focal point to allow the brightness to travel further. IDK just a thought might not work for ****.
Attached Thumbnails
pdexta's build: round 3-headlights.jpg
ScottyP3821 is offline   Reply With Quote
Old 01-15-2014, 04:27 PM   #317
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Isn't it about time to take this thing to Bradenton?
miata2fast is offline   Reply With Quote
Old 01-15-2014, 08:25 PM   #318
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Quote:
Originally Posted by miata2fast View Post
Isn't it about time to take this thing to Bradenton?
Look in the mirror and say that.



sixshooter is offline   Reply With Quote
Old 01-15-2014, 09:49 PM   #319
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by sixshooter View Post
Look in the mirror and say that.



well played
18psi is offline   Reply With Quote
Old 01-15-2014, 11:01 PM   #320
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Quote:
Originally Posted by sixshooter View Post
Look in the mirror and say that.



Believe me, I do....regularly.

Don't you have an air conditioner that needs hooking up?
miata2fast is offline   Reply With Quote
