Old 03-23-2016, 01:07 PM   #61
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Could you make a shorter video. That one takes forever to load.
aidandj is offline   Reply With Quote
Old 03-23-2016, 01:08 PM   #62
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I can't figure out how to edit the timeline in youtube videos anymore..
asmasm is offline   Reply With Quote
Old 03-23-2016, 01:50 PM   #63
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

LED strip? Definitely more visible.
OneTwo is offline   Reply With Quote
Old 03-23-2016, 01:53 PM   #64
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Yep, they are pretty cheap at autozone. Make sure you get the white backing ones. The black backing ones suck.
aidandj is offline   Reply With Quote
Old 03-23-2016, 02:08 PM   #65
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

The white backing ones aren't listing on the autozone or manufacturer website but they had them in the store. These are weather sealed, bright, and almost the ideal length. The only downside is they use really crappy wiring. I wrapped it in a sleeve to protective from abrasion which I think would happen in about 5 minutes if it was rubbing on the chassis.
asmasm is offline   Reply With Quote
Old 03-23-2016, 02:15 PM   #66
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

Good to know, I may have to snag a pair. Now if only my ballasts would ship.
OneTwo is offline   Reply With Quote
Old 03-23-2016, 02:19 PM   #67
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Did you go with 35w or 55w? I'm on 35w and it's plenty bright for me. Aidan is on 55w but I think he still has smoked lenses which would reduce the light output by about 30%.
asmasm is offline   Reply With Quote
Old 03-23-2016, 02:23 PM   #68
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

35w mishimotos. I would have gone DDM if I knew they would be backordered for 2 weeks.

Just giving me more time to finish up my quick release bumper though!
OneTwo is offline   Reply With Quote
Old 03-23-2016, 02:33 PM   #69
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by asmasm View Post
Did you go with 35w or 55w? I'm on 35w and it's plenty bright for me. Aidan is on 55w but I think he still has smoked lenses which would reduce the light output by about 30%.
Correct. Currently want to switch to clears.
aidandj is offline   Reply With Quote
Old 03-31-2016, 01:27 PM   #70
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

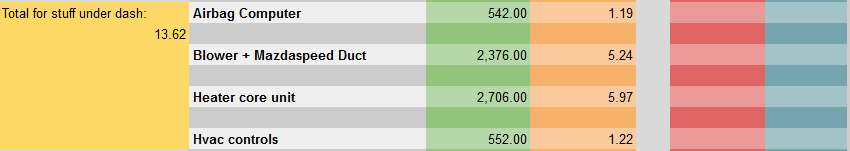

I removed all the stuff under the dash, it came out to 13.62lb, which is less than I had hoped, but I don't use that stuff anyway:



Im going to do the bimmerworks/frost fighter windshield defrost.

Next up is seeing how much I can cut out of an na6 dashboard.
Attached Thumbnails
Prepping my '95 for track-80-h10cith_6813fdaa51f26207dd40ed098dbdc3708707de03.png
asmasm is offline   Reply With Quote
Old 03-31-2016, 01:31 PM   #71
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

I am really looking forward to seeing you get this thing on the scales once your "done" trimming weight out. Likecat for documenting everything so well.
OneTwo is offline   Reply With Quote
Old 03-31-2016, 01:36 PM   #72
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I just got a set of scales off of ebay and did a quick weigh (haven't shimmed the floor yet so I'm not going to post the corner weights yet). After removing this stuff I am at 1987lb with 3/4 tank of gas. Once I get my VVT engine in I will be swapping from a stock header and flywheel to lighter parts, there should be another ~15lb there. I'm also swapping exhausts from this borla setup to an enthuza NA racer. I think the enthuza will actually be heavier slightly heavier but we will see. I still need to add a passenger seat and harnesses (figure 25-30lb).

I have long term plans that involve another ~80lb coming out of the car.
asmasm is offline   Reply With Quote
Old 03-31-2016, 01:56 PM   #73
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

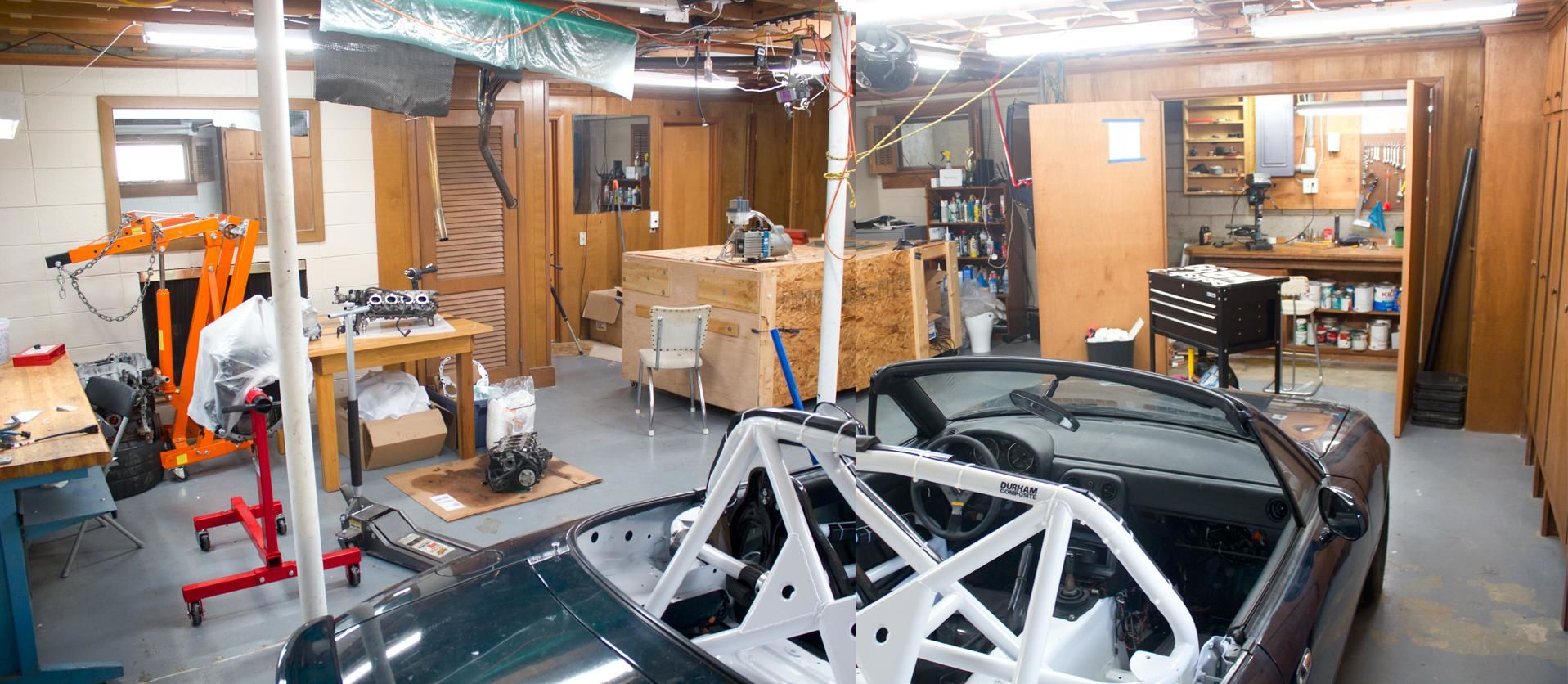

I just sliced out 2.75lb of firewall insulation. I left the portion by the pedals, I might try and get it later if I feel more motivated but it seems like a big pain in the *** for a half lb. Also, I have been cleaning my garage in preparation of having a welder:

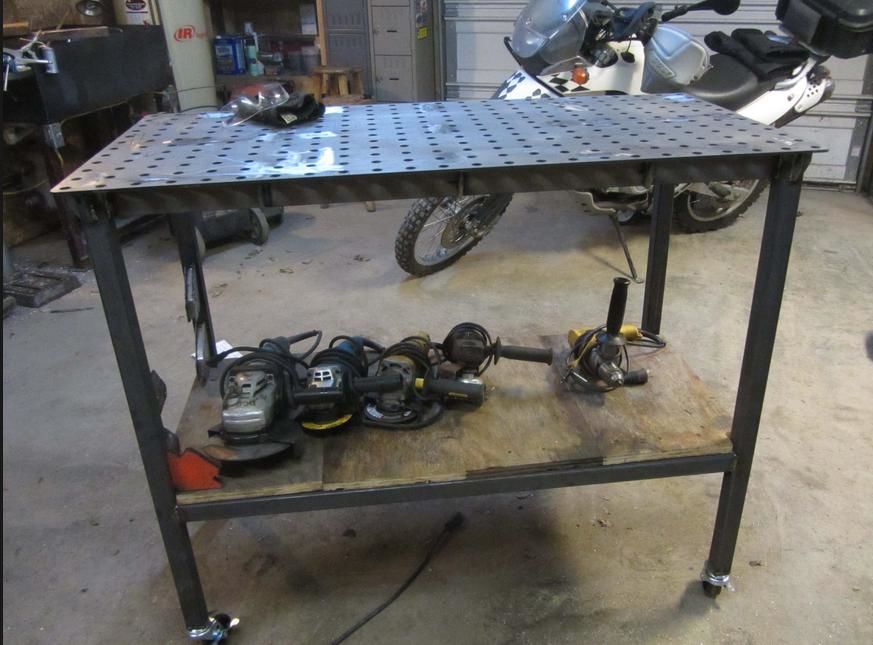

I also have one of these in the mail:

Attached Thumbnails
Prepping my '95 for track-80-ag3drv1_cfd7cab44d16b793a24a9b2d1834d4d82ef75608.jpg   Prepping my '95 for track-80-bodhvdw_4a6f49f207dbee5f2c9ff70644af7cdc0bc60e81.jpg

Last edited by asmasm; 03-31-2016 at 02:16 PM.
asmasm is offline   Reply With Quote
Old 04-03-2016, 05:30 PM   #74
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

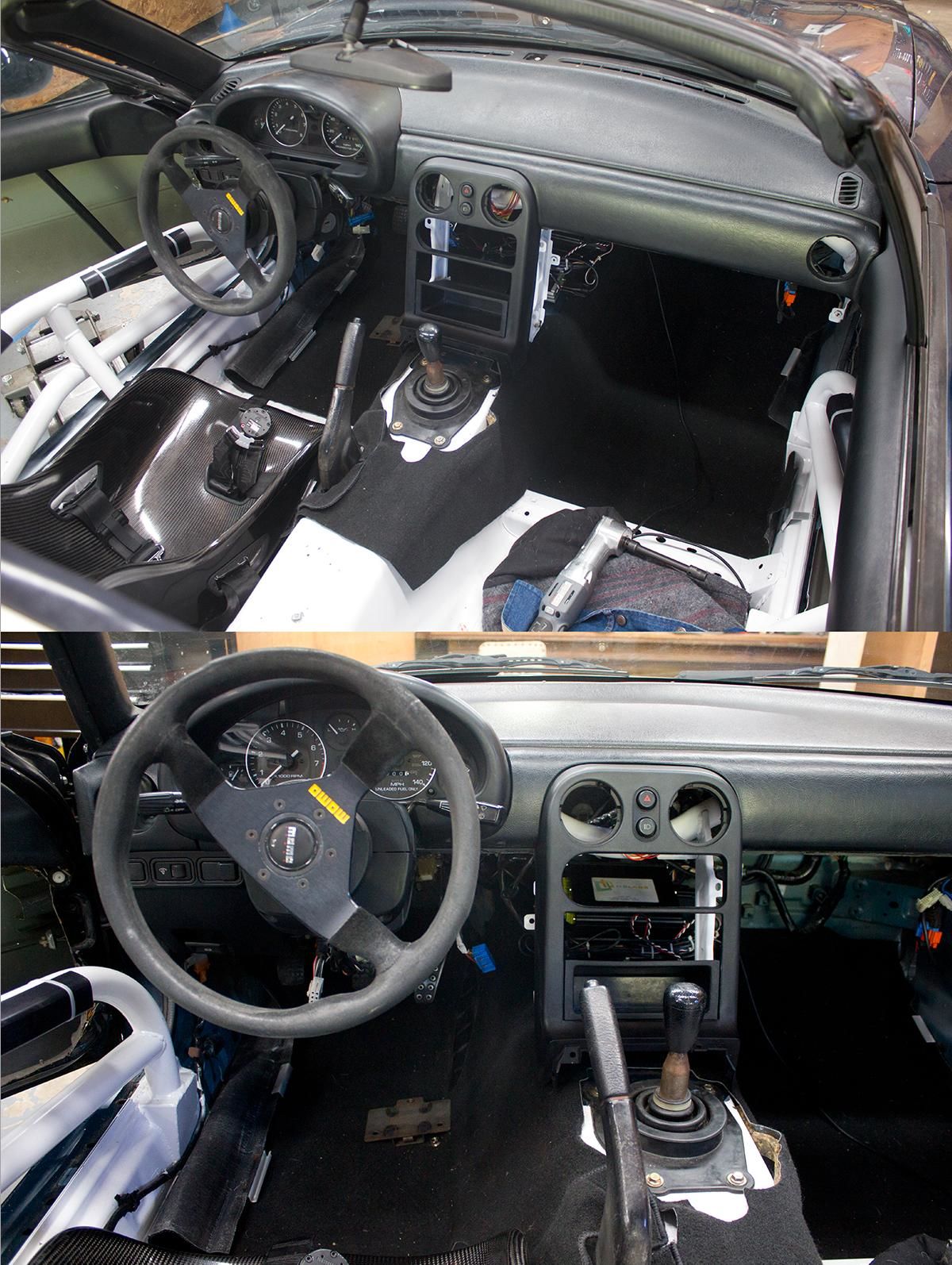

Dash gutted. I still need to pin the carpet down and hook up/zip tie wire connectors:

Attached Thumbnails
Prepping my '95 for track-80-kny8rbo_01b7e6cd73e6275f18d74033c414c0805cc0e5e1.jpg
asmasm is offline   Reply With Quote
Old 04-20-2016, 12:08 PM   #75
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I want new coils and wires for the 2001 engine- There is a big price difference between aftermarket and OEM coils. Are the aftermarket ones reliable or should I stick with OEM? I haven't seen a lot of feedback googling them. If aftermarket, preferred brand?
asmasm is offline   Reply With Quote
Old 04-20-2016, 12:14 PM   #76
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

D585 brah. Want a bracket?
hi_im_sean is offline   Reply With Quote
Old 04-20-2016, 12:17 PM   #77
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by hi_im_sean View Post
D585 brah. Want a bracket?
Too heavy for him.
aidandj is offline   Reply With Quote
Old 04-20-2016, 08:01 PM   #78
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

As I mentioned in chat- I don't want any more projects to get this engine running in the car.
asmasm is offline   Reply With Quote
Old 04-20-2016, 08:42 PM   #79
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

To answer your question, in my experience, aftermarket coils suck. The only exception are some of the performance oriented coils that are more than oem in some cases.
hi_im_sean is offline   Reply With Quote
Old 05-21-2016, 02:51 PM   #80
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

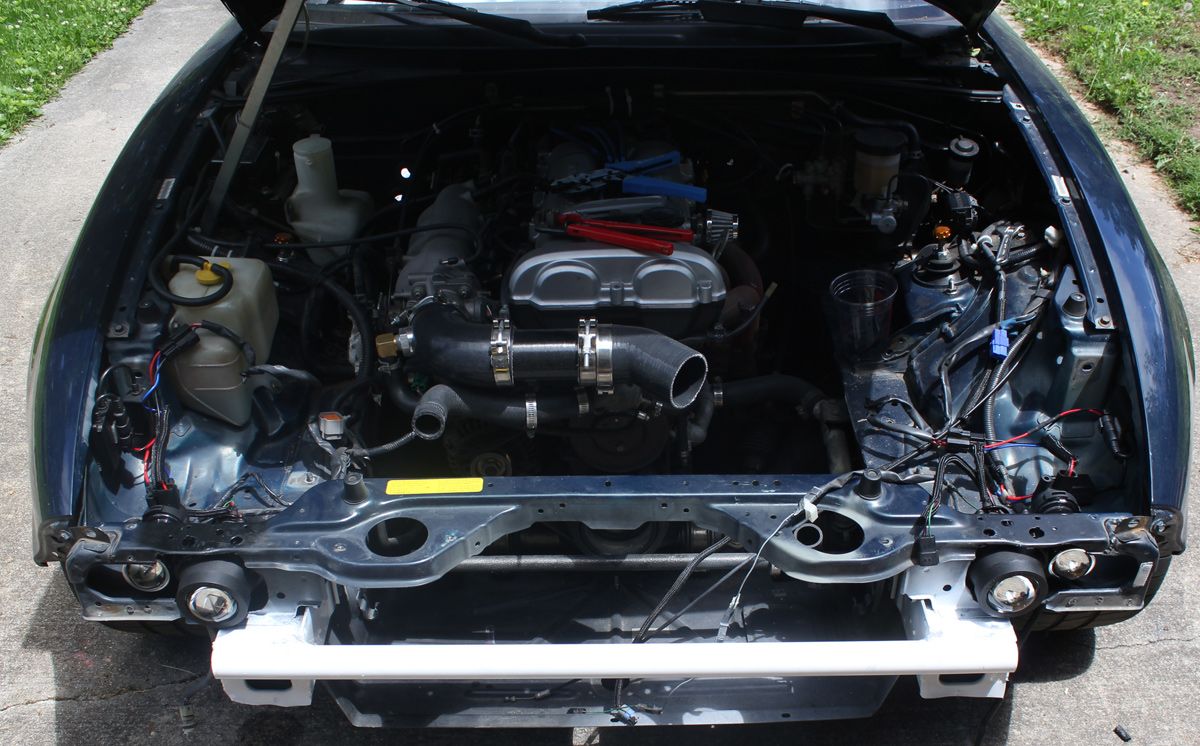

I added high beams to my car. I also cut out the factory crash bar and replaced it with 1.5x0.065. Welding into the edge of 0.065 tube where it joins up with 22 gauge sheet metal was a good test of my welding skills.. My eastwood 135 settings chart is also way off and the first time I pulled the trigger it blew a hole straight into the 0.065 tube.

I am using these for high beams and have them mounted with some dual lock into the underside of the radiator support. Once I am satisfied with the positioning I will run two rivets into each of them:
Amazon.com: 55W H3 Universal Fog Light Halogen Bulb Lamp Car Auto Lens 2 Pcs: Automotive Amazon.com: 55W H3 Universal Fog Light Halogen Bulb Lamp Car Auto Lens 2 Pcs: Automotive




The crash bar replacement saves about 5.5lb and the headlight conversion with high beams is saving 13lb.

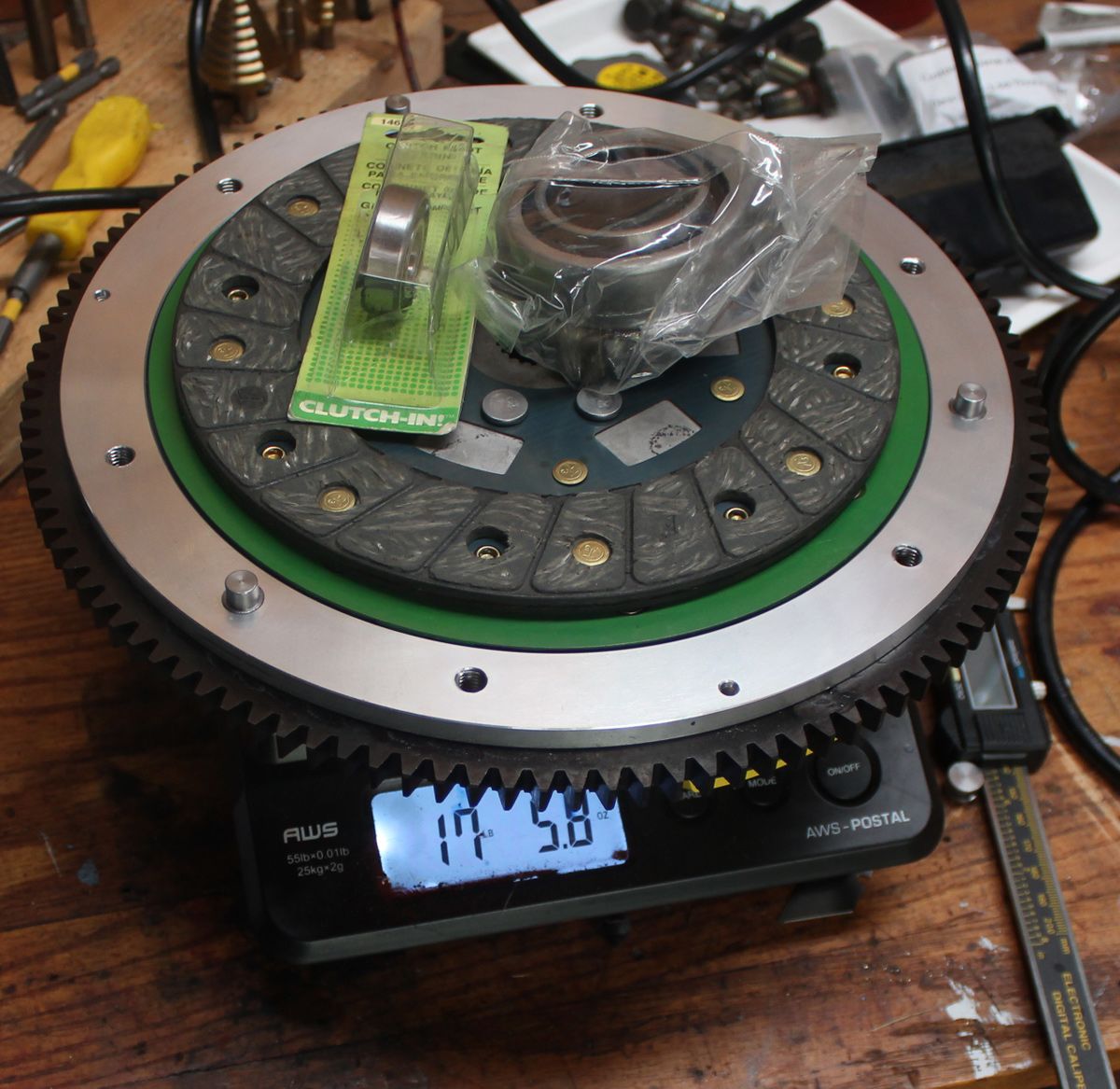

I also got my new clutch setup. Fidanza 1.6 FW, clutchnet rigid hub disc, ACT HD PP:



Once I get the passenger seat and harnesses in, and install the lighter clutch parts, its looking like I will be down to 1950lb with a full tank of gas.


The next projects are Aerocatch latches for the hood (since I deleted the hood latch) and sealing up the radiator shrouds with some carbon/balsa panels.
Attached Thumbnails
Prepping my '95 for track-80-front_end_1_aa79e64af2e614112e0c0b7e3b261183fc0fe0f5.jpg   Prepping my '95 for track-80-front_end_1_aa79e64af2e614112e0c0b7e3b261183fc0fe0f5.jpg   Prepping my '95 for track-80-clutch_edf1fc4f1d29d77a2466368e660711f09d4f6259.jpg

Last edited by asmasm; 05-21-2016 at 10:55 PM.
asmasm is offline   Reply With Quote
