Old 12-25-2015, 07:46 PM   #21
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Stripped interiors look so good in white.
Stealth97 is offline   Reply With Quote
Old 12-26-2015, 12:26 AM   #22
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Agreed.
OGRacing is offline   Reply With Quote
Old 01-13-2016, 01:30 PM   #23
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I am getting ready to do my VVT swap. The 01 engine I have had sitting in my garage had a warped head. The good news is that I just lucked out on a 46k miles 2003 engine for $800 shipped to my door. It is supposed to include the exhaust manifold as well.

Parts I have on hand to go with it:

949 1.8 sport clutch
RB header
Squaretop IM
Full coolant hose set
All engine seals
New motor mounts
NB1 head gasket
New crank pulley
949 coolant reroute kit
Engine harness from an 01 cut off at firewall
NB1 fuel rail
1.6 FPR
ARP head studs


The only things left that I need are:
NB throttle cable
Fuel line adpater

Anything else I am missing?

Last edited by asmasm; 01-13-2016 at 02:51 PM.
asmasm is offline   Reply With Quote
Old 01-13-2016, 03:01 PM   #24
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

I would seriously consider running a 1.6 FW clutch combo over the 1.8. Having run both, in a lightweight NA car the 1.6 stuff is much better. Someone will ****** up that SPM clutch quickly if you decide to go 1.6.

I had a buddy tip me off that the euro 98-00 NB FPRs fit much nicer than the flipped 1.6 FPRs. I just put one on my car. Obviously from a functional standpoint its identical, but the fuel line and vacuum line routing is cleaner.
OneTwo is offline   Reply With Quote
Old 01-13-2016, 03:04 PM   #25
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Yeah, I would prefer the 1.6 setup but I need to get this finished up before the end of Feb for the first VIR event.

If anyone in the area happens to have a decent 1.6 setup on hand and wants to trade, feel free to PM me.
asmasm is offline   Reply With Quote
Old 01-16-2016, 03:57 PM   #26
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

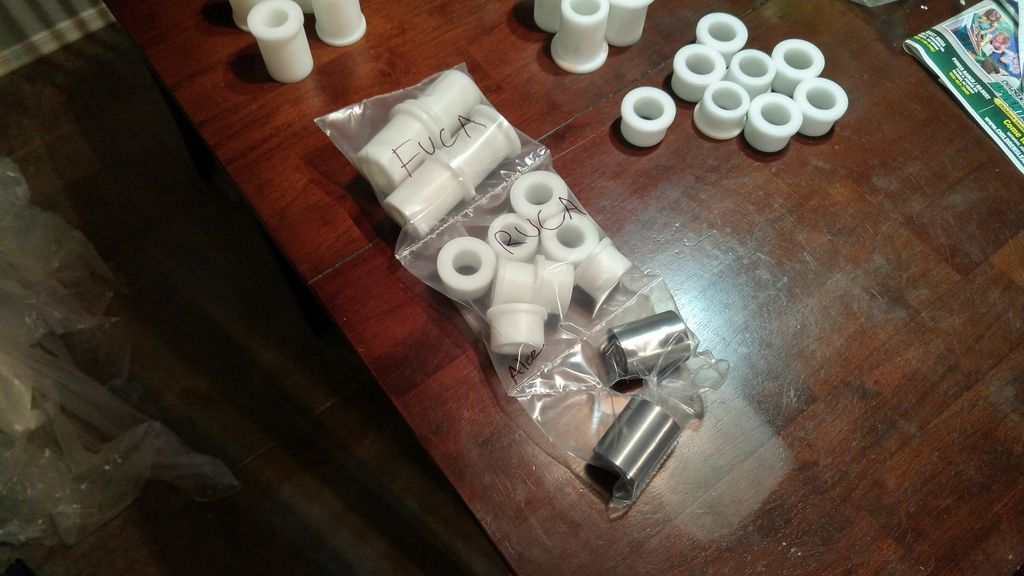

progress

Attached Thumbnails
Prepping my '95 for track-80-20160115_210521_hdr_zpsobhhtmli_672db2370b5867f339bdb7f6ab1aa45420ea19d2.jpg
hi_im_sean is offline   Reply With Quote
Old 01-16-2016, 04:20 PM   #27
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Awesome.
asmasm is offline   Reply With Quote
Old 01-16-2016, 05:12 PM   #28
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Car looks good!
hornetball is offline   Reply With Quote
Old 01-19-2016, 03:33 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Got my "A Grade" 46k mile 03 engine and it looks like ****. At least it came with an exhaust manifold I can resell. I am going to tear into the engine and see if it looks as bad inside as it does outside:

http://i.imgur.com/266wAHm.jpg
http://i.imgur.com/46mYQzh.jpg
http://i.imgur.com/pFustV4.jpg


Carfax says it was issued a salvage title in 09...
asmasm is offline   Reply With Quote
Old 01-19-2016, 03:40 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Ew. Get your money back.
aidandj is offline   Reply With Quote
Old 01-19-2016, 03:50 PM   #31
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Cams look like ****:
http://i.imgur.com/cbZOl7b.jpg
asmasm is offline   Reply With Quote
Old 01-19-2016, 03:52 PM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Before I call and bitch at them, how does that work with junkyard engines bought over the phone? Even if they refund me, I guess I am **** out of luck on the $200 shipping?


Also, I have another set of good cams but finding out that this has been sitting for 7 years and seeing the surface rust on the cams, I am betting there is surface rust anything else steel in the head. Who knows about the bottom end.
asmasm is offline   Reply With Quote
Old 01-19-2016, 05:04 PM   #33
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

The engine is back on the pallet and getting picked up soon. I only had to argue with the guy for a few minutes.
asmasm is offline   Reply With Quote
Old 01-19-2016, 08:46 PM   #34
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

My 160k cams looked better, wtf.
hi_im_sean is offline   Reply With Quote
Old 01-19-2016, 08:55 PM   #35
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

If you see a suspiciously cheap 46k mile 03 engine for sale in Virginia, make sure it isn't JM1NB353930310432
asmasm is offline   Reply With Quote
Old 01-30-2016, 12:43 PM   #36
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I got my new engine on a stand today. I also chose to get a 50% refund on that last engine and keep it for parts/core for later use.

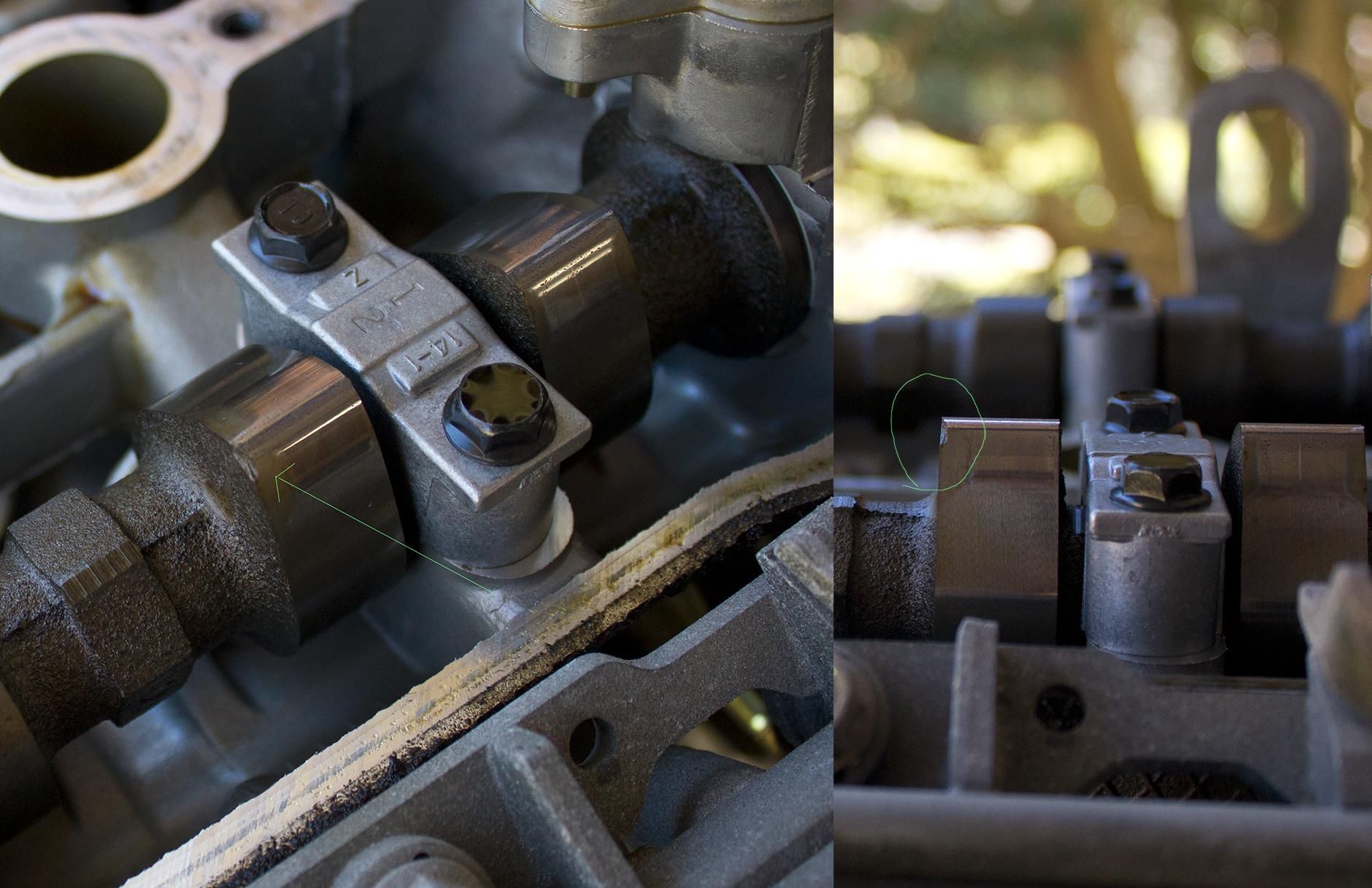

This one has 64k miles and is in much better shape overall. I drained almost 2 quarts of oil out of it and the plug holes were already filled with oil. The only significant defect I can find so far is a chip on one of the cam lobes. The valve cover bolts were loose when I got it so someone has opened it up. I would guess it got damaged then? I have a spare set of cams in good shape that I can swap in.

I am replacing everything made of rubber on the engine, including valve seals and the crank damper. This is my first time having an engine on a stand and it is way nicer to work on than in the car or on a tire.

Attached Thumbnails
Prepping my '95 for track-80-yp6r6u0_a52175e83cdf9c1521d3eea68880228f3b5c0762.jpg
asmasm is offline   Reply With Quote
Old 01-30-2016, 01:15 PM   #37
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

I just can see how that chip would happen during normal operation, and if it did, I would expect to see other damage or clues on that lobe and bucket. I bet someone dropped their favorite 3/4" drive ratchet on it.

Pull the cam and get a good look at the bucket. If it was run like that, id almost bet it would show a witness mark or something.
hi_im_sean is offline   Reply With Quote
Old 01-30-2016, 01:17 PM   #38
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Also If you want to borrow my valve tool, let me know and ill throw it in your box. You can also get your own for about $60.
hi_im_sean is offline   Reply With Quote
Old 01-30-2016, 02:11 PM   #39
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Thanks, I will get my own valve tool. This is the correct one, right?
Robot Check Robot Check

I also learned that if you pour oil down the plug holes and then later turn the engine over by hand, oil will shoot up and narrowly miss your eyes. I was watching the shim for a witness mark while turning the engine over and got a nice surprise. There is no mark on the shim so either it is a casting defect not causing any problems or it is damage that occurred after the engine was last run.
asmasm is offline   Reply With Quote
Old 01-30-2016, 03:21 PM   #40
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by asmasm View Post
Thanks, I will get my own valve tool. This is the correct one, right?
Robot Check

I also learned that if you pour oil down the plug holes and then later turn the engine over by hand, oil will shoot up and narrowly miss your eyes. I was watching the shim for a witness mark while turning the engine over and got a nice surprise. There is no mark on the shim so either it is a casting defect not causing any problems or it is damage that occurred after the engine was last run.
That tool is the correct one, but I like the KD Hand Tools 41910 as it comes with seal pliers and is the same price.

KD Hand Tools 41910 All in One Valve Service Kit | eBay

hi_im_sean is offline   Reply With Quote
