Old 01-14-2013, 05:52 PM   #41
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by jkiech View Post
Interested to see how this build progresses as I will hopefully be saving up for some turbo parts soon for a build on my miata as well...
Stay tuned ARTech parts coming next and I can't waiitttt!!!
BTMiata is offline   Reply With Quote
Old 01-17-2013, 10:22 AM   #42
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

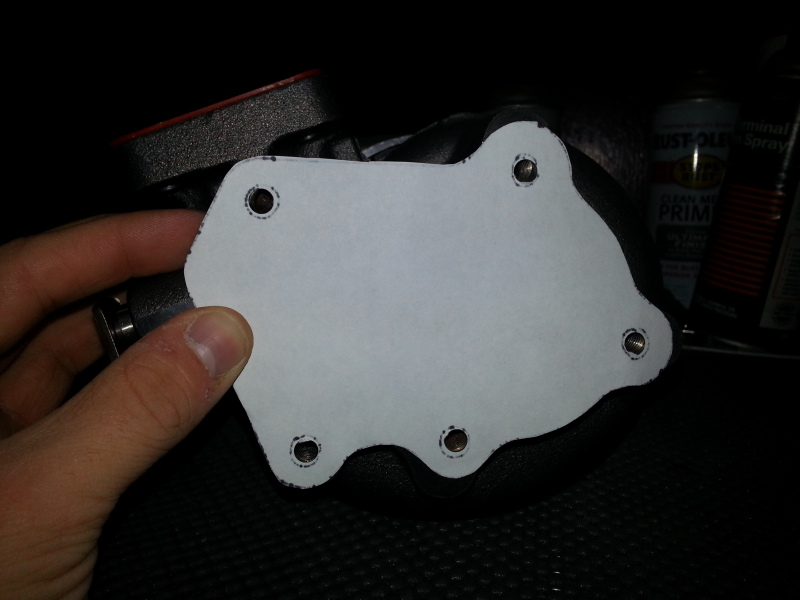

My Template came in the mail from ARTech and the bolt holes line up with my Churbo!!! I get paranoid about stuff like that so I am relieved that this turbo will work out fine. Now all it has to do is stay alive on the car for a while and I will be really happy haha

Attached Thumbnails
Prepping for turbo build-20130117_091955.jpg
BTMiata is offline   Reply With Quote
Old 01-18-2013, 06:23 PM   #43
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

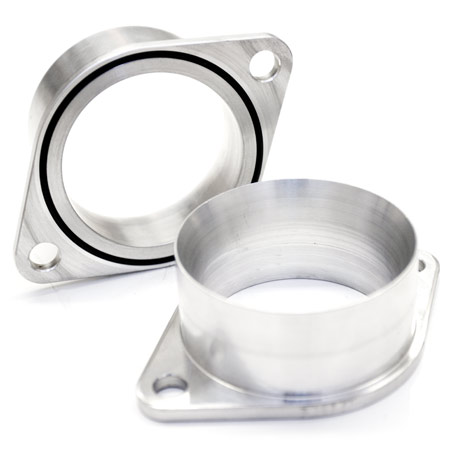

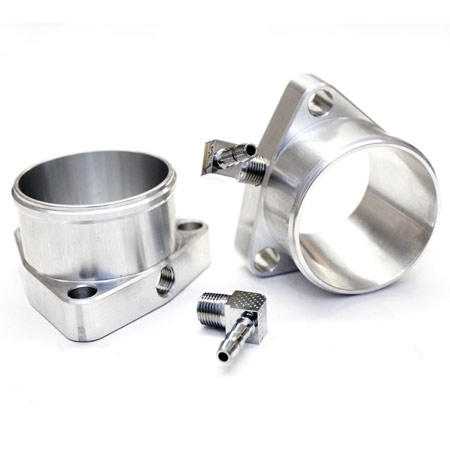

First thing that blows about this Turbo is I need another $100 in Flanges...

2 bolt inlet adapter Flange GT25/28/28RS, alum, 2.5" OD : atpturbo.com



3 bolt outlet adapter - GT28R/GT25R/T25 Compressor, aluminum : atpturbo.com



Unless you guys know of any other options for a cheaper price?!?!
Attached Thumbnails
Prepping for turbo build-atpflange1_zps8daa4b92.jpg   Prepping for turbo build-atpflange2_zps1bc3ce3c.jpg
BTMiata is offline   Reply With Quote
Old 01-19-2013, 01:07 AM   #44
Newb

Join Date: Jan 2013
Location: North Jersey
Posts: 41
Total Cats: -18
Default

Subscribed. Getting a t25/28 tomorrow for $75 so ill be following almost every move
kodirat is offline   Reply With Quote
Old 01-19-2013, 09:33 AM   #45
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by kodirat View Post
Subscribed. Getting a t25/28 tomorrow for $75 so ill be following almost every move
Nice

I just wish I could start the build now but it has to stay my DD until I get my fiancee's corolla to DD

I see all of these other builds, guys pulling their motor and freshening up their bays... I want nothing more than to just pull my motor and get it freshened up and clean my engine bay, paint my valve cover, etc... Maybe even a wire tuck. Who knows lol this time next year that should all be happening though
BTMiata is offline   Reply With Quote
Old 01-19-2013, 09:44 AM   #46
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by BTMiata View Post
First thing that blows about this Turbo is I need another $100 in Flanges...

2 bolt inlet adapter Flange GT25/28/28RS, alum, 2.5" OD : atpturbo.com



3 bolt outlet adapter - GT28R/GT25R/T25 Compressor, aluminum : atpturbo.com



Unless you guys know of any other options for a cheaper price?!?!
The outlet flange is a hard one but the inlet flange is just a 2" 2 bolt exhaust flange.

That should save you some cash.

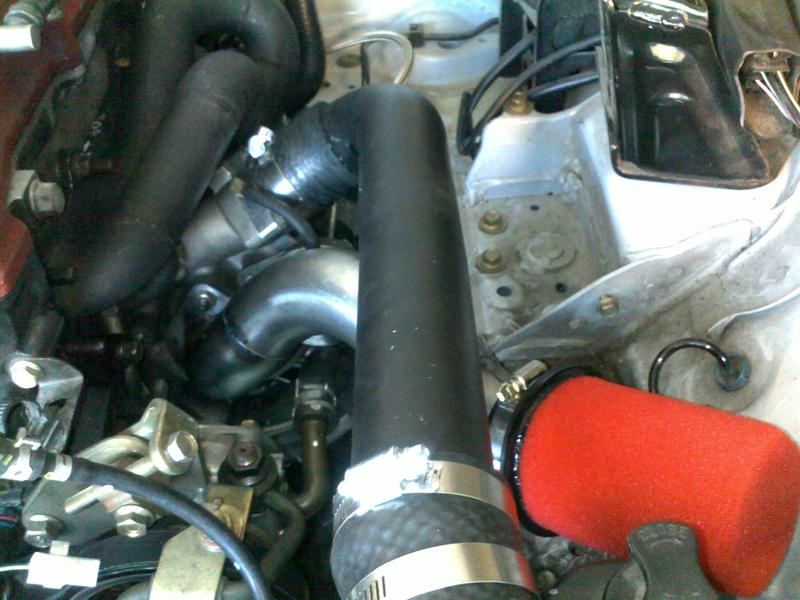

Just use the exhaust flange and make an inlet like this.





Dann
nitrodann is offline   Reply With Quote
Old 01-19-2013, 09:47 AM   #47
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by nitrodann View Post
The outlet flange is a hard one but the inlet flange is just a 2" 2 bolt exhaust flange.

That should save you some cash.

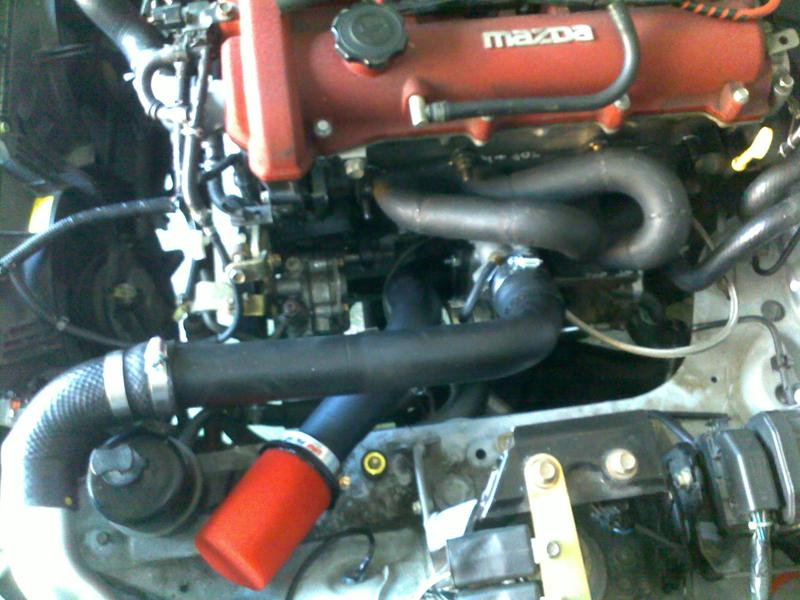

Just use the exhaust flange and make an inlet like this.

Dann


Nice thanks!

Also... What kind of hardware is best to secure these flanges? Anything special recommended???



EDIT* CXRacing coming through!!! Found both flanges in nice looking Billet Aluminum for only $42+Shipping!!! Can't beat that for both flanges!

http://www.cxracing.com/mm5/merchant...B-GT28-ACS-1_1
Attached Thumbnails
Prepping for turbo build-070fu.jpg   Prepping for turbo build-074la.jpg

Last edited by BTMiata; 01-19-2013 at 10:00 AM.
BTMiata is offline   Reply With Quote
Old 01-19-2013, 10:02 AM   #48
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

The outlet is just a regular M6 and the inlet is 8x1.25. Just use anything, with some RTV.

Autobend.co.nz is great to deal with and has the 3 bolt flange, Ive used it before but then you need to buy or fabricate a cone and weld it on etc, and no idea what it would cost to buy just one flange including shipping, but if you emial them they will get back to you within a business day they are great.

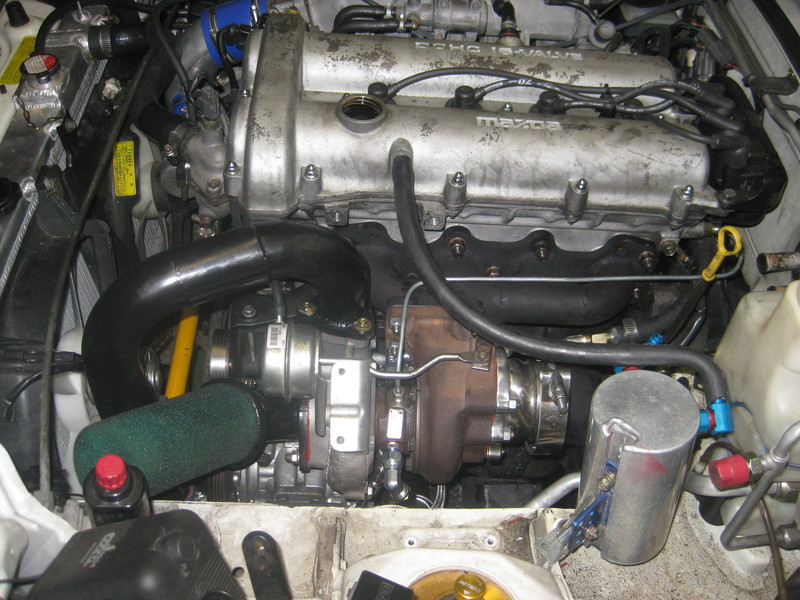

Here is the autobend flange fabbed up, I cut a V into a pipe and welded it together into a cone shape the continued the IC piping from there,



Again you see another 2 bolt exhaust flange intake pipe with just a 45* bend and a foam filter with a 2" inlet to the filter to fit the 2" pipe, I figure if garret gave me a 2" inlet they know better than me, why put a 3" filter on it?

Dann
Attached Thumbnails
Prepping for turbo build-img2181d.jpg
nitrodann is offline   Reply With Quote
Old 01-19-2013, 10:05 AM   #49
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by nitrodann View Post
The outlet is just a regular M6 and the inlet is 8x1.25. Just use anything, with some RTV.

Autobend.co.nz is great to deal with and has the 3 bolt flange, Ive used it before but then you need to buy or fabricate a cone and weld it on etc, and no idea what it would cost to buy just one flange including shipping, but if you emial them they will get back to you within a business day they are great.

here is the autobend flange fabbed up, I cut a V into a pipe and welded it together into acone shape the continued the IC piping from there,



Dann
Literally JUST ordered the Billet Aluminum set from CXRacing! Glad I found a deal... Price after shipping was only $55 and that saves me the hassle of having to weld anything
BTMiata is offline   Reply With Quote
Old 01-20-2013, 03:54 AM   #50
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by nitrodann View Post

Dann
Dann, good info/pics/ideas from you as usual! +1

The hard line oil feed looks good. Is it possible to incorporate a restrictor in the threaded connector or is this suitable only with internal orifices?
sturovo is offline   Reply With Quote
Old 01-20-2013, 04:27 AM   #51
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Quote:
Originally Posted by BTMiata View Post
CXRacing coming through!!! Found both flanges in nice looking Billet Aluminum for only $42+Shipping!!! Can't beat that for both flanges!

cxracing.com: CNC Billet Aluminum Flanges/Adapter for GT25R, GT28, GT28R turbo
Excellent find BTMiata! The price on those is significantly better, although I like the atp outlet with the wastegate line fitting already in it. It looks like my build is going to be very similar to yours! Excited to see how this turns out.

EDIT: Found these http://shopping.kinugawaturbo.com/ni...nges13s14.aspx
A little more than the cxracing ones, retaining the features of the atp setup too.

ALSO: Nevermind lol
Quote:
Originally Posted by BTMiata View Post
Literally JUST ordered the Billet Aluminum set from CXRacing! Glad I found a deal... Price after shipping was only $55 and that saves me the hassle of having to weld anything

Last edited by petrolmed; 01-20-2013 at 04:50 AM.
petrolmed is offline   Reply With Quote
Old 01-20-2013, 09:00 AM   #52
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I have a set up similar to yours with a T25 too Good work so far man
rhysmate is offline   Reply With Quote
Old 01-20-2013, 09:18 AM   #53
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by sturovo View Post
Dann, good info/pics/ideas from you as usual! +1

The hard line oil feed looks good. Is it possible to incorporate a restrictor in the threaded connector or is this suitable only with internal orifices?
There are a few ways to restrict this, firstly the ID of the hardline is only 2.5mm ish. You can either do it the ghetto way and just squeeze the hardline with pliers until its perfect or you can silver solder one of the fittings closed and then redrill it the right size.

In this case it was soldered closed and redrilled.

Props appreciated.

Dann
nitrodann is offline   Reply With Quote
Old 01-20-2013, 09:54 AM   #54
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by petrolmed View Post
Excellent find BTMiata! The price on those is significantly better, although I like the atp outlet with the wastegate line fitting already in it. It looks like my build is going to be very similar to yours! Excited to see how this turns out.

EDIT: Found these Turbo Compressor Inlet + Outlet Adapter Flange Garrett GT25 GT28 T25 T28 SR20DET
A little more than the cxracing ones, retaining the features of the atp setup too.

ALSO: Nevermind lol
Yeah I was a bit blinded by the significantly cheaper price and completely forgot about that built-in fitting. That one from kinugawa would have only been another $1 LOL ... and it comes with hardware too

Oh well I'll figure it all out haha


Quote:
Originally Posted by rhysmate View Post
I have a set up similar to yours with a T25 too Good work so far man
Thanks!! I have a part-buying addiction! Right now I am waiting on those flanges, a Walbro 190hp, and a K&n cone filter. My PayPal is hurting right now haha
BTMiata is offline   Reply With Quote
Old 01-20-2013, 11:44 AM   #55
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Source the waste gate vacuum/pressure from closer the the throttle body. This helps to take into consideration the loss from the pipe and inter-cooler.

You don't really need to know what the turbo is producing right out of the housing, you need to know what your motor is seeing.
Miater is offline   Reply With Quote
Old 01-20-2013, 11:49 AM   #56
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Miater View Post
Source the waste gate vacuum/pressure from closer the the throttle body. This helps to take into consideration the loss from the pipe and inter-cooler.

You don't really need to know what the turbo is producing right out of the housing, you need to know what your motor is seeing.
Nice tip! Thanks
BTMiata is offline   Reply With Quote
Old 01-21-2013, 01:57 AM   #57
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Quote:
Originally Posted by Miater View Post
Source the waste gate vacuum/pressure from closer the the throttle body. This helps to take into consideration the loss from the pipe and inter-cooler.

You don't really need to know what the turbo is producing right out of the housing, you need to know what your motor is seeing.
Yeah a little research shows you'll actually be better off this way. Epic specifics: https://www.miataturbo.net/diy-turbo...79/#post379883

I will be following Joe's and Miater's advice now.
petrolmed is offline   Reply With Quote
Old 01-22-2013, 06:26 PM   #58
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by petrolmed View Post
Yeah a little research shows you'll actually be better off this way. Epic specifics: https://www.miataturbo.net/diy-turbo...79/#post379883

I will be following Joe's and Miater's advice now.
Nice there's a lot of good info in there, thanks!

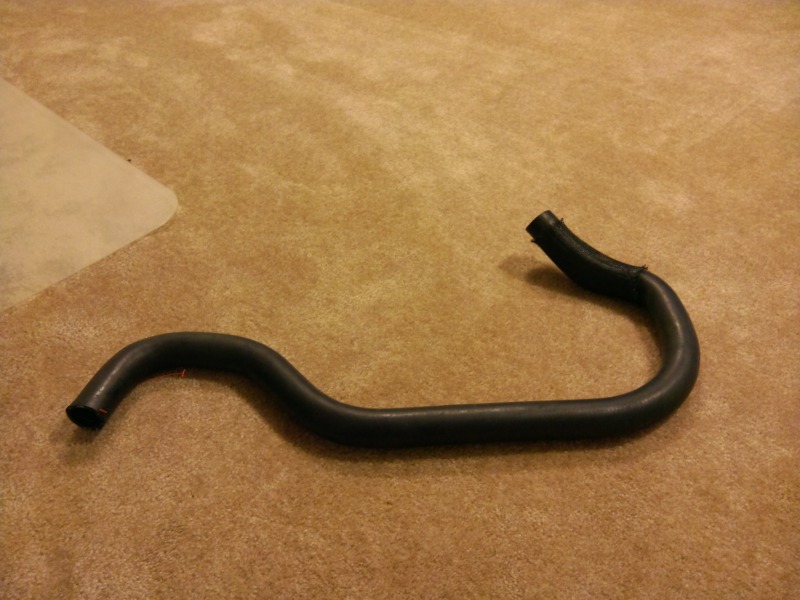

Moving on, I deided to start gathering parts for my coolant re-route. So far I picked up the infamous escalade upper rad hose from Autozone, and picked up a used kia water neck from a member on here. Next I will grab a block-off plate and the adapter from bell and I should be good to go!



Also, I got my Walbro 190hp in the mail yesterday. Just waitng on my turbo flanges from CXRacing, and my K&N Filter from Doaparts ... Damnit my wallot is feeling itt right now.... Good thing payday is this Friday
Attached Thumbnails
Prepping for turbo build-img_20130122_171321.jpg
BTMiata is offline   Reply With Quote
Old 01-23-2013, 03:07 PM   #59
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

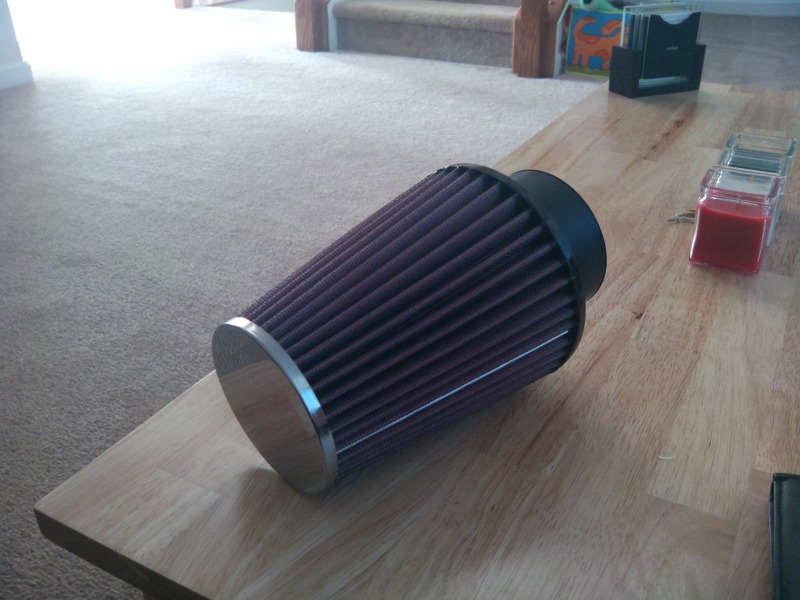

More parts in the mail... nothing important but I still get all happy whenever the doorbell rings haha. I think the only things I am still waiting on right now are the turbo flanges, and a kia water neck

Attached Thumbnails
Prepping for turbo build-img_20130123_140047.jpg
BTMiata is offline   Reply With Quote
Old 01-24-2013, 11:58 PM   #60
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

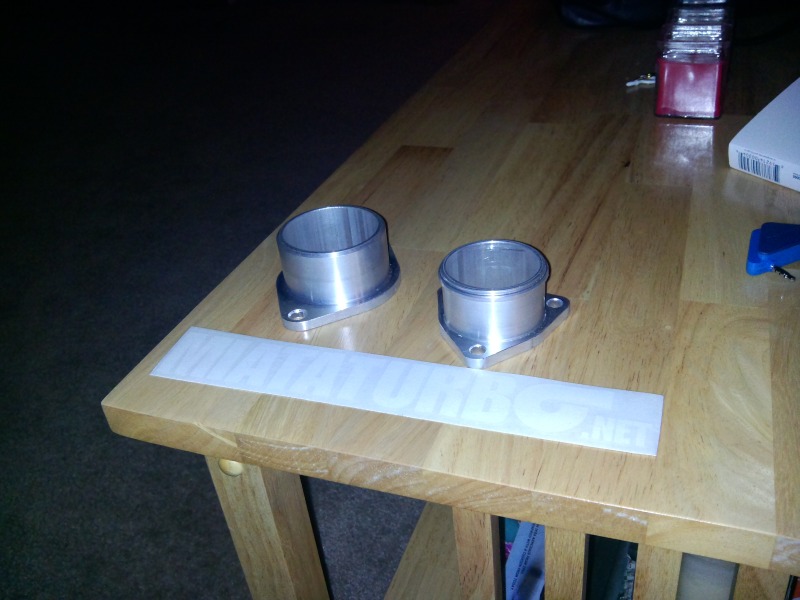

Nothing groundbreaking... but parts nonetheless! Turbo flange adapters came in :-)

Also MT.NET Sticker!





Also ordered my heater core cause it finally started dripping... It's been leaking for the past week cause I could smell it but no coolant was to be seen anywhere until today
Attached Thumbnails
Prepping for turbo build-img_20130124_225415.jpg
BTMiata is offline   Reply With Quote
