Project Cheap - Page 14 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 04-04-2012, 07:02 PM   #261
Junior Member

UnknownPerson's Avatar

Join Date: May 2011
Location: Victoria, BC
Posts: 141
Total Cats: 0
Default

That thing is awesome. So, just how cheap is project cheap at this point?
UnknownPerson is offline   Reply With Quote
Old 04-04-2012, 07:42 PM   #262
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Needs mkre zip ties. Also needs more of mu caulk in you


Famnit i am drunk
Faeflora is offline   Reply With Quote
Old 04-23-2012, 11:21 AM   #263
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Attached Thumbnails

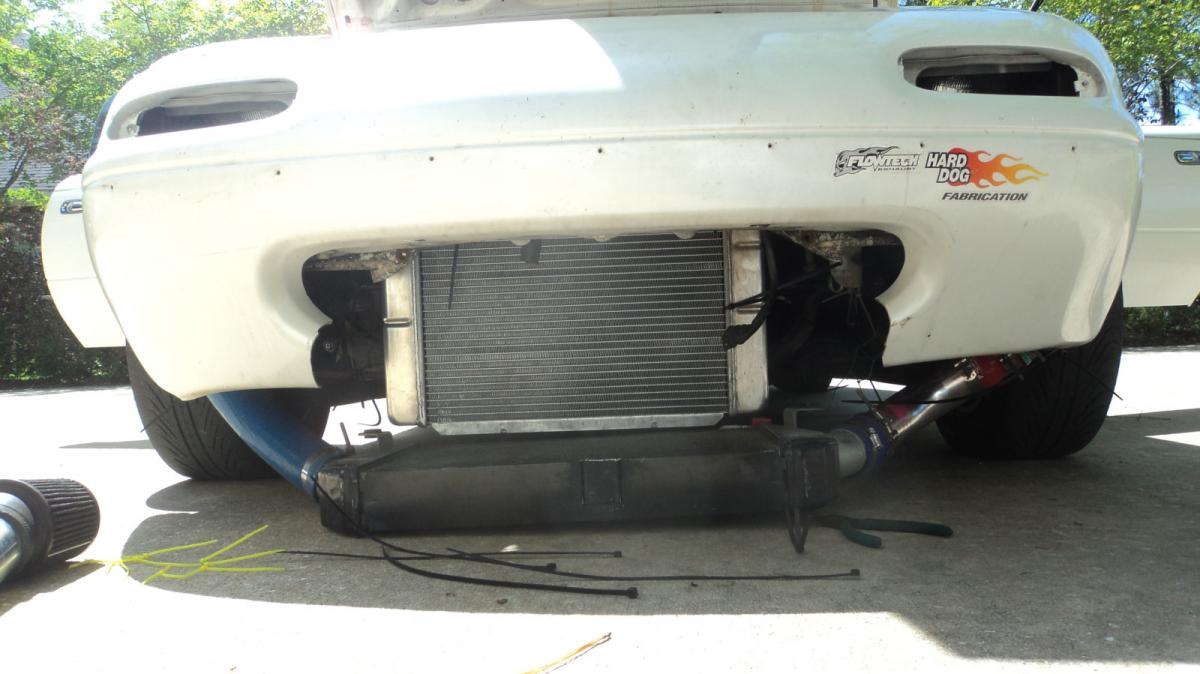

Project Cheap-3516915.jpg
Techsalvager is offline   Reply With Quote
Old 04-23-2012, 11:25 AM   #264
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by UnknownPerson View Post
That thing is awesome. So, just how cheap is project cheap at this point?
costly not cheap
if I were to redo it
I wouldn't of gotten a megasquirt, I would of saved for better EMS
better turbo manifold or ran the turbo in the rear.
I would of stayed with 2inch piping all around.
Techsalvager is offline   Reply With Quote
Old 04-23-2012, 11:40 AM   #265
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

hangs a bit low
Braineack is offline   Reply With Quote
Old 04-23-2012, 12:00 PM   #266
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Techsalvager View Post
I wouldn't of gotten a megasquirt, I would of saved for better EMS


I don't mean to thread crap, but god damn I'm tired of hearing that.

I'm not saying that MS is _the best_ by any stretch of the imagination, but what makes you think that with a 'better' ECU you'd stand to gain anything with a setup like yours?
Jeff_Ciesielski is offline   Reply With Quote
Old 04-23-2012, 12:15 PM
rb26dett
This message has been deleted by Braineack.
Old 04-23-2012, 12:36 PM
blaen99
This message has been deleted by Braineack.
Old 04-23-2012, 12:47 PM
Braineack
This message has been deleted by Braineack.
Old 04-23-2012, 12:53 PM
rb26dett
This message has been deleted by Braineack.
Old 04-23-2012, 12:59 PM
Braineack
This message has been deleted by Braineack.
Old 04-23-2012, 01:10 PM
blaen99
This message has been deleted by Braineack.
Old 04-23-2012, 01:13 PM
Jeff_Ciesielski
This message has been deleted by Braineack.
Old 04-23-2012, 01:14 PM
Braineack
This message has been deleted by Braineack.
Old 04-23-2012, 01:21 PM
blaen99
This message has been deleted by Braineack.
Old 04-23-2012, 02:11 PM   #267
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

many reasons, it can be made to work, it just its lacking certain items I perfer to see for a daily driven unit.
error outputs\codes
limp home strategies
sensor fail safes, in case a sensor takes a ----\dump.
features that are said to be in there but are half done or need more work to them.
I've had a GM IAT sensor fail on me that I was using and it just made the ecu dumb ---- tons of fuel because of how the ideal gas law code is configured which I disagree with as well. I don't disagree with the physics of it, just that there is so much more to an engine. the fact that will take out fuel non stop above 80f~ can be determintal to an engine, esp a F\I very quickly if people aren't aware about it, which seems a lot that start tuning and buy these things aren't. Of course there are lot of people that want something on the cheap. I was one, I learned, I realized, forum poltics among other things.

Also its not open source despite what people like to think of it as.
Also the data logging speed is bit all over the place ( ms2extra ) using tunerstudio
and my inputs were limited for ADC's

if\when I were to get another ecu I like to see at least 100hz logging.
For a daily driven car to me I'm really not excited about it.
for a track car I"m not sure I would want it controlling my setup, esp without sensor bounds in case a sensor fails.
With what I want to do I have to keep adding to the systsem, over time I might as well just gotten a system that could of done what I want with no more additions needed.

Heres an example I have a complete 16x16 table that is entriely useless to me in the current state. It sits there doing nothing filled with 100s
Also the closed loop AFR target table is shared with the main fuel map.
so you can't use wide band closed loop unless you share it with the fuel map.

And if you use incorprate AFR target the closed loop map shares itself with the commanded AFR map for the main fuel ve table under speed density.
Which say if you just cruising around and lightly accelerating you may want to keep stoich into boost 2-4psi or so depending on engine setup and turbo, but if you want to get on it you want to drop out of closed loop to your main commanded fuel map. Which can't be done using wide band closed loop operation. You can do it with narrow band CL operation though.
Techsalvager is offline   Reply With Quote
Old 04-23-2012, 02:15 PM   #268
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by Techsalvager View Post
I've had a GM IAT sensor fail on me that I was using and it just made the ecu dumb ---- tons of fuel because of how the ideal gas law code is configured which I disagree with as well. I don't disagree with the physics of it, just that there is so much more to an engine. the fact that will take out fuel non stop above 80f~ can be determintal to an engine, esp a F\I very quickly if people aren't aware about it, which seems a lot that start tuning and buy these things aren't.

this I absolutely agree with.
Braineack is offline   Reply With Quote
Old 04-23-2012, 02:20 PM
rb26dett
This message has been deleted by Braineack.
Old 04-23-2012, 02:24 PM
Braineack
This message has been deleted by Braineack.
Old 04-23-2012, 02:29 PM
rb26dett
This message has been deleted by Braineack.
Old 04-23-2012, 02:30 PM
Braineack
This message has been deleted by Braineack.
Old 04-23-2012, 02:40 PM   #269
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

I'll bite on the sensor failsafe / limp home mode. I've had an IAT come unplugged while driving and it was a bad experience for sure (obviously my bad on that one).
Jeff_Ciesielski is offline   Reply With Quote
Old 04-23-2012, 02:41 PM   #270
Junior Member

Join Date: Feb 2007
Location: 11368 miles from where i would like to be
Posts: 269
Total Cats: 92
Default

It's great to see the progress in understanding that you've made over the years, Hentai! Keep up the good work :-)
rb26dett is offline   Reply With Quote
Old 05-01-2012, 06:39 AM   #271
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default



This is how I see this thread :P
Attached Thumbnails
Project Cheap-540285_10151598905470377_212641675376_23856046_2147170116_n.jpg
triple88a is offline   Reply With Quote
Old 05-04-2012, 10:15 PM   #272
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Techsalvager is offline   Reply With Quote
Old 05-06-2012, 01:10 PM   #273
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

happy and sadden at the same time.

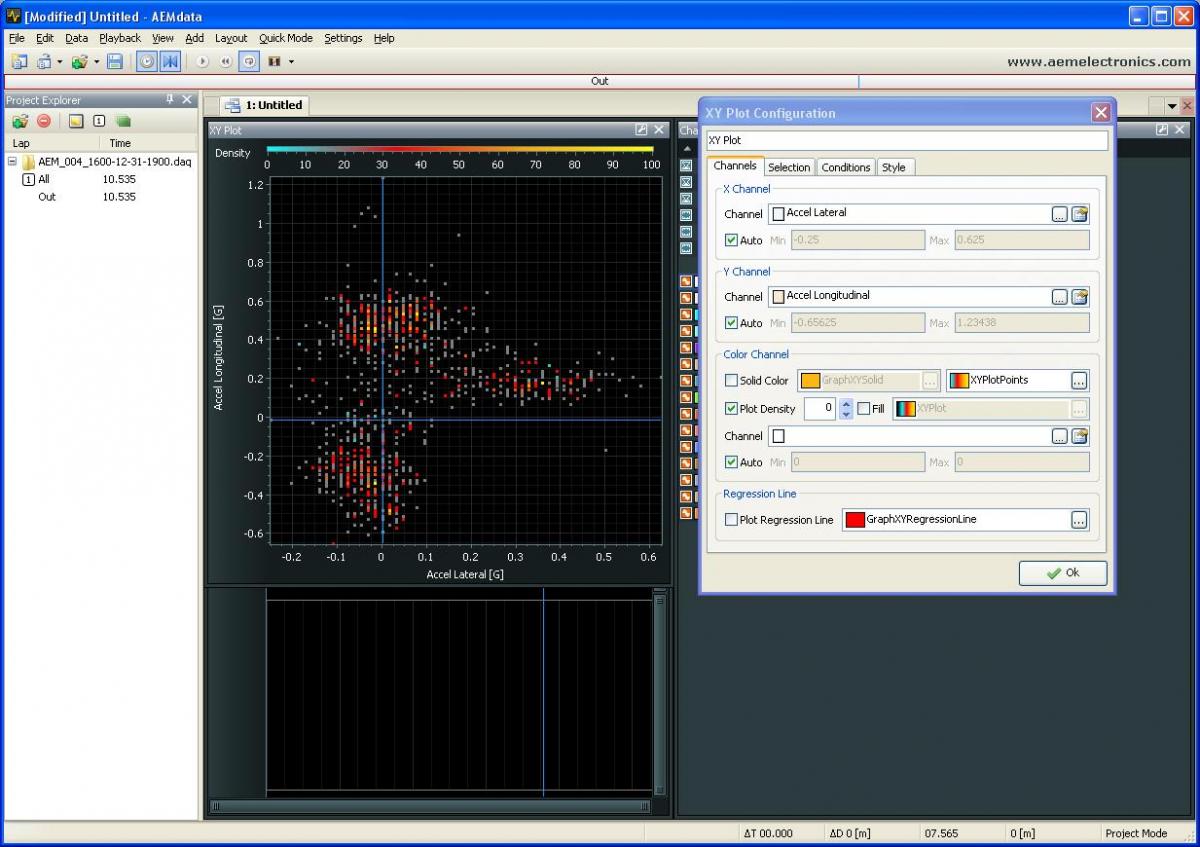

My first test of the AEM AQ-1 for the accelerometers.
Attached Thumbnails
Project Cheap-2magm.jpg
Techsalvager is offline   Reply With Quote
Old 05-13-2012, 06:16 PM   #274
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Attached Thumbnails

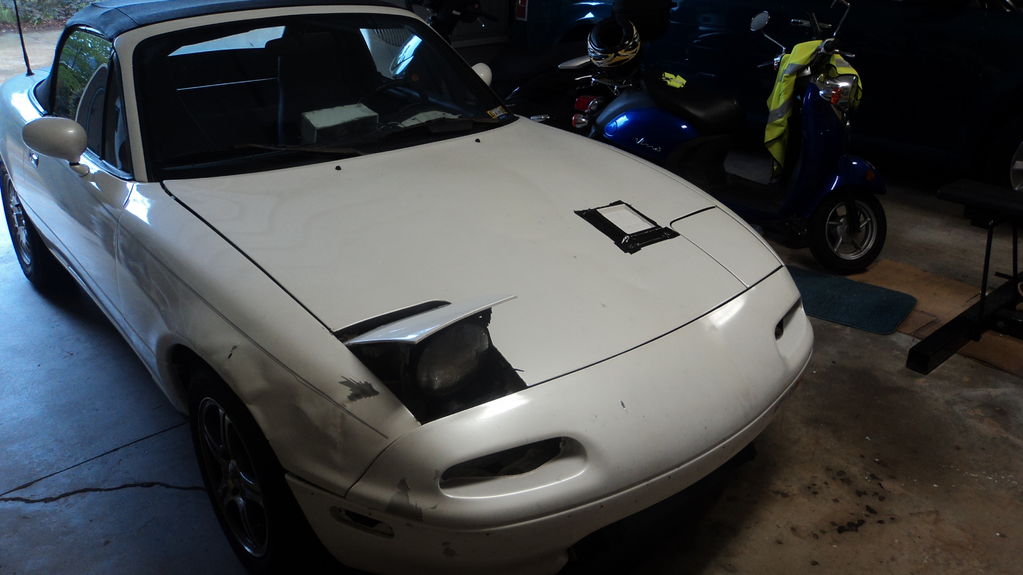

Project Cheap-dsc02690.jpg
Techsalvager is offline   Reply With Quote
Old 05-13-2012, 06:32 PM   #275
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Every time this thread gets updated, I expect to see pushrods, carbs or a distributor have found their way onto the car
Oscar is offline   Reply With Quote
Old 05-13-2012, 07:06 PM   #276
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by Oscar View Post
Every time this thread gets updated, I expect to see pushrods, carbs or a distributor have found their way onto the car
dont forget spikes and steel body panels like it was straight out of a post apocalyptic movie.
Pen2_the_penguin is offline   Reply With Quote
Old 05-13-2012, 07:18 PM   #277
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Oscar View Post
Every time this thread gets updated, I expect to see pushrods, carbs or a distributor have found their way onto the car
I'm starting to wish I had a MAF on my cars...basically anything that gets me closer to GM style engine management.
hustler is offline   Reply With Quote
Old 05-13-2012, 07:28 PM   #278
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Why? Elaborate. We're not too familiar with GM over here.
Oscar is offline   Reply With Quote
Old 05-14-2012, 06:34 AM   #279
Newb

Join Date: Dec 2011
Posts: 24
Total Cats: -2
Default

Quote:
Originally Posted by hustler View Post
I'm starting to wish I had a MAF on my cars...basically anything that gets me closer to GM style engine management.
I liked tuning my MAF equipped NA LS1.
Noxiousb4c is offline   Reply With Quote
Old 05-14-2012, 07:39 AM   #280
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Funny. A bunch of us ditch them and just run SD.
chpmnsws6 is offline   Reply With Quote
