Old 09-16-2010, 03:43 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by theshdwconspracy View Post
So confused. Just tell me what isn't going to work, I don't get what my DP has to do with the manifold and whether or not I have an EWG. The turbo is 5 bolt and so is the DP. Its not the separated gasses DP. It's a 3" which is going to take a lot of massaging to get to fit in the engine bay but I was aware of that. Something else I should be aware of???

have you ever tried to put a square peg into a round hole?
Braineack is offline   Reply With Quote
Old 09-16-2010, 03:47 PM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Mhmm, Is it just firewall clearance? or is there something even shittier I'm in for?
theshdwconspracy is offline   Reply With Quote
Old 09-16-2010, 04:43 PM   #23
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

is it made for that manifold?

the only thing that would be off would be the routing of the pipe if it bolts to the turbo.


it appears that it is made for ewg being that there is no bellmouth on it.
try it in your car... it might just be routed differently by a little and will need a few mods.
shlammed is offline   Reply With Quote
Old 09-16-2010, 05:13 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by theshdwconspracy View Post
Mhmm, Is it just firewall clearance? or is there something even shittier I'm in for?

Just because the DP was made for a miata doesn't mean it was made for YOUR turbo and YOUR manifold. that's what I'm getting at...
Braineack is offline   Reply With Quote
Old 09-16-2010, 05:39 PM   #25
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

You have to figure that the turbo can sit in any number of places next to the engine, depending on where the manifold places it, e.g. top mount, bottom mount, toward the front of the manifold, toward the rear of the manifold, etc. An inch off in any direction from the jig used to weld up the downpipe will mean that your downpipe won't fit.

You might get lucky though.
Trent is offline   Reply With Quote
Old 09-16-2010, 05:51 PM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Quote:
Originally Posted by Trent View Post
You might get lucky though.
*crosses fingers*
theshdwconspracy is offline   Reply With Quote
Old 09-17-2010, 04:55 PM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

So i ordered all my Oil feed stuff from Earl's this morning. I got the 10mmx1.5 to -3AN adapter, 36" of -3AN line and a -3 to 10x1.25 for the turbo feed.

Does that sound right? I followed the wiki just wanted to make sure people run -3 with success.

Exhaust is on order now and I can't wait to get this **** DONE. It's been too long in the making.

Also, thanks for the heads up on the DP, Reworking it won't be a huge deal because I have full access to a shop and that's where i'll be doing all my work, but at least now I know what I'm in for.
theshdwconspracy is offline   Reply With Quote
Old 09-17-2010, 05:13 PM   #28
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

-3 is what i have and it works fine for my .50/.58
leatherface24 is offline   Reply With Quote
Old 09-23-2010, 01:49 AM   #29
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Alright, Everything is here! Wednesday it all gets put together and Thursday it will be tuned and ready to rip. Hopefully the clutch holds up! I will keep you all posted on the build progress and Dyno numbers/sheet
theshdwconspracy is offline   Reply With Quote
Old 09-25-2010, 04:06 AM   #30
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

oh hey boys!

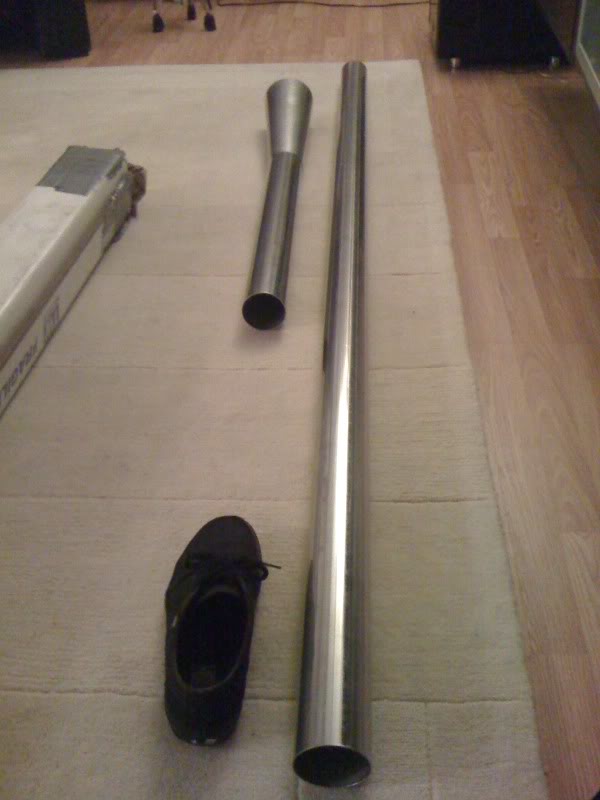

My exhaust got here today. Ps if you look closely you can see my muffler at the end of the exhaust

Name:  iphone9-24.jpg
Views: 4
Size:  42.6 KB

Also, pulled the pan from the spare motor to have a drain valve drilled and welded into the pan. Any advice for pulling the pan with the motor in car?
theshdwconspracy is offline   Reply With Quote
Old 09-25-2010, 04:17 AM   #31
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Thats not a T04E, thats an ebay t3/t4 50 trim. BIIIG difference.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-25-2010, 04:18 AM   #32
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Thats not a T04E, thats an ebay t3/t4 50 trim. BIIIG difference.
cool thx
theshdwconspracy is offline   Reply With Quote
Old 10-01-2010, 12:39 AM   #33
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Two full days and barely progress.

Had to drop my subframe for the spare oil pan which was tapped for the oil return.

That ate up a lot of time. ALSO, M-tuned manifolds are DICK. I had cut the bottom bolt holes so that i could slide them over the BOLTS i have to use because studs wont fit since the runners are practically touching the exhaust manifold. That ate up a lot of time.

Cut the excess sheet metal to fit the turbo in the car.

Have to modify the **** out of Jefe's old down pipe to get it to fit remotely close.

Now I just need to put the oil return hose on, Fit up the intercooler (90% Done), and setup the ECU (nightmare)


More progress tomorrow, hopefully...
theshdwconspracy is offline   Reply With Quote
Old 10-01-2010, 10:41 AM   #34
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Wow first i hear of issues like that with the M-Tuned rods. Get what you pay for?
leatherface24 is offline   Reply With Quote
Old 10-01-2010, 11:06 AM   #35
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Quote:
Originally Posted by leatherface24 View Post
Wow first i hear of issues like that with the M-Tuned rods. Get what you pay for?
He's talking about the manifold, not the rods.

But still, I don't think i've ever heard of problems with the manifold, maybe just the waste gate flange placement.

OP, any chance you could give us some pics to show us the problem?
viperormiata is offline   Reply With Quote
Old 10-01-2010, 11:19 AM   #36
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

lolz I failed. Here to make up for it

NSFW

http://www.youtube.com/watch?v=ZHpiP...layer_embedded

Last edited by levnubhin; 10-01-2010 at 12:54 PM.
leatherface24 is offline   Reply With Quote
Old 10-01-2010, 12:38 PM   #37
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Again with the NSFW posts with no warning Jared? How many is that?
sixshooter is offline   Reply With Quote
Old 10-01-2010, 12:57 PM   #38
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

my bad ill start taggin them
leatherface24 is offline   Reply With Quote
Old 10-01-2010, 01:24 PM   #39
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Thanks
sixshooter is offline   Reply With Quote
Old 10-06-2010, 01:11 AM   #40
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

ALRIGHT! Progress made though, not a ton of it. Got everything bolted up to the car and got all my sensors wired into the ECU and in their right place.

Car wouldn't start tonight though, I think...(hope) its because i need to jump the F/P-GND pins in my diag box. I have the ST SIGN fuse pulled but everything else seems to be in order. I checked for spark and it was confirmed so tomorrow morning i'll try again. Any other advice would be rad.


Took some iphone pics during my minimal downtime to be something to look at. I'm really bad at documenting builds cause i just want to get things done and don't have time for pics.


ANYWAY

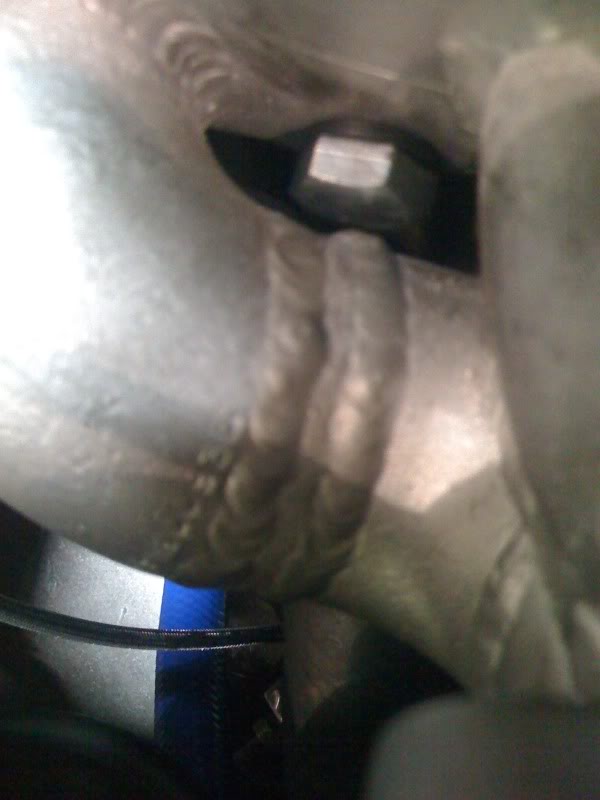

Manifold fitment:

This is off of cylinder 1 The others aren't AS extreme but still there isn't much room for anything. I ended up having to modify an open ended wrench by grinding the sides down in order to have enough room to get around the bolt enough to turn it.

Name:  iphone10-5001.jpg
Views: 3
Size:  37.2 KB

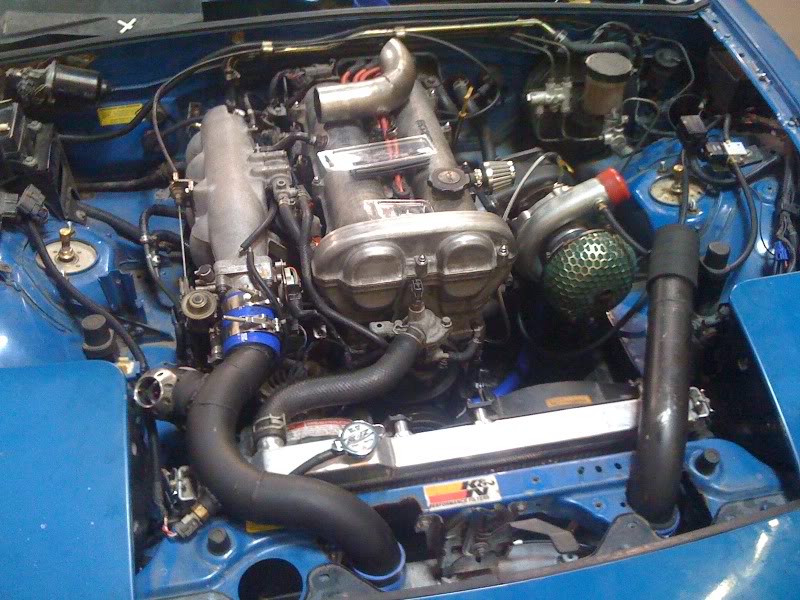

pics of the engine bay:

I have the pipe off the turbo built and on there although my I/C piping isn't ideal, it works, for now. I need this thing running first and foremost and then i can upgrade stuff as i go. Clutch and diff rebuild are up first then the detail work will come next. Priority 1 is get it running because i daily the thing and I have to work everyday.


Name:  iphone10-5002.jpg
Views: 3
Size:  114.2 KB

Name:  iphone10-5003.jpg
Views: 4
Size:  81.0 KB

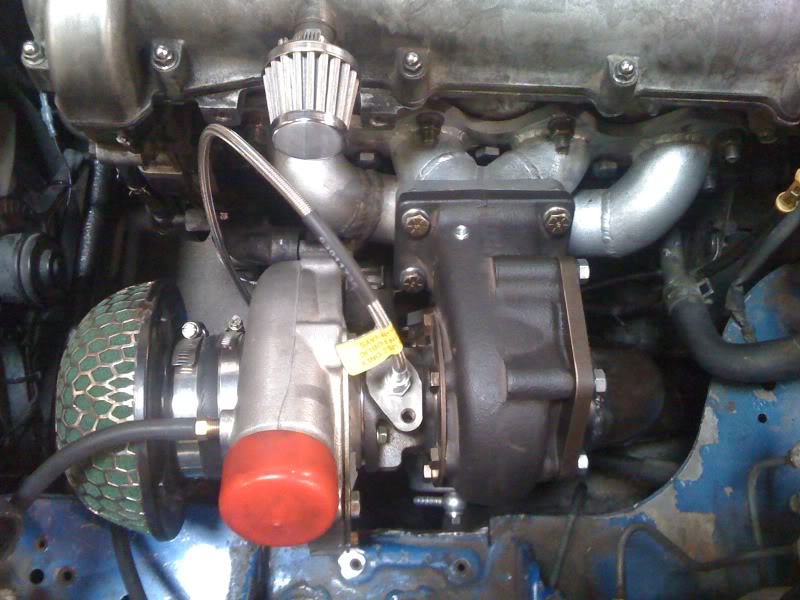

(edit) look at the manifold in this pic, you can see how tight all those bolts/studs fit. MAJOR pain in my ***
theshdwconspracy is offline   Reply With Quote
