KMiata

Well done guys, I know a ton of hard work has gone into this! I'm sure this class will be very popular.

emilio700

iTrader: (3)

To be fair, the entire worldwide Miata community played a contributing role. Andrew, myself a few other locals were busy developing parts but a lot of that design work was based on data points shared here on this forum.

Sonny and I joked that the awesome fireballs that Rover spits out might be written into the rules. "XX% injector D/C with TPS below 5%".

shuiend

iTrader: (24)

I mean if they can write sound limits into the rules, I am pretty sure making the car shoot fireballs is also valid rule.

k24madness

iTrader: (6)

Red Rover's a big boy now, it needs a new name!

Glad to to hear you're liking the aero. Turn 1 & 8 at thunderhill are 😳 with it.

KMiata

Right on. But at the end of the day, someone still has to take the reigns and help pull all the resources together, so hats off to you guys.

PaCHeKo!

Nice work Andrew! What a pleasure to see a fellow 200-220whp "heavy" turbo Miata on the track. I'll follow this thread closely.

engineered2win

Boy oh boy that looks bloody quick. This S1 class could really pave the way for a stardardized, reliable, track turbo setup (cooling, engine management, engine internals). Also interested to see what the wear rate is on AZ6's, front wheel bearings, brake pads, etc.

I want to step up from DE to TT "soon" and am smacking my lips at TT4. I'm confident this EFR turbo BP setup would handedly beat a n/a Ecotec miata in TT4 with around 210whp average. I drive my car to the track and pull a tire trailer, so my overriding priority is reliability. I know that quite a few guys track their turbo miatas on here, but I've seen quite a lot at NASA events that are not reliable, so I'm still a bit wary. I don't want to be stuck 8 hours from home at Road Atlanta because something broke and I can't find a replacement. The stock BP4W engine has been dead nuts reliable, so I don't want to lose that quality. If only Kmiata was TT4 legal...

joyrider

iTrader: (8)

With your new suspension, I'll want to try your car if it's that fast !

Need some front aero, just do S1 front aero NOW !

The spool of the turbo remind me my old AVO manifold and 2560 combo, no lag full boost below 3k RPM.

The CAD to USD is shitty, thank god .... (I need to save for a TSE turbo kit..)

emilio700

iTrader: (3)

Really though, it is the other way around. Bringing the platform to the point now where all these things are known solutions and easily repeatable made S1 possible.

Savington

iTrader: (31)

What E said. It's very much the other way around. S1 is the result of a long path of development, starting with Theseus way back in 2007. If the cooling, EMS, and internals hadn't been sorted over the last 10 years of racing turbo setups of all varieties, with pertinent info shared between several shops and independent sources, we wouldn't be able to use the lessons learned then to build reliable race cars today. Even the current EFR setups have spent a year in development on my street car (Acamas, build thread in the Build Thread section) with good results.

It's very easy to build an unreliable one. A little harder to build a relaible one, but starting with good core components that don't fall apart under hard competition use is one of the many secrets. I don't think anyone else is producing components that hold a candle to ours when it comes to competition reliability. If we can put together a fleet of reliable S1 racers based on the lessons we've learned, then we can share the build details and demystify the secrets behind building one of these little beasties yourself.

jacob300zx

I'm just checking in to make sure fireballs are written into the rules.

Savington

iTrader: (31)

After much hand-wringing and research, I tackled the flares yesterday and today. There's no good writeup online so hopefully this can guide some folks looking to run big rubber on their NA.

These are Carbonmiata Carbon/Kevlar flares, ~$600 shipped to the US. Fitment was pretty good, all things considered, The fender line is not correct in the front (as Emilio mentioned in his K20 build thread), but dropping the rear of the flare by ~1" fixes that. I didn't even snap photos of the front, since it's a pretty simple process. Drill the flare first, hold it in place, centerpunch five holes, drill for rivnuts, install flare, mark upper edge, remove, and trim fender for clearance.

The rears, however, were comparatively far harder. The fronts took me 30min. The first rear quarter took me almost 5hrs because I cut too much off the quarter. The second one was ~2.5hrs, and that's the one I photographed.

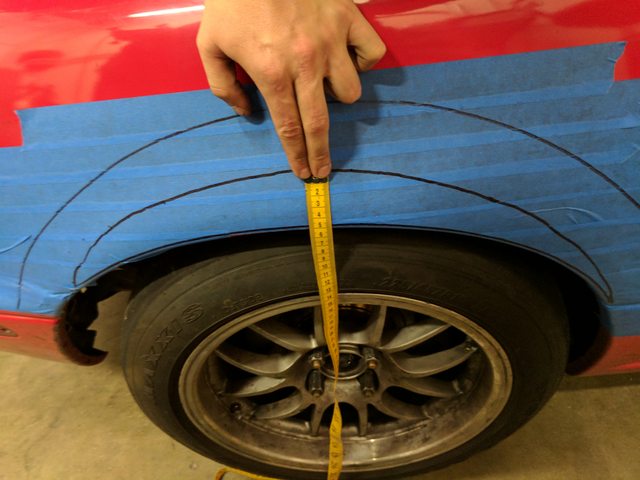

I started by taping off the entire quarter. I opted to cut the quarter first, do all the welding, then install the flare last, since the quarter is going to move and shift slightly during this process. The top line is the outer edge of the flare, so don't cut above that. The middle line is my first cut point. On the left side, I cut too far up, and ended up having to trim a section of the discarded quarterpanel to weld back in. Don't do that. It's hard and time consuming. Measure 50mm up from the fender lip and don't cut anything above that. This will give you a quarterpanel which is just as tall as the stock inner fender is, so you'll have maximum tire clearance.



Cut along the middle line. Since the inner fender is RIGHT behind this, you do not want to use anything except a death wheel, and you want to go very slow and make sure you're only cutting through the outer quarterpanel. I cut a little too deep at the front edge of the car which sucked to fix later. You also want to cut through both the inner and outer skins just above the fender lip. This separates the outer skin from the inner skin. Once that cut is done, you can also nip the fender lip off, since it will just be attached at the two corners.

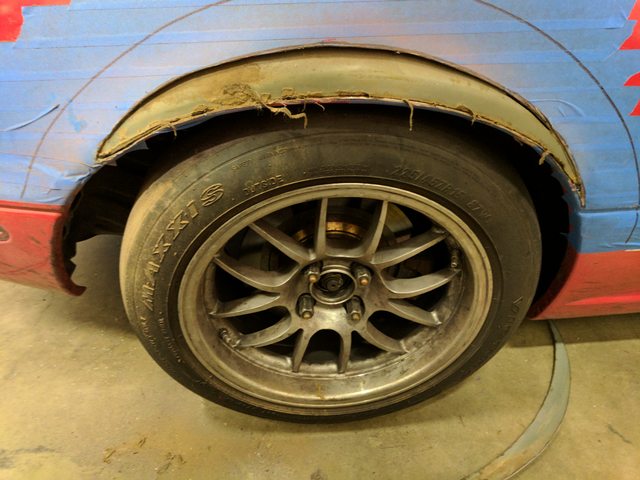

You'll be left with the inner skin not quite pressed up against the outer skin.

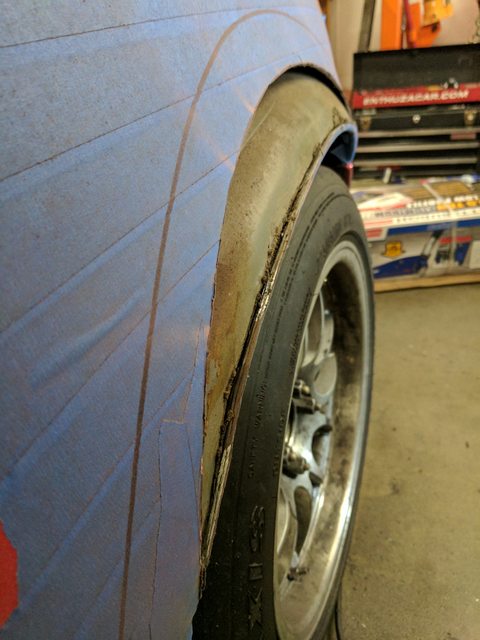

If you cut too far, you'll end up with a big gap between the two. There's no way to make this gap up without adding metal back in (trust me, I tried).

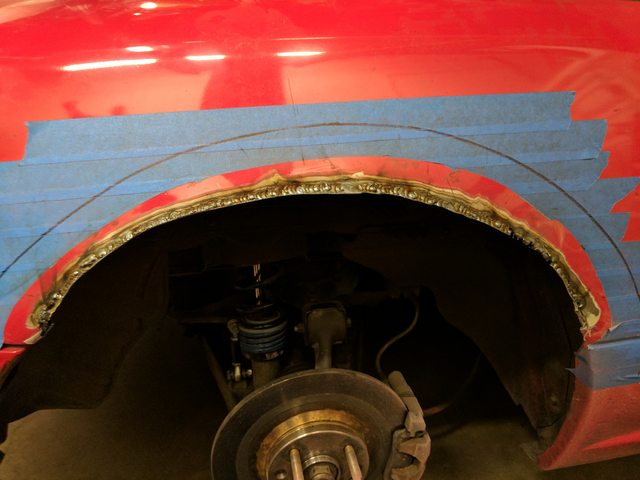

Time to weld. Hammer the inner skin up to meet the outer skin. I started by cutting most of the inner skin off with a Sawzall, leaving ~1/2" to weld to. Grind all the paint and zinc back to bare metal, then tap the skin up, clamp, weld, repeat ~25 times all the way around. Once it's tacked in place, I did the entire thing with tack welds, making sweeps from the rear to the front.

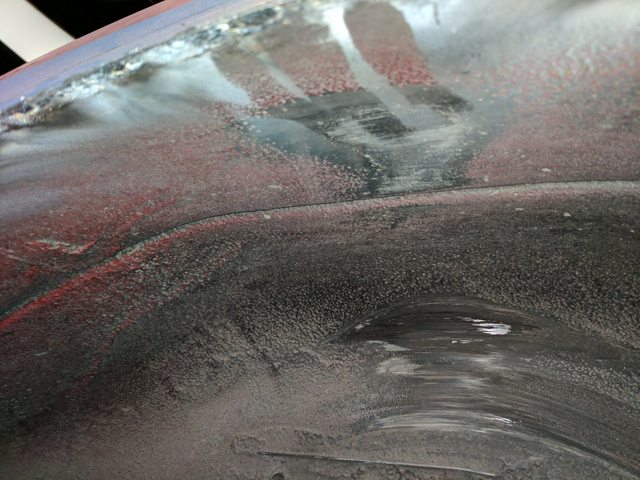

Going 50mm up leaves the inner skin nice and close to the outer, but still gives you as much tire clearance as possible. You can see the polish marks from the tire on the top of the fender. The weld is at the same height as the top of the fender here, although it's a little hard to see.

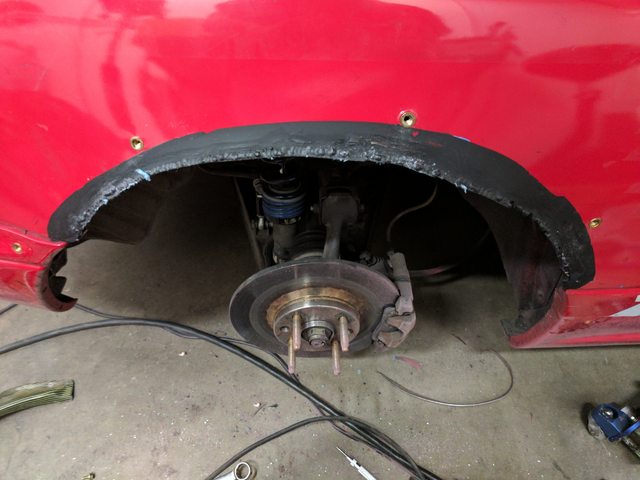

Grinders and paint make me the welder I ain't. (anyone else watch AvE?)

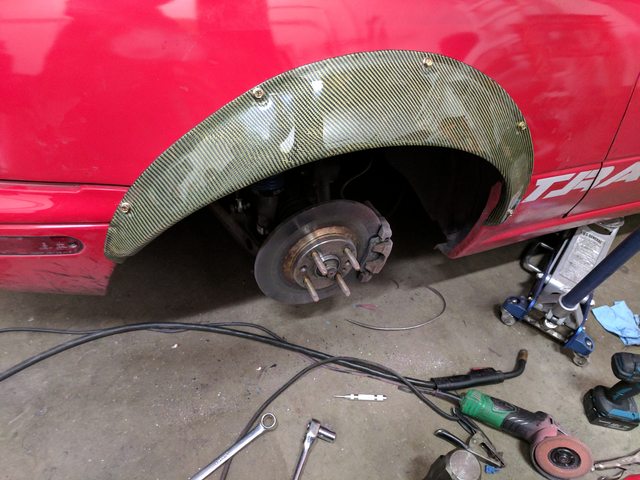

Finished product. A little too much flare for a 245 Maxxis, but I know the Hoosier is wider, and I may decide to trim back the lip of the flare and squeeze a 275 under these at some point.

emilio700

iTrader: (3)

Boss

nbfather

Nicely done !
I can't fathom the thousands of guys looking for a how to on these.
Probably deserves its own thread for "searchability."
Great write up and pics!

If it took you 8 hours to do this.....I better book a week!

Scaxx

I have carbonmiata's long style flares and I can confirm it's just a touch too much flare for a 245 maxxis. I cut my quarter panel a little too high as well, I didn't have to weld any extra material in there but I did have to do a bit pounding with a bfh to get the inner structure to be close enough to weld. Nice job though, they came out nice.

dleavitt

iTrader: (1)

Those flares look pretty skookum!

d k

iTrader: (4)

Awesome!

can we see pics of wheel fitment?

emilio700

iTrader: (3)

Pics of Deviate in that thread and Rover in TSE's thread, both with Carbonmiata flares. Andrew took the time to document the install for the community (props!)

Savington

iTrader: (31)

15x10 +25 6UL, 245/40 Maxxis RC-1, stock NA rear uprights, 2.5deg camber. I am going to swap the flange hex bolts for some button cap screws, but the flange hex bolts are what I keep around for assembly stuff.

d k

iTrader: (4)

I agree.
It was very nice of him to do that and help the community.

I will be embarking on this journey shortly.
