Default Scrat - IRTB Build

On a whim I became a Miata Guy. Bought this the day after V-Day '09 and got to drive it on weekends for a whopping 9 months before I decided to do a ground up restoration. Rockin' on Day 1 with 17s


Got a steal from a guy who just bought a M3 and didn't want it anymore. Came with a T-25 turbo, MOMO seat and steering wheel, roll bar, and little else including HVAC. Oh, and a permenant oil changing system from all the leaks but I didn't care. At first.



Come to find out, the manifold had a small warp and after sucking two gaskets, I decided to address the issues and rid our garage of the rotating cardboard pieces used to absorb the dripping oil. Having owned several English cars and a 510 with side draft carbs, I decided to pay a little homage to the English cars of yore and restore the whole damn car and go with IRTBs. Out with the old...



...and in with the new.



About 90% of the electrical clips broke during disassembly and the engiine bay was a really sweet two-tone red from a previous master cylinder leak and "touch up". I ended up getting a whole new wiring harness and painted the bay Rust-Oleum speckle grey to help cover the sins.
Some of the rebuilt motor/transmission includes:
-Capri VC powder coated and pinstripped with oil catch can bungs welded in.
-Joy Fast VC dress up bolts from Rev9
-TODA Racing adjustable cam gears
-Gates Racing timing belt
-Integral cams... Stage 3 intake and stage 2 exhaust
-All new valves, springs, guides via 949Racing
-Cometic head gasket
-Racing Beat exhaust header
-79mm pistons 10.6:1 pistons and rods via 949Racing
-New bearings, polished crank, and a bunch of labour at Miller's Automotive.
-ARP main bolts and head bolts
-OEM oil pump, water pump, gaskets, thermostat, all new plumbing, and a laundry list of other small things from the dealership.
-Bosch alternator
-Rebuilt transmission and SPECS stage 2 clutch and flywheel.
-New baffle, pick-up tube, dipstick, dipstick tube - all OEM
-ISC Racing oil pan powder coated to match VC.

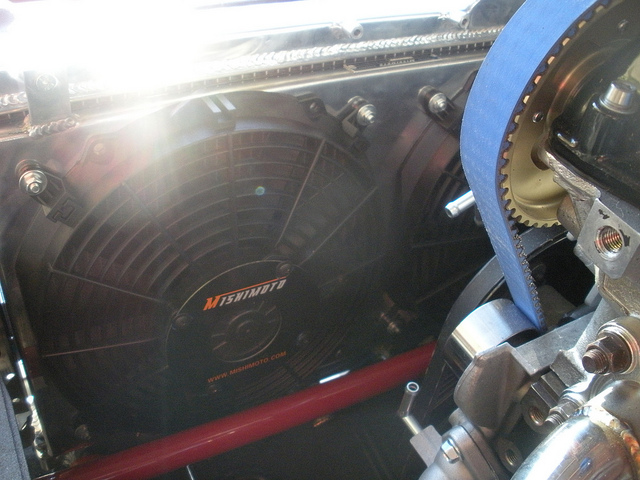

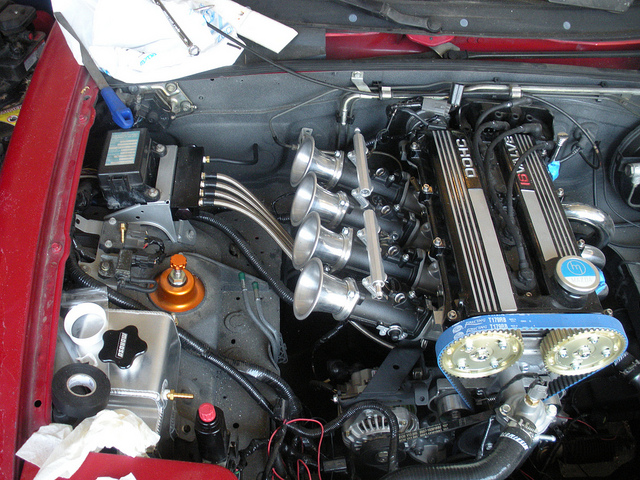

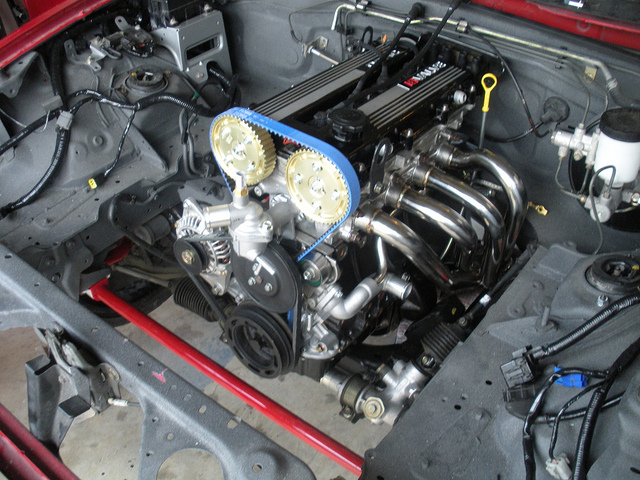

Here is a more recent shot of the engine bay after installing the Mishimoto radiator and fans as well as the Jenvey IRTBs.






Being an almost two year restoration and not really just a quick rebuild, I took my time and saved up for a variety of parts and pieces. Some will certainly be flame worthy, I'm sure, and some will be MT Approved like this and was one of the main reasons I joined MT.net



I'll post up the parts and pieces shortly.

TL;DR - Car is currently at TDR in Dallas getting the last few things wrapped up i.e. fuel pump/filter, some plumbing, suspension tuning, engine tuning. Hoping to have it back mid-November and then onto body and paint. As I last saw the car.

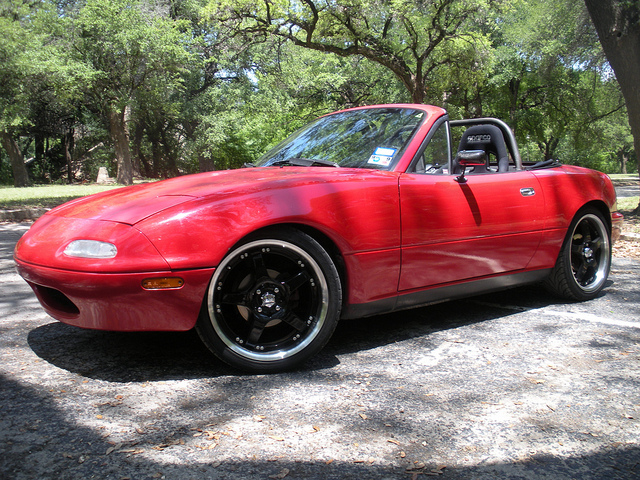

Attached Thumbnails

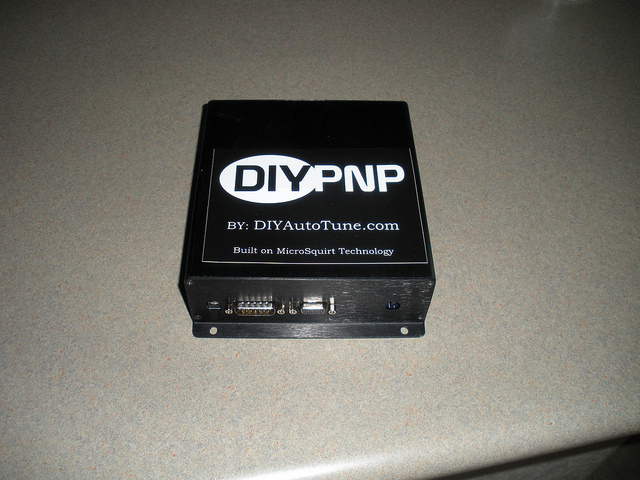

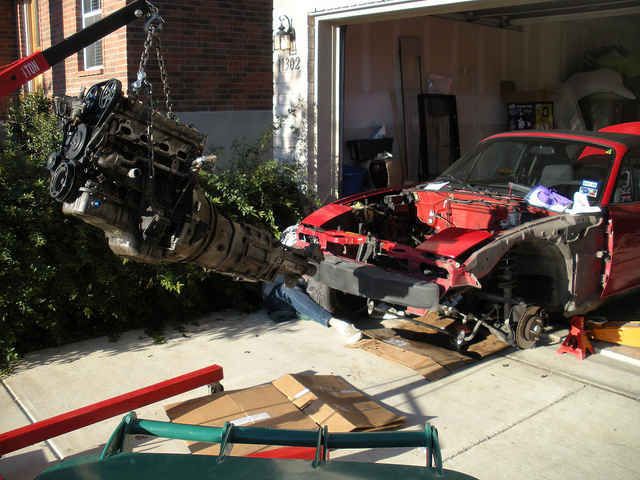

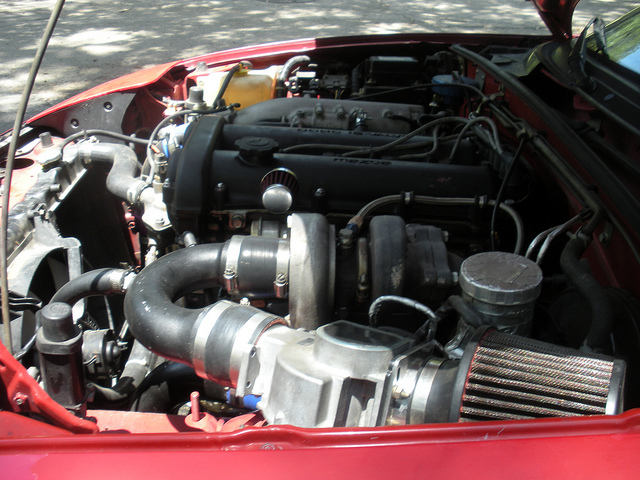

Scrat - IRTB Build-5060072429_ec6934190b_z.jpg   Scrat - IRTB Build-5060654258_e539d8a647_z.jpg   Scrat - IRTB Build-5060234977_7cd80c341b_z.jpg   Scrat - IRTB Build-5060658506_84ea7ee85c_z.jpg   Scrat - IRTB Build-6062303705_5dcfdc0922_z.jpg

Scrat - IRTB Build-5437460188_f907bb1724_z.jpg   Scrat - IRTB Build-5842927286_4b796e5d55_z.jpg   Scrat - IRTB Build-6193371862_7981d5cba1_z.jpg
Stoly is offline   Reply With Quote
Old 10-12-2011, 03:09 PM   #2
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Very cool, but I would build a plenum and put the turbo back on

Have you dyno'ed it yet?
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-12-2011, 03:27 PM   #3
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

Very clean engine and engine bay. That is an attractive motor.
sixshooter is online now   Reply With Quote
Old 10-12-2011, 03:31 PM   #4
I'm Miserable!
Thread Starter

Join Date: Oct 2010
Location: San Antonio, TX
Posts: 27
Total Cats: -10
Default

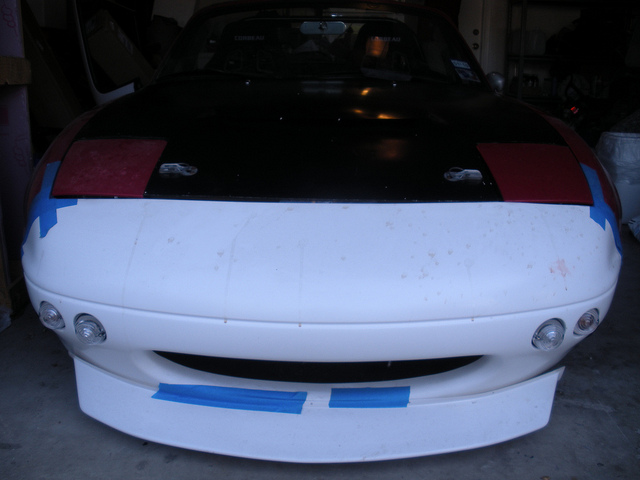

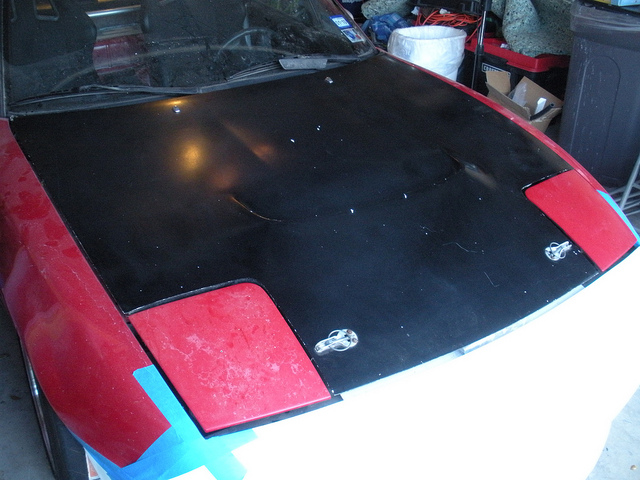

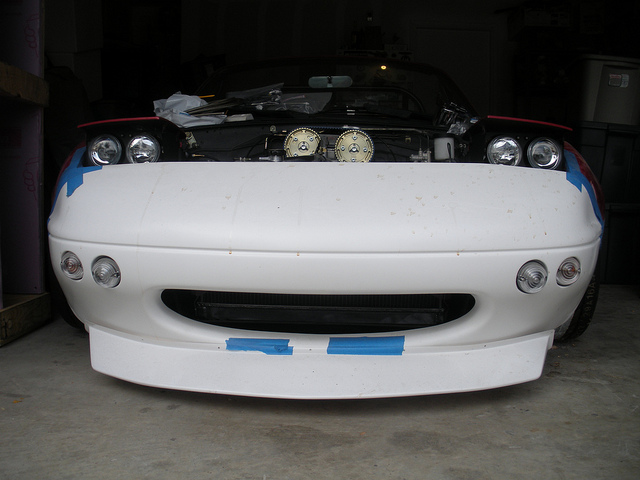

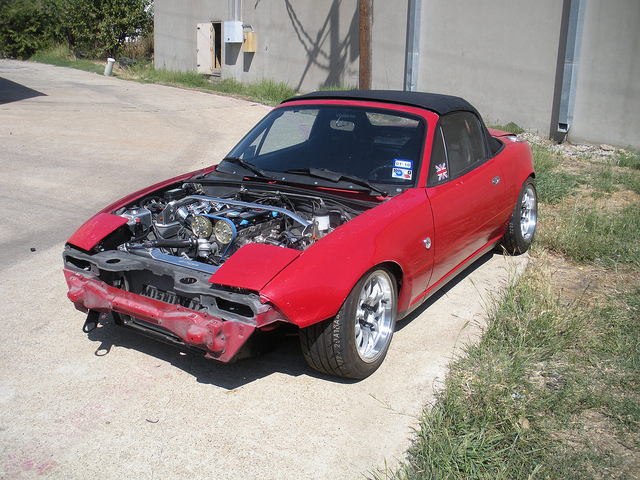

Exterior parts and pieces for the body shop include Barchetta front bumper, TRAP 120mm lip, MOSS lo-pro lights, and GV extractor hood.

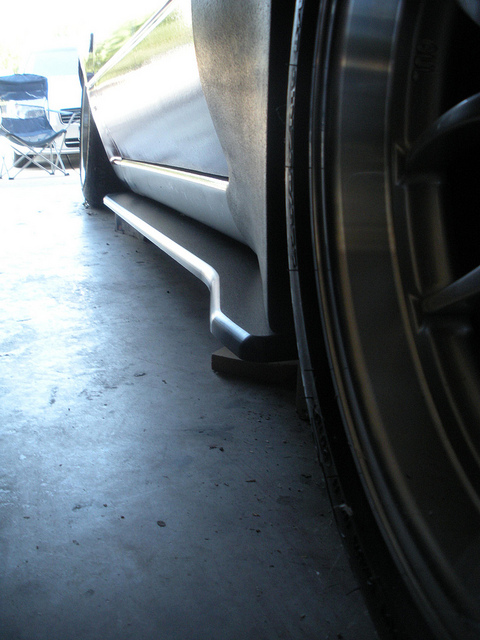

Project-G side skirts.



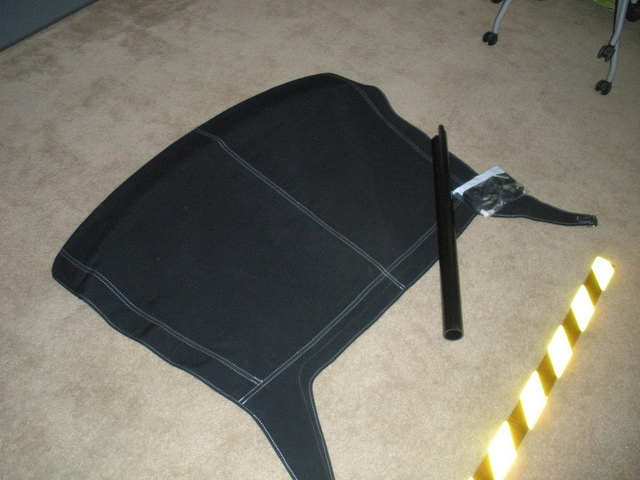

Project-G bikini top.

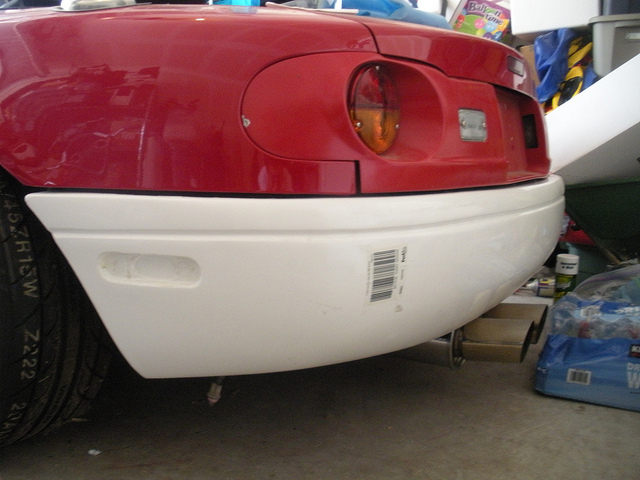

GV Tails and Simpson shorty bumper.

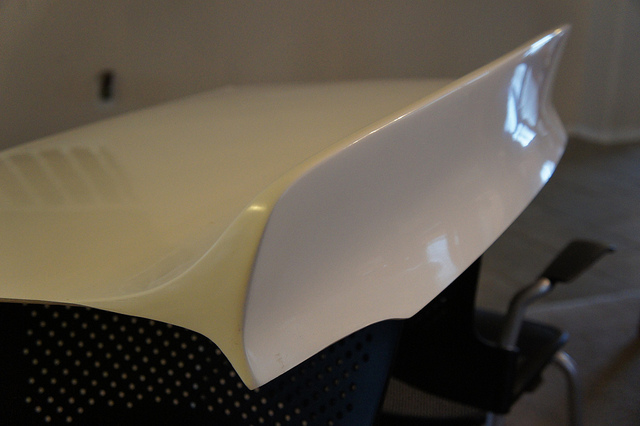

YSCC trunk.

Attached Thumbnails
Scrat - IRTB Build-6177743379_5c6794be5f_z.jpg   Scrat - IRTB Build-6177738091_148d306066_z.jpg   Scrat - IRTB Build-6039420347_7386f72c17_z.jpg   Scrat - IRTB Build-6042111042_faa434f51e_z.jpg   Scrat - IRTB Build-5964529567_972596e9ab_z.jpg

Scrat - IRTB Build-5867433672_ce619c6e1d_z.jpg   Scrat - IRTB Build-6223826409_b5e061ed36_z.jpg
Stoly is offline   Reply With Quote
Old 10-12-2011, 03:31 PM   #5
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Welcome, Stoly!
viperormiata is offline   Reply With Quote
Old 10-12-2011, 03:32 PM   #6
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Love this build. When it's done right, all motor is sexy time. Can't wait to see this thing in real life! Definitely a retro-ish look going, which again, when done correct looks oh so nice.
FRT_Fun is offline   Reply With Quote
Old 10-12-2011, 03:35 PM   #7
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Proud Supporter!!

Motor looks fresh. I r jelly.

I think that combo of exterior parts is going to look mean as **** once its buttoned up and painted.
Vashthestampede is offline   Reply With Quote
Old 10-12-2011, 03:44 PM   #8
I'm Miserable!
Thread Starter

Join Date: Oct 2010
Location: San Antonio, TX
Posts: 27
Total Cats: -10
Default

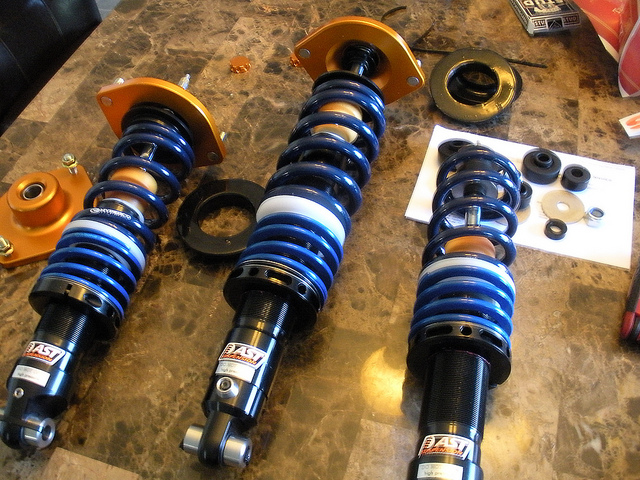

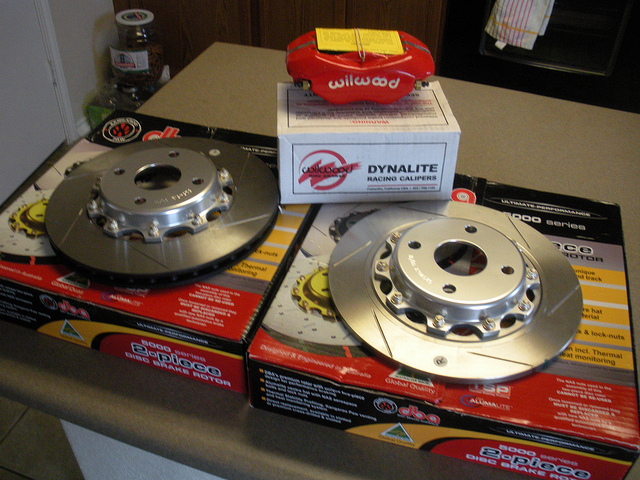

Wheels, tires, brakes, suspension, and bracing parts and pieces in random order as I go through my Flickr pages...

BBK.

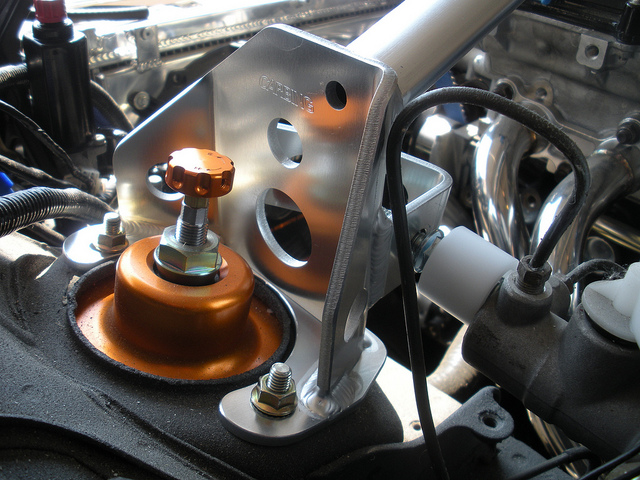

Carbing STB.



XIDA-S 700/400 w/ helper spring option.



RB front sway bar (rear OEM sway bar delete).

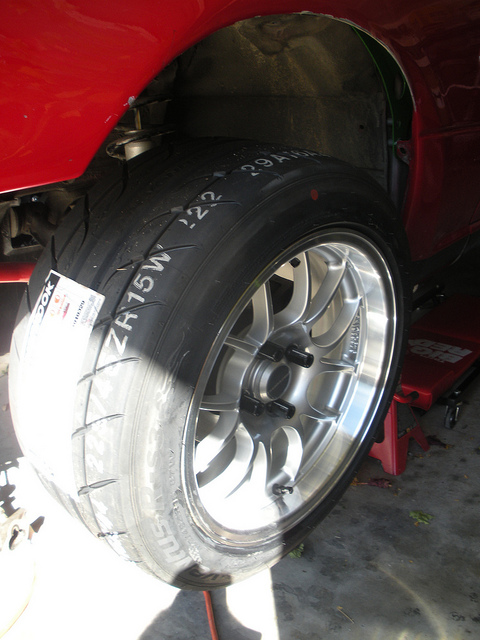

6ULs 15X9 w/ R-S3s 225/45/15



Boss Frog arms.

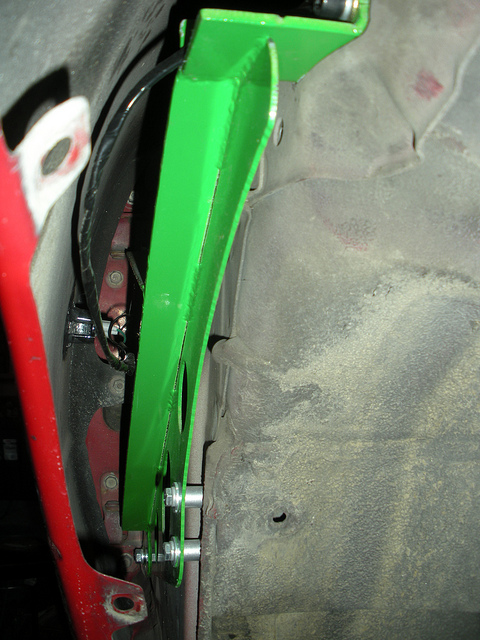

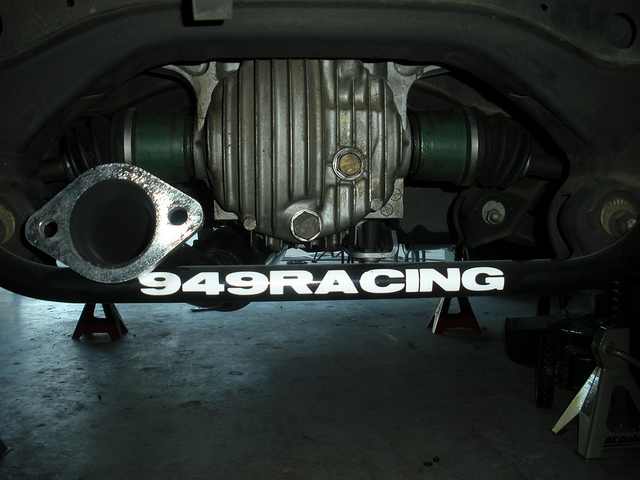

949Racing rear brace.

Attached Thumbnails
Scrat - IRTB Build-6133510510_5ff9fa3c4b_z.jpg   Scrat - IRTB Build-6090210344_539582976e_z.jpg   Scrat - IRTB Build-5666312491_29655d5160_z.jpg   Scrat - IRTB Build-5437462076_087626b9d9_z.jpg   Scrat - IRTB Build-5395778321_6f1603bd32_z.jpg

Scrat - IRTB Build-5062538778_8c11f40673_z.jpg   Scrat - IRTB Build-5061927063_a5a3754f46_z.jpg
Stoly is offline   Reply With Quote
Old 10-12-2011, 03:49 PM   #9
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Normally I could care less about side skirts, but I approve !! Im looking them up now
240_to_miata is offline   Reply With Quote
Old 10-12-2011, 04:02 PM   #10
I'm Miserable!
Thread Starter

Join Date: Oct 2010
Location: San Antonio, TX
Posts: 27
Total Cats: -10
Default

Thanks guys! Some miscellaneous stuff...

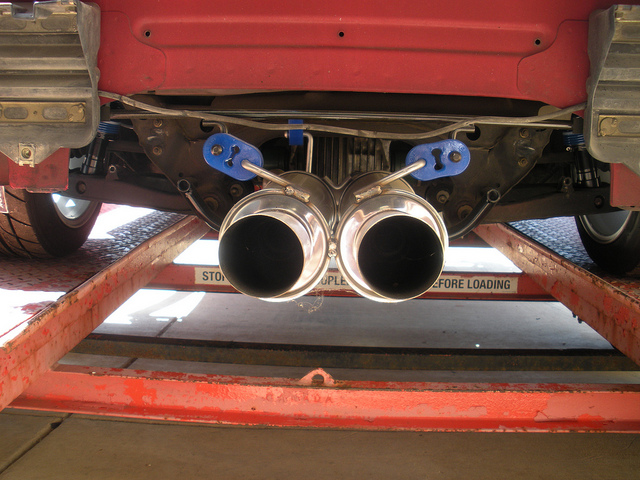

St. May exhaust.

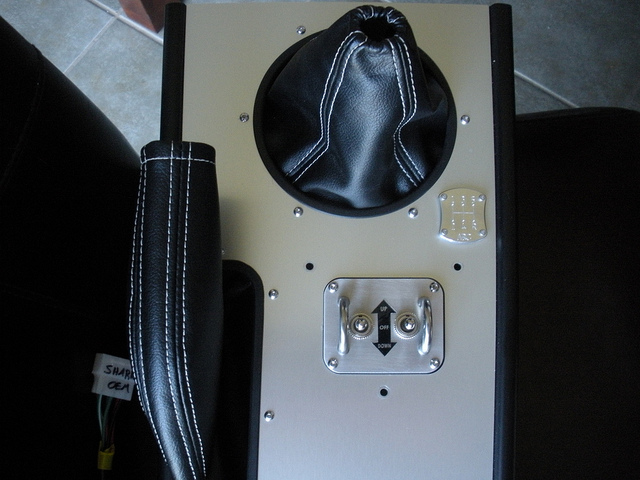

ZOOM center console & revlimiter window switch.

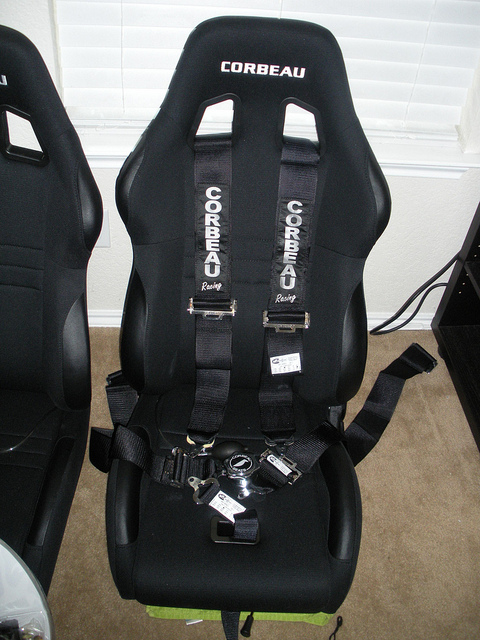

Corbeau A4 seats & harnesses.



Self-Flaming Moment! Wanted a more comfortable seat and whilst they fit, they are too tall with the Corbeau slider brackets. Looking at getting some custom brackets made so I can use them. If not, I'll sell and start over. My goal is to be able to take the car on longer trips ergo the desire for a recling/lumbar seat.

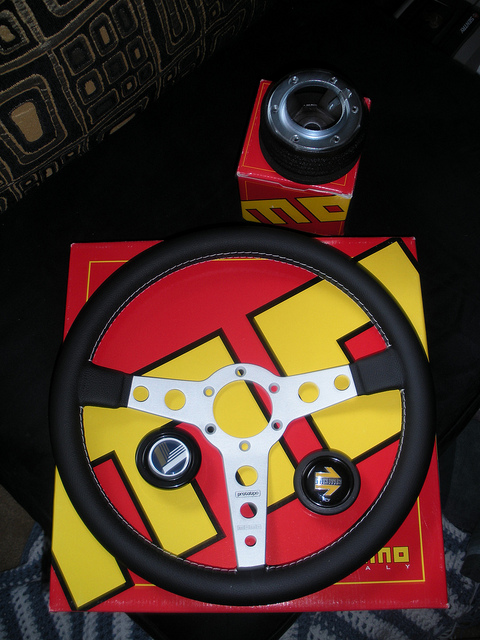

MOMO wheel and hub.

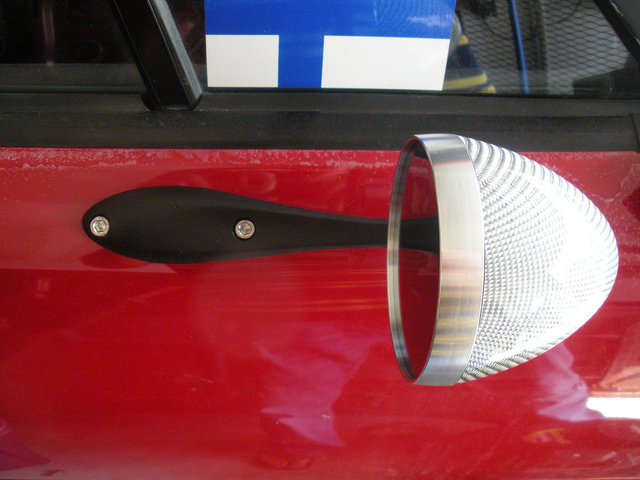

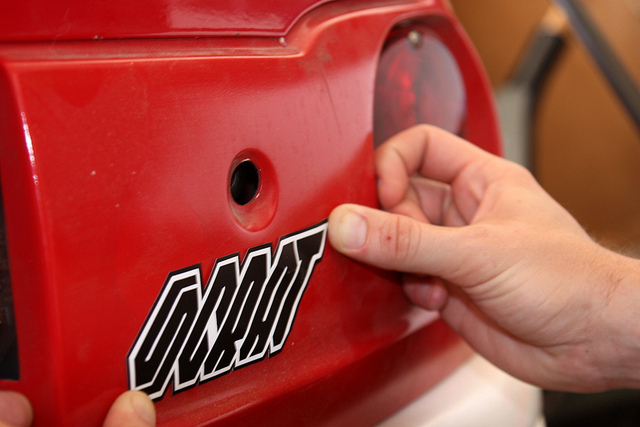

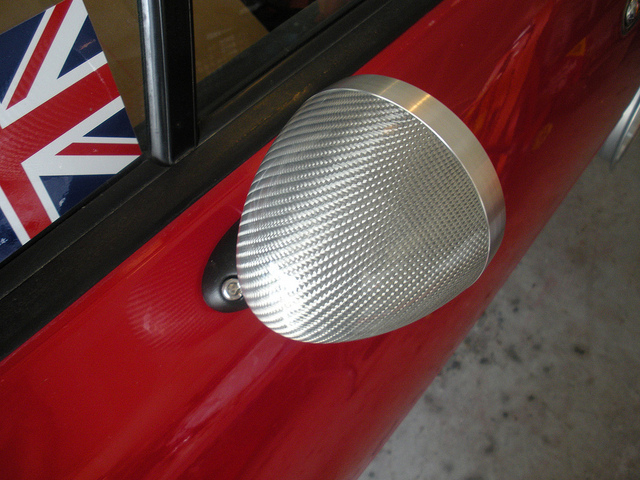

ZOOM mirrors w/ long arm option. Carbon fibre sections will be painted to match the body and stickers will be removed.

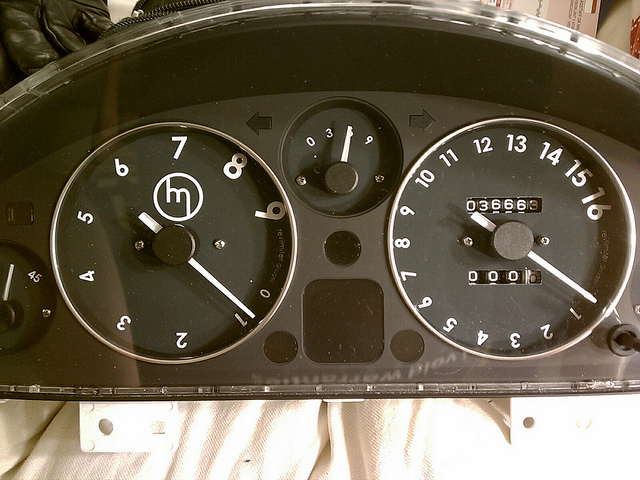

Custom revlimiter gauge faces.

Attached Thumbnails
Scrat - IRTB Build-6189634348_d3ccb95b8b_z.jpg   Scrat - IRTB Build-5969335632_7cf33bbb3c_z.jpg   Scrat - IRTB Build-5916176607_713ed7689f_z.jpg   Scrat - IRTB Build-5910050498_b03fb8c1da_z.jpg   Scrat - IRTB Build-5811983367_c5fe39e380_z.jpg

Scrat - IRTB Build-5204353521_94cfddcc0a_z.jpg   Scrat - IRTB Build-5204351409_d335416793_z.jpg   Scrat - IRTB Build-5148222203_29024721a0_z.jpg
Stoly is offline   Reply With Quote
Old 10-12-2011, 04:54 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,579
Default

Progress looks ******* and looks like the work/attention to detail is top notch. Pretty damn nice build for sure,


except,


Is "pay homage to...." really the only reason you want from f/i to n/a? With your skills you could have a monstrous turbo setup, just wondering why you chose n/a.
I'm not hating because you pulled it off quite well, just wondering.
18psi is offline   Reply With Quote
Old 10-12-2011, 06:08 PM   #12
I'm Miserable!
Thread Starter

Join Date: Oct 2010
Location: San Antonio, TX
Posts: 27
Total Cats: -10
Default

Quote:
Originally Posted by 18psi View Post
Is "pay homage to...." really the only reason you want from f/i to n/a? With your skills you could have a monstrous turbo setup, just wondering why you chose n/a.
I'm not hating because you pulled it off quite well, just wondering.
Thanks, and no. Well yeah, kinda. Two years ago I was naive and bought into the IRTBs-add-tons-of-power hype. They were one of the first things I actually bought once I decided to restore the car. So, at the time, it seemed like the best of both worlds. Fast forward to now and though I've learned a lot of hard lessons I have no regrets. It'll look and sound great and already reminds me of my old bug-eye Sprite. Future power mods? Perhaps. 'IRTB and turbo' rolls off the tongue quite nicely. In the interim, I can't wait to actually have a driveable car.

P/S - Full Tilt Boogie - Not running yet but will post up dyno's once it finally does.
Stoly is offline   Reply With Quote
Old 10-12-2011, 06:14 PM   #13
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by 18psi View Post
Is "pay homage to...." really the only reason you want from f/i to n/a? With your skills you could have a monstrous turbo setup, just wondering why you chose n/a.
I'm not hating because you pulled it off quite well, just wondering.
I asked him the same thing the first time I met him.
yellowihss is offline   Reply With Quote
Old 10-12-2011, 06:41 PM   #14
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Phenomenal build quality you have going, nice work!

Sam
Renown Performance
Renown Performance is offline   Reply With Quote
Old 10-12-2011, 07:46 PM   #15
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

c c c **** that is a nice build.
Faeflora is offline   Reply With Quote
Old 10-12-2011, 11:53 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Gorgeous engine, always loved the cleanliness. Why oh why haven't you done a reroute though? If anything just for more cleanliness.
curly is offline   Reply With Quote
Old 10-13-2011, 01:53 AM   #17
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

I'm loving every bit of this car! Not gonna lie, I'm really jealous of your valve cover. I dunno what it is about them, plus I can never seem to find them. Where did you manage to find it??
Gryff is offline   Reply With Quote
Old 10-13-2011, 03:09 AM   #18
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Wow! Very nice! A lot of this reminds me of what I intend to do soon. Is that Jenvey ITB's I see? I didn't see anywhere what kind they were. Look forward to seeing dyno numbers, curious to see what it makes. Mine will be very similar except 1.8 instead of the little guy.
NA6C-Guy is offline   Reply With Quote
Old 10-13-2011, 03:47 AM   #19
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

Sweet work!
Mobius is offline   Reply With Quote
Old 10-13-2011, 05:27 AM   #20
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by NA6C-Guy View Post
Wow! Very nice! A lot of this reminds me of what I intend to do soon. Is that Jenvey ITB's I see? I didn't see anywhere what kind they were. Look forward to seeing dyno numbers, curious to see what it makes. Mine will be very similar except 1.8 instead of the little guy.
Quote:
Here is a more recent shot of the engine bay after installing the Mishimoto radiator and fans as well as the Jenvey IRTBs.
FRT_Fun is offline   Reply With Quote
