Old 04-11-2013, 10:55 AM   #61
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

The DP slips inside my test pipe. It is clamped together with a wide strap with two bolts to hold it together:

Dynomax Strap Band Clamps - JEGS

My muffler connects the same way to the exhaust piping and is very secure using the exact same clamp. The DP can slip out if I tug hard enough even though it's tightened as tight as I could get it.
Taifighter is offline   Reply With Quote
Old 04-11-2013, 10:56 AM   #62
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

get a better/smaller clamp?
18psi is offline   Reply With Quote
Old 04-11-2013, 11:02 AM   #63
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

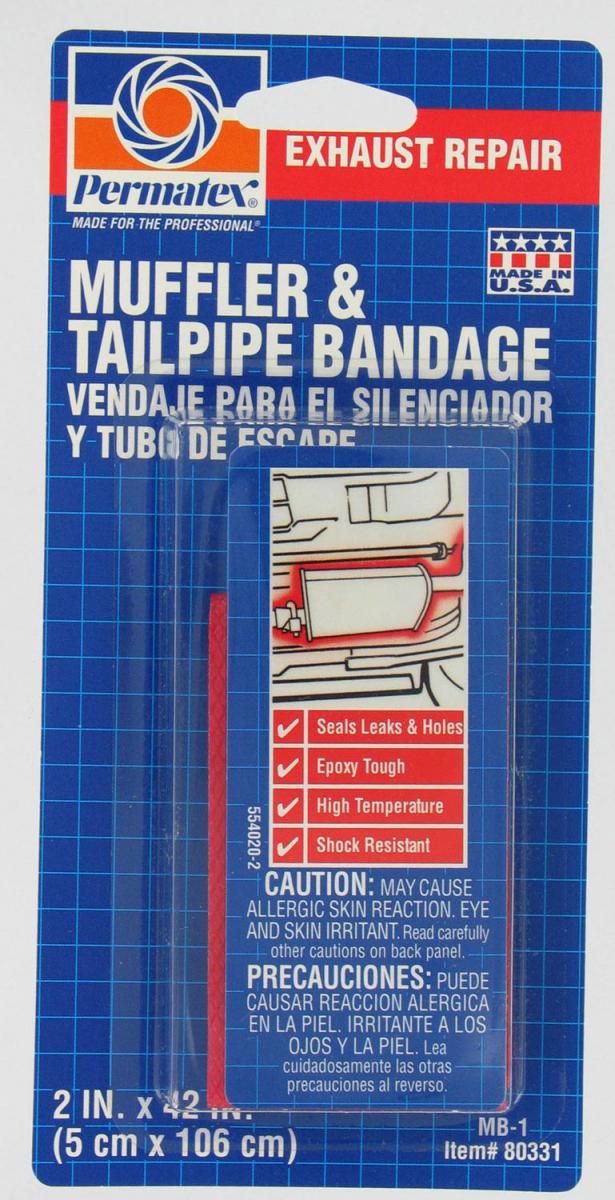

those things work great for me. Use permatex exhaust seal tape underneath it and eventually it welds together. I couldn't even get one of those off when i wanted to go back and weld in the resonator i installed with those clamps.




notice the one on the far side and welded on the other:

Attached Thumbnails
Taifighter is building a Miata-permatex_80331_muffler_and_tailpipe_bandage.jpg
Braineack is offline   Reply With Quote
Old 04-11-2013, 11:04 AM   #64
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

I'll check in to that, I think it def needs attention.

Still about a week out on the rest of my parts so I've got some down time to see what I can do.
Taifighter is offline   Reply With Quote
Old 04-14-2013, 01:55 AM   #65
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

****. How hard is it to package the correct stuff? Heat shield, wrong. Oil line, wrong. Coupler, wrong. Instructions, wrong. Heat wrap, missing. I feel like I'm at a McDonalds drive thru.
Taifighter is offline   Reply With Quote
Old 04-14-2013, 09:14 AM   #66
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Taifighter View Post
****. How hard is it to package the correct stuff? Heat shield, wrong. Oil line, wrong. Coupler, wrong. Instructions, wrong. Heat wrap, missing. I feel like I'm at a McDonalds drive thru.
it's pretty easy when you have a list to check off during packing...

Braineack is offline   Reply With Quote
Old 04-14-2013, 10:38 AM   #67
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Maybe they were trying to do it from memory, like a good waitress at a fancy restaurant would do?
Taifighter is offline   Reply With Quote
Old 04-14-2013, 04:02 PM   #68
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

I can see maybe getting one thing wrong, everyone makes mistakes.
But it sounds like they didn't even look at your order...
Begi?
Erat is offline   Reply With Quote
Old 04-14-2013, 05:55 PM   #69
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Correct.
Taifighter is offline   Reply With Quote
Old 04-17-2013, 10:06 AM   #70
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

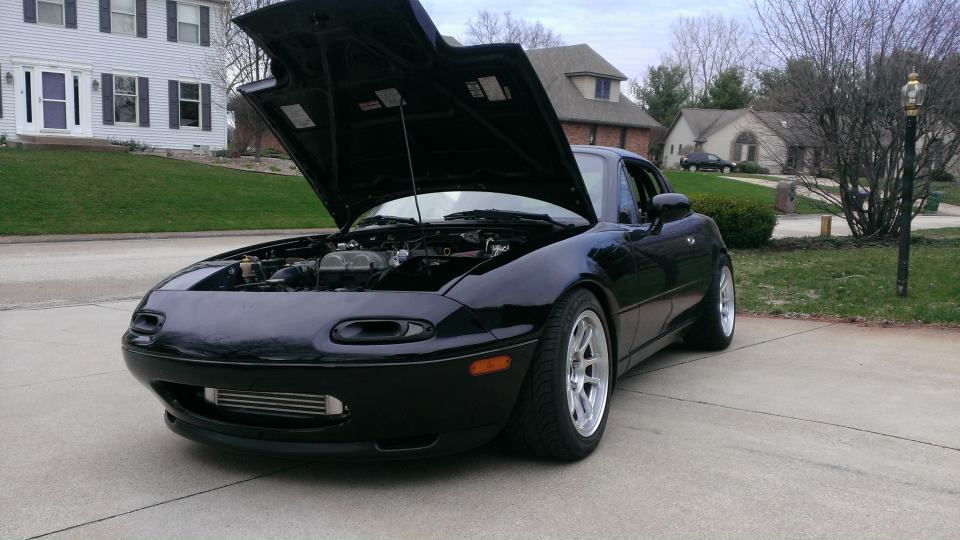

Drove around the block last night.
Attached Thumbnails
Taifighter is building a Miata-09f6e780bfa5366be1e4615a708090f7.jpg
Taifighter is offline   Reply With Quote
Old 04-17-2013, 10:10 AM   #71
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Looks like I need to run a restrictor, there's a small amount of oil in my inlet tube.

I've also got to chase down a coolant leak on the driver side.

My MegaSquirt issues have been taken care of... sort of. I ran the program as admin, installed the updates... but then the program didn't recognize that I was a registered user. It also wouldn't find my tune I had saved in documents. The tune is in the TS projects folder, but the updated version won't see it. BUT when I go into my documents and find my original tune and open it, it pulls up just fine. I also switched cables and I seem to be connecting every time without a problem.
Taifighter is offline   Reply With Quote
Old 04-17-2013, 03:26 PM   #72
Senior Member
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

DAAAYYUUM that intercooler looks good. lol Some type of boss made that thing huh? hah

What size AN line are you running for oil?
miatauser123 is offline   Reply With Quote
Old 04-17-2013, 06:07 PM   #73
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Embarrassing, but I'm not quite sure. Whatever Begi uses for their kits. I think -4?
Taifighter is offline   Reply With Quote
Old 04-19-2013, 01:31 AM   #74
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

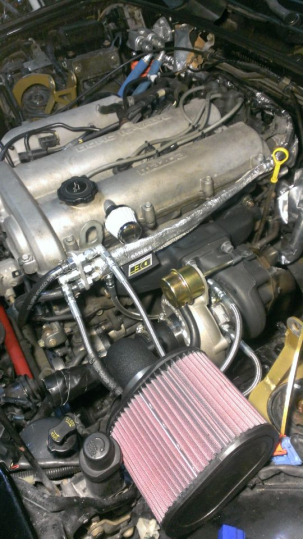

Oil line routing. I think this will be what I decide to do. It allows me to run a heat shield by having the line go to the distribution block and then back to the snail in the opposite way of the coolant lines.
Attached Thumbnails
Taifighter is building a Miata-4845970634c7b6edce1ec87450b338f1.jpg
Taifighter is offline   Reply With Quote
Old 04-21-2013, 07:06 PM   #75
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

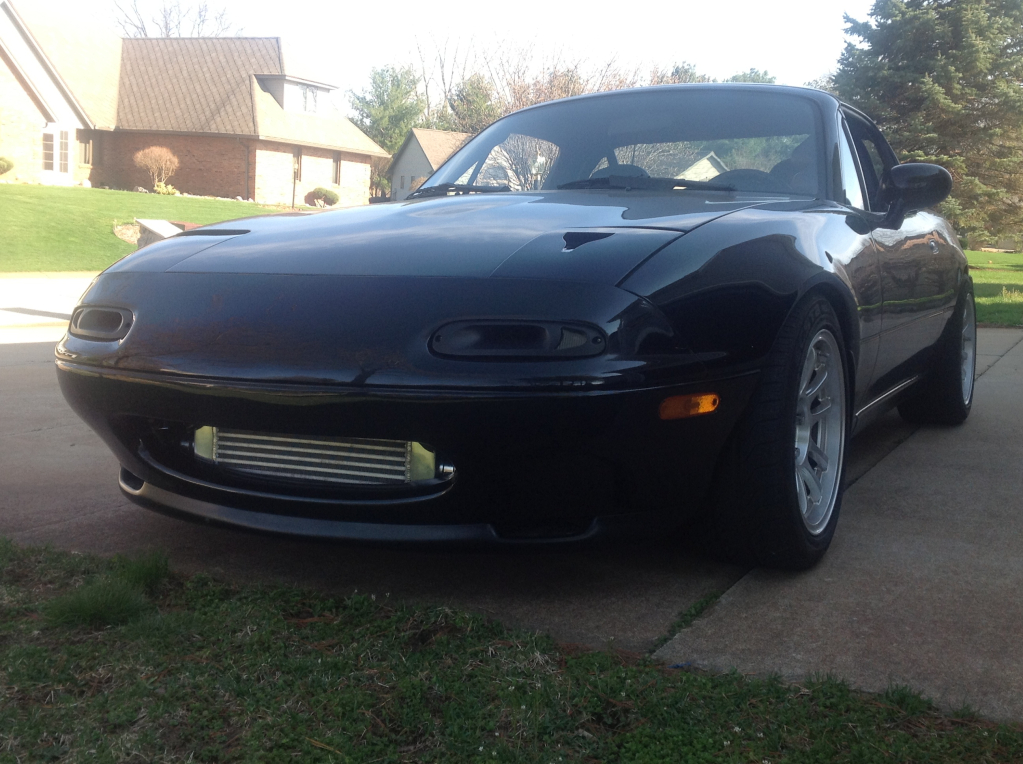

On the road and running at about 6 psi.


I had originally adjusted my WG as low as possible, but it started to rattle. The car also only build 2psi. I tightened it up til it wouldn't rattle anymore and apparently that is the 6psi mark.

My coolant leak was an easy fix, just a clamp on a coupler that was below the turbo inlet that attached the hard coolant line to the block.

I also redid a section of my IC piping that I wasn't satisfied with. It introduced 2 more clamps to the systems, which could be points of failure, but it sure looks better. I may replace the entire section with a 2in 45 degree elbow in the future. I also need to get one more t bolt clamp to replace the worm clamp I have on right now.

My heat shield is getting cut up in an attempt to fit, but I may end of getting a turbo blanket instead. We shall see.
Attached Thumbnails
Taifighter is building a Miata-bc9164929ab88428171540cefd0b0352.jpg
Taifighter is offline   Reply With Quote
Old 04-21-2013, 07:31 PM   #76
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Love this build. Car is looking great.
FRT_Fun is offline   Reply With Quote
Old 04-22-2013, 02:20 PM   #77
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Give your headlight covers a tug ... otherwise, everything looks pretty tiddy.
thasac is offline   Reply With Quote
Old 04-22-2013, 10:39 PM   #78
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Quote:
Originally Posted by thasac View Post
Give your headlight covers a tug ... otherwise, everything looks pretty tiddy.
Yeah, I leaned on em a couple times during the install and they def need an adjustment
Taifighter is offline   Reply With Quote
Old 05-18-2013, 04:38 PM   #79
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Woohoo, 6psi and no issues so far.
Taifighter is offline   Reply With Quote
Old 06-01-2013, 12:30 PM   #80
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Car has been running well.

It seems to not build boost as fast as I'd like it to. Other people have said it spools incredibly fast but I'm just not seeing those results.

I made a boost leak tester and did a leak down test, seems my IC plumbing is tight with no leaks.

I ordered an EBC and was testing out the connections when I found a problem.
Documented here: https://www.miataturbo.net/megasquir...6/#post1017175

Hopefully it's something simple that I can fix real quick and start to use the controller and learn how it works.
Taifighter is offline   Reply With Quote
