Old 10-06-2010, 02:57 PM   #21
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Some other parts to share.

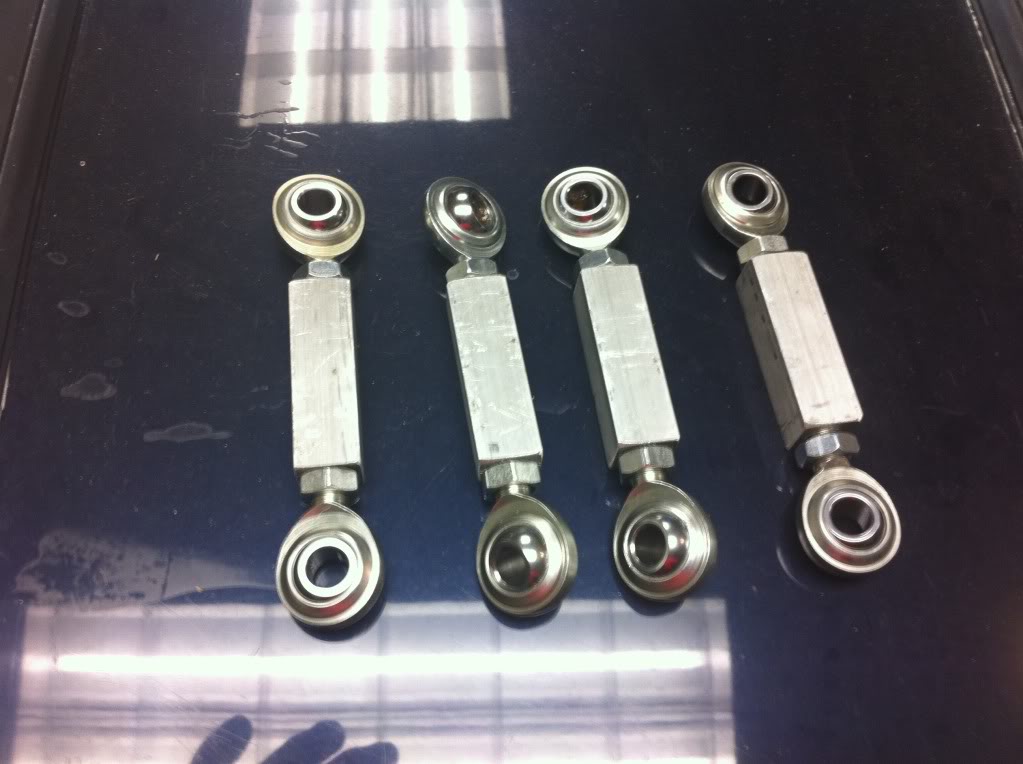

Raw Performance Racing Sway Bar Links
Name:  IMG_1668.jpg
Views: 6
Size:  77.4 KB

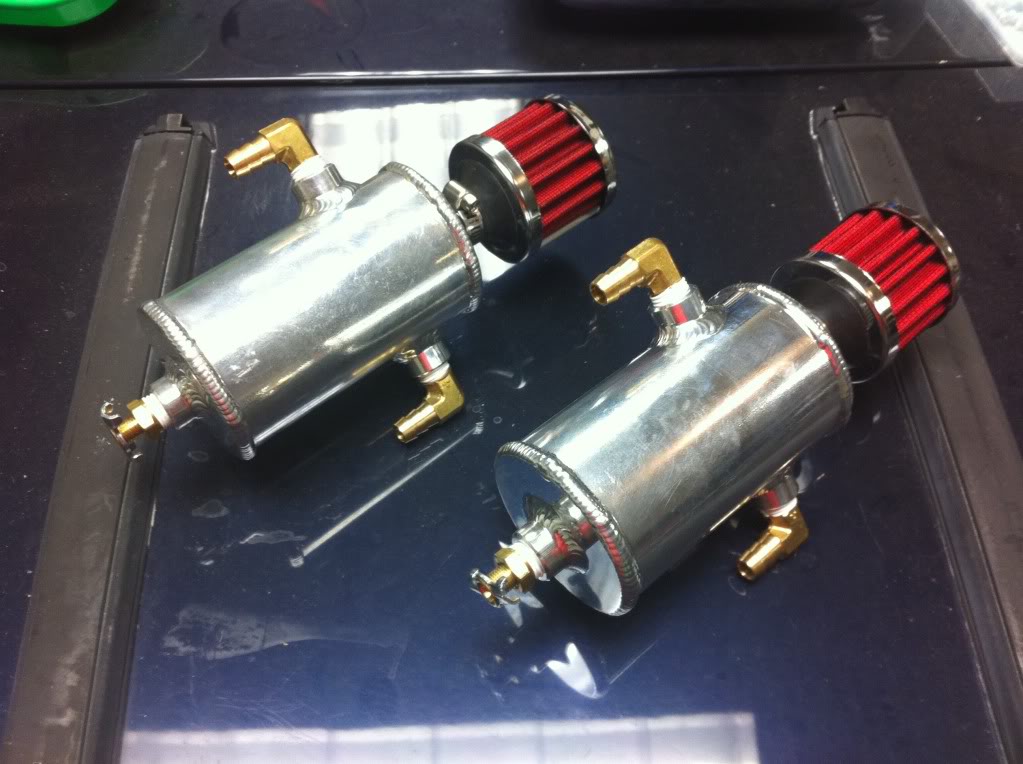

Catch cans. One is for sale.
Name:  048ae194.jpg
Views: 6
Size:  96.8 KB
yellowihss is offline   Reply With Quote
Old 01-11-2012, 01:58 PM   #22
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Back from the dead with some exciting news.

The car is still not done.
yellowihss is offline   Reply With Quote
Old 01-11-2012, 01:59 PM   #23
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Still gathering parts.

Not too much longer.



Head is at the shop now getting rebuilt now.

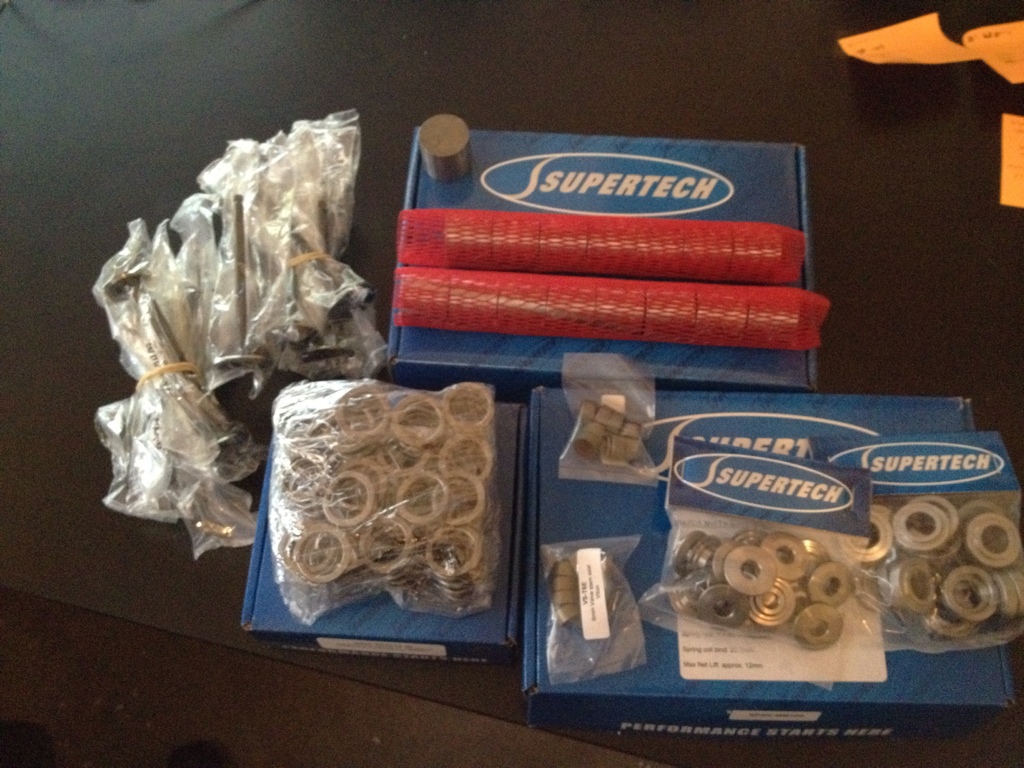

VVt with all Supertech ----.

1mm oversized valves
Shim under bucket lifters.
56lb valve springs.
Titanium retainers and seats.
Supertech seals.
Attached Thumbnails
Yellowihss's well rounded turbo build. (lots of pics)-531bc8ef.jpg
yellowihss is offline   Reply With Quote
Old 01-11-2012, 02:01 PM   #24
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

So with that head will you be able to rev to 8k?
jbrown7815 is offline   Reply With Quote
Old 01-11-2012, 02:11 PM   #25
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Should be able to.
I did it more to not be stuck at 6-6500 while trying to get 300whp.
yellowihss is offline   Reply With Quote
Old 01-11-2012, 04:11 PM   #26
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Good to see all of it getting stuck in the head!

-Sam
Renown Performance is offline   Reply With Quote
Old 01-11-2012, 04:57 PM   #27
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Thanks Sam for all the help.

^Highly recommended vendor.
yellowihss is offline   Reply With Quote
Old 01-11-2012, 08:50 PM   #28
Former Vendor
iTrader: (1)

Join Date: Nov 2011
Posts: 31
Total Cats: 0
Default

Thanks for the Shout out! If there is anything else you or anyone else needs, please Let us know. We can be reached almost at ANYTIME via; Email, Phone, PM, even AIM.
Our goal is to have the best customer service in the Industry!

Now less talk and more wrenching lol!
whispering eye is offline   Reply With Quote
Old 01-23-2012, 06:05 PM   #29
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

A box came in today

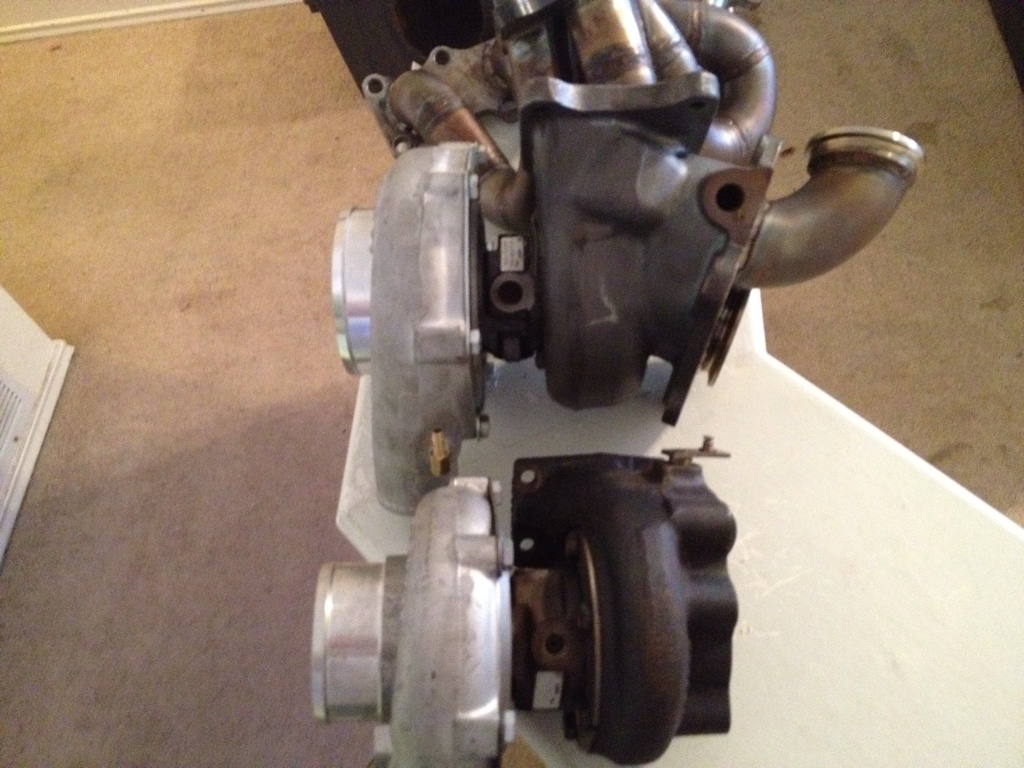

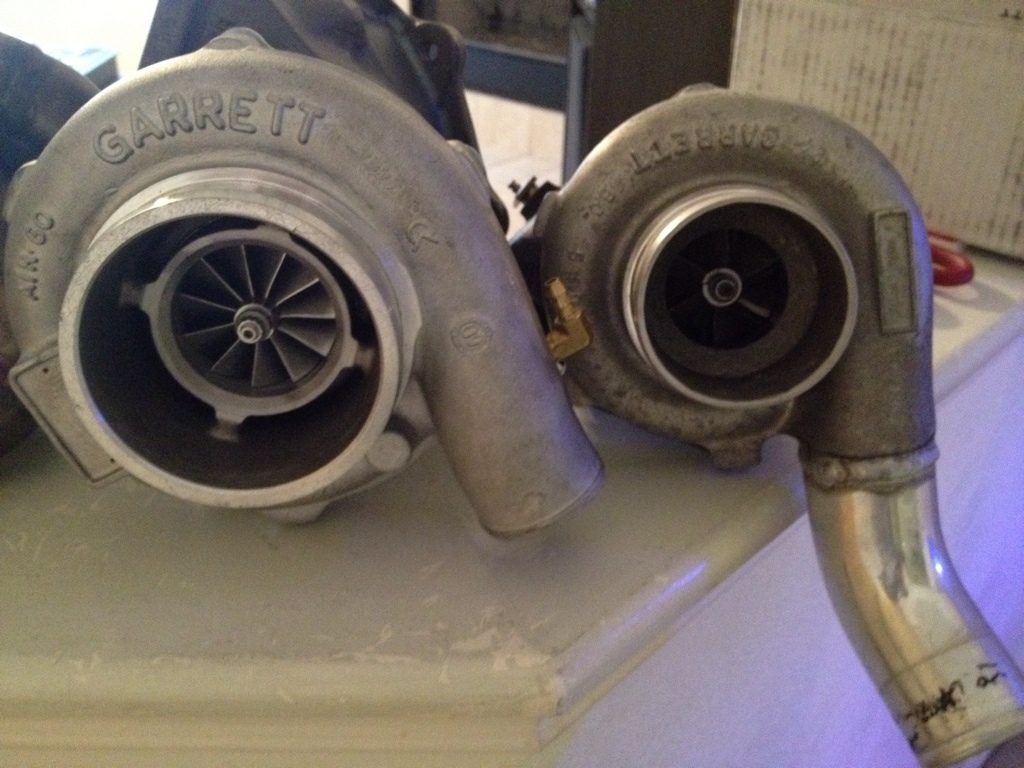

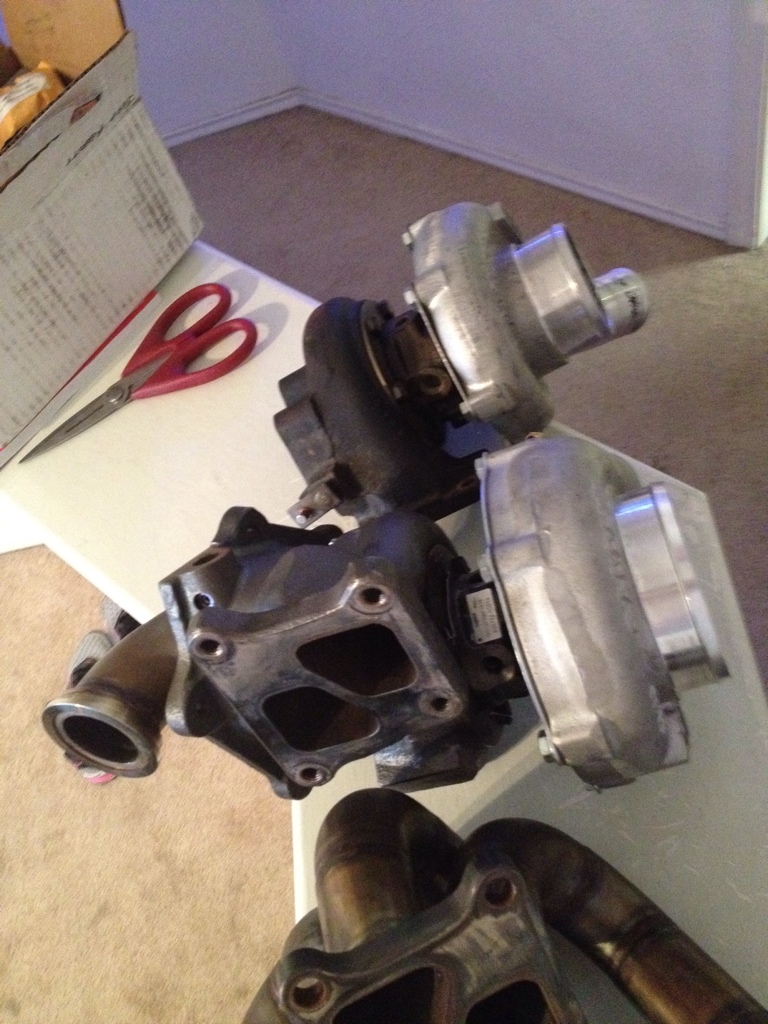

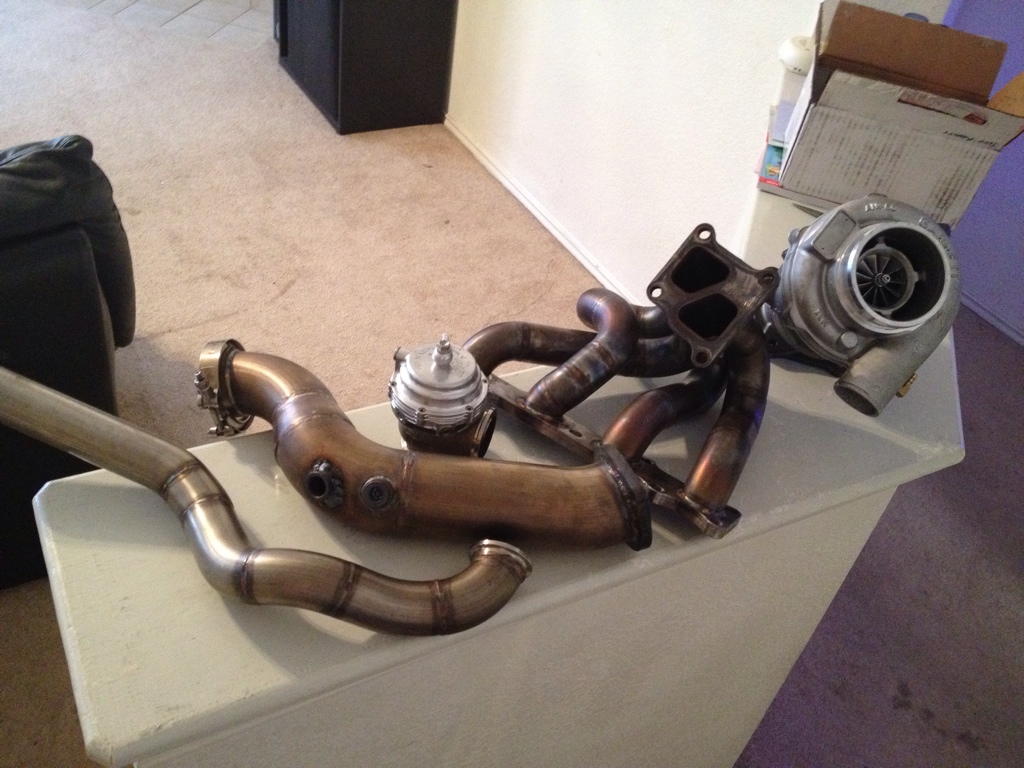

A GTX3071r vs a GT2860Rs






450whp here I come.
Attached Thumbnails
Yellowihss's well rounded turbo build. (lots of pics)-a6c352ba.jpg   Yellowihss's well rounded turbo build. (lots of pics)-33861180.jpg   Yellowihss's well rounded turbo build. (lots of pics)-13dfb51e.jpg   Yellowihss's well rounded turbo build. (lots of pics)-e111e335.jpg   Yellowihss's well rounded turbo build. (lots of pics)-dc9e8508.jpg

yellowihss is offline   Reply With Quote
Old 01-23-2012, 07:24 PM   #30
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Very nice stainless setup! What was that turbo for? Also how did you get you car on those pipe stands? Please tell me you and friend picked it up.
Miater is offline   Reply With Quote
Old 01-23-2012, 07:56 PM   #31
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by Miater View Post
Very nice stainless setup! What was that turbo for? Also how did you get you car on those pipe stands? Please tell me you and friend picked it up.
Which turbo?

I lifted the front by hand.
The rear is very heavy compared to the front with no drivetrain.
The rear I used a 4x4 on end as it got higher.
yellowihss is offline   Reply With Quote
Old 01-24-2012, 09:05 PM   #32
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

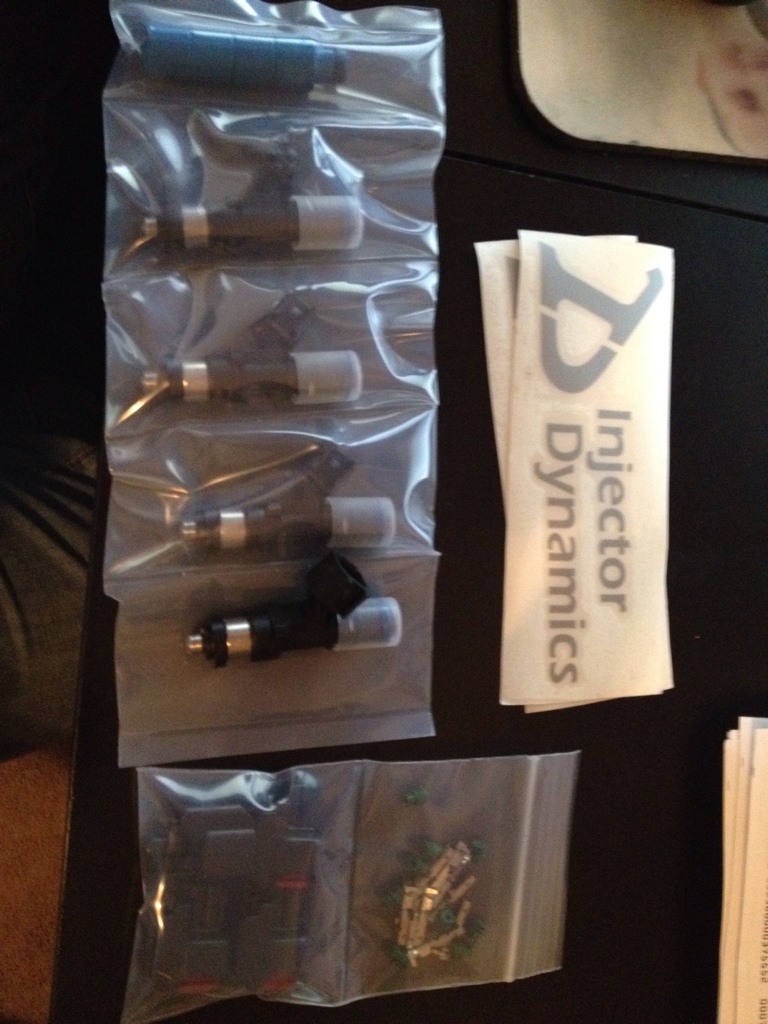

ID1000's


Assembly should start as soon as I get my head back from the builder.
Attached Thumbnails
Yellowihss's well rounded turbo build. (lots of pics)-6524045d.jpg
yellowihss is offline   Reply With Quote
Old 02-08-2012, 12:19 AM   #33
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

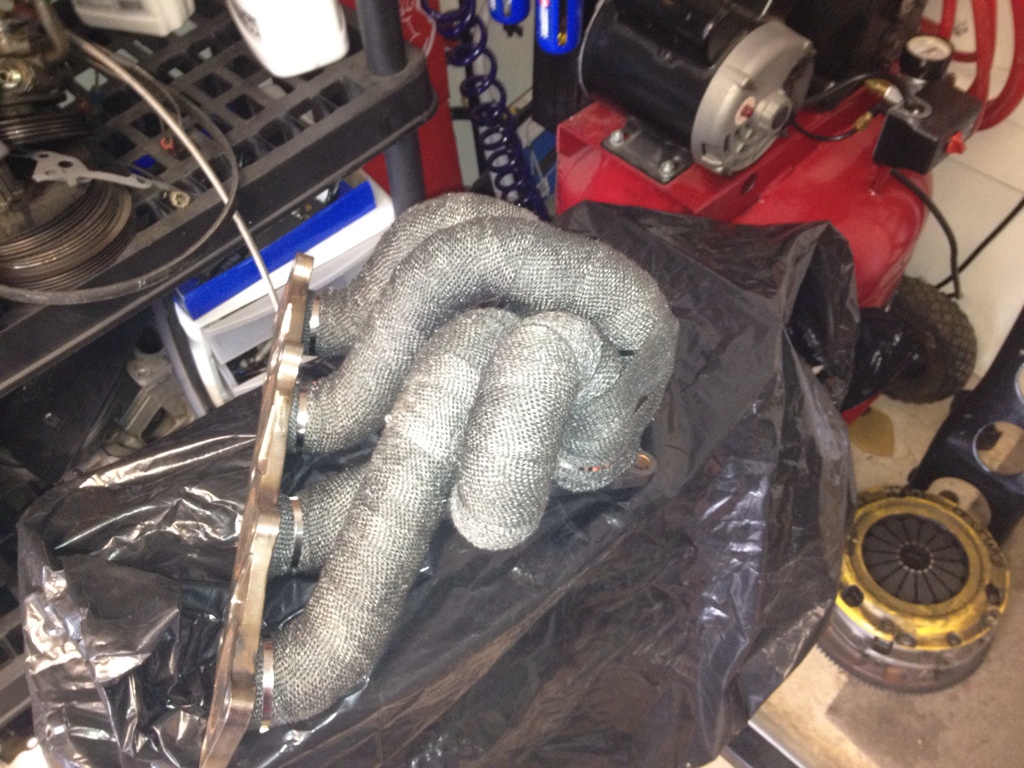

Wrapped the manifold.

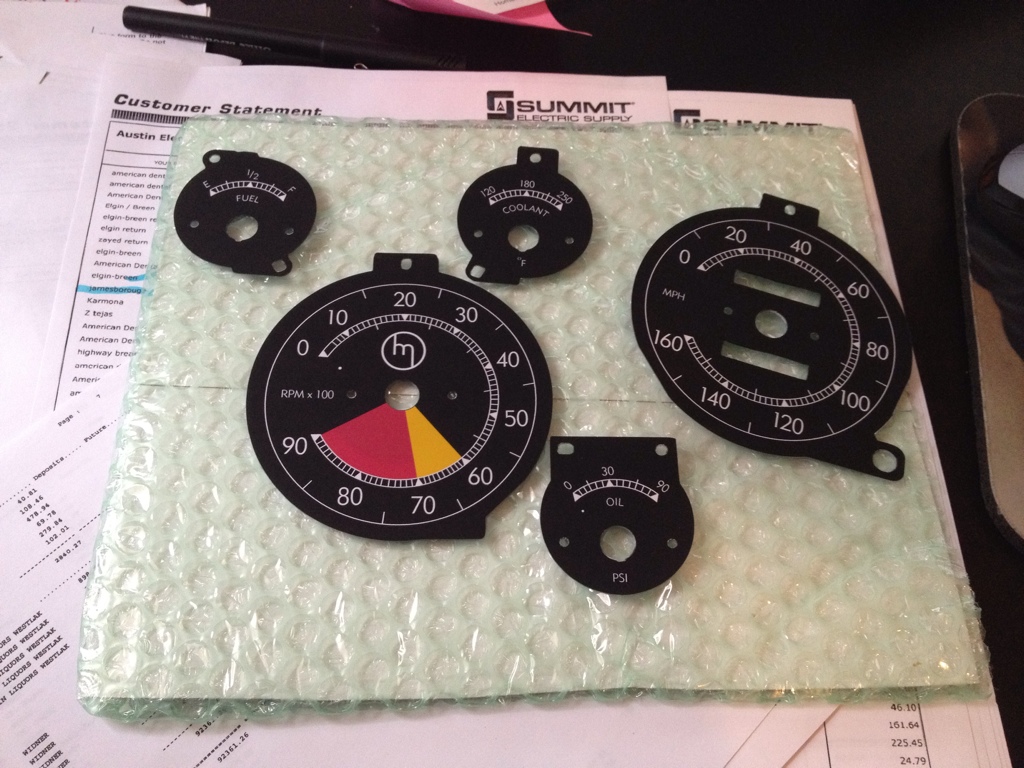

New gauge faces.

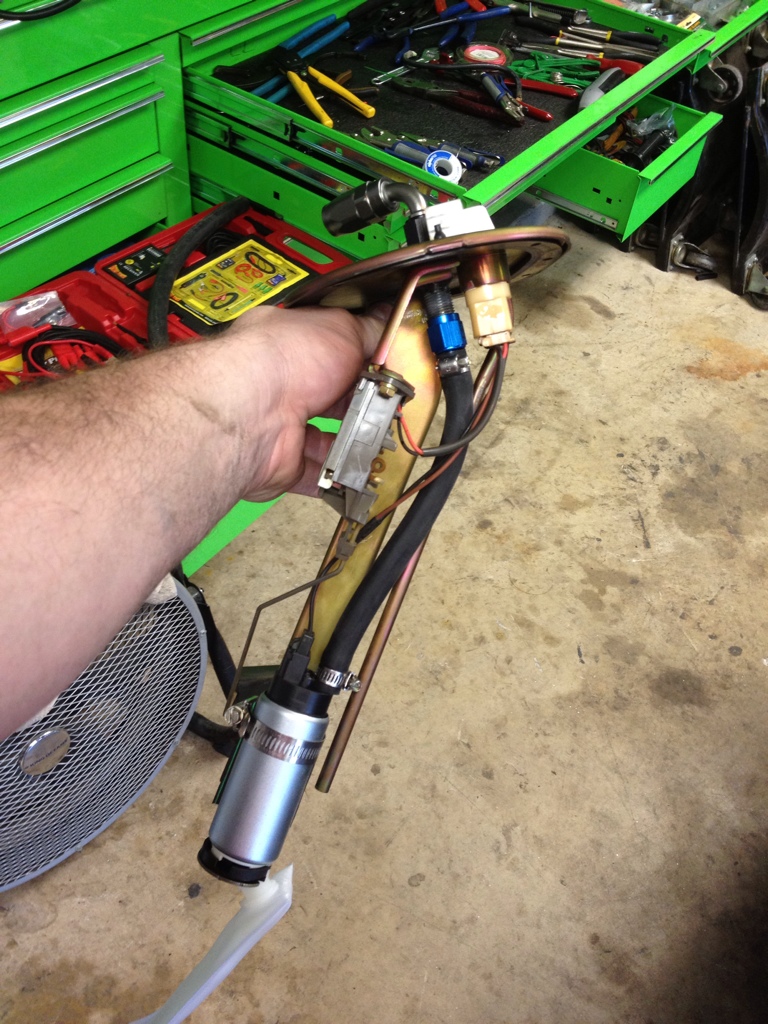

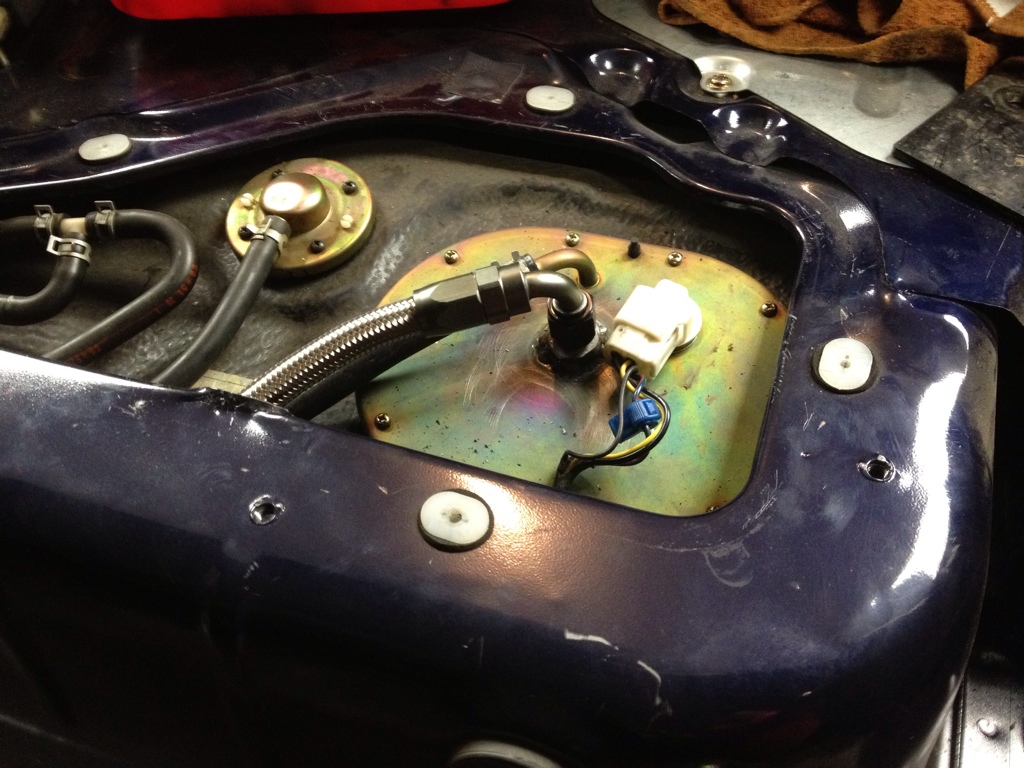

Deatsch works 300lph pump with -6 line.


-6 90 sat a little higher than I expected.

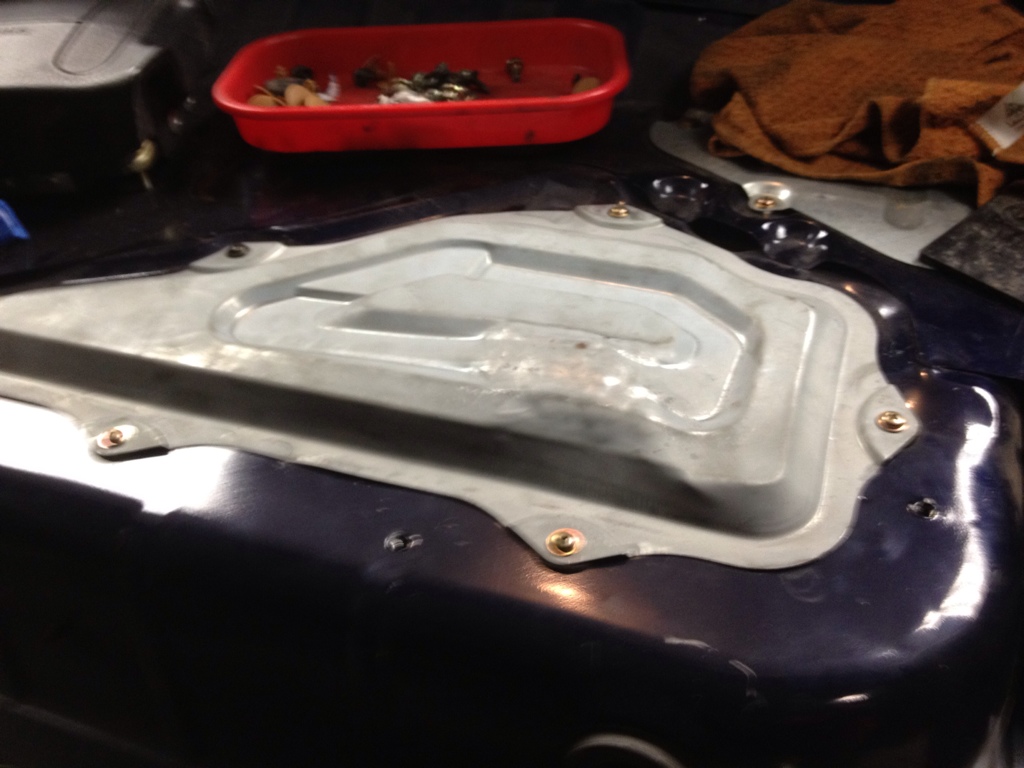

So I hammered in a "hump".
Attached Thumbnails
Yellowihss's well rounded turbo build. (lots of pics)-f744cb7d.jpg   Yellowihss's well rounded turbo build. (lots of pics)-9be81125.jpg   Yellowihss's well rounded turbo build. (lots of pics)-d3c43920.jpg   Yellowihss's well rounded turbo build. (lots of pics)-3dcdcbbf.jpg   Yellowihss's well rounded turbo build. (lots of pics)-9a878fc3.jpg

yellowihss is offline   Reply With Quote
Old 03-21-2012, 10:01 AM   #34
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

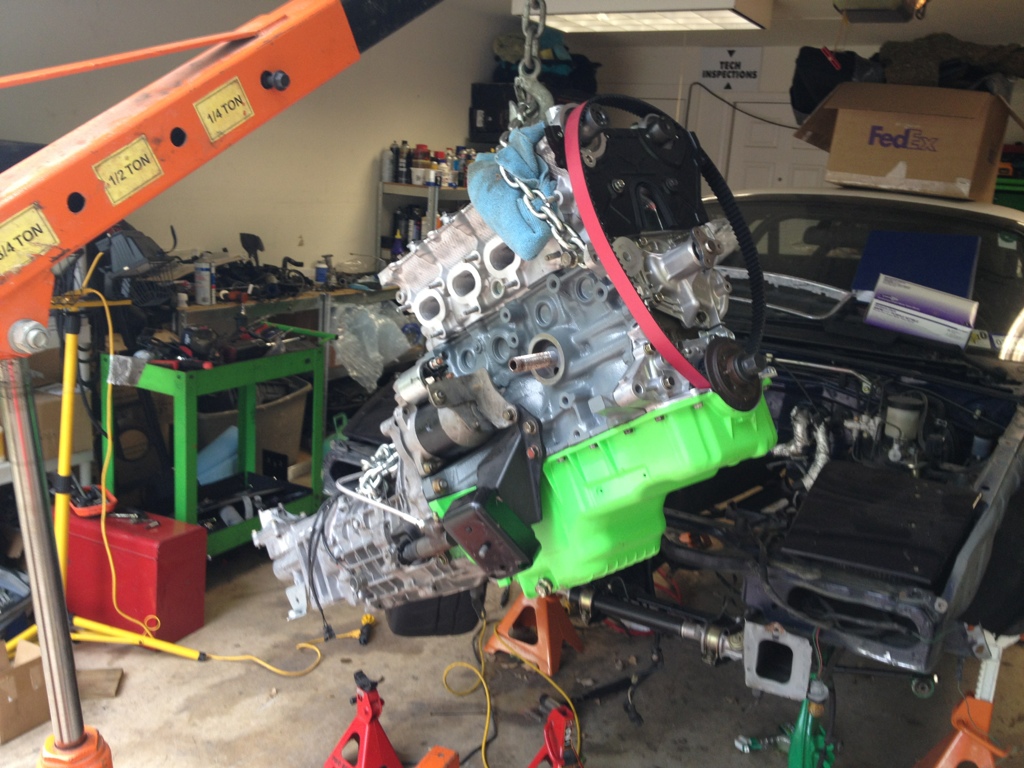

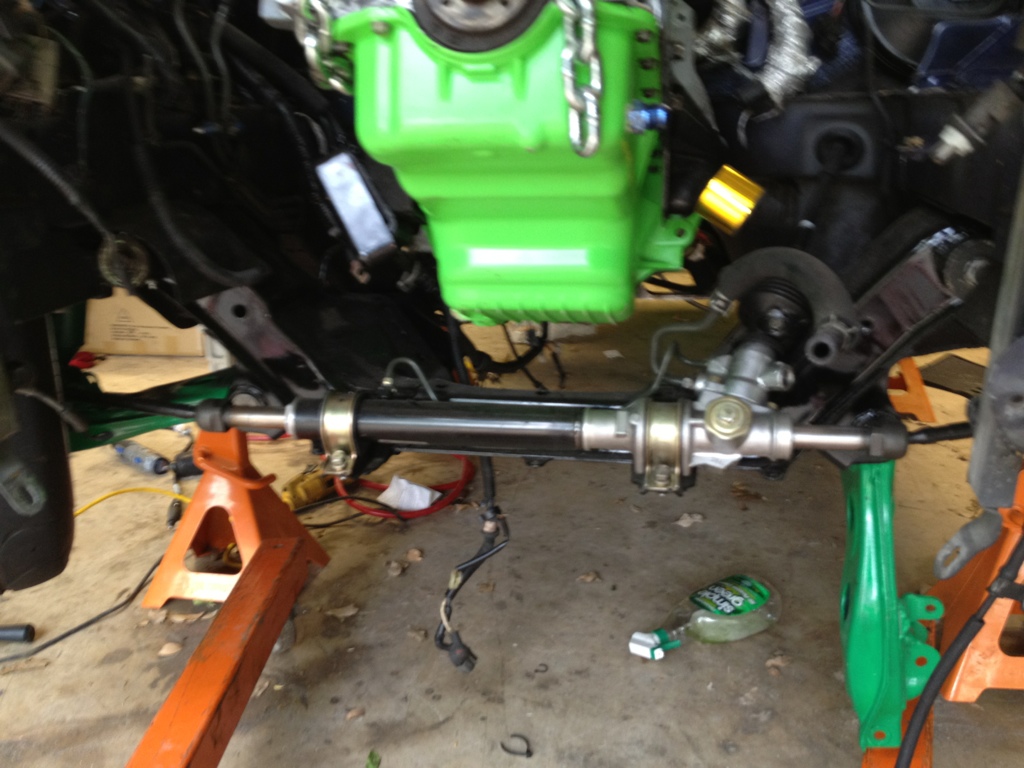

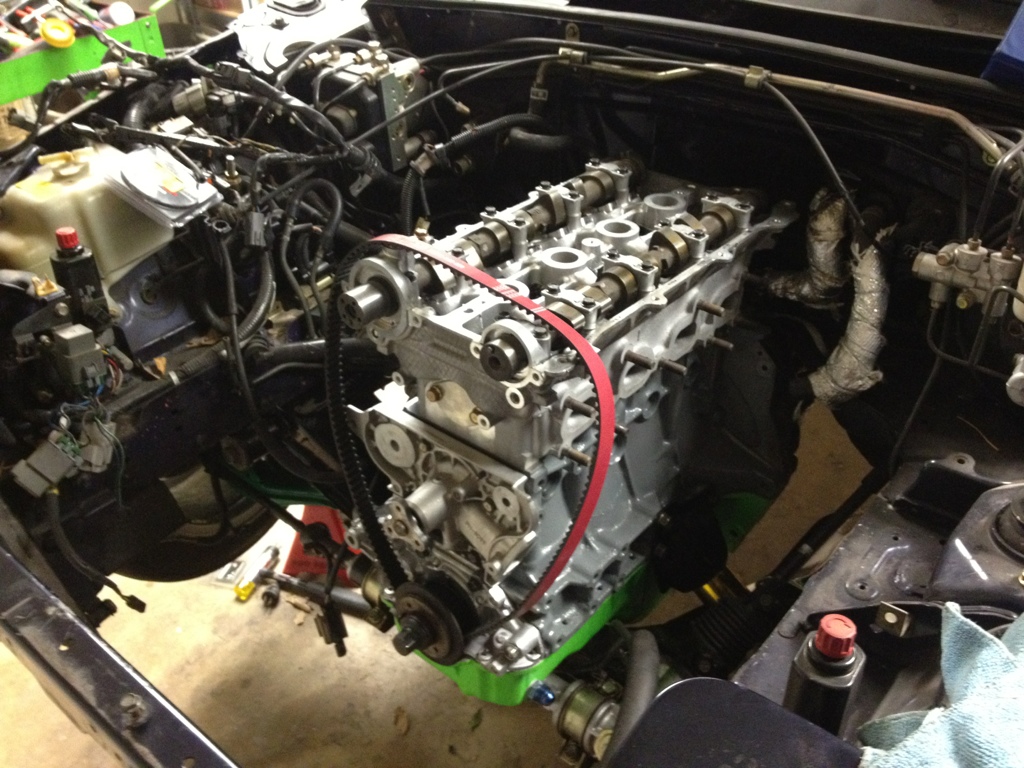

OK, now the real work begins.

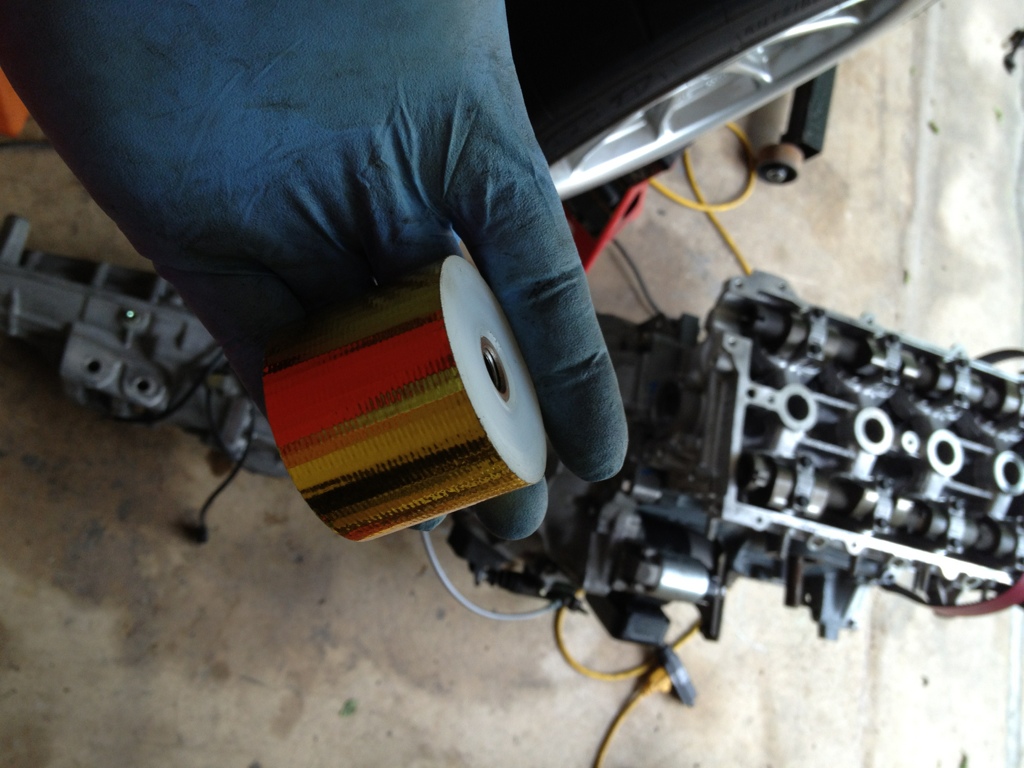

I am using a hybrid motor mount setup. Delrin on the drivers side, and MS on the passanger side. I wrapped the Delrin motor mount in heat tape to try to prevent the melting some talk about.

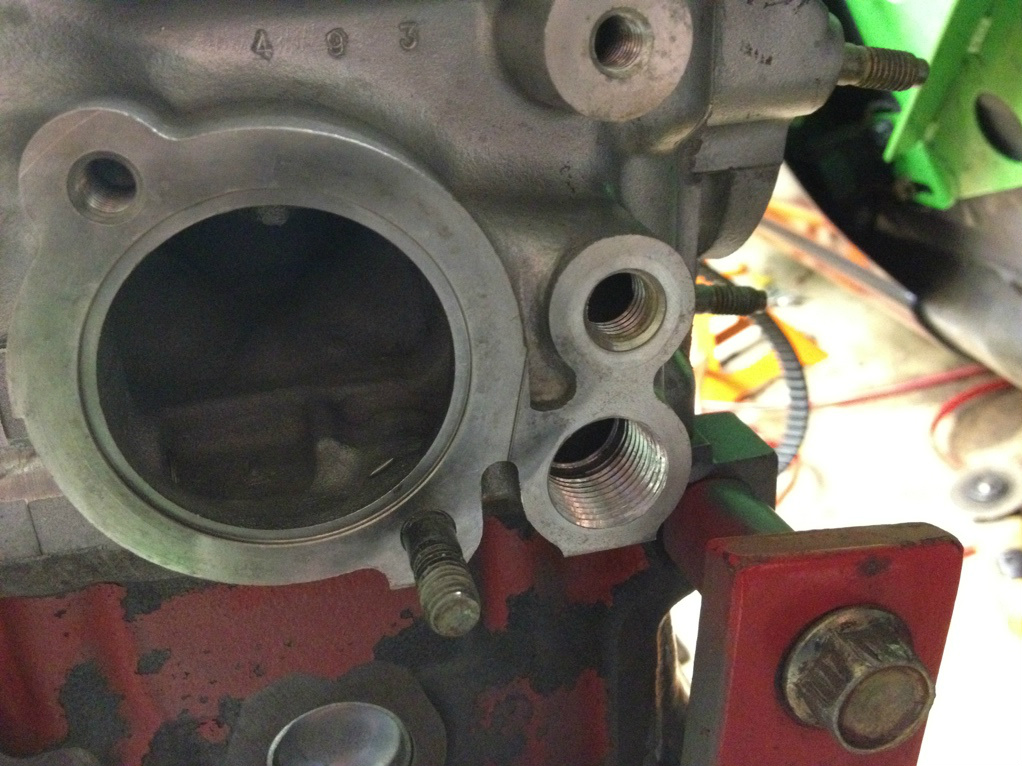

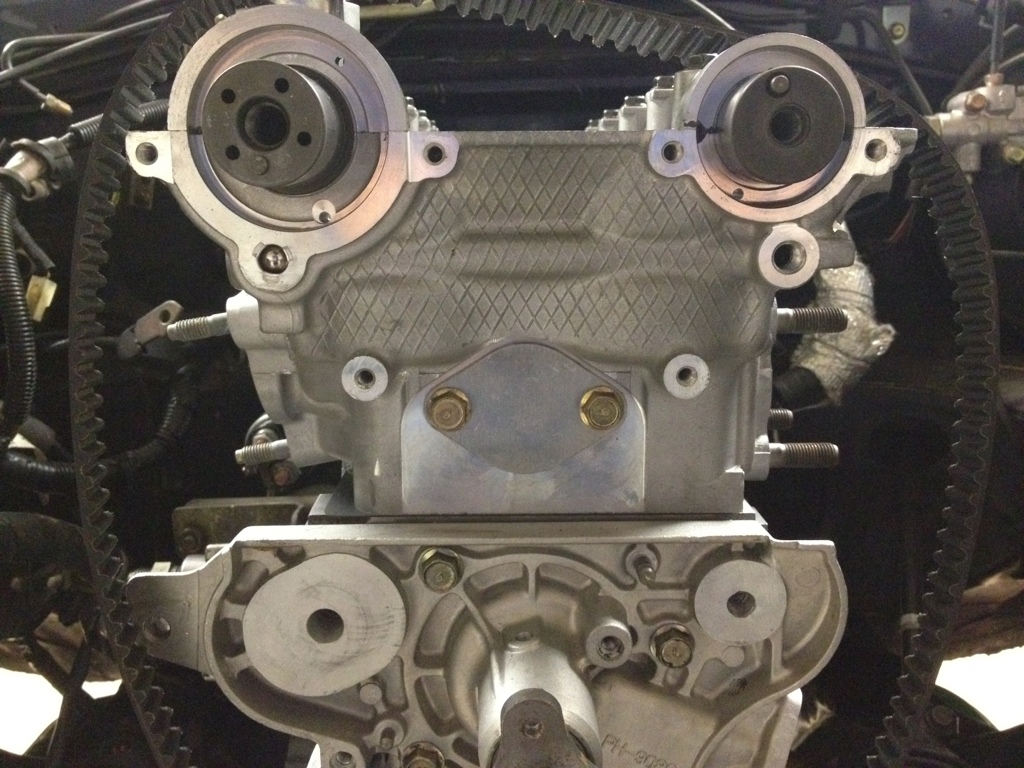

Trackspeed coolant neck delete.









I had the head guy remove and tap the outlet for the oil cooler.



The Exhaust is currently being made by Abe at ArTech, as well as the MS3x by Reverant.

The build should go by a little faster now that the motor is in.
Exhaust is about 7 weeks out, so I predict 10-12 weeks to "completion"
Attached Thumbnails
Yellowihss's well rounded turbo build. (lots of pics)-c0fbf861.jpg   Yellowihss's well rounded turbo build. (lots of pics)-8e31d67f.jpg   Yellowihss's well rounded turbo build. (lots of pics)-9652b28e.jpg   Yellowihss's well rounded turbo build. (lots of pics)-bf8baee9.jpg   Yellowihss's well rounded turbo build. (lots of pics)-9f7e971d.jpg

Yellowihss's well rounded turbo build. (lots of pics)-97b3209c.jpg
yellowihss is offline   Reply With Quote
Old 03-31-2012, 10:38 PM   #35
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default



Attached Thumbnails
Yellowihss's well rounded turbo build. (lots of pics)-046c123e.jpg   Yellowihss's well rounded turbo build. (lots of pics)-a58e3dc6.jpg
yellowihss is offline   Reply With Quote
Old 04-01-2012, 03:40 AM   #36
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Looks good so far!

where did you get the gauge faces, and how are you going to mess with the speedo needle to calibrate it with the new orientation?
wittyworks is offline   Reply With Quote
Old 04-04-2012, 07:55 PM   #37
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by wittyworks View Post
Looks good so far!

where did you get the gauge faces, and how are you going to mess with the speedo needle to calibrate it with the new orientation?
http://revlimiter.net/mods/gauge_install.php

Phenomenal Quality.
yellowihss is offline   Reply With Quote
Old 04-04-2012, 09:47 PM   #38
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

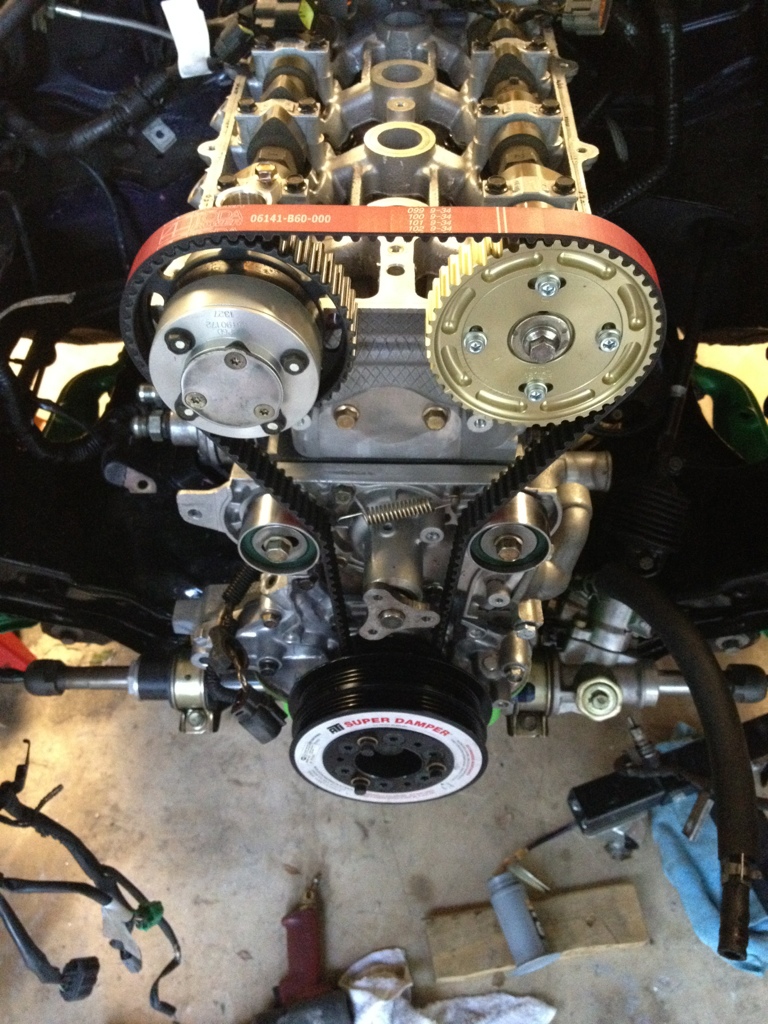

lol @ red timing belt.

Nice build, but get that wrap off the manifold.
hustler is offline   Reply With Quote
Old 04-04-2012, 10:15 PM   #39
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

What's wrong with the belt, and may I ask why would I take the wrap off.

Enlighten me.
yellowihss is offline   Reply With Quote
Old 04-04-2012, 10:44 PM   #40
Junior Member

Join Date: Mar 2011
Location: Indianapolis
Posts: 78
Total Cats: 1
Default

Quote:
Originally Posted by wittyworks View Post
Looks good so far!

where did you get the gauge faces, and how are you going to mess with the speedo needle to calibrate it with the new orientation?
Speedo defaults to zero. You just have to move the stopper and the needle till it lands on zero perfectly.
adamvanxxx is offline   Reply With Quote
