Default Yellowihss's well rounded turbo build. (lots of pics)

So a couple weeks ago I made my introduction thread, so now it’s time for my build thread.
Its not anything special, but I figured as much as I like reading other build threads
regardless of what was done, I decided to do my own.

So to recap my introduction,
Bought first Miata with forged motor, and a bunch of BNIB parts,
Built Miata,
Friend wrecked Miata,
Bought 2nd Miata,
Striped and sold first Miata,
Stripped 2nd Miata.

And this is where the build starts. It won’t happen overnight as I’m getting married in February,
but I will be working on it and making it my own as quick as I can. Some might not like my paint
scheme, but I couldn’t give a s#!t. I like Green (as you can see through my toolbox) so I am
going to incorporate it throughout and I have seen yall’s option on the color.

Miata starts as a ’96 M Edition.

The lower control arms are getting blasted and powder coated Tein green to match the coilovers.
The car will be painted either Audi Dolphin grey, or Nissan Storm grey. The wheels will be black
15x9 6UL’s wrapped in 225’s. The goal is 300-350 whp all around street, track car with little strip time.

Name:  nmtrip284-1.jpg
Views: 10
Size:  107.4 KB
First Miata before crash.
Name:  nmtrip288-1.jpg
Views: 64
Size:  75.2 KB
After Crash.
Name:  5282010039-1.jpg
Views: 10
Size:  72.6 KB

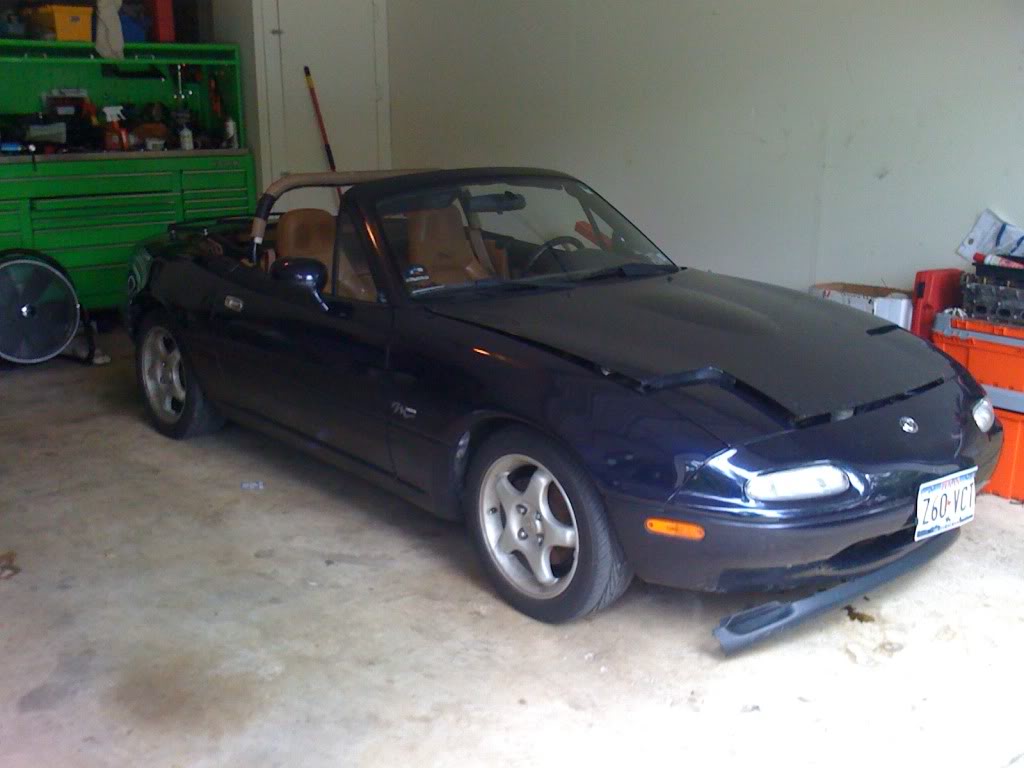

New Miata finally in my garage.
Name:  newmexicojuly031.jpg
Views: 10
Size:  143.7 KB

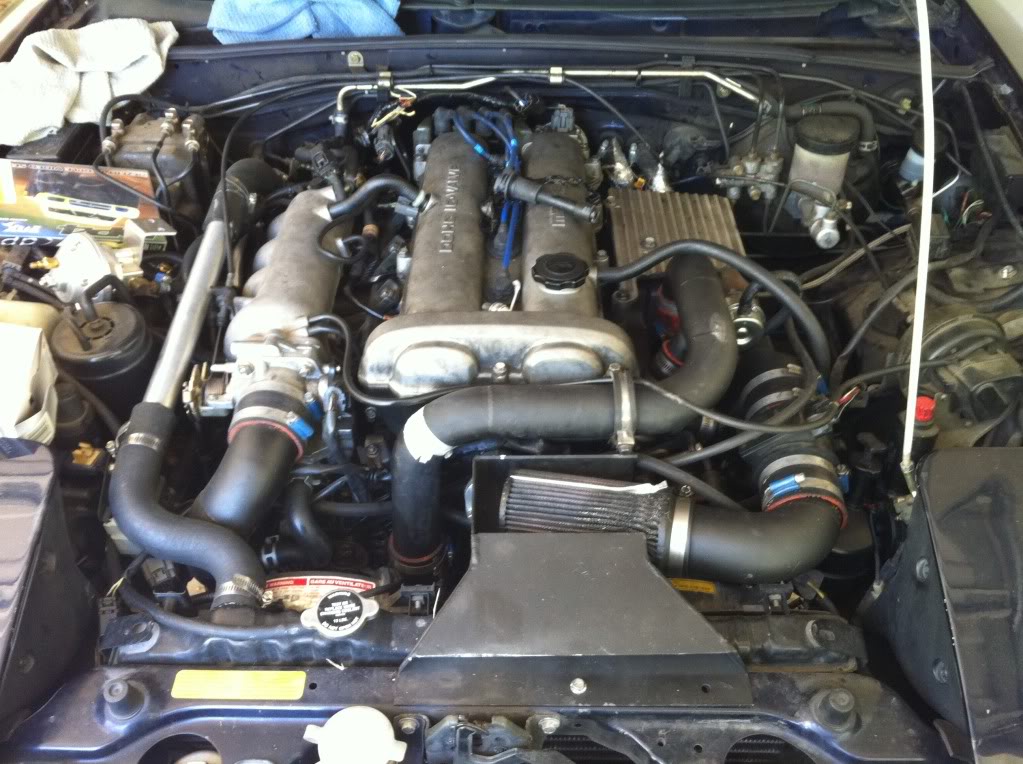

New Miata engine bay.
Name:  newmexicojuly069.jpg
Views: 10
Size:  153.8 KB

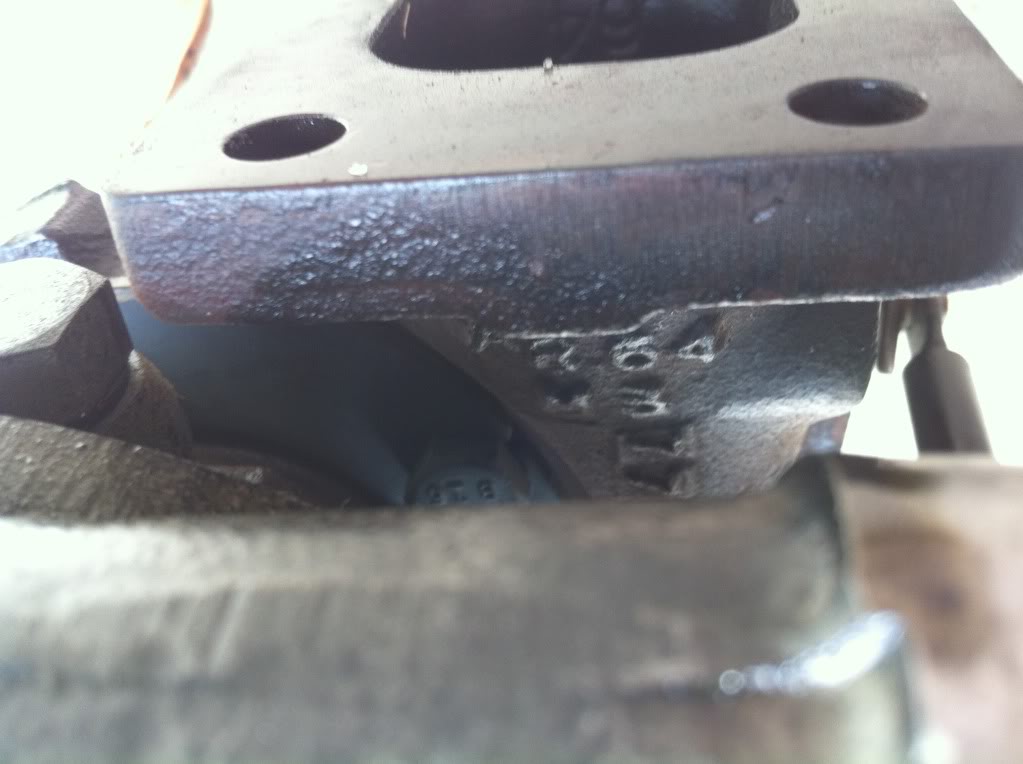

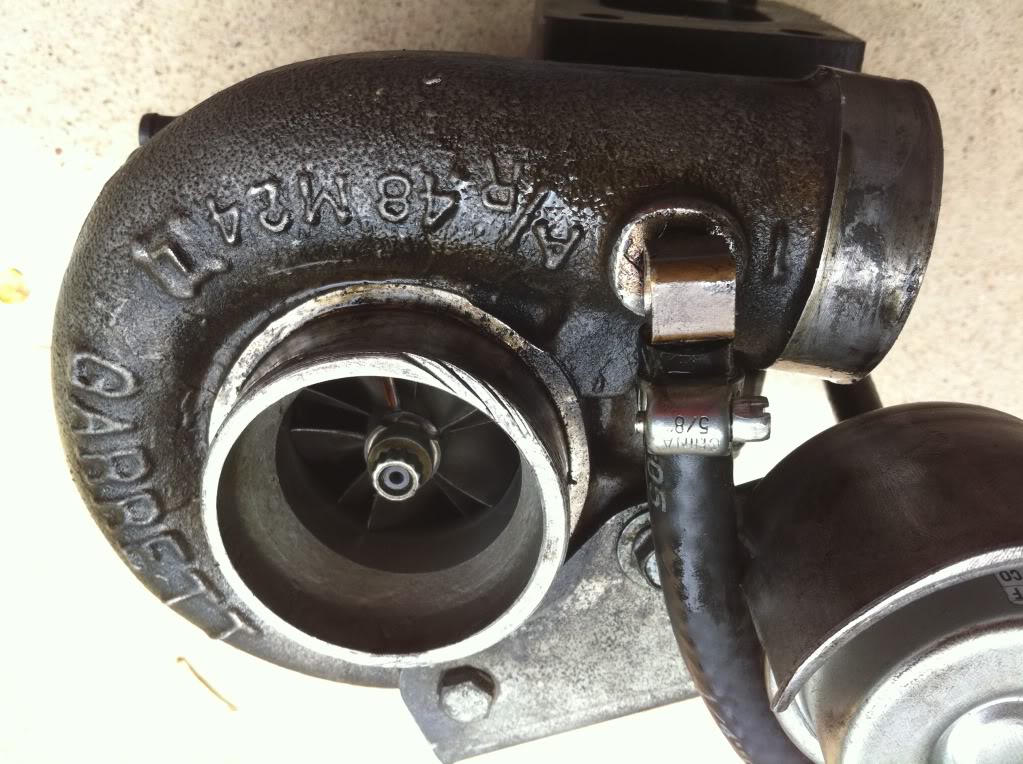

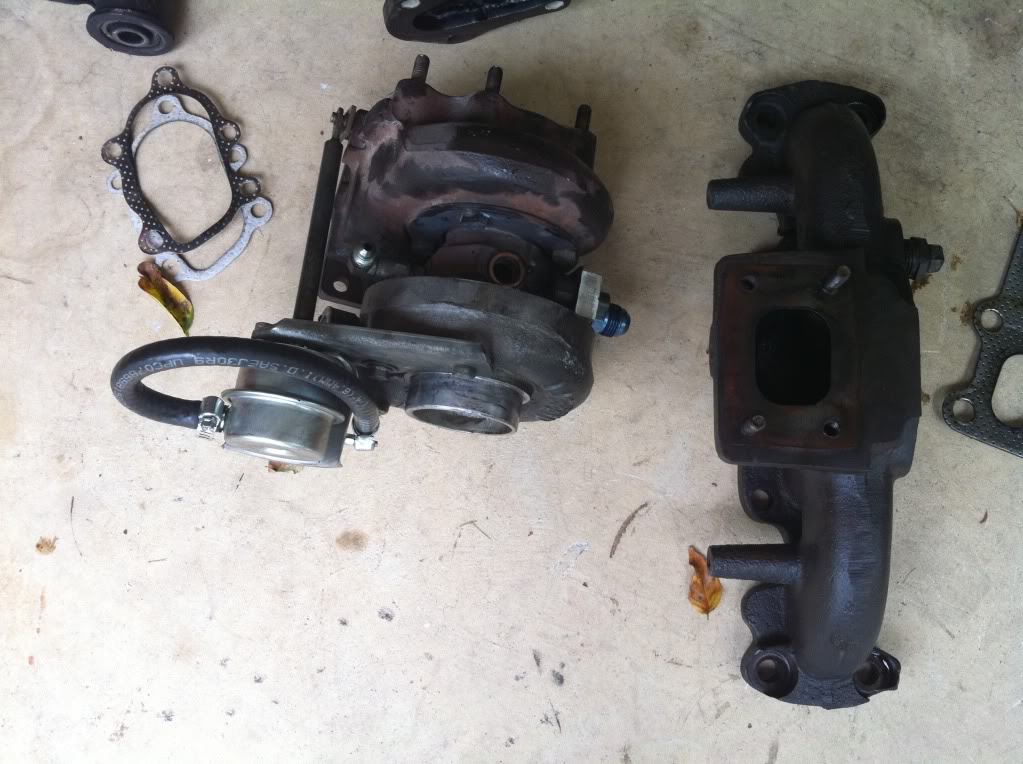

T28
Name:  newmexicojuly068.jpg
Views: 10
Size:  129.1 KB
Name:  newmexicojuly070.jpg
Views: 10
Size:  63.9 KB
Name:  newmexicojuly067.jpg
Views: 10
Size:  154.4 KB

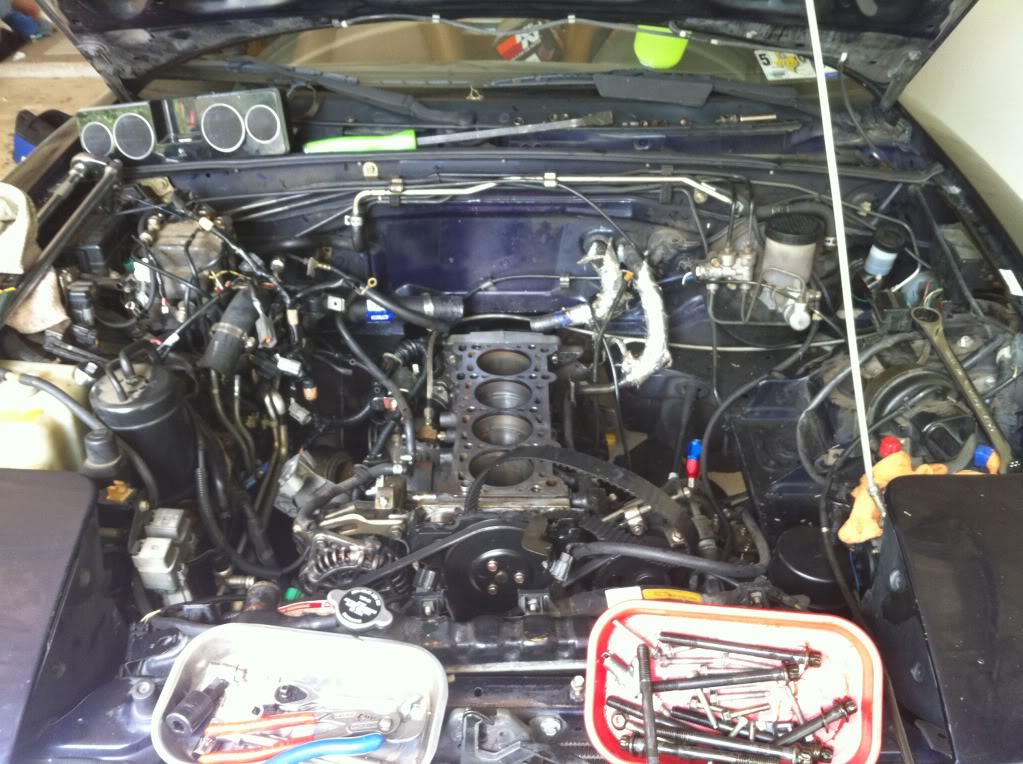

Head off!
Name:  newmexicojuly064.jpg
Views: 10
Size:  115.0 KB

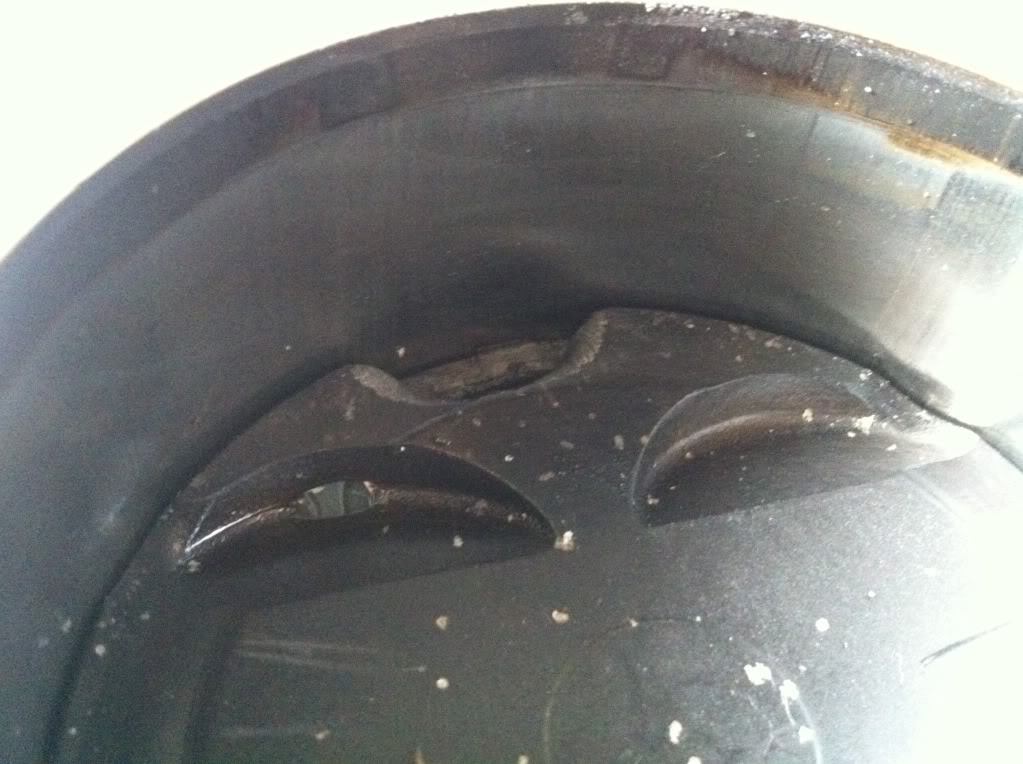

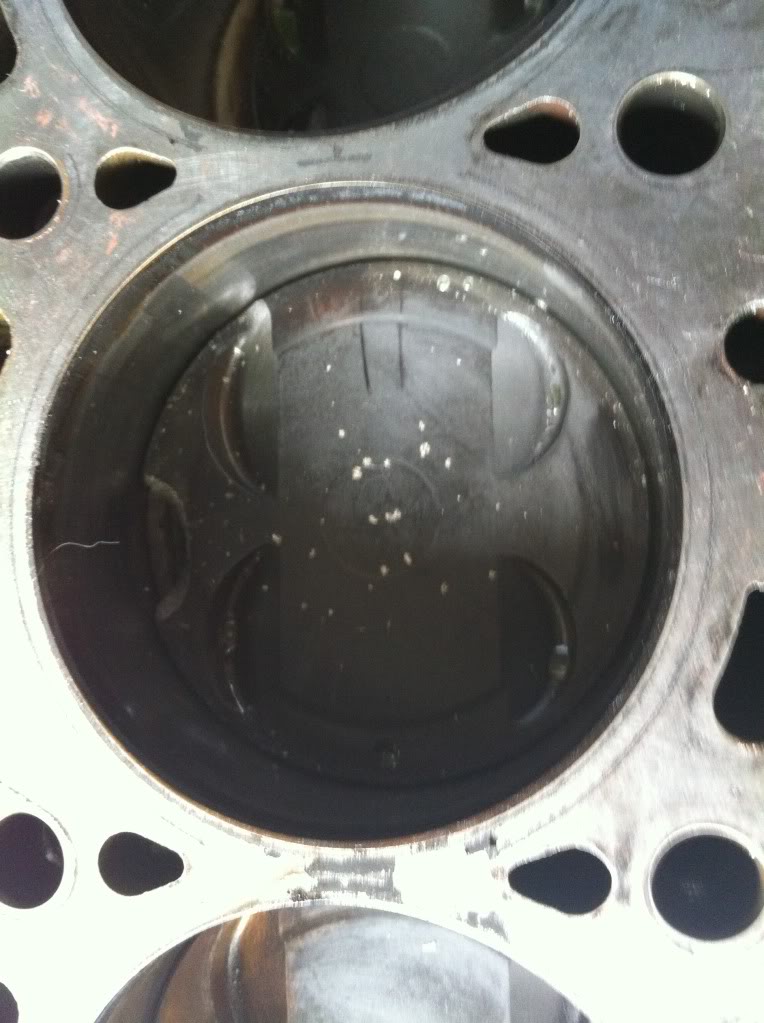

Hole in piston.
Name:  newmexicojuly063.jpg
Views: 10
Size:  98.0 KB
Name:  newmexicojuly188.jpg
Views: 10
Size:  125.3 KB

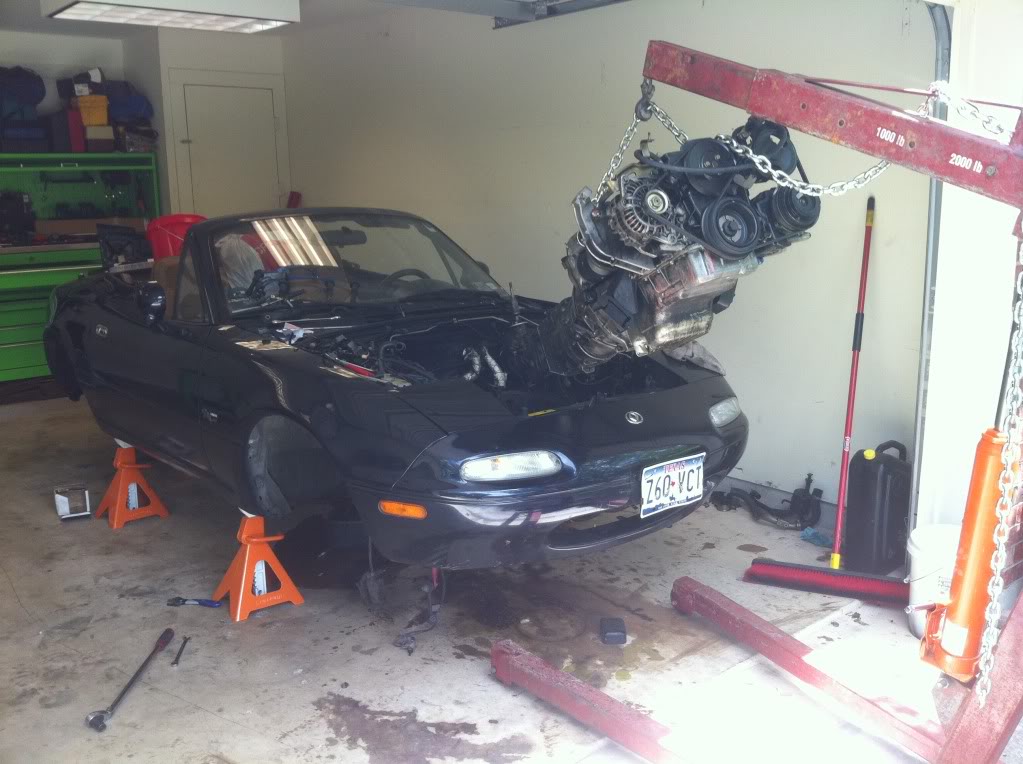

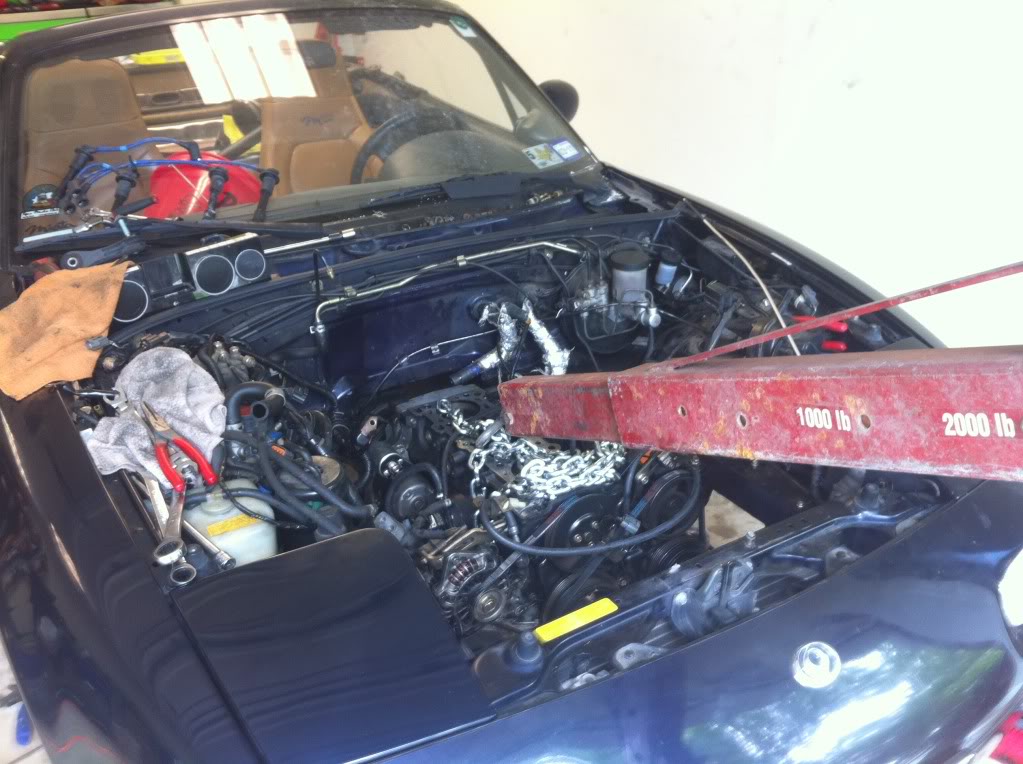

Taking the motor out.
Name:  newmexicojuly189.jpg
Views: 10
Size:  112.0 KB
Name:  miata083.jpg
Views: 10
Size:  131.7 KB

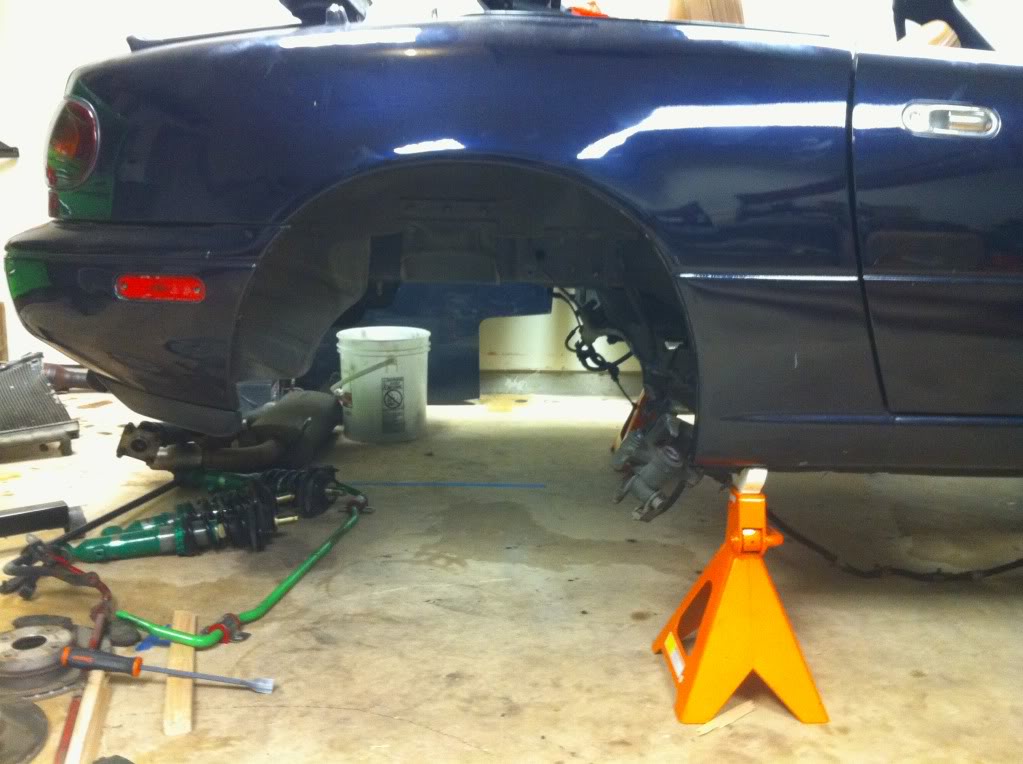

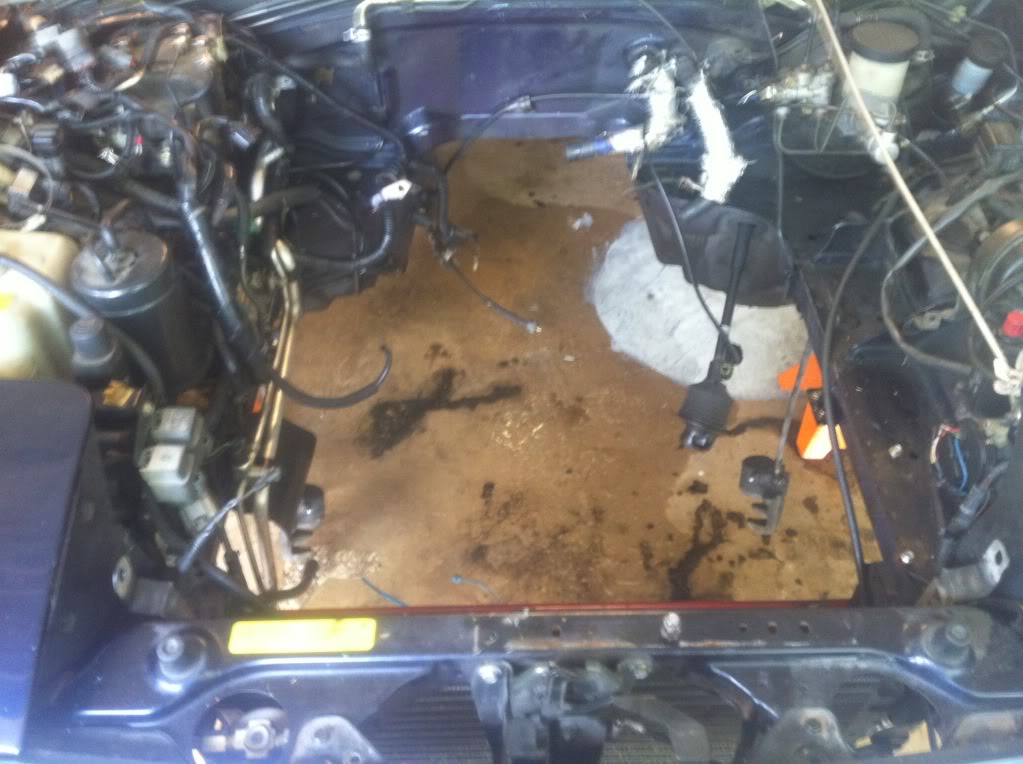

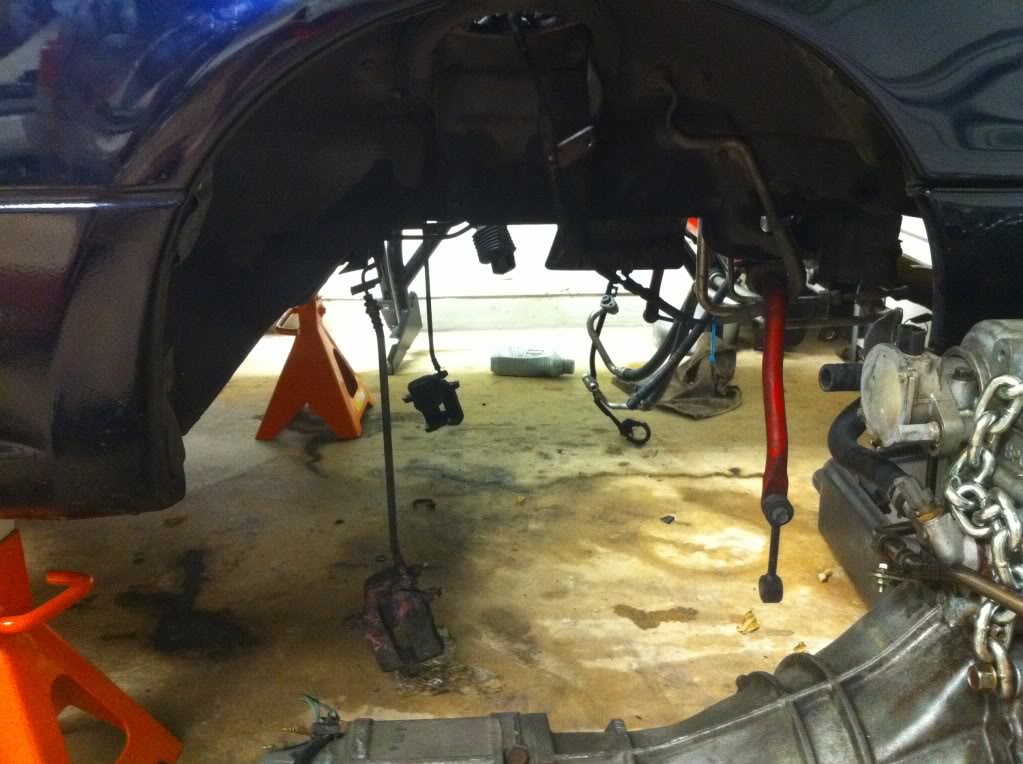

Completely gutted drive train and suspension.
Name:  miata082.jpg
Views: 10
Size:  98.4 KB
Name:  newmexicojuly195.jpg
Views: 10
Size:  105.2 KB

Name:  newmexicojuly161.jpg
Views: 10
Size:  90.0 KB

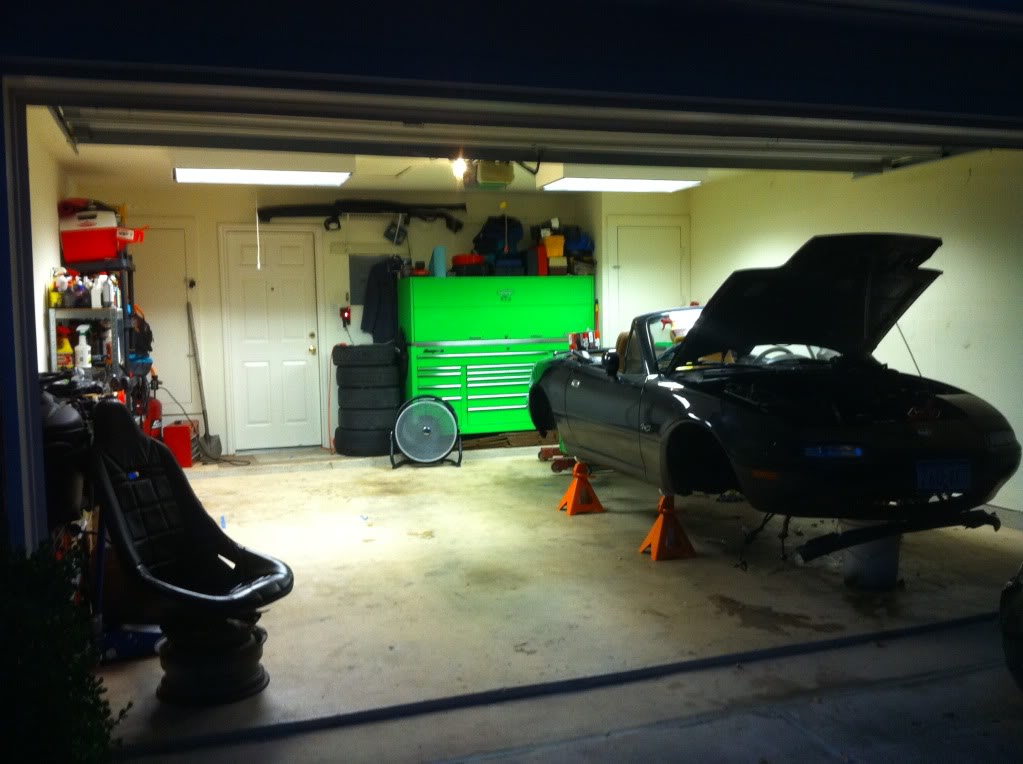

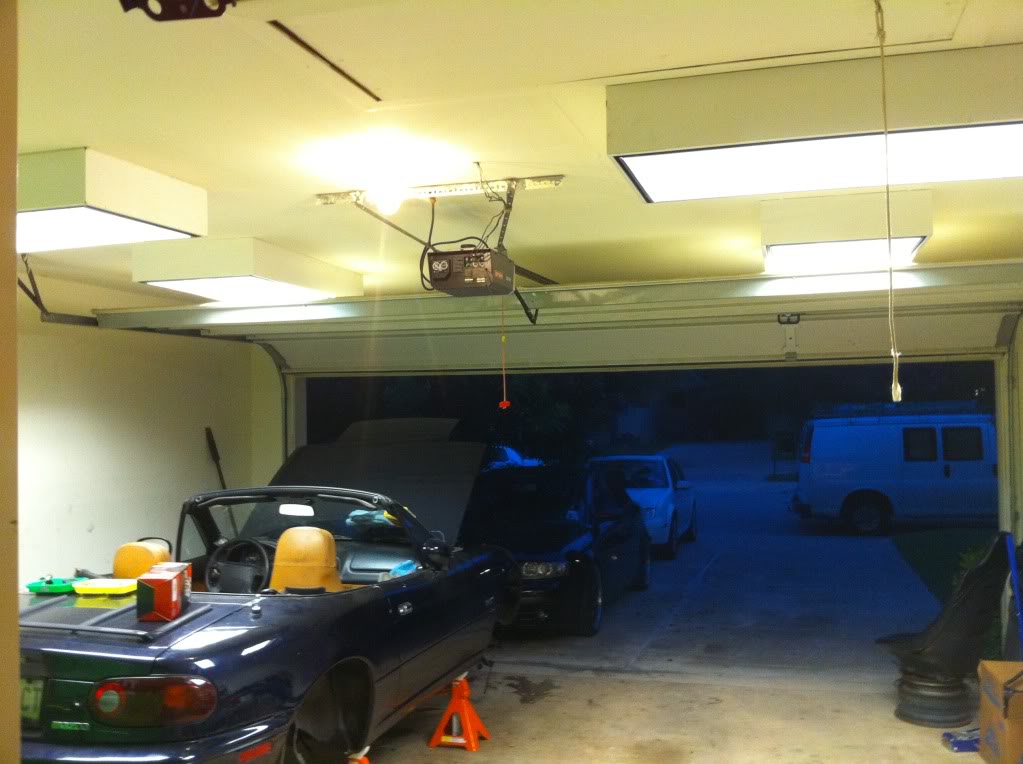

New lights for FREE. (It pays to have an electrician for a dad)
Name:  newmexicojuly163.jpg
Views: 12
Size:  87.6 KB
Name:  newmexicojuly193.jpg
Views: 10
Size:  109.2 KB

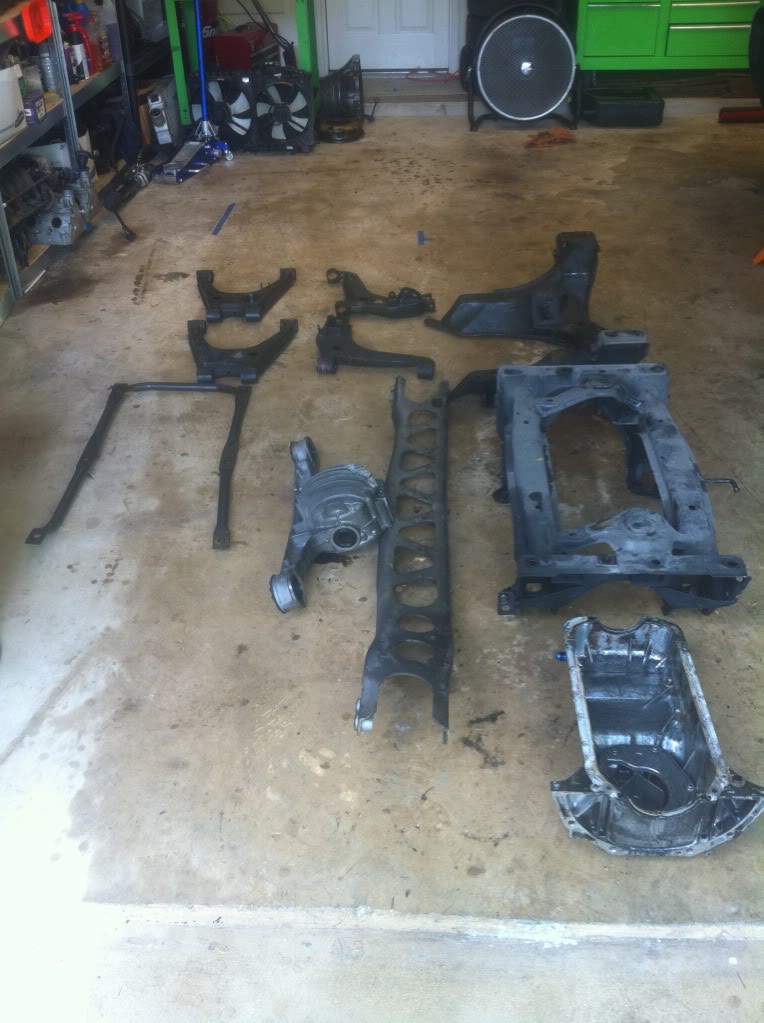

Parts ready for sandblasting and powder coating.
Name:  newmexicojuly197.jpg
Views: 9
Size:  121.6 KB

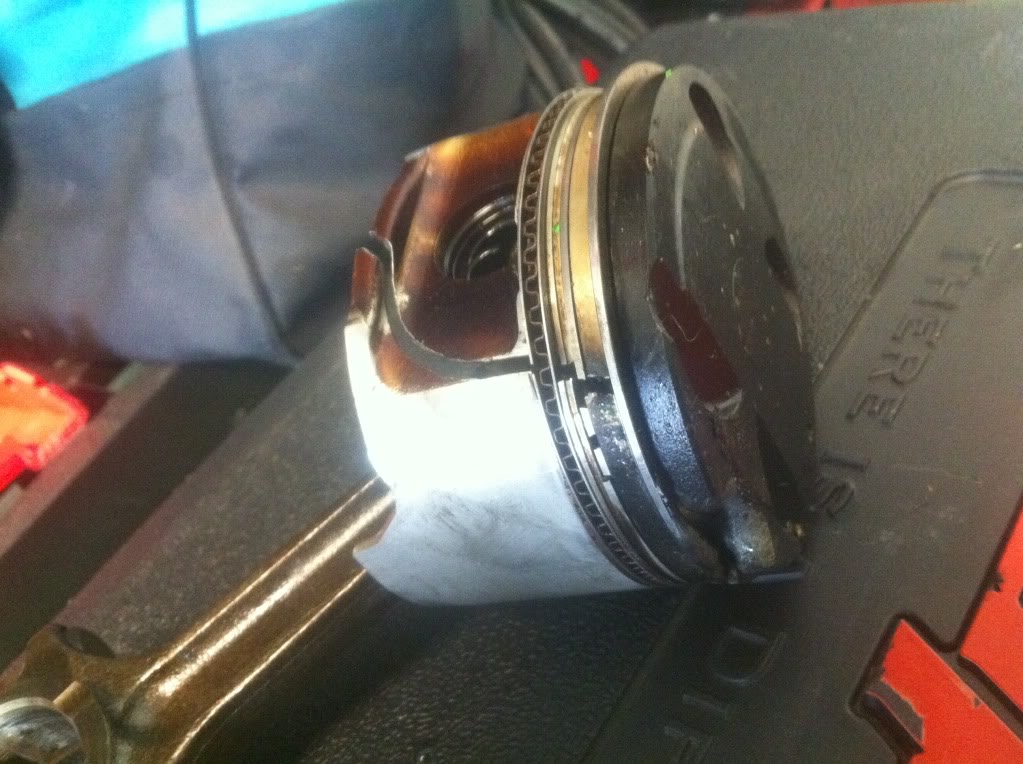

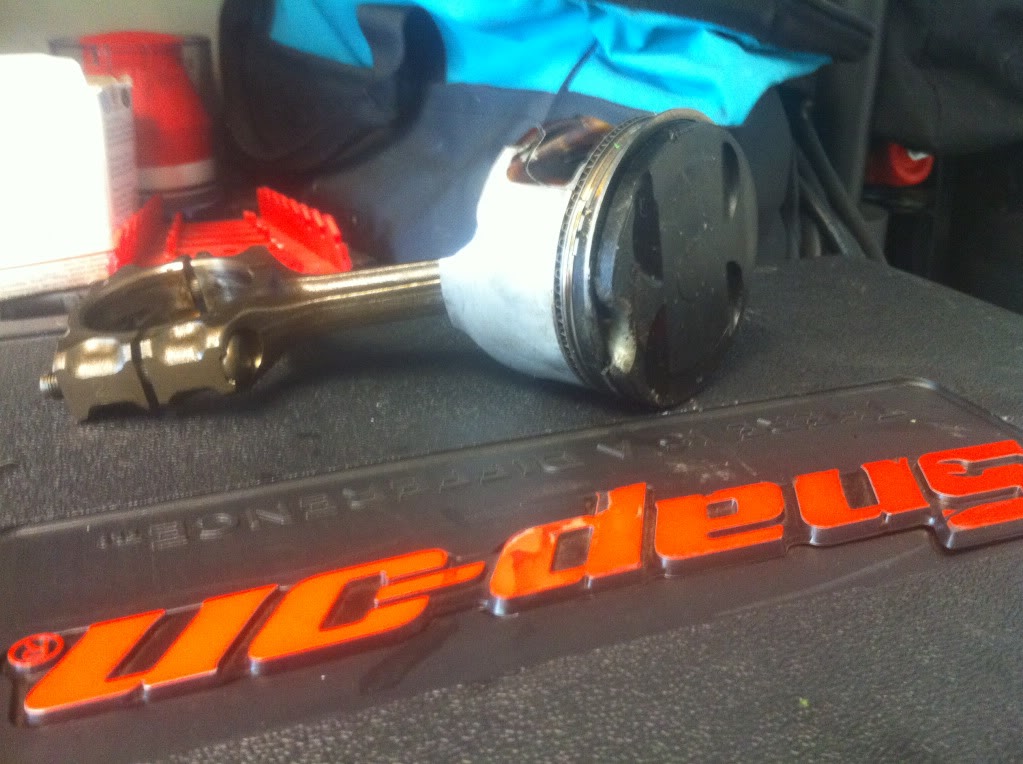

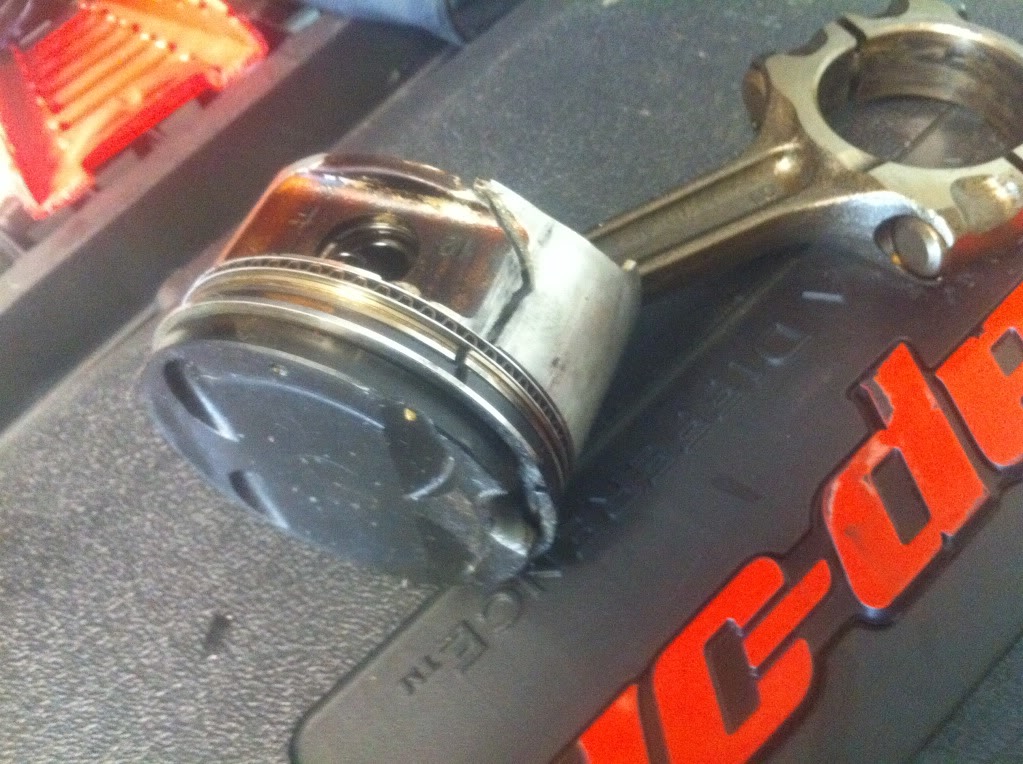

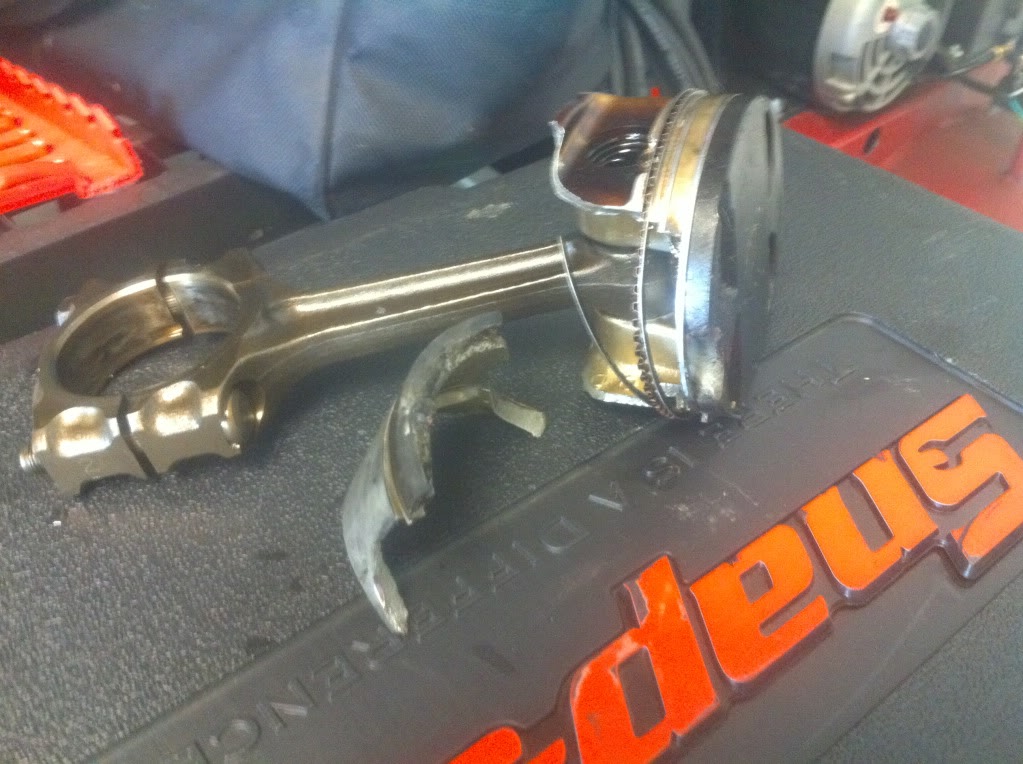

The #3 piston .
Name:  newmexicojuly198.jpg
Views: 10
Size:  127.9 KB
Name:  newmexicojuly199.jpg
Views: 10
Size:  160.7 KB
Name:  newmexicojuly200.jpg
Views: 10
Size:  130.7 KB
Name:  trishcar042.jpg
Views: 10
Size:  118.2 KB

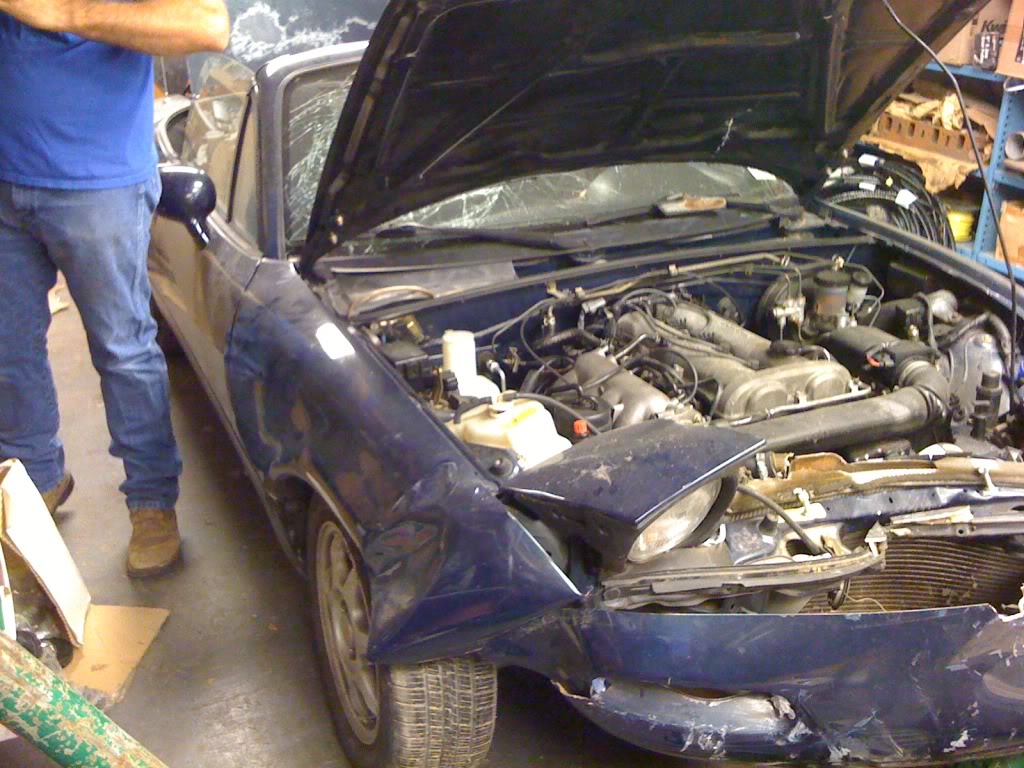

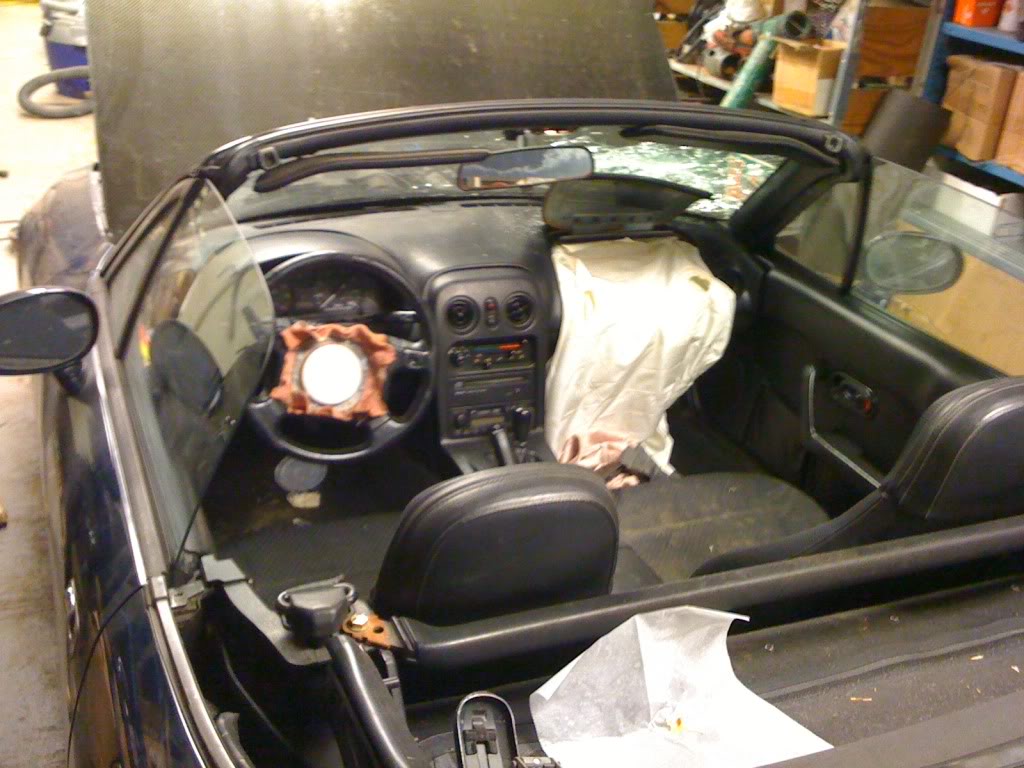

AIRBAGS Work.
Name:  trishcar040.jpg
Views: 11
Size:  156.2 KB

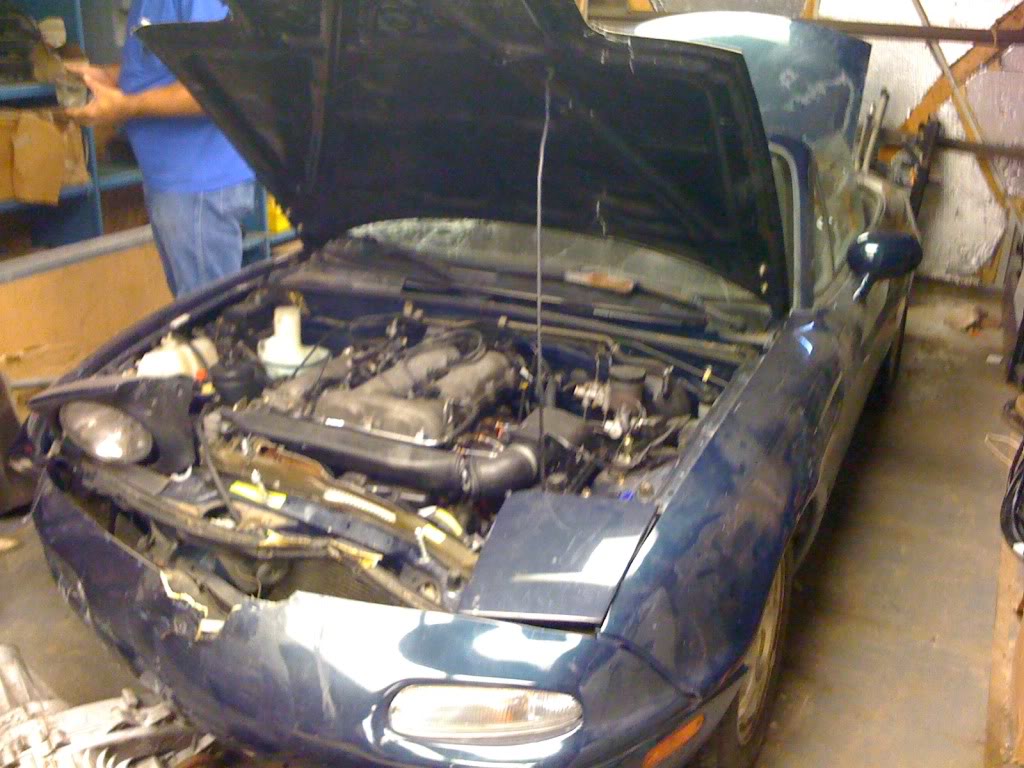

Name:  trishcar041.jpg
Views: 10
Size:  122.8 KB
Name:  newmexicojuly302.jpg
Views: 11
Size:  80.8 KB

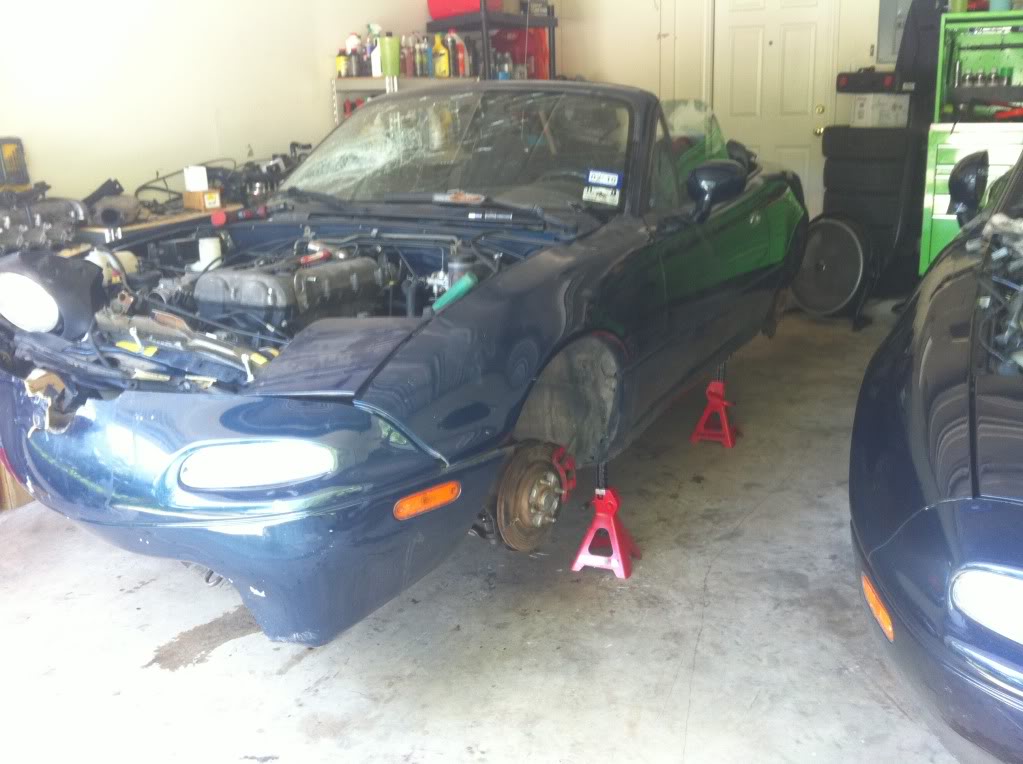

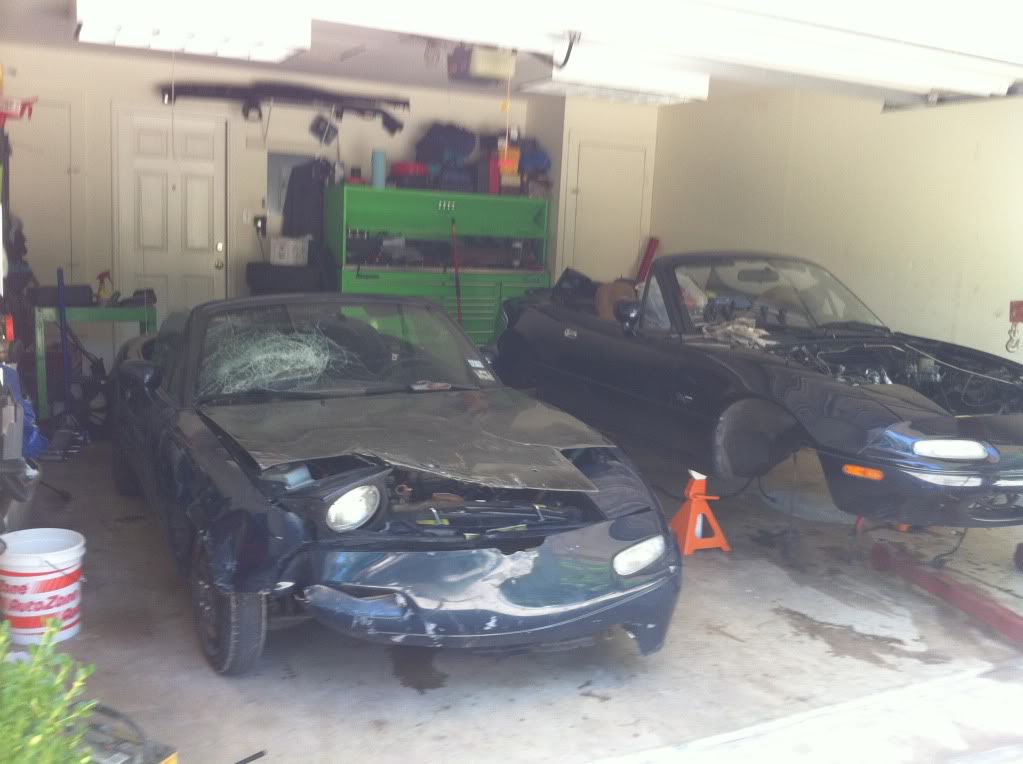

Getting ready for the whoring of the parts off the wrecked car.
Name:  newmexicojuly326.jpg
Views: 10
Size:  98.2 KB
Name:  newmexicojuly336.jpg
Views: 10
Size:  140.1 KB

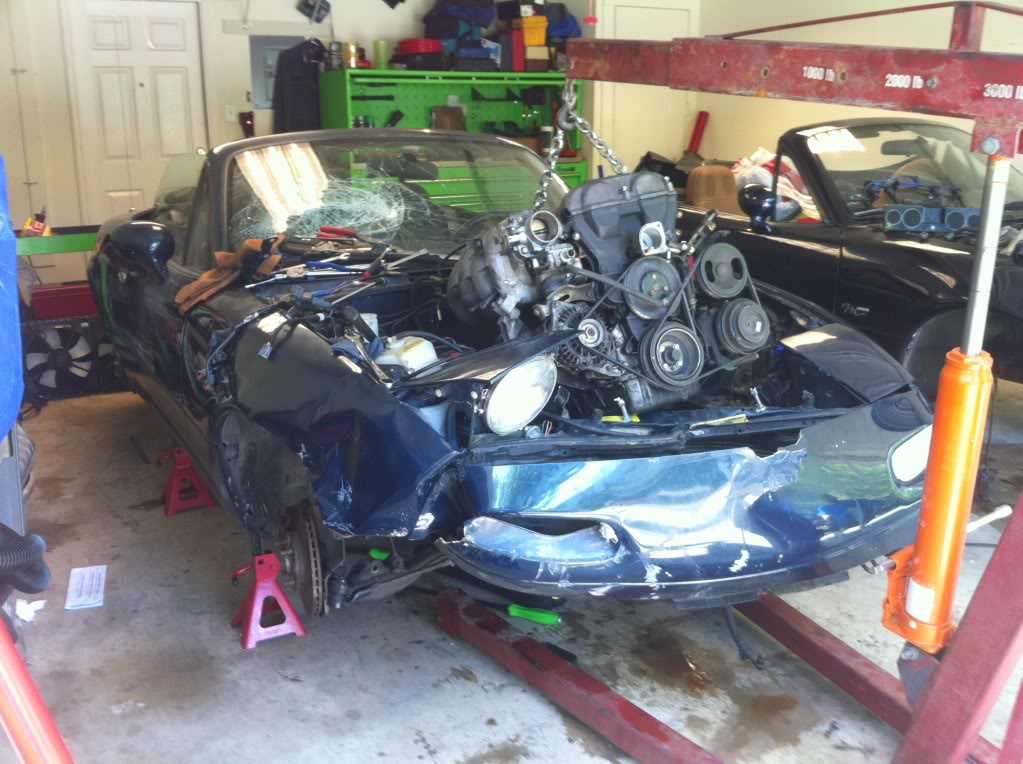

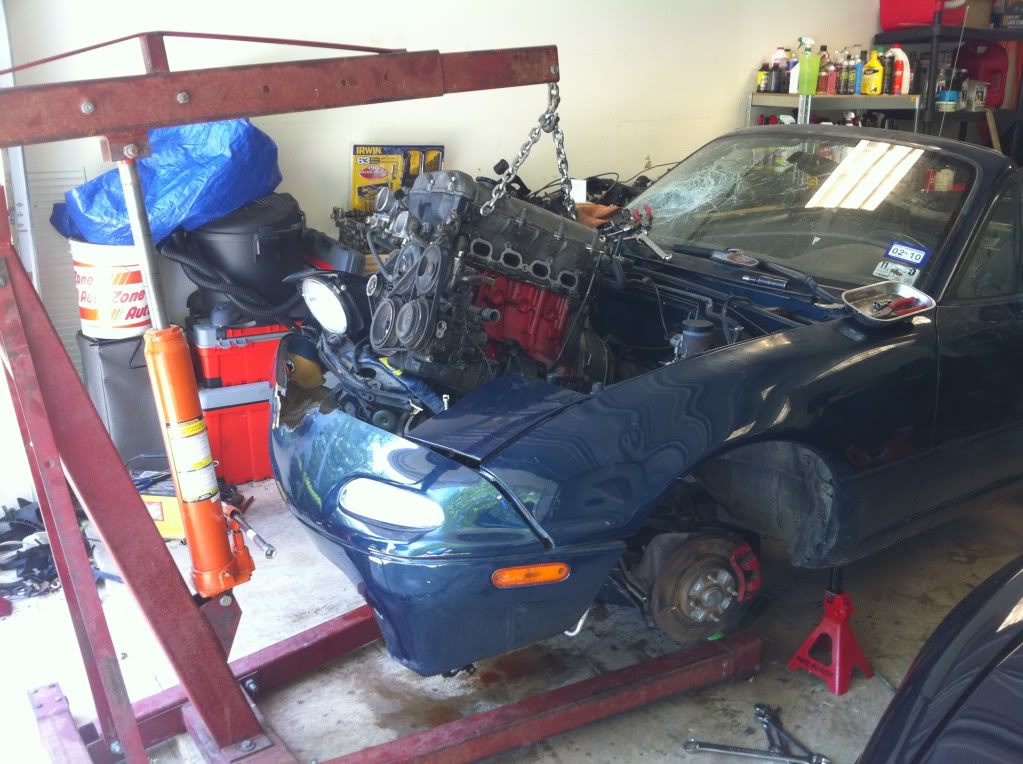

Motor almost out.
Name:  newmexicojuly335.jpg
Views: 10
Size:  141.2 KB
Motor almost out.
Name:  newmexicojuly337.jpg
Views: 10
Size:  88.1 KB

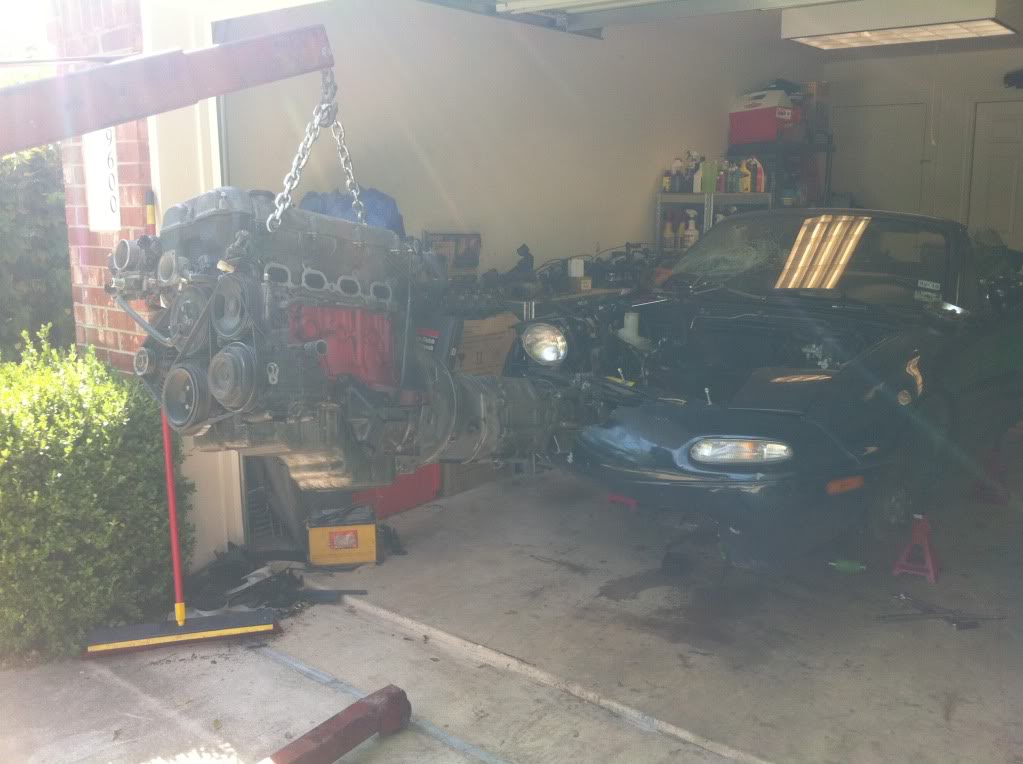

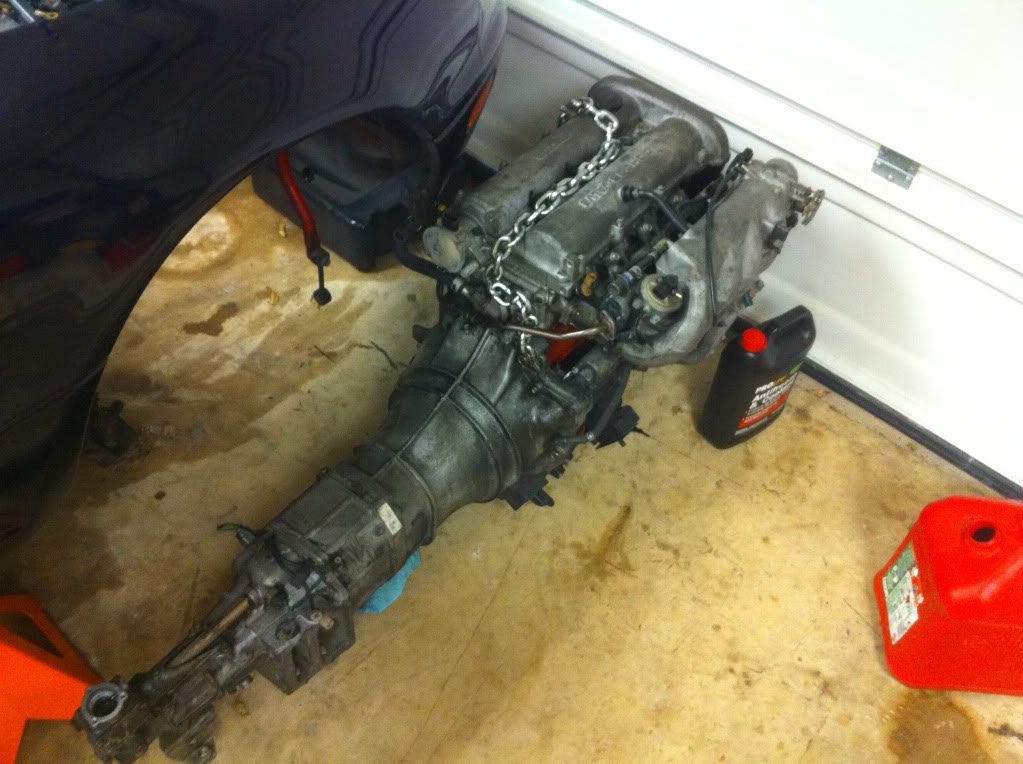

Motor out.
Name:  miata084.jpg
Views: 11
Size:  114.5 KB

Name:  newmexicojuly322.jpg
Views: 9
Size:  117.7 KB

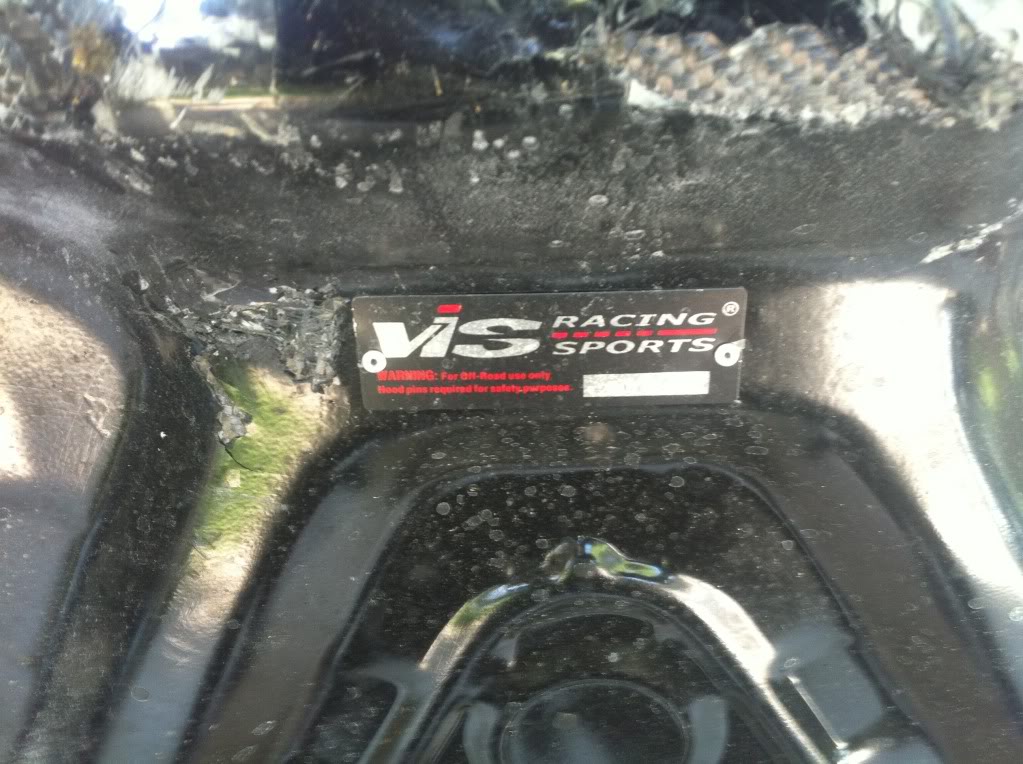

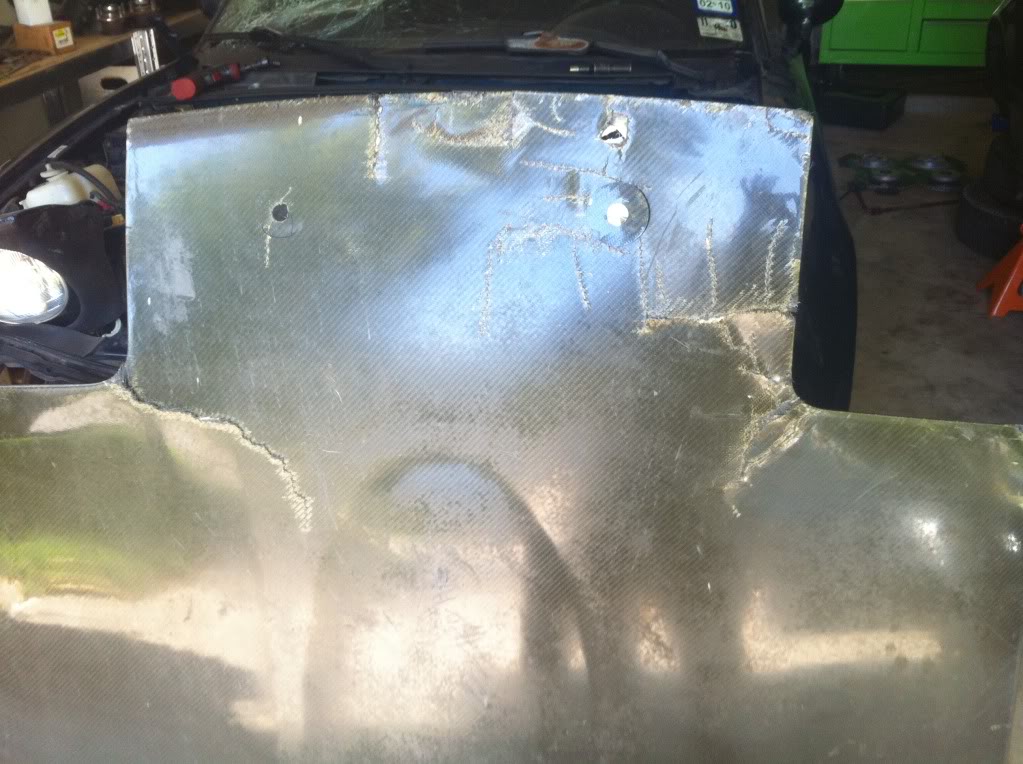

VIS carbon fiber hood destroyed.
Name:  newmexicojuly324.jpg
Views: 10
Size:  131.8 KB
Name:  newmexicojuly341.jpg
Views: 10
Size:  128.8 KB

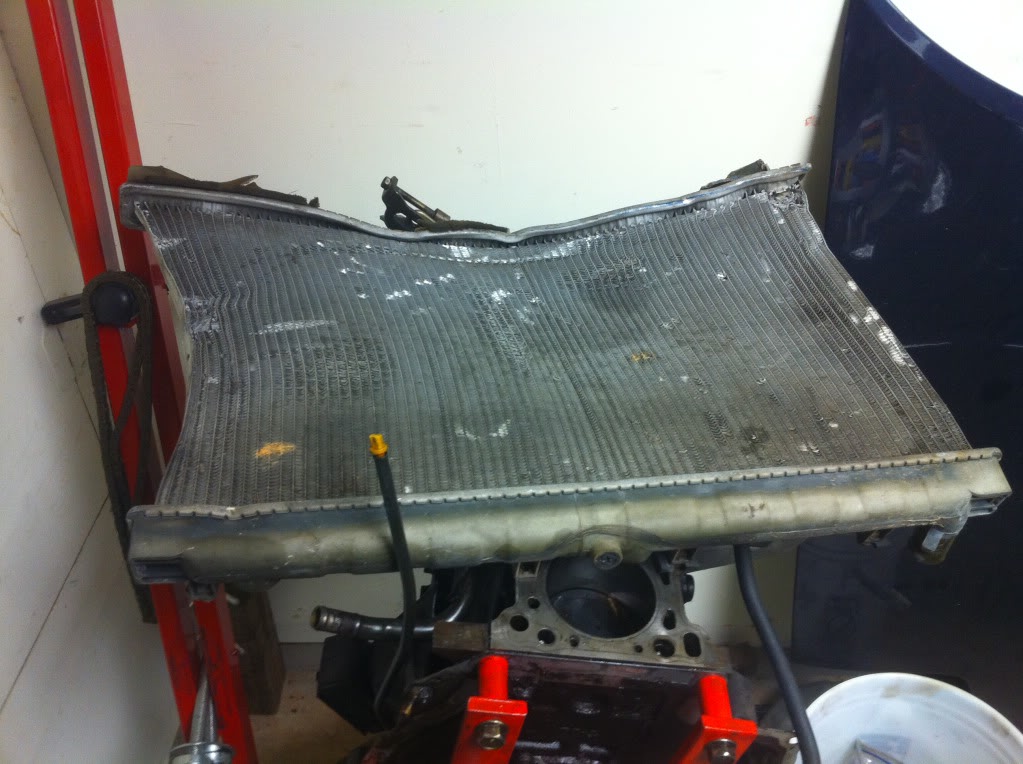

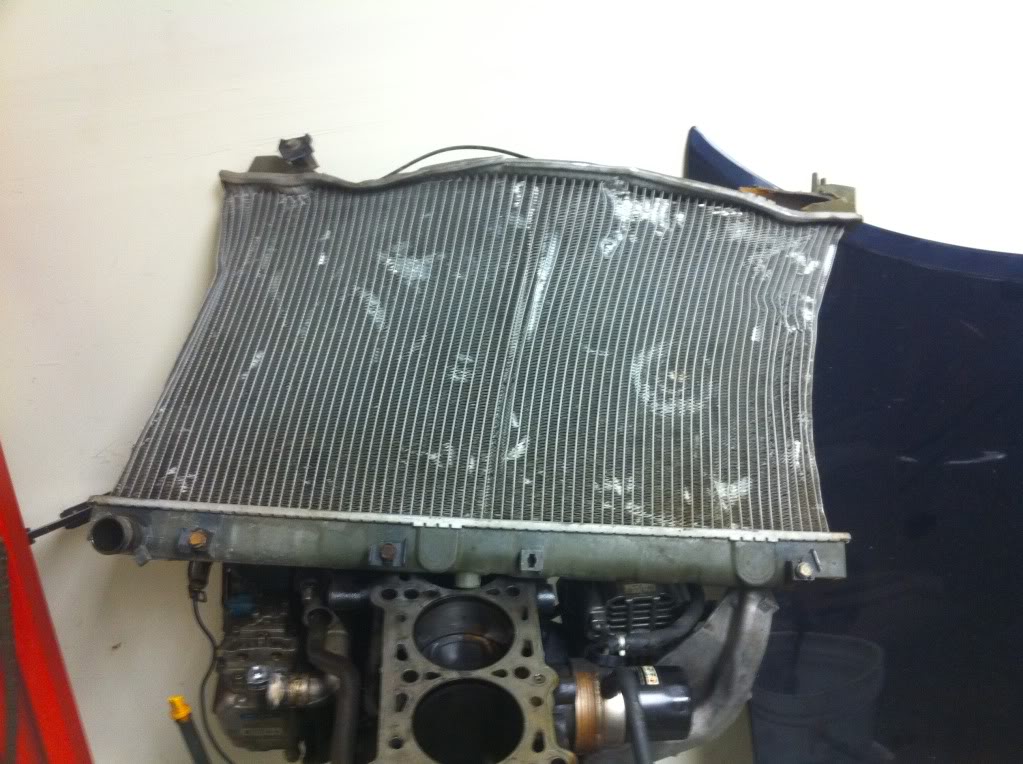

Radiator, Ouch.
Name:  newmexicojuly340.jpg
Views: 10
Size:  122.0 KB
Name:  newmexicojuly352.jpg
Views: 10
Size:  81.6 KB
Saying goodbye to the first miata. So Sad.
Name:  newmexicojuly353.jpg
Views: 10
Size:  60.5 KB

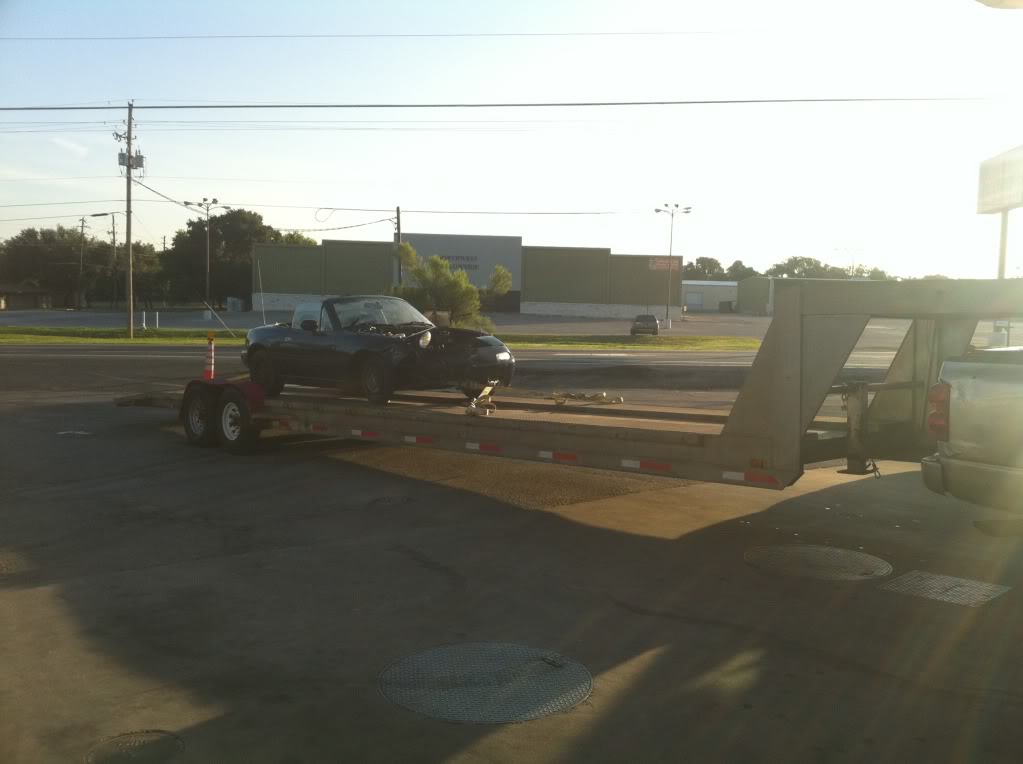

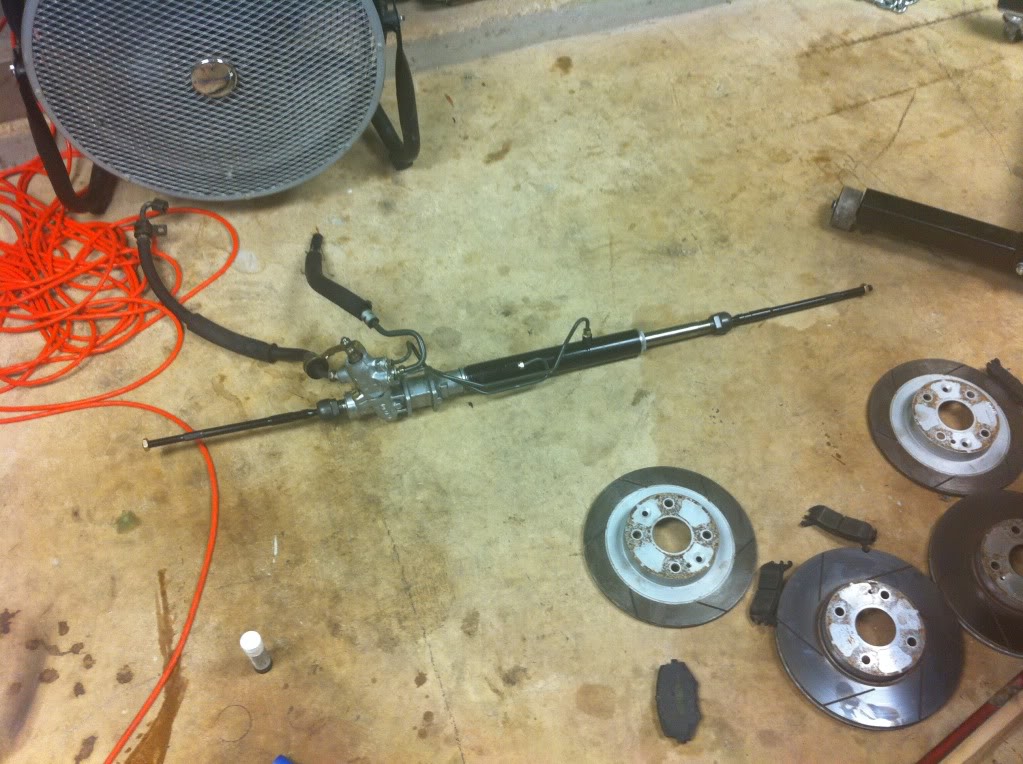

40’ gooseneck towing a 9 foot car.
Name:  d68f791f.jpg
Views: 10
Size:  149.2 KB
Secret Element tie rod ends installed.
Name:  newmexicojuly321.jpg
Views: 11
Size:  136.8 KB

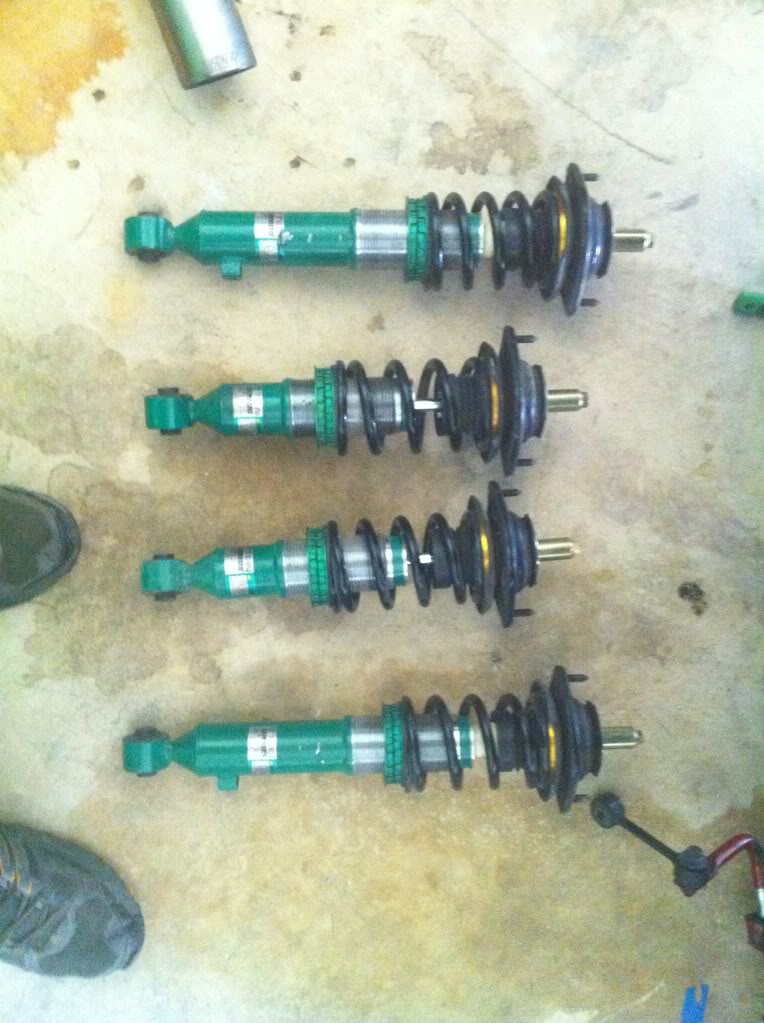

Tein Coilovers.
Name:  newmexicojuly319.jpg
Views: 10
Size:  128.9 KB

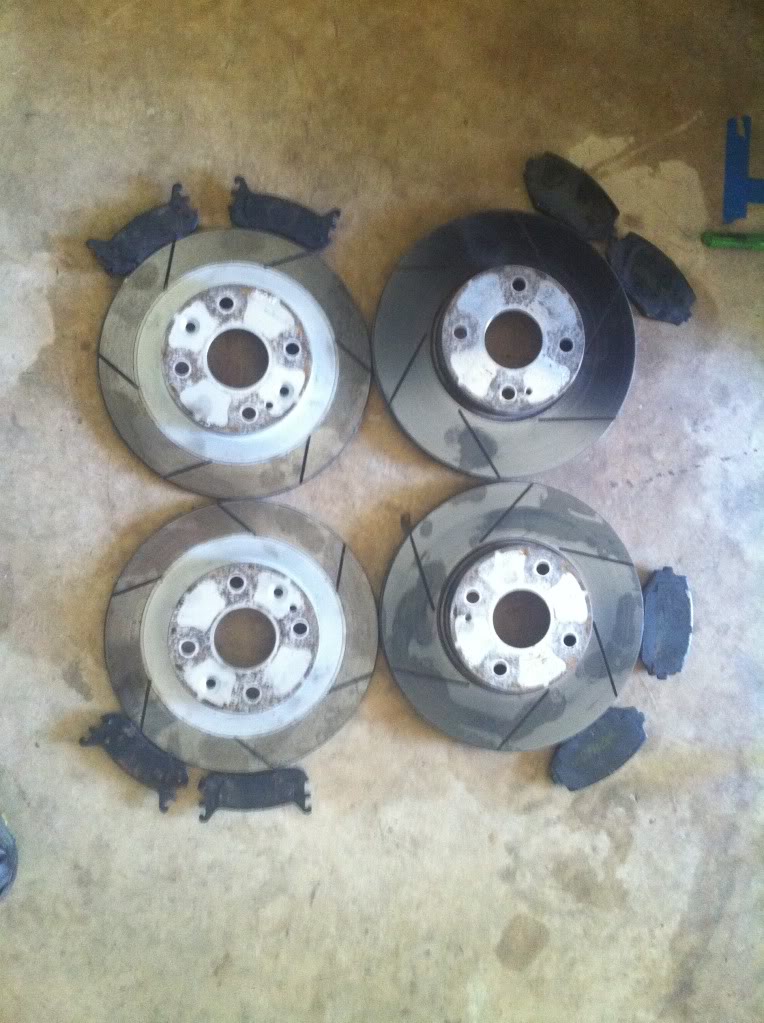

Brembo rotors, and Hawk pads.
Name:  newmexicojuly315.jpg
Views: 10
Size:  122.7 KB

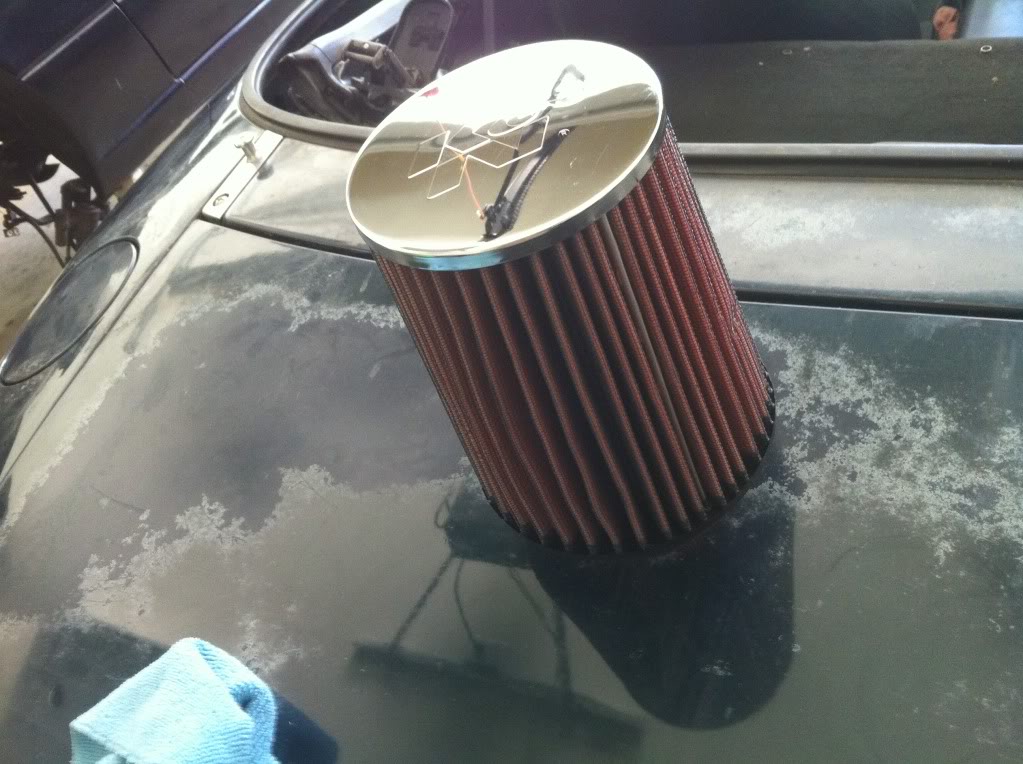

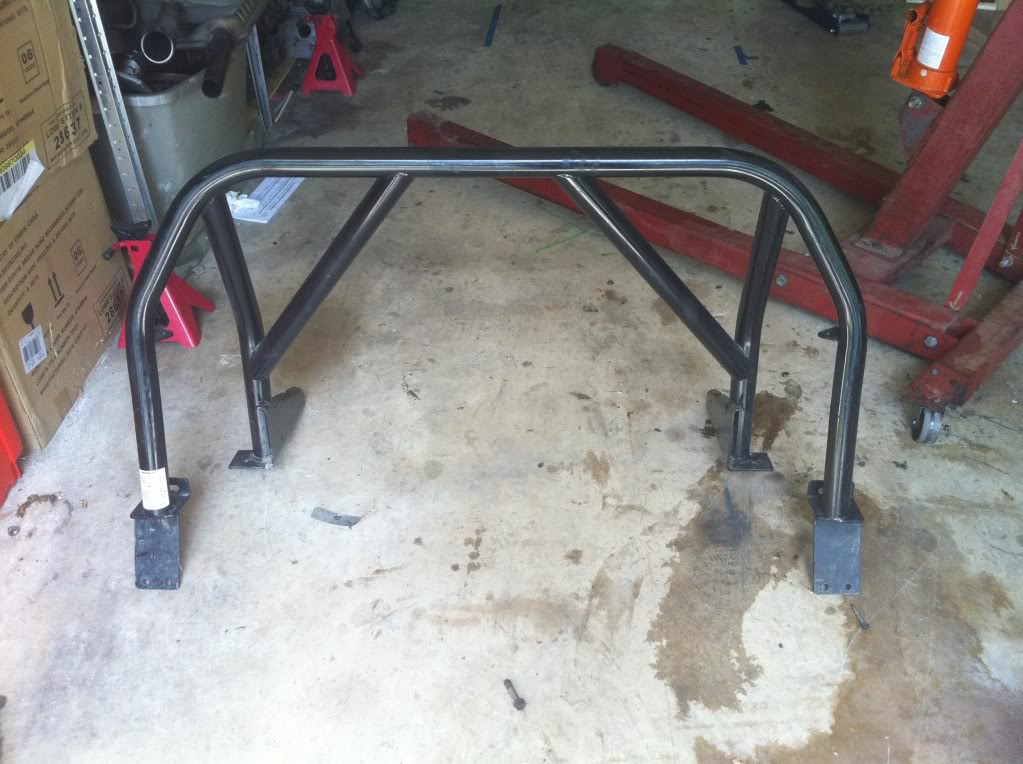

K&N for Free. Pays to work at an autoparts store. ( I did not steal it, display)
Name:  367000f4.jpg
Views: 10
Size:  133.7 KB
Boss frog Clear view.
Name:  newmexicojuly312.jpg
Views: 10
Size:  98.4 KB

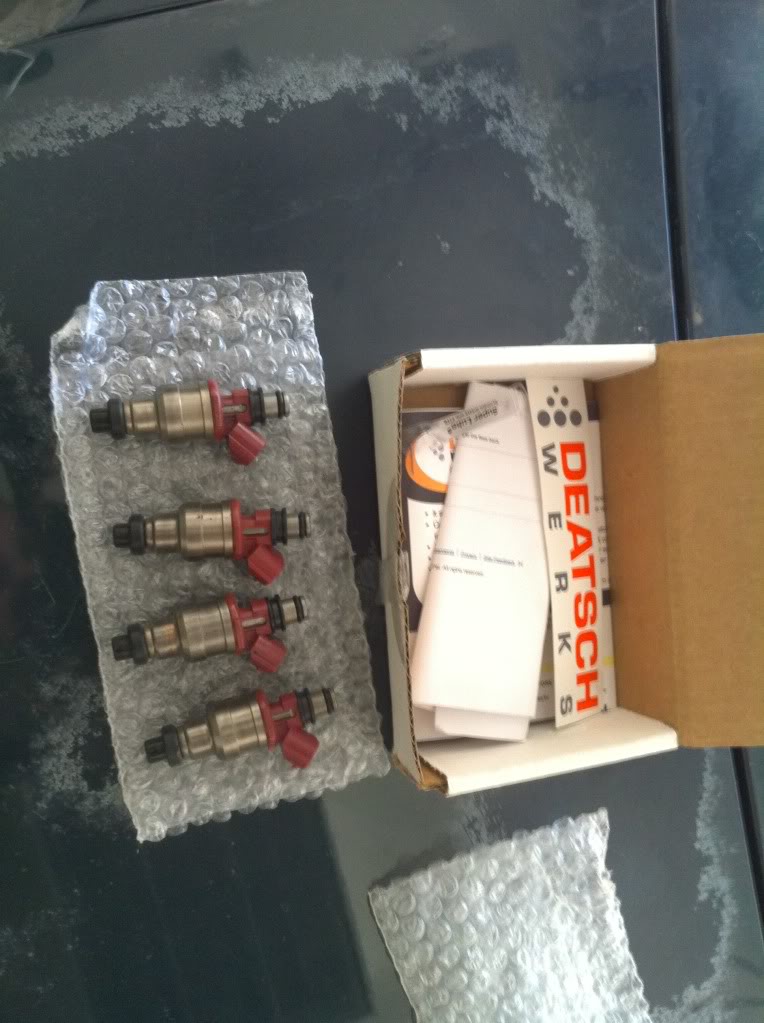

550cc RX7 turbo injectors cleaned and flow tested by Deatsch Werks.
Name:  newmexicojuly311.jpg
Views: 10
Size:  120.7 KB

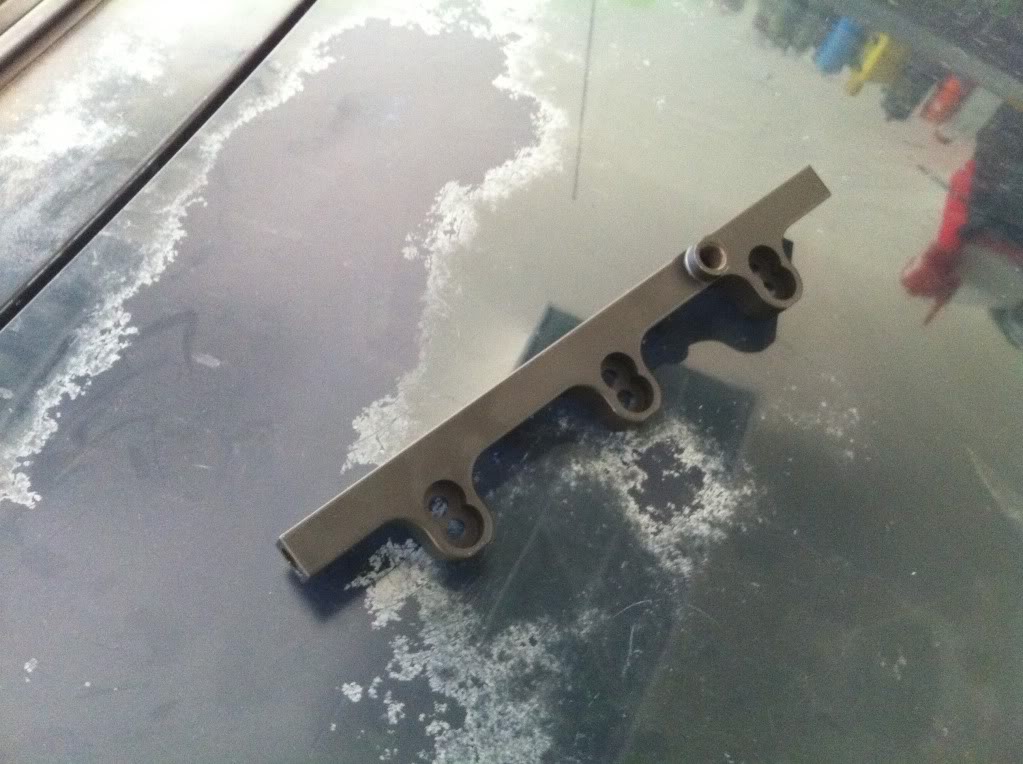

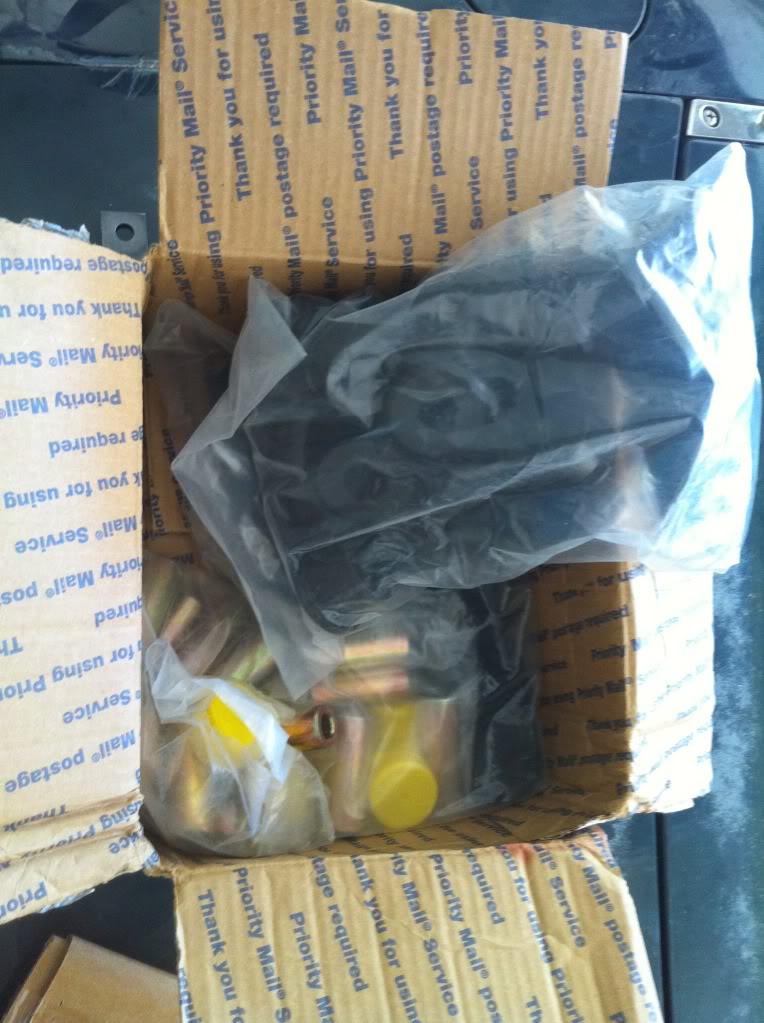

SSC Dual feed fuel rail.
Name:  newmexicojuly309.jpg
Views: 10
Size:  119.6 KB
Energy Suspensions bushing kit.
Name:  newmexicojuly307.jpg
Views: 10
Size:  79.7 KB

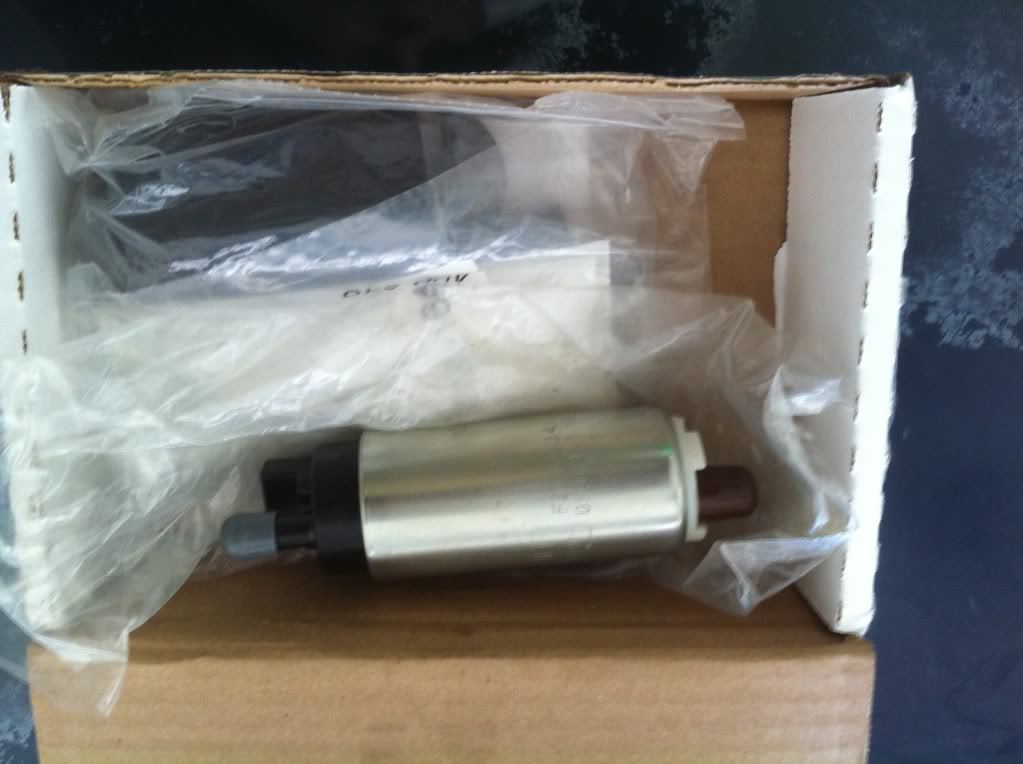

Warbro 190hp.
Name:  newmexicojuly305.jpg
Views: 10
Size:  125.9 KB

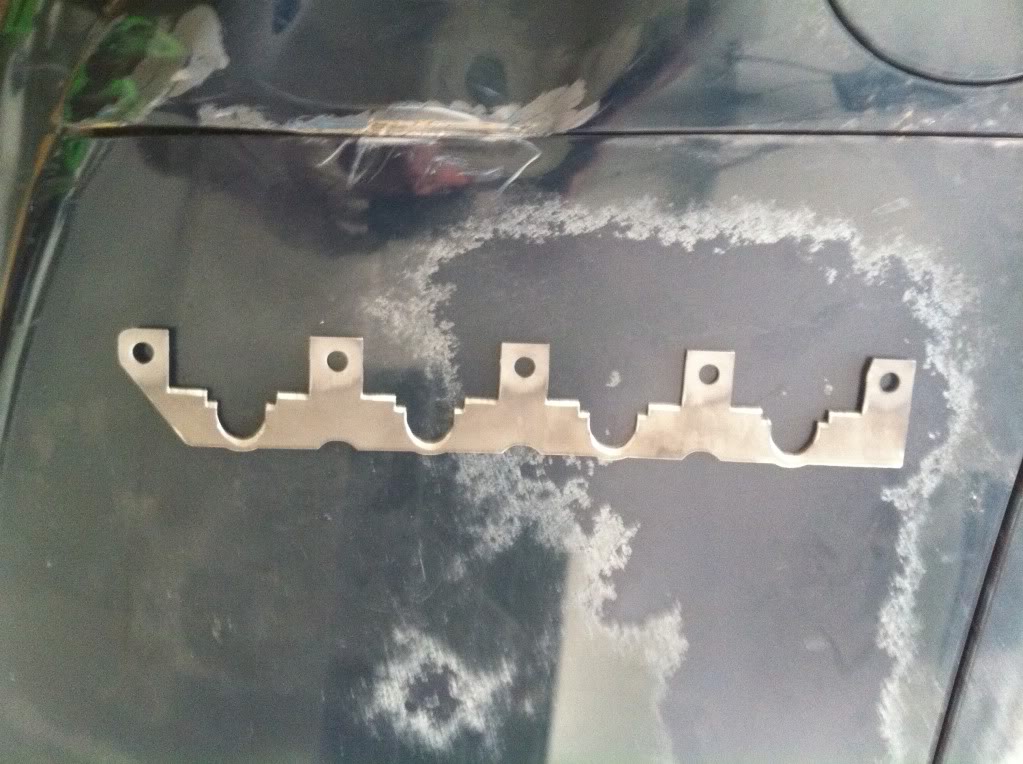

Ishihara-Johnson Crank Scraper.

Any advise, comments, or concerns would helpful.
Thanks, and enjoy.
yellowihss is offline   Reply With Quote
Old 08-17-2010, 02:25 AM   #2
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

The busted pistons were from a stock motor? Sorry if it's in your intro thread, but I'm too lazy
Bond is offline   Reply With Quote
Old 08-17-2010, 02:30 AM   #3
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

The piston was in the 2nd car which is why I got it so cheap. The forged motor in the first miata was salvageable and will be going into the new car.
yellowihss is offline   Reply With Quote
Old 08-17-2010, 02:37 AM   #4
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Ohh alright, that's what I figured.

I envy your parts list.
Bond is offline   Reply With Quote
Old 08-17-2010, 09:17 AM   #5
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Nice build! Looks like it will be a good build to keep up with
miataspeed2005 is offline   Reply With Quote
Old 08-17-2010, 09:29 AM   #6
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Ha...very cool story.
gospeed81 is offline   Reply With Quote
Old 08-21-2010, 01:24 AM   #7
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

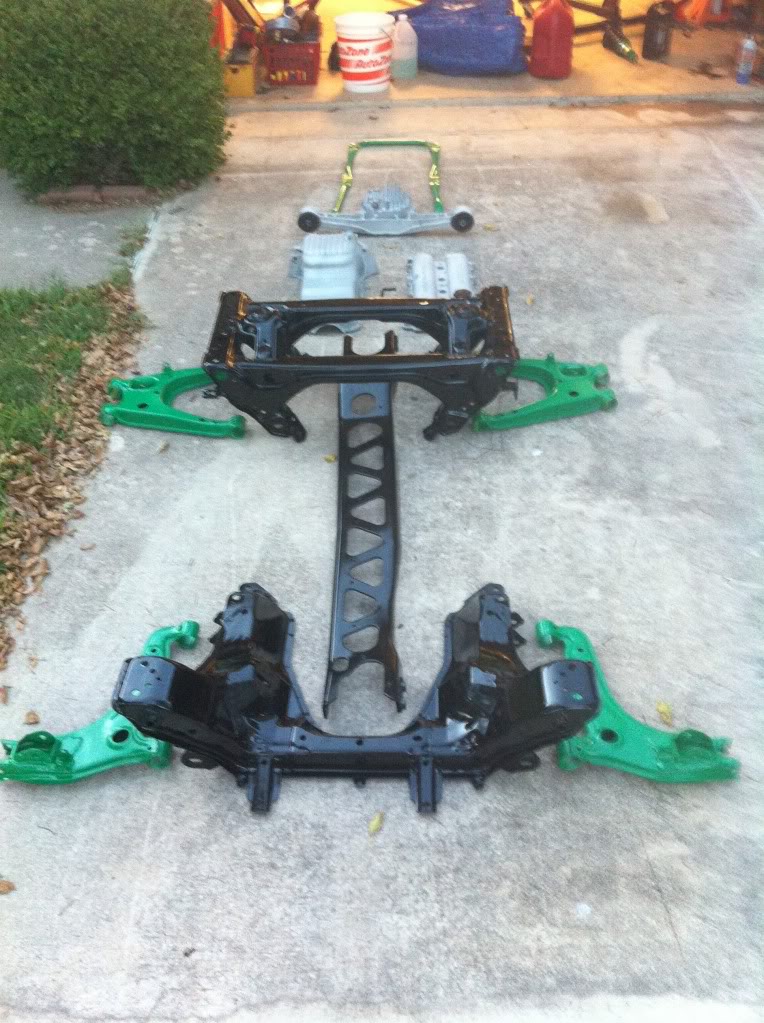

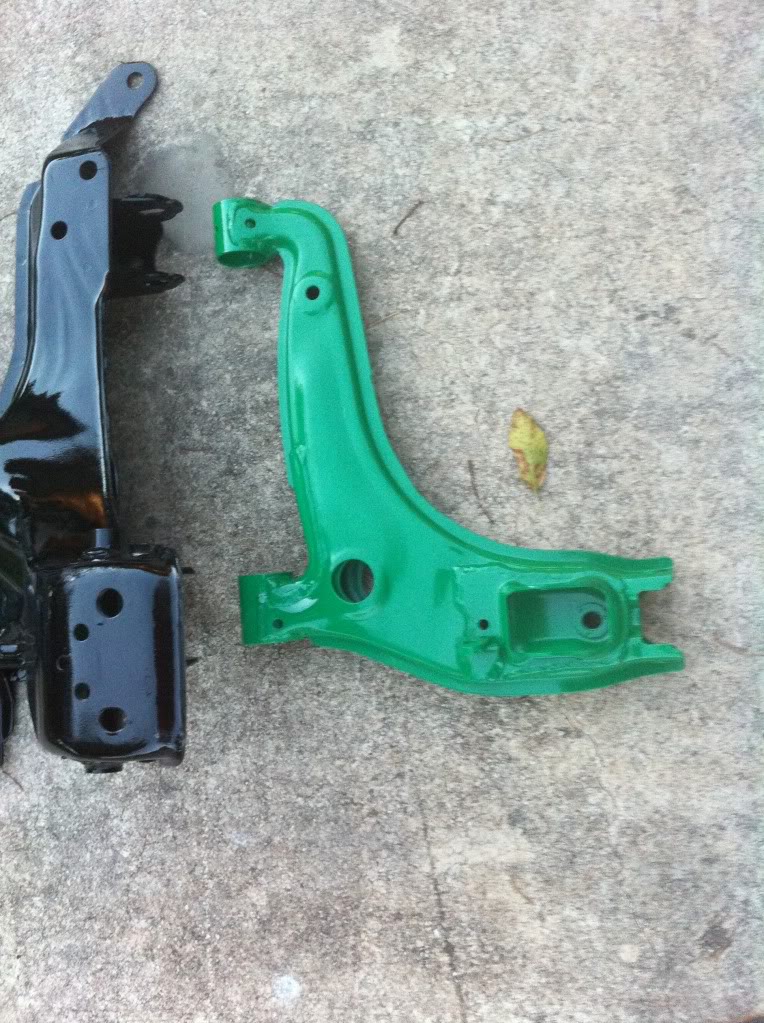

Just got my parts back from the sandblaster/painter. What do y'all think. Name:  f0c13f4d.jpg
Views: 10
Size:  163.6 KB
Name:  a96eaf82.jpg
Views: 10
Size:  200.1 KB
yellowihss is offline   Reply With Quote
Old 08-21-2010, 09:55 AM   #8
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

that looks good. never actually thought about doing my control arms until now that is.
94blackmx5 is offline   Reply With Quote
Old 08-21-2010, 10:46 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

lol @ tein colored control arms.
hustler is offline   Reply With Quote
Old 08-21-2010, 11:04 AM   #10
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

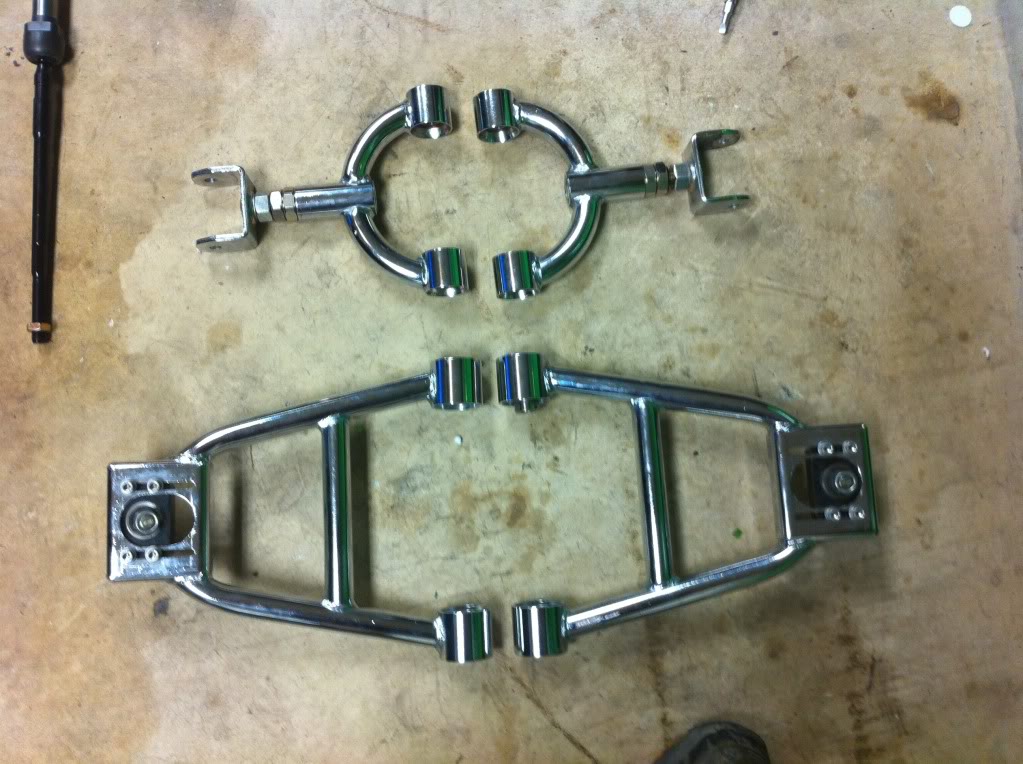

Upper control arms.
Name:  0a2b8c3b.jpg
Views: 19
Size:  131.6 KB
yellowihss is offline   Reply With Quote
Old 08-21-2010, 12:19 PM   #11
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Looks wicked! The next time I do a swap I'm going to take all that crap off and get it powder coated.
dustinb is offline   Reply With Quote
Old 08-21-2010, 02:46 PM   #12
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

I love the powder coated peices.

Where did you get the upper control arms? They look like Ebay stuff.

Good Build so far
viperormiata is offline   Reply With Quote
Old 08-21-2010, 05:28 PM   #13
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Nice build. The parts seem to just keep coming. Subscribed!
Fireindc is offline   Reply With Quote
Old 08-27-2010, 12:19 PM   #14
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

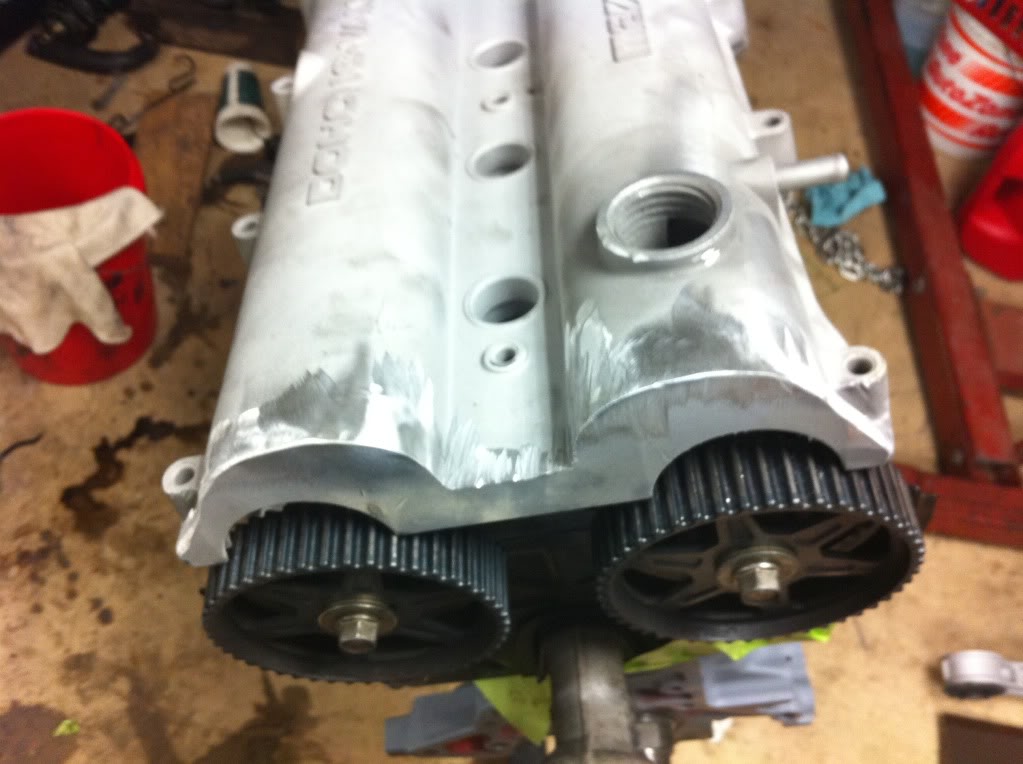

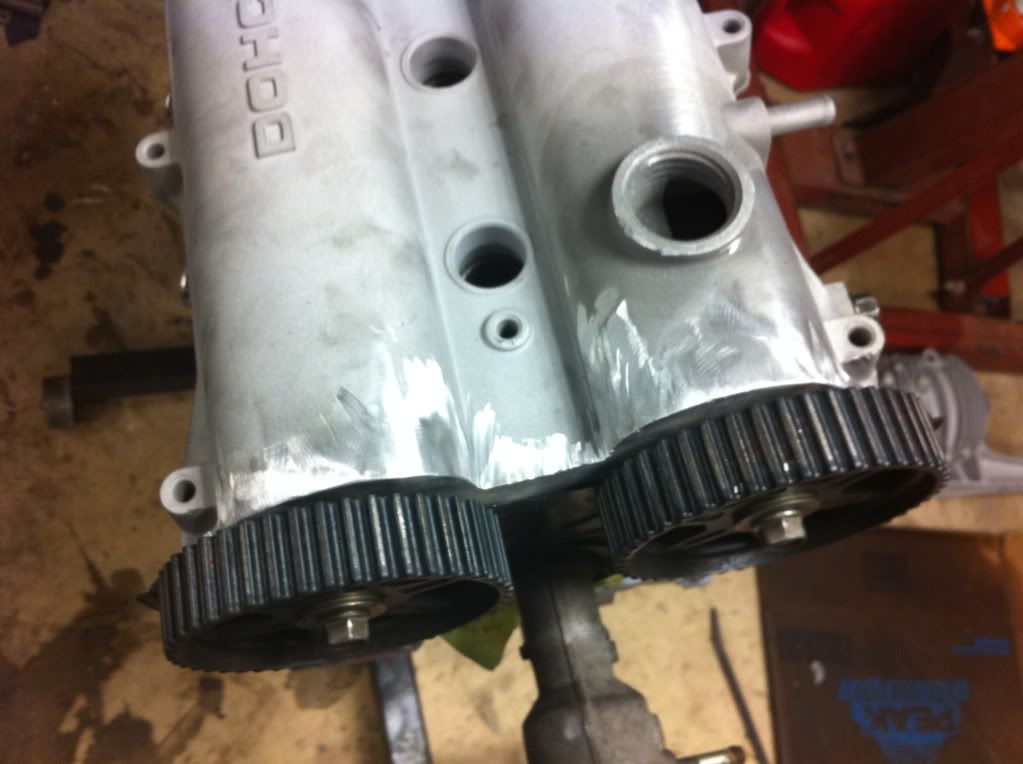

Here is the beginning stages of the exposed gear valve cover.
Name:  d031b0ba.jpg
Views: 10
Size:  85.4 KB
Name:  c4329501.jpg
Views: 10
Size:  74.2 KB

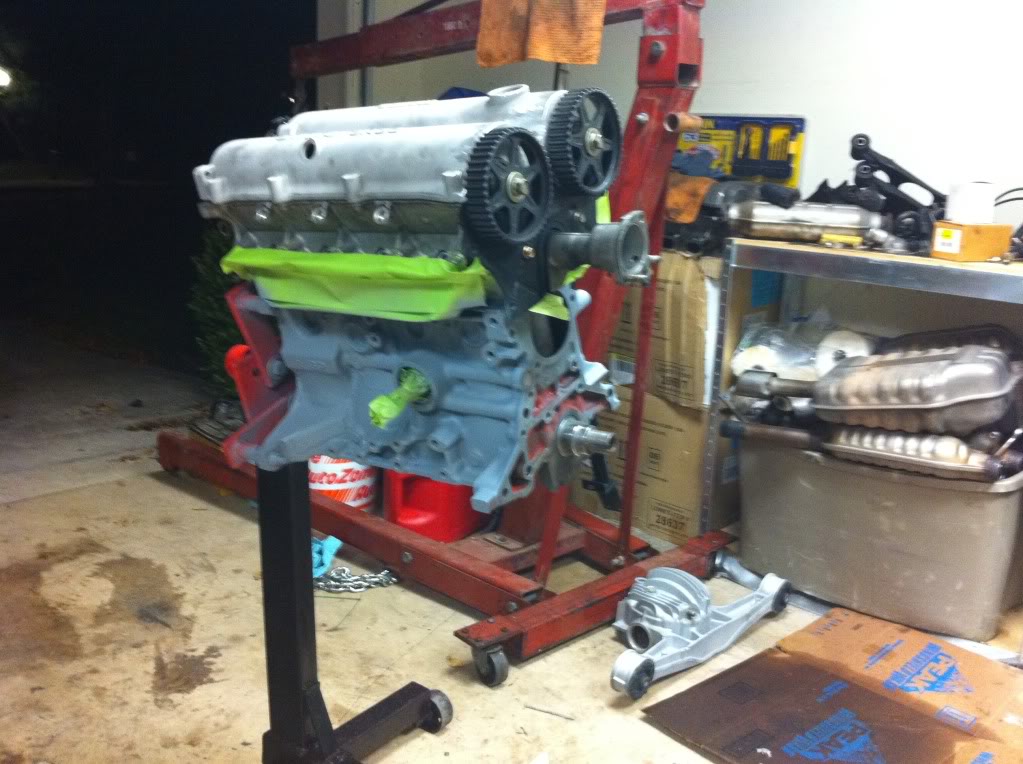

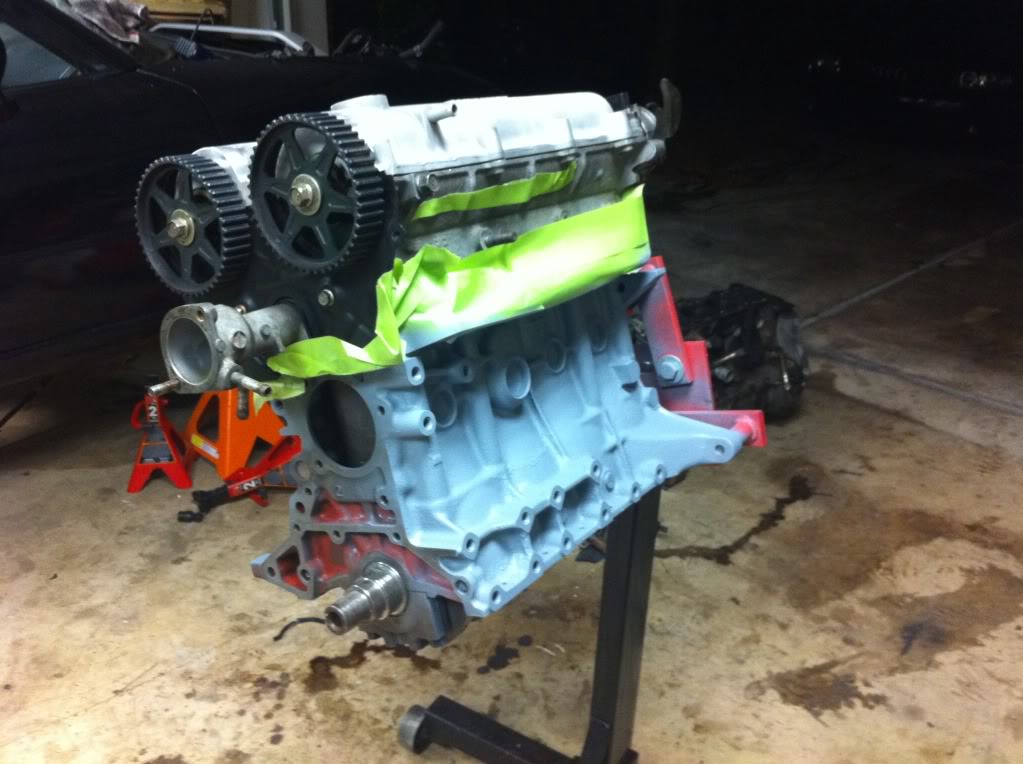

And the engine primered and ready for paint.
Name:  e1f10472.jpg
Views: 10
Size:  119.5 KB
Name:  eb499c50.jpg
Views: 11
Size:  101.9 KB

What color should I paint the engine. The car will be dark grey and the sus. is green. They don't make the tein green in engine paint, and anything that is green on the car has to match the sus. or I'm not doing it. So aside from a different green, what color should I paint it.
yellowihss is offline   Reply With Quote
Old 08-27-2010, 03:12 PM   #15
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Whatever color you paint it, do yourself a favor and put the oil pan on. Also, take the time to tape up any mating surfaces. Looks like you have over spray all the way to the nose on your crank. of course that's just my opinion.
hingstonwm is offline   Reply With Quote
Old 08-27-2010, 03:17 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

good luck with those $3 control arms...
Braineack is offline   Reply With Quote
Old 08-27-2010, 03:39 PM   #17
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Is there something i should know? Or is it because they are off ebay.
yellowihss is offline   Reply With Quote
Old 09-07-2010, 04:08 PM   #18
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

If your lowered those rear upper control arms will bottom out on the subframe and will eventually crack as a result.
slutz4 is offline   Reply With Quote
Old 09-07-2010, 08:34 PM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Paint it something light, like white or silver. This helps detect leaks.
curly is offline   Reply With Quote
Old 10-06-2010, 02:50 PM   #20
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

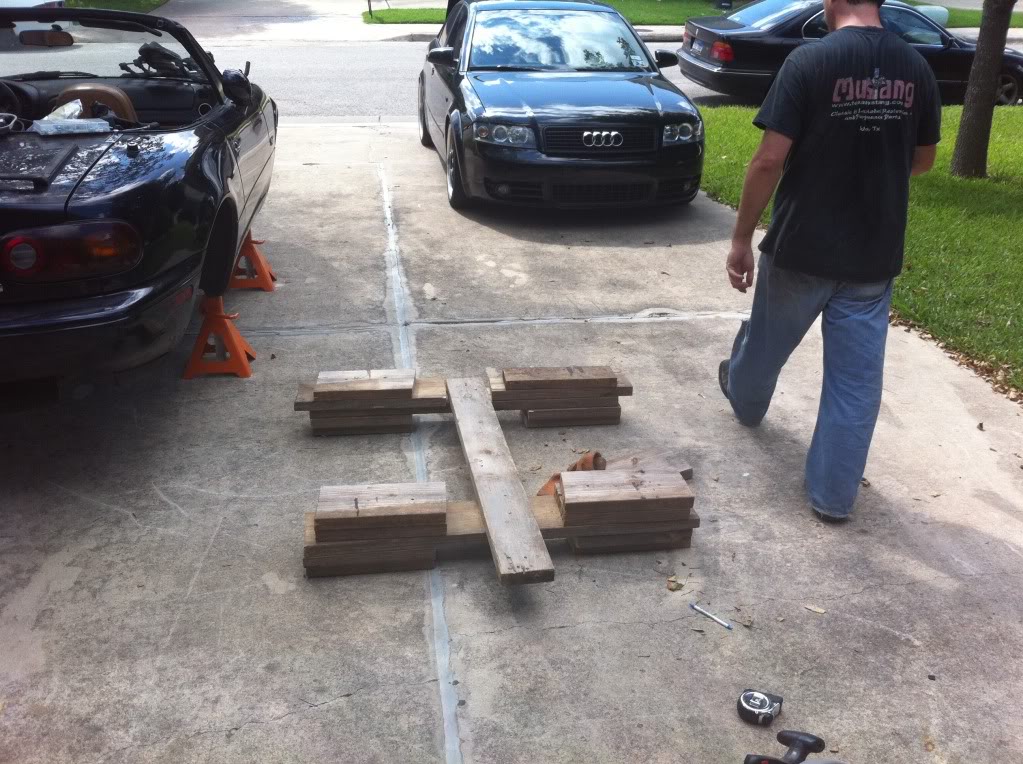

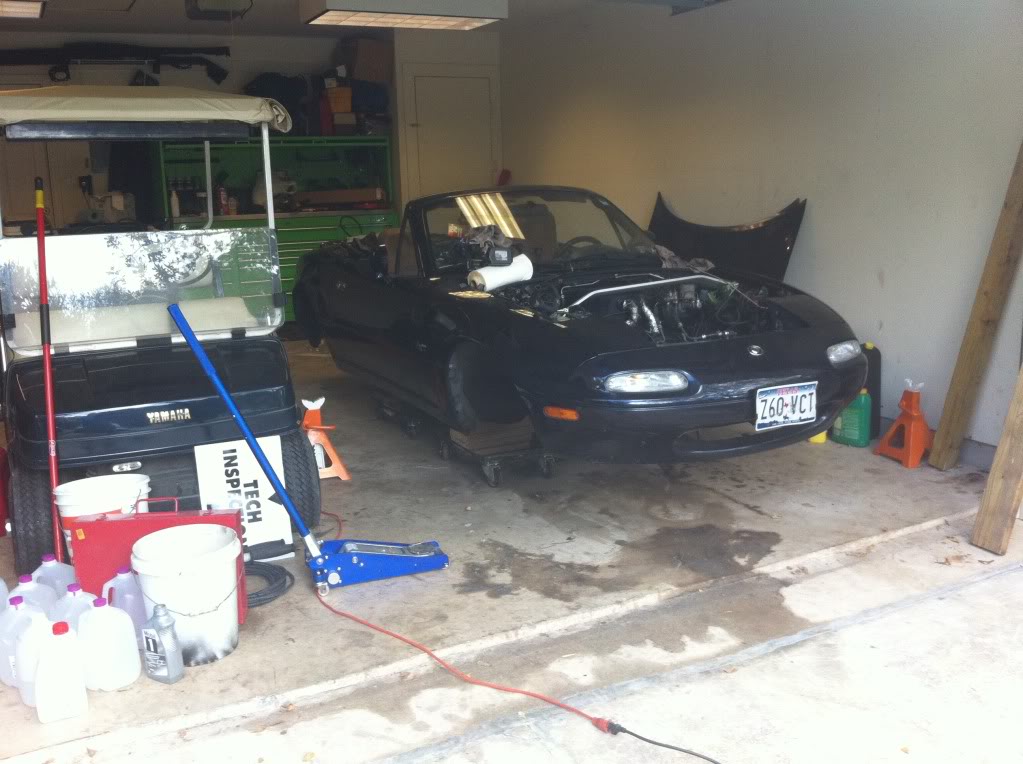

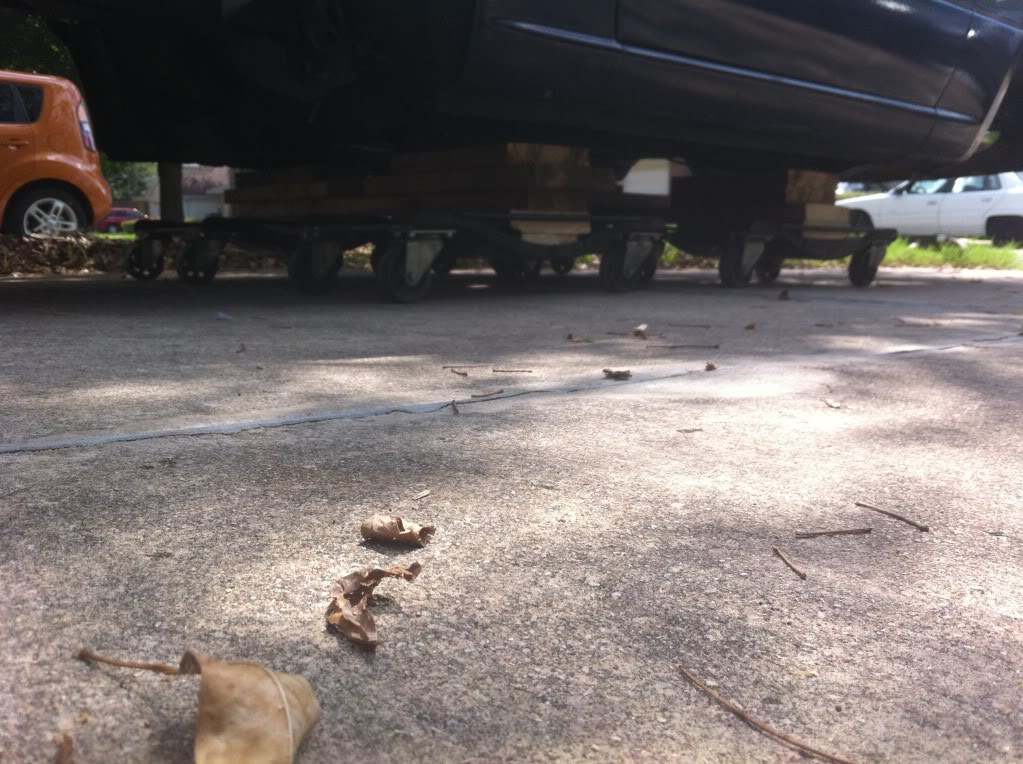

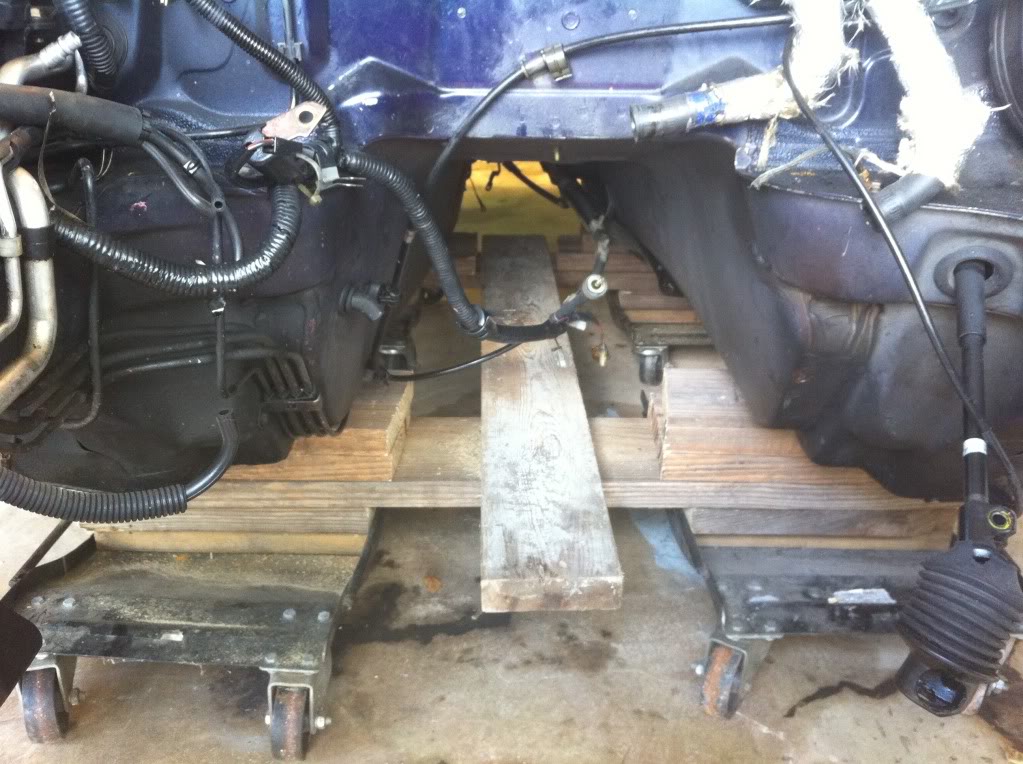

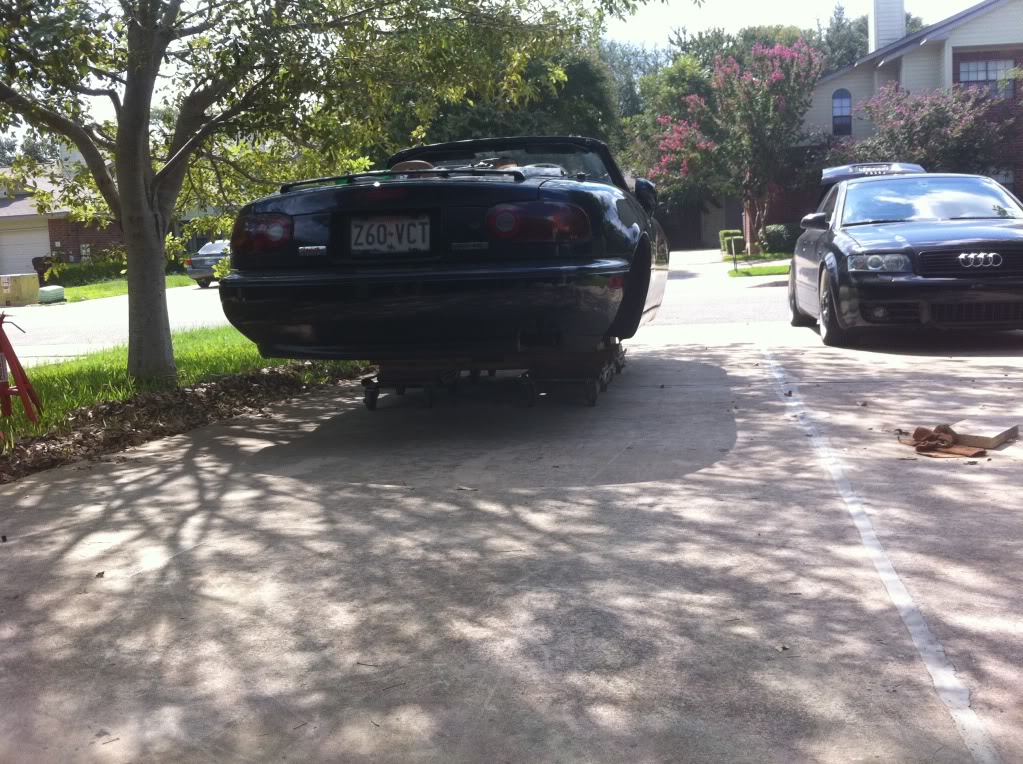

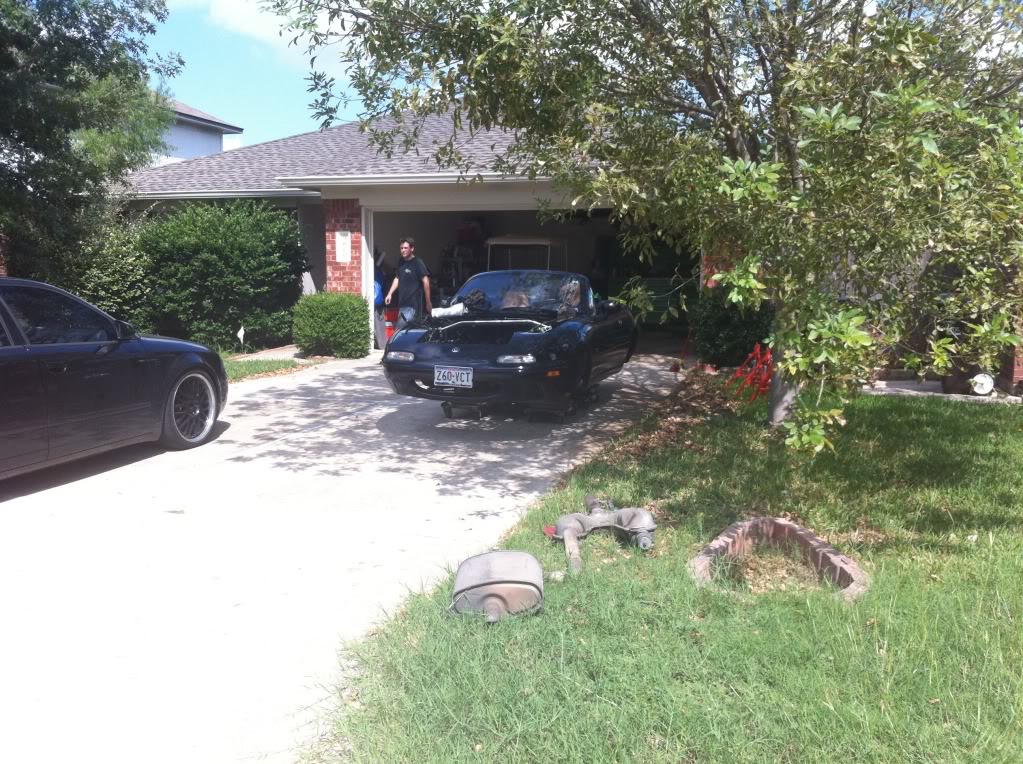

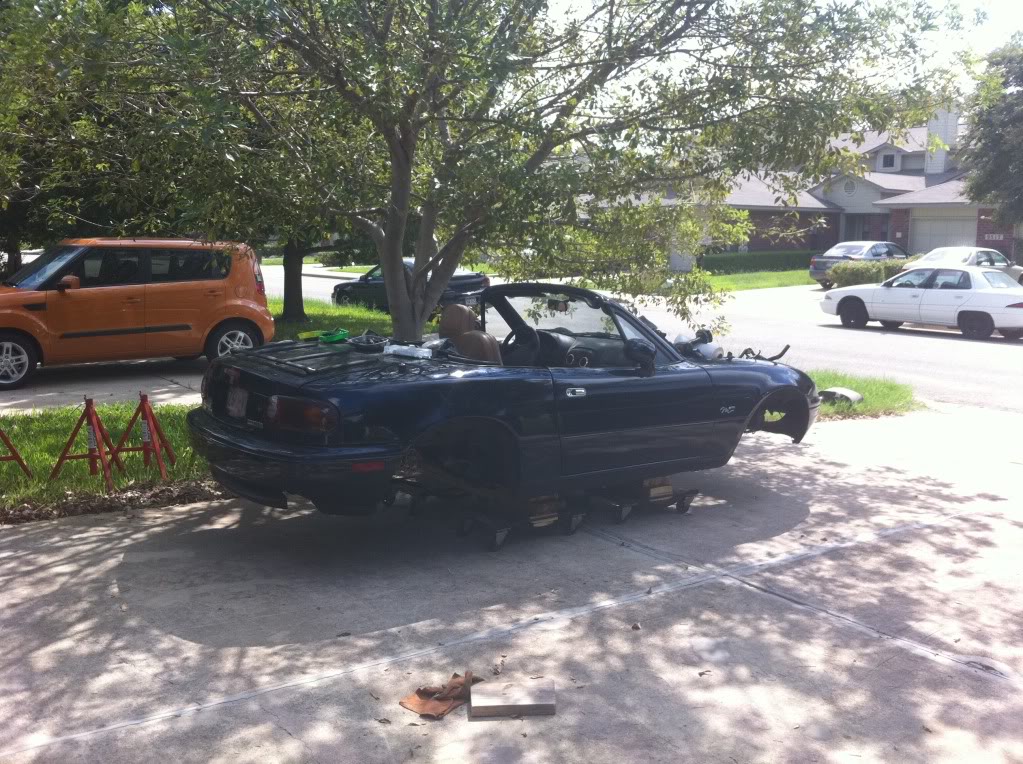

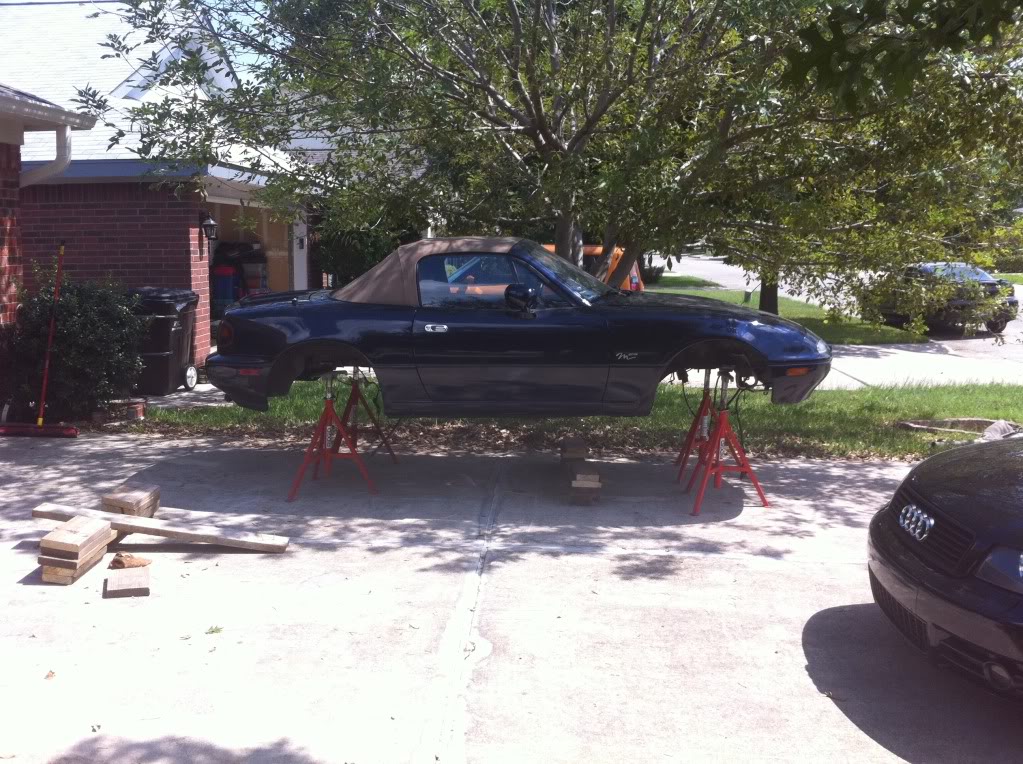

Moved the car outside, and 4 feet in the air.

Name:  IMG_2221.jpg
Views: 10
Size:  108.7 KB
Name:  IMG_2220.jpg
Views: 10
Size:  139.9 KB
Name:  IMG_2224.jpg
Views: 10
Size:  161.3 KB
Name:  IMG_2225.jpg
Views: 10
Size:  244.1 KB
Name:  IMG_2223.jpg
Views: 11
Size:  209.3 KB
Name:  IMG_2222.jpg
Views: 10
Size:  201.0 KB
Name:  IMG_2226.jpg
Views: 10
Size:  179.7 KB
Name:  IMG_2227.jpg
Views: 10
Size:  197.3 KB
yellowihss is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 10:39 AM
Bad head gasket or ? shooterschmidty Engine Performance 8 09-30-2015 11:28 PM
K&N Intake Filter nbdooey Miata parts for sale/trade 0 09-28-2015 09:46 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 08:22 AM.
