New DW300 Fuel Pump - 300LPH In-Tank! - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Deatschwerks - Miata Accessories DeatschWerks injectors are balanced to flow within 2% variance for higher and safer power, smoother idle, and easier tuning.

Reply



LinkBack Thread Tools Search this Thread
Old 12-06-2010, 05:33 PM   #1
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default New DW300 Fuel Pump - 300LPH In-Tank!

Name:  NewAdnonSRT.gif
Views: 29
Size:  20.4 KB


DEATSCHWERKS 300LPH In-Tank Fuel Pump
January 2011 Release!

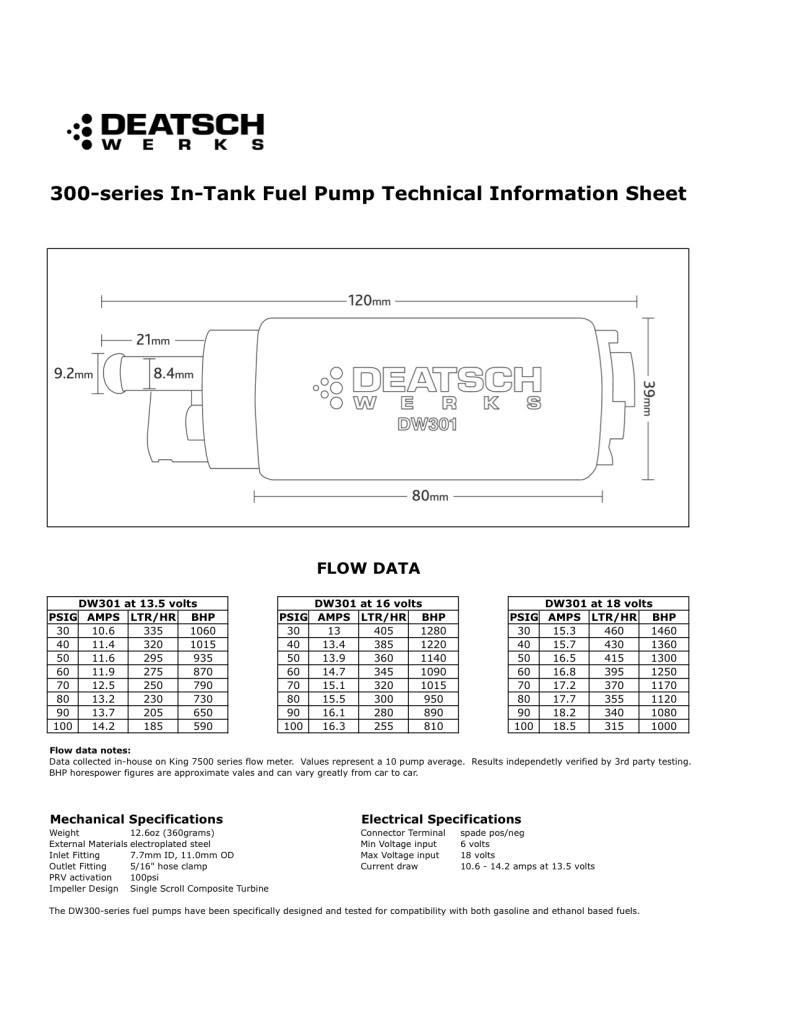

Name:  DW301MarketingTechData2.jpg
Views: 28
Size:  100.3 KB


Name:  SEMAFuelPumpFlyer.jpg
Views: 35
Size:  76.0 KB

DW300 Highlights:
  • Meets SAE guidelines for fuel pump testing
  • Application specific install kits included (Universal also available)
  • 3-year, no-fault warranty
  • The DW300 is a turbine impeller pump

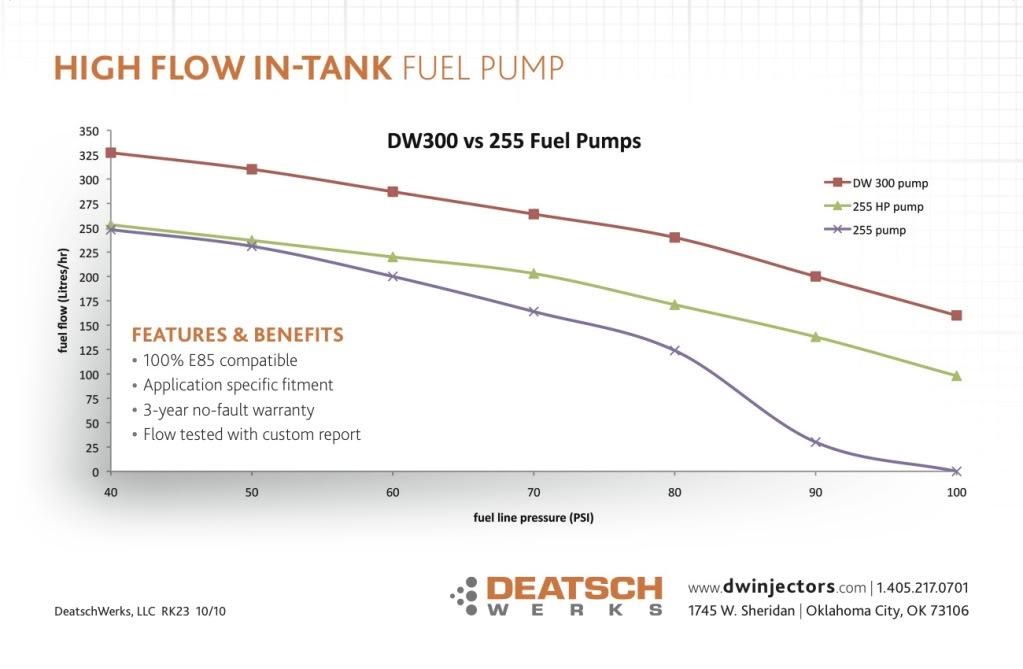

Name:  SEMAFuelPumpFlyerBack.jpg
Views: 31
Size:  62.6 KB

DW300 Specs:
  • 300LPH+ @ 3bar fuel pressure.
  • 100% E85 Compatible
  • 39mm body for in-tank applications.


Thank you for checking out our DW300 release post. Feel free to ask any questions about the pump in this thread. Also, we will be posting any updates about the pump in this thread.

Last edited by Deatschwerks; 12-17-2010 at 08:41 PM.
Deatschwerks is offline   Reply With Quote
Old 12-06-2010, 05:53 PM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

How does the pump compare in physical size to a walbro 255 or similar?
Sean is offline   Reply With Quote
Old 12-06-2010, 07:50 PM   #3
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Size is very similar.

I have one in my '99 10AE, and it was an extremely easy install.
Deatschwerks is offline   Reply With Quote
Old 12-06-2010, 08:10 PM   #4
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Price?
crashnscar is offline   Reply With Quote
Old 12-07-2010, 12:17 PM   #5
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

~$169
Deatschwerks is offline   Reply With Quote
Old 12-07-2010, 12:20 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

This is a no brainer for the e85 folks. Very nice
18psi is offline   Reply With Quote
Old 12-07-2010, 12:46 PM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

holy craptastic.

Where can I find this on your site?
TurboTim is offline   Reply With Quote
Old 12-07-2010, 01:16 PM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by TurboTim View Post
holy craptastic.

Where can I find this on your site?
DEATSCHWERKS 300LPH In-Tank Fuel Pump
January 2011 Release!

As was posted in the first post.
shuiend is offline   Reply With Quote
Old 12-07-2010, 01:18 PM   #9
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Ahh. Perhaps they should create the "release post" when it's released. If it is released now, then it should be on their site. If it's on their site, it should be easy for me to find within 3 minutes of randomly clicking on their site. My
TurboTim is offline   Reply With Quote
Old 12-07-2010, 02:26 PM   #10
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Looks interesting...

Audible noise comparo against "brand W"? Brand W has a rep of being noisy, or randomly being noisy. A few folks do care about noise.

Those graphs provided... are at 14.4V? 12V?
JasonC SBB is offline   Reply With Quote
Old 12-07-2010, 04:46 PM   #11
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Hey Tim, sorry about the wording. :P They will be available around the middle of January.

Jason,

This pump is quiet compared the the W brand. Their pump uses a G-Rotor gear type pump to move the fuel. Our DW300 pump uses a turbine impeller, much like the late model OEMs.

The data for the graph was collected at 13.5v.

I have one in my Miata, and I cannot hear it.
Deatschwerks is offline   Reply With Quote
Old 12-07-2010, 05:21 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

If I run out of fuel on the 255HP you'll be hearing from me. My HP is LOUD
18psi is offline   Reply With Quote
Old 12-07-2010, 07:29 PM   #13
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by Deatschwerks View Post
Hey Tim, sorry about the wording. :P They will be available around the middle of January.

Jason,

This pump is quiet compared the the W brand. Their pump uses a G-Rotor gear type pump to move the fuel. Our DW300 pump uses a turbine impeller, much like the late model OEMs.

The data for the graph was collected at 13.5v.

I have one in my Miata, and I cannot hear it.
I want one. The Walbro made me tone def and left my ears ringing after listening to it whine for a while. I have a larger Denso pump from a Supra in mine that is quiet but it is jury rigged to fit and I have had intermittent pickup fuel starvation under hard left hand cornering that I haven’t been able to solve with it.

Bob
bbundy is offline   Reply With Quote
Old 12-07-2010, 11:14 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Anyone know if this new pump will overwhelm a 99/00 factory FPR at idle?
JasonC SBB is offline   Reply With Quote
Old 12-08-2010, 10:12 AM   #15
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Will there be a style that can be mounted externally, in-line?
TurboTim is offline   Reply With Quote
Old 12-08-2010, 10:16 AM   #16
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Looks like another thing to add to the list......

Getting real tired of listening to the Walbro. It actually changes pitch with the turn signals!
chpmnsws6 is offline   Reply With Quote
Old 12-08-2010, 01:13 PM   #17
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Quote:
Originally Posted by JasonC SBB View Post
Anyone know if this new pump will overwhelm a 99/00 factory FPR at idle?
I can tell you from experience in my 10AE that it does.

Not enough that it's not drivable, but I got down to about 250 miles/tank.

Runs great on E20, though.

Quote:
Originally Posted by TurboTim
Will there be a style that can be mounted externally, in-line?
It's on the wish list, but we'll be focusing on this pump for 2011. One project at a time.
Deatschwerks is offline   Reply With Quote
Old 12-08-2010, 01:51 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Sounds like a series resistor during low fuel demand is in order.
You can put a relay to short said resistor during periods of high fuel demand.
JasonC SBB is offline   Reply With Quote
Old 12-17-2010, 06:43 PM   #19
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Cool, Jason.

Thanks for the tip.

...or we could just do some upgrades to our cars where we don't need the stock regulator any more.
Deatschwerks is offline   Reply With Quote
Old 12-17-2010, 08:41 PM   #20
Former Vendor
Thread Starter

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Tech-Bump

Name:  DW301MarketingTechData2.jpg
Views: 50
Size:  100.3 KB
Deatschwerks is offline   Reply With Quote
