Default Streamlined Injector Services and New Fuel Pump Testing

The fuel injector service has been a staple in the DW line-up for over 6 years. Now, we have streamlined the service options from 3 tiered services to our most popular Dynamic Service with a separate Pre-Test for diagnostic/troubleshooting and we added a couple of new tests that provides data some of the newer tuning software requests.

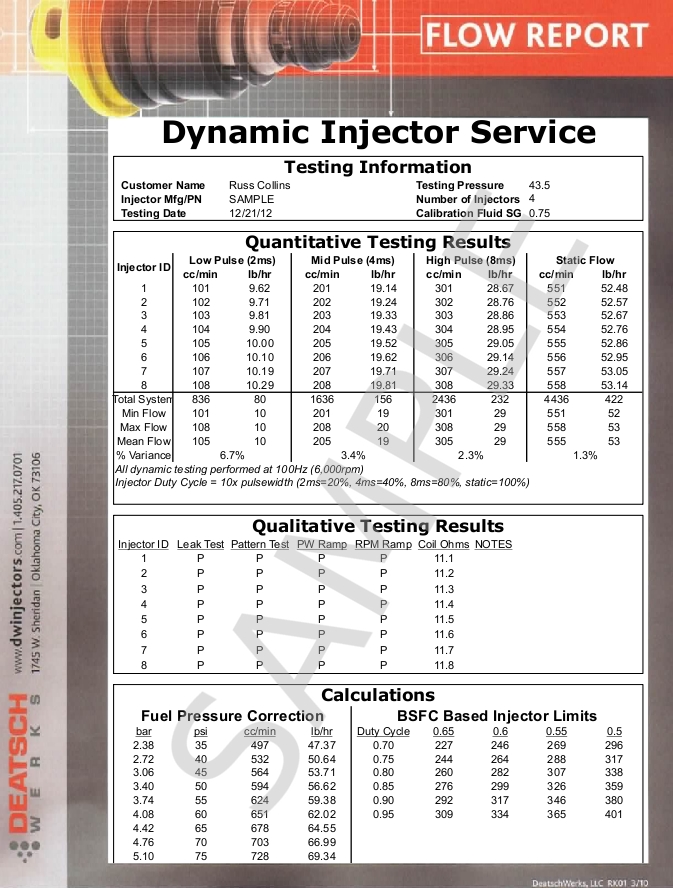

Dynamic Service includes:
  • 3-step ultrasonic cleaning - Optimizes atomization and flow
  • Replace o-rings, filters, and seals - Ensures leak free operation
  • Check coil - Discover electrical problems
  • Leak test @ 100psi - Find leaks at pintle
  • RPM ramp and Pulse-width ramp tests - Exclusive DeatschWerks tests
  • Spray pattern analysis - Verify proper atomization
  • Static flow test - Check balance of flow rates
  • Dynamic flow test - Simulates real driving conditions
  • ID etching - identifies each injector with results on report
  • Lubricate and bag - Preserves optimum working condition
  • System calculations - min/max/avg flow and system balance
  • Fuel pressure calculations - Valuable tool for FMU/AFPR users
  • Performance calculations - Defines limits of fuel system

New tests include:

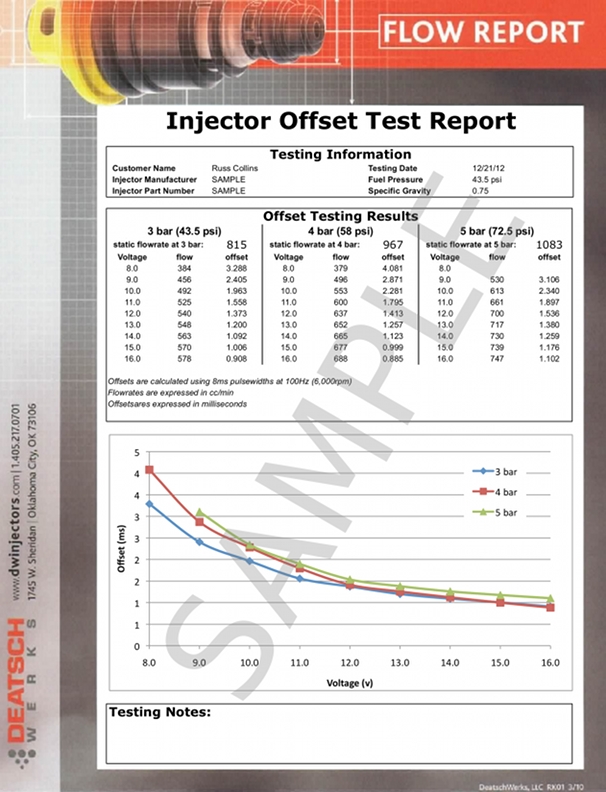

Battery Offset Testing

This test provides data outlining the injector dead-time over a range of pressures and voltages.

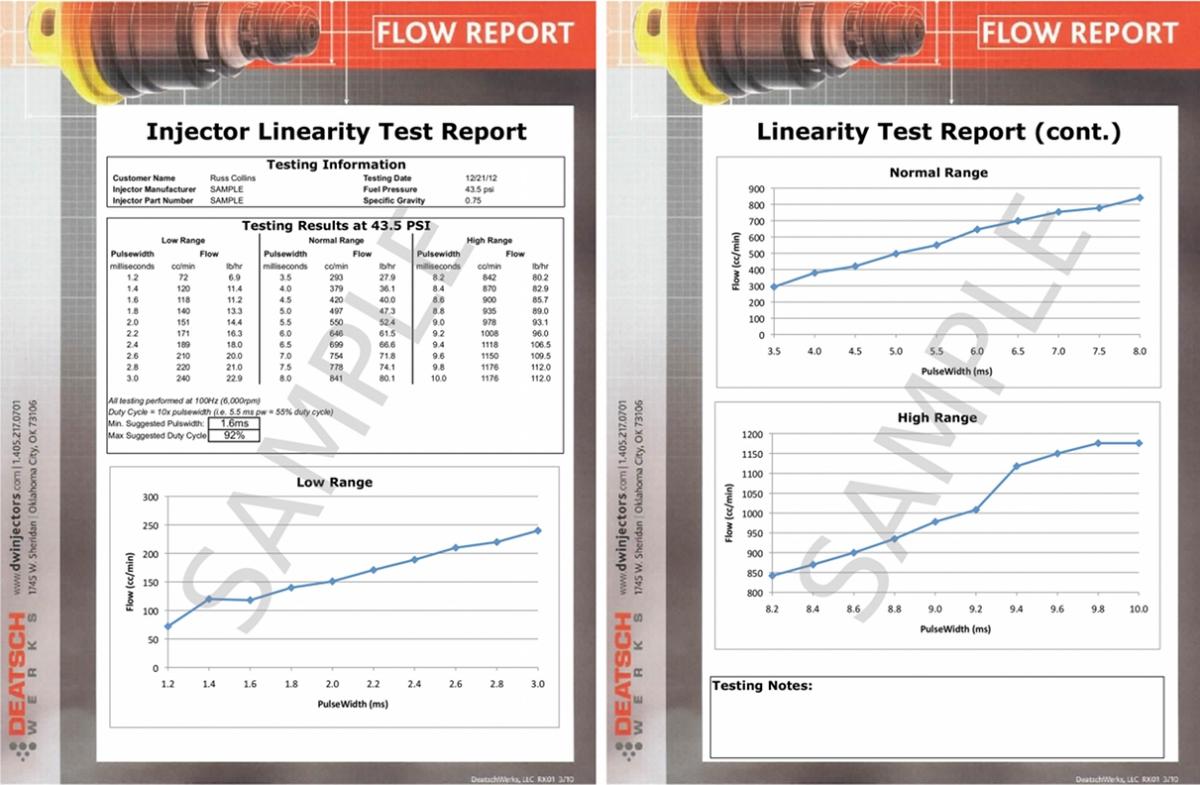

Linearity Testing

This test provides flow data over the low, middle, and high range of duty cycles for the injectors and give information about the minimum suggest pulse-width and maximum injector duty cycle.

Please Note! The advanced testing only requires one injector for testing.

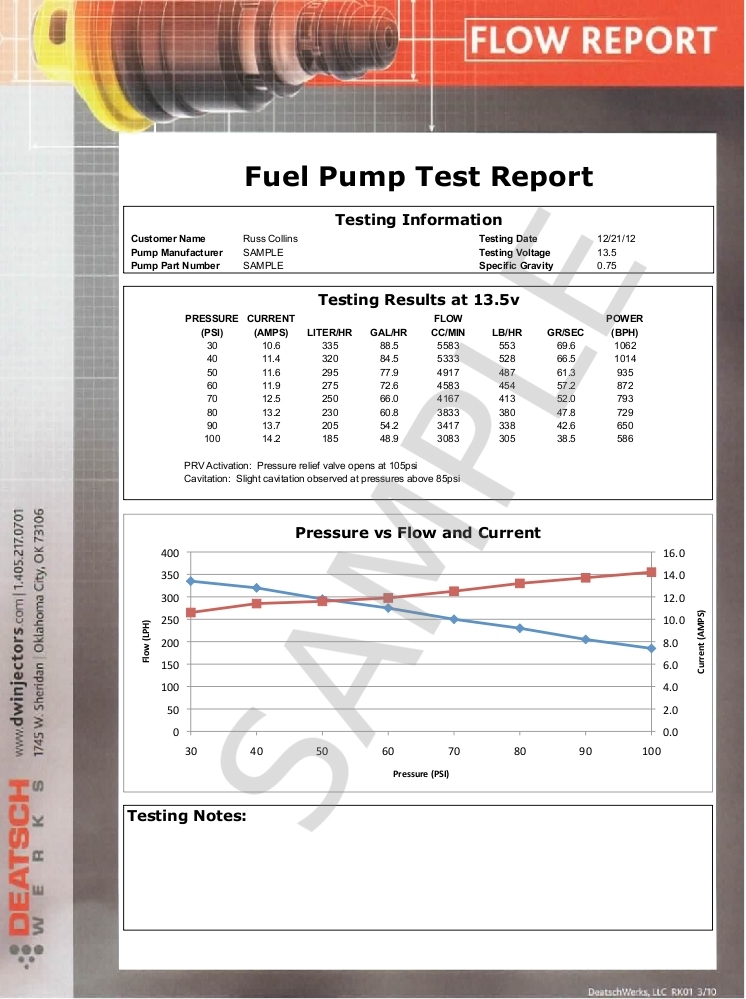

Fuel Pump Testing

With the introduction of the DW300, DW200, and DW65c, we need the ability to test our pumps in-house. Now that our pumps have become a sustained product in the market, we now have the same testing available for any electric fuel injection pumps:
  • Voltage – We test flow vs pressure at the voltage of your choice (default is 13.5v). We will test at additional voltages (up to 3) at no extra charge.
  • Flow – We record flow at pressures from 30psi to 100psi in 10psi increments.
  • Pressure Relief Valve – We test for proper PRV function and record opening pressure.
  • Cavitation – Formation of air bubbles in your fuel can cause unstable and unpredictable air-fuel ratios. We measure and record all pressures where cavitation occurs.
  • Calculations – Not only do we express your flow rates in Liter/hr, Gal/hr, and Lb/hr; but we also calculate the corresponding horsepower that the flow will support.
  • Qualitative Observations – Your fuel pump testing is performed by professionally trained
  • DeatschWerks technicians who test hundreds of fuel pumps every month. We use our experience to make note of any noise, electrical abnormality, flow fluctuation, start-up hesitancy, or any other observed problem that could be important for you to know.

Please feel free to contact me with any questions you have about our services.

With the new services, we now have a NEW DW Forum Special! When filling out the injector service form, be sure to write "MiataTurbo Forum Special" across the top of the form for free US domestic return shipping!
Attached Thumbnails
Streamlined Injector Services and New Fuel Pump Testing-newadnonsrt.gif   Streamlined Injector Services and New Fuel Pump Testing-dynamic%2520injector%2520test%2520report.jpg   Streamlined Injector Services and New Fuel Pump Testing-injector%2520offset%2520test%2520report.jpg   Streamlined Injector Services and New Fuel Pump Testing-injector%2520linearity%2520test%2520report.jpg   Streamlined Injector Services and New Fuel Pump Testing-fuel%2520pump%2520test%2520report.jpg

Last edited by Deatschwerks; 07-16-2012 at 07:14 PM.
Deatschwerks is offline   Reply With Quote
Old 07-16-2012, 06:29 PM   #2
Elite Member
Join Date: Jul 2005
Posts: 6,454
Total Cats: 80


What is the driver circuit used to drive the injectors in the dead-time chart generation?

The "flyback voltage clamp" value of the drive circuitry will affect the dead-time.
JasonC SBB is offline   Reply With Quote
Old 07-24-2012, 06:01 PM   #3
Former Vendor
Thread Starter
Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4

We use the OE driver from our New Age NA8 fuel injector test bench. I would have to do some digging to find out the specifics of the flyback circuitry. Every driver will be a little bit different anyways. I can tell you that the values from our report have been used successfully to tune various makes and models (recently a Subaru, LS7, Lotus Exige, and a 450whp Saab).
Deatschwerks is offline   Reply With Quote
Old 07-31-2012, 07:25 PM   #4
Former Vendor
Thread Starter
Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4

I would like to highlight the Forum Special, since I have been getting a few questions about it.

The Forum Special can be applied to any service (Dynamic Service, either or both Advanced Tests, Fuel Pump Test).

Let us give you an idea of what your fuel system can do for your current build or give your stock injectors a good cleaning and get them back to factory specs.
Deatschwerks is offline   Reply With Quote
