Default $7 boost leak tester

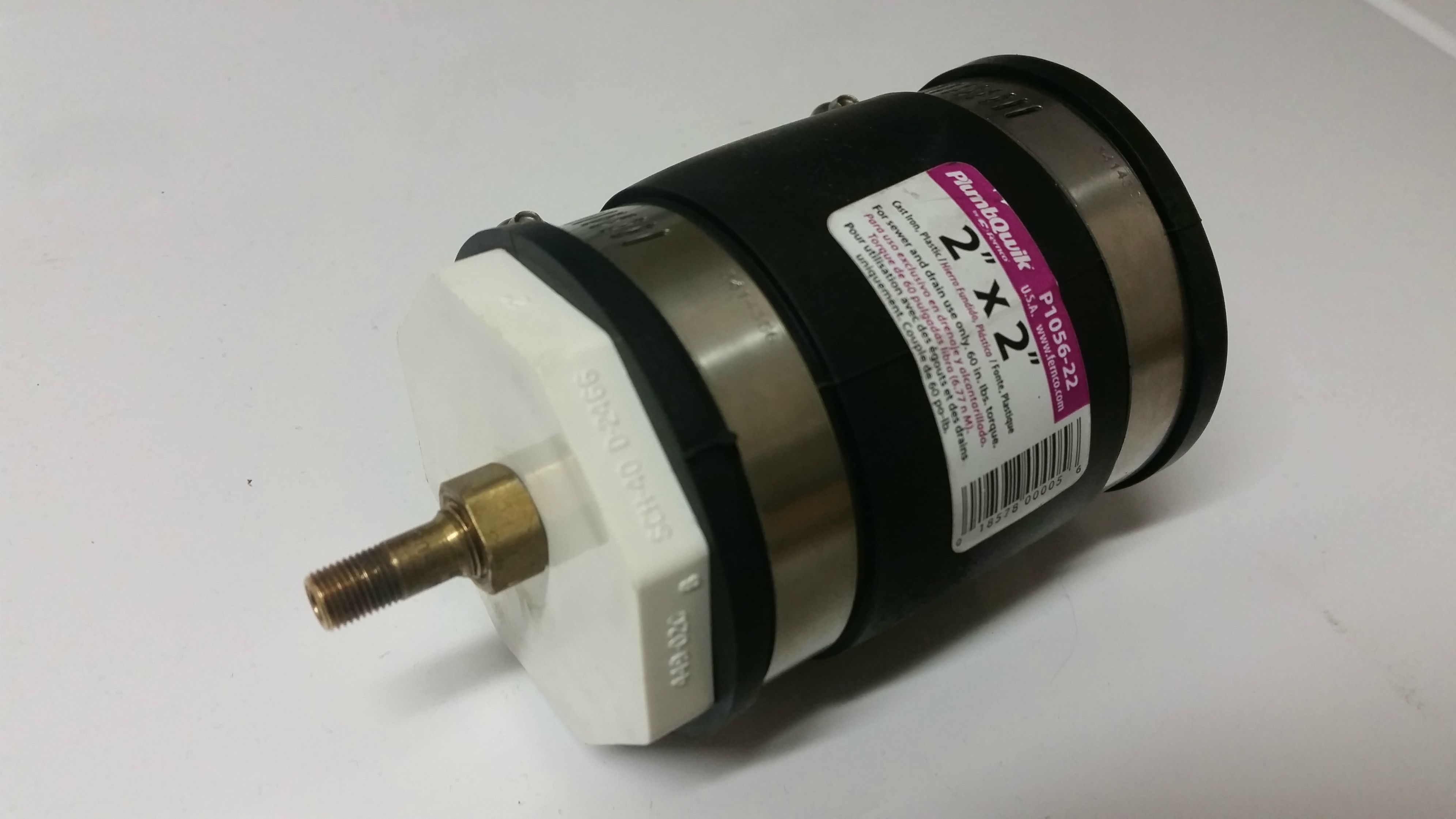

Home depot:

Charlotte Pipe 2 in. PVC Sch. 40 Plug-PVC 02118 1800HD - The Home Depot

+

Fernco 2 in. x 2 in. DWV Flexible PVC Coupling-P1056-22 - The Home Depot

+ a metal screw in tire valve, possibly for free from a local tire shop

=



Seems to hold enough pressure to work decent. I was putting in about 17psi when I was tracking down some leaks. The clamps held tight but the rubber was swelling a little. Would probably not recommend for 25+psi obviously, but for what I needed it worked great.

Andy
Mech5700 is offline   Reply With Quote
Old 01-30-2015, 07:47 PM   #2
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

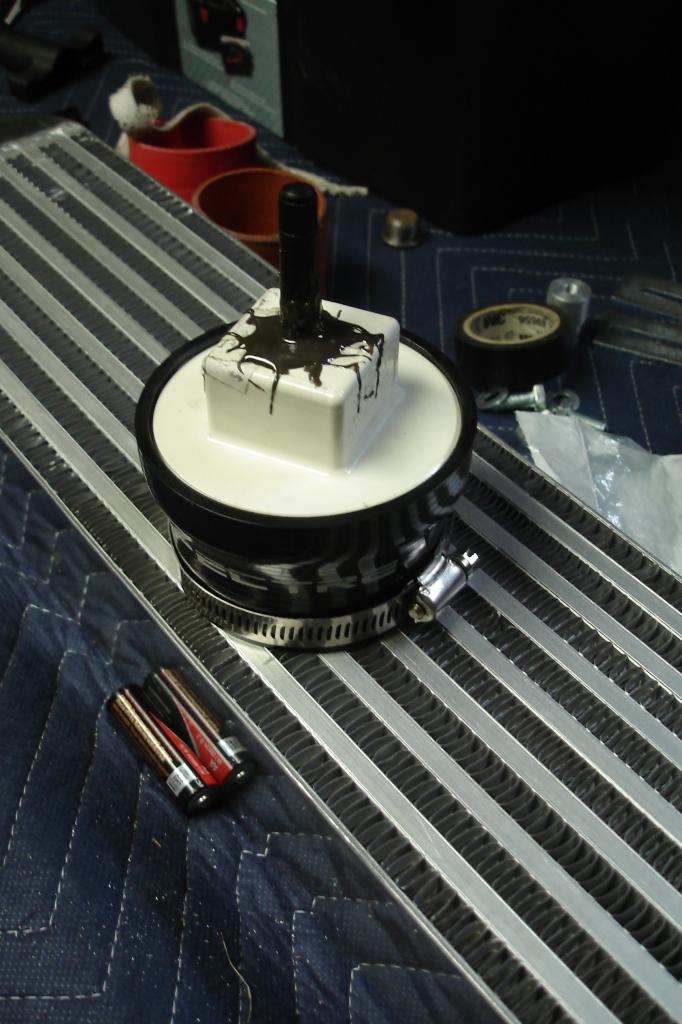

Yours seems a little better, here is mine.



I just JB welded the valve on(i've used JB weld to past 100psi). The upper part didn't have a clamp on it in this picture, but it got one. Used this tester to about 35psi. Cheap shitty auto parts store silicone swelled like a balloon.
Attached Thumbnails
 boost leak tester-dsc04392.jpg
Erat is online now   Reply With Quote
Old 01-30-2015, 07:49 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

lol nice n sloppy but it works right! the rubber valve would work great if it would snap in, that's why I just used a metal screw in type.
