Default 1.6 Capped Oil Return vs Drill & Tap?

Hi,

Did a bit of searching and found very little about this (in terms of pros/cons).

The early 1.6 NAs have a Oil Return line in the block behind the alternator next to the Oil Filter.

To avoid the hassle and risk of drilling/tapping the sump, any downside of using that as the oil return? Other than the extra pipes and hassle of connecting it from one side of the engine to the other? Can you allow the return to go up and down... or has the flow always must be downhil (which in itself would be tricky to ensure, unless you made it a hardline from one side to the other).

G
gslender is offline   Reply With Quote
Old 05-20-2012, 10:10 PM   #2
Junior Member

Join Date: Mar 2011
Location: Ballina Australia
Posts: 86
Total Cats: 2
Default

the drain pipe pretty much has to go strait down.

It must not go up at any point or you will get clouds of smoke when you hit boost.

drilling and tapping is not hard or dangerous but the gains are so very worth it.

if you use the drain near the filter you will also end up drilling and tapping.

do it right, do it once, dont look back!
spaztikcamel is offline   Reply With Quote
Old 05-20-2012, 11:01 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by spaztikcamel View Post
... or you will get clouds of smoke when you hit boost


.... if you use the drain near the filter you will also end up drilling and tapping.
Why the smoke, what is causing that?

Why would it need drilling or tapping? Is it not threaded, or can you not secure a hose onto the existing rubber capped end?

G
gslender is offline   Reply With Quote
Old 05-21-2012, 12:41 AM   #4
Junior Member

Join Date: Mar 2011
Location: Ballina Australia
Posts: 86
Total Cats: 2
Default

the smoke will be caused by oil banking up in the line as it cant escape the turbo fast enough it blows out the turbo seals and youll know exactly when it happens.

you dont drill and tap the inlet at the filter you can just put hose over it and hoseclamp but I guarantee you will change this.

you drill and tap the sump on the turbo side towards the front as shown:
http://miataturbo.wikidot.com/oil-feed-and-return
dont go far back suposedly oil gets flicked by the crank and blocks the hole.

your engine bay will be cleaner you wont have oil return issues.
spaztikcamel is offline   Reply With Quote
Old 05-21-2012, 12:50 AM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by gslender View Post
To avoid the hassle and risk of drilling/tapping the sump, any downside of using that as the oil return?
It certainly can be done- the Greddy kits used this oil drain along with nothing more than a flimsy piece of rubber hose.

But it's far from optimal.

spaztikcamel is on the money here. The oil seals on the turbine shaft can't deal with a huge amount of pressure. So if the oil draining out of the turbo encounters any sort of resistance, there is a tendency for oil to back up into the center housing and cause leakage past the seals. It's not the sort of catastrophic thing that's going to destroy the engine immediately, but it ain't right.

Honestly, drilling the hole in the pan isn't as weird and scary as it might seem. I was a bit trepidatious the first time I did it, and I did in fact scrape the oil pickup tube behind the hole drilling location, but despite the fairly small risk and nervousness, it is a much better solution.
Joe Perez is online now   Reply With Quote
Old 05-21-2012, 12:54 AM   #6
Junior Member
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by gslender View Post
Why the smoke, what is causing that?

Why would it need drilling or tapping? Is it not threaded, or can you not secure a hose onto the existing rubber capped end?

G
if your turbo is 1ft above the hood level, you can use the drain on the otherside of the motor, otherwise you will burn oil
you want the oil to drain from the turbo as fast as possible, do not want it to puddle anywhere, a level line will not work either, must be down hill 100% of the time
skullzaflare is offline   Reply With Quote
Old 05-21-2012, 01:11 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Thanks chaps - all good and informative responses. I'm sure others will appreciate this when they too wonder why they are drilling into the sump and tapping a connection when a perfectly good oil return line already exists... as you can imagine, you kinda wonder why Mazda thought it was ok when they built the 323 GT - they must of found a way to make it work relaibly.

Even so, I see where you are coming from - a simple and better solution is to just tap the sump and get a clean and reliable solution that "just works"

G
gslender is offline   Reply With Quote
Old 05-21-2012, 01:19 AM   #8
Junior Member
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by gslender View Post
Thanks chaps - all good and informative responses. I'm sure others will appreciate this when they too wonder why they are drilling into the sump and tapping a connection when a perfectly good oil return line already exists... as you can imagine, you kinda wonder why Mazda thought it was ok when they built the 323 GT - they must of found a way to make it work relaibly.

Even so, I see where you are coming from - a simple and better solution is to just tap the sump and get a clean and reliable solution that "just works"

G
aside from being front wheel drive..
they actually use a different oil pan, and the turbo still drains into the pan
so im not sure what the hole on the otherside is actually ment for

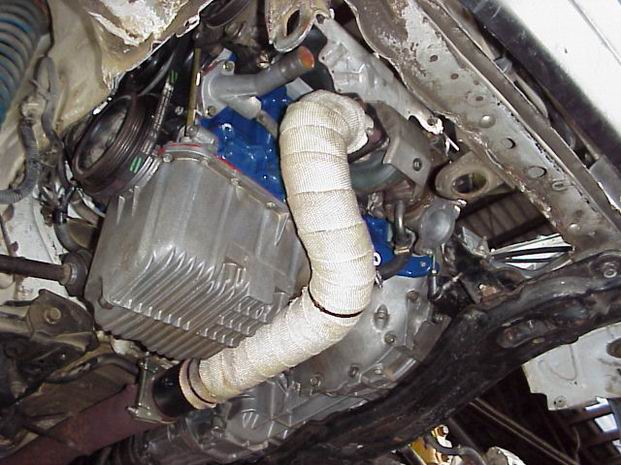

Attached Thumbnails
1.6 Capped Oil Return vs Drill & Tap?-mazda_323_downpipe.jpg
skullzaflare is offline   Reply With Quote
Old 05-21-2012, 01:41 AM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I believe it's a catch can drain for the 323 gtx.
curly is offline   Reply With Quote
Old 05-21-2012, 10:00 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

Quote:
Originally Posted by curly View Post
I believe it's a catch can drain for the 323 gtx.

this.
Braineack is offline   Reply With Quote
Old 05-21-2012, 10:41 AM   #11
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Grant,
Ill lend you the appropriate hardware to drill and tap, and even walk you through it on the phone if need be.

Dann
nitrodann is offline   Reply With Quote
Old 05-21-2012, 12:48 PM   #12
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

As already was covered in this thread, DRILL AND TAP THAT BITCH. Seriously. I ran mine like that forever, aside from the HORRIBLE burning oil smell you get after wot pulls, and the fact that popping your hood after boosting hard emits smoke from the turbine yourself, it also looks MUCH cleaner.

I should have done it ages ago. To anyone who reads this thread, learn from other members mistakes. Drill and tap the oil pan, DON'T run band-aids, and DON'T cheap out on parts, or it WILL bite you in the ***. That is my PSA for the day. Thanks.
Fireindc is offline   Reply With Quote
Old 06-12-2012, 07:14 AM   #13
Junior Member

Join Date: Sep 2009
Posts: 65
