Default 1.6 turbo miata

Sup guys started building my turbo miata this saturday and well ran into some problems just my noob as trying to do this on my own any ways this what i have

-Fm 1.6 maniflod and downpipe and a garret t25 of an s13.

Megasquirt pnp2
Mishimoto intercooler
I have 3inch pipeing will be returning those for 2.5 inch the people i bought it off from sent me the wrong ones but are accepting my return and will be getting 2.5 inch yatatata...

So my problem being the t25 turbo i have gets in the way of the fm manifold i wanted to clock the turbo but it seem that waste gate will move out of place from where it bolts is there a way to make like a bracket so it wont hit ill post some pics right now thanks i welcome anh help you miata peeps can offer thanks.
george482 is offline   Reply With Quote
Old 05-31-2016, 12:01 AM   #2
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

i have a friend that did this exact setup. you will just need to make a new attachment for the bracket. looks like you did a really solid setup. good job. one thing i will say is that it is preferred to use 3" exhaust on the miata.
mmmjesse is offline   Reply With Quote
Old 05-31-2016, 12:29 AM   #3
Newb
Thread Starter

Join Date: Jan 2016
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by mmmjesse View Post
i have a friend that did this exact setup. you will just need to make a new attachment for the bracket. looks like you did a really solid setup. good job. one thing i will say is that it is preferred to use 3" exhaust on the miata.
Have any reference pic to go off by? And thanks
george482 is offline   Reply With Quote
Old 05-31-2016, 10:47 AM   #4
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

I was talking to my friend but all he did was rotate the heat shield on the wastegate actuator and his fit fine. Also, i am now remembering it was a 2554 not a T25. sorry for the confusion!!


mmmjesse is offline   Reply With Quote
Old 05-31-2016, 11:09 AM   #5
Junior Member

Join Date: Feb 2016
Location: maine
Posts: 109
Total Cats: 8
Default

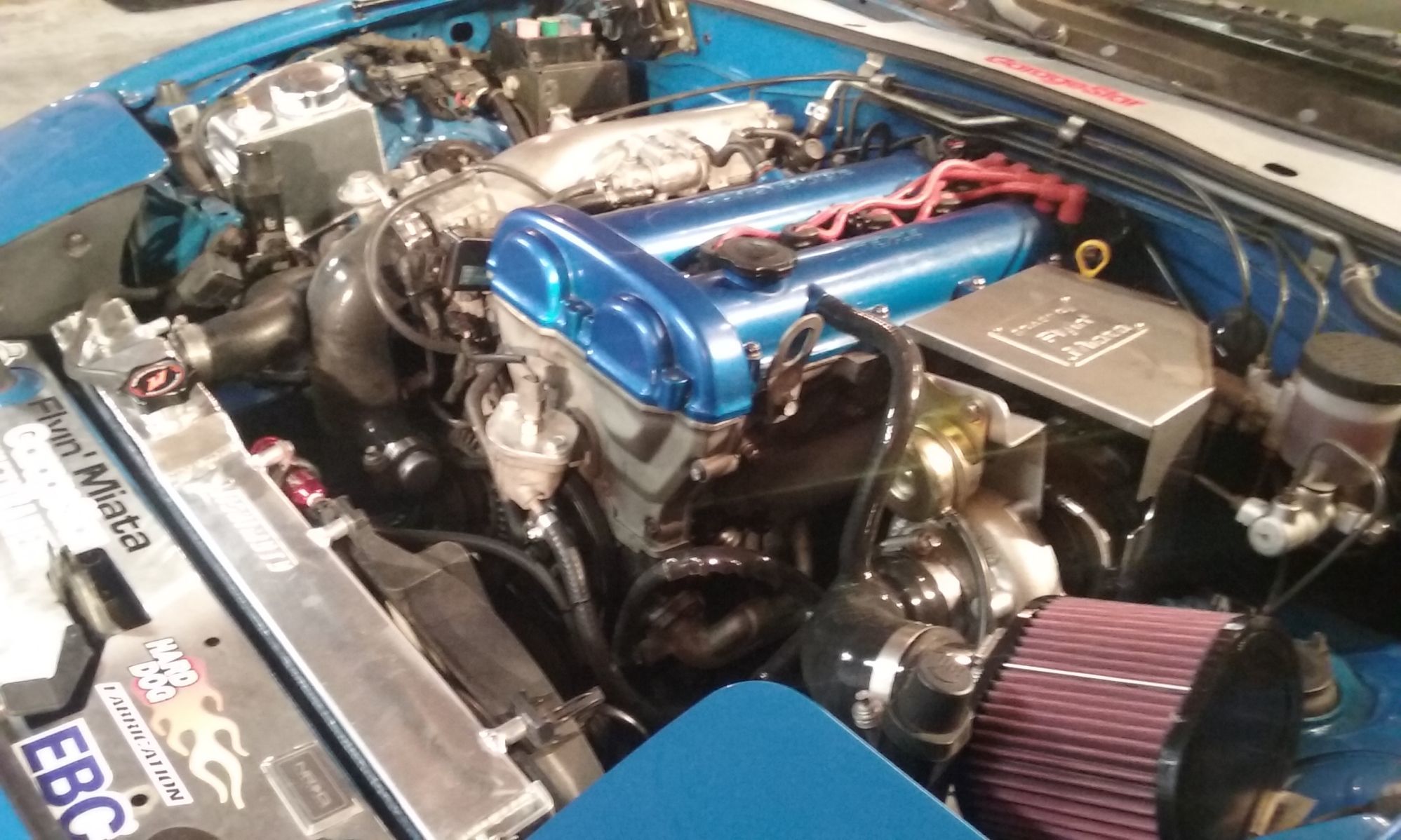

We made a bracket for mine as well, i dont have an up close but its in my build thread


found it
Attached Thumbnails
1.6 turbo miata-80-_iuo_3068d333cf4166d5f366bc172a18794c2864e05b.jpg

Last edited by MaineMiata91; 05-31-2016 at 12:07 PM. Reason: found pic
MaineMiata91 is offline   Reply With Quote
Old 05-31-2016, 12:31 PM   #6
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

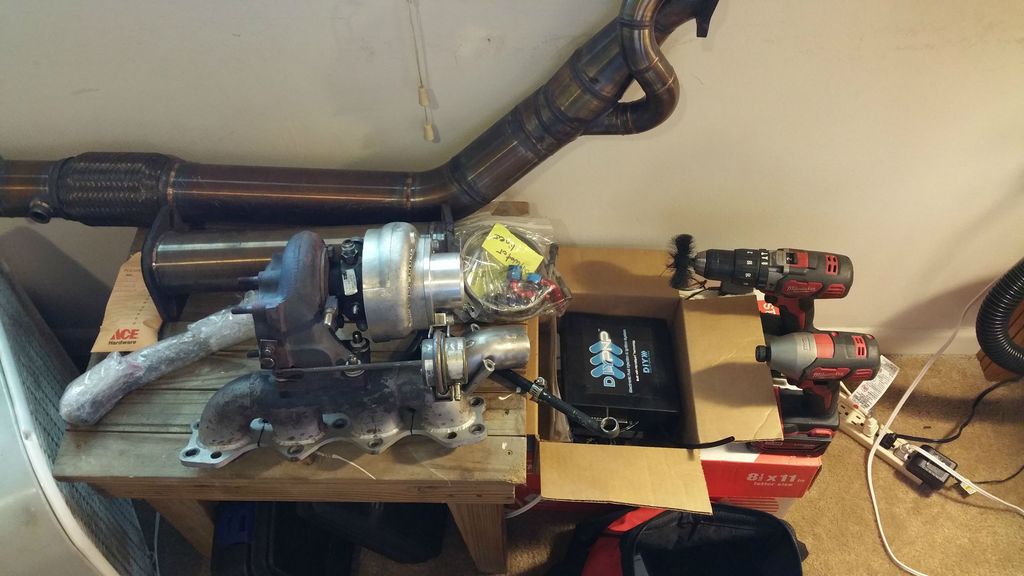

I bought my kit off of Curly on here and this was his solution. Very simple and works just fine.

Attached Thumbnails
1.6 turbo miata-f3pzpya_zpshs1ah0vj.jpg
90civichhb is offline   Reply With Quote
Old 06-01-2016, 02:07 AM   #7
Newb
Thread Starter

Join Date: Jan 2016
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by 90civichhb View Post
I bought my kit off of Curly on here and this was his solution. Very simple and works just fine.

Dam thats sick well im gonna try makeing a braket myself but will definetly look into the curly just incase it doesnt work out
george482 is offline   Reply With Quote
