Default 1.8s with Sr20 T25s. Some info please

Ive done some searching and have seen only acouple dynos/threads. ive heard they are a good cheap option...ive also heard they are far too small.

My goal is 220whp. anyone have using the Sr20 t25 that would like to share their setup and opinion of it ?
AllSystemsNominal is offline   Reply With Quote
Old 08-23-2012, 12:44 AM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Look at my signature. 225whp with a SR20 turbo. Very cheap to obtain, cheap to rebuild, fast spool, etc. The dyno was on a stock '99 1.8 liter with 460cc injectors, running approx 12psi. What year is your engine?
thirdgen is offline   Reply With Quote
Old 08-23-2012, 12:53 AM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Don't look at my dyno thread. I'm at 155 with power that flat lines at 5000ish rpms due to a crappy 2.5" exhaust choking it off. BUT it shows that with a smaller engine, 2psi less than thirdgen's dyno, and a shitty exhaust I'm only 65hp off your goal.

Just do yourself a favor and get 3" exhaust and hopefully no cat.
curly is online now   Reply With Quote
Old 08-23-2012, 12:55 AM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

95 with original engine at 120k, ive done the Exhintake mod to it already which I cant seem to find info on if its turbo friendly
AllSystemsNominal is offline   Reply With Quote
Old 08-23-2012, 03:29 AM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I have 2.5" exhaust BTW.
thirdgen is offline   Reply With Quote
Old 08-23-2012, 07:28 AM   #6
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i got 225 rwhp with a pretty aggressive tune, 2.5" dp, 3" exhaust, 550cc, fmic

i got 206 on a different dyno with stupidly conservative timing.

Both on a stock 96 1.8 and about 12-14 psi

Dirt cheap and pretty easy to rebuild too.
240_to_miata is offline   Reply With Quote
Old 08-23-2012, 09:18 AM   #7
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Look at 240's torque as compared to mine. We have basically the same HP, but his car should walk mine due to the torque...for now
thirdgen is offline   Reply With Quote
Old 08-23-2012, 02:03 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

SR20 T25 turbos are an awesome low-buck option for 200-220whp.
Savington is online now   Reply With Quote
Old 08-23-2012, 04:26 PM   #9
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

y not go with a cheap ebay t3?
Clos561 is offline   Reply With Quote
Old 08-23-2012, 05:57 PM   #10
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by thirdgen View Post
Look at 240's torque as compared to mine. We have basically the same HP, but his car should walk mine due to the torque...for now
I have since backed down on my timing.

Although now with my new motor at least I am 9:1 compression. . . And I still have water/meth kicking around waiting to be installed
240_to_miata is offline   Reply With Quote
Old 08-24-2012, 12:57 PM   #11
Newb

Join Date: Jul 2011
Posts: 22
Total Cats: 1
Default

I'm using a t25 and love it.
Sketch_hs is offline   Reply With Quote
Old 08-24-2012, 01:26 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

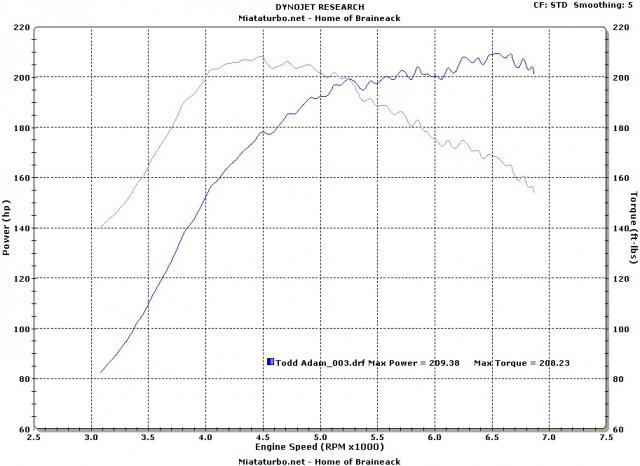

Thirdgen:

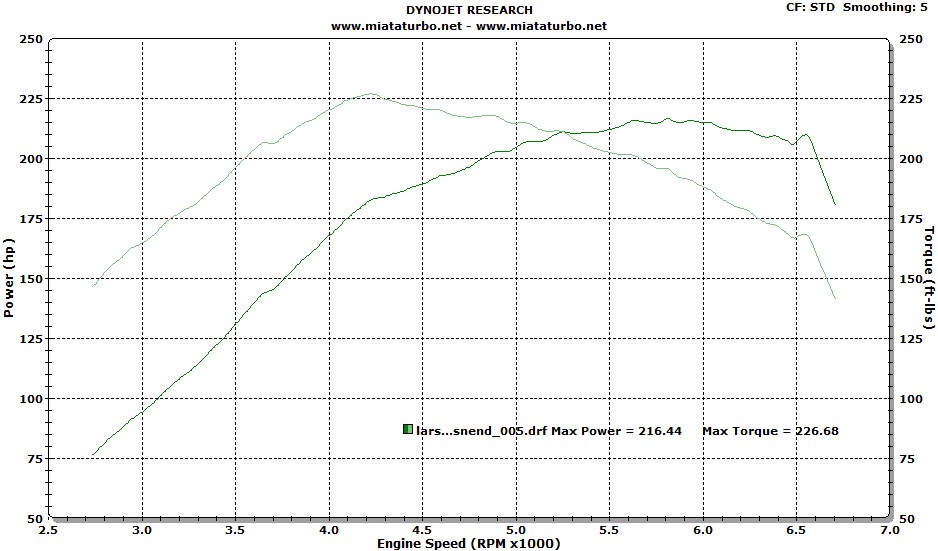

Shuiend:

Attached Thumbnails
1.8s with Sr20 T25s. Some info please-todd.jpg   1.8s with Sr20 T25s. Some info please-lars.jpg
Braineack is offline   Reply With Quote
Old 08-25-2012, 11:43 AM   #13
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

Im picking up a rebuilt sr20 T25 this weekend hopefully. I think the t25 will be a good turbo for me, im hoping ill be happy making only 100whp more than I do now lol
AllSystemsNominal is offline   Reply With Quote
Old 08-28-2012, 03:30 PM   #14
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

torque really seems to fall off pretty hard on the top end with these turbos. question to those who are using the T25, does it still feel like the car pulls pretty well all the way to7k
AllSystemsNominal is offline   Reply With Quote
Old 08-28-2012, 03:34 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

pulls better than stock, but you notice the lack of top end. but the low end is FUN. it's a great street turbo.
Braineack is offline   Reply With Quote
Old 08-30-2012, 04:15 AM   #16
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

T25s making around 200-220whp is that setup that can be used on the track reliably ? or are they so inefficient at those power levels that they can only be used for occasional abuse on the street ?
AllSystemsNominal is offline   Reply With Quote
Old 08-30-2012, 07:32 AM   #17
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by AllSystemsNominal View Post
T25s making around 200-220whp is that setup that can be used on the track reliably ? or are they so inefficient at those power levels that they can only be used for occasional abuse on the street ?
you will run into similar reliability issues as the bigger turbos on the track. Studs backing out, heat issues, etc etc.
I upgraded to the inconel M10's and and gave up on running gaskets on the downpipe surfaces.

My last track day was at wastegate pressure with the original m8 studs and **** got loose.
240_to_miata is offline   Reply With Quote
Old 08-30-2012, 08:33 AM   #18
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by AllSystemsNominal View Post
T25s making around 200-220whp is that setup that can be used on the track reliably ? or are they so inefficient at those power levels that they can only be used for occasional abuse on the street ?
Savington ran a 2554 on the track for a good while. I believe his turbo was fine, he just could never get it to stay connected to the manifold. This was long before he made the Inconel studs. If you are running TSE Inconel studs I would think a 2554 would be fine. The only downside to the turbo is that the topend torque drops off a ton.
shuiend is offline   Reply With Quote
Old 08-30-2012, 10:12 AM   #19
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

In case you were wondering, gt2554 is pretty much the same as sr20 t25. I think the turbine wheel in the sr20 is actually .1mm bigger or something. They are so close in size it's ridiculous. If you're concerned if the sr20 turbo will make enough power, find a blown s14 turbo with a good compressor and swap the compressor and wheel. The basic sr20 t25 uses a 56mm 60 trim compressor wheel, while the s14 uses a 60mm 60 trim wheel. The upgrade takes it from a gt2554 sized turbo to a gt2560 sized turbo.
thirdgen is offline   Reply With Quote
Old 08-30-2012, 11:43 AM   #20
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

How close is the turbine side of the T25 (.64ar) to that of the gt2560 ???

I know you can get T28 compressor wheels installed into T25s for under $300. If that will make my t25 flow like a gt2560 I just might have to do it.
AllSystemsNominal is offline   Reply With Quote
