Old 08-30-2012, 12:51 PM   #21
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 184
Default

Quote:
Originally Posted by AllSystemsNominal View Post
How close is the turbine side of the T25 (.64ar) to that of the gt2560 ???
These are specs of the common SR20 turbo:
Compressor: T-25, 60 trim 56mm BCI-1 compressor.
Turbine: T-25, 62 trim 53.8mm 0.64 A/R turbine housing.
Center Section: Journal bearings

These are specs of the S14 turbo that has the larger wheel:
Compressor: T-28, 60 trim 60 mm BCI-1 compressor in T-04B housing
Turbine: T-25, 62 trim 53.8mm 0.64 A/R turbine housing.
Center Section: Ball Bearing

Same turbine/ wheel size. Larger compressor/ wheel.

Specs on the GT2554 from the garrett website:
Compressor: 54.30mm 60 trim wheel
Turbine: 53.00mm
Center Section: Ball Bearing

Specs on the GT2560 turbo from the garrett website:
Compressor: 60.10mm 60 trim wheel
Turbine: 53.00mm
Center Section: Ball Bearing

It appears that the SR20 turbo is actually a bit larger than a gt2554. It also looks like garrett uses the same turbine/ wheel for the 2560 and 2554, just different compressors/ wheels. Makes sense to me. Larger compressor wheel means larger volume of air will be displaced.
thirdgen is offline   Reply With Quote
Old 08-30-2012, 01:03 PM   #22
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

For that same money you could get a s14 T28 which is single ball bearing ...

EDIT... 3rd gen covered it
240_to_miata is offline   Reply With Quote
Old 08-30-2012, 01:07 PM   #23
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 184
Default

I have been looking for an s14 t28 forever. Let me know if you find one. I want it.
thirdgen is offline   Reply With Quote
Old 08-30-2012, 02:39 PM   #24
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Todd, do you ever look at Zilvia.net for a s14 t28? They pop up all the time there.

Ray
RayinNorCal is offline   Reply With Quote
Old 08-30-2012, 03:20 PM   #25
Senior Member
iTrader: (7)

RedCarmel's Avatar

Join Date: Oct 2011
Location: Horse and Buggy, PA
Posts: 689
Total Cats: 18
Default

Quote:
Originally Posted by RayinNorCal View Post
Todd, do you ever look at Zilvia.net for a s14 t28? They pop up all the time there.

Ray
Really? I didn't see any while I was looking for my t25, but then again it didn't take long before I bought one. How much do you see them going for?
RedCarmel is offline   Reply With Quote
Old 08-30-2012, 04:07 PM   #26
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Adam, I think the last time I checked there was one for $400, but if I remember correctly he said it could probably use a rebuild. I don't know if there are any currently for sale but that would be the first place I would look for one.

Ray
RayinNorCal is offline   Reply With Quote
Old 08-30-2012, 05:50 PM   #27
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I had one. Sold it with my SR when I parted out my 240. Regret it a lot. They are somewhat hard to come by.
240_to_miata is offline   Reply With Quote
Old 08-31-2012, 04:28 AM   #28
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

RayinNorCal is offline   Reply With Quote
Old 08-31-2012, 06:35 AM   #29
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 184
Default

Yes and no...I'm looking for "selling my blown s14 turbo. The chra is seized, but the compressor/ wheel is good....$50"
Let me know when that gets found.
thirdgen is offline   Reply With Quote
Old 08-31-2012, 09:17 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

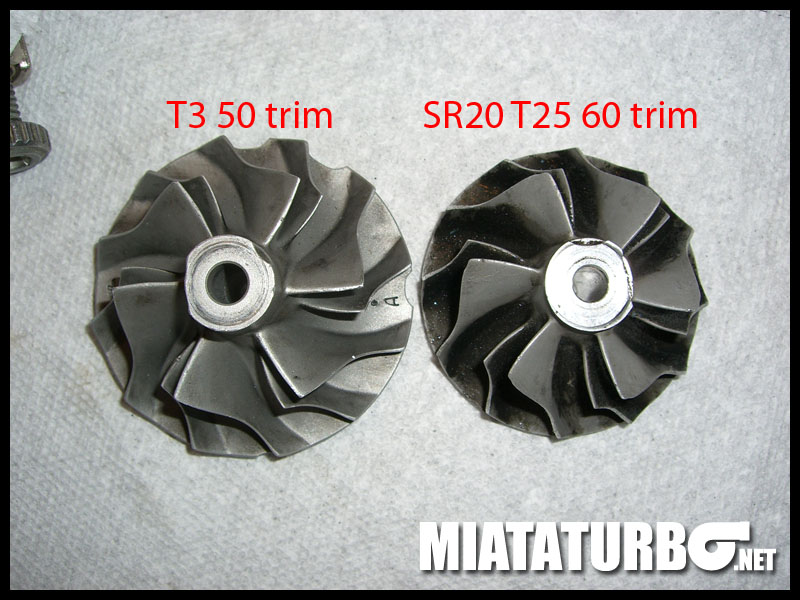

do you just want a compressor wheel? I have a 50 trim t3 wheel and compressor housing you can duct tape to your chra...that'll make it a t28.

Attached Thumbnails
1.8s with Sr20 T25s. Some info please-t3_vs_t25_wheel.jpg
Braineack is offline   Reply With Quote
Old 08-31-2012, 10:05 AM   #31
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 184
Default

Lol @ duct tape...pm me brainy, if serious.
thirdgen is offline   Reply With Quote
Old 08-31-2012, 10:10 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

if i can find it
Braineack is offline   Reply With Quote
Old 09-02-2012, 12:54 AM   #33
Junior Member

Join Date: Jun 2012
Posts: 68
Total Cats: 0
Default

For anyone looking for a cheap T25/T28, I was around 240's before miatas. This one works great and is probably the CHEAPEST you will find anywhere that isn't from ebay.

*ISIS T25/T28 Replacement Turbo - Nissan SR20DET - Enjuku Racing Parts, LLC

If you want a 2871 sized turbo the same company makes this turbo as well.

http://www.enjukuracing.com/products...n-SR20DET.html

Final edit? - I think these (both links) are journal bearing not ball bearing, fwiw.
TheGrim is offline   Reply With Quote
Old 09-02-2012, 01:56 PM   #34
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Quote:
Originally Posted by TheGrim View Post

If you want a 2871 sized turbo the same company makes this turbo as well.

*ISIS RS3871 Turbo - Nissan SR20DET - Enjuku Racing Parts, LLC.
A quick google search reveals that these turbos are actually really good units. The warranty on them is rock solid as well.
viperormiata is online now   Reply With Quote
