Default 20 bucks Turbo heat shield

Well here it is. I went to home depot and bought a nice big 12x24 piece of Aluminum - $9.xx.
I was thinking fo wrapping it around and over the turbo but i settled on this design due to its simplicity and i wanted to leave some air for the turbo to get some ventilation at least from the radiator fans

red = area completely removed from sheet
blue = fold line
blue circle = bolt
Name:  heatshield.gif
Views: 39
Size:  10.2 KB

Name:  Image012.jpg
Views: 40
Size:  172.3 KB

Name:  Image013.jpg
Views: 39
Size:  119.3 KB

Name:  Image014.jpg
Views: 39
Size:  135.9 KB

Name:  Image015.jpg
Views: 40
Size:  132.0 KB

Name:  Image016.jpg
Views: 37
Size:  109.8 KB


Also 1 question, When bending the metal pipe that goes underneath the headers/manifold for the heater hoses, i crushed it a little bit. Will that be a problem? Its not penetrated however its crushed a bit.

after further talk in this thread, i decided to add a top to my heat shield which doubled the price of it however its still less than half the price to the next alternative from the store/internet.

if i had done this out of the car the folds would have been on the inside and looked much better but i got lazy

few pics of my top cover

Name:  Image001-1.jpg
Views: 37
Size:  116.5 KB
Name:  Image002-1.jpg
Views: 38
Size:  73.0 KB
Name:  Image004.jpg
Views: 51
Size:  139.8 KB

Last edited by triple88a; 11-25-2009 at 03:19 PM.
triple88a is offline   Reply With Quote
Old 11-11-2009, 10:30 PM   #2
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

The hood paint is gonna get jacked.
kenzo42 is offline   Reply With Quote
Old 11-11-2009, 10:31 PM   #3
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I see, alright then i'll add a top cover to it.
triple88a is offline   Reply With Quote
Old 11-11-2009, 10:49 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I like it more than the one BEGI sent me. Sorry Corky. :(
Faeflora is offline   Reply With Quote
Old 11-12-2009, 12:32 AM   #5
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

Looks like it's only bolted to the chassis, not the engine? So that when the engine rocks the shield doesn't move--I take it you have plenty of clearance so no hoses/wires will rub up against it and chafe.
r808 is offline   Reply With Quote
Old 11-12-2009, 12:42 AM   #6
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I have it tied to the last bolt at the valve cover until i get a longer piece of metal so i can tie it to another place.

There is about half an inch of room between the downpipe and the shield and there is about an inch of room between the turbo and the shield and about half an inch of room between the coolant fitting and the shield.

In the front its held by the bolt that holds the ps fluid bottle and the 2 other bolts that hold the stock air box, in the middle is tied to the bolts that hold the bracket that held my windows washer bottle and at the end its held to the block via that bracket on that last pic however i'll move it to the body tomorrow since i'll get some more of the metal shin i need.

What i like about this is that it doesnt need any special screws or anything new drilled, it uses all the old holes and stuff.

I'm also thinking of buying a rubber line and cutting it on one side and putting it on top so it doesnt have that sharp edge.
triple88a is offline   Reply With Quote
Old 11-12-2009, 12:56 AM   #7
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Bolt it to the chassis or the engine. Not both. Recommend chassis.
JKav is offline   Reply With Quote
Old 11-12-2009, 01:18 AM   #8
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Will bolt it to the chassis tomorrow
triple88a is offline   Reply With Quote
Old 11-12-2009, 01:22 AM   #9
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

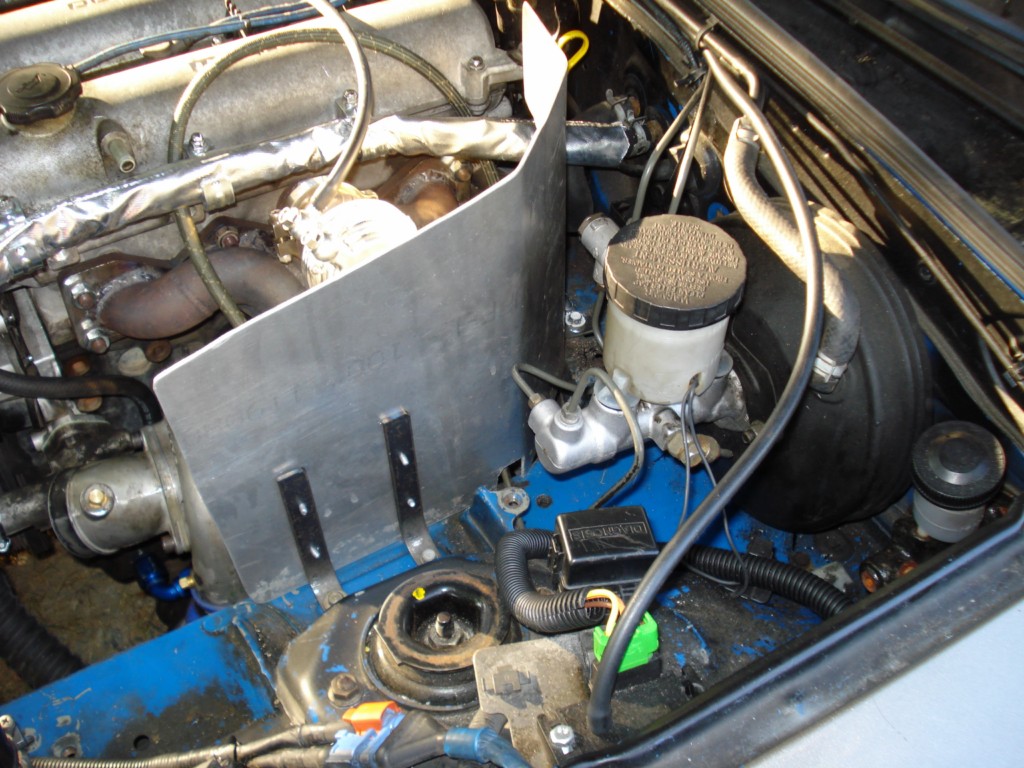

I've seen something like this before......Oh right, its been on my car for 4 months.

Also, I have 0 issues with my paint. However, all the glued points on the under frame of the hood have come undone from the heat. Luckily its welded on the perimeter.
Attached Thumbnails
10 bucks Turbo heat shield.-dsc00185-%5B%5D.jpg   10 bucks Turbo heat shield.-dsc00186-%5B%5D.jpg
neogenesis2004 is offline   Reply With Quote
Old 11-12-2009, 01:28 AM   #10
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Good ideas.
zoomin is offline   Reply With Quote
Old 11-12-2009, 01:28 AM   #11
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

i see, well thank you for the feedback sir, i'll add a top and some more heat shielding to mine just in case
triple88a is offline   Reply With Quote
Old 11-12-2009, 02:48 AM   #12
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

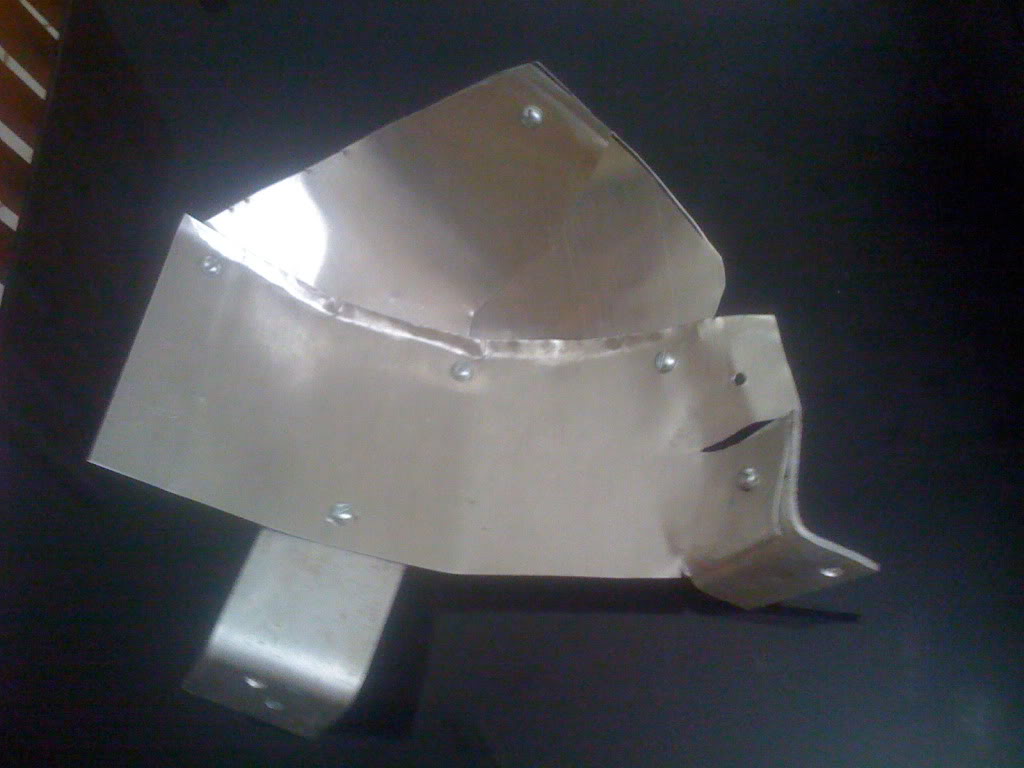

or like this if you want a little harder task
Name:  IMG_0464.jpg
Views: 37
Size:  72.4 KB

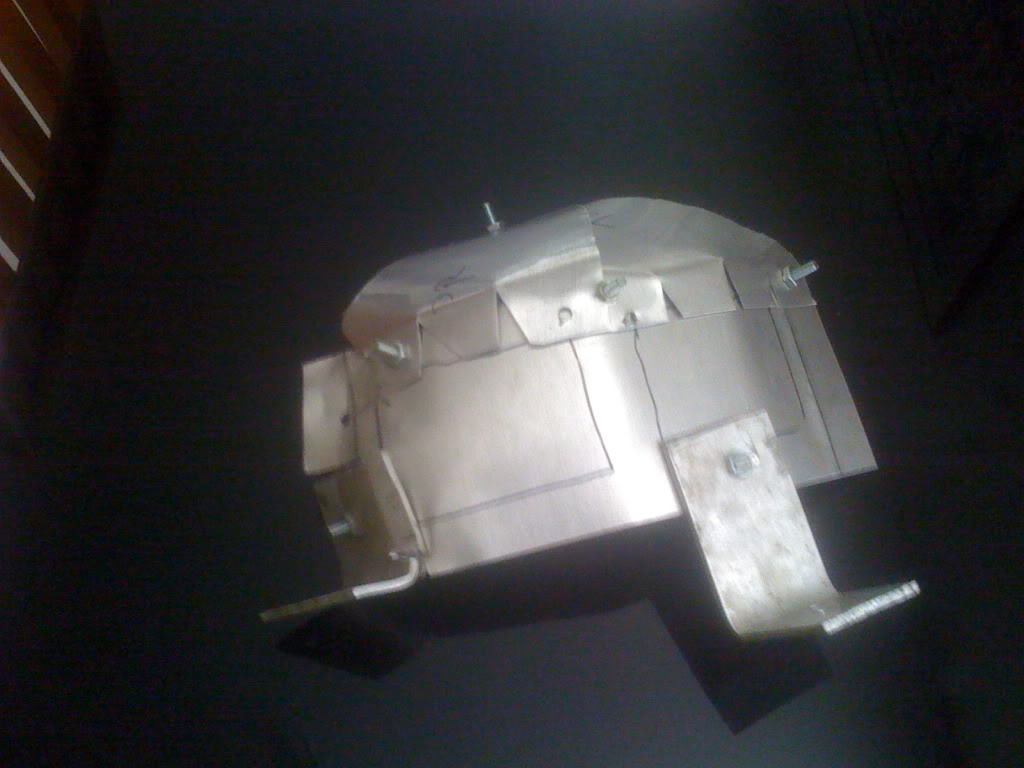

Name:  IMG_0463.jpg
Views: 37
Size:  76.0 KB

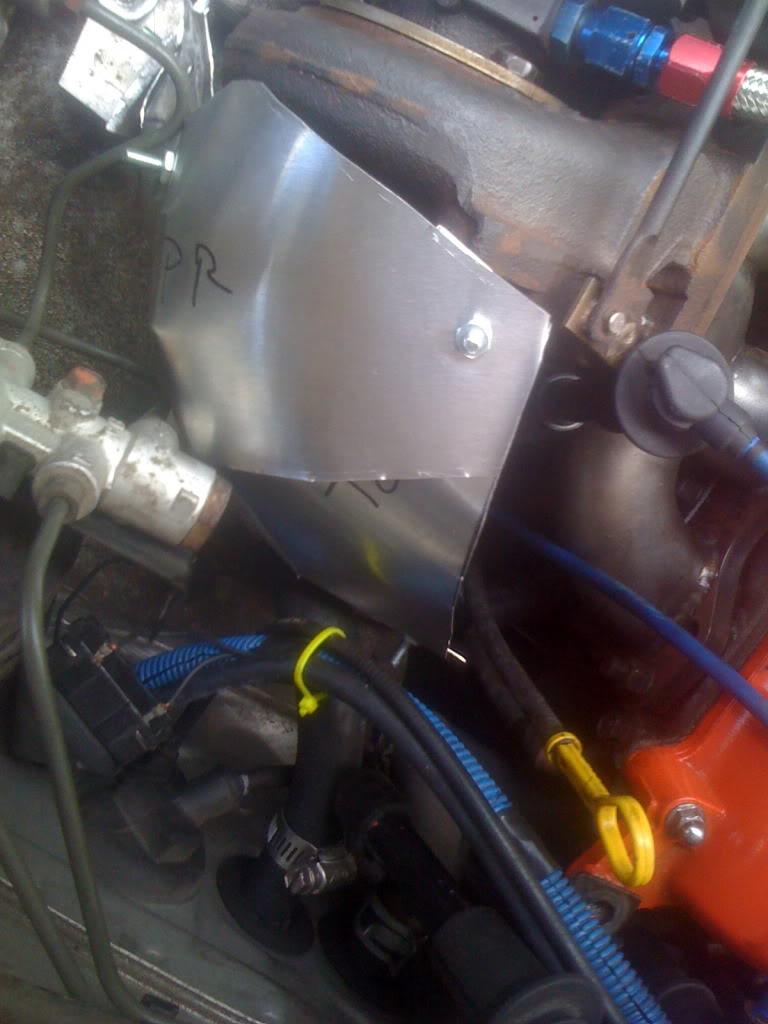

Name:  IMG_0459.jpg
Views: 37
Size:  86.0 KB
p51hellfire is offline   Reply With Quote
Old 11-12-2009, 03:47 AM   #13
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

My first design was similar to the FM box however i changed my mind since i wanted to block the direct air going to the heater hoses.

Any info about the metal pipe i pinched?
triple88a is offline   Reply With Quote
Old 11-12-2009, 01:59 PM   #14
Junior Member
iTrader: (1)

Tmorgan's Avatar

Join Date: Nov 2009
Posts: 79
Total Cats: 13
Default

Quote:
Originally Posted by triple88a View Post
My first design was similar to the FM box however i changed my mind since i wanted to block the direct air going to the heater hoses.

Any info about the metal pipe i pinched?
It will obstruct heater flow a tad. Unless it is severely crimped you should be fine. If you are careful you can take channel locks and squeeze the sides of the crimp to open it back up again. This might fatigue the metal and cause it to crack.
Tmorgan is offline   Reply With Quote
Old 11-12-2009, 07:12 PM   #15
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

but no problems to the engine?
triple88a is offline   Reply With Quote
Old 11-12-2009, 10:10 PM   #16
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

haha Perfect turbo cover

triple88a is offline   Reply With Quote
Old 11-12-2009, 10:43 PM   #17
Junior Member
iTrader: (4)

Join Date: Feb 2008
Location: North NJ
Posts: 271
Total Cats: -1
Default

So does it do its job?
1stproject is offline   Reply With Quote
Old 11-12-2009, 11:05 PM   #18
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

which one? my heatshield i made above in the 1st post or the flux capacitor? In the mourning, on my way to work, the hood was very frozen. When i got there i checked it out. Around the turbo it was dry, over the engine block it was melted, on the other side of the wall i made by the air filter. It was still ice like it was before i even started the car. You could see where the heatshield is at. There was a fine line between the dry and the frozen part on the hood.
triple88a is offline   Reply With Quote
Old 11-12-2009, 11:18 PM   #19
Junior Member
iTrader: (4)

Join Date: Feb 2008
Location: North NJ
Posts: 271
Total Cats: -1
Default

That answer's my question. I guess it does work.
1stproject is offline   Reply With Quote
Old 11-13-2009, 05:56 AM   #20
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

The flux Capacitor was never designed to be bolted to both the engine and the Chassis at the same time. 88 MPH can easily become 103 MPH with a little fudge. LOL.
r808 is offline   Reply With Quote
