Old 11-13-2009, 08:54 AM   #21
Junior Member
iTrader: (6)

Join Date: Jan 2006
Location: St Johns, Fl
Posts: 378
Total Cats: 0
Default

Here's an overall shot showing my temporary master cylinder heat shield...


Yeah, it's the tag that came on the car when I bought it. I plan to replace it with something else eventually, but it works fine for now. The reservoir is also wrapped in reflective wrap. I think I got the idea from a post of Brain's.

Ignore the tennis ball hanging in the foreground...
clay is offline   Reply With Quote
Old 11-13-2009, 12:13 PM   #22
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I assume that ball is to show you how far you are from the wall?

Like a beacon?

nice hood btw
triple88a is offline   Reply With Quote
Old 11-13-2009, 02:38 PM   #23
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

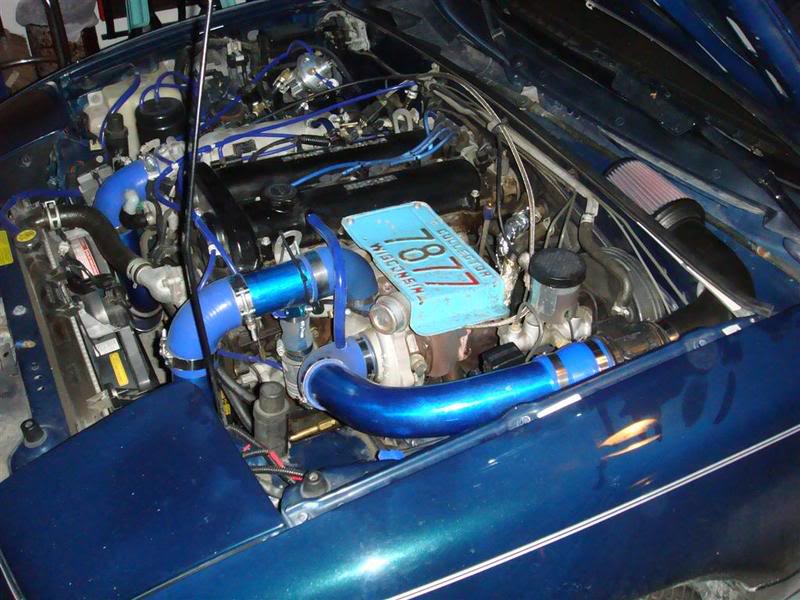

Name:  0e5bc851.jpg
Views: 22
Size:  85.3 KB
SamS is offline   Reply With Quote
Old 11-13-2009, 03:26 PM   #24
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

but that leaves the brake booster and the coolant/heater lines exposed :(
triple88a is offline   Reply With Quote
Old 11-13-2009, 03:51 PM   #25
Junior Member
iTrader: (6)

Join Date: Jan 2006
Location: St Johns, Fl
Posts: 378
Total Cats: 0
Default

Yeah, it's not ideal, but it's temporary. Heater lines are wrapped in reflective wrap as well.
Hood is off because I was pulling the engine (you can see some wires labeled in blue).
Tennis ball is so my wife knows how far to pull in the garage. When it hits the windshield, STOP.
clay is offline   Reply With Quote
Old 11-23-2009, 03:37 PM   #26
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

well i added a top to my heat shield.. hood over the turbo is cold... its warm right in front by the radiator fans, it little warm in the middle above the engine and then cools off more over the intake side again however its nothing like how cold it is by the air filter. The air filter is ice cold even after a 40 minutes drive. i'll post some pics when i get home.
triple88a is offline   Reply With Quote
Old 11-25-2009, 01:31 AM   #27
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

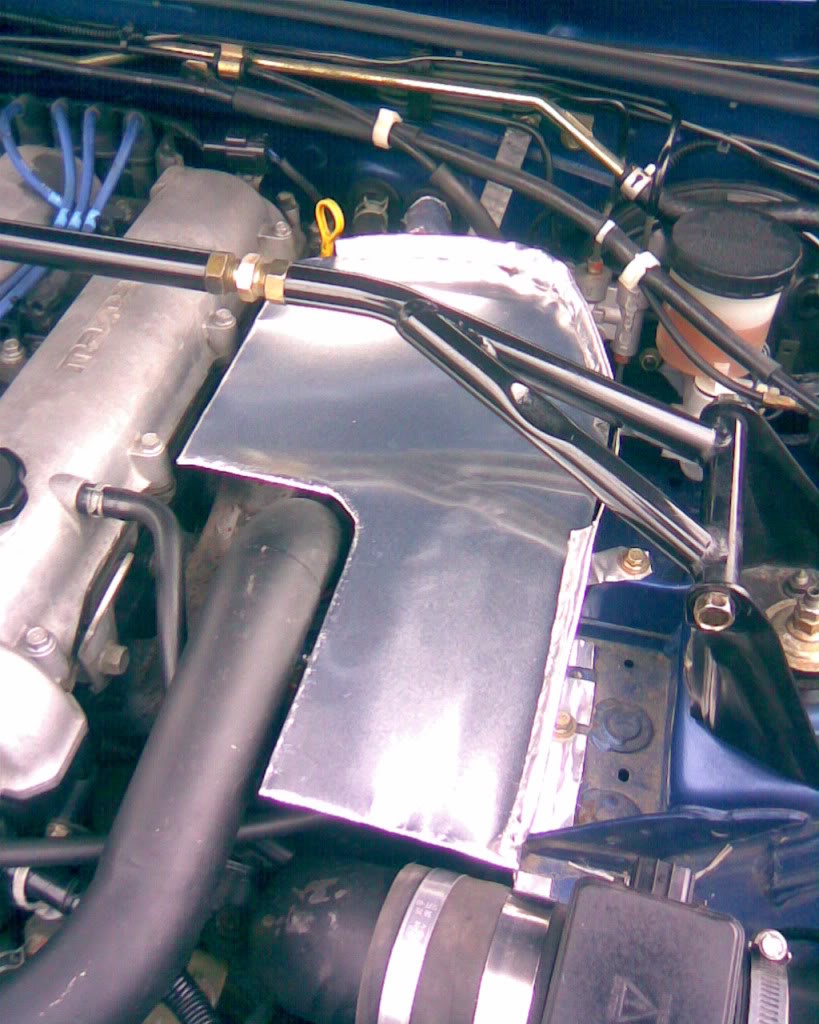

i gotta do one more fold on the edge to make it smaller however its holding up good.

Name:  Image004.jpg
Views: 14
Size:  139.8 KB

if its not raining (again) tomorrow i'll do that tomorrow and take a picture in daylight.
triple88a is offline   Reply With Quote
Old 11-25-2009, 03:14 PM   #28
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

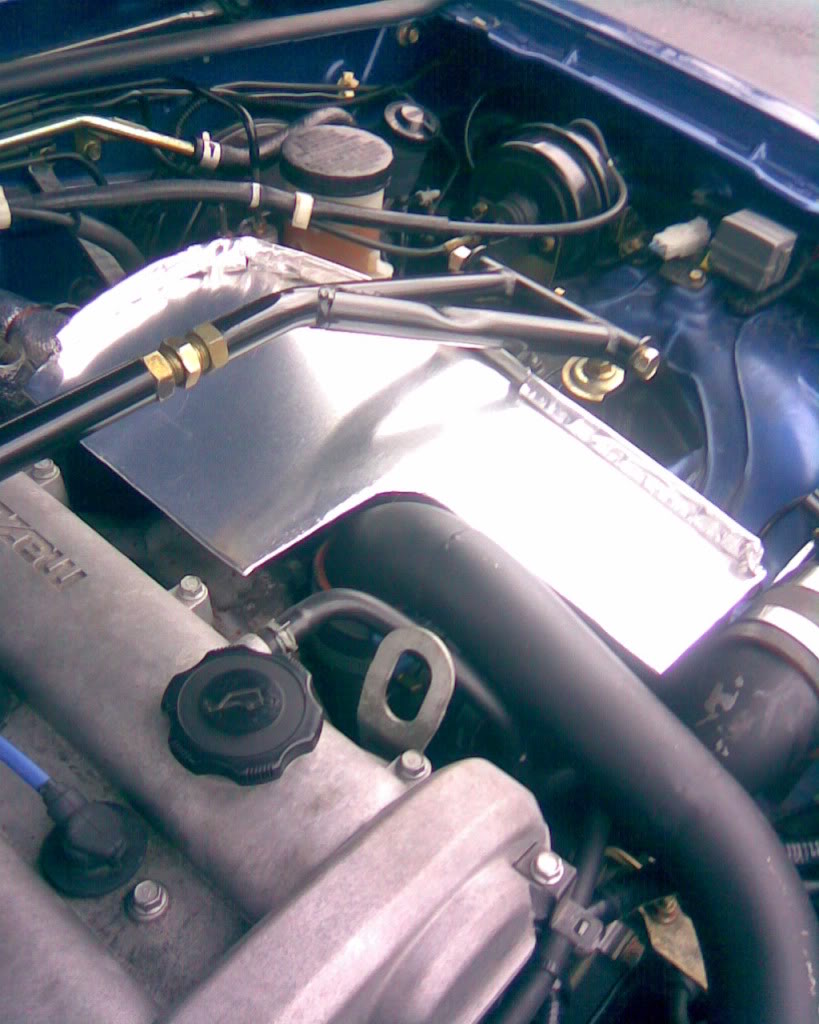

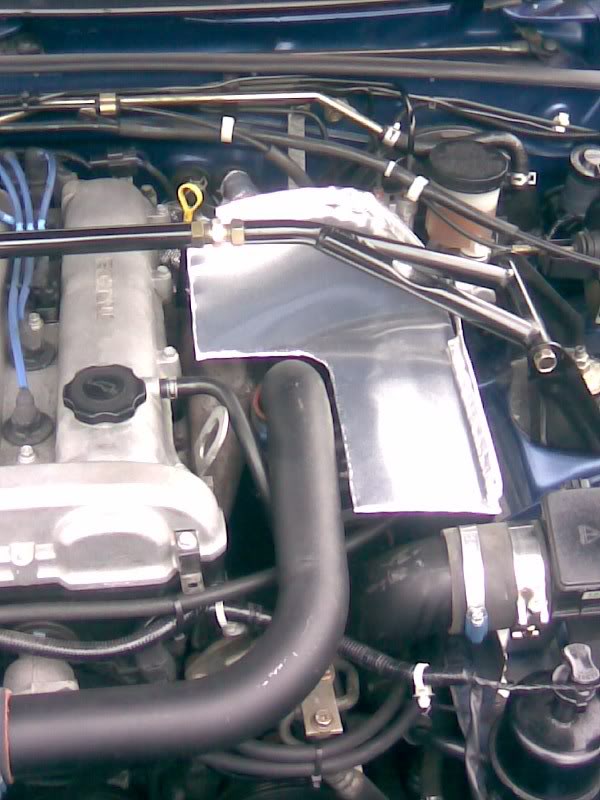

new pic is up

Name:  Image002-1.jpg
Views: 14
Size:  73.0 KB

Name:  Image001-1.jpg
Views: 14
Size:  116.5 KB
triple88a is offline   Reply With Quote
Old 11-25-2009, 04:37 PM   #29
Junior Member
iTrader: (1)

Join Date: Sep 2008
Location: SA,TX
Posts: 248
Total Cats: 8
Default

That's awesome. I need to do this on mine. The hood gets to hot to touch nust after normal driving.
NastyNate is offline   Reply With Quote
Old 11-25-2009, 06:30 PM   #30
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

Nice design, good layout, but DAYMN... take those tinsnips, and round all the corners, and file down the edges. Your waiting for a cut arm working around that thing.

Ive thought about adding a top to my shield, but i ended up putting a piece of alum, on the hood, Pop Riveted to the cross braces to the hood.

Nice.
jedduh01 is offline   Reply With Quote
Old 11-25-2009, 10:03 PM   #31
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

hows ur hood? i was thinking of doing that since i like the accessibility to the turbo.
triple88a is offline   Reply With Quote
