timk

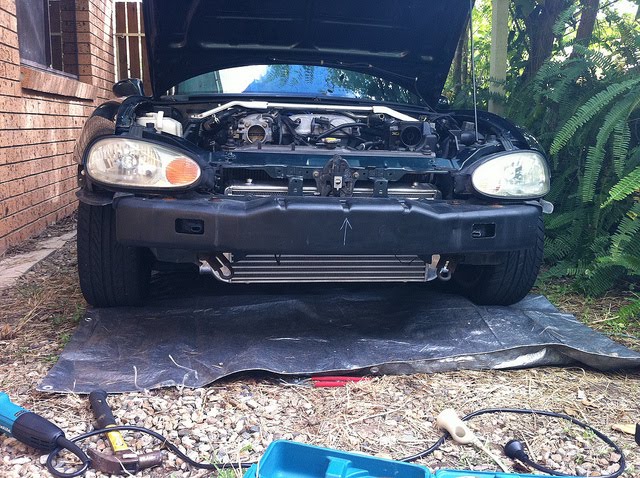

It fits, just:

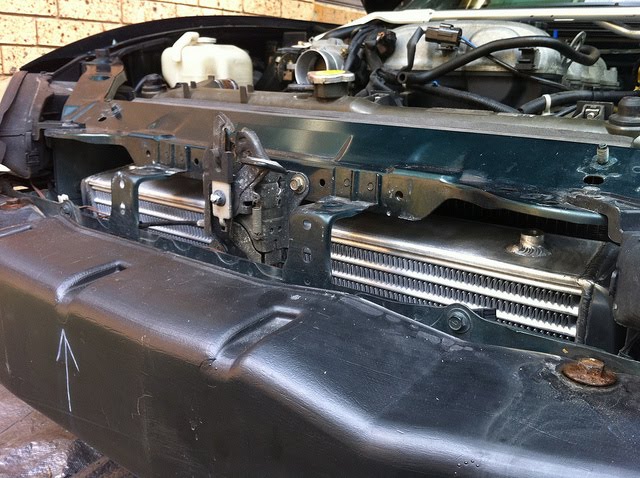

Had to remove the air conditioning mounting points with a cut off disc to bring it forward/high enough:



I don't know why I bothered, but making stuff like this fit is half the fun.

Cheers

18psi

iTrader: (76)

Please tell me this is going to be pressurized by a huge snail.
Otherwise its pointless.

timk

A big snail may come later, for now it is going to be a nice solid 200-220whp setup.

This is my dedicated track car and being in Australia I attend circuits where the ambient temperature gets crazy high. My old setup had bad heat soak which has lead me to go overkill this time around.

18psi

iTrader: (76)

Are you going to do anything about the beam blocking off almost half of it?
Also keep in mind that you're taking lots of flow away from the rad.
I think you need tons and tons of shrouding to keep the heat exchangers happy.

Braineack

iTrader: (62)

that's one huge bitch.

seraph

iTrader: (4)

Wow, good work fitting that, but I don't think it'll be anymore efficient as a 28x7 and definitely won't be stunning from the front since the bumper covers it all up.

Faeflora

iTrader: (2)

I will trade you.

TURNS101

iTrader: (10)

I would worry about less flow to the rad over anything..

Faeflora

iTrader: (2)

What's new with your ride mr turns? Got your supersick topsecret new setup in yet?

TURNS101

iTrader: (10)

Ha ha Nice man!! Well I have some pics I am about to post. Should be plumbed and running tomorrow. Hopefully tuned by next week. I have a thread in DIY I am putting the pics in now..

Thanks for asking man..

fastivab6tg25mr

my car started running hotter when i installed a larger intercooler even with shrouding. im guessing because most of the air passing through the rad goes through the intercooler first and is now hotter than ambient.

Vashthestampede

iTrader: (17)

You'll overheat the car with a IC that big. I guarantee it.

Savington

iTrader: (31)

+1. There's absolutely no way that car will stay cool. At 350whp I am using a 600hp Precision core (31x8x3.5 overall), and the upper half of the radiator is fed fresh air. CLTs are <200*F no matter what. I have tried to feed the radiator with nothing but air from the IC and it does not work at all.

jacob300zx

no go

Gotpsi?

iTrader: (5)

Im running one the same size I have had no problems with heat since I sealed it up really well and vented the hood. on the street I could see a problem though. mine is mounted quite a bit differently though. Never seen higher than 130 iat @ willow springs on a 105 day.

JKav

iTrader: (1)

Also, how much does that slab weigh?

Gotpsi?

iTrader: (5)

its heavy but having a tube front end makes up for it, and gives better air flow because I dont have all the crash stuff in the way.
