7 psi setup - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-01-2006, 05:39 PM   #21
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

You will be fine at that lower boost level without the IC. My intake temps right now are lower than the ambient temp. This is coming from humid hot weather out here on the island too. When tuning it, just start out at 6 degrees and ramp it from there a degree at a time. Today I am going to mess with the upper rpm's and see if I can add a degree back in to the mix.
boostinsteve is offline   Reply With Quote
Old 12-01-2006, 08:59 PM   #22
Junior Member

Join Date: Aug 2006
Location: Farmington Valley, CT
Posts: 147
Total Cats: 0
Default

I had my car set to 6 for a while, drivability was awfull. I put in the emanage and set it to advance the timing 4 degrees at less than 1psi, then gradually pull up to 6 degrees at 8psi. I set the base timing back to stock. This is with no IC or H20 and no dyno, so I am being a little cautious. Anyway, the difference was like night and day after that.

With an IC and H20 you may not have to pull very much timing at all.
Mechazawa is offline   Reply With Quote
Old 12-01-2006, 09:20 PM   #23
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

With my emanage, I am pulling only 2 degrees of timing right now. My base timing is set at 12 degrees, so in essence, I am at the stock timing when in boost. Just the food for thought, just start low and go from there, I think you will be surprised how much timing you can run with the WI
boostinsteve is offline   Reply With Quote
Old 12-01-2006, 10:00 PM   #24
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

WI is great and stuff, but it is still a mechanical system. What happens when it craps out under boost? Hello rebuild.
mschlang is offline   Reply With Quote
Old 12-01-2006, 10:04 PM   #25
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

With WI and an IC you can get away with stock timing. With JUST WI or IC but not both I would retard about 4* @ 8-10psi and 2* for 5-7psi. Thats just me, you gain a small amount of power from increased timing but is it worth blowing a motor over?
F20turbo is offline   Reply With Quote
Old 12-01-2006, 10:49 PM   #26
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

thanx guys.. i think i will put it all together drop the timing to 6* and just play it as i go from there. just keep my ear open for knock
adbradley is offline   Reply With Quote
Old 12-01-2006, 10:52 PM   #27
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Start with it retarded and slowly feed it back in. I would imagine that with just the WI you will have no trouble running 10 degrees.
Kelly is offline   Reply With Quote
Old 12-01-2006, 10:55 PM   #28
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

how about the fact that my WI is only controlled by a on off psi switch?? i was catchin some slach in flash chat today about that. They are tellin me it will not work well at all without a progressive controller of some kind... Any imput?
adbradley is offline   Reply With Quote
Old 12-01-2006, 11:05 PM   #29
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

Get a pressure switch and a relay, that will ensure that it switches on when it is supposed to, an on off switch is going to be real difficult to switch on when you are getting ready to go into boost. I have leds for when the pump receives power and also a pressure gage mounted in the cab, that is about all that I can do for the reliability, but I am using a high mileage motor, so I am expecting the motor to go soon. When I get the money and the time, I will run an intercooler also.
boostinsteve is offline   Reply With Quote
Old 12-01-2006, 11:09 PM   #30
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Will it work well without the controller...yeah. Are your results going to be a lot more impressive if you have more control....yeah. Just look at the logs for the S4. He pretty much doubled his results by having more control over the system. I did a basic kit on my buddies SRT 4 and he is able to make 400 whp on pump gas. The ecu allows 30 degrees advance at 20 psi. Intake temps stay at ambient under boost. Prior to the Devils Own kit the ecu allowed 22-24 degrees.

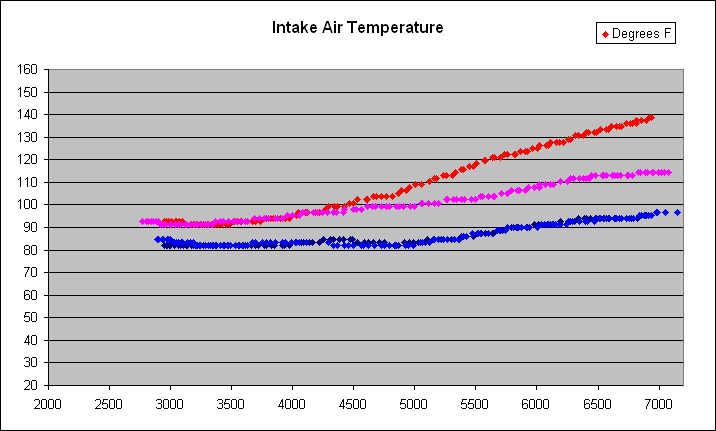

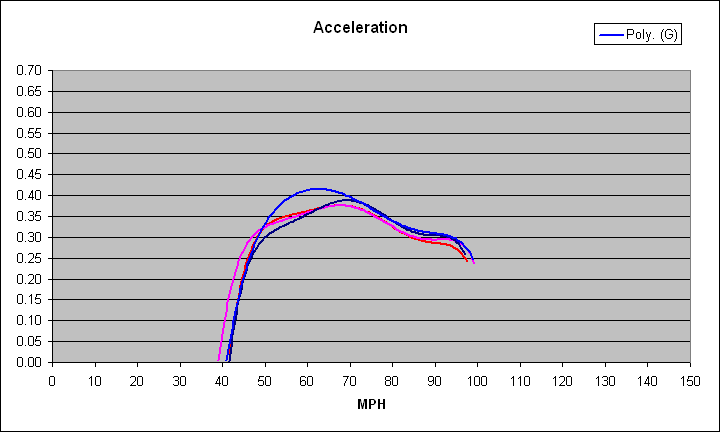

Here are the S4 results.


New updated results from the S4. What a huge difference tuning the controller makes.
Blue is the latest results after more tuning.
Dark Purple is with a little tuning
Pink is the from the earlier posted logs. 0 tuning.
Red is no water injection

Name:  IAT.gif
Views: 7
Size:  8.8 KB
Name:  Accel.gif
Views: 7
Size:  7.1 KB
Kelly is offline   Reply With Quote
Old 12-01-2006, 11:14 PM   #31
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

i have a pressure switch and a relay.. Just not a progressive controller like on the devils own kit, i guess i can always add that later
adbradley is offline   Reply With Quote
Old 12-01-2006, 11:17 PM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

signifigant extra g's pulled between 45-70mph. were you putting in more boost as well (compared to red) and keeping the temps that low? that's insane.
Braineack is offline   Reply With Quote
Old 12-01-2006, 11:22 PM   #33
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

i wish i had the data logging equipment you have
adbradley is offline   Reply With Quote
Old 12-01-2006, 11:24 PM   #34
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

I am just using the basic kit right now, I like it for now, and when I get the money and some other supporting mods that I want first, I will get the controller from WideOpenTuning. You will be fine with the pressure switch and the relay, just take your time getting the thing tuned properly, and you'll be good. Then decide if you want a progressive controller, and if you do, add it. Just decide and go for it man. Good luck.
boostinsteve is offline   Reply With Quote
Old 12-01-2006, 11:31 PM   #35
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

3rd Gear and 22 psi of boost on all runs. He dropped damn near .25 seconds it the time it takes to accelerate through the top of 3rd gear alone. For under $300 thats a hell of a mod.
Kelly is offline   Reply With Quote
