Old 04-16-2013, 05:37 PM   #21
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

i have a gloshift gauge
Clos561 is offline   Reply With Quote
Old 04-16-2013, 07:30 PM   #22
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

What the ****? Since when was this place an AEM wideband love-fest?
concealer404 is offline   Reply With Quote
Old 04-16-2013, 09:48 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

I'm tuning a car with an aem. besides the calibrationbeingabout 2 afr off from ms, it warms up fast as **** compared to my LC1
Braineack is online now   Reply With Quote
Old 04-16-2013, 09:51 PM   #24
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default

Quote:
Originally Posted by Braineack View Post
I'm tuning a car with an aem. besides the calibrationbeingabout 2 afr off from ms, it warms up fast as **** compared to my LC1
Maybe you should set the calibration correctly in the MS. All the AEM widebands I work with line up perfectly with what the software reads, as long as you've set the curve in the software.
Savington is online now   Reply With Quote
Old 04-17-2013, 04:42 AM   #25
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

My lc1 loved to eat 02 sensors and give retarded readings to the megasquirt. Switched to a zeitronix and dont regret it. Spend money on a good wideband or else wonder why you melted a piston when the cheepo whideband showed all was ok.
cjsafski is offline   Reply With Quote
Old 04-17-2013, 10:50 AM   #26
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by hustler View Post
I really hate the blinky lights though. I suppose I can use a paint marker on them and take away the pain.

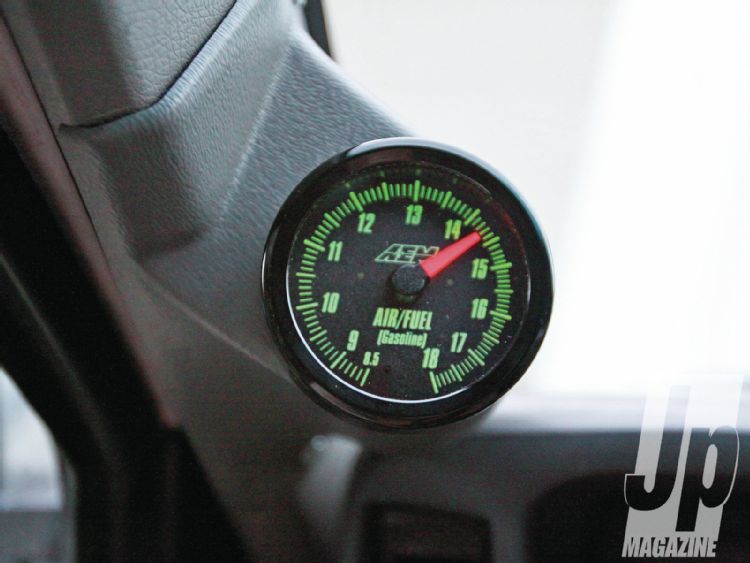

They sell an analog version ... they've been selling it for a while now.



I have an AEM and an LC-1. I had Artech weld two bungs so that I could run a secondary O2 as a gauge/validation ... once the car is up and running I'll get to see a direct comparison in terms of reliability. I plan on using the LC-1 for the megasquirt and the AEM will be my visual reference. Why? Because not race car and I wanted matching analog gauges (I'm a designer ... these things are important to me).

All this LC-1 talk has me thinking I should change my plan or at least wrap the thing in lot's of reflective shielding.

-Zach
Attached Thumbnails
Affordable wideband solution-154_1111_04-mopar_stroker_motor_part_2-aem_gauge.jpg
thasac is offline   Reply With Quote
Old 04-17-2013, 10:58 AM   #27
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Braineack View Post
I'm tuning a car with an aem. besides the calibrationbeingabout 2 afr off from ms, it warms up fast as **** compared to my LC1
How fast is the AEM warming up?

This is one complaint i never understood about the LC1. Mine warms up in 10 seconds or less.
concealer404 is offline   Reply With Quote
Old 04-17-2013, 11:00 AM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by Tork View Post
Aem all the way. Pay high price for AEM but get ultra high quality for it
Its not high priced, and its not high quality.

Just shut up. Seriously. Every post you've made so far is retarded.

Quote:
Originally Posted by concealer404 View Post
What the ****? Since when was this place an AEM wideband love-fest?
Since they've always been one of the easiest to install and set up, and despite not outputting as quickly as the innovates still get the job done just fine.

We've had this argument before in some other thread. LONNNNG discussion too, with Joe P chiming in among many others. The general consensus was that Innovate was more accurate and faster reading, but AEM was easier to set up and still worked fine for 99% of the setups on here (the 1%ers just being displeased with response time and the way it "averages" output sometimes rather than giving you to the .01 reading)

I've used nothing but AEM uegos for the past 5-6 years. Never had issues. About to try the Innovate MTX-L soon just cause they're the same price.

back on topic:

I wouldn't trust the "wideband" in OP to tune my car. But hey if I didn't care about the health of my engine, I'd probably try it lol.


Quote:
Originally Posted by concealer404 View Post
How fast is the AEM warming up?

This is one complaint i never understood about the LC1. Mine warms up in 10 seconds or less.
Like 2-3 seconds tops
18psi is offline   Reply With Quote
Old 04-17-2013, 11:02 AM   #29
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by concealer404 View Post
How fast is the AEM warming up?

This is one complaint i never understood about the LC1. Mine warms up in 10 seconds or less.
Your heater circuit might be a little fried, mine didnt start taking longer than 3-4 seconds on the subaru until after the controller sat on the down pipe for a couple hours, now its closer to the 10 second range. The AEM seems to be in the 3-4 second range too in the stock miata exhaust.
Leafy is offline   Reply With Quote
Old 04-17-2013, 11:03 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

Quote:
Originally Posted by Savington View Post
Maybe you should set the calibration correctly in the MS. All the AEM widebands I work with line up perfectly with what the software reads, as long as you've set the curve in the software.

Maybe AEM should publish voltage outputs that are actually close to what it actually outputs?

I started with 0v = 10AFR and 4.250v = 18AFR

TS shows 1.2AFR richer.

I ended up today at 0.5v = 10AFR to get it within a few points. I need to bust out the DMM and see what the voltage to the MS really is.



also offtopic: 3 gauge a-pillars in a miata should be illegal.

LC1 warm-up time: 25 seconds on the dot, seems typical.
AEM: 2-3 sec.
Braineack is online now   Reply With Quote
Old 04-17-2013, 11:04 AM   #31
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Hrmm... i'll have to actually time mine. It might very well be less.

I know i can start the car, and by the time i've got my seatbelt on and throw it into reverse, it's already spitting out numbers.
concealer404 is offline   Reply With Quote
Old 04-17-2013, 11:18 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

a quick google search shows 30 sec as typical. it can vary based on how you performed your initial warm-up calibrations, which should be done with the sensor in the free-air, if it was reinstalled before that, it can take longer to warm-up after that. But 20-30sec is typical from every LC-1 I've ever touched, I believe the later firmware is faster, but causes other issues...not sure they ever fixed it, or what firmware I'm even on.

I've always had calibration issue with the AEM, but that was dealing with MSI, so that alone added another hurdle to solve. I should be able to calibrate it perfectly in MS3, just annoying it's no where close to the published voltages...where the LC-1 is only off by a little from the default values, typically due to the voltage offset.
Braineack is online now   Reply With Quote
Old 04-17-2013, 02:18 PM   #33
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Log from couple days ago shows an LC-1 warmup time of 11 seconds on a cold start. Mine is just over a year old and there was a new firmware out then that fixed the overheating.

2-3 seconds would be awesome. Not going to give up the AFR/boost combo gauge for it though.
midpack is offline   Reply With Quote
Old 04-17-2013, 02:37 PM   #34
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by concealer404 View Post
What the ****? Since when was this place an AEM wideband love-fest?
Bought my LC-1 in like 2008 and promptly killed the first sensor because I was lazy and used stock sensor location. Welded on a new bung and bought a new sensor which lasted maybe 3 months. Switched up how my controller was wired and the third sensor lasted maybe 8 months, losing calibration every other week. Not saying it wasn't user error but after selling my LC1 and plugging in an AEM I haven't had to dick with it even once and the gauge reading is dead on ***** accurateTM with what tunerstudio shows for AFR.

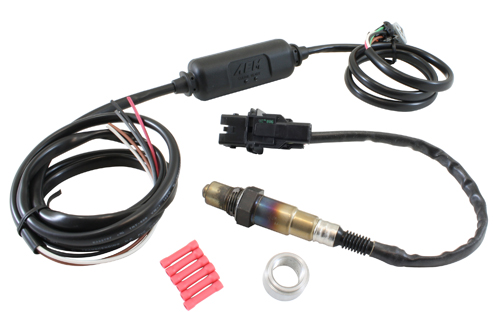

Looks like they've got an inline version similar to the LC1 now, which I would've preferred..

Attached Thumbnails
Affordable wideband solution-30-2310_contents.jpg
elesjuan is offline   Reply With Quote
Old 04-17-2013, 02:41 PM   #35
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Interdasting.

Gives me things to think about what the replacement for my LC-1 will be when/if it finally freaks out or breaks.
concealer404 is offline   Reply With Quote
Old 04-17-2013, 02:58 PM   #36
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

My original LC-1 lasted 3.5 years until I turned up the boost on my first turbo setup. My second one is still running fine after 3 years. I have had to replace the O2 sensor once because I over heated the first one. I added the DIY heat shield and have not had any more issues with it over heating.
shuiend is offline   Reply With Quote
Old 04-17-2013, 03:05 PM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

I've had my LC1 and original sensor since 2006.
Braineack is online now   Reply With Quote
Old 04-17-2013, 03:07 PM   #38
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Braineack View Post
I've had my LC1 and original sensor since 2006.
I bought mine used in early 09 and threw it on the car. Haven't done a thing to it since then. Works fine.


Would i buy another one if i were in the market today? Nah. More elegant solutions exist today. It's sure been rock solid for me, though.
concealer404 is offline   Reply With Quote
Old 04-17-2013, 10:05 PM   #39
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

The wideband gauge the op posted looks like its an Arduino Shield.
ScottyP3821 is offline   Reply With Quote
Old 04-23-2013, 09:06 PM   #40
Junior Member

Join Date: Apr 2013
Location: Nebraska
Posts: 52
Total Cats: 1
Default

TravisFC3S is offline   Reply With Quote
