im having trouble finding space for my AFM. the car is a red 1991. i havent made the air pipes yet because i cant figure out where to put the AFM. it wont fit anywhere within reach of the stock wires. the only place i found that might have to work is basically resting it on the PS pump at an angle and running the filter in the space between the lowere debrie gaurd and the motor (yes all the way down there). pics of your setup would be great. any ideas concerning my problems would be fantastic.

p.s. at this junction of the build the cars name came to me. (bet you wondered why i mentioned the color before) this car is now known to my freinds and i as the memroid; it has become a little red pain in my ***.
zebro racing is offline   Reply With Quote
Old 10-29-2007, 10:11 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

start surfing through the vbgarage for ideas.

uofacats
mine
samnavy
Braineack is offline   Reply With Quote
Old 10-29-2007, 10:29 PM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 10-29-2007, 10:42 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2007
Location: Tallahassee, FL
Posts: 129
Total Cats: 0
Default

think im gonna do it like phils, more or less. is your clutch master cylinder hiding behind the air filter or what?
zebro racing is offline   Reply With Quote
Old 10-29-2007, 10:48 PM   #5
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Yes, clutch master is un touched.

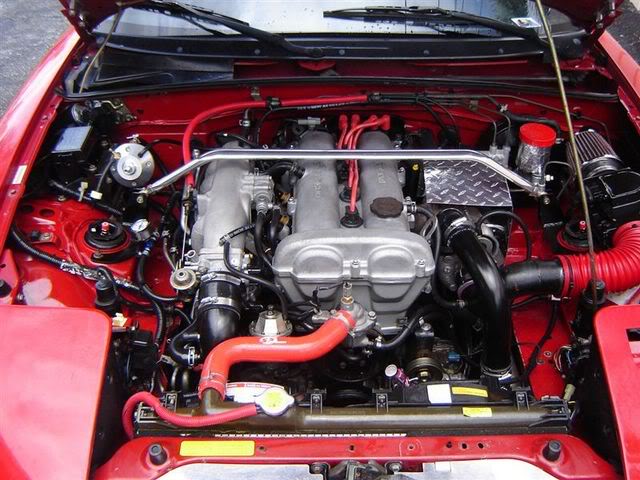

Name:  IMG_5012.jpg
Views: 2
Size:  77.4 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-30-2007, 01:11 AM   #6
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Phil that looks like an excellent location and I like how it's not made of fail like the way GReddy does it. Where did you find the red according-like tubing and how well does it hold a vacuum seal?
Bryce is offline   Reply With Quote
Old 10-30-2007, 09:33 AM   #7
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Bryceness View Post
Phil that looks like an excellent location and I like how it's not made of fail like the way GReddy does it. Where did you find the red according-like tubing and how well does it hold a vacuum seal?
I got it from auto-zone and it seals perfectly. However i am going to replace it eventually because im sure with the ridges the air flow isnt very smooth. It was only a few bucks and works just fine for now. Im going to eventually order a silicone coupler to replace it.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2007, 05:49 PM   #8
!!! NOT CONFIRMED !!!

Join Date: Feb 2007
Location: Thunder Bay Ontario Canada
Posts: 60
Total Cats: 0
Default

Your set up looks real nice. Where did you hide the charcol cannister or did you just ditch it? Also curious about vac lines one way valves going to it and to the power brake, did you use some?
Kenny is offline   Reply With Quote
Old 10-31-2007, 11:36 PM   #9
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Kenny View Post
Your set up looks real nice. Where did you hide the charcol cannister or did you just ditch it? Also curious about vac lines one way valves going to it and to the power brake, did you use some?

Thanks. Yes I ditched the charcoal canister. As far a vec lines, i hooked all of them up to the manifold.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
