I have been searching for Qmax coolent reroute or Begi, but not sure if either kit will fit on an RHD car. I see that the Clutch hydralic unit or brake booster could be in the way.
Mimime is offline   Reply With Quote
Old 04-11-2008, 08:20 AM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

I did one recently that I went to the hot side wide enough to get past the turbo. I see no room on a right hand drive car to go to the cold side.
olderguy is offline   Reply With Quote
Old 04-11-2008, 08:39 AM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Thanks Olderguy, did you use an spacer for the rear Tstate?

Do you mind telling me how you have made the coolent reroute for the RHD car via Hotside?

Last edited by Mimime; 04-11-2008 at 09:01 AM.
Mimime is offline   Reply With Quote
Old 04-11-2008, 12:52 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Drilled out the capped-off water line to mount the ECU temp sensor at the back of the head.

Used the 1.6 thermostat cap with top plugged with a hose to 1" copper line with small "T" into heater core, continued 1" copper line past turbo on body shelf to modified 1.8 thermostat in front, then to radiator.

Hose from out of the heater core around hotside fender to modified connector at bottom radiator hose. Original hard line from heater core removed and entry to water pump for that line welded closed.
olderguy is offline   Reply With Quote
Old 04-11-2008, 12:58 PM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

A reroute that cool and complex and there's no pictures. After spending all this time on the forum you do realize we're all visual learners right. Sounds slightly similar to mine I'll be doing.
cjernigan is offline   Reply With Quote
Old 04-11-2008, 01:01 PM   #6
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by cjernigan View Post
A reroute that cool and complex and there's no pictures. After spending all this time on the forum you do realize we're all visual learners right. Sounds slightly similar to mine I'll be doing.
I get too involved in the projects to take pictures until everything is working, then I don't want to disassemble all the later stuff to take the photos.
olderguy is offline   Reply With Quote
Old 04-11-2008, 01:31 PM   #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

it all sounded like u need your head out! I am going direct to 949 on their Qmax!
Mimime is offline   Reply With Quote
Old 04-11-2008, 05:41 PM   #8
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by Mimime View Post
it all sounded like u need your head out! I am going direct to 949 on their Qmax!
Did it while the tranny was out, but could probably have done it with only the coils and CAS removed.
olderguy is offline   Reply With Quote
Old 04-12-2008, 02:09 AM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Quote:
Originally Posted by olderguy View Post
Drilled out the capped-off water line to mount the ECU temp sensor at the back of the head.

Used the 1.6 thermostat cap with top plugged with a hose to 1" copper line with small "T" into heater core, continued 1" copper line past turbo on body shelf to modified 1.8 thermostat in front, then to radiator.

Hose from out of the heater core around hotside fender to modified connector at bottom radiator hose. Original hard line from heater core removed and entry to water pump for that line welded closed.
OG, I thought u would want water hot water flowing in the Heater core at all times even before the Tstate opens. From what you said, the T going into the heater core is after the Tstate.

Second, With the brake booster in the way, how was it drilling the Nibble plug to fit the rear T. Sensor?

Will it be possible to relocate the sensor at the front, instead of one sensor, put two?

Last edited by Mimime; 04-12-2008 at 02:30 AM.
Mimime is offline   Reply With Quote
Old 04-12-2008, 06:38 AM   #10
Junior Member

Join Date: Sep 2007
Location: Brisbane, Australia
Posts: 112
Total Cats: 0
Default

Doesn't have real good pics but you should get the idea.
https://www.miataturbo.net/forum/showthread.php?t=14515
Or there are some more recent and better pics near the bottom of this page which give you a better idea.
http://mx5cartalk.com/viewtopic.php?t=29791

Tim
zoomzoom is offline   Reply With Quote
Old 04-12-2008, 07:27 AM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Thanks Tim, you had just about gave me all the confidence I need.

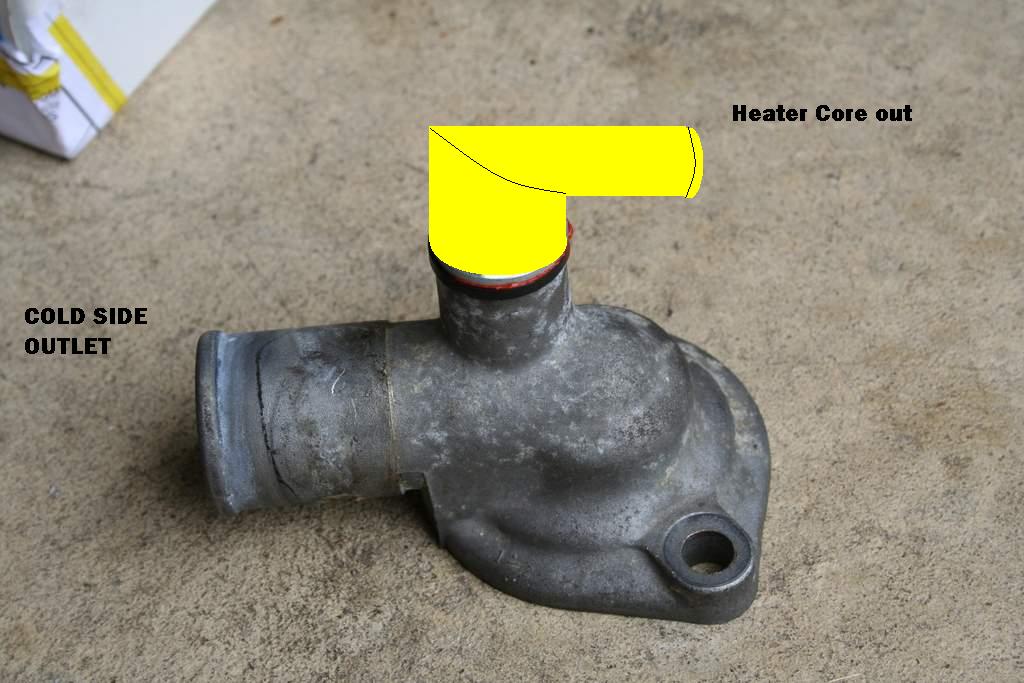

Do you think its possible to find a fitting YELLOW for the heater core? IS there enough room?
Attached Thumbnails
Anyone with coolant reroute done in RHD car?-thermostat%2520cover-mod-.jpg
Mimime is offline   Reply With Quote
Old 04-12-2008, 07:33 AM   #12
Junior Member

Join Date: Sep 2007
Location: Brisbane, Australia
Posts: 112
Total Cats: 0
Default

I don't think there would be enough room, and you would probably want the heater outlet to be pre-thermostat too both so it get hot water quicker and to have an alternate route for the water to relieve pressure from the pump while the thermostat is closed.

You can always change the front outlet to the 1.8 one and shift the stock heater oulet and thermoswitch to the front of the motor without having to get a new outlet made specifically.

Tim
zoomzoom is offline   Reply With Quote
Old 04-12-2008, 09:13 AM   #13
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

For faster heating you want your heater hose after the thermostat. It lets the water warm up in the motor and then releases it.
I know when I take thermostats out for cooling issues the heater sucks. When winter hits, I buy one quick. It takes forever to warm up.
Toddcod is offline   Reply With Quote
Old 04-12-2008, 09:31 AM   #14
Junior Member

Join Date: Sep 2007
Location: Brisbane, Australia
Posts: 112
Total Cats: 0
Default

The factory setup has the heater outlet before the thermostat.
zoomzoom is offline   Reply With Quote
Old 04-12-2008, 09:33 AM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

So.. the question now!

Heater Core water supply should be taken BEFORE or AFTER the Tstat?
Mimime is offline   Reply With Quote
Old 04-12-2008, 12:46 PM   #16
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by Mimime View Post
So.. the question now!

Heater Core water supply should be taken BEFORE or AFTER the Tstat?
BEFORE

You want circulation through the entire engine before the t/stat opens.
olderguy is offline   Reply With Quote
Old 04-12-2008, 12:51 PM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

If you cut the "bung" section off. That half inch or so of extra aluminum you might be able to retap the fixture or have something welded onto that to do the same thing.

Any reason why when i do my reroute i can't eliminate the hardline under the manifold for the heater inlet. Then instead get my heater inlet from a fitting in my spacer before the thermostat then letting the heater core dump back into the system on the otherside of the thermostat like mimime showed with that 90* on the outside of that thermostat outlet? You would have really short lines, the thermostat would see the warm coolant from the engine on both sides, and the heatercore would still be bypassing coolant for some preflow before the thermo opened completely.
cjernigan is offline   Reply With Quote
Old 04-12-2008, 01:05 PM   #18
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
A reroute that cool and complex and there's no pictures. After spending all this time on the forum you do realize we're all visual learners right. Sounds slightly similar to mine I'll be doing.
Cjernigan, can you document yours with a powerpoint?
Mimime is offline   Reply With Quote
Old 04-12-2008, 01:08 PM   #19
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I can take a few pictures. There are tons of pictures on the forum of other people reroutes though. Just have to find them.
cjernigan is offline   Reply With Quote
Old 04-12-2008, 01:54 PM   #20
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Anyone know where I can buy the JR spacer? From MOSS site this part 051-046 is not found.
