Default Anyone out there running a GT3076R?

Just as the title says... I'm looking to see where you are hitting your peak torque RPM-wise. I have a turbo eerily similar and am plotting some calculations on the compressor map based on the GT3076R. However, with the calculations I have now based on 20% total airflow, I am AWFUL close to the surge line. If I knew the peak torque reading I could be calculate these things. Thanks in advance for the information and advice guys and gals! Boost will be at 17-20 psi BTW...

Below is what I have thus far (based on 20% of max airflow @ 8000RPM redline, 1.9L engine) CLICK THUMBNAIL:
thagr81 us is offline   Reply With Quote
Old 04-09-2009, 03:02 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

3076 on a 1.6L:

Braineack is offline   Reply With Quote
Old 04-09-2009, 03:18 PM   #3
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Thanks Braineack... I had actually come across that by searching but it looked like there were no BP-ZE's running this turbocharger at all. Should be interesting to see if one turns up out of the blue.
thagr81 us is offline   Reply With Quote
Old 04-09-2009, 03:33 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

compressor wise, is it the same as the 2876?
y8s is offline   Reply With Quote
Old 04-09-2009, 03:33 PM   #5
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I'm using that turbo and the car should be running by the end of the day. It's going on the dyno this Saturday, but I'll just be running a base tune and a 1 bar spring in the wastegate. In the next week or two I'm having it tuned and will up the boost until I run out of injector.
JayL is offline   Reply With Quote
Old 04-09-2009, 03:43 PM   #6
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by y8s View Post
compressor wise, is it the same as the 2876?
I think it is more similar to the GT30R housing, but don't quote me on that. I'm pretty sure it has a T04S compressor housing.

The specs on the turbo are:
Incon Systems GTBB37
Compressor --- Ind. X Exd. 55 mm X 76 mm 52 trim A/R .60
Turbine --- Exd. X Ind. 53.5 mm X 56.5 mm 90 trim A/R .86

Quote:
Originally Posted by JayL View Post
I'm using that turbo and the car should be running by the end of the day. It's going on the dyno this Saturday, but I'll just be running a base tune and a 1 bar spring in the wastegate. In the next week or two I'm having it tuned and will up the boost until I run out of injector.
Keep me updated on this as I see you are running the 1.9L as I plan to do. I still have awhile yet until I'm running so it would be good to have a comparison. Can't wait to the see the results, pics, and video (hint, hint).
thagr81 us is offline   Reply With Quote
Old 04-09-2009, 03:48 PM   #7
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

And yes...

Click to enlarge:






thagr81 us is offline   Reply With Quote
Old 04-09-2009, 04:13 PM   #8
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Braineack View Post
3076 on a 1.6L:

I just hope that is a 7 psi run or something because that is a damn narrow power band for little over 200bhp.
Laur3ns is offline   Reply With Quote
Old 04-09-2009, 04:35 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by y8s View Post
compressor wise, is it the same as the 2876?

No, yours is a td04 wheel or something like, the 3076 wheel is a different size/shape/style.
Braineack is offline   Reply With Quote
Old 04-09-2009, 04:36 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

user was cptnsloni, pretty sure it was 12psi. it helps if your turbo spools before 4K.
Braineack is offline   Reply With Quote
Old 04-09-2009, 05:17 PM   #11
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
No, yours is a td04 wheel or something like, the 3076 wheel is a different size/shape/style.
garrett put a mitsu wheel on my shizz?

it's a TO4S style also. just smaller inducer.
y8s is offline   Reply With Quote
Old 04-10-2009, 02:34 PM   #12
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

What's the size of the 2876 y8s? I have seen dynos of my exact turbo on a few SR20's and it has made anywhere from 350-420WHP depending on supporting mods and boost.
thagr81 us is offline   Reply With Quote
Old 04-10-2009, 02:57 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Turbo 705330-2
CHRA 446179-18

Compressor
Ind 52.7mm
Exd 76.0mm
Trim 48
A/R 0.70

Turbine
Wh Dia 53.8mm
Trim 76
A/R .86 or .64 (i run the 64)
Type Internally Wastegated

though mine has a welded flapper and I run EWG.

y8s is offline   Reply With Quote
Old 04-10-2009, 03:00 PM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

just looking, it appears to be a better suited compressor based on your lines above. it puts you a little bit further away from teh surge line.
y8s is offline   Reply With Quote
Old 04-10-2009, 03:51 PM   #15
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Yeah... I actually have that plotted I do believe. I'll have to post it when I get back to work on Monday however. The GT2876R WAS a better match for the engine, but wouldn't get me to the power capability that I wanted and also, I got a steal on the INCON GTBB37 turbocharger... I too have the internal flapper welded shut and plan to run EWG as well.
thagr81 us is offline   Reply With Quote
Old 04-10-2009, 03:57 PM   #16
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

On a side note: My plots assume that you are making full boost at 20% of airflow, which as you all know is not the case at all. Peak torque should be a much better estimate as you know you are making full boost at that point and maybe tach off another 1000 RPM to from the peak torque RPM to assume that you are at full boost by then...

JayL! I needz dyno data!
thagr81 us is offline   Reply With Quote
Old 04-10-2009, 04:38 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I'm seeing full boost at 3750 but then I only run <10 psi.

on mine i'd call 15 psi at 4250 and 20 psi at 4750 give or take a hundred rpm.

max boost at 20% airflow sounds fun.
y8s is offline   Reply With Quote
Old 04-10-2009, 04:46 PM   #18
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Haha! Yes, max boost at 20% of max airflow does sound fun... Thus why it's only an assumption unless I run a GT10 series.
thagr81 us is offline   Reply With Quote
Old 04-12-2009, 01:32 AM   #19
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by thagr81 us View Post
JayL! I needz dyno data!

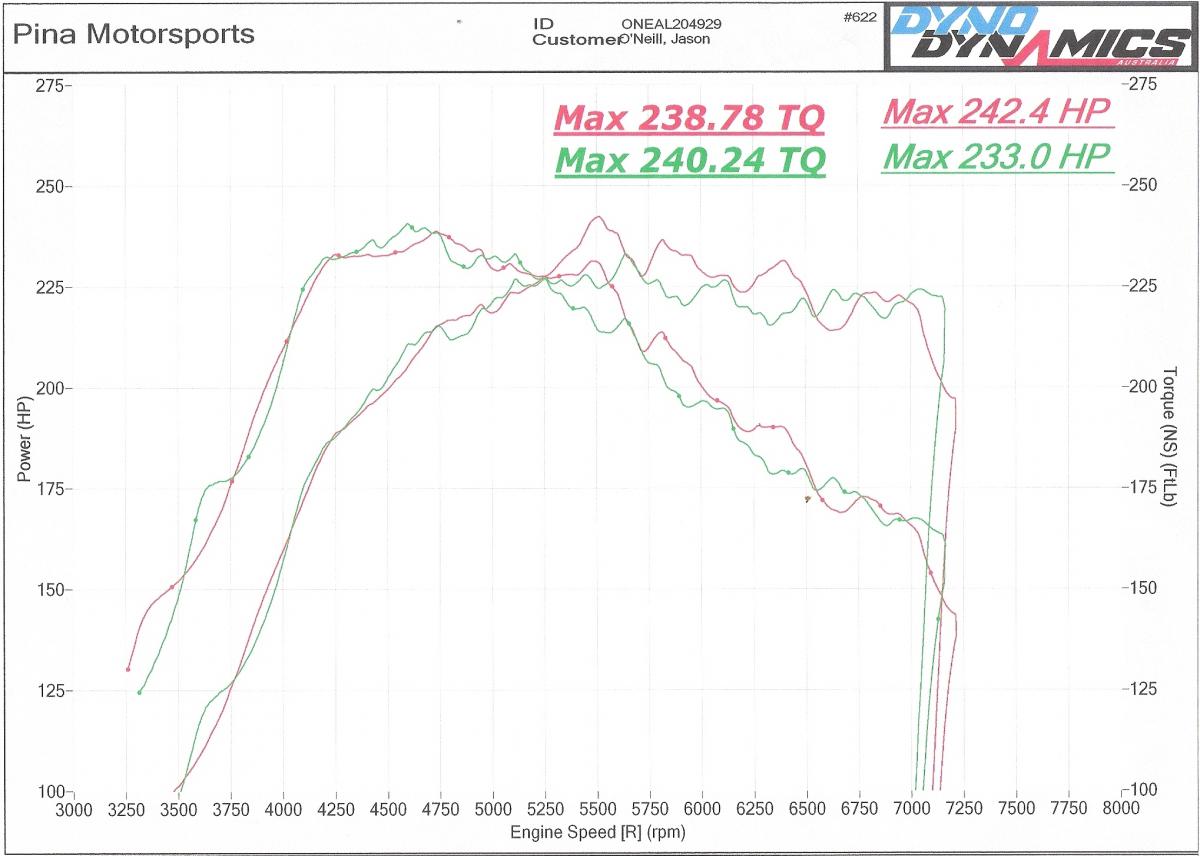

Here it is. Unfortunately it's pretty much worthless and not a good representation of what this turbo is capable of. You could say that I have lots of work to do.
Attached Thumbnails
Anyone out there running a GT3076R?-dyno-day-scan.jpg
JayL is offline   Reply With Quote
Old 04-12-2009, 10:47 AM   #20
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Haha! Appreciate the dyno Jay. I'm guessing this was at 10 psi as you mentioned earlier? Do you have any datalogs of boost levels and how they climb with this turbocharge on the 1.9L? Thanks again man!
thagr81 us is offline   Reply With Quote
