Old 04-12-2009, 12:59 PM   #21
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by thagr81 us View Post
Haha! Appreciate the dyno Jay. I'm guessing this was at 10 psi as you mentioned earlier? Do you have any datalogs of boost levels and how they climb with this turbocharge on the 1.9L? Thanks again man!

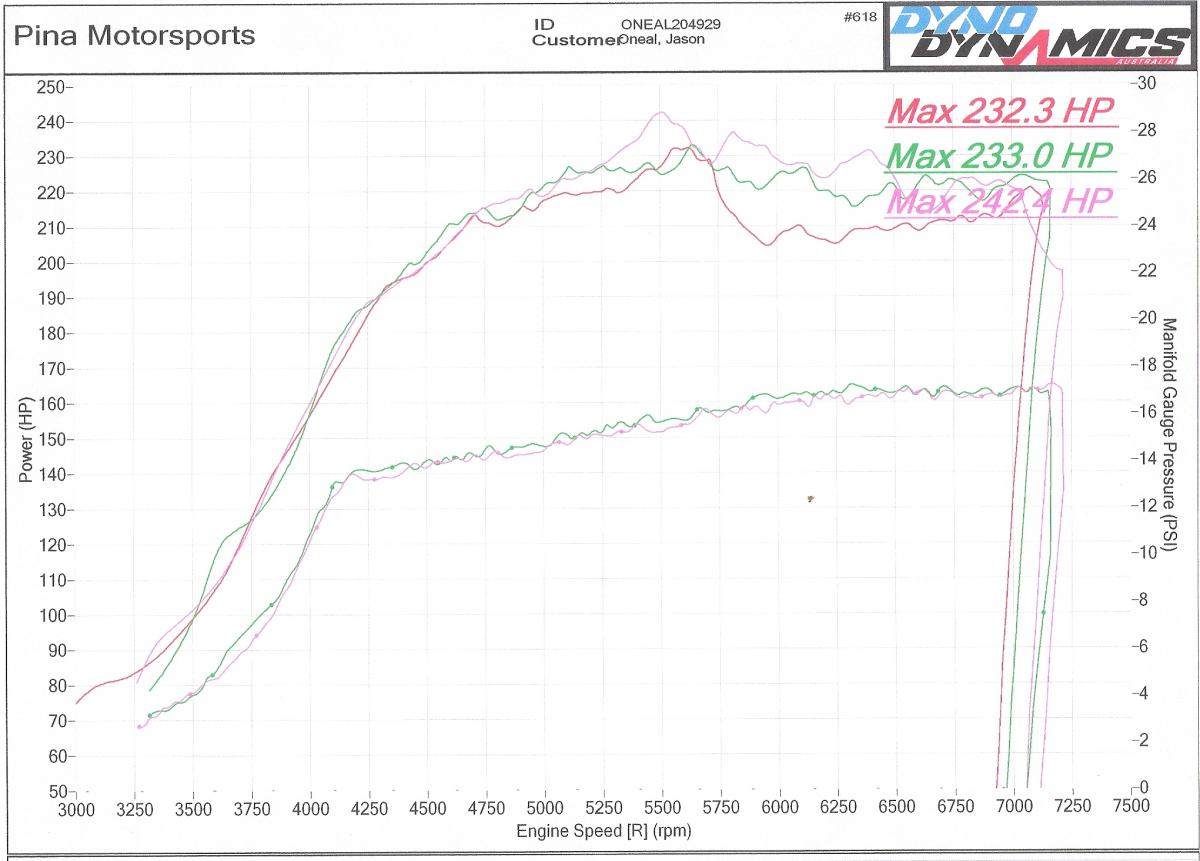

Ask and you shall receive, this is the only one that has manifold pressure on it. Just remember that something's not quite right with the car. If you have any ideas what it may be by looking at these runs, let me know.
Attached Thumbnails
Anyone out there running a GT3076R?-dyno-pressure.jpg
JayL is offline   Reply With Quote
Old 04-12-2009, 01:25 PM   #22
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Thanks very much Jason! That is odd how it is breaking up and drops off at 5750-6000 RPM. Maybe in your timing map or your plugs? Just strange that the power doesn't match the plot of manifold pressure at all. As it seems you are boost creeping up to ~17 psi by redline, but not making any additional power past 5750... Odd. It does look like there is a lot more power potential that could be had from this turbocharger setup.

ps - What RPM do you have your VVT kicking in?
thagr81 us is offline   Reply With Quote
Old 04-12-2009, 01:33 PM   #23
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by thagr81 us View Post
Thanks very much Jason! That is odd how it is breaking up and drops off at 5750-6000 RPM. Maybe in your timing map or your plugs? Just strange that the power doesn't match the plot of manifold pressure at all. As it seems you are boost creeping up to ~17 psi by redline, but not making any additional power past 5750... Odd. It does look like there is a lot more power potential that could be had from this turbocharger setup.

ps - What RPM do you have your VVT kicking in?
5500 is when it makes the switch. I wish I would have thought to unplug the solenoid to see if that was the cause of the problems. I started a thread in the dyno section about this, hopefully I can get it sorted. When I do and go back to the dyno, I will post the dyno plots in this thread. This turbo is capable of so much more.
JayL is offline   Reply With Quote
Old 04-12-2009, 02:06 PM   #24
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Thanks! Yeah, it would have been nice to see if the VVT was causing this or not... I have also checked out your dyno section thread. Hopefully it gets sorted for you soon. Good luck!
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 01:37 PM   #25
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Based on the RPM vs Pressure plot that Jason provided I was able to make my compressor plot of the GT3076R more accurate and get out of surge territory. I assumed that the turbocharger would be at the full 20 psi by 4300 RPM. Made the plot look much nicer and fit within the surge limit nicely. Thanks for your help with this Jason! It is MUCH appreciated.

Also, in looking at my Source Data for the plot on Excel I was had assumed a 3200 RPM spoolup since this Excel document was originally designed for a GT28 on an SR20DET. Yeah, 4300 makes things much better.

Pic of resulting Compressor Plot:
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 01:40 PM   #26
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

BTW, if anyone else wants me to do this for them. Just shoot me your specs (bore & stroke, spoolup RPM, and redline RPM) and the turbo (with compressor map link) that you plan to use and I can plot it for you and send you the results via PM. Just looking to help out the community.
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 02:13 PM   #27
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Quote:
Originally Posted by thagr81 us View Post
Based on the RPM vs Pressure plot that Jason provided I was able to make my compressor plot of the GT3076R more accurate and get out of surge territory. I assumed that the turbocharger would be at the full 20 psi by 4300 RPM. Made the plot look much nicer and fit within the surge limit nicely. Thanks for your help with this Jason! It is MUCH appreciated.

Also, in looking at my Source Data for the plot on Excel I was had assumed a 3200 RPM spoolup since this Excel document was originally designed for a GT28 on an SR20DET. Yeah, 4300 makes things much better.

Pic of resulting Compressor Plot:
Your plot seems awfully high for an engine this small. It may be possible for a turbo that size, but the higher pressure range seems quite generous. I've plotted only slightly better results with an extra liter.
Orion ZyGarian is offline   Reply With Quote
Old 04-14-2009, 03:08 PM   #28
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

This plot is with a 8000 RPM redline... Thus the higher 'top-end' numbers of flow. Also, volumetric efficiency comes into play, thus I made a guess on my calculations. And I have NO idea what it is on the Miata. If someone knows, please feel free to share.
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 03:13 PM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

its called, slap the turbo on the motor and drive, stop playing with graphs and fake numbers.
Braineack is offline   Reply With Quote
Old 04-14-2009, 03:16 PM   #30
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Haha! Very true... I'm still in the building stage of my engine and already have the turbo, so I know it's going to used. However, this might save someone from buying something that would put them in the surge threshold of their selected turbocharger. Also give an idea at what pressure you are getting the most efficient use out of said turbocharger.
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 03:20 PM   #31
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Quote:
Originally Posted by thagr81 us View Post
This plot is with a 8000 RPM redline... Thus the higher 'top-end' numbers of flow. Also, volumetric efficiency comes into play, thus I made a guess on my calculations. And I have NO idea what it is on the Miata. If someone knows, please feel free to share.
Ah, I see. I was assuming a factory redline. That makes more sense then.
Quote:
Originally Posted by Braineack View Post
its called, slap the turbo on the motor and drive, stop playing with graphs and fake numbers.
but but but but benchracing and and and theory!
Orion ZyGarian is offline   Reply With Quote
Old 04-14-2009, 03:21 PM   #32
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

I <3 benchracing... J/K

Also, I'm a chemist for a living, so theory helps me to justify purchases. And yes, all chemists are nerds...
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 03:30 PM   #33
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Orion ZyGarian View Post
Ah, I see. I was assuming a factory redline. That makes more sense then.


but but but but benchracing and and and theory!
red flag when supra guys talk bench racing!
y8s is offline   Reply With Quote
Old 04-14-2009, 04:05 PM   #34
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Quote:
Originally Posted by y8s View Post
red flag when supra guys talk bench racing!
Only technically am I a Supra guy...MkIV guys disown us because of how cheap, unsophisticated, and poor we are. Their fanboy nutswingers follow suit with "they arent real Supras."

Anyways, back on topic. A 30R is a great turbo, but unless you have pretty big power goals, I'd suggest away from it with something smaller. Not having any power until 4500 (as the dyno shows) is extremely annoying. You need to be going for 400-500 to jump up to something that big.

Last edited by Orion ZyGarian; 04-15-2009 at 12:16 AM.
Orion ZyGarian is offline   Reply With Quote
Old 04-14-2009, 04:10 PM   #35
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

In my application, it will be used on a road race car. It is not an actual GT3076R, but is similar. The actual turbocharger is an INCON GTBB37 that was custom ported by Andreas Miko (SR World). So I would not drop below 5000 RPM at anytime except when coming out of a sharp turn, which would allow me to get on the throttle sooner as I wouldn't have full boost built up to cause traction problems while coming out of the corner. Goal is ~350RWHP by the way...
thagr81 us is offline   Reply With Quote
Old 04-14-2009, 04:15 PM   #36
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

In that case, it should be an excellent turbo. You'll have plenty of room to move up power wise if you need to. And yes, you'll need to.
Orion ZyGarian is offline   Reply With Quote
Old 04-14-2009, 04:18 PM   #37
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Thanks for helping me to justify and solidify my findings Orion!
thagr81 us is offline   Reply With Quote
Old 04-15-2009, 09:06 AM   #38
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Jason,

Any luck on ironing out what was going on at your VVT switchover?
thagr81 us is offline   Reply With Quote
Old 04-15-2009, 01:14 PM   #39
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Couple of updates. I have a pretty serious oil leak that might be a contributing factor. It's leaking right at the vvt fitting where it screws into the block. It's bad enough where it may not be getting enough pressure to allow the vvt to function properly.

I plan on pulling the engine again this week and will be able to really get to the source of the problem. When it's out I plan on fixing that leak, running a single oil line from that fitting to a distribution block to use for my turbo and oil pressure sensors, install the coolant reroute and then I'm going to verify that my timing belt is correctly aligned.

If all goes well it will go back to the dyno to get tuned. Although it does have some mechanical issues that I need to fix before I move forward, I am still hoping that the conservative tune is to blame.
JayL is offline   Reply With Quote
Old 04-15-2009, 01:21 PM   #40
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Sounds like you have things well in hand Jason. Glad to hear! I'm with you on the tuning portion of the problem, as the tune itself will not make the car fall flat on it's face like it did in your previous dynos. However, the VVT not functioning properly could infact do that. Hopefully fixing the oil leak is all that is needed to correct this problem. Can't wait to see the updated dynos after the fix. Best of luck!
thagr81 us is offline   Reply With Quote
