Arospeed oil cooler? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-26-2007, 11:48 AM   #1
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default Arospeed oil cooler?

Hey there.

I'm looking at mounting an Oil Cooler kit on a miata. I looked at Moss and FM. I also looked at Ebay and AROSPEED came up.

What Oil coolers are you guys using and what probelms did u all face?
qes78 is offline   Reply With Quote
Old 06-26-2007, 12:39 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I'm running a "tru-cool" cooler -
http://www.racerpartswholesale.com/cooler1.htm

Leaks were my biggest issue. The more AN fittings I went with, the fewer the leaks. I still have a tiny leak at the cooler between an NPT and AN adapter fitting. IMO- the fewer junctions the better.
m2cupcar is offline   Reply With Quote
Old 06-26-2007, 12:50 PM   #3
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

sweet link.
neogenesis2004 is offline   Reply With Quote
Old 06-26-2007, 12:59 PM   #4
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

hmmm....
so in general, will the bolt on kits be a better bet than universal ones?

I'm from Singapore so my brake booster is on the opposite side
qes78 is offline   Reply With Quote
Old 06-26-2007, 01:35 PM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I suppose it depends on the parts desired to complete the system and the skill of the installer. Sounds like you're talking about the remote filter mount if you're concerned about the brake booster. I'm not using one- again just more connections. If you figure out where you're going to mount the cooler and a clean route for the lines, then you can just order the lines to length, the cooler and the sandwich plate. That's virtually the same as buying a kit. Perhaps better if you got custom stuff the off-the-shelf kit won't consider.

I'm sure there's Mx5 oil cooler kits for RHD given the installed base.
m2cupcar is offline   Reply With Quote
Old 06-27-2007, 08:48 AM   #6
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

that's really clean simple advice that makes lotsa sense.
Thanks for the direction.
qes78 is offline   Reply With Quote
Old 06-27-2007, 08:55 AM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I know a place you can order from in Oklahoma City to get the lines and JIC fittings for like $70.
hustler is offline   Reply With Quote
Old 06-27-2007, 09:23 AM   #8
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

I'm in Singapore, unfortunately.....
qes78 is offline   Reply With Quote
Old 06-27-2007, 10:36 AM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i might just buy from there thanks m2cupcar
magnamx-5 is offline   Reply With Quote
Old 06-27-2007, 10:57 AM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I got my lines from a ebay supplier years back - made to order and they MUCH cheaper than anything from an auto supplier. And they included AN fittings with PT adapters. I'm sure they were an industrial supplier (like hustler mentioned). You just need to find one and make sure to match up your lines with your cooler fittings.
m2cupcar is offline   Reply With Quote
Old 06-27-2007, 06:18 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by m2cupcar View Post
I got my lines from a ebay supplier years back - made to order and they MUCH cheaper than anything from an auto supplier. And they included AN fittings with PT adapters. I'm sure they were an industrial supplier (like hustler mentioned). You just need to find one and make sure to match up your lines with your cooler fittings.
JIC fittings from DJ's Industrial Rubber Supply. -10AN parts too.
hustler is offline   Reply With Quote
Old 06-27-2007, 06:59 PM   #12
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

For those of you that go the industrial route AN = JIC = 37* Flare, it all depends on what company you deal with.
Arkmage is offline   Reply With Quote
Old 07-06-2007, 05:27 AM   #13
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

curiously.
Is there a limit to the number of rows i can have in the oil cooler before i get significant oil pressure loss?
qes78 is offline   Reply With Quote
Old 07-06-2007, 07:09 AM   #14
Senior Member
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Qes78!

I got mine here from Hong Kong, could be much cheaper than to ship from US.
http://www.radiators-tungfong.com/e/default_home.asp


10 ROWS
Product Remarks
ALUMINIUM

Product Information
Product Code OIL 002

Category Oil - Cooler

List Price USD$ 64.27 (pcs) - retail pick up $USD 53

Online Sales Price USD$ 64.27 (pcs)

Min. Order Qty 1 (pcs)

Product Packing Information
Export Carton

Ctn Dimension(cm) 34(H) x 10(W) x 6(L)

Gross Weight per Unit(kg) 0.60

Net Weight per Unit(kg) 0.40

http://www.radiators-tungfong.com/e/...ail.asp?sku=71
Attached Thumbnails

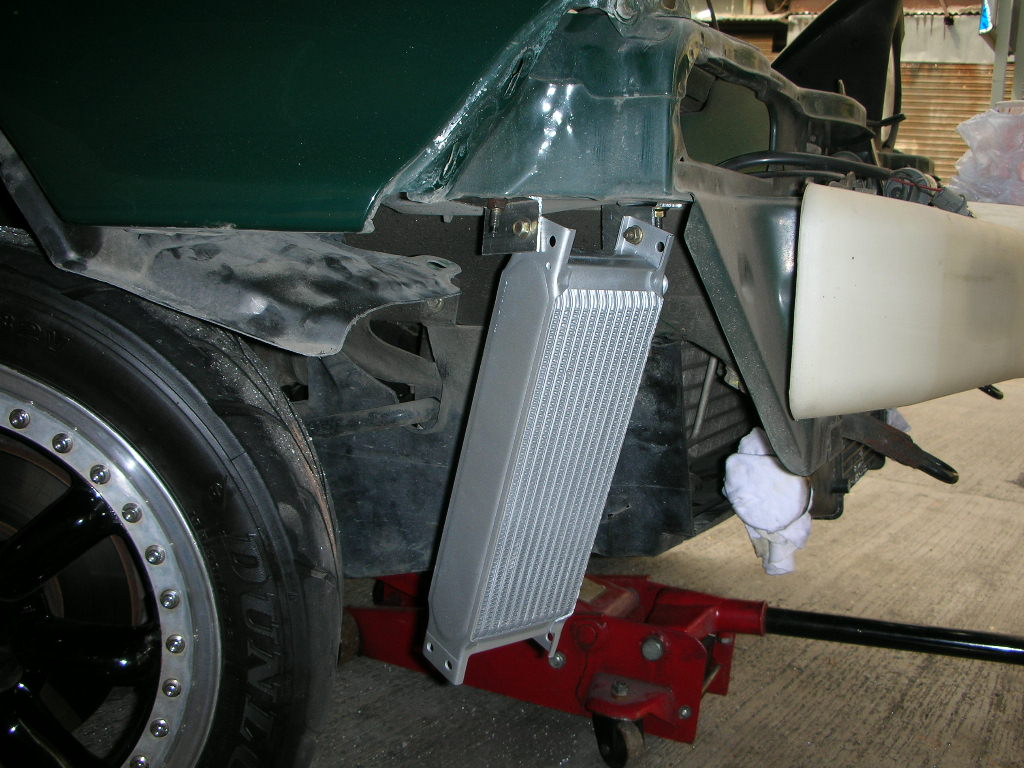

Arospeed oil cooler?-dscn1346.jpg
Mimime is offline   Reply With Quote
Old 07-07-2007, 02:00 AM   #15
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Thanks for the reply. I'm torn between 3 choices
1.Used Blitz 19 row oil cooler off an airtrek, with custom adaptor (SGD600, without the sandwich plate)

2. An ebay US one, meant for the miata, with oil filter relocation kit, USD 279
http://cgi.ebay.com/ebaymotors/89-93...spagenameZWD1V

3. Ebay Australia one, generic AU295
http://cgi.ebay.com.au/ws/eBayISAPI....m=120137281660

Last edited by qes78; 07-07-2007 at 02:18 AM.
qes78 is offline   Reply With Quote
Old 08-10-2007, 11:48 AM   #16
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Ok...so in the end I got a 13 Row Mocal Oil cooler
With -8AN fittings and SS braided lines.
My oil pressure is around 2 at idle, goes up to 3 for most of the throttle, and hits 4 only at high high rpms....
i'm use 10w40 Shell Helix Ultra....
Is the oil pressure normal?
qes78 is offline   Reply With Quote
Old 08-10-2007, 11:57 AM   #17
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by qes78 View Post
Ok...so in the end I got a 13 Row Mocal Oil cooler
With -8AN fittings and SS braided lines.
My oil pressure is around 2 at idle, goes up to 3 for most of the throttle, and hits 4 only at high high rpms....
i'm use 10w40 Shell Helix Ultra....
Is the oil pressure normal?
First, everyone remember that he is in Singapore, so those readings are probably in BAR, NOT PSI.

That pressure is higher than mine when hot, I'm running 15w50 M1 synthetic with no cooler. I idle at about 25 psi and peak at about 55-60 psi when full warm.
Arkmage is offline   Reply With Quote
Old 08-10-2007, 01:15 PM   #18
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 08-11-2007, 05:45 AM   #19
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Quote:
Originally Posted by Arkmage View Post
First, everyone remember that he is in Singapore, so those readings are probably in BAR, NOT PSI.

That pressure is higher than mine when hot, I'm running 15w50 M1 synthetic with no cooler. I idle at about 25 psi and peak at about 55-60 psi when full warm.
Thanks for pointing out. I'm just taking the reading off the stock Oil Pressure gauge in the Instrument cluster, In Singapore it's reflected in kg/cm2
qes78 is offline   Reply With Quote
Old 08-19-2007, 10:40 AM   #20
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

anyone? So is the pressure considered normal?
qes78 is offline   Reply With Quote
