Default Around the radiator IC piping issues

Okay, what are they? I've seen pictures, but I haven't really gotten under there yet to take measurements. No way am I going under, not enough clearance in a pothole city as there is. Any meaningful limitations on pipe size? Where's the best route? Etc.

Cheers, Jon
jljacobi is offline   Reply With Quote
Old 09-06-2006, 08:04 PM   #2
Senior Member

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

ok......ummm , you need to take measurements, remove the front bumper, measure the ic you'll be using, measure length fro throttle body down about 2 to 3 inches past the bottom of the radiator, you need to get under the hood to accomplish this.....duh jp , and It all depends on what size ic piping you are using and how the ic is laidout
RicanmiataRacer is offline   Reply With Quote
Old 09-06-2006, 08:49 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

Stripes kit uses 2.5" on both sides. Just two 90* bends welded together. There is plenty of room to run them.

Here's mine:

Braineack is offline   Reply With Quote
Old 09-06-2006, 11:20 PM   #4
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

use a smaller rad and go around it
dc2696 is offline   Reply With Quote
Old 09-07-2006, 12:54 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2005
Posts: 49
Total Cats: 0
Default

I'm not dumping my brand new Koyo...

Cheers, Jon
jljacobi is offline   Reply With Quote
Old 09-07-2006, 01:18 AM   #6
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

I chopped up a brand new Koyo when I did it. I wouldn't recommend it. Go over the radiator if you can.

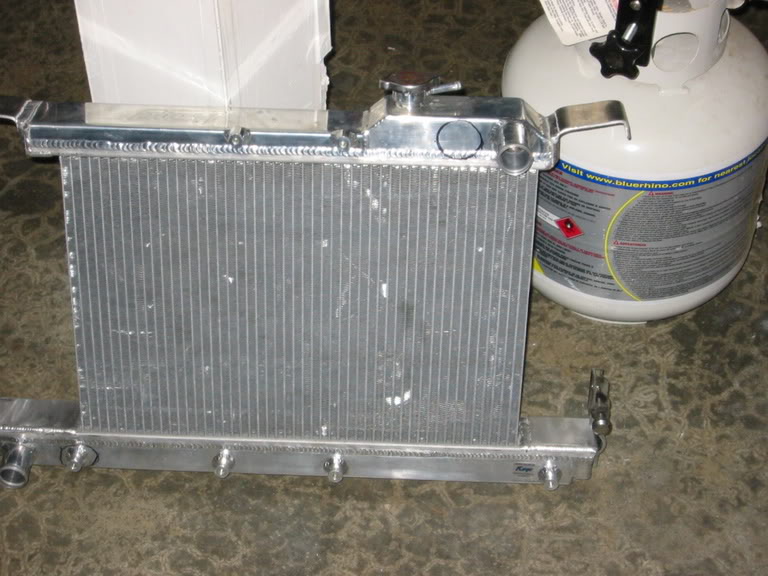

Name:  Digicampics022.jpg
Views: 15
Size:  84.1 KB

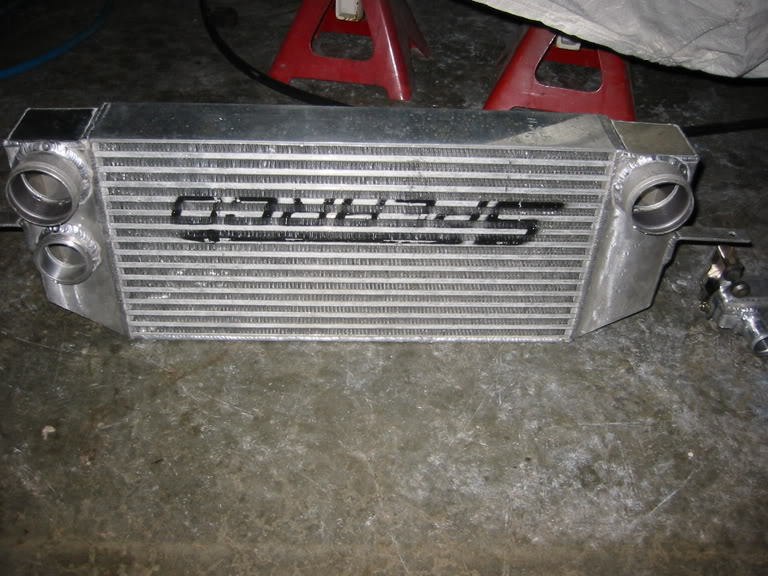

Name:  Digicampics033.jpg
Views: 15
Size:  97.1 KB

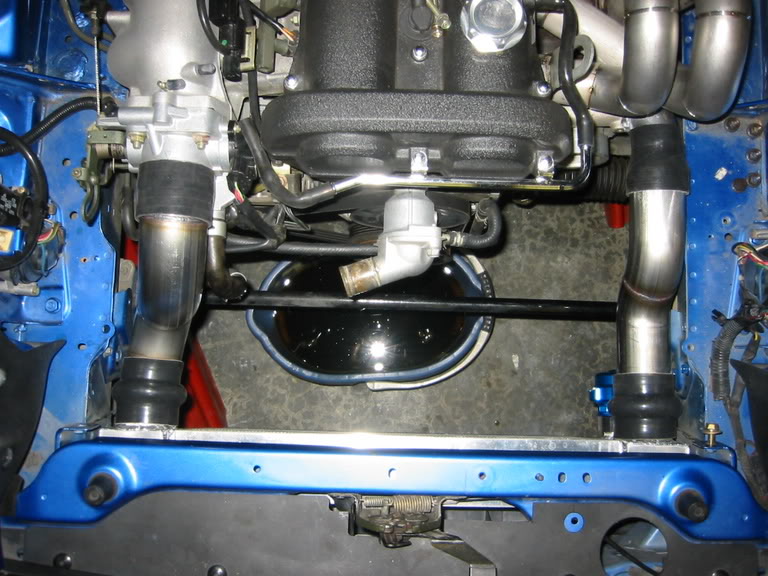

Name:  Digicampics028.jpg
Views: 85
Size:  99.0 KB

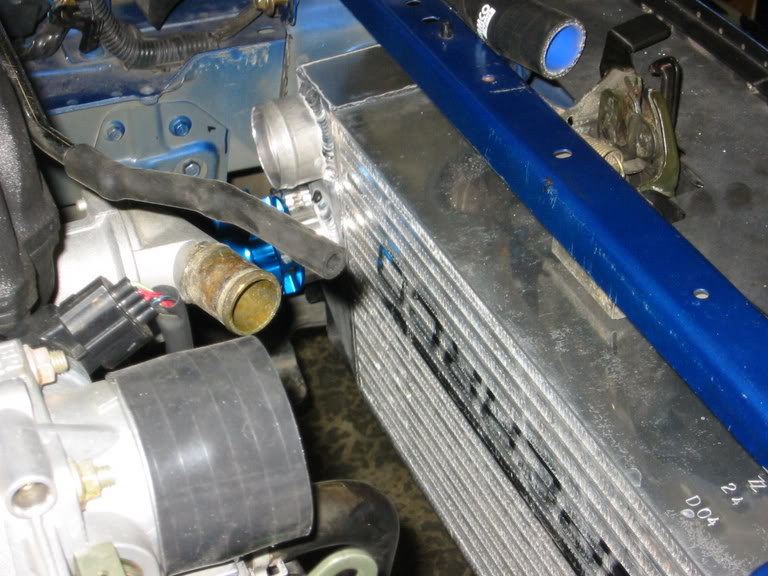

Name:  Digicampics020.jpg
Views: 15
Size:  90.8 KB

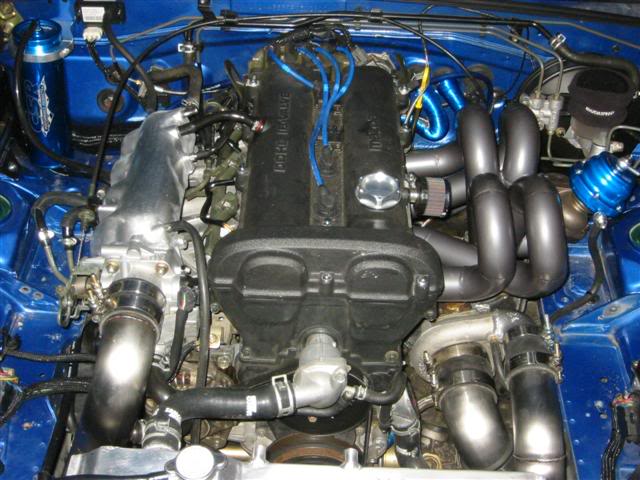

Name:  MiataEngineBayPics002Small.jpg
Views: 26
Size:  61.6 KB
Kelly is offline   Reply With Quote
Old 09-07-2006, 10:06 AM   #7
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Jon - If you did go with a narrow rad, I bet you could "dump" your Koyo and have cash left over after buying a more narrow rad. You just need to pick something up that's not Miata specific and then the price drops.
WOT - What's wrong with your setup? Looks like it would work well. Looks like a pro race car jobber IMO.
m2cupcar is offline   Reply With Quote
Old 09-07-2006, 10:29 AM   #8
Senior Member

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

Jon,

I have no problems with the under pipes in pothole city.
turbored is offline   Reply With Quote
Old 09-07-2006, 12:28 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2005
Posts: 49
Total Cats: 0
Default

The whole thing just seems like such a huge hassle unless you pay $1000. I got the new rad to make sure I'm cool on my many desert drives and mountain climbs--I like the idea of extra water though I must admit if I did cut it down, that would probably be a very nice solution to running pipes.

Jon

Drew, stop over and let me take a look, or vice versa.
jljacobi is offline   Reply With Quote
Old 09-07-2006, 02:30 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

If you did go narrow, you could get a narrow radiator with greater capacity than your koyo for less dough. It's just a matter of "hanging" it. Like this.
m2cupcar is offline   Reply With Quote
Old 09-07-2006, 02:34 PM   #11
Junior Member
Thread Starter

Join Date: Jan 2005
Posts: 49
Total Cats: 0
Default

That is a sweet setup, but to be honest, it's way more time and effort than I want to spend--the same factor that has me waffling about adding an IC...

I'd like hear exactly what the fitment issues are for routing pipes around the stock rad if anyone can quantify that...

Cheers, Jon
jljacobi is offline   Reply With Quote
Old 09-07-2006, 02:47 PM   #12
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

I had overheating issues due to the 27X10X3 intercooler allowing almost no flow to the rad. If I did it all over again I would either lower the rad and go over, or utilize an air to water setup. I don't think the gain was worth the headache doing it the way I did. I think I would even settle for the traditional long piping route and utilizing Water Injection so that I could make an easy 300 whp on pump gas.
Kelly is offline   Reply With Quote
Old 09-07-2006, 03:21 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

Quote:
Originally Posted by jljacobi View Post
I'd like hear exactly what the fitment issues are for routing pipes around the stock rad if anyone can quantify that...
Take another look at my piping in post #3

There pipes are nowhere near hugging the radiator. I could flare them further to the farest extent and hit the bumper cover if need be. There is plently of room to route pipes around the radiator.

Since I'm using a smaller intercooler (11x12x3 core) direct airflow to the radiator is still achieved. As well as a small scoop to scavenge air from under.


Wideopentuning, did you utilize the smaller inlet to the intercooler for a bov?
Braineack is offline   Reply With Quote
Old 09-07-2006, 03:59 PM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I wouldn't ditch the IC. Braineack definitely has the simple solution IMO- and that's plenty of IC.

WOT - were you overheating at speed? or traffic? i went with a double 1" row and that seems to have solved my traffic overheating with a 16" fan. But my IC is nowhere near as big as yours. - rob
m2cupcar is offline   Reply With Quote
Old 09-07-2006, 07:03 PM   #15
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

The flange for the Tial Bov was one that was supplied with the valve. I just ground it flat instead of it being fishmouthed for a pipe. It worked great in that location.

My car would overheat at speed as well as idling on warmer days. I just had no flow to the rad. I built some ducting but never got to test it out as I ended up parting out the car. I did realize when I was taking it apart for the part out that the coolant in the rad was like almost straight coolant....no water.
That wasn't helping for sure.
Kelly is offline   Reply With Quote
