Old 12-06-2007, 02:36 PM   #41
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Doesnt look our valve cover, that valve cover has the oil cap on the wrong side when compared to Levnubhins engine.

But I guess I see what you mean. More baffles on the PCV side then the breather side.
Saml01 is offline   Reply With Quote
Old 12-06-2007, 02:41 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

yeah i found that pic online, looks off....i remember looking at it first hand when i did my first pcv valve when i was like 15yo or something....i lost part of the gasket inside the cover...i had to remove the valve cover form the head and then remove the plates to get the rest of the rubber out.

I really never worried about a catch can, even when my rings were bad and i got the oil in my intake you can see above....if you watch this dyno run....you can see the burn-off on decel, didn't bother me none:



The rings were so bad on that engine, a catch can would actually cause Spyhunter smoke in boost as the pressure drop of the can was enough to prevent any venting to be done.

I think the honda approach, pcv line (with no pcv) and breather line connected with large line, to a single can with a large vent is the best approach to venting and catching oil.
Braineack is offline   Reply With Quote
Old 12-06-2007, 03:04 PM   #43
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

Quote:
Originally Posted by Saml01 View Post
Doesnt look our valve cover, that valve cover has the oil cap on the wrong side when compared to Levnubhins engine.
Fixed. Now it's a proper 1.8 valve cover:



Upon further reflection, I think this is actually how the picture was supposed to be originally. Note the correct orientation of the fusebox and washer bottle in the right side of the photo now that I've reversed it.
Joe Perez is offline   Reply With Quote
Old 12-06-2007, 04:15 PM   #44
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,708
Total Cats: 19
Default

I run a breather on the exhaust side, and a PCV to the intake, and still get oil in my intake. a DIY catch can is on the list of projects between the intake mani and valve cover.
Stealth97 is offline   Reply With Quote
Old 12-06-2007, 08:42 PM   #45
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

http://www.dragstuff.com/techarticles/vacuum-pumps.html

Thats about a real pump setup, it provides a better ring seal.
IcantDo55 is offline   Reply With Quote
Old 12-07-2007, 07:13 AM   #46
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

I've tested both lines on m y SC'd engine, and the PCV side flows significantly more oil mist in the catch can than the breather (hot) side. I use inline fuel filters to monitor the oil mist that escapes the catch cans to see if they're working. May have something to do with the amount of time not in/in boost since the PCV will be either open or closed. I am pretty conservative on the street.
soflarick is offline   Reply With Quote
Old 12-07-2007, 09:16 AM   #47
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

I welded bungs on my intercooler's end-tanks and have both ports on the cam cover plumbed directly to that.

Never had any problems! Werx gr8!!
bripab007 is offline   Reply With Quote
Old 12-07-2007, 09:22 AM   #48
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Do you have any sort of catch in that line b4 the intercooler?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-07-2007, 09:32 AM   #49
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by Brian View Post
I welded bungs on my intercooler's end-tanks and have both ports on the cam cover plumbed directly to that.

Never had any problems! Werx gr8!!
please tell me this is a joke. turbo is suppose to boost combustion chamber... not the crankcase.
Arkmage is offline   Reply With Quote
Old 12-07-2007, 09:35 AM   #50
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I was thinkin the same thing, wouldnt you be forcing air back thru those lines back into the crankcase?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-07-2007, 09:45 AM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

come on guys....Brian is the biggest "correct plumbing of the pcv" advocate.
Braineack is offline   Reply With Quote
Old 12-07-2007, 10:37 AM   #52
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by soflarick View Post
I've tested both lines on m y SC'd engine, and the PCV side flows significantly more oil mist in the catch can than the breather (hot) side. I use inline fuel filters to monitor the oil mist that escapes the catch cans to see if they're working. May have something to do with the amount of time not in/in boost since the PCV will be either open or closed. I am pretty conservative on the street.
Hold on you are confusing me.

I thought the PCV side was the one on the hotside(the one with a PCV Valve) and the breather was on the cold side.
Saml01 is offline   Reply With Quote
Old 12-07-2007, 10:50 AM   #53
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

the pcv line plumbs into the intake manifold iirc? the breather is hooked up to the intake pre-turbo right?
Oscar is offline   Reply With Quote
Old 12-07-2007, 10:54 AM   #54
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Sam, the PCV goes intake side, so cold, even though they are both hot, lol
Zabac is offline   Reply With Quote
Old 12-07-2007, 10:55 AM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

PCV is connected between the crankcase and IM.

Breather goes straight to the intake.


The reason i put the catch can on the breather side, is because in boost, when blow-by is accelerated, you have a constant vacuum source (1-2~hg.) hook up to the intake. As pressures build up and some boost leaks through the PCV valve itself, it exits the breather line to be recirculated back into the IM.

Since the pcv is technically closed at idle and boost, I don't see that side being much of a deal, and any fumes/spray that gets past the baffle and the valve itself during cruise is easily mixed in the airflow and burns off without issue.

I still propose, since the pcv valve itself is for emissions, the best solution is this:

Braineack is offline   Reply With Quote
Old 12-07-2007, 10:59 AM   #56
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

So you would just put a cap where the pcv would normally be on the intake manifold?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-07-2007, 11:06 AM   #57
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by levnubhin View Post
So you would just put a cap where the pcv would normally be on the intake manifold?
Yup.

The picture above is how myself and friends run our turbo hondas. It is also how I have my miata set up. The only tweak is I'm trying to find a cheap vacuum pump to install and pull vacuum routed through the catch can (with no filter, just media inside to catch oil mist).
Splitime is offline   Reply With Quote
Old 12-07-2007, 11:08 AM   #58
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Did you also eliminate the pcv or is still hooked up?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-07-2007, 11:12 AM   #59
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

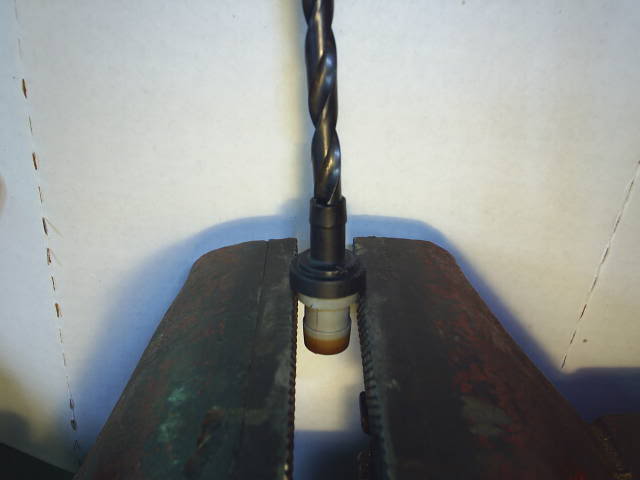

pull it if you can, but then you'd gotta drill and tap the valve cover for a bung, easier to drill out out and remove the guts and port it.

updated pic.


Name:  S4010343.jpg
Views: 51
Size:  19.2 KB
Braineack is offline   Reply With Quote
Old 12-07-2007, 11:25 AM   #60
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
come on guys....Brian is the biggest "correct plumbing of the pcv" advocate.
EVAR!!!!

Ahhh, I miss those days...
