Default Battle of the T3 Chinachargers!

Hey everyone, the least logical person checking in again. (My big problem/question is in bold/underlined if you don't like to read or know the back story before giving advice.)

I am thinking about changing turbos to help my car out right now. I'm having problems with my boost controller (I think) and my car has become fairly undriveable (drifting, I know). It builds boost to 1bar slowly and steadily but then once it hits 1bar it jumps to 1.6bar almost instantly, and the wheel speed jumps up significantly making the car very uncontrollable. The car used to fairly quickly and steadily climb to 1.5bar once it was at the right RPM range. I haven't had AS much trouble with this turbo as I'm currently having but being that I would like a little better spool I have toyed with the idea of getting a different china charger before eventually replacing it with a gtx2871 late this fall.

Currently the turbo I'm running made 375whp @7500rpm and 300ftlbs @5800rpm with 1.5bar on a stock 1.6L, Currently I now have a built bottom end with 8.5:1 compression. I like the power and torque, and when I'm in the power it feels awesome but I fight a lot of lag and slow response. The car is a lot of work to keep drifting. The turbo I'm looking at would obviously be much more responsive and spool much sooner, however, I can't really afford to lose much power or torque. Ideally I'd still like to keep 320-350whp and have 2bar or less boost pressure. I don't know if the turbo is capable of making that much power still.

Specs: TO4E
0.50 A/R Compressor Wheel (Cold Side)
EXD: 3" (73.55MM)
IND: 1.99" (57.75MM)
Trim 48.9
0.63 A/R Turbine Wheel (Hot Side)
EXD: 2.2" (75.46MM)
IND 2.56" (52.76mm)
Trim 61.9

Link to what I own now:
Emusa T3 T4 Hybrid Turbo Charger 50 A R Compressor 63 A R Turbine Wheel | eBay


The turbo I am thinking about switching to:

Specs: TO4E
Compressor Trim: 50
Compressor A/R: .60
Compressor Inducer / Exducer: 48.5 / 64
Turbine Trim: 65
Turbin A/R: .48
Turbin Inducer / Exducer: 59.5 / 48.9


Link: T3 T4 T3T4 T04E 48 A R 50 Trim Turbine 5 Bolt Flange turbocharger Turbo Charger | eBay

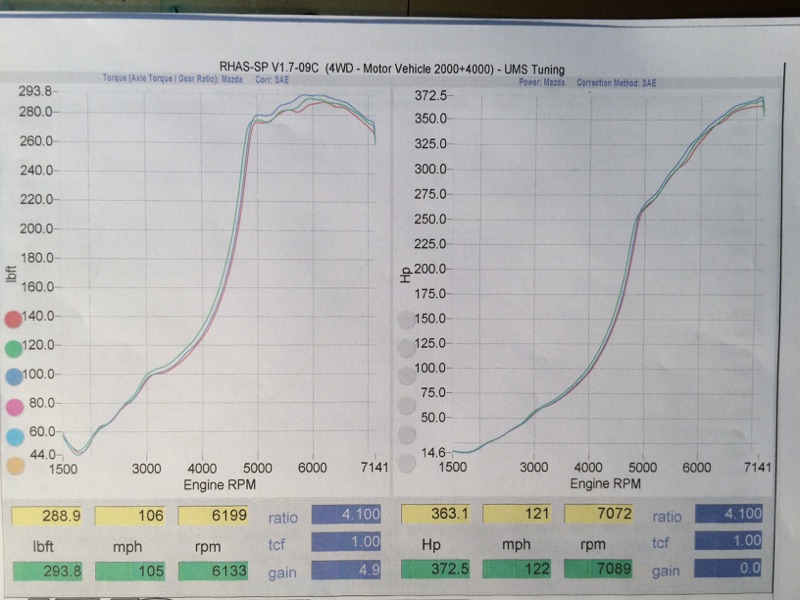

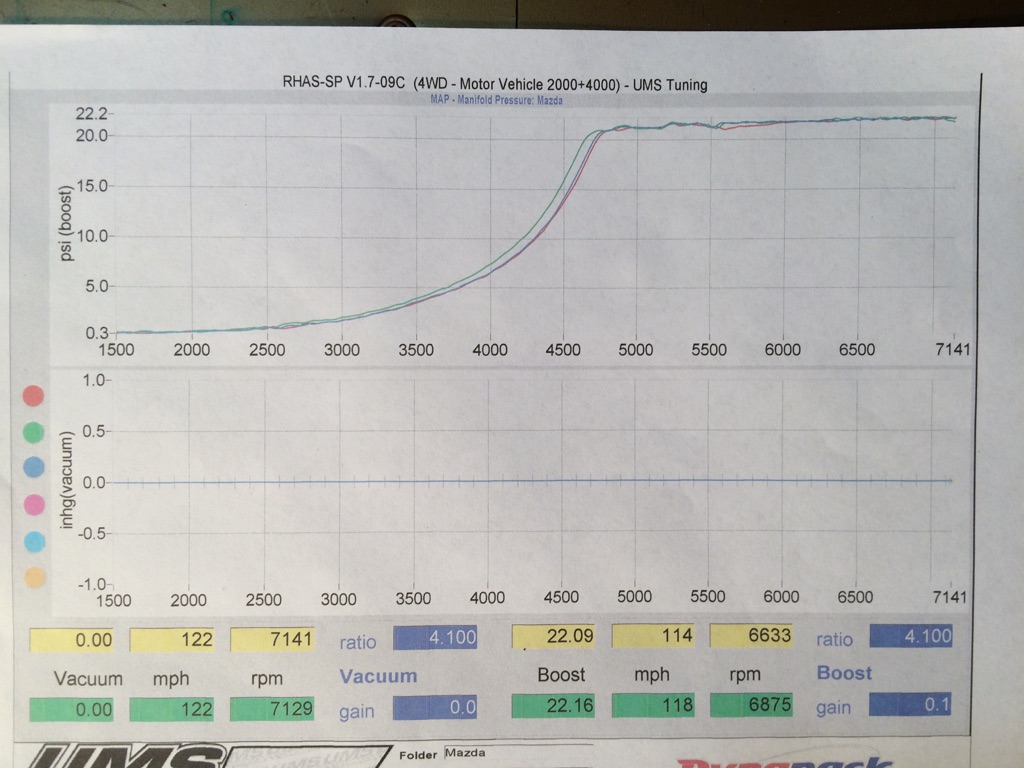

Pictures for something to look at:





So you can see what kind of idiot you're dealing with:








SO, Can the smaller turbo make 320-350whp? or will I fall very short of my goal and waste my time and be frustrated? I know the useable power will be greater, but if I'm not going to come close in the power/torque of my current turbo I don't even want to waste my time and I will just deal with it until I can come across a GTX at the end of the fall. Thanks everyone
Attached Thumbnails
Battle of the T3 Chinachargers!-img_4356.jpg   Battle of the T3 Chinachargers!-img_4353.jpg
theshdwconspracy is offline   Reply With Quote
Old 06-17-2015, 02:57 AM   #2
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

fix your boost control problem? port the head? nitrous? profit?

ps get a block off over that freeze plug. That's a problem waiting to happen
Twibs415 is offline   Reply With Quote
Old 06-17-2015, 09:08 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

the problem isnt the turbo or boost control, the problem is your rinky dink clown car 1.6L motor.
Braineack is offline   Reply With Quote
Old 06-17-2015, 10:01 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Correct.
All high power 1.6's I've seen built boost this way.
18psi is offline   Reply With Quote
Old 06-17-2015, 11:30 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Ugh. Guys I know. I also know I'm dealing with a shitty Chinese turbo. You can see what I thought felt ok still wasn't ideal but the car feels worse than that now and I thought a smaller turbo would help but I didn't know if that turbo that brain runs would make the power that I'm looking for, over 300
theshdwconspracy is offline   Reply With Quote
Old 06-17-2015, 11:33 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

No it won't. Or at least I highly doubt it. Even if it did you'd likely be pushing it way too hard and it would quickly die, as chinachargers often do when pushed past 20.

The reason your current turbo isn't performing same is again because of the turbo itself. A friend of mine used to rebuild his every so often because his chinacharger would only last a few months at over 20psi between rebuilds. But there's such a wild varience between different ones, and even different samples of the same turbo, that it's really impossible to accurately predict what will actually happen. Such is life with chinachargers.
18psi is offline   Reply With Quote
Old 06-17-2015, 11:38 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

no i ran a 50 trim t3. that's small, but appropriately sized for our chode of a motor--which is why i made 100 more rwtq than you at 3K, but 80hp less than you at 7K.

Last edited by Braineack; 06-17-2015 at 01:12 PM.
Braineack is offline   Reply With Quote
Old 06-17-2015, 12:06 PM   #8
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

Why don't you just buy a good turbo?
And why do you even need boost control? Just wire the wastegate shut. Seriously.
soviet is offline   Reply With Quote
Old 06-17-2015, 01:01 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

So if I run another 10psi over brain(and I'm running e85), I could feasibly get to the 320+ mark I'm looking for? I know at 25psi it's not got a long shelf life, but it's not really a street car and only gets used maybe once a month at the track, so that's not a huge deal.
theshdwconspracy is offline   Reply With Quote
Old 06-17-2015, 01:11 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

I doubt it. But try it
18psi is offline   Reply With Quote
Old 06-17-2015, 03:43 PM   #11
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Just so you know, the t04e you linked to is not the turbo Brain used.
deezums is offline   Reply With Quote
Old 06-17-2015, 09:22 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

It's not? what's the size on that comparatively?
theshdwconspracy is offline   Reply With Quote
Old 06-17-2015, 10:35 PM   #13
Junior Member
iTrader: (2)

albertogti117's Avatar

Join Date: Jul 2011
Location: Houston, Tx
Posts: 167
Total Cats: 4
Default

This is Brain's turbo:

REV9 T3 Turbo turbocharger Compressor AR42 Turbine 48 Internal Wastegate 350HP | eBay

I will be pushing mine to its limits here in a few weeks just for fun. E85, built 1.8 bottom end, and as much boost as it will take. I'll post results when it's done.

FWIW, I ran that exact same turbo you are thinking about buying. It literally lasted about 40 miles before oil was pouring out of the turbine housing. But I think that speaks more about the quality control of these things and not so much the quality of that turbo specifically. My Brain turbo has been great so far.
albertogti117 is offline   Reply With Quote
Old 06-18-2015, 01:17 AM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

The brain turbo is even smaller than the one I posted. Guess I'll just take a shot in the dark and see what happens.
theshdwconspracy is offline   Reply With Quote
Old 06-18-2015, 10:35 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

I think I got the best of what I wanted.I ended up with this:

T3 Super 60 Turbo 60 Compressor 63 Trim T3 Flange 5 Bolt Exhaust 350HP | eBay

T3 Super 60:
Intake: 3 inch
Inlet: 2 inch
Compressor trim:
Compressor Wheel diameter: 54.28 /71.32
Turbine Wheel diameter: 55.79 /63.36
Exhaust Trim: .63ar
Turbine flange type: T3 flange

The compressor wheel is almost identical to a 2871/3071 and the turbine is a little bigger than the gtx3071. I'm still downsizing in the compressor diameter by ~3mm and downsizing the turbine by almost 9mm in diameter. Hopefully this helps spool characteristics quite a big and still enables me to make the power I'm looking for. I will be upgrading to a GTX turbo in october but still haven't totally decided on size, at the moment looking at a 2871 but may go a little bit smaller than that.

Hopefully this thing is better than what I have now.
theshdwconspracy is offline   Reply With Quote
Old 06-19-2015, 12:43 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

i said my turbo was small. it's probably not going to make 300rwhp.

a 71mm compressor wheel a t3 super 60. A Super 60 is a ~61 trim T3 wheel. A T3 wheel is ALWAYS 60mm.


I should put my Ferrari on eBay, here's a picture:

Attached Thumbnails
Battle of the T3 Chinachargers!-80-geo_metro_ea7f1b743244f077d0f1a63ad5bc035c75af7079.jpg
Braineack is offline   Reply With Quote
Old 06-19-2015, 02:24 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

18psi is offline   Reply With Quote
Old 06-19-2015, 02:43 PM   #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Lol, got me good. Jjfu
theshdwconspracy is offline   Reply With Quote
Old 06-19-2015, 06:30 PM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Keep your same turbo and put a 1.8 in, even an NA8 and all your problems will go away.
Leafy is offline   Reply With Quote
Old 06-19-2015, 06:41 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

1.8 will solve all your problems including impotence
