Default Begi log manifold thread size (egr)

Hey guys,

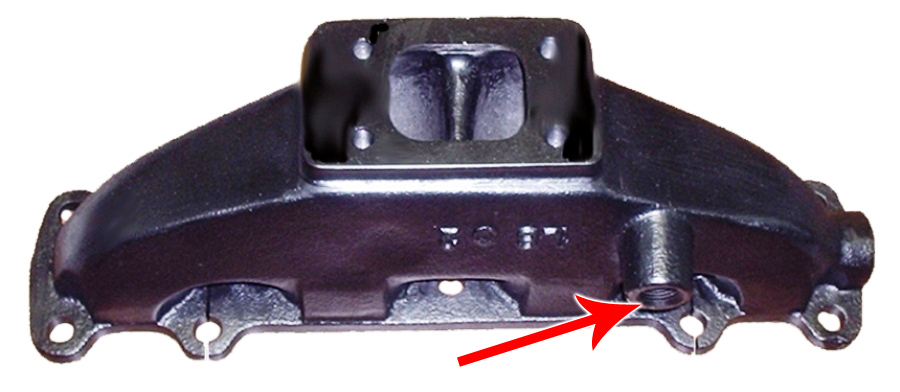

I have been searching for the answer but have had no luck. Does anyone know the excact thread size for the EGR port (pictured) on the Begi log manifold?





My car does not run an EGR so I wanted to fit a plug into that port on the manifold, I just need to know the thread size. My local hardware stores here in Australia have been no help, so im guessing it's some weird imperial size. lol

Any help would be very appreciated.
Attached Thumbnails
Begi log manifold thread size (egr)-1exhaustmanifold1.jpg
green_comet is offline   Reply With Quote
Old 09-23-2011, 06:45 AM   #2
Newb

Join Date: Jun 2011
Posts: 8
Total Cats: 0
Default

According to BEGI website, it should be 1/8 NPT (10.29 mm).
MX5_HKG is offline   Reply With Quote
Old 09-23-2011, 08:31 AM   #3
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Melbourne, Australia
Posts: 48
Total Cats: 0
Default

I thought that too, I ordered a 1/8 NPT plug off eBay, when it arrived today it was too small. So I have either been sent the wrong plug, or the thread is a different size.
green_comet is offline   Reply With Quote
Old 09-23-2011, 08:37 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

looks too big for 1/8. probably 1/4 or 3/8
Braineack is offline   Reply With Quote
Old 09-23-2011, 08:39 AM   #5
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

call begi or email then?
Clos561 is offline   Reply With Quote
Old 09-23-2011, 08:46 AM   #6
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Melbourne, Australia
Posts: 48
Total Cats: 0
Default

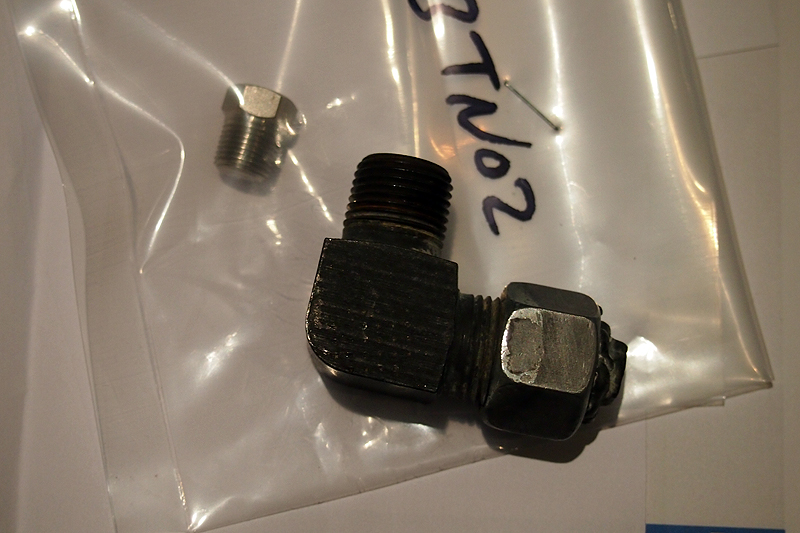

Here is the brass fitting that came with the manifold, the threaded end fit the EGR port fine. It's next to the 1/8 NPT plug I got from ebay.





Quote:
Originally Posted by Clos561 View Post
call begi or email then?
Yeah, I will be doing this.
Attached Thumbnails
Begi log manifold thread size (egr)-p9239697.jpg
green_comet is offline   Reply With Quote
Old 09-26-2011, 08:10 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Melbourne, Australia
Posts: 48
Total Cats: 0
Default

Just a quick update, Stephanie from Begi got back to me and it turns out it's threaded for 3/8 NPT.

NPT is not used here in Australia which is probably why I had so much trouble finding a plug to suit.
green_comet is offline   Reply With Quote
