DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-07-2014, 07:36 PM   #21
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

It is what you want because you get lower boost at peak torque than you get at the top where the head is choking so you have a safer curve AND will make more power. Stop and consider it for a moment and you will understand.

You can. Definitely rework it I've done a few wastegate on turbo arrangements and wastegate on cast manifold (rb25/45mm Turbosmart hypergate are popular here) so you can make it flow awesome and it will hold perfect boost within the psi.

What annoys me is the common misconception about boost pressures. If you are trying to stay under a torque limit your boost curve should look opposite to your n.a torque curve which gives a flat torque curve.
You keep the torque below your limit and flat rather than with a big midrange spike to the limit and heaps less everywhere below (waiting to spool) and above (head is flowing less and less as revs rise and it chokes but boost pressure remains the same).

Dann

Last edited by nitrodann; 12-07-2014 at 07:49 PM.
nitrodann is offline   Reply With Quote
Old 12-07-2014, 08:10 PM   #22
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Quote:
Originally Posted by Braineack View Post
Would there be any way to weld the ewg off the manifold and rework the outlet?
I'm not sure. It's a plain ole BEGI cast manifold, I think I read about people trying to mount a external gate on them but not sure how it turned out. I don't think I want to mess with that. Hopefully moving the wastegate source helps a good bit.

Quote:
Originally Posted by nitrodann View Post
It is what you want because you get lower boost at peak torque than you get at the top where the head is choking so you have a safer curve AND will make more power. Stop and consider it for a moment and you will understand.
Thanks for explaining that, it makes more sense now. I guess I'm too hung up on boost pressure determining the limits of the motor. Once I get the wastegate source moved to pre-intercooler I'll bump up my overboost protection and see how it handles going to redline.
pdexta is offline   Reply With Quote
Old 12-07-2014, 08:29 PM   #23
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

"hung up on boost pressure determining the limits of the motor."

Can hardly blame you this is how most cars guys talk about it.
Its very misleading however.
nitrodann is offline   Reply With Quote
Old 12-08-2014, 09:19 AM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

If I was creeping to 180kPa, I'd make my lowest boost 180kPa.

Having a torque curve like a centrifugal SCer on a turbo car is weak and lame and something only an Aussie would do purposefully.

you're leaving 3psi off the table between 3500 and Redline. That would probably bring you power up to 240hp/240tq.
Braineack is offline   Reply With Quote
Old 12-08-2014, 11:45 AM   #25
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

Pdexta, your first post suggests at the limits of Yellow top, but your sig says ID1000. Which are you running, and did you indeed run out of fuel with the Yellows, or just "almost"?
DNMakinson is offline   Reply With Quote
Old 12-08-2014, 01:57 PM   #26
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Quote:
Originally Posted by DNMakinson View Post
Pdexta, your first post suggests at the limits of Yellow top, but your sig says ID1000. Which are you running, and did you indeed run out of fuel with the Yellows, or just "almost"?
When I initially posted I was on rx8 yellow injectors, a couple posts up I swapped to id1000s. Megalogviewer showed 95% duty cycle and the car wanted to go lean at high rpms even when I kept adding fuel so they were definitely at their limit on stock fuel pressure.
pdexta is offline   Reply With Quote
Old 12-08-2014, 04:54 PM   #27
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by Braineack View Post
If I was creeping to 180kPa, I'd make my lowest boost 180kPa.

Having a torque curve like a centrifugal SCer on a turbo car is weak and lame and something only an Aussie would do purposefully.

you're leaving 3psi off the table between 3500 and Redline. That would probably bring you power up to 240hp/240tq.

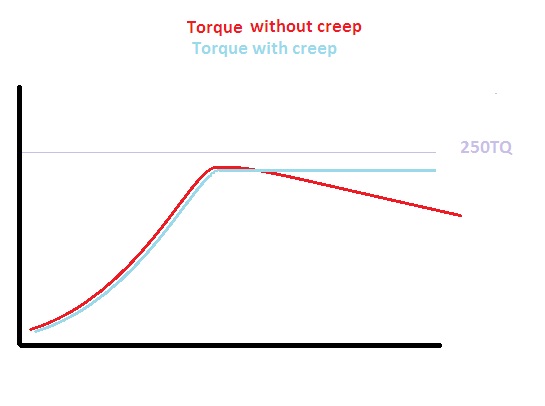

Yes it might make 240tq at a single rpm, with boost tapering on you can make it from midrange to redline.



Dann
Attached Thumbnails
Boost Creepin'-kittens.jpg
nitrodann is offline   Reply With Quote
Old 12-09-2014, 04:04 PM   #28
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Ok have you double checked the vac port on the EWG to make sure that the eye bolt or whatever is fully open? Sometimes you can rotate the vac port on the wastegate to limit air flow and increase boost. You might not be getting a large enough amount of air flow through there.
ScottyP3821 is offline   Reply With Quote
Old 12-10-2014, 11:36 AM   #29
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

I hadn't considered that, I'll take a look at it tonight.

I dropped my intercooler pipe off the. bungs to be welded on it. I went ahead and did one before and after the intercooler so I will have 2 options to play with. I should have it back tonight.
pdexta is offline   Reply With Quote
Old 12-11-2014, 09:51 PM   #30
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Took a small baby step in the right direction I guess. I got my intercooler piping back from the welder and hooked up the wastegate right out of the turbo.

I also checked on ScottyP's recommendation. The banjo bolt on the wastegate was exactly 90 degrees off of a direct flow. I marked the bolt so I could line up the line perfect. Not sure how much difference it made, but any little bit helps.

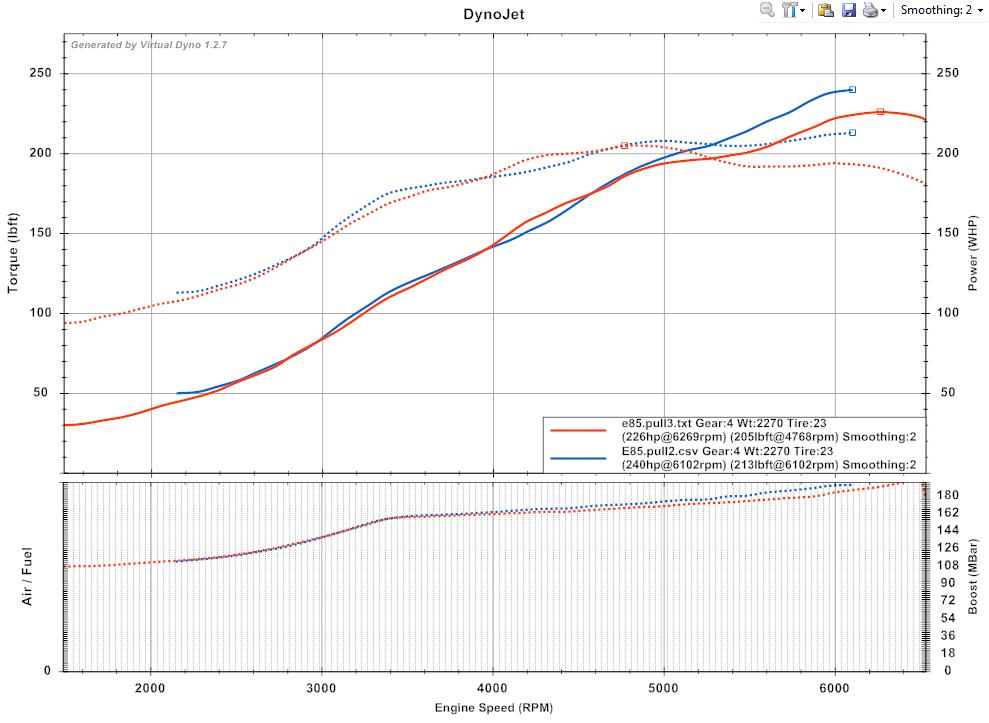

I datalogged a pull that was considerably better, but still disappointing. You can clearly see boost climbing slower, I'm assuming that's attributable to Brain's recommendation of running a pre-intercooler wastegate source. Having the wastegate open at 7psi, then hitting 14.5psi boost cut before redline sucks, but at least I'm getting closer.

I assume the only way to actually fix it is to correct the wastegate setup like Savington suggested.


Attached Thumbnails
Boost Creepin'-pre-intercooler.jpg
pdexta is offline   Reply With Quote
Old 12-11-2014, 10:18 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by nitrodann View Post


Dann

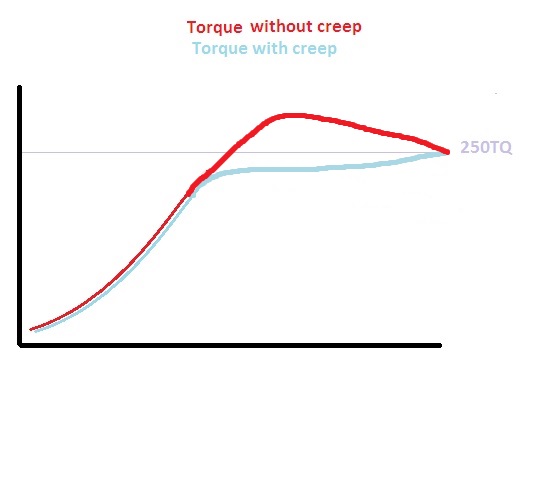

except it would be like this:



i'd rather have the red plot all day long and night and year and century.
Attached Thumbnails
Boost Creepin'-creep.jpg
Braineack is offline   Reply With Quote
Old 12-11-2014, 10:43 PM   #32
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Enjoy your broken motor.
nitrodann is offline   Reply With Quote
Old 12-12-2014, 01:37 AM   #33
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

What if you run EBC and ramp up the boost to see if you can level off the boost all the way to redline. I really think all this is due to the 90 deg bend at this point it seems it may as well be internally gated. At the WG vent I think it would be ok to have bends but ideally I would think you would want that wg right on the port. (drunk thoughts)
ScottyP3821 is offline   Reply With Quote
Old 12-12-2014, 08:07 AM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by nitrodann View Post
Enjoy your broken motor.
Because all 95% of us here with this sort of torque output all have broken motors...

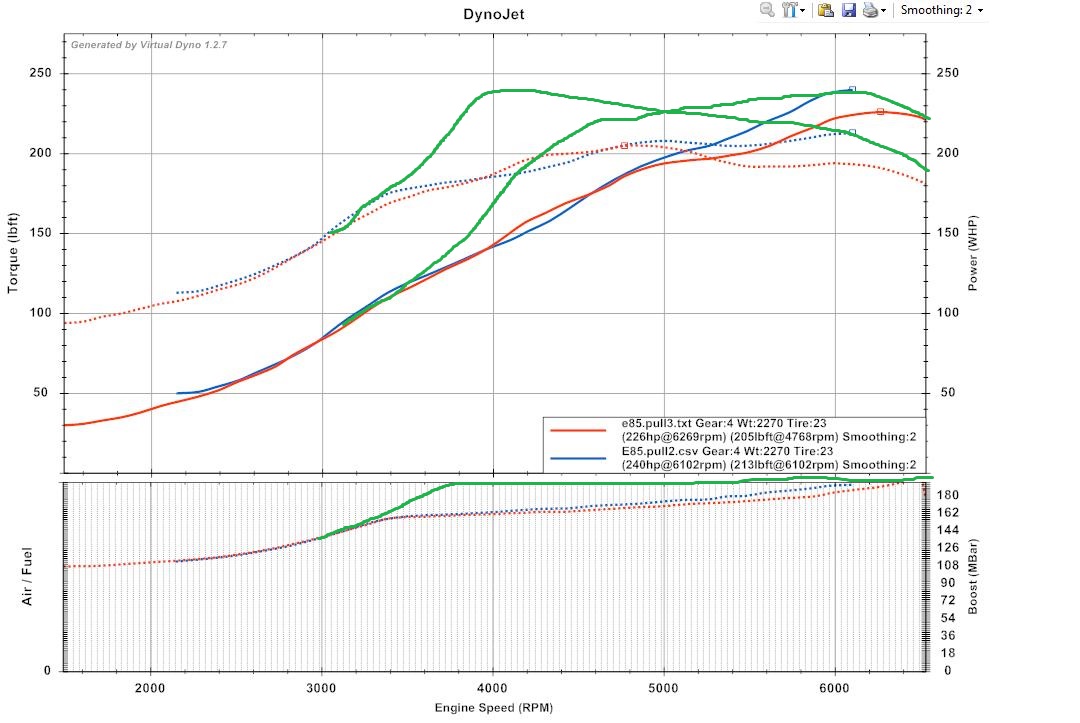

what I'm really suggesting is this:



if you want torque like you're suggesting why are you building turbo setups and not rotrex setups? the reason you install a turbo is torque and area-under-curve, not your pansy *** setup.

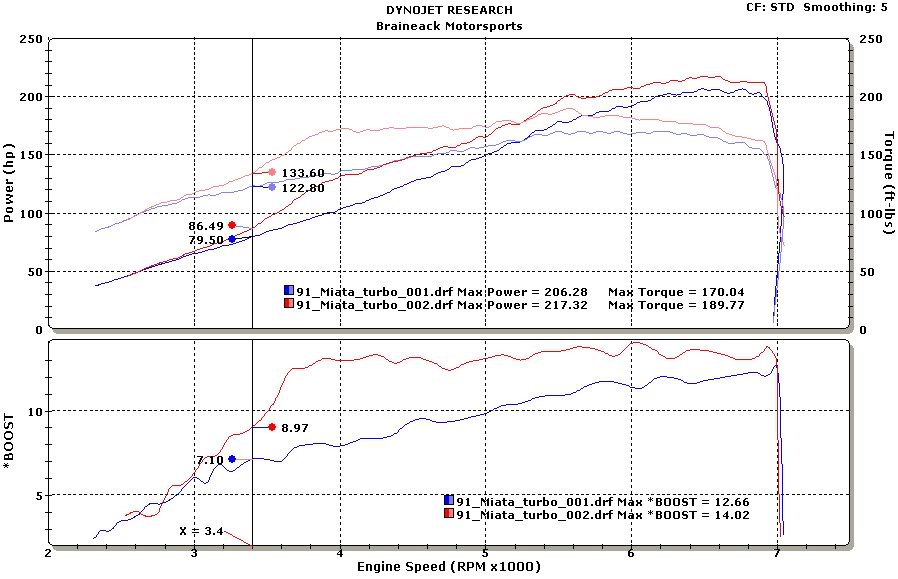

I had creep issues back on an old setup:





wanna guess which one of those configurations was better than the other?

it's also funny that my torque output, when holding boost flat, looks closer to what you drew...


having more torque at 7000RPM is much more dangerous than more at 4000RPM. I'd argue that the cylinder pressures at 4K in my examples are still less than that at redline. And that my friend is what bends rods.
Attached Thumbnails
Boost Creepin'-level_creep.jpg   Boost Creepin'-wastegate_vs_solenoid1.jpg

Last edited by Braineack; 12-12-2014 at 08:41 AM.
Braineack is offline   Reply With Quote
Old 12-12-2014, 09:24 AM   #35
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

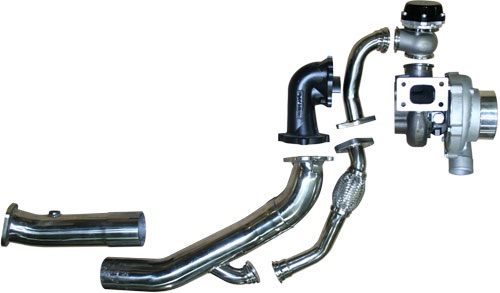

Run it like this


Attached Thumbnails
Boost Creepin'-image.jpg
ScottyP3821 is offline   Reply With Quote
Old 12-12-2014, 05:24 PM   #36
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Brain.

I have found that in order to hold torque dead flat from peak to redline you need boost to increase past 4500rpm. I have found this tuning stock motors with ms2 rpm vs tps boost control.

Holding flat boost will result in a drop in torque.

There for in order to hover at a specific torque (240 for example) boost needs to steadily increase past 4500rpm by a few psi, I tend to see 16 or 17psi at redline on typical 2560 setups. Some might describe this as creep. Call it what you will.
nitrodann is offline   Reply With Quote
Old 12-12-2014, 06:12 PM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

i don't wanna hold torque flat, i want to hold boost flat.
Braineack is offline   Reply With Quote
Old 12-12-2014, 06:19 PM   #38
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Enjoy your reduced performance.
nitrodann is offline   Reply With Quote
Old 12-17-2014, 12:46 AM   #39
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

Thread sidestep - Dan can you post an ebc table of what you are saying and how you work it?
mx5-kiwi is offline   Reply With Quote
Old 12-17-2014, 06:21 AM   #40
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

The top row looks like.

95
95
70
12
15
20
25
30
35
40

I'll post one when I have my laptop.

I literally do pulls with 95%DC until it makes boost. Start at 5% from there and add boost until each rpm hits the torque limit.
I pay zero attention whatsoever to the boost or HP until it's done
nitrodann is offline   Reply With Quote
