Put the boost controller at C and be my hero >

And yeah, this is a very concise explanation that should help lots of noobs.
oilstain is offline   Reply With Quote
Old 05-18-2010, 05:45 PM   #22
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

I love simple solutions. Why the hell did it take this long for someone to figure this out! (or steal it from someone else who figured it out ;-) )
cueball1 is offline   Reply With Quote
Old 05-18-2010, 06:00 PM   #23
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,913
Default

To clarify a tad, I've re-drawn the two charts above to show what's happening both at the compressor outlet (blue line) and after the intercooler (red line), just in case anybody is having trouble visualizing it.


In the first case, we are taking our reference from point A. So even though it appears that boost is dropping off (as we perceive it from the perspective of the manifold) the MBC is in fact doing its job.




Having moved the MBC pickup to point B, we merely change which point in the system is stable.




In both cases, there is a point in the system at which equilibrium is reached. But in the first case, that point is one that we don't particularly care about.
Attached Thumbnails
Boost sag? No, you don't need EBC.-1.gif   Boost sag? No, you don't need EBC.-2.gif

Last edited by Joe Perez; 09-04-2012 at 06:19 PM. Reason: Local image embeds
Joe Perez is offline   Reply With Quote
Old 05-18-2010, 06:08 PM   #24
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,913
Default

Quote:
Originally Posted by wayne_curr View Post
I swear you could make literally thousands of dollars as a professional technical writer.
Trouble is, then I'd need to start paying for all the artwork that I presently am able to abscond with.

Quote:
Originally Posted by JayL View Post
When will this be available on video?
We are in preliminary negations with DreamWorks, I'm just not real happy about their insistence on Eugene Levy as the voice of the intercooler.

Quote:
Originally Posted by cueball1 View Post
I love simple solutions. Why the hell did it take this long for someone to figure this out!
This is old, old knowledge, and just basic fluid dynamics, really. Seems like it's just one of those things that isn't obvious until somebody points it out. Hell, even I needed reminding (by Abe) a few years ago.
Joe Perez is offline   Reply With Quote
Old 05-18-2010, 06:14 PM   #25
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by Joe Perez View Post
Well, I think that may be a myth.

Or at least, a half-truth.
It's a full truth. See Mazdaspeed Protege. Also a bad idea for the other reasons you mention.
JKav is offline   Reply With Quote
Old 05-18-2010, 06:16 PM   #26
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by Joe Perez View Post
This is old, old knowledge
Indeed. Kinda surprised to see it actually. I thought this was common knowledge by now?
JKav is offline   Reply With Quote
Old 05-18-2010, 06:51 PM   #27
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
This is old, old knowledge, and just basic fluid dynamics, really. Seems like it's just one of those things that isn't obvious until somebody points it out. Hell, even I needed reminding (by Abe) a few years ago.

That's the problem with old knowledge like this, everyone assumes everyone else already knows it. I haven't seen this topic brought up here in a long time but there have been a number of people with droop complaints.

Now if there was a simple and cheap a solution for over-boosting we'd really have something!
cueball1 is offline   Reply With Quote
Old 05-18-2010, 06:52 PM   #28
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Quote:
Originally Posted by JKav View Post
Indeed. Kinda surprised to see it actually. I thought this was common knowledge by now?
Me too, but I thoroughly enjoyed the write-up and the visual aids. Needs more special effects and sparkly things to keep the attention of the idiots from CR and other noobs.
sixshooter is online now   Reply With Quote
Old 05-18-2010, 07:00 PM   #29
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Sorry for my stupidity, don't mean to muck up a good thread... but what kind of stress (if any) does this put on the turbo? Especially for the guys running 18-20psi. I can imagine that the difference in pressure between the TB and the compressor is pretty large at that amount of boost. Wouldn't the cfm required to keep some peoples max boost push the turbo pretty far out of it's efficiency range?
FRT_Fun is offline   Reply With Quote
Old 05-18-2010, 07:28 PM   #30
Senior Member

Join Date: Jul 2008
Location: Phoenix
Posts: 657
Total Cats: 12
Default

Quote:
Originally Posted by FRT_Fun View Post
Sorry for my stupidity, don't mean to muck up a good thread... but what kind of stress (if any) does this put on the turbo? Especially for the guys running 18-20psi. I can imagine that the difference in pressure between the TB and the compressor is pretty large at that amount of boost. Wouldn't the cfm required to keep some peoples max boost push the turbo pretty far out of it's efficiency range?
That depends on the efficiency of the individual turbo, doesn't it? What it can flow is what it can flow. In which case, I'd guess that Point A is a better reference to what the turbo is actually doing. There's your efficiency reference. Intake temps are probably a better way to observe what the turbo is doin, as inefficient turbos start making lots of heat.
oilstain is offline   Reply With Quote
Old 05-18-2010, 10:51 PM   #31
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

FRT, If you have a large enough intercooler you won't experience as much pressure drop across it at higher flow rates and your turbo won't be as likely to be out of its efficiency range. One of the problems I see is that people often use intercoolers that are sized for little peashooter turbos and 5 to 8psi factory turbo setups instead of the flow rates they actually aspire to run. One should aim for both great IATs and low pressure drop by going large if you really are trying to maximize your efforts. Ideally the air coming out of your intercooler should be as close to ambient temperature as possible. It is hard to do that with a tiny intercooler.
sixshooter is online now   Reply With Quote
Old 05-18-2010, 10:52 PM   #32
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

+1 for a video release.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-18-2010, 11:41 PM   #33
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

I really think Joe is thinking of a way to direct his next video...."hmmm, what would be the appropriate beer for this......"

Fantastic writing as usual
TonyV is offline   Reply With Quote
Old 05-19-2010, 01:16 AM   #34
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

I think this video should have a snuff film kinda vibe. Its time to break out the gimp mask Joe
leatherface24 is offline   Reply With Quote
Old 05-19-2010, 11:39 AM   #35
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

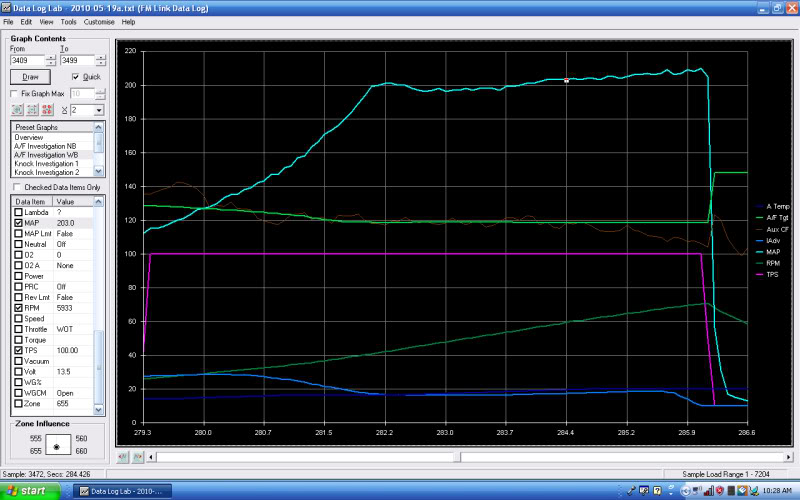

There's a log of mine with the source right before the TB
2-3kpa difference all the way though Name:  map.jpg
Views: 83
Size:  80.5 KB
miataspeed2005 is offline   Reply With Quote
Old 05-21-2010, 12:09 AM   #36
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Does this same theory apply to external wastegates as well as internal? If i'm not having such problem of boost falling off before the redline should I change? I simply have my MBC spliced in the middle of the boost signal from the compressor to the bottom wastegate nipple.
na8psi is offline   Reply With Quote
Old 05-21-2010, 01:10 AM   #37
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

<Noob question>

"Using all-silicone tube? (***.) Well, just drill a hole in the colid-side end tank of the IC itself. Anywhere is fine so long as it's after the IC core, and before the throttle body."

Why a different place for silicone? Should one use Vac line another type instead?

</Noob Question>
Oni is offline   Reply With Quote
Old 05-21-2010, 01:43 AM   #38
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by Oni View Post
<Noob question>

"Using all-silicone tube? (***.) Well, just drill a hole in the colid-side end tank of the IC itself. Anywhere is fine so long as it's after the IC core, and before the throttle body."

Why a different place for silicone? Should one use Vac line another type instead?

</Noob Question>
He is referring to people that have the majority of their intercooler piping being made up of silicone pieces instead of hard pipes. In that case, you cant essentially drill and tap silicone.
na8psi is offline   Reply With Quote
Old 05-21-2010, 02:20 AM   #39
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Thanks for clearing that up, im a retard, i was thinking of the actual signal line .
Oni is offline   Reply With Quote
Old 05-21-2010, 07:16 AM   #40
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Excellent write-up, love the pics too. I would have gone with more of a Barney and friends theme though. Since this site is all about sharing the Love.
seraph is offline   Reply With Quote
