Old 01-22-2012, 01:47 PM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 01-22-2012, 01:54 PM   #22
Newb
Thread Starter

Join Date: Jan 2012
Location: bum***k Afghanistan
Posts: 22
Total Cats: 2
Default

Oohhhh I get it now.
Mturbo is offline   Reply With Quote
Old 01-22-2012, 01:54 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

the one on the left looks better
18psi is offline   Reply With Quote
Old 01-22-2012, 01:59 PM   #24
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

That looks like fun. Let me try:



vs.

hornetball is online now   Reply With Quote
Old 01-22-2012, 01:59 PM   #25
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Where is the BOV on this thing? I bet that is the issue as it isn't recirculating, so it's F'n with the MAF causing it to run like $hit.
thirdgen is offline   Reply With Quote
Old 01-22-2012, 02:02 PM   #26
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

HornetBall...that photo is a great example of a BOV recirculating to compressor inlet...
However...
Are you seriously running a nonintercooled setup?
thirdgen is offline   Reply With Quote
Old 01-22-2012, 02:07 PM   #27
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Hornetball like a bauce.
hustler is offline   Reply With Quote
Old 01-22-2012, 02:10 PM   #28
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by thirdgen View Post
Are you seriously running a nonintercooled setup?
I just saw the WI unit...
thirdgen is offline   Reply With Quote
Old 01-22-2012, 02:45 PM   #29
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I'm running with WI and no IC for now. That will probably change in the future. For a lower-powered build (running about 9psi and 180HP right now), there are some pros to going this way. It is a safe build. Have put 12,000 miles on it pretty much without issue, including the hottest Texas Summer since 1930.

Really, I think what we're trying to get across to OP is the importance of quality and craftsmanship. It's not just for looks . . . it's for reliability. T-bolt clamps, adel clamps, pipe beads, carefully thought-out routings, quality wiring, heat protection, etc., etc.
hornetball is online now   Reply With Quote
Old 01-22-2012, 02:50 PM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

basically not making your engine bay look like "snakes on a plane"
18psi is offline   Reply With Quote
Old 01-22-2012, 03:11 PM   #31
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Yeah, I'd add at least 8" of pipe between the maf and compressor inlet.
Properly wire in the injectors.
Mount the coilpacks. They like to be grounded.
Get a manual boost controller.
Don't let your brother drive it anymore.
Go over all the IC clamps and make sure you've got a nice airtight seal.
I really hope that your wastegate actuator is not mounted to the turbo with zipties. But if it is, fix that too.

Turn down the boost to like 5-6psi, get it running good and slowly turn it up while paying careful attention to your CALIBRATED wideband sensor and add fuel/pull timing in small increments. Better yet, spend the money on a dyno tune.

Again, tell your brother to stop driving it or you'll do some nasty marine type ---- to him when you get home. The next time your car sees 20psi will most likely be last time your car sees 20psi.

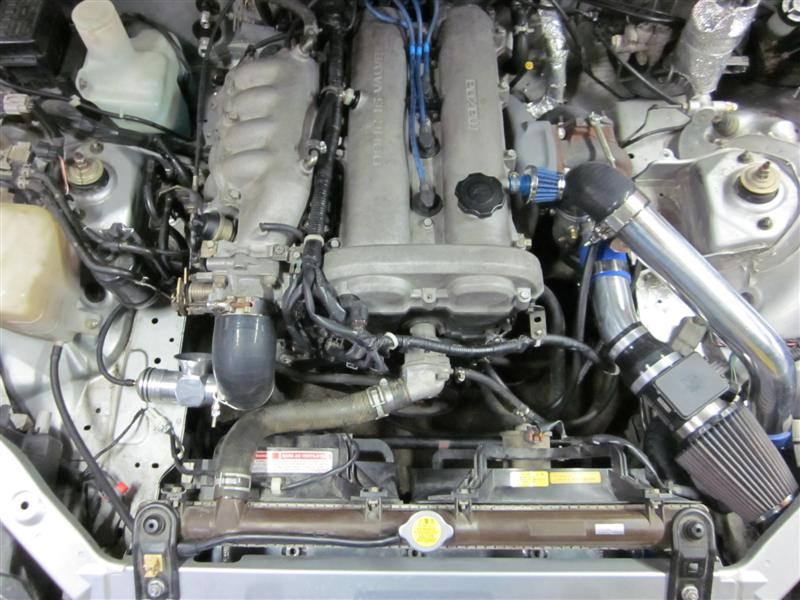

This intake setup worked for me. It got rid of most of the idle droop issues I was having.
Attached Thumbnails
boosted Miata dies, often.-img_0037-medium-.jpg

Last edited by flounder; 01-22-2012 at 03:58 PM.
flounder is offline   Reply With Quote
Old 01-22-2012, 03:16 PM   #32
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

/\ follow those instructions to the tee
seriously
18psi is offline   Reply With Quote
Old 01-22-2012, 05:04 PM   #33
Newb
Thread Starter

Join Date: Jan 2012
Location: bum***k Afghanistan
Posts: 22
Total Cats: 2
Default

ok, working on it today, thanks for all the help.
Mturbo is offline   Reply With Quote
Old 01-22-2012, 07:09 PM   #34
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by Mturbo View Post
OK I don't have anything constructive to add, but did anyone else notice the household eletrical connectors (blue) near the fuel rail? I would be tempted to rip everything out and start over...
dustinb is offline   Reply With Quote
Old 01-22-2012, 07:25 PM   #35
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Yea I was going to mention that I hope there are no fuel leaks. There is no way that made 20psi with the cold? side pipe having no clamps. Judging by how close the IC pipes are where the IC should be, it can't be a very big intercooler. Also I too am wondering, does this thing have any sort of bypass valve?
FRT_Fun is offline   Reply With Quote
Old 01-22-2012, 07:26 PM   #36
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by FRT_Fun View Post
Yea I was going to mention that I hope there are no fuel leaks. There is no way that made 20psi with the cold? side pipe having no clamps.
Are you certain it's even a cold side pipe? Every time I start thinking I've figured out wtf they did with the engine bay, I realize I really have no clue.
blaen99 is offline   Reply With Quote
Old 01-22-2012, 07:27 PM   #37
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Never mind.
hornetball is online now   Reply With Quote
Old 01-22-2012, 07:28 PM   #38
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by hornetball View Post
What about the silicone joiner to the throttle body without a clamp?

You know, picking apart this picture would make a pretty good game.
Post in Insert BS, let's go Hornetball!

And as a bonus, the OP gets to learn!
blaen99 is offline   Reply With Quote
Old 01-22-2012, 07:29 PM   #39
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by blaen99 View Post
Are you certain it's even a cold side pipe? Every time I start thinking I've figured out wtf they did with the engine bay, I realize I really have no clue.
lul that is why I had a question mark after it.
FRT_Fun is offline   Reply With Quote
Old 01-22-2012, 08:04 PM   #40
Newb
Thread Starter

Join Date: Jan 2012
Location: bum***k Afghanistan
Posts: 22
Total Cats: 2
Default

Quote:
Originally Posted by blaen99 View Post
Post in Insert BS, let's go Hornetball!

And as a bonus, the OP gets to learn!
There is a clamp on the cold side its just hard to see in the picture. yeah and anything you guys can do to teach me id be appreciative, even if its a game. I'm going to make it all work, as apposed to scraping it and starting over, and im sure its going to be work, but Im all about learning new things.
Mturbo is offline   Reply With Quote
